1. Keishin Yokomaku (@KeithYokoma) / Drivemode, Inc. Base64 in Android
2. About me • Keishin Yokomaku - @KeithYokoma • GitHub / X / Stack Over fl ow • Drivemode, Inc. / Engineer

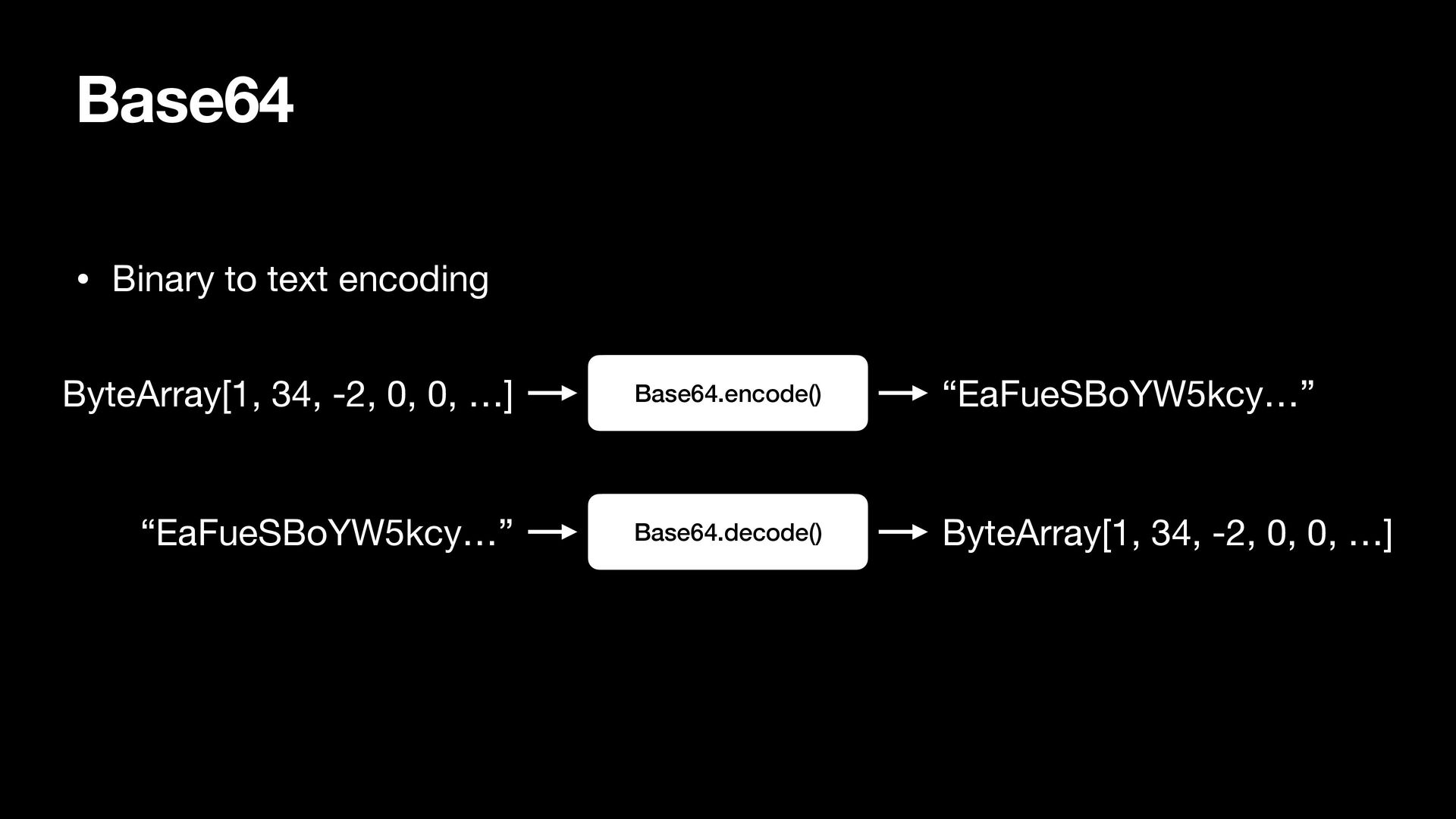

3. Base64 • Binary to text encoding Base64.encode() Base64.decode() ByteArray[1, 34, -2, 0, 0, …] “EaFueSBoYW5kcy…” ByteArray[1, 34, -2, 0, 0, …] “EaFueSBoYW5kcy…”

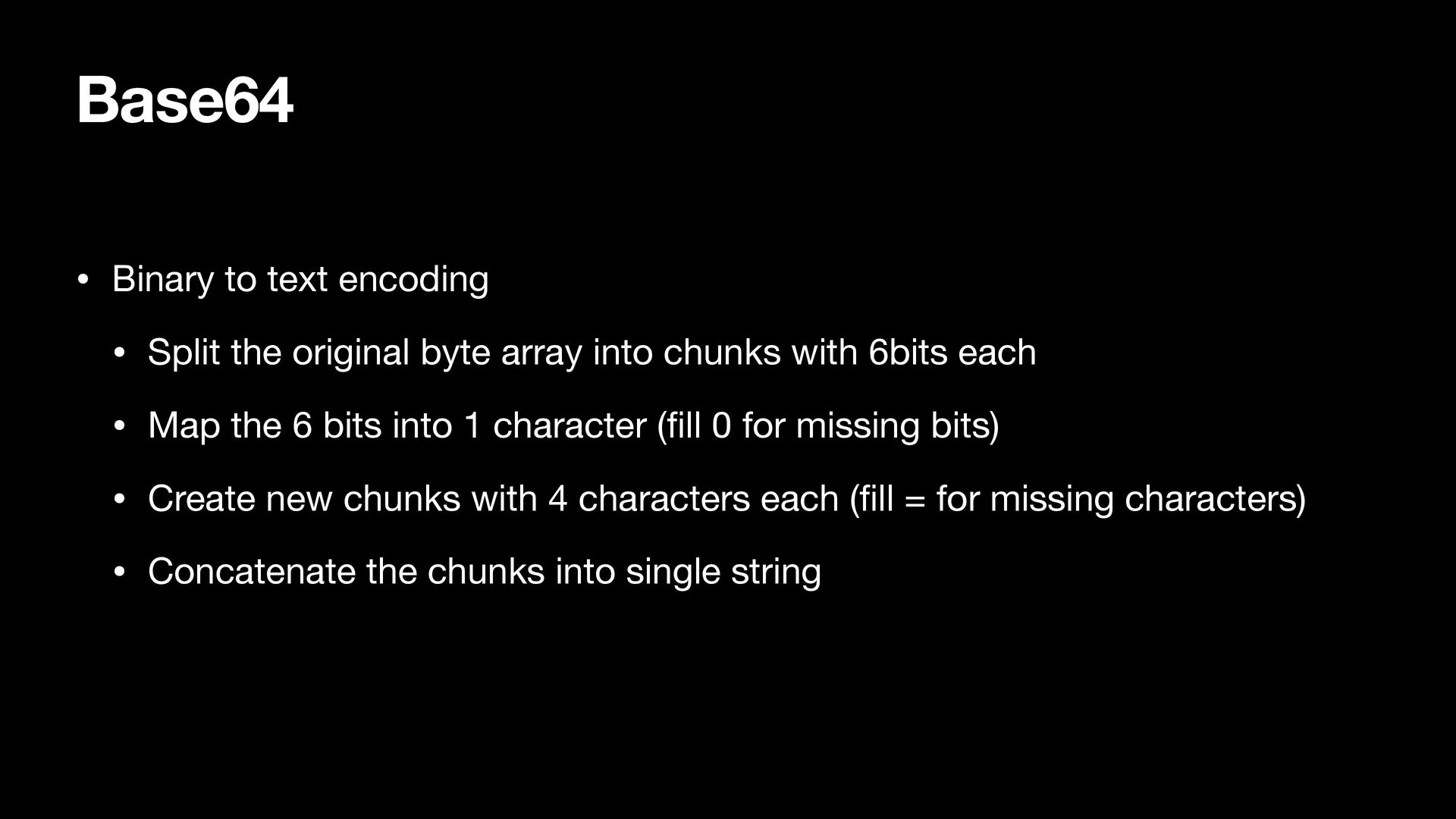

4. Base64 • Binary to text encoding • Split the original byte array into chunks with 6bits each • Map the 6 bits into 1 character ( fi ll 0 for missing bits) • Create new chunks with 4 characters each ( fi ll = for missing characters) • Concatenate the chunks into single string

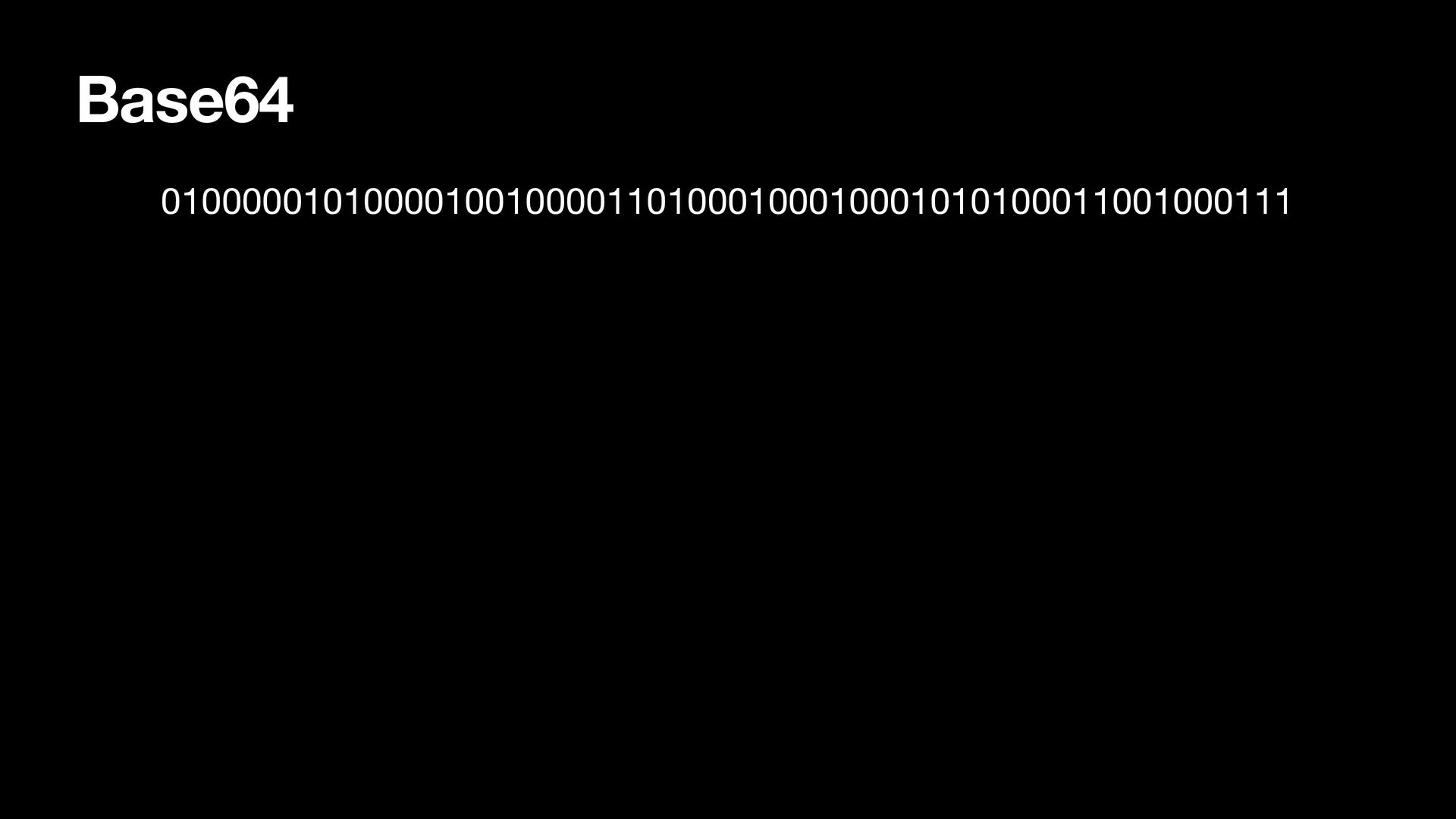

5. Base64 01000001010000100100001101000100010001010100011001000111

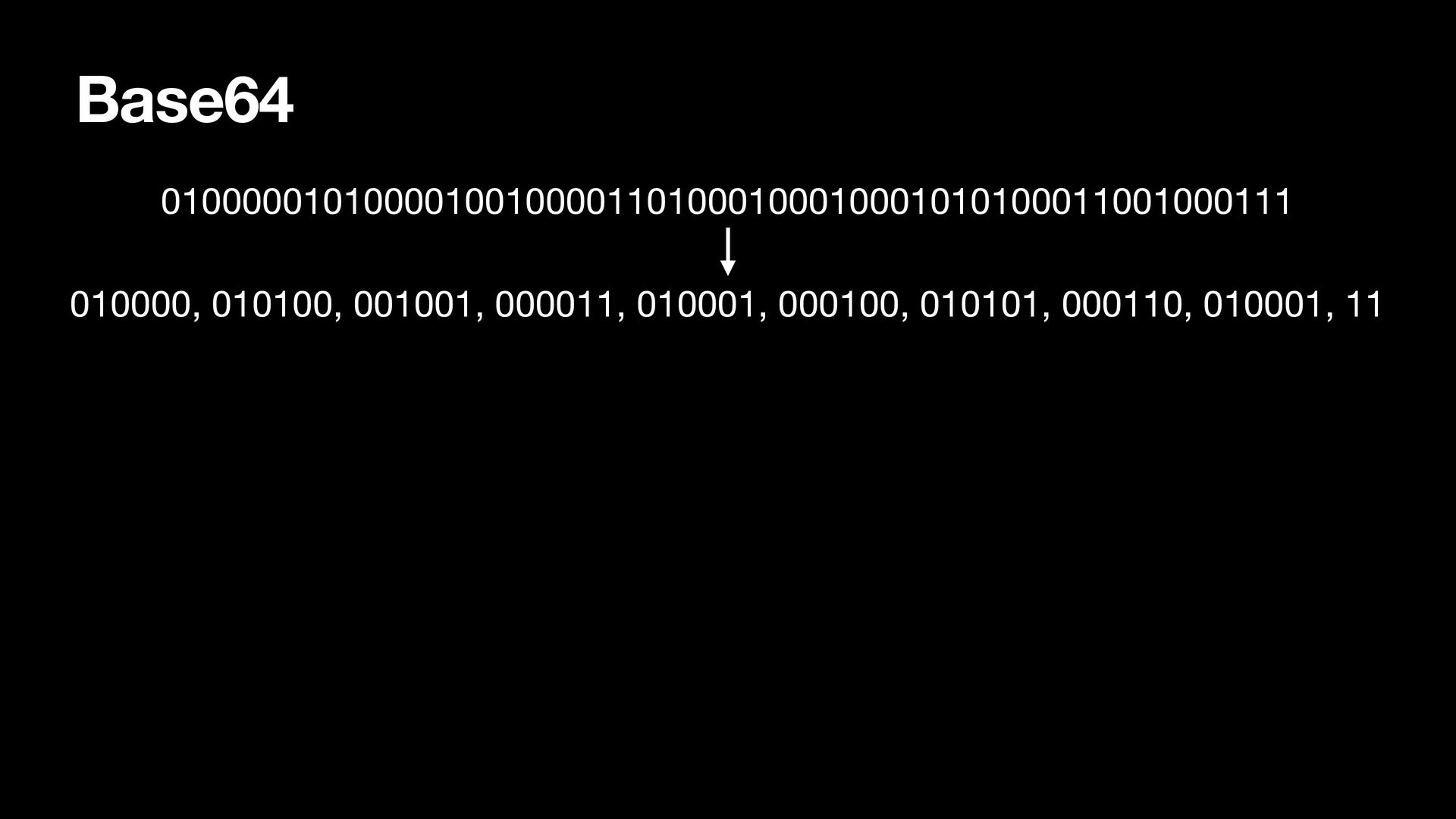

6. Base64 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 11 01000001010000100100001101000100010001010100011001000111

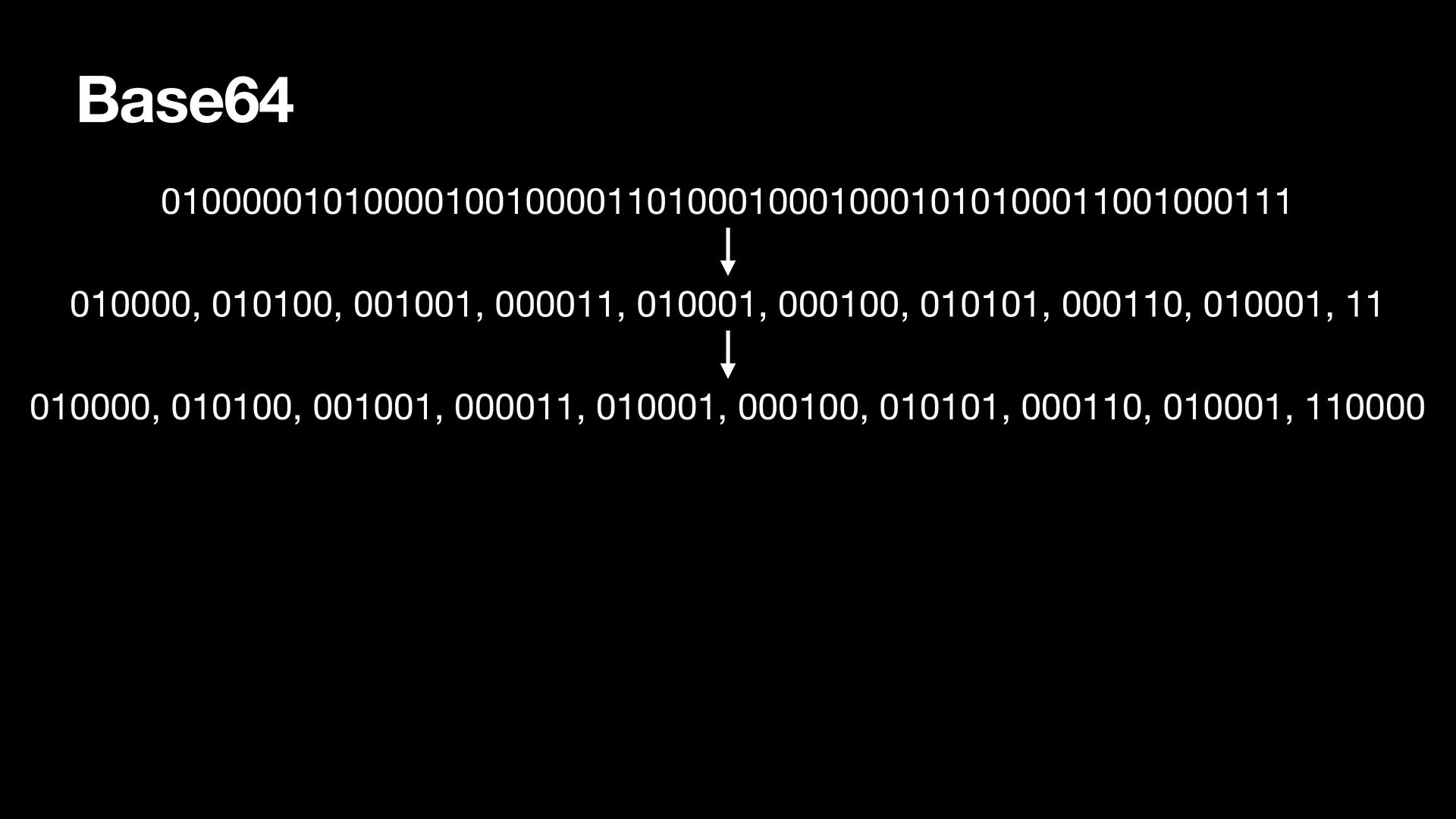

7. Base64 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 110000 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 11 01000001010000100100001101000100010001010100011001000111

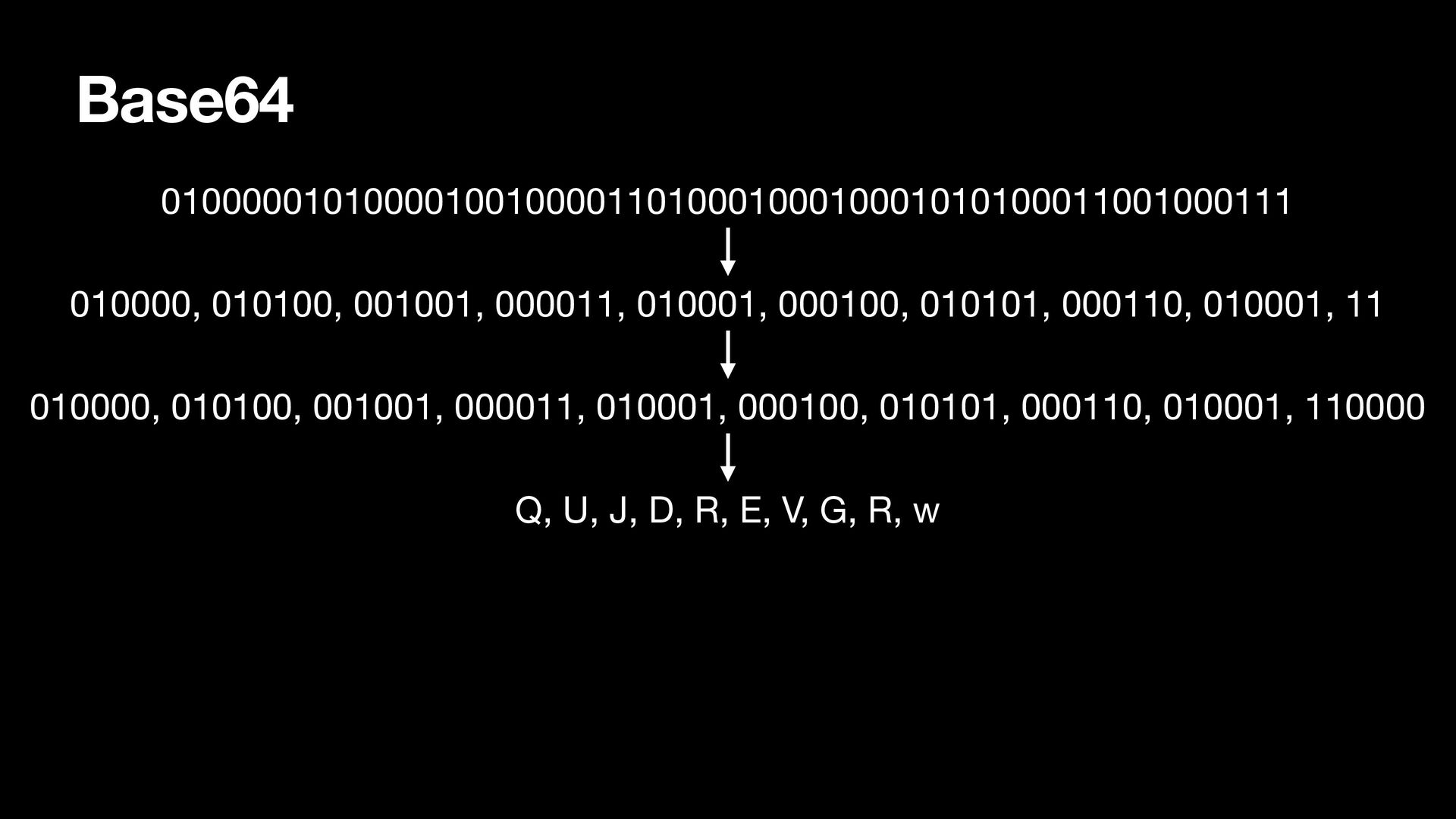

8. Base64 Q, U, J, D, R, E, V, G, R, w 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 110000 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 11 01000001010000100100001101000100010001010100011001000111

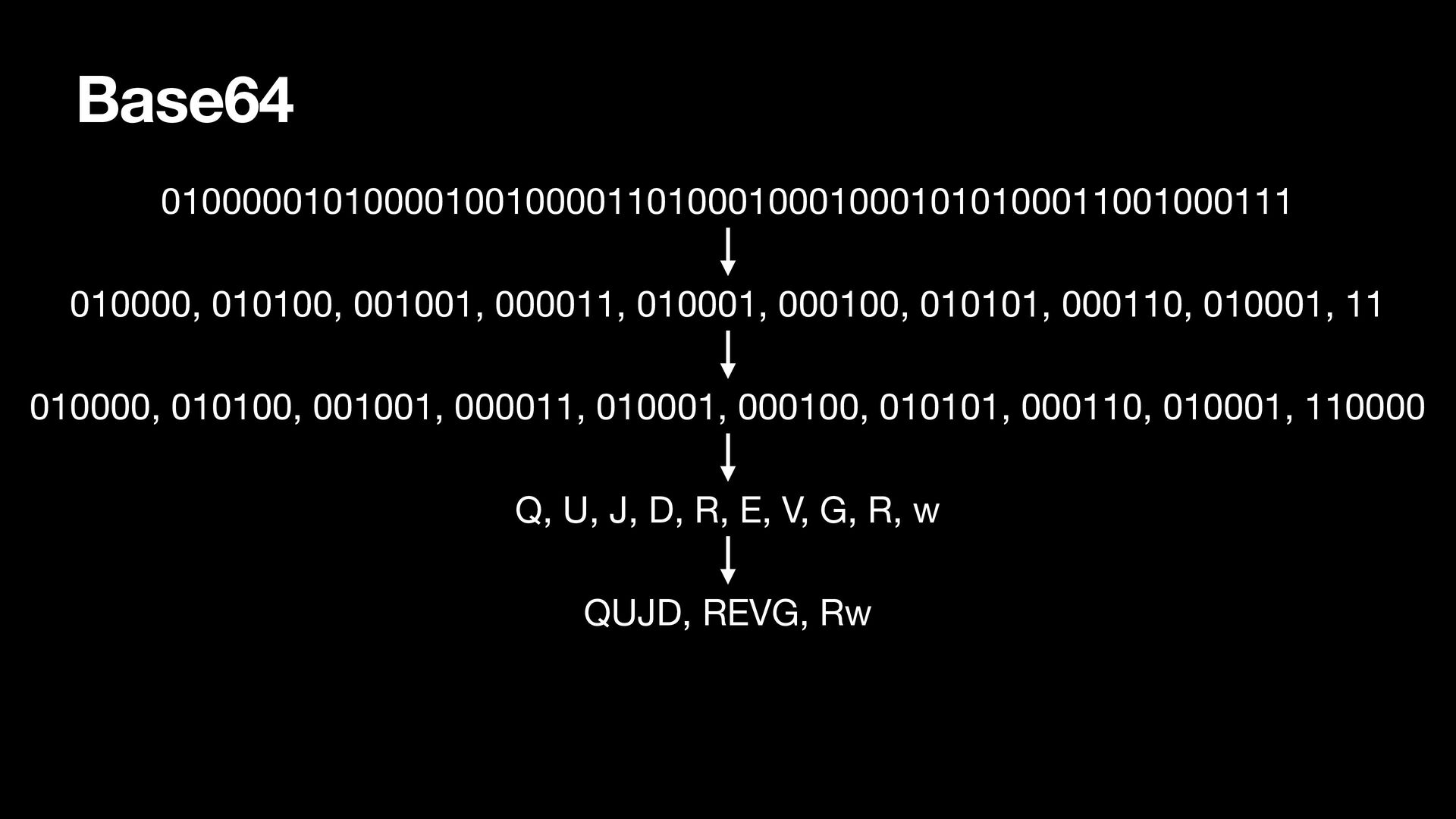

9. Base64 QUJD, REVG, Rw Q, U, J, D, R, E, V, G, R, w 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 110000 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 11 01000001010000100100001101000100010001010100011001000111
10. Base64 QUJD, REVG, Rw== QUJD, REVG, Rw Q, U, J, D, R, E, V, G, R, w 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 110000 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 11 01000001010000100100001101000100010001010100011001000111

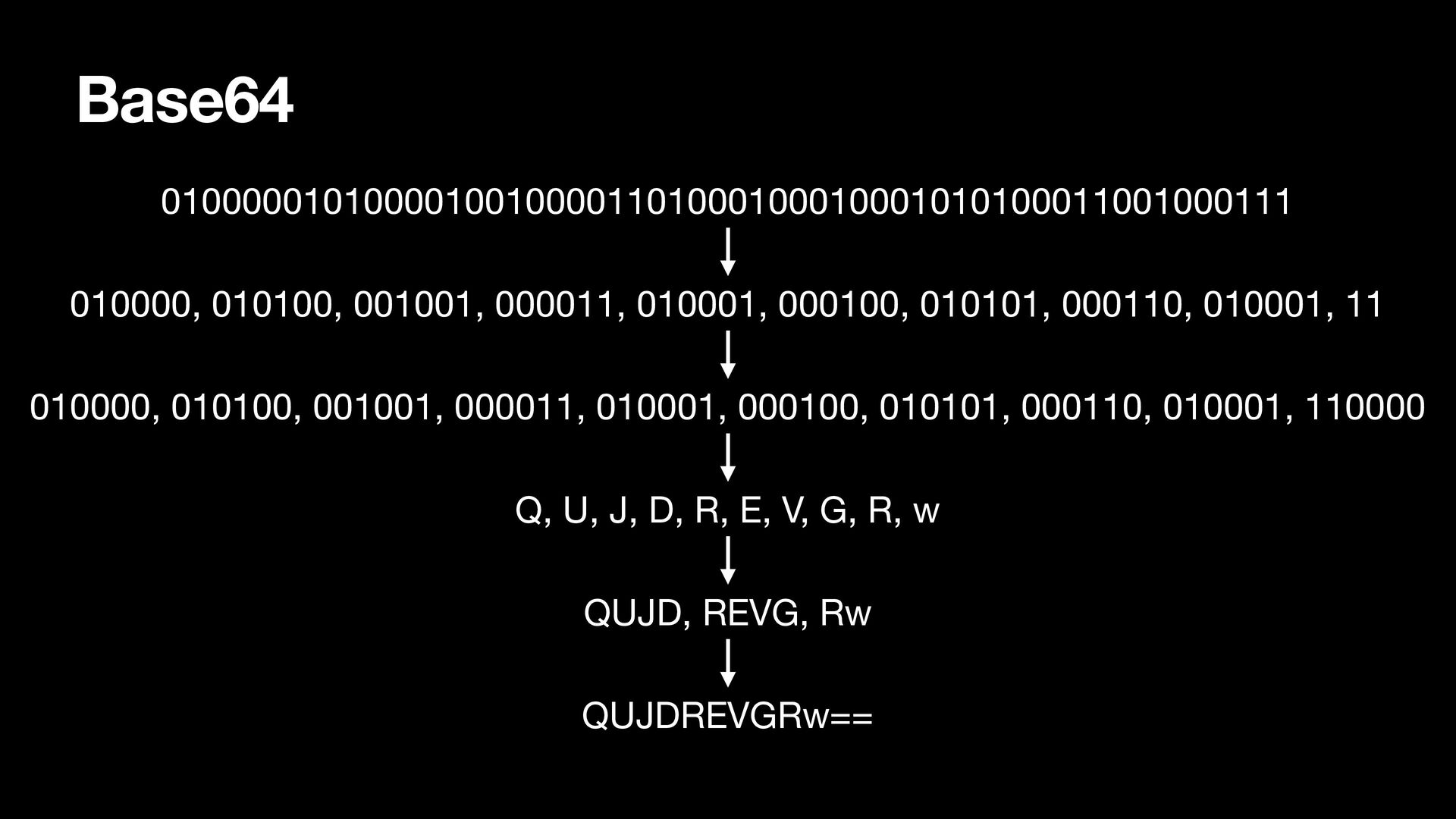

11. Base64 QUJDREVGRw== QUJD, REVG, Rw Q, U, J, D, R, E, V, G, R, w 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 110000 010000, 010100, 001001, 000011, 010001, 000100, 010101, 000110, 010001, 11 01000001010000100100001101000100010001010100011001000111

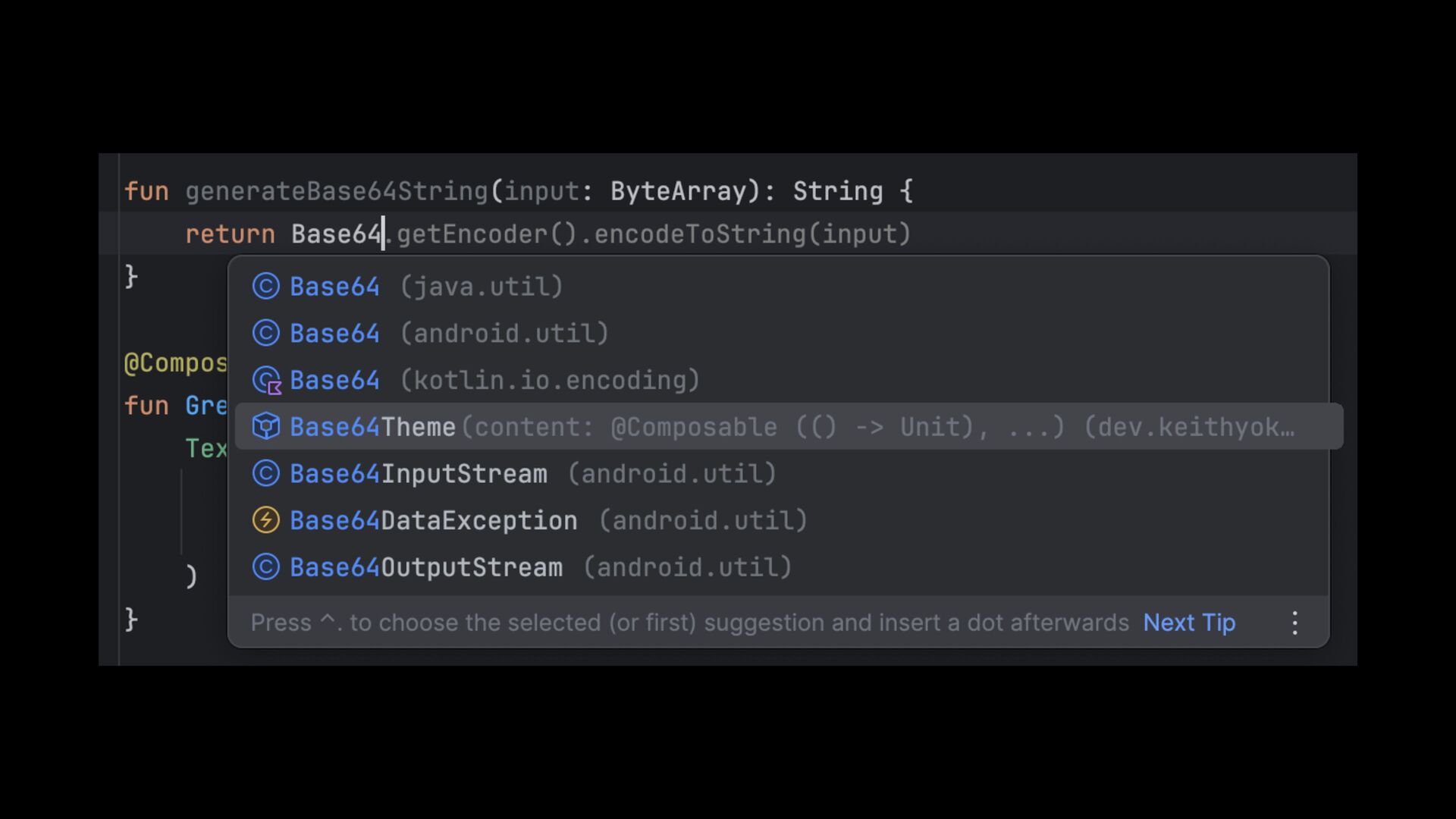

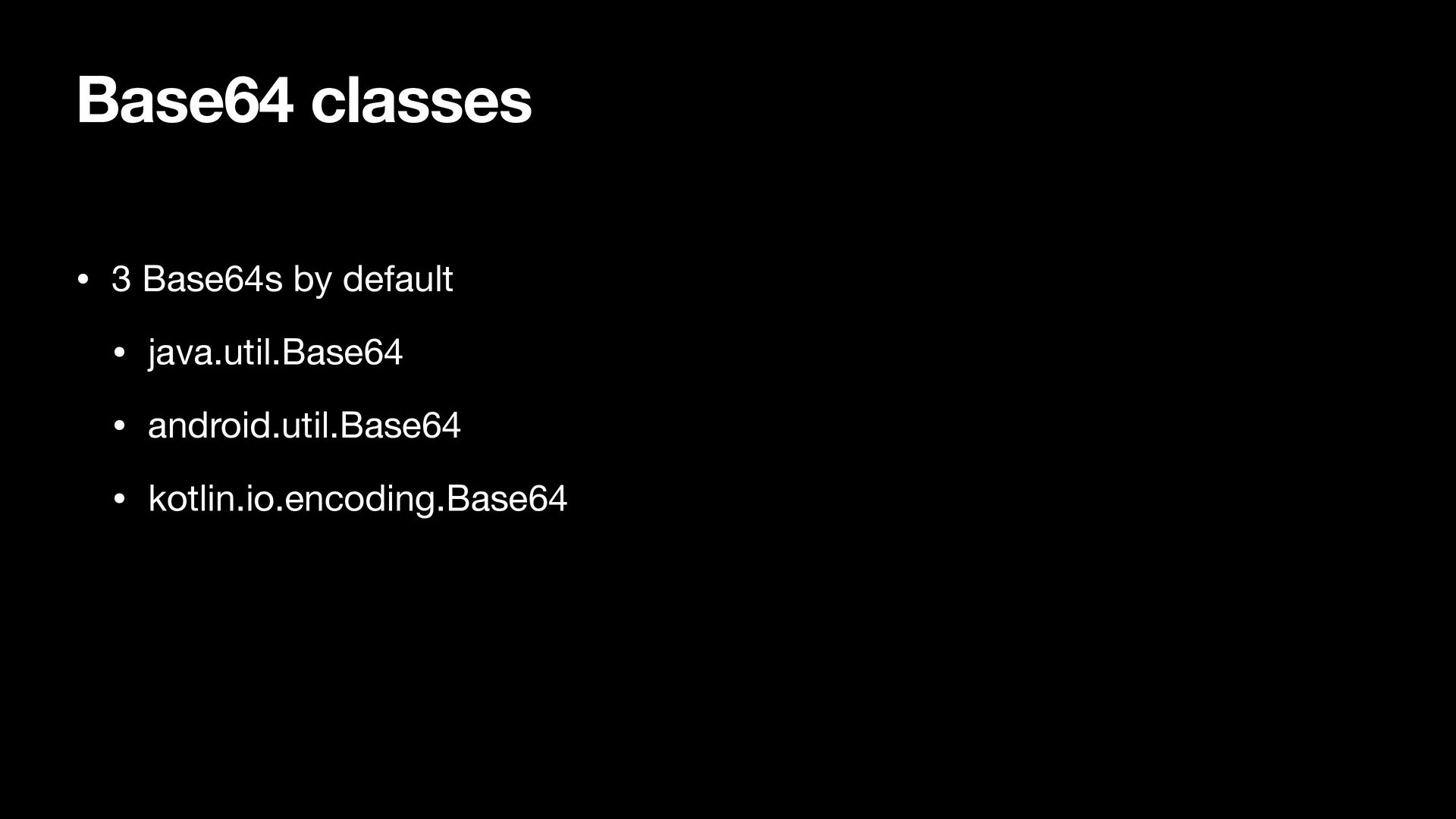

18. Base64 classes • 3 Base64s by default • java.util.Base64 • android.util.Base64 • kotlin.io.encoding.Base64

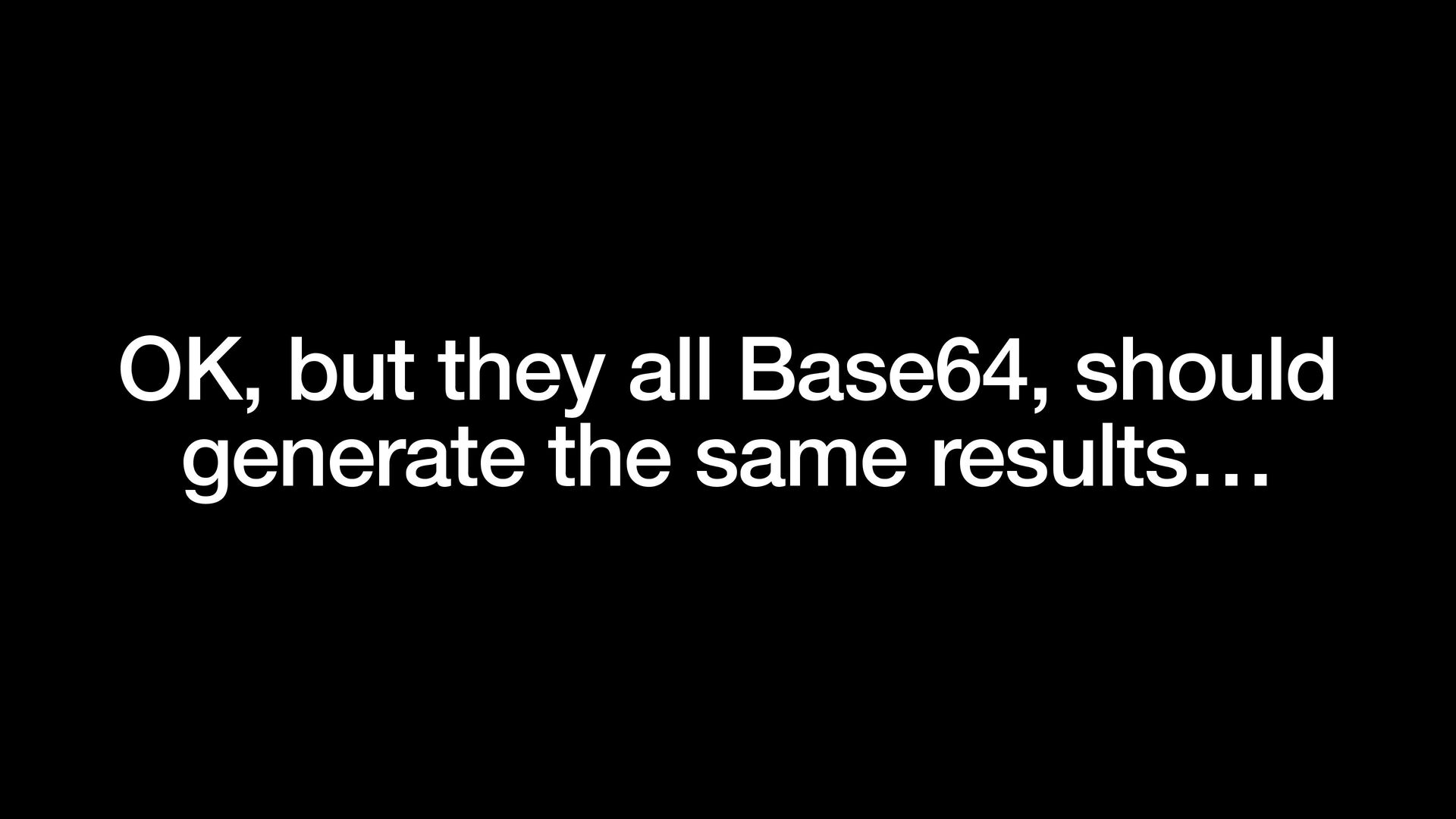

19. OK, but they all Base64, should generate the same results…

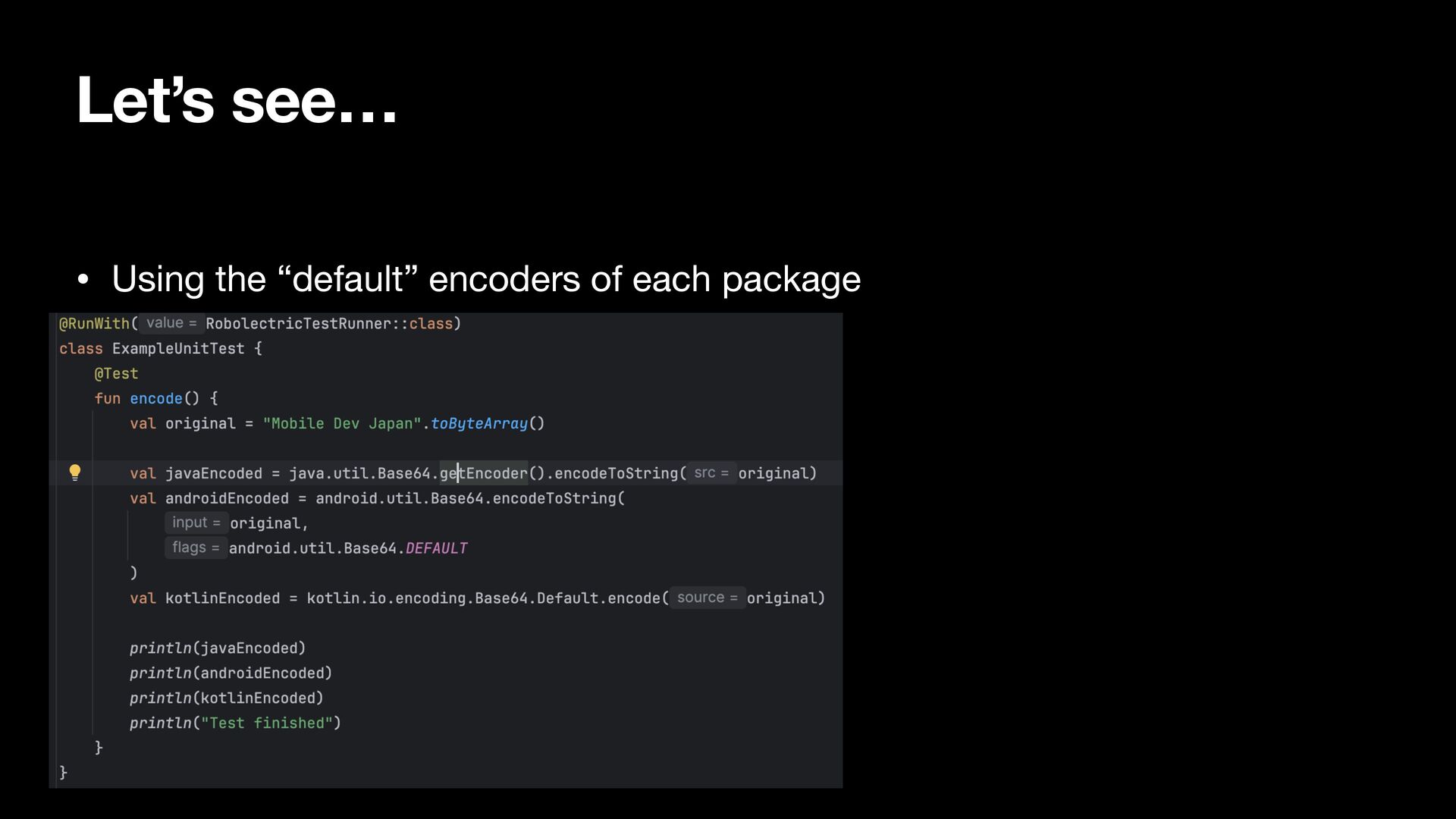

20. Let’s see… • Using the “default” encoders of each package

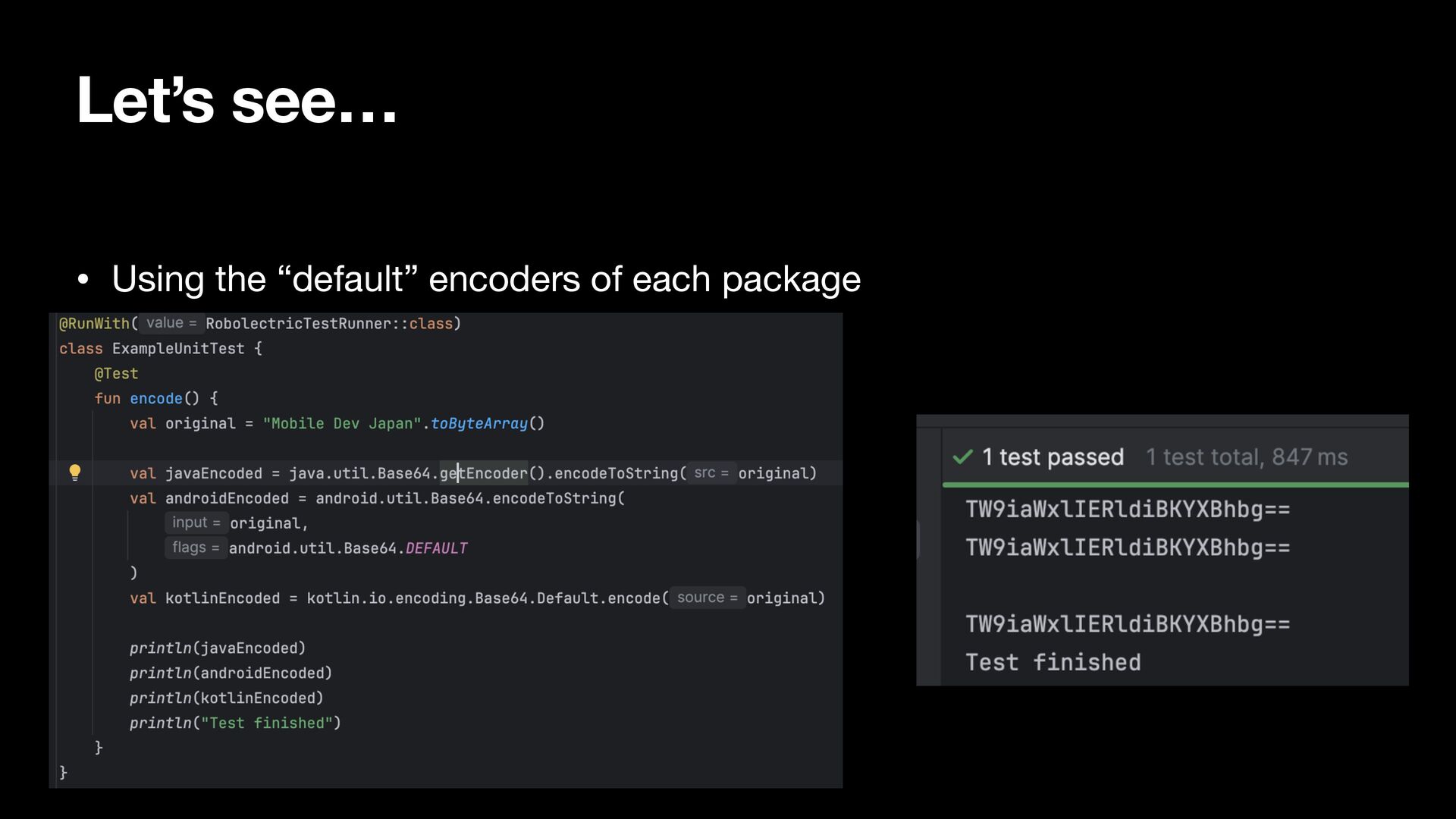

21. Let’s see… • Using the “default” encoders of each package

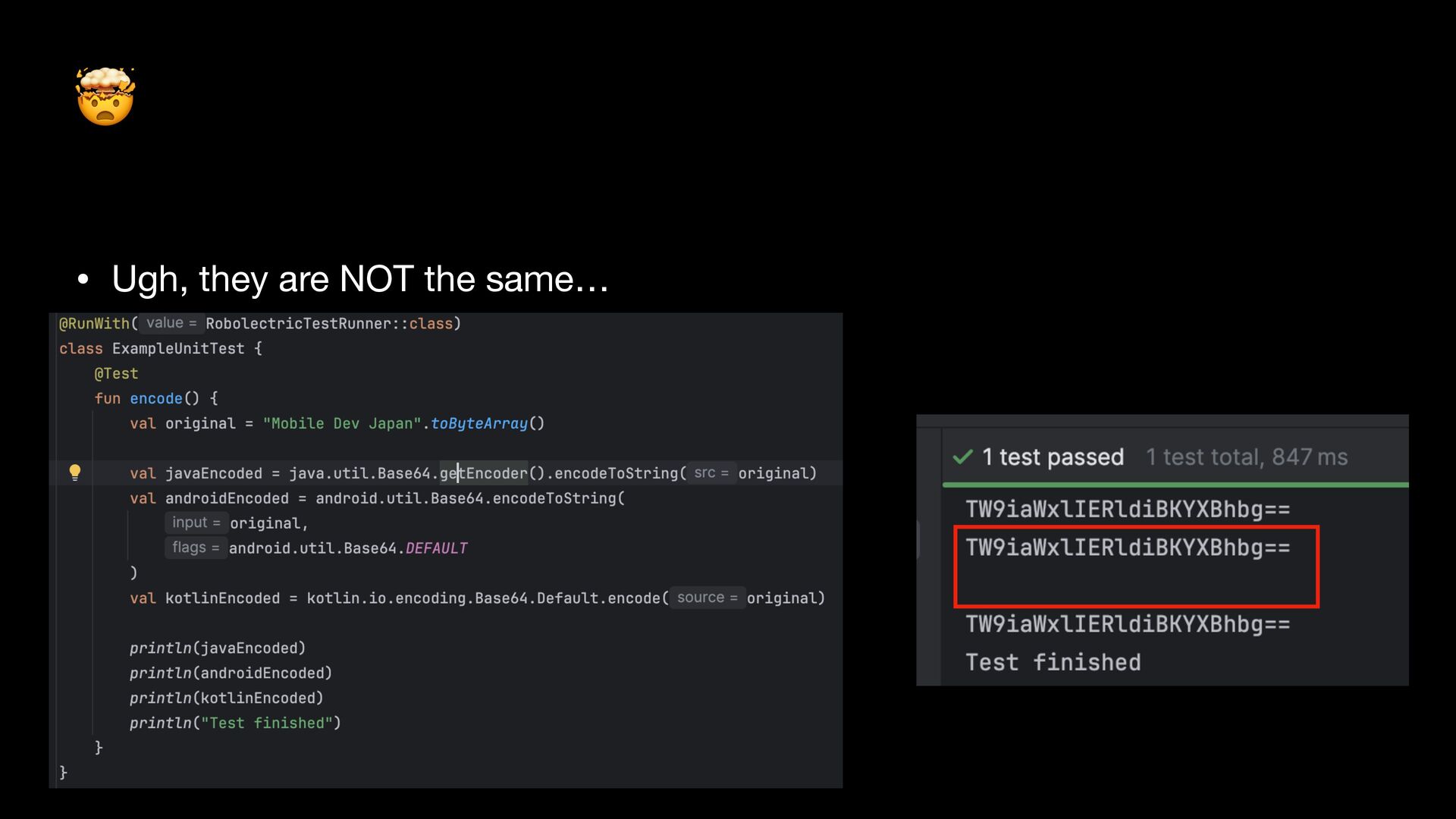

22. 🤯 • Ugh, they are NOT the same…
23. Why
24. Di ff erent RFCs for Base64 encoding • java.util.Base64 • RFC 4648 and RFC 2045 • android.util.Base64 • RFC 3548 and RFC 2045 • kotlin.io.encoding.Base64 • RFC 4648 and a few other RFCs

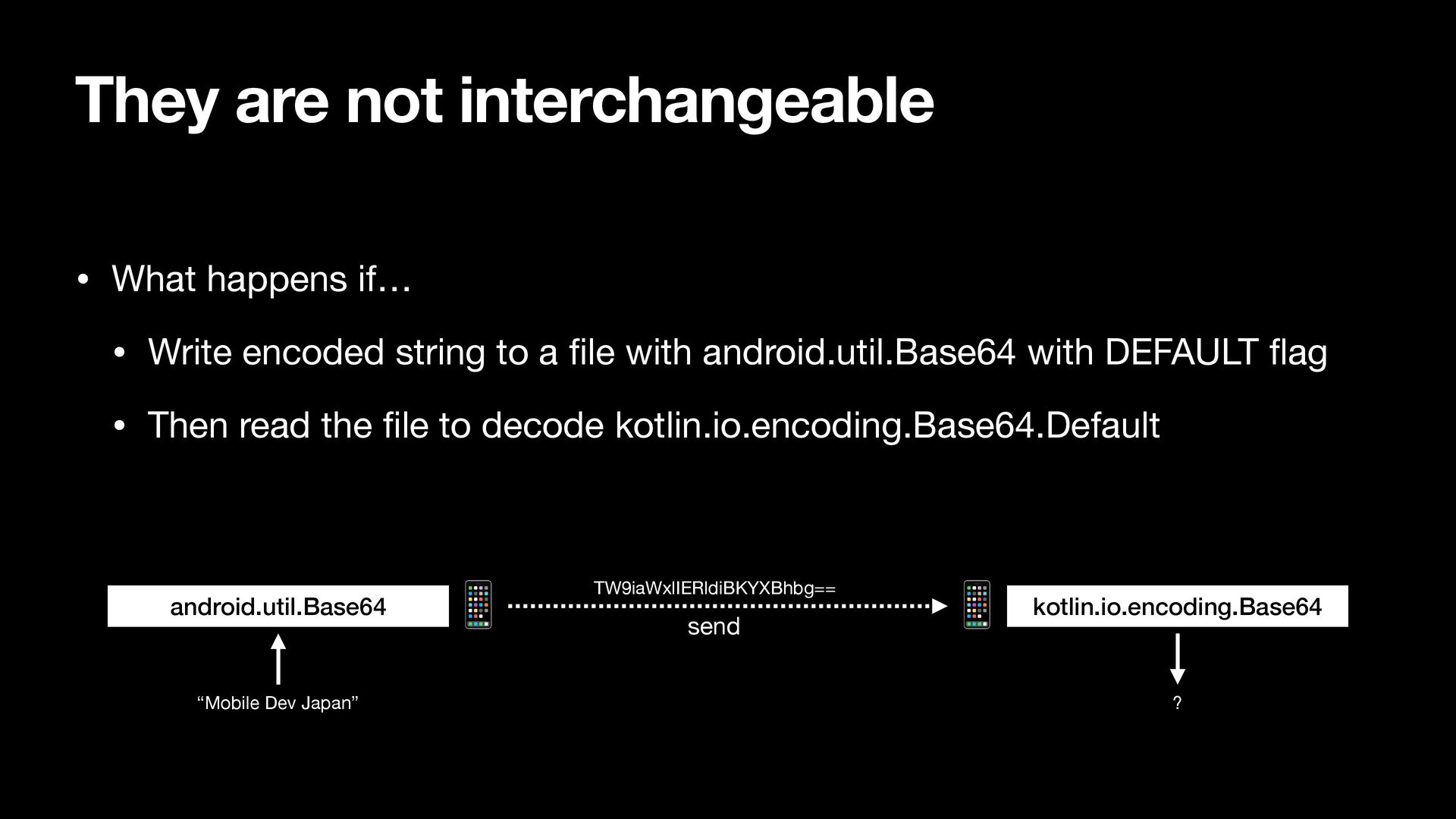

25. They are not interchangeable • What happens if… • Write encoded string to a fi le with android.util.Base64 with DEFAULT fl ag • Then read the fi le to decode kotlin.io.encoding.Base64.Default 📱 📱 android.util.Base64 kotlin.io.encoding.Base64 send TW9iaWxlIERldiBKYXBhbg== “Mobile Dev Japan” ?

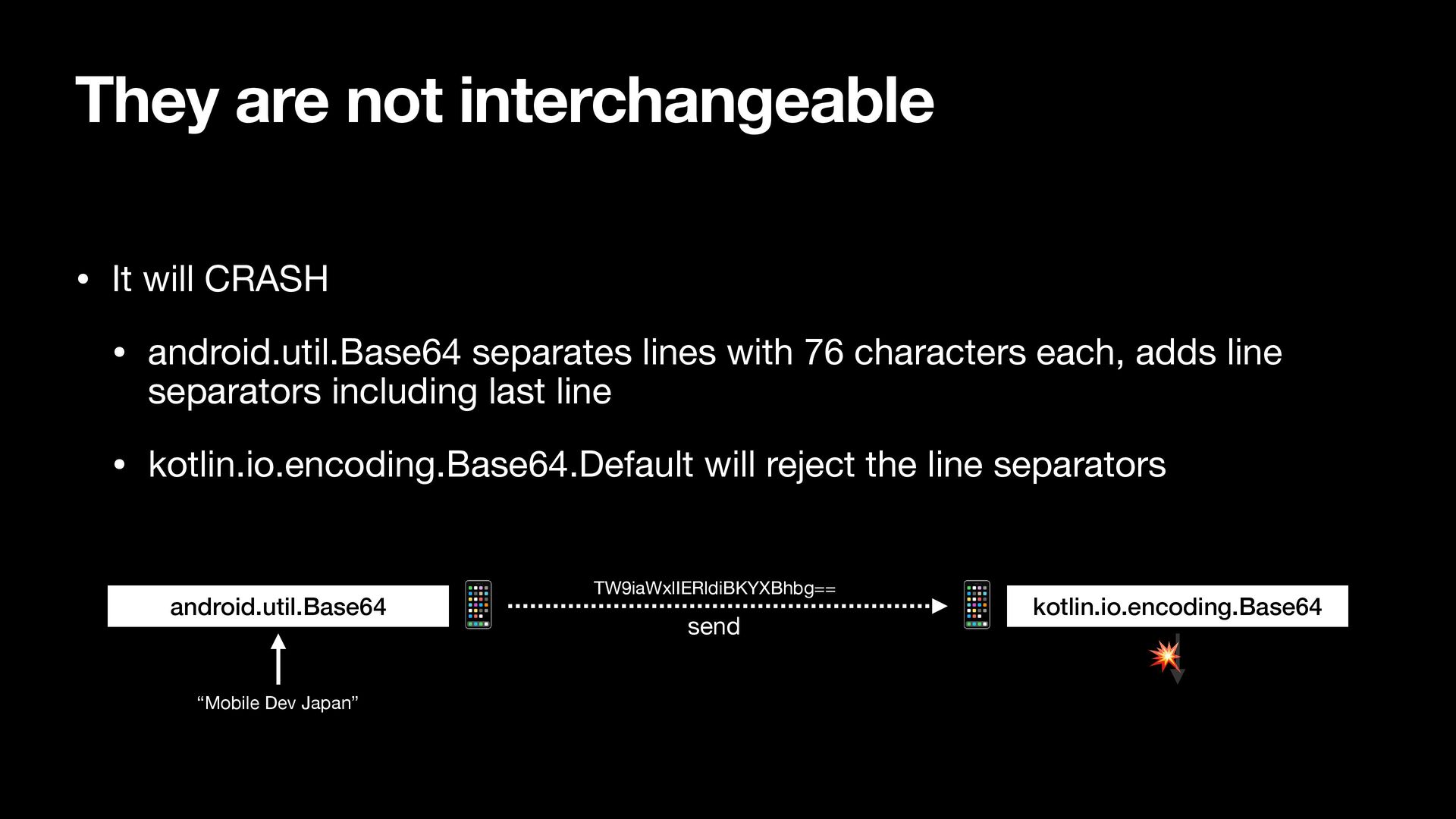

26. They are not interchangeable • It will CRASH • android.util.Base64 separates lines with 76 characters each, adds line separators including last line • kotlin.io.encoding.Base64.Default will reject the line separators 📱 📱 android.util.Base64 kotlin.io.encoding.Base64 send TW9iaWxlIERldiBKYXBhbg== “Mobile Dev Japan” 💥 “Mobile Dev Japan”

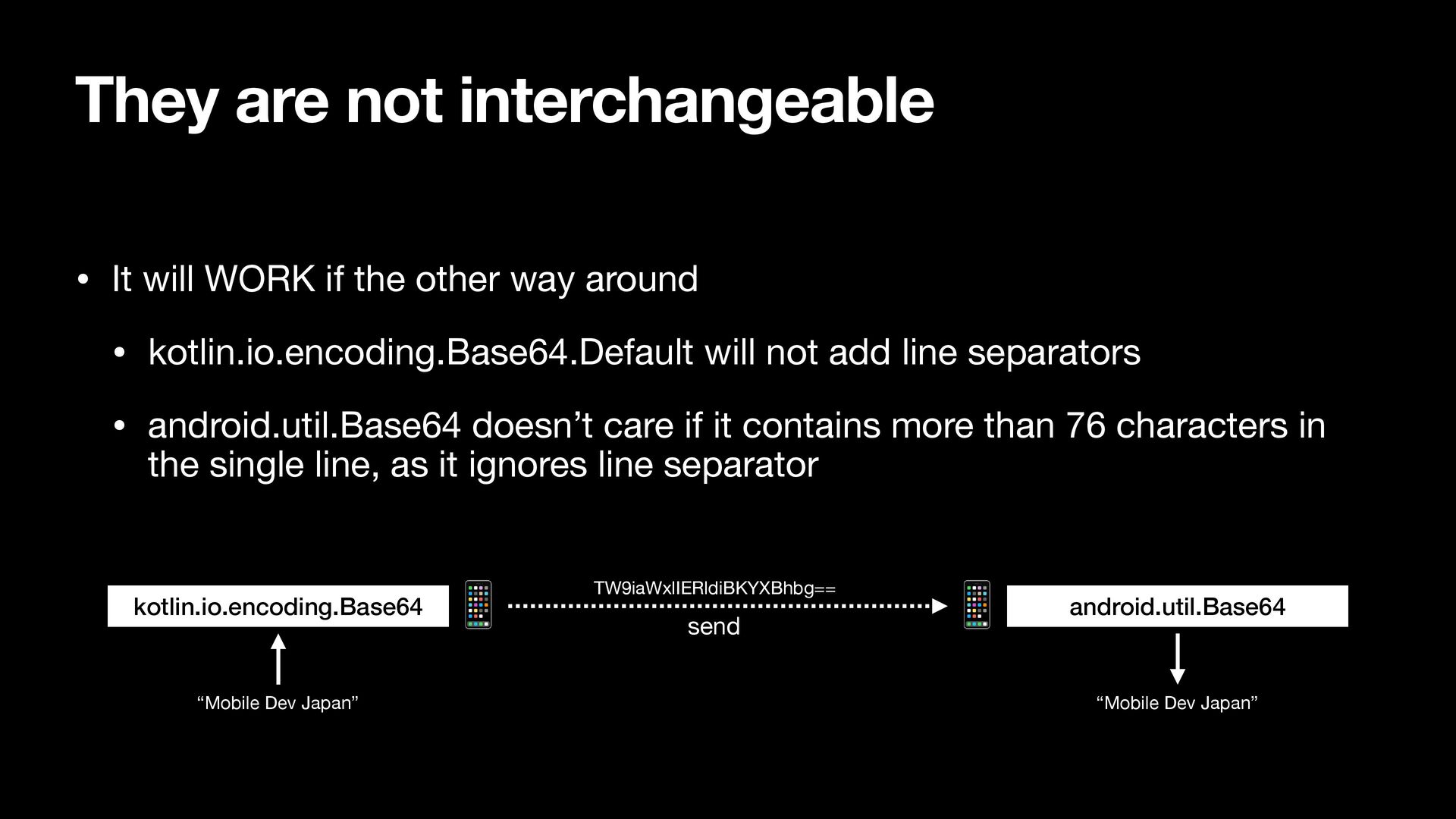

27. They are not interchangeable • It will WORK if the other way around • kotlin.io.encoding.Base64.Default will not add line separators • android.util.Base64 doesn’t care if it contains more than 76 characters in the single line, as it ignores line separator 📱 📱 kotlin.io.encoding.Base64 android.util.Base64 send TW9iaWxlIERldiBKYXBhbg== “Mobile Dev Japan” “Mobile Dev Japan”

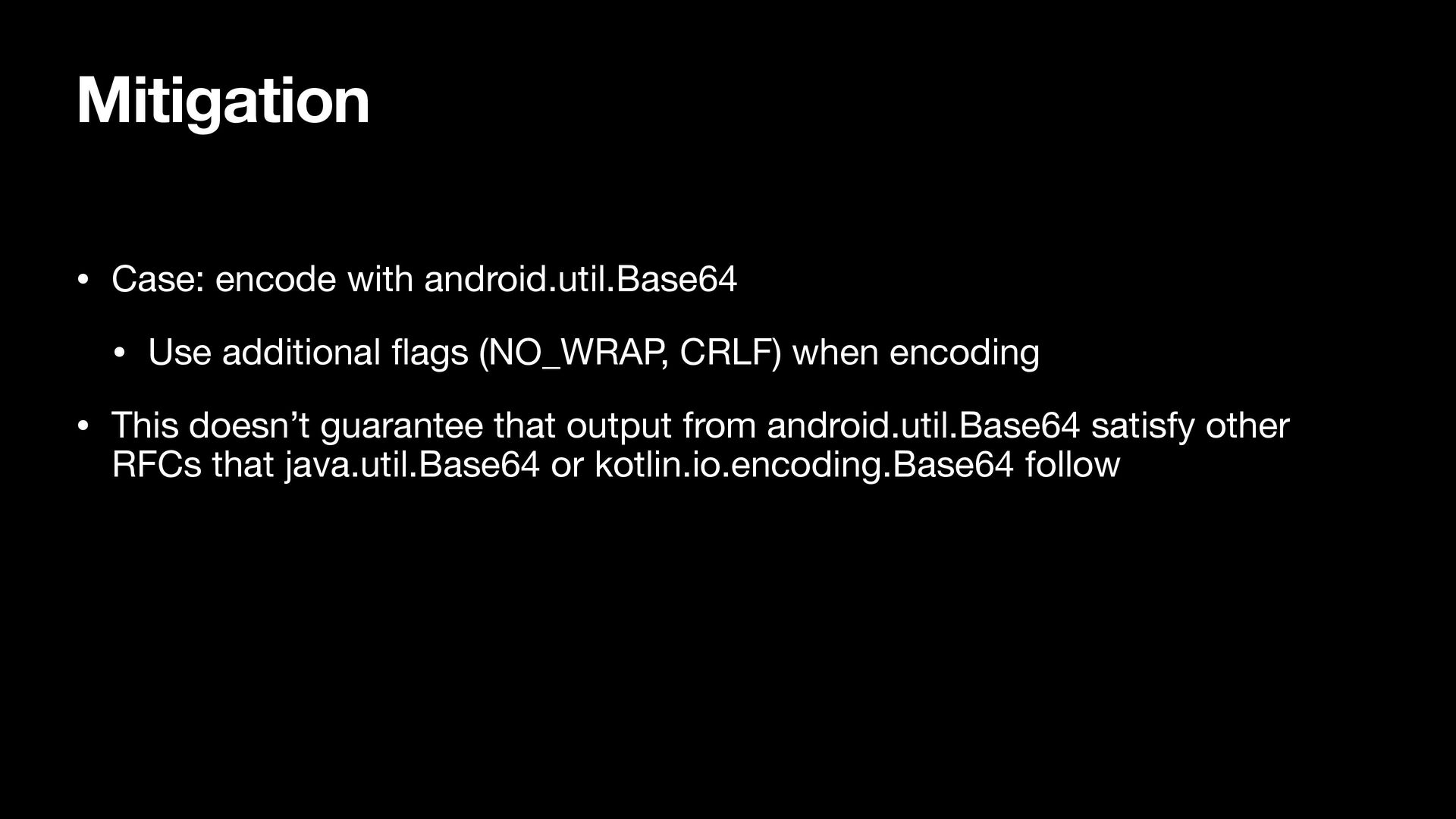

28. Mitigation • Case: encode with android.util.Base64 • Use additional fl ags (NO_WRAP, CRLF) when encoding • This doesn’t guarantee that output from android.util.Base64 satisfy other RFCs that java.util.Base64 or kotlin.io.encoding.Base64 follow

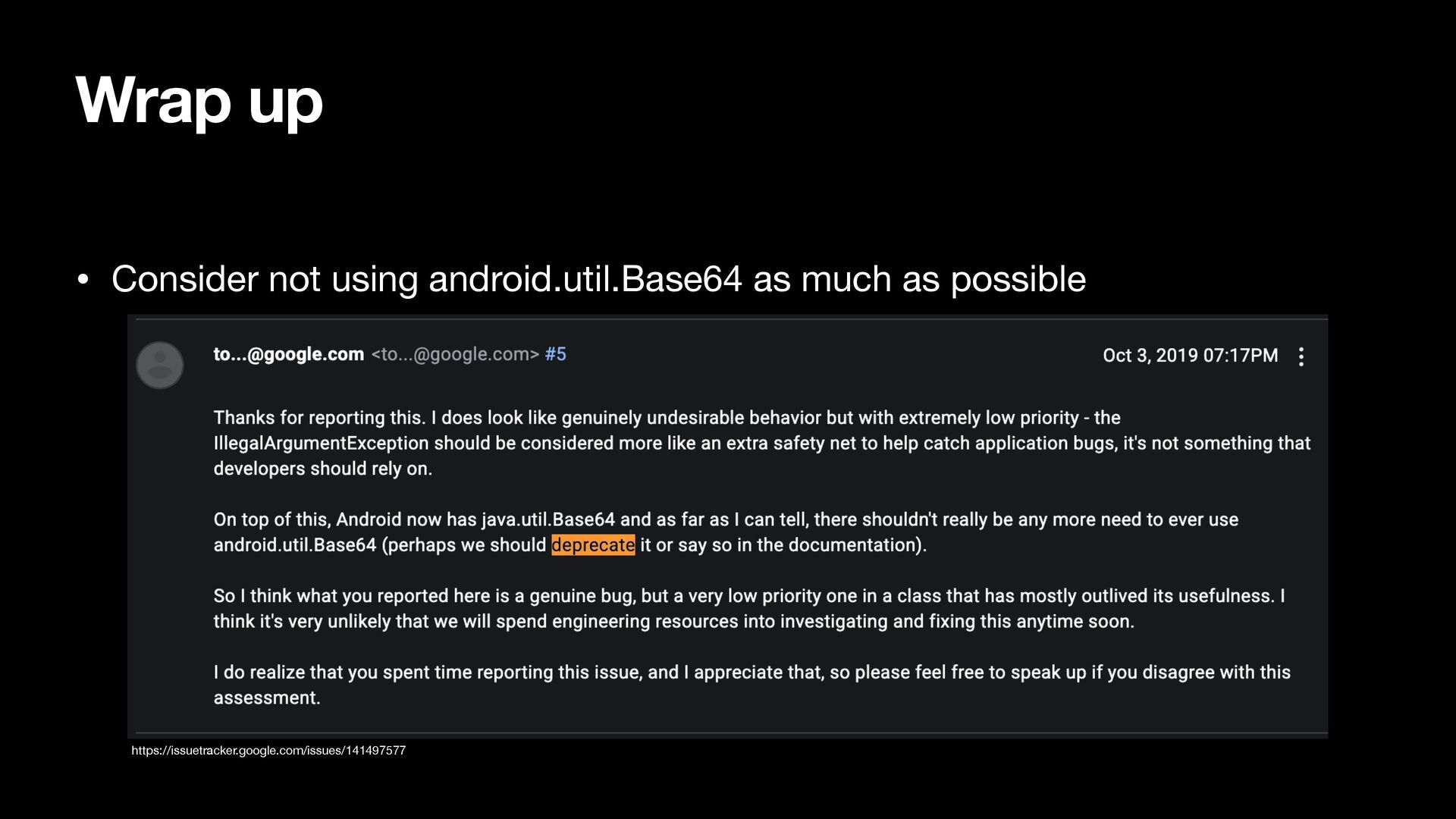

29. Wrap up • Consider not using android.util.Base64 as much as possible https://issuetracker.google.com/issues/141497577

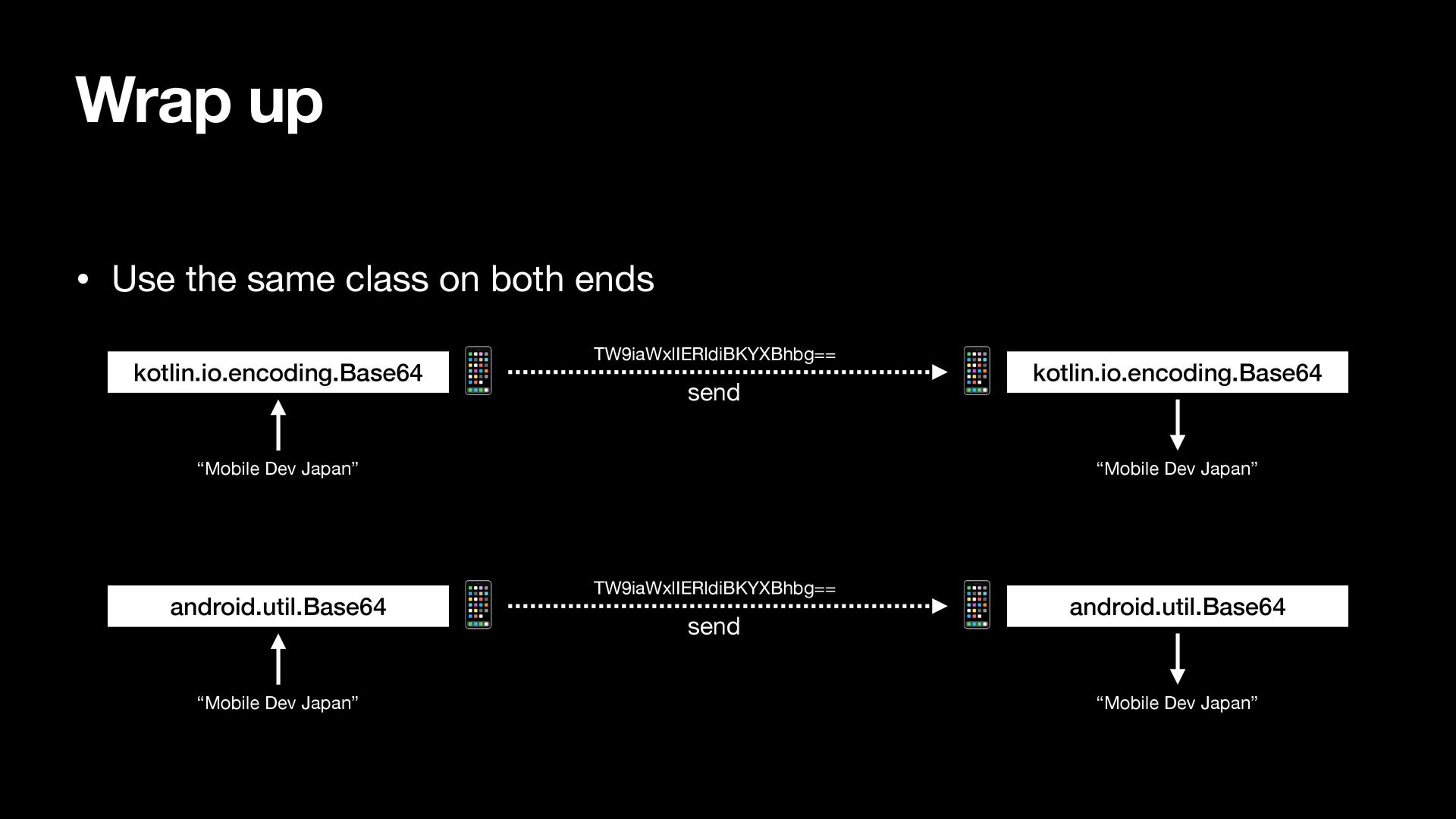

30. Wrap up • Use the same class on both ends 📱 📱 kotlin.io.encoding.Base64 kotlin.io.encoding.Base64 send TW9iaWxlIERldiBKYXBhbg== “Mobile Dev Japan” “Mobile Dev Japan” 📱 📱 android.util.Base64 android.util.Base64 send TW9iaWxlIERldiBKYXBhbg== “Mobile Dev Japan” “Mobile Dev Japan”
31. Keishin Yokomaku (@KeithYokoma) / Drivemode, Inc. Base64 in Android
