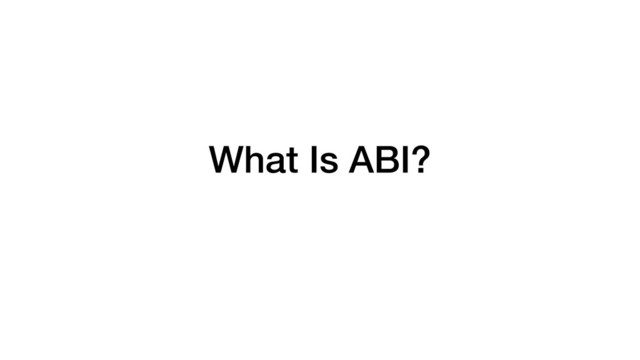

1. What Is ABI?
2. Today I talk, • What Is ABI Stability • What Is ABI • Exercises: Let's Break ABI
3. What Is ABI Stability?
4. What Is ABI Stability? • ABI stability enables OS vendors to embed a Swift standard library and runtime that is compatible with applications built with older or newer versions of Swift. This would remove the need for apps to distribute their own copy of these libraries on those platforms. It also allows for better decoupling of tools and better integration into the OS. https://github.com/apple/swift/blob/master/docs/ABIStabilityManifesto.md Swift ABI Stability Manifesto - What Does ABI Stability Enable?
5. What Is ABI Stability? • An app built with one version of the Swift compiler will be able to talk to a library built with another version. https://swift.org/blog/abi-stability-and-more/ ABI Stability and More
6. What Is ABI Stability?
7. What Is ABI Stability?
8. What Is ABI Stability?
9. What Is ABI?
10. What Is ABI? • At runtime, Swift program binaries interact with other libraries and components through an ABI. ABI is Application Binary Interface, or the specification to which independently compiled binary entities must conform to be linked together and executed. https://github.com/apple/swift/blob/master/docs/ABIStabilityManifesto.md Swift ABI Stability Manifesto
11. What Is ABI? • API: Application Programming Interface • ABI: Application Binary Interface
12. What Is ABI? • API: Application Programming Interface • ABI: Application Binary Interface
13. What Is ABI? • API: Application Programming Interface ‣ Source code level interface for your library • ABI: Application Binary Interface ‣ Machine instruction level interface for your library
14. What Is ABI? • API: Application Programming Interface ‣ Source code level interface for your library ‣ How we interface with your library before compilation • ABI: Application Binary Interface ‣ Machine instruction level interface for your library ‣ How we interface with your library after compilation
15. Components of the Swift ABI • Data Layout: a defined in-memory layout for instances of type • Type Metadata: a set of defined APIs for querying the metadata of a type • Mangling: any name in source code might not be globally unique, a unique name is produced through a technique called name mangling • Calling Convention: functions must know how to call each other • Runtime: dynamic casting, reference counting, reflection, etc • Standard Library: defines many common types, structures, and operations on these
16. Exercises: Let's Break ABI
17. Exercises: Let's Break ABI import Foundation public struct Logger { let prefix: String public init() { prefix = "" } public func log(level: LogLevel, _ message: String) { print("\(prefix) [\(level)] \(message)") } }
18. Exercises: Let's Break ABI import Foundation let logger = Logger() logger.log(level: .info, "Hello Swift!") // => [INFO] Hello Swift!
19. Exercises: Let's Break ABI Logger.swift: swift -frontend -g -Onone -c \ -primary-file src/Logger.swift src/main.swift \ -module-name main -o bin/Logger.o \ -emit-module -emit-module-path bin/Logger~partial.swiftmodule \ -sdk $(shell xcrun --sdk macosx --show-sdk-path) \ -enable-library-evolution main.swift: swift -frontend -g -Onone -c \ -primary-file src/main.swift src/Logger.swift \ -module-name main -o bin/main.o \ -emit-module -emit-module-path bin/main~partial.swiftmodule \ -sdk $(shell xcrun --sdk macosx --show-sdk-path) \ -enable-library-evolution link: swiftc $(wildcard bin/*.o) -o bin/main clean: $(shell rm -r bin/*)
20. Exercises: Let's Break ABI $ make Logger.swift # Logger.swiftΛίϯύΠϧ $ make main.swift # main.swiftΛίϯύΠϧ $ make link # Logger.oͱmain.oΛϦϯΫ
21. Exercises: Let's Break ABI • Link object files generated from different versions of the compiler • Explore cases that source code compatible but binary incompatible ‣ Add a default parameter to a public function ‣ Add a function to a struct ‣ Add a stored property to a struct
22. @frozenͷStrcutΛ࢖͏৔߹ͷSIL ௨ৗ (non-frozen)ͷStrcutΛ࢖͏৔߹ͷSIL
23. Summary • ABI binary level interface between libraries • ABI stability is binary level compatibility • ABI incompatible is where code that has already been compiled against version 1 will no longer work with version 2
24. References • ABI Stability and More
 https://swift.org/blog/abi-stability-and-more/ • Swift ABI Stability Manifesto
 https://github.com/apple/swift/blob/master/docs/ABIStabilityManifesto.md • Plan for module stability
 https://forums.swift.org/t/plan-for-module-stability/14551 • Swift Intermediate Language (SIL)
 https://github.com/apple/swift/blob/master/docs/SIL.rst • How Swift Achieved Dynamic Linking Where Rust Couldn't
 https://gankra.github.io/blah/swift-abi/
