2023.4.24 メイカーフェア京都2023前夜祭 デジもく会 西村備山 (@lipoyang) 光る縄文土器を作る
自己紹介 •デジもく会 •奈良県在住 •組込み系技術者 •IoT初心者 西村備山 (@lipoyang)
光る縄文土器

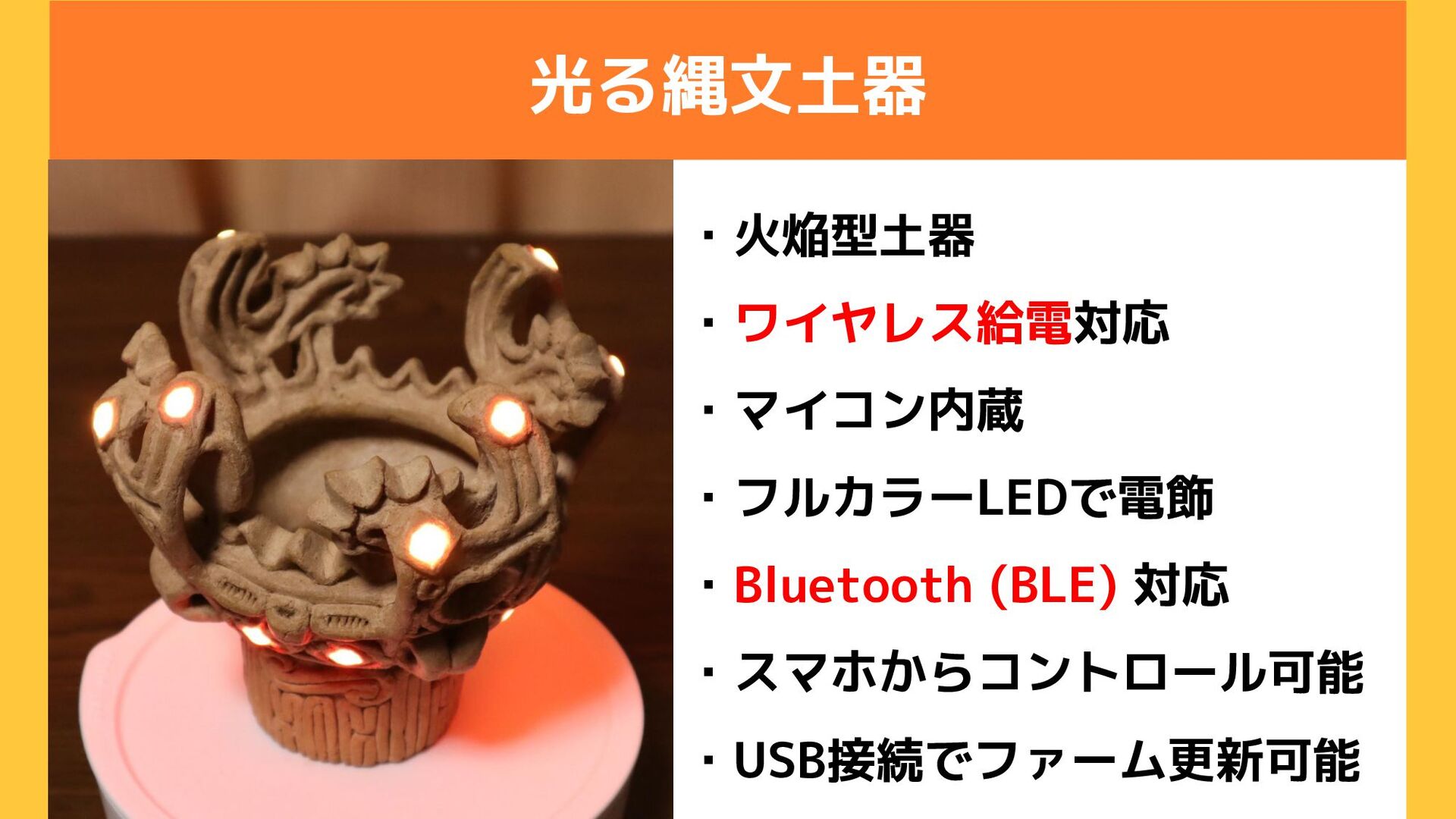

光る縄文土器 ・火焔型土器 ・ワイヤレス給電対応 ・マイコン内蔵 ・フルカラーLEDで電飾 ・Bluetooth (BLE) 対応 ・スマホからコントロール可能 ・USB接続でファーム更新可能
電装系の主な部材 ・BLEマイコン Seeed Studio XIAO nRF52840 ・シリアルフルカラーLED NeoPixel (WS2812B) ・ワイヤレス給電モジュール
(Adafruit製 5V 500mA)
電装系の回路図
電装系の製作

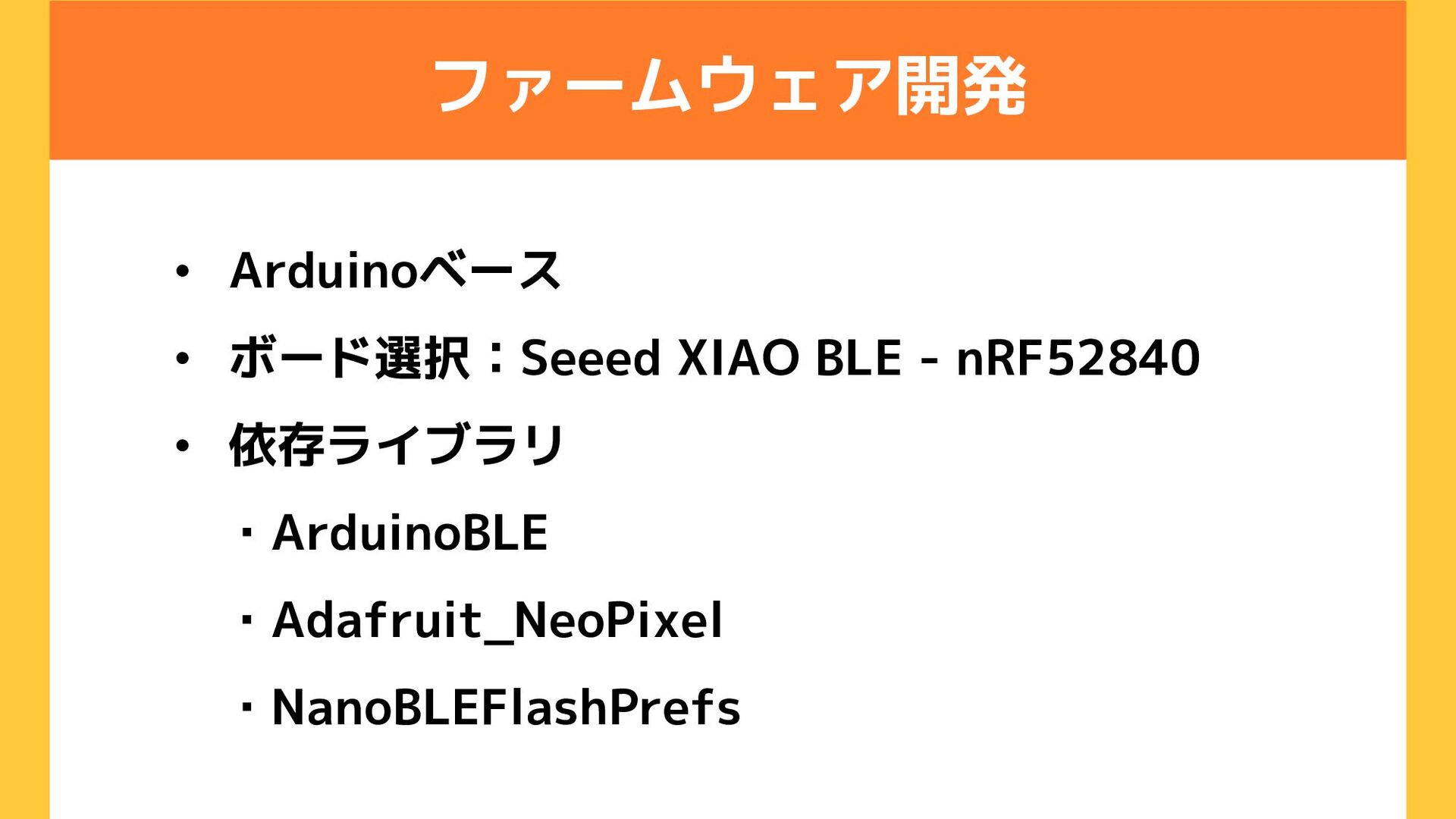

ファームウェア開発 • Arduinoベース • ボード選択:Seeed XIAO BLE - nRF52840 •
依存ライブラリ ・ArduinoBLE ・Adafruit_NeoPixel ・NanoBLEFlashPrefs
アプリ開発 • Webアプリ • Web Bluetooth API 使用 (iOSは非対応) •
Bluetooth(BLE)接続で 電飾パターンをコントロール
火焔型土器のデザイン
使用した粘土 木粉粘土(茶色) パジコ ウッドフォルモ 樹脂粘土(透明) すけるくん

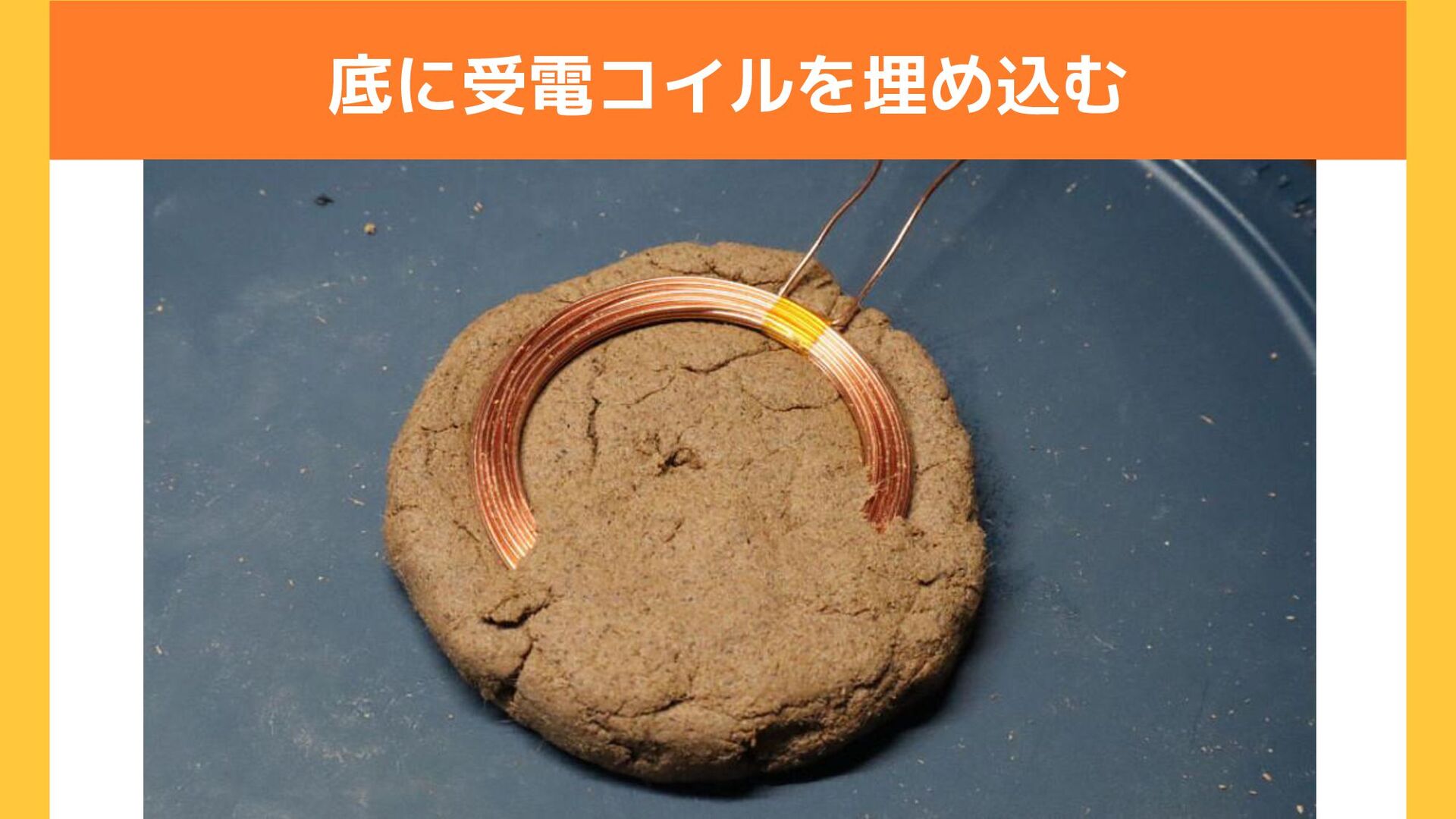

底に受電コイルを埋め込む
胴を輪積み、電装系を埋め込む

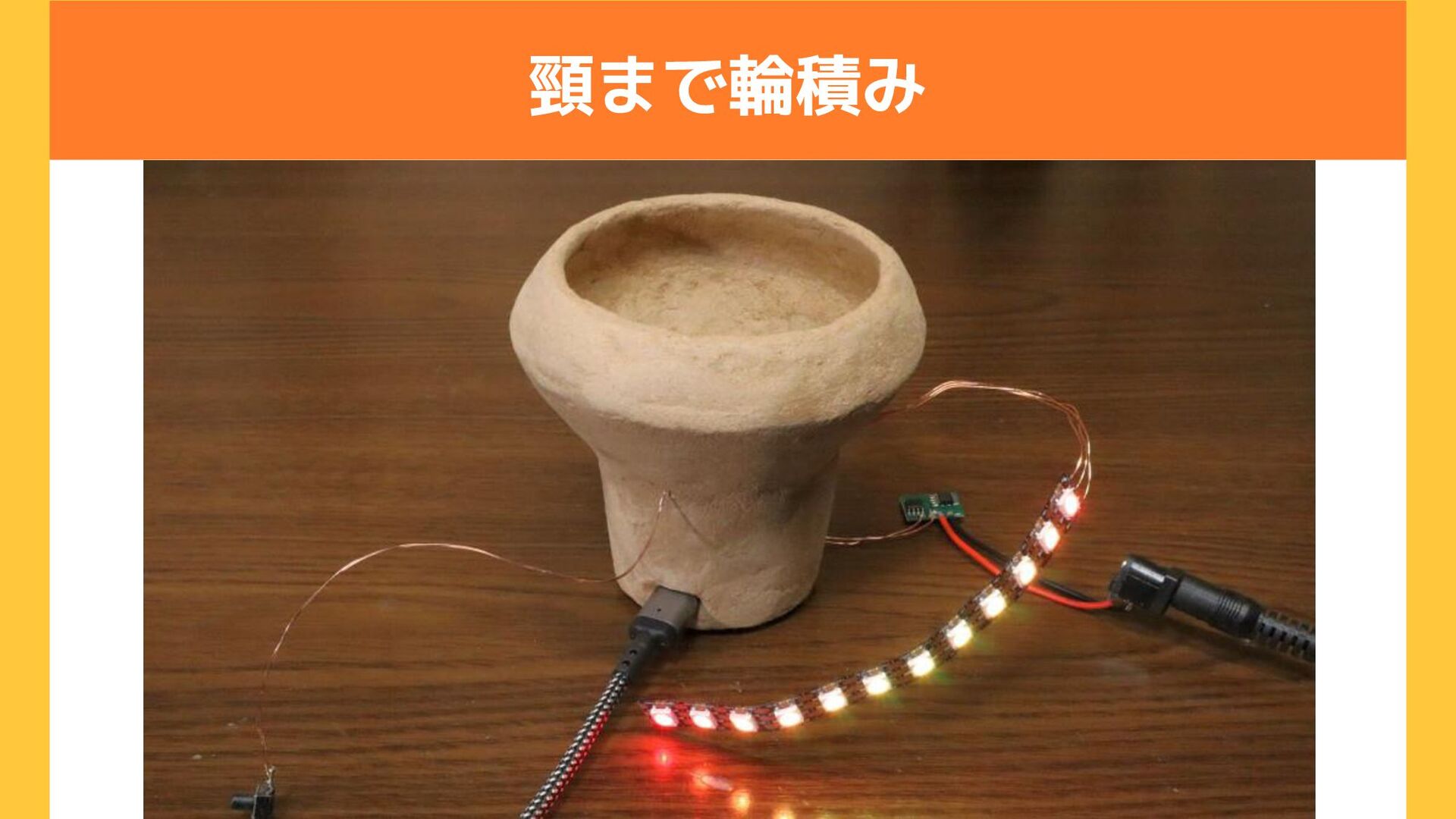

頸まで輪積み

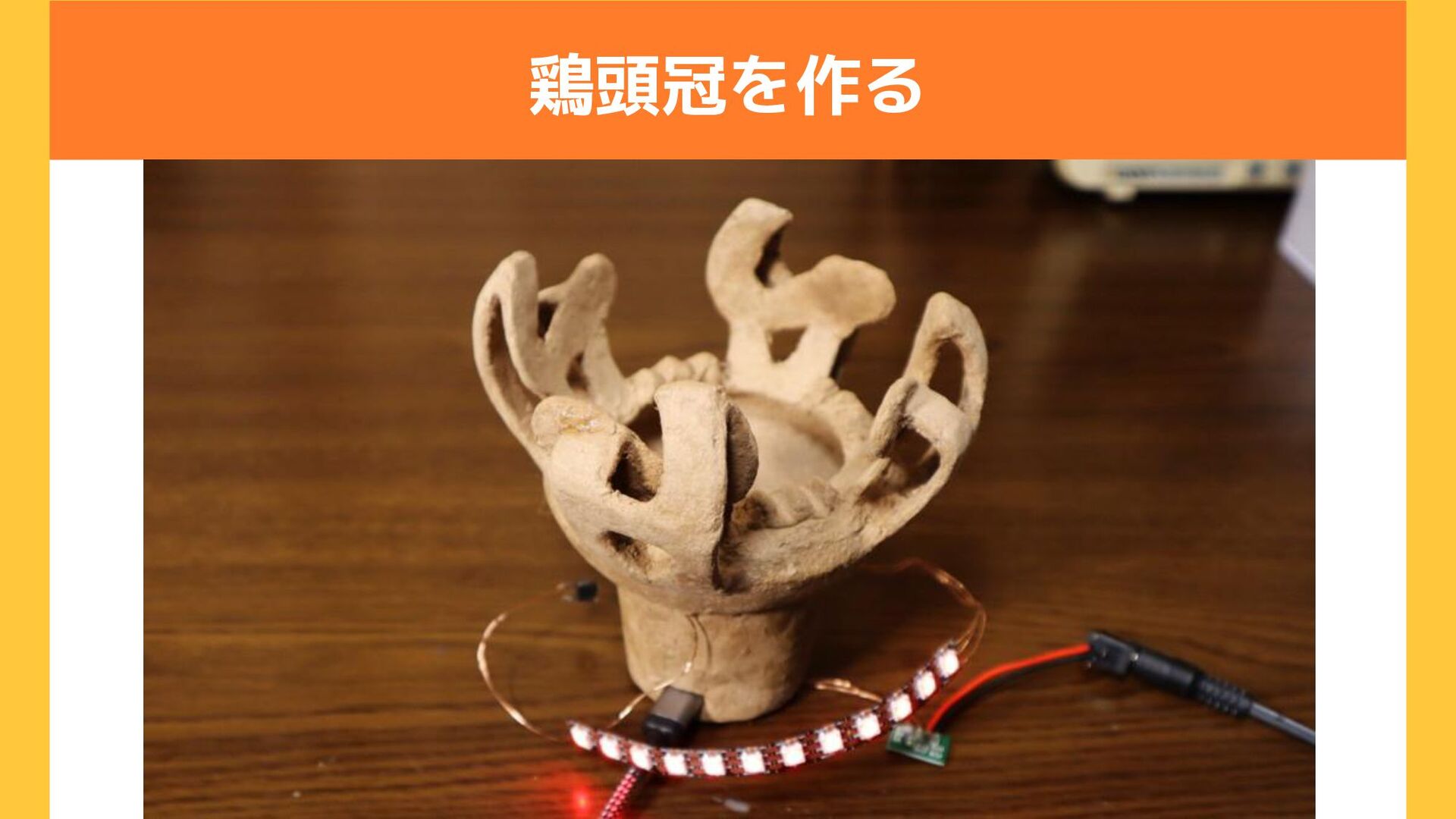

鶏頭冠を作る

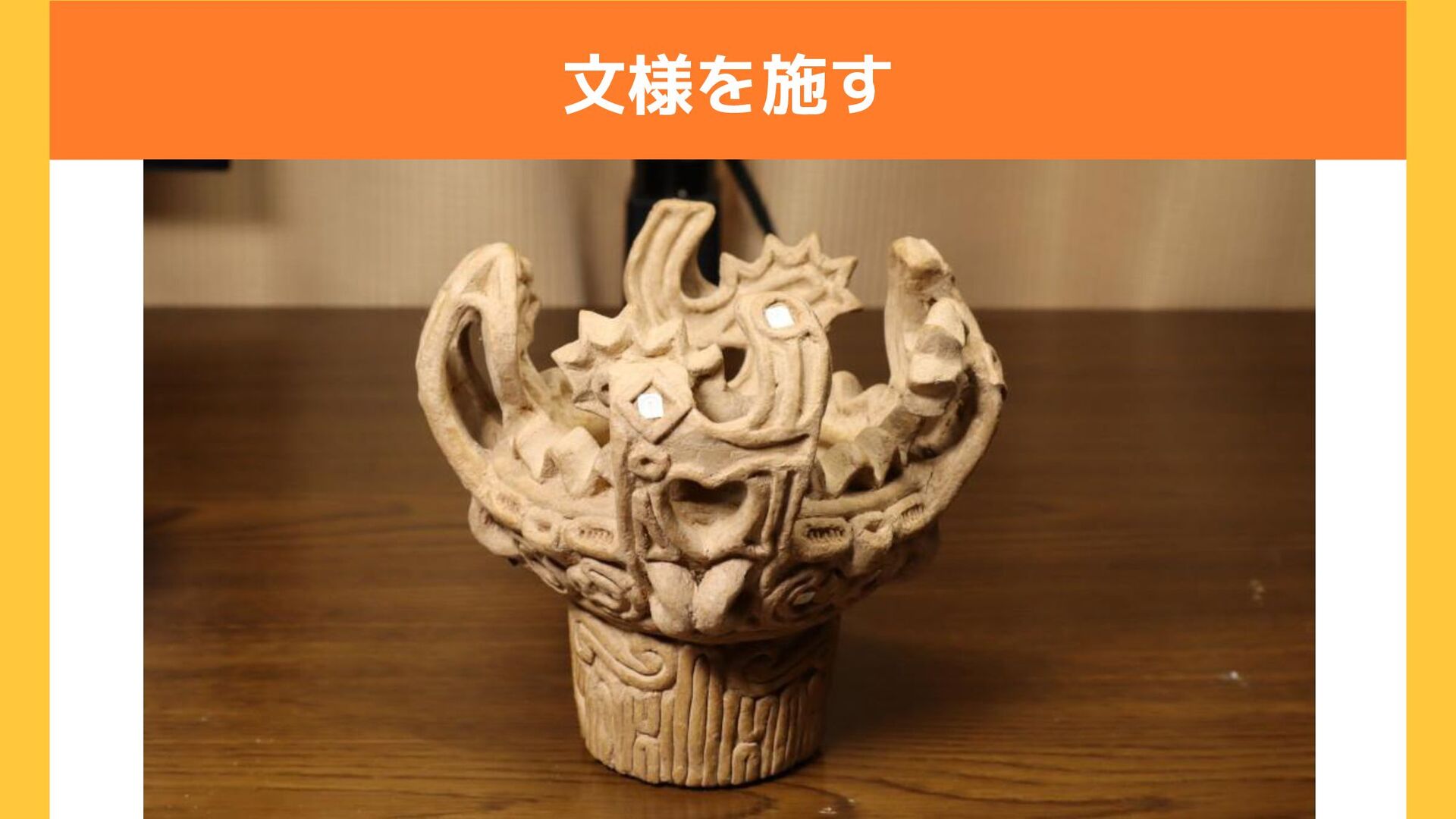

文様を施す
電飾部に透明粘土を貼り付け

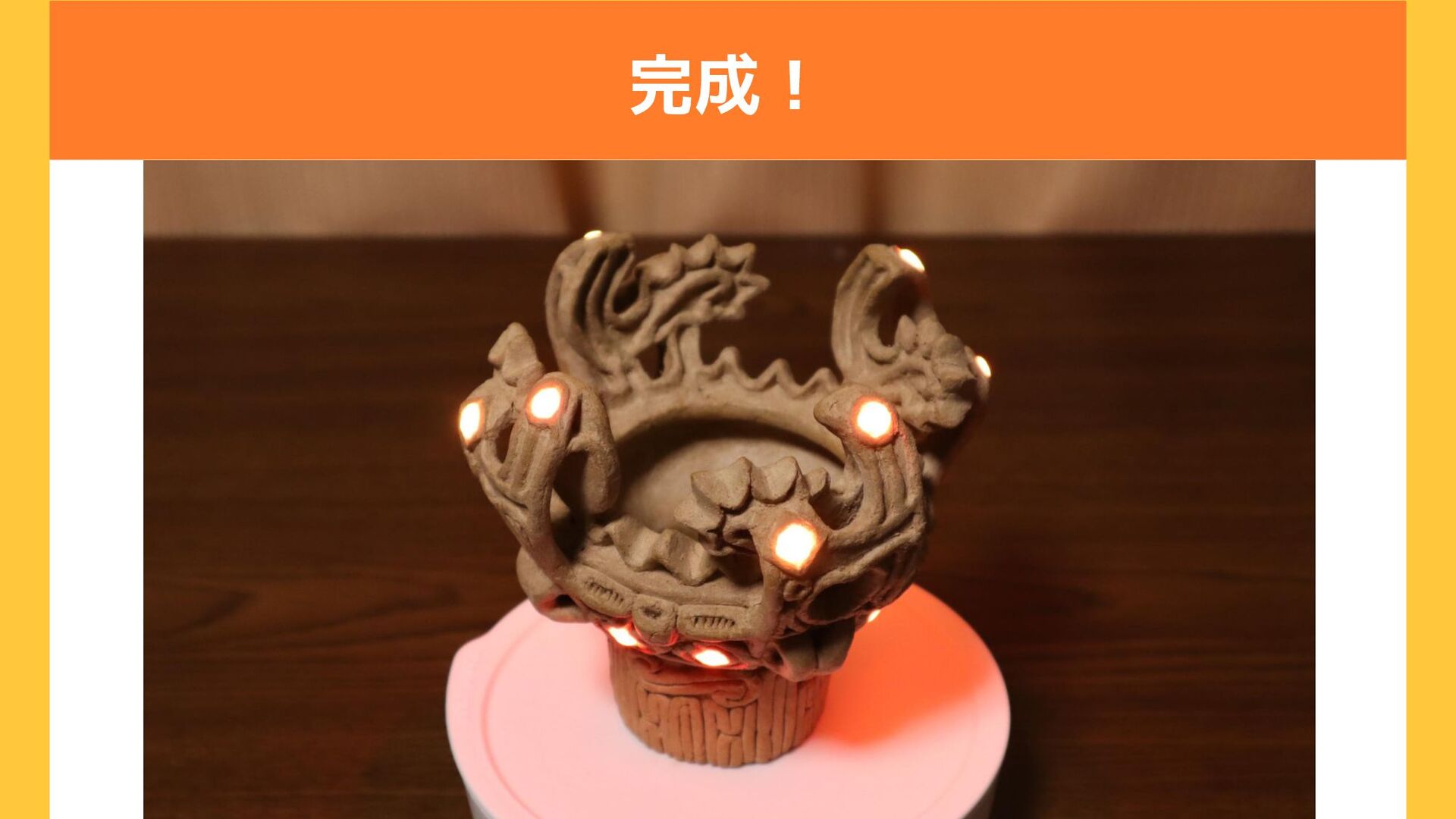

完成!

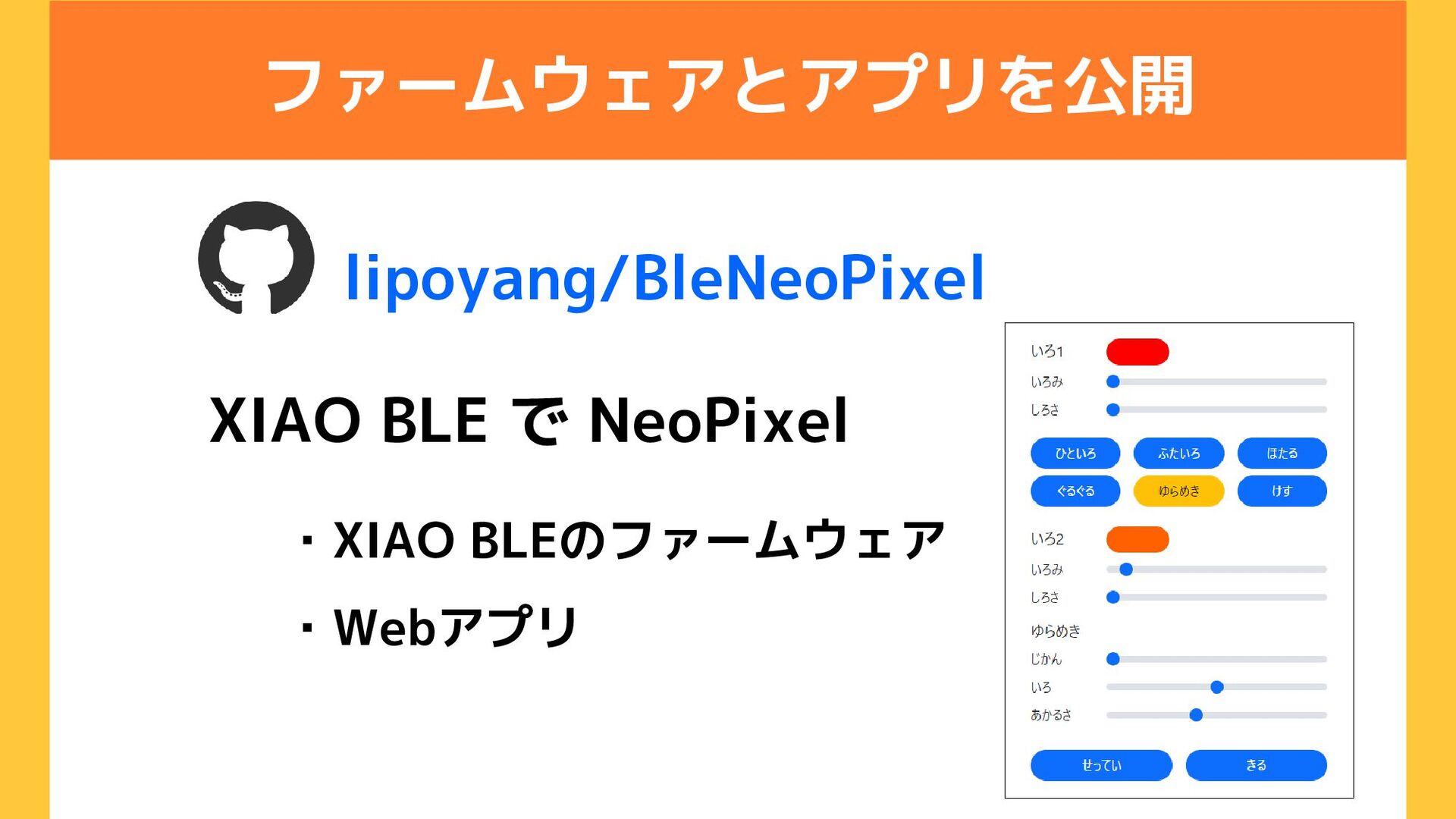

ファームウェアとアプリを公開 XIAO BLE で NeoPixel lipoyang/BleNeoPixel ・XIAO BLEのファームウェア ・Webアプリ
またね~ Twitter: @lipoyang GitHub: lipoyang SlideShare: lipoyang http://lipoyang.net
