1. Copyright © LIXIL Group Corporation. All rights reserved. THERMAL BREAK CAPABILITIES LIXIL Corporation LIXIL Housing Technology 9 July 2019

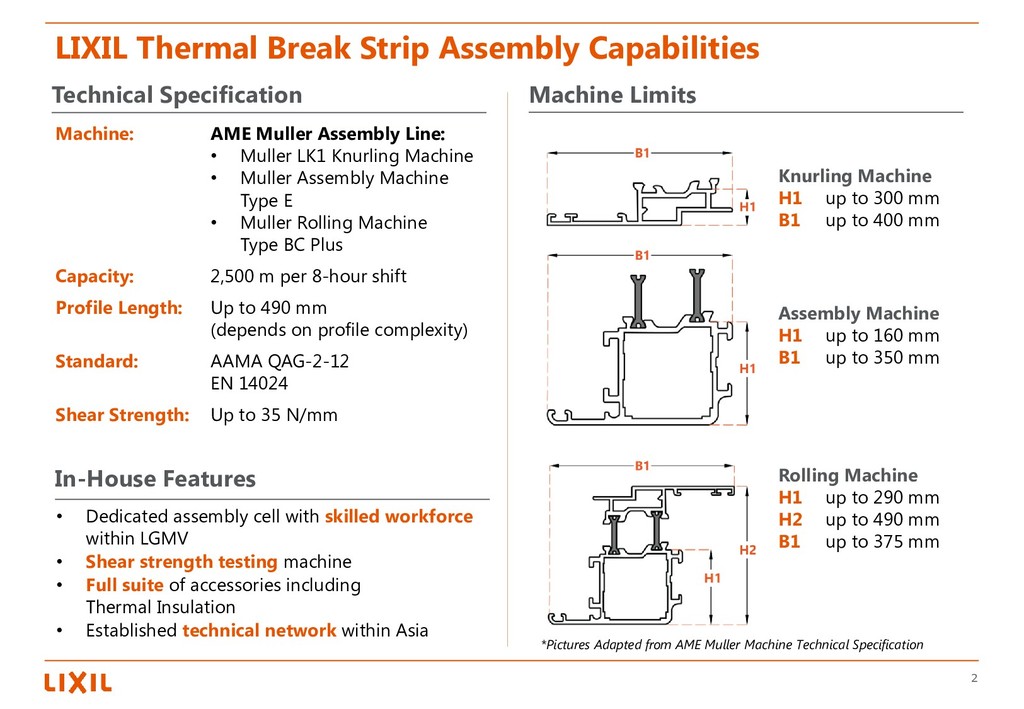

2. 2 LIXIL Thermal Break Strip Assembly Capabilities Technical Specification Knurling Machine H1 up to 300 mm B1 up to 400 mm Assembly Machine H1 up to 160 mm B1 up to 350 mm Rolling Machine H1 up to 290 mm H2 up to 490 mm B1 up to 375 mm • Dedicated assembly cell with skilled workforce within LGMV • Shear strength testing machine • Full suite of accessories including Thermal Insulation • Established technical network within Asia In-House Features Machine: AME Muller Assembly Line: • Muller LK1 Knurling Machine • Muller Assembly Machine Type E • Muller Rolling Machine Type BC Plus Capacity: 2,500 m per 8-hour shift Profile Length: Up to 490 mm (depends on profile complexity) Standard: AAMA QAG-2-12 EN 14024 Shear Strength: Up to 35 N/mm *Pictures Adapted from AME Muller Machine Technical Specification Machine Limits

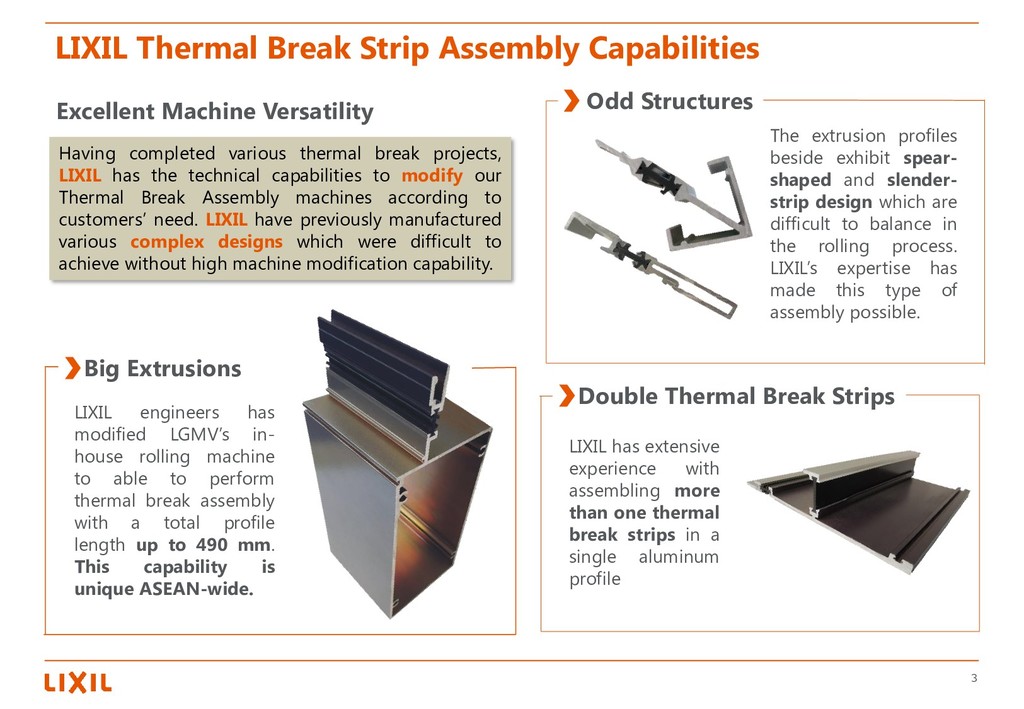

3. 3 LIXIL Thermal Break Strip Assembly Capabilities Excellent Machine Versatility Having completed various thermal break projects, LIXIL has the technical capabilities to modify our Thermal Break Assembly machines according to customers’ need. LIXIL have previously manufactured various complex designs which were difficult to achieve without high machine modification capability. LIXIL engineers has modified LGMV’s in- house rolling machine to able to perform thermal break assembly with a total profile length up to 490 mm. This capability is unique ASEAN-wide. The extrusion profiles beside exhibit spear- shaped and slender- strip design which are difficult to balance in the rolling process. LIXIL’s expertise has made this type of assembly possible. Odd Structures LIXIL has extensive experience with assembling more than one thermal break strips in a single aluminum profile Double Thermal Break Strips Big Extrusions
