Hosted PostgreSQL

Hosted PostgreSQL

Managing your own PostgreSQL servers is sometimes a burden your business does not want. In this talk we will provide an overview of some of the public cloud offerings available for hosted PostgreSQL and discuss a number of strategies for migrating your databases with a minimum of downtime.

F1e0e0c3c3196a63c9b17a2344fb6a61?s=128

Mike Fowler

July 04, 2017
Tweet

Transcript

  1. Mike Fowler (mike.fowler@claranet.uk) Hosted PostgreSQL

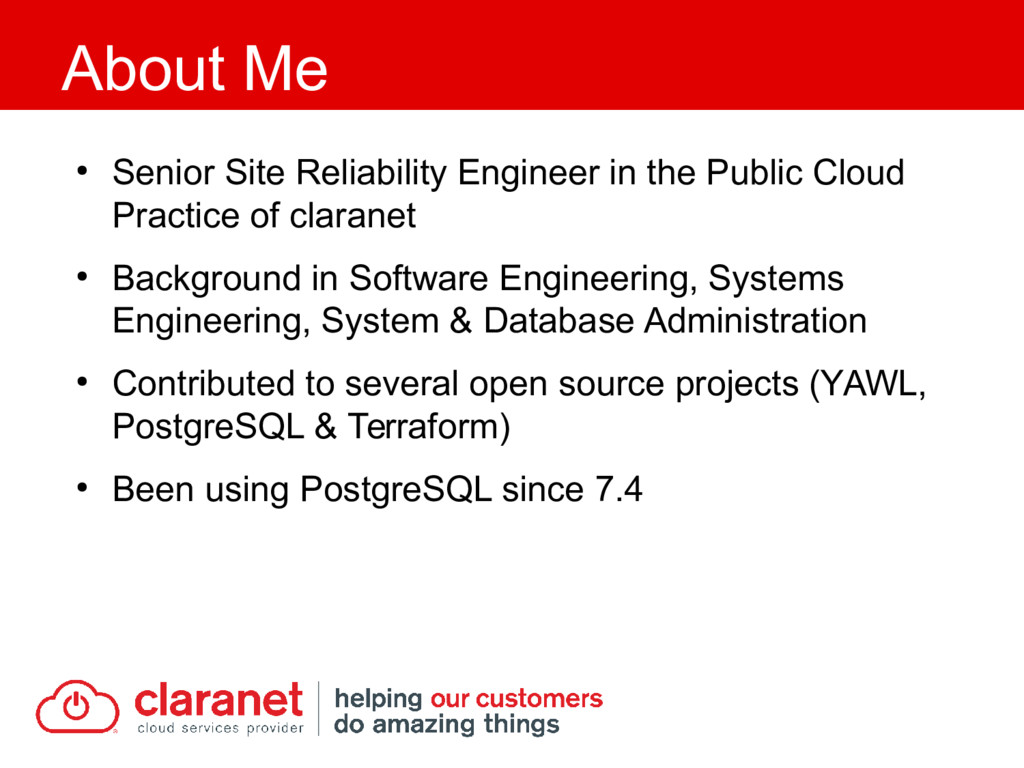

  2. • Senior Site Reliability Engineer in the Public Cloud Practice

    of claranet • Background in Software Engineering, Systems Engineering, System & Database Administration • Contributed to several open source projects (YAWL, PostgreSQL & Terraform) • Been using PostgreSQL since 7.4 About Me
  3. • Hosted PostgreSQL • Overview of public cloud hosting options

    • Database migration strategies Overview
  4. • Your database somewhere else • A managed service –

    Some providers offer full DBA support – Cloud providers give only the infrastructure • Typically provisioned through an API or GUI – i.e. a self-service environment What is hosted PostgreSQL?
  5. • Reduces adoption costs • Installation & configuration is already

    done – Generally sane defaults, some tuning often required • Needn’t worry about physical servers • Opex instead of Capex • Most routine DBA tasks are done for you • Easier to grow Benefits of Hosted PostgreSQL
  6. • Less control • Latency • Some features are disabled

    • Migrating existing databases is hard • Potential for vendor lock-in • Resource limits Drawbacks of Hosted PostgreSQL
  7. • We’ll look only at Public Cloud offerings • Current

    major offerings – Amazon Relation Database Service (RDS) – Heroku • Future major offerings – Amazon Aurora – Google Cloud SQL – Microsoft Azure Hosting Options
  8. • PostgreSQL 9.3.12 – 9.6.2 supported • Numerous instance types

    – Costs range from $0.018 to $4.97 per hour – Select from 1 vCPU up to 32 vCPUs, all 64-bit – Memory ranges from 1GB to 244GB • Flexible storage options – Choose between SSD or Provisioned IOPS – Up to 6TB with up to 30,000 IOPS Amazon RDS
  9. • High availability multi-availability zone option – Synchronous replica –

    Automatic failover (~2 minutes) • Up to 5 read-only replicas (asynchronous replication) • Configurable automatic backups with PITR • Monthly uptime percentage of 99.95 per instance – Allows for approximately 22 minutes downtime Amazon RDS
  10. • Supports PostgreSQL 9.3, 9.5, 9.6 & 9.6 • Simpler

    pricing based on choice of tier ($0-8.5k pcm) • Tier dictates resource limits – Maximum number of rows (Hobby only) – Cache size (1GB - 240GB) – Storage limit (64GB - 1TB) – Connection limit (120 - 500) – Rollback (4 days – 1 week) Heroku
  11. • Fork & Follow • Some of your data may

    end up in the US – Logs (can be blocked at creation time) – Snapshots & Dataclips • Not possible to replicate out – No permission for Bucardo, Londiste & Slony – Remote slave is prohibited – Only way is dump & restore Heroku
  12. • Currently in open preview – Largely free to use

    but no SLA • Compatible with PostgreSQL 9.6 • Up to 2x throughput of conventional PostgreSQL • Up to 16 read replicas with sub-10ms replica lag • Auto-growing filesystem up to 64TB – Filesystem is shared between 3 availability zones Amazon Aurora
  13. • Currently in Beta (no SLA) • Only supports PostgreSQL

    9.6 • Only available in Iowa, no replication support • Posed to be a serious rival to RDS – Billing per minute – Automatic scaling of filesystem – Similar variety of instance types • Minimal extensions but includes PostGIS Google Cloud SQL
  14. • Currently in preview (no SLA) • Supports PostgreSQL 9.5

    & 9.6 • Replication is seamless – Automated failover – PITR • Selectable compute units • Supports some extensions including PostGIS Microsoft Azure
  15. • Dump & Restore • Replication failover • PITR +

    Logical decoding Migration Strategies
  16. • Simplest strategy – Perceived as low risk for data

    loss – Less “moving parts” • Just a pg_dump & pg_restore • Downtime is function of database size Dump & Restore
  17. • Move historic data ahead of time – Opportunity to

    clear out unused data – Consider introducing partitions • Consider moving the dump closer to the target – e.g. Upload to EC2 instance in the same region as the RDS instance and run pg_restore from there • Over provision resources – Gives higher throughput during data load – Downscale once operational Strategies to Minimise Downtime
  18. • No one supports external masters! • Trigger based replication

    failover – Slony, Londiste & Bucardo • Can be used on most any version of PostgreSQL • Some restrictions apply – DDL is not supported – Rows must be uniquely identifiable Replication Failover
  19. • Presents some risk to production environment – Initial overhead

    of replicating each table • Gradually add tables to the configuration to spread the load – Per-transaction overhead • Write latency to remote slave • Heavy write workload could lead to high replication lag • This also works to replicate out of RDS but not Heroku Replication Failover

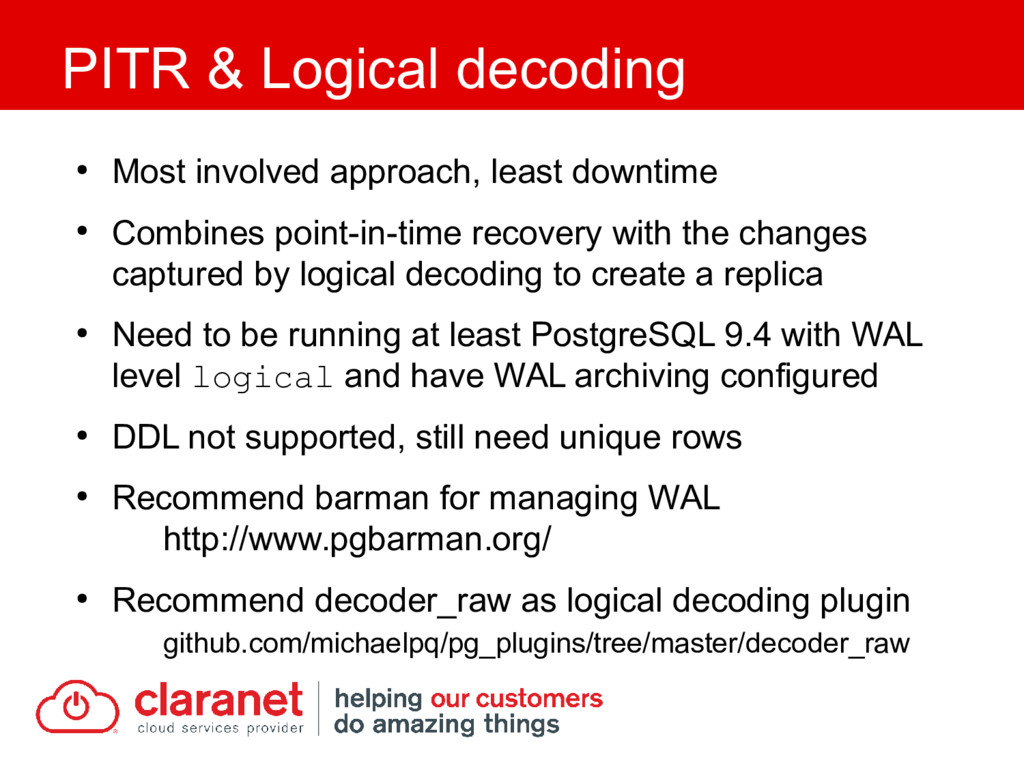

  20. • Most involved approach, least downtime • Combines point-in-time recovery

    with the changes captured by logical decoding to create a replica • Need to be running at least PostgreSQL 9.4 with WAL level logical and have WAL archiving configured • DDL not supported, still need unique rows • Recommend barman for managing WAL http://www.pgbarman.org/ • Recommend decoder_raw as logical decoding plugin github.com/michaelpq/pg_plugins/tree/master/decoder_raw PITR & Logical decoding
  21. 1. Create a logical replication slot SELECT * FROM pg_create_logical_replication_slot

    ('logical_slot', 'decoder_raw'); 2. Note the transaction ID (catalog_xmin) SELECT catalog_xmin FROM pg_replication_slots WHERE slot_name = ‘logical_slot’; PITR & Logical decoding
  22. 3. Perform a barman backup $ barman backup master 4.

    Perform a barman PITR $ barman recover –target-xid (catalog_xmin - 1) master latest 5. Start database and verify correct recovery PITR & Logical decoding
  23. 5. Perform pg_dump on the readonly barman node 6. Restore

    to public cloud 7. Read output of logical decoding and write to cloud PITR & Logical decoding

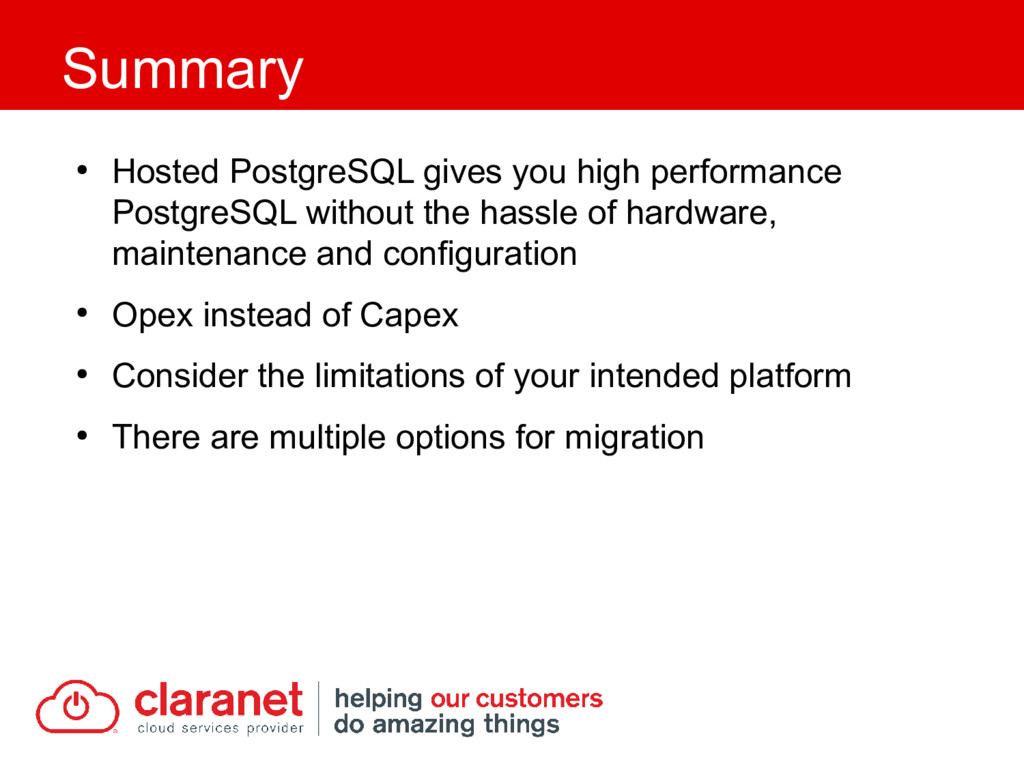

  24. • Hosted PostgreSQL gives you high performance PostgreSQL without the

    hassle of hardware, maintenance and configuration • Opex instead of Capex • Consider the limitations of your intended platform • There are multiple options for migration Summary
  25. None
