Magica Journey through Regex Engine Internals - T3chFest 2025

How dies the computer know that `^\w+\d$` matches "Java8" but "PHP15"? It's magic that allows it to match patterns with strings, right? Yes, and we, geeks love learning how such magic works!

It was a highly technical journey through the regex engine. From ancient scripts explaining theory (automata and regular languages), through thickets of various regex implementation to the cave of the regex performance. We've spicied up the adventure by falling into a trap of exponentially slow regex that will crash a real app. Finally we've analysed regex traps that Stackoverflow and Cloudflare set for themselves.

It's a geeky talk and you'll learn geeky stuff: how the language of regular expressions is implemented. But it'll be not in vain: you'll be able to optimise a regex and prevent your app from being killed by a badly-crafted one.

Transcript

1. Maciek Rząsa @mjrzasa Magical Journey through RegEx Engine Internals Maciek Rzą sa @mjrzasa S Tp c s D G Photo by Leo_Visions on Unsplash
2. Maciek Rząsa @mjrzasa Regular Expression. First thought Photo by Natalia Y. on Unsplash

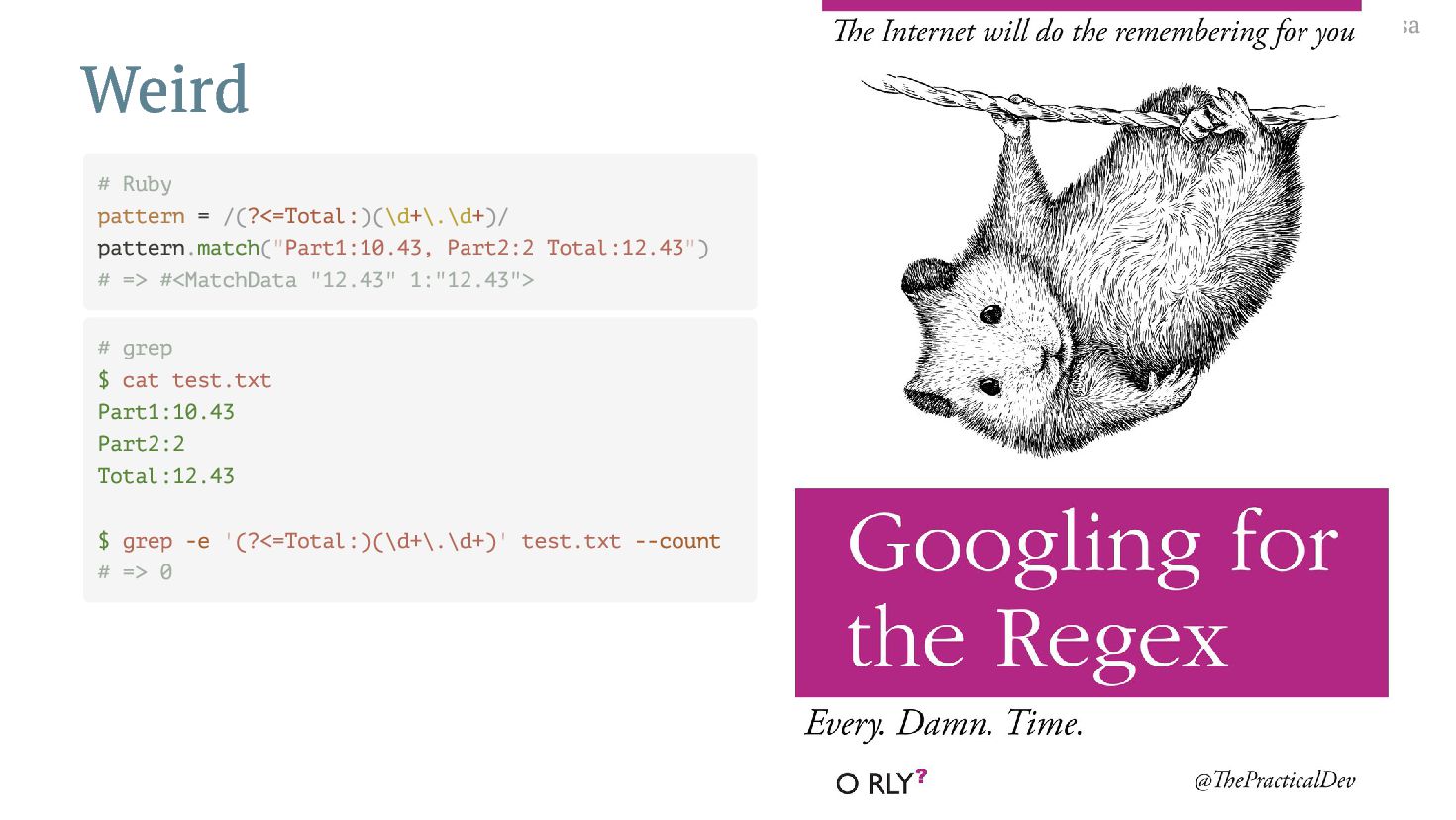

3. Maciek Rząsa @mjrzasa Weird # Ruby pattern = /(?<=Total:)(\d+\.\d+)/ pattern.match("Part1:10.43, Part2:2 Total:12.43") # => #<MatchData "12.43" 1:"12.43"> # grep $ cat test.txt Part1:10.43 Part2:2 Total:12.43 $ grep -e '(?<=Total:)(\d+\.\d+)' test.txt --count # => 0

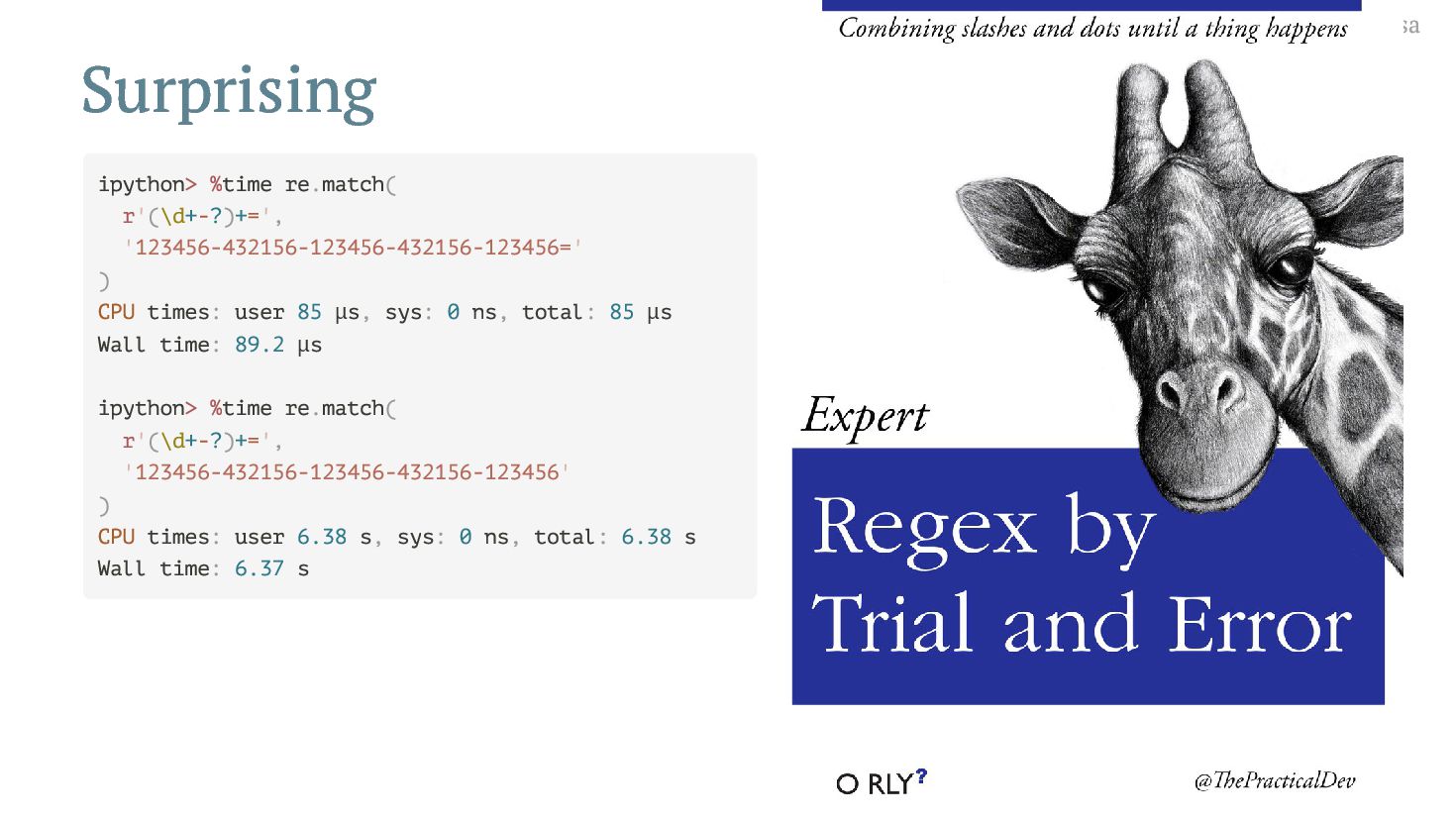

4. Maciek Rząsa @mjrzasa Surprising ipython> %time re.match( r'(\d+-?)+=', '123456-432156-123456-432156-123456=' ) CPU times: user 85 μs, sys: 0 ns, total: 85 μs Wall time: 89.2 μs ipython> %time re.match( r'(\d+-?)+=', '123456-432156-123456-432156-123456' ) CPU times: user 6.38 s, sys: 0 ns, total: 6.38 s Wall time: 6.37 s

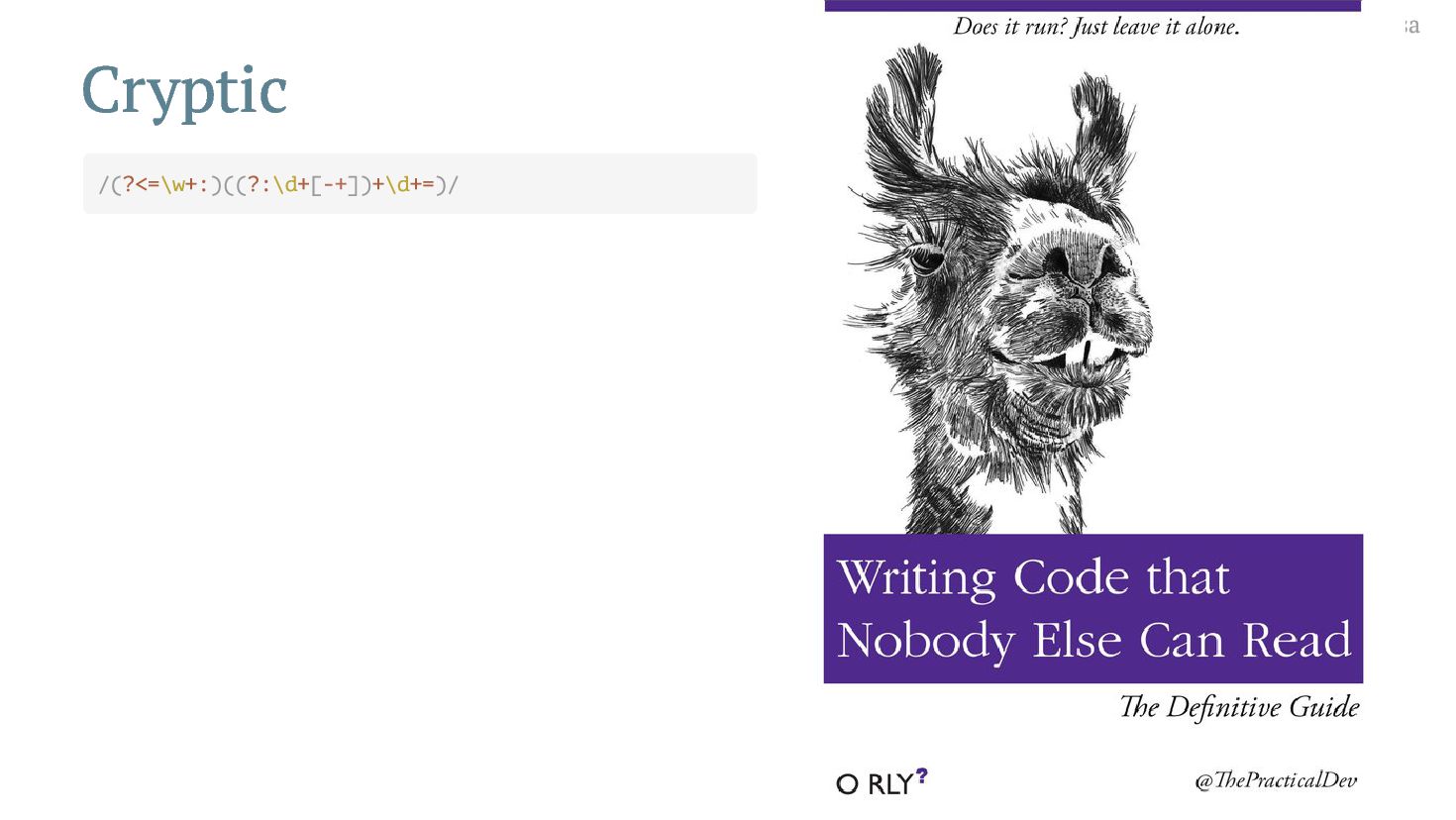

5. Maciek Rząsa @mjrzasa Cryptic /(?<=\w+:)((?:\d+[-+])+\d+=)/
6. Maciek Rząsa @mjrzasa Magical! /-\d+\.\d+/.match( '-123 -456.12 789.10=' ) # => #<MatchData "-456.12">
7. Maciek Rząsa @mjrzasa Regex, do you speak it? Photo by Daniela Turcanu on Unsplash

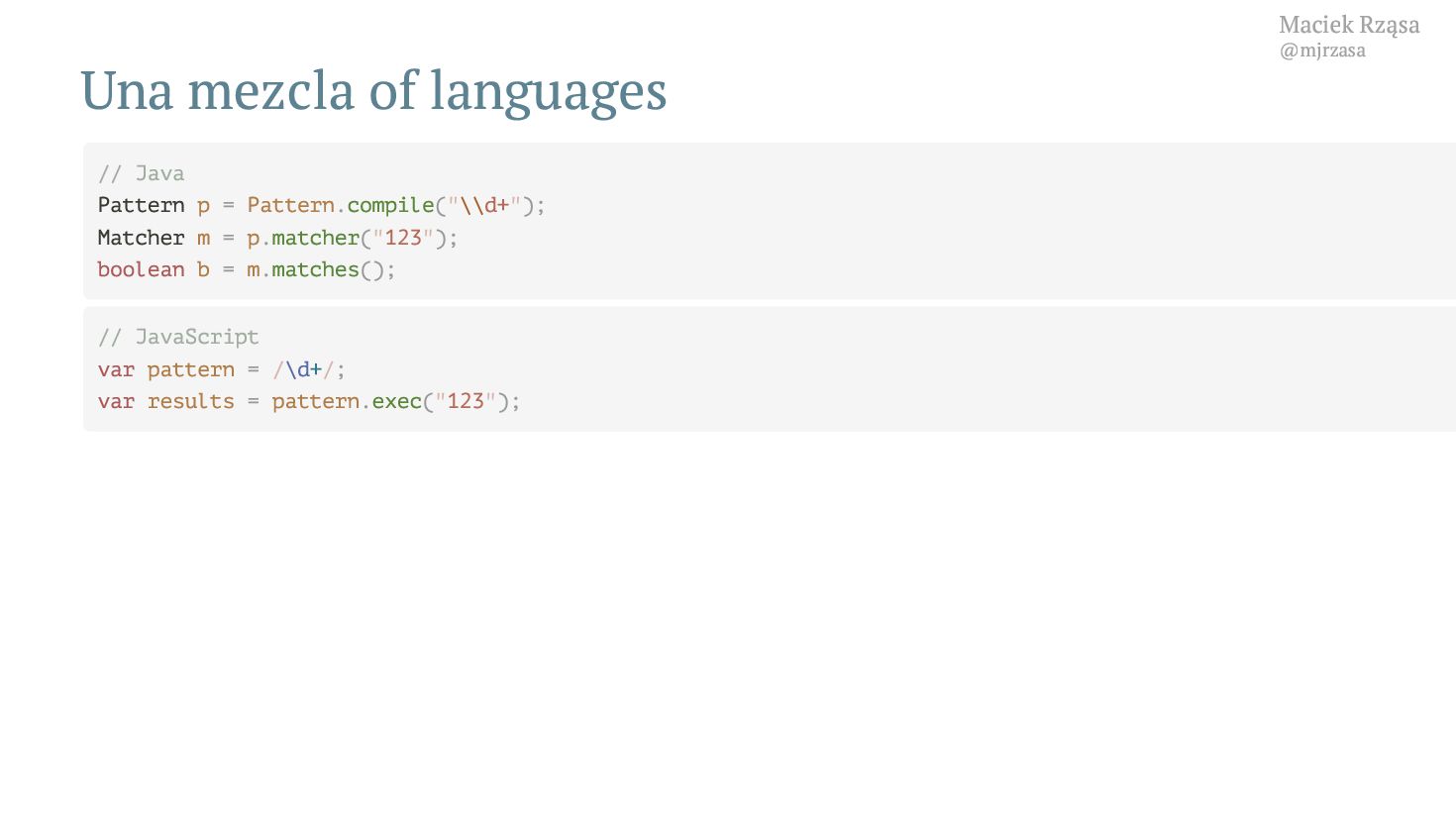

8. Maciek Rząsa @mjrzasa Una mezcla of languages // Java Pattern p = Pattern.compile("\\d+"); Matcher m = p.matcher("123"); boolean b = m.matches(); // JavaScript var pattern = /\d+/; var results = pattern.exec("123");

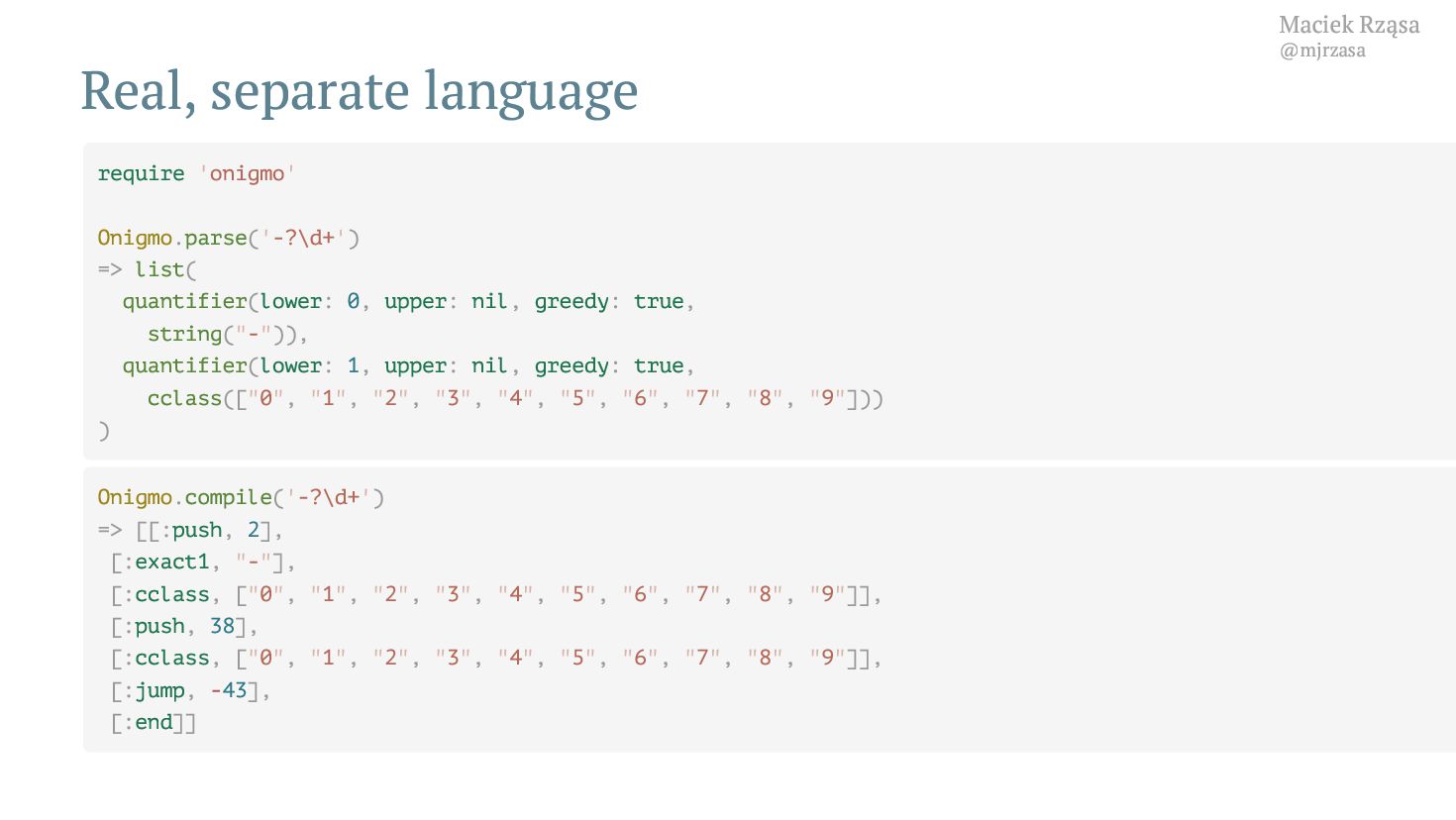

9. Maciek Rząsa @mjrzasa Real, separate language require 'onigmo' Onigmo.parse('-?\d+') => list( quantifier(lower: 0, upper: nil, greedy: true, string("-")), quantifier(lower: 1, upper: nil, greedy: true, cclass(["0", "1", "2", "3", "4", "5", "6", "7", "8", "9"])) ) Onigmo.compile('-?\d+') => [[:push, 2], [:exact1, "-"], [:cclass, ["0", "1", "2", "3", "4", "5", "6", "7", "8", "9"]], [:push, 38], [:cclass, ["0", "1", "2", "3", "4", "5", "6", "7", "8", "9"]], [:jump, -43], [:end]]
10. Maciek Rząsa @mjrzasa Is your expression regular? Photo by Keyur Tandel on Unsplash
11. Maciek Rząsa @mjrzasa Brackets & Balance (((((((a or a))))))) ((((((a)))))) (a+b)-(a+(b+c)) # Regular A -> a A -> Ba B -> B( B -> ( # Context free A -> (A) A -> a
12. Maciek Rząsa @mjrzasa Regular languages A -> aB B -> ab B -> aa /aab|aaa/

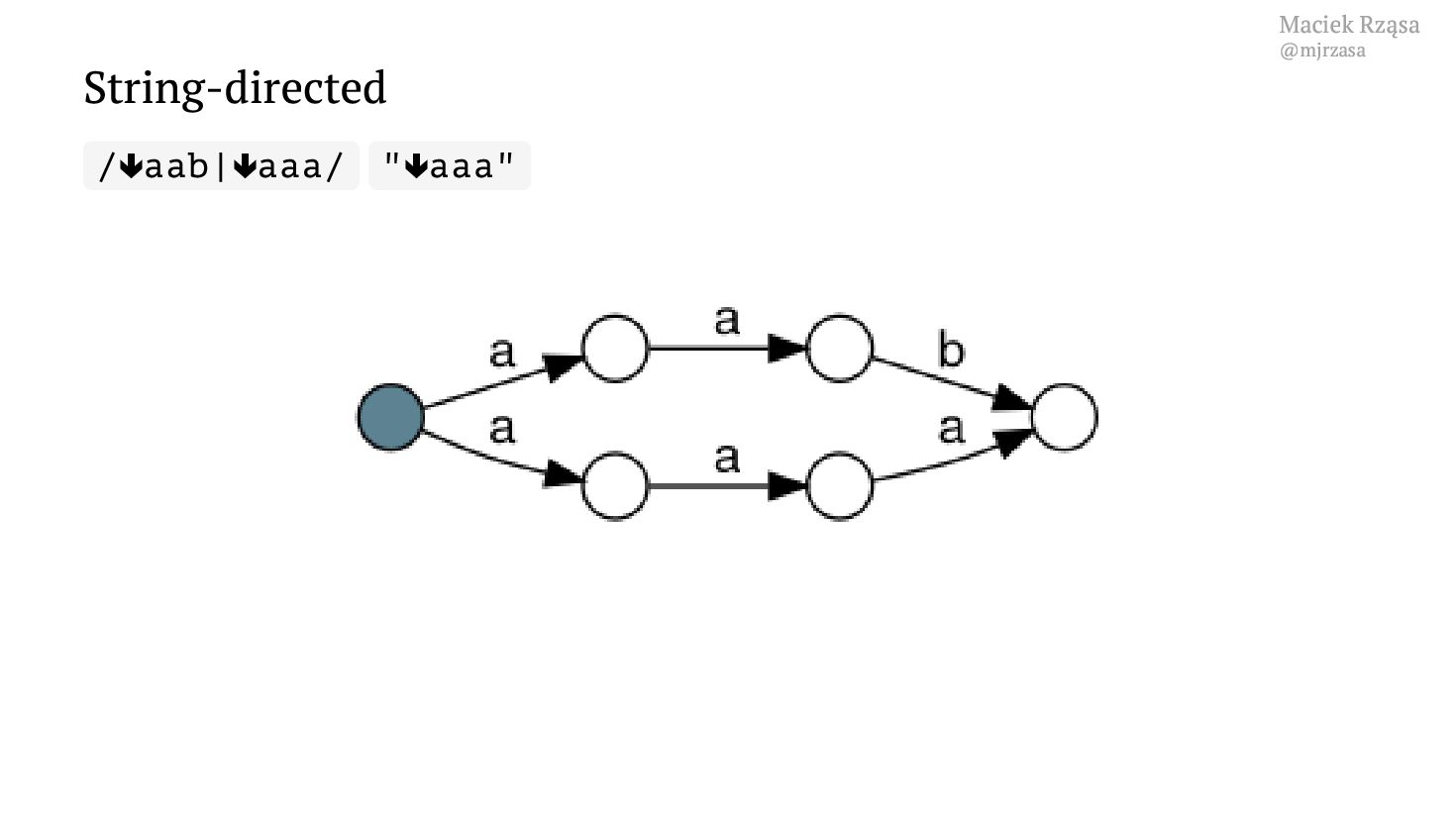

13. Maciek Rząsa @mjrzasa String-directed /🢃aab|🢃aaa/ "🢃aaa"

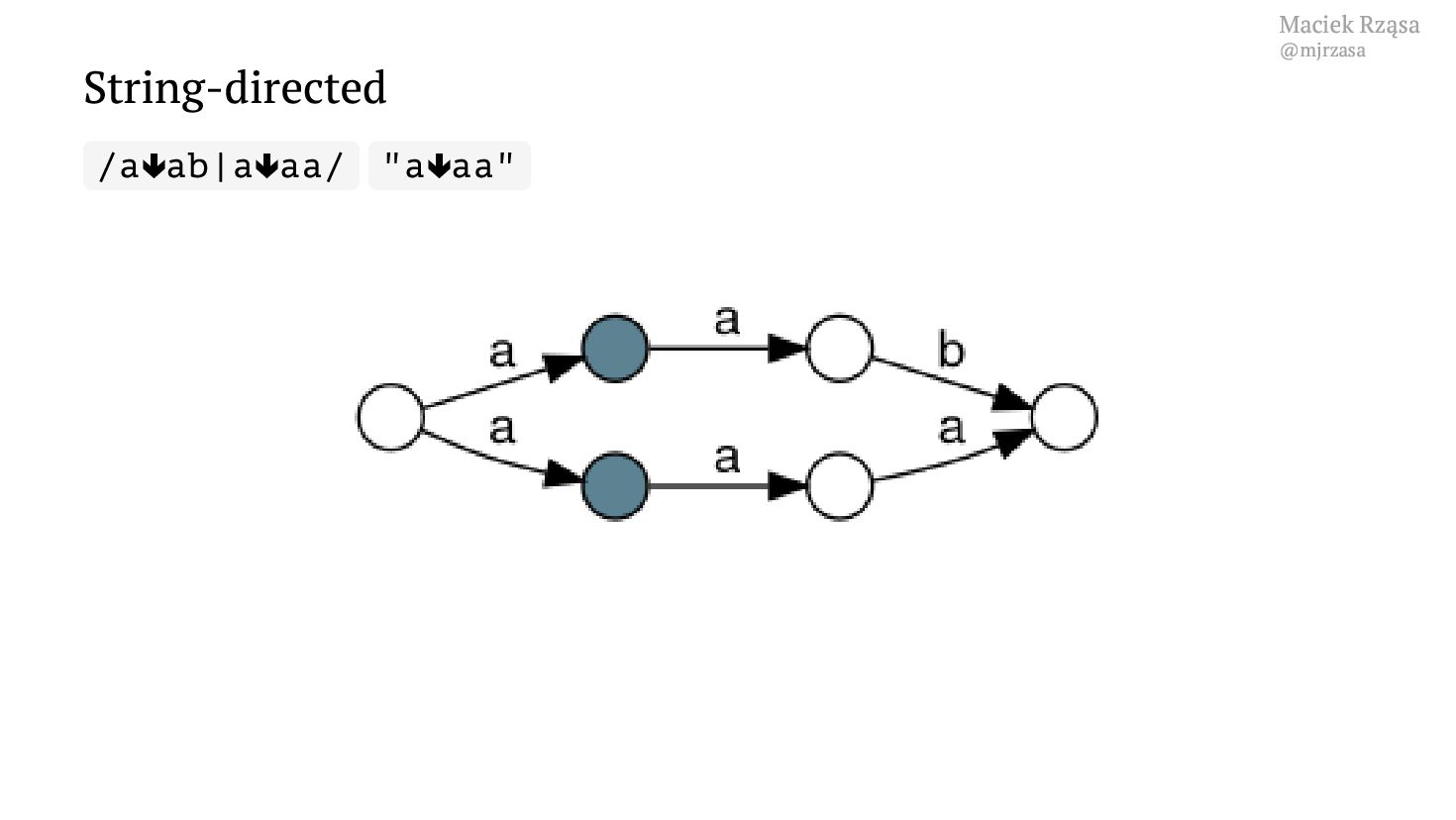

14. Maciek Rząsa @mjrzasa String-directed /a🢃ab|a🢃aa/ "a🢃aa"

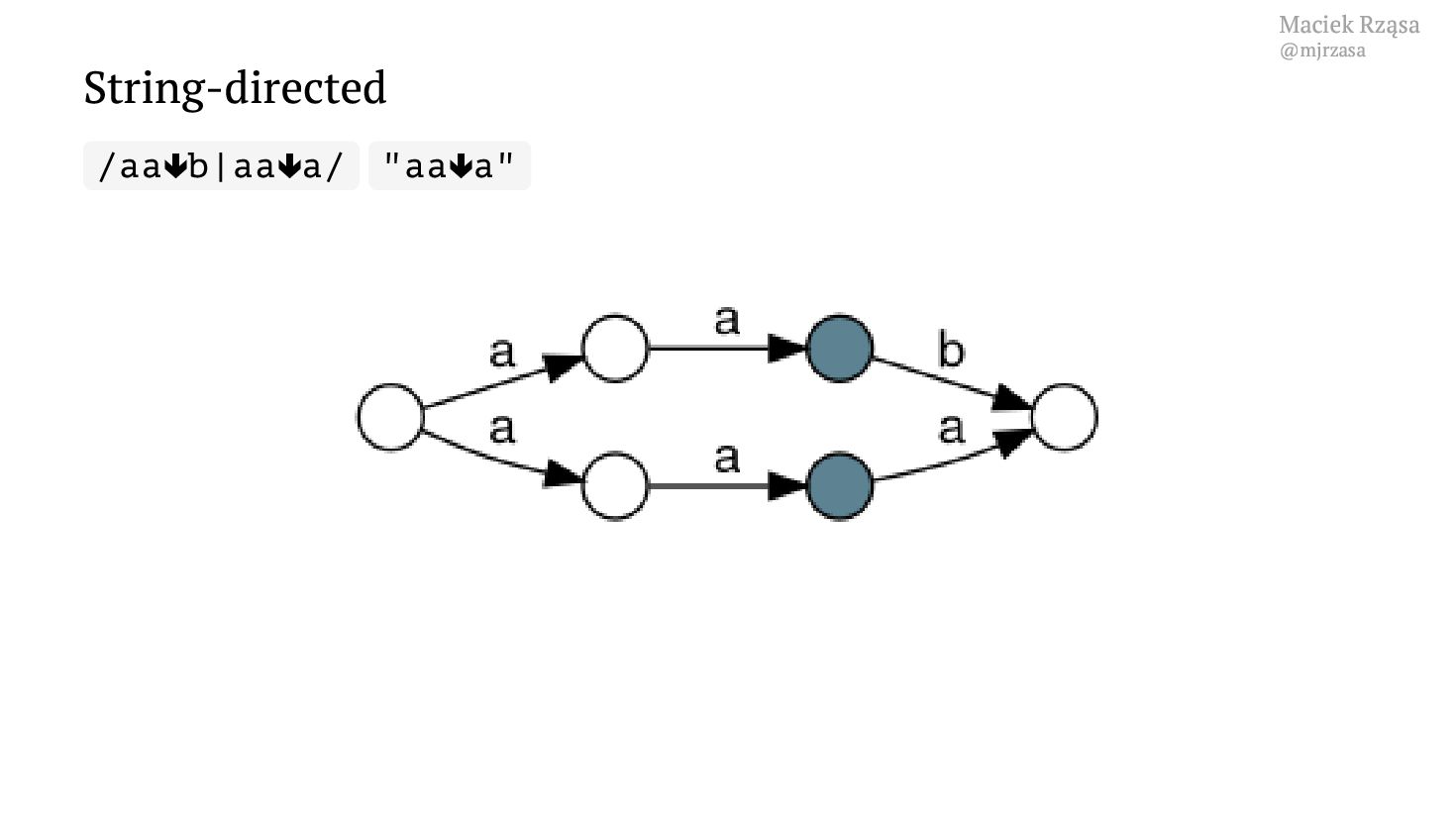

15. Maciek Rząsa @mjrzasa String-directed /aa🢃b|aa🢃a/ "aa🢃a"
16. Maciek Rząsa @mjrzasa String-directed /aab|aaa🢃/ "aaa🢃"

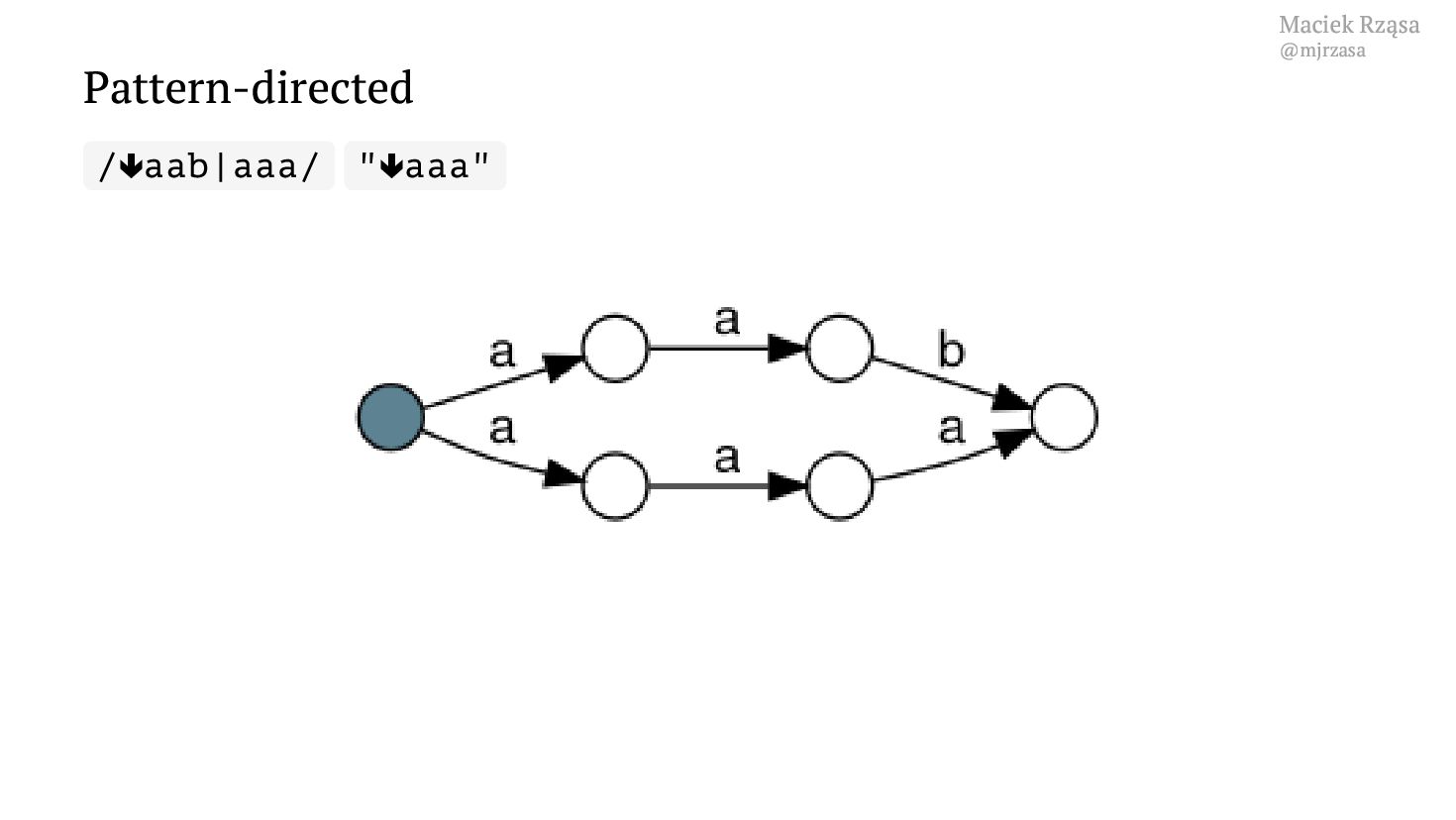

17. Maciek Rząsa @mjrzasa Pattern-directed /🢃aab|aaa/ "🢃aaa"

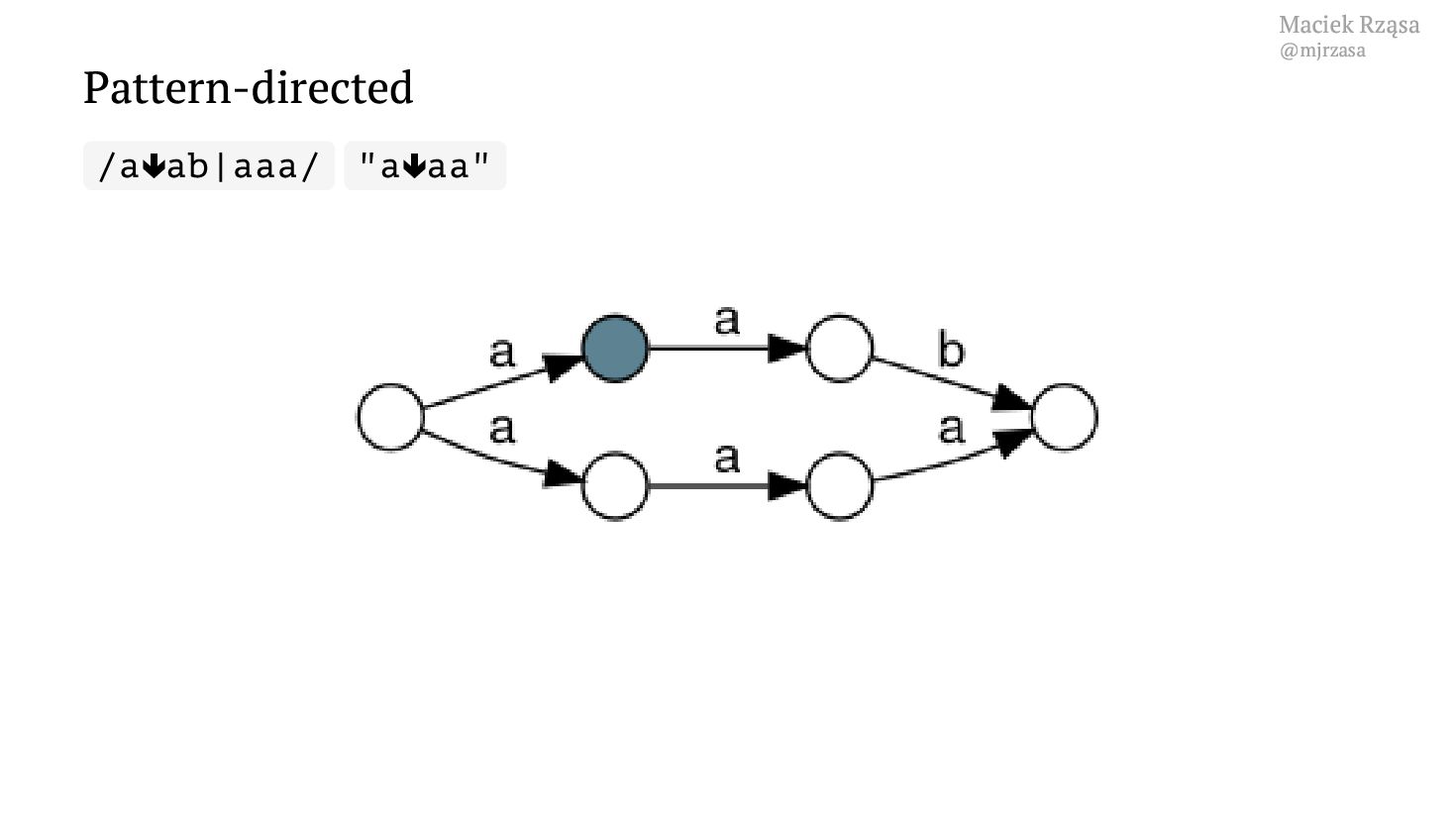

18. Maciek Rząsa @mjrzasa Pattern-directed /a🢃ab|aaa/ "a🢃aa"

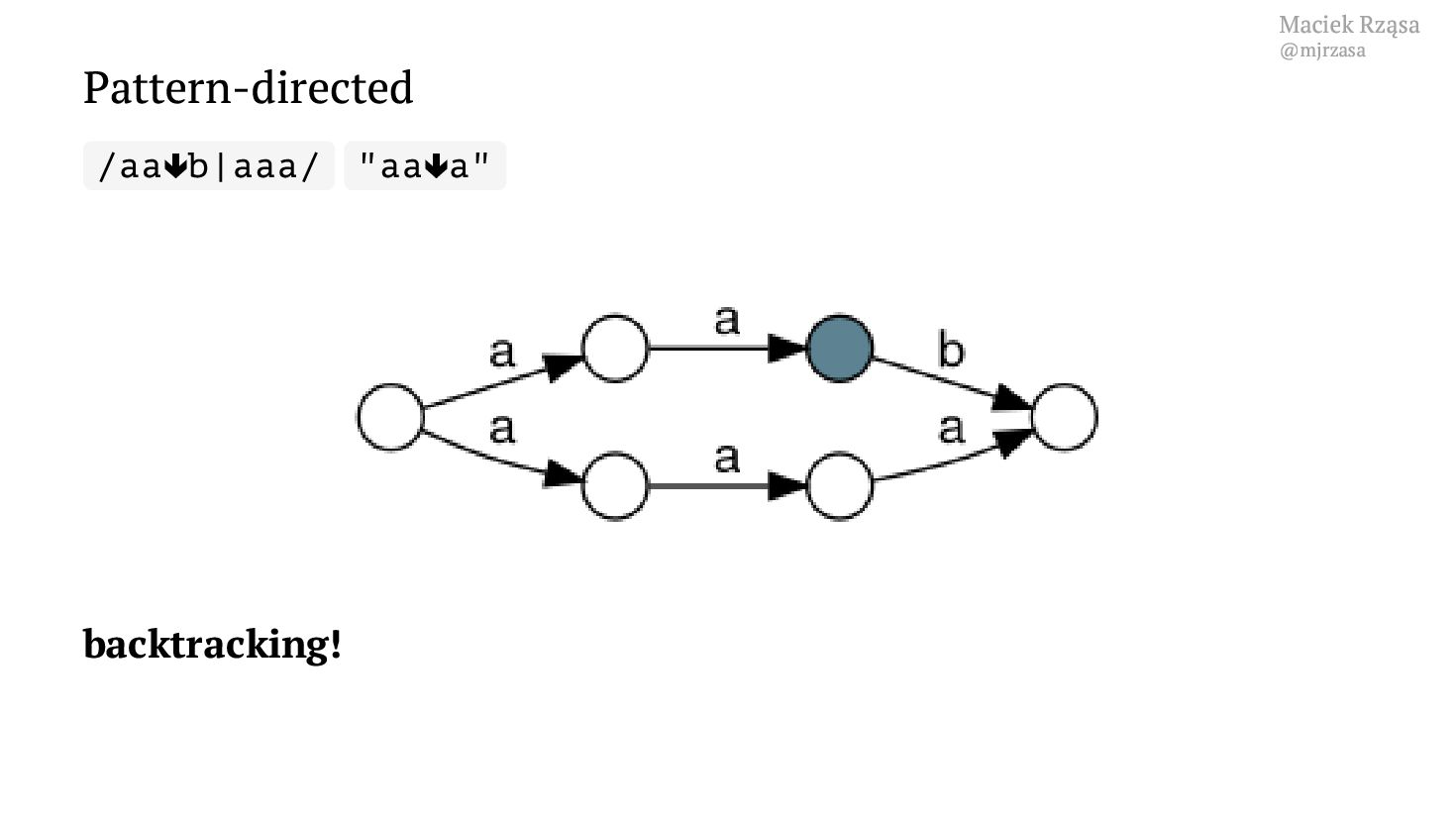

19. Maciek Rząsa @mjrzasa Pattern-directed /aa🢃b|aaa/ "aa🢃a" backtracking!

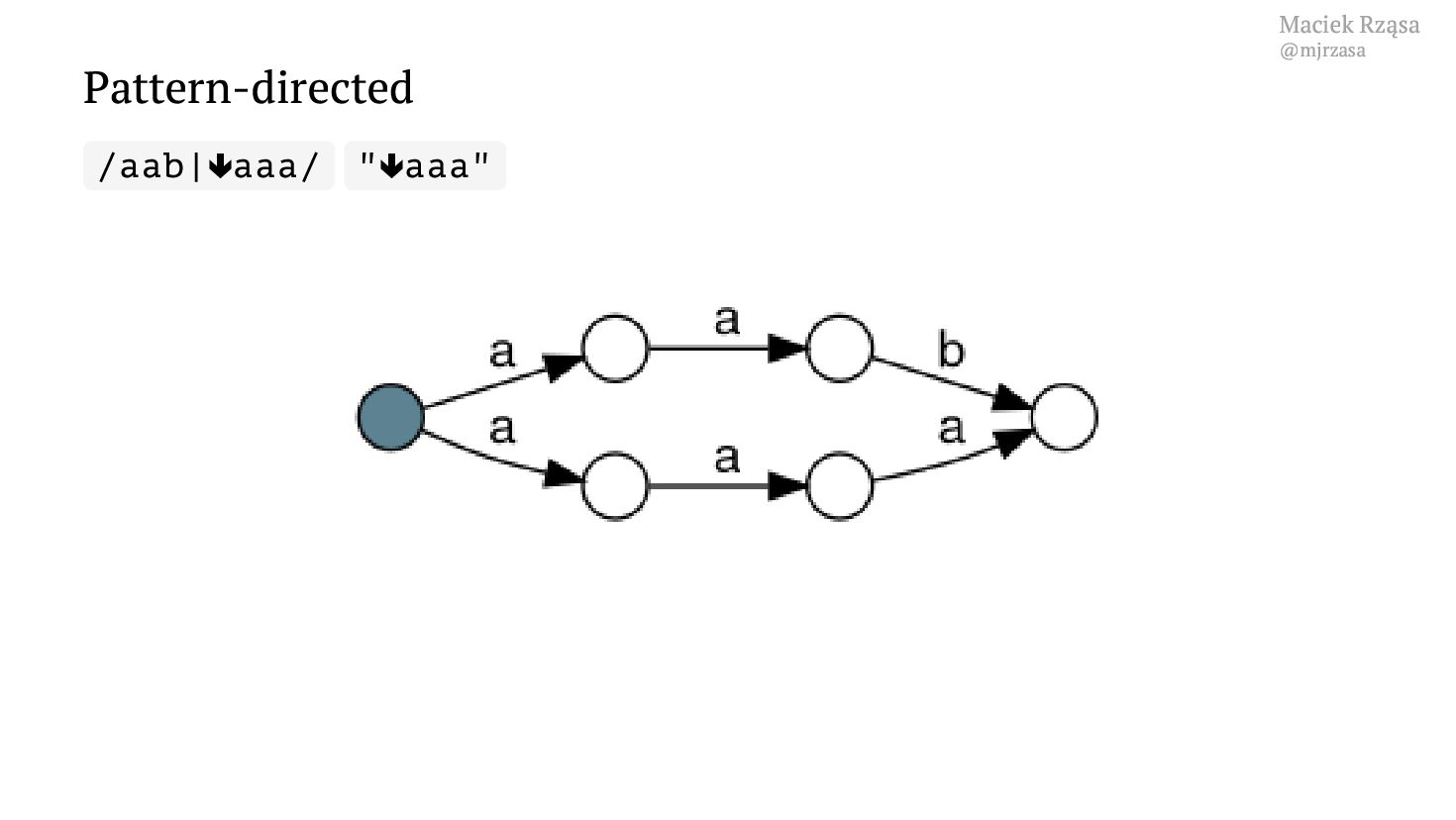

20. Maciek Rząsa @mjrzasa Pattern-directed /aab|🢃aaa/ "🢃aaa"

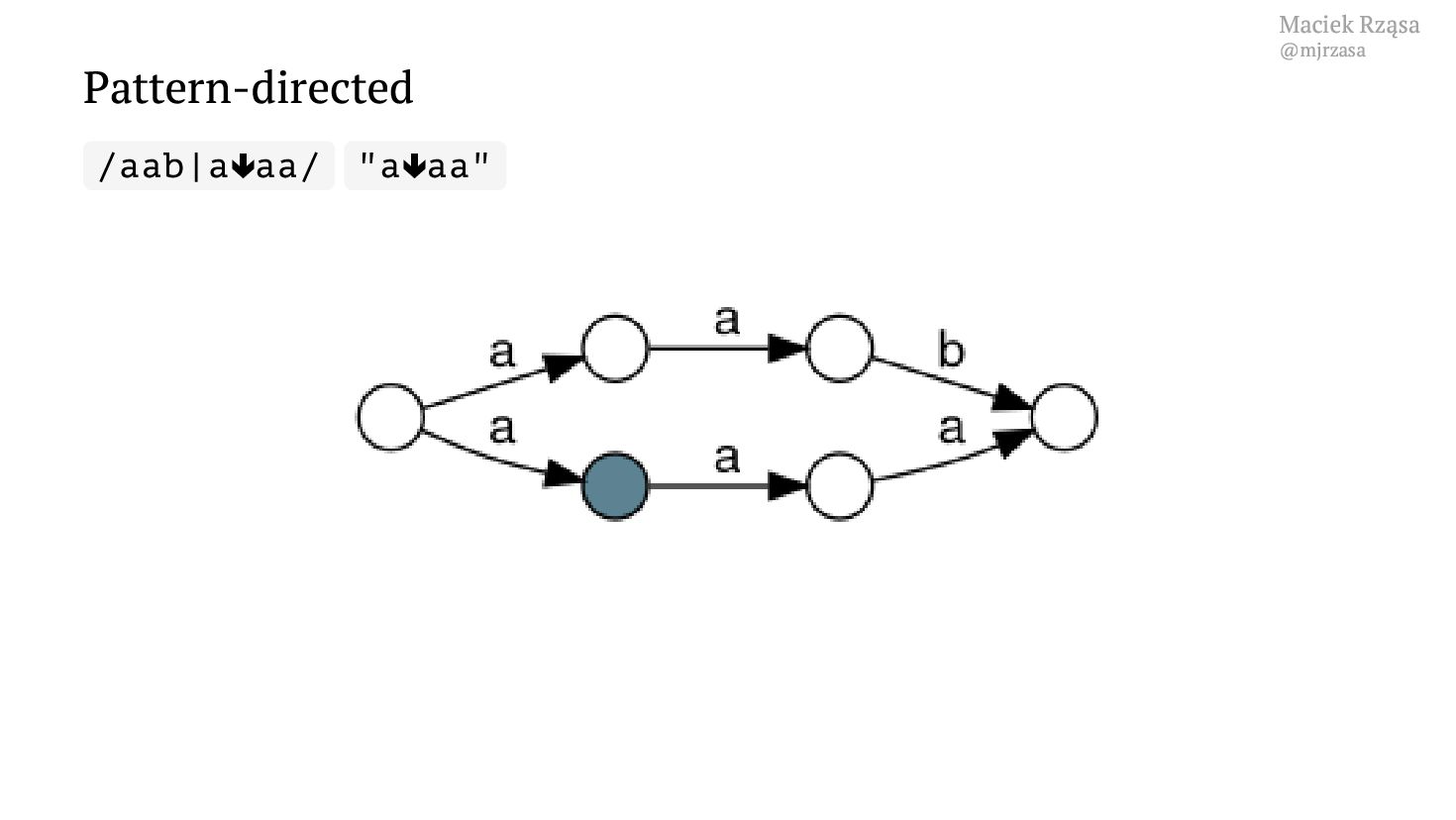

21. Maciek Rząsa @mjrzasa Pattern-directed /aab|a🢃aa/ "a🢃aa"

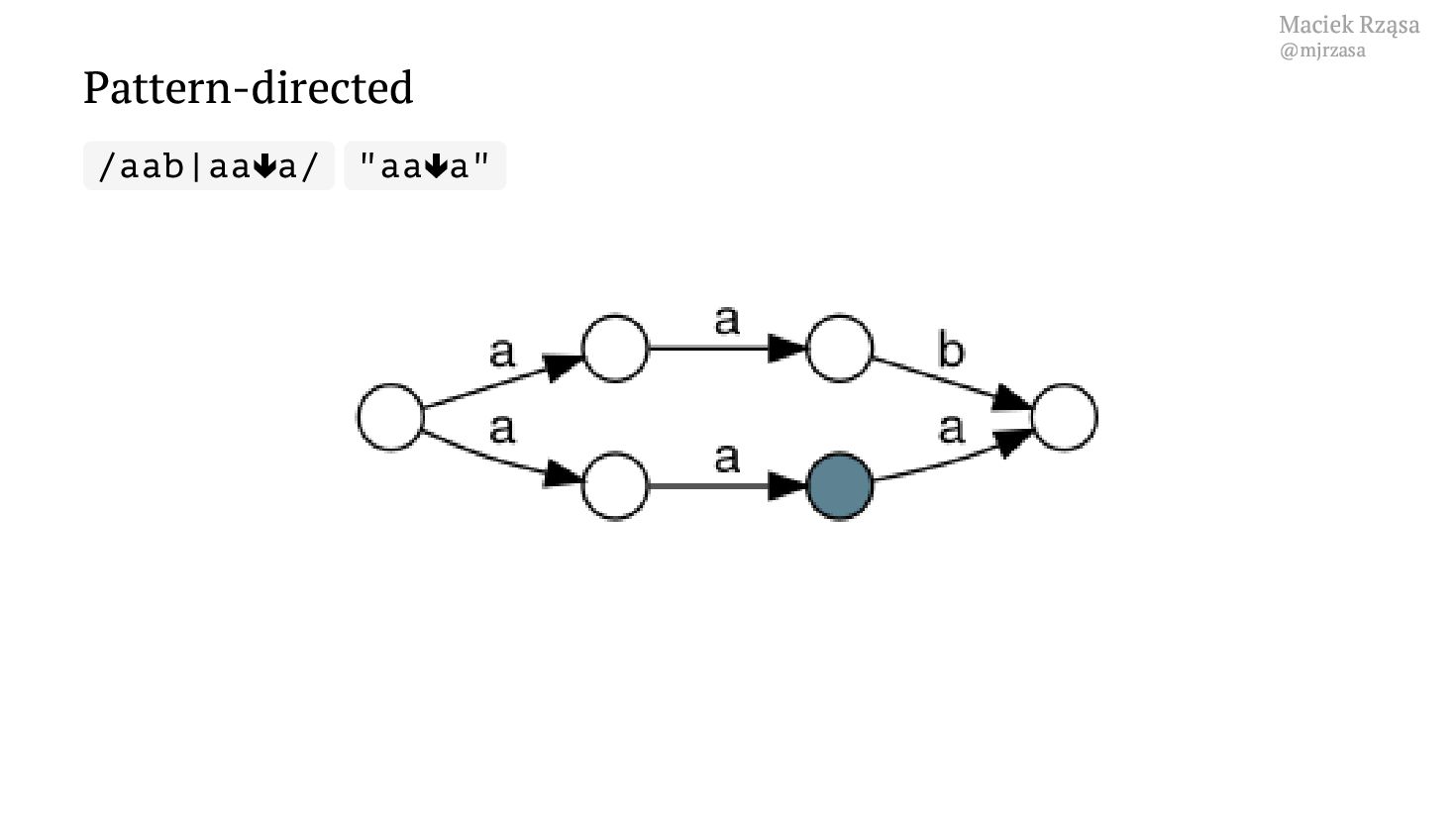

22. Maciek Rząsa @mjrzasa Pattern-directed /aab|aa🢃a/ "aa🢃a"

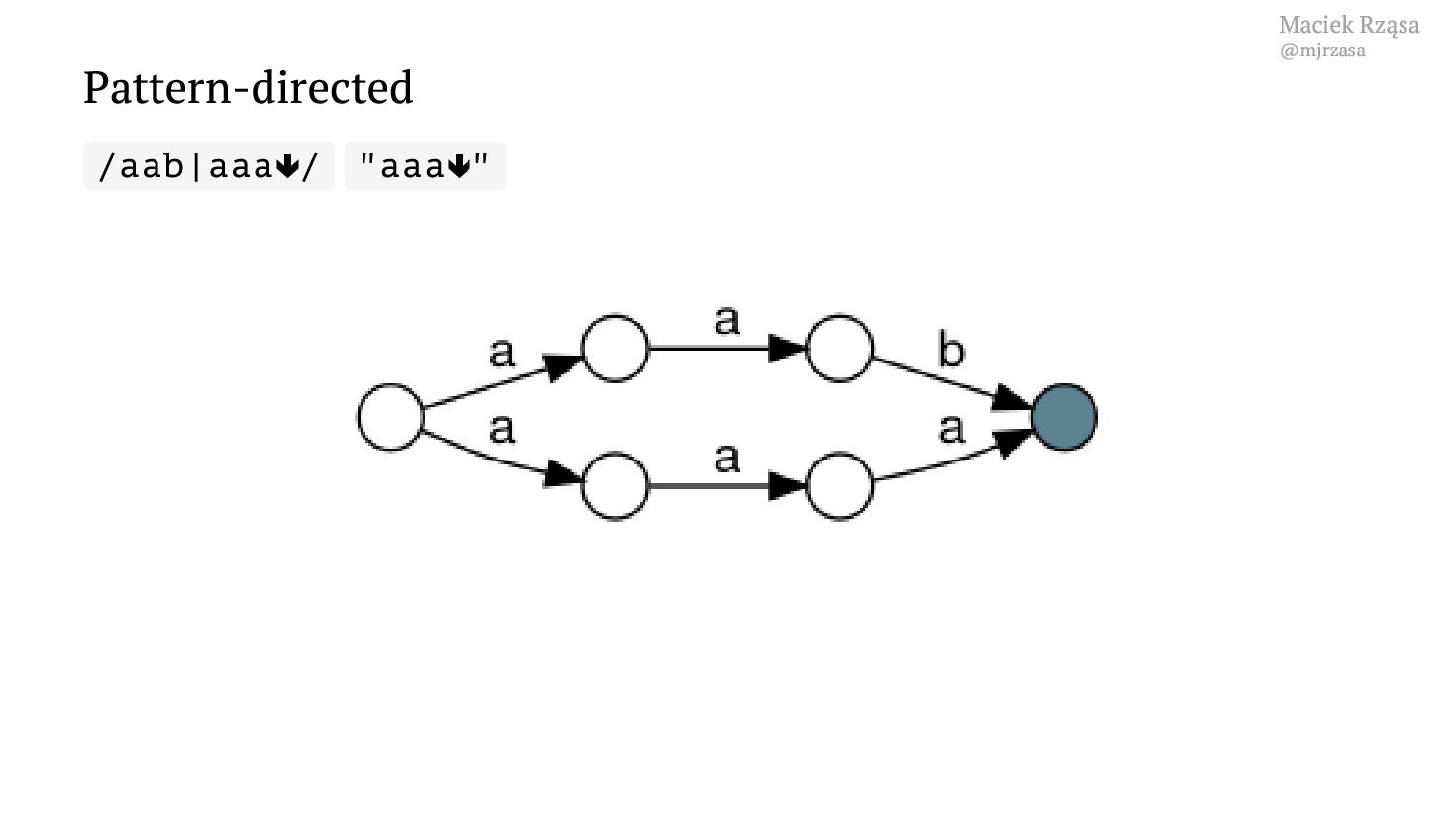

23. Maciek Rząsa @mjrzasa Pattern-directed /aab|aaa🢃/ "aaa🢃"

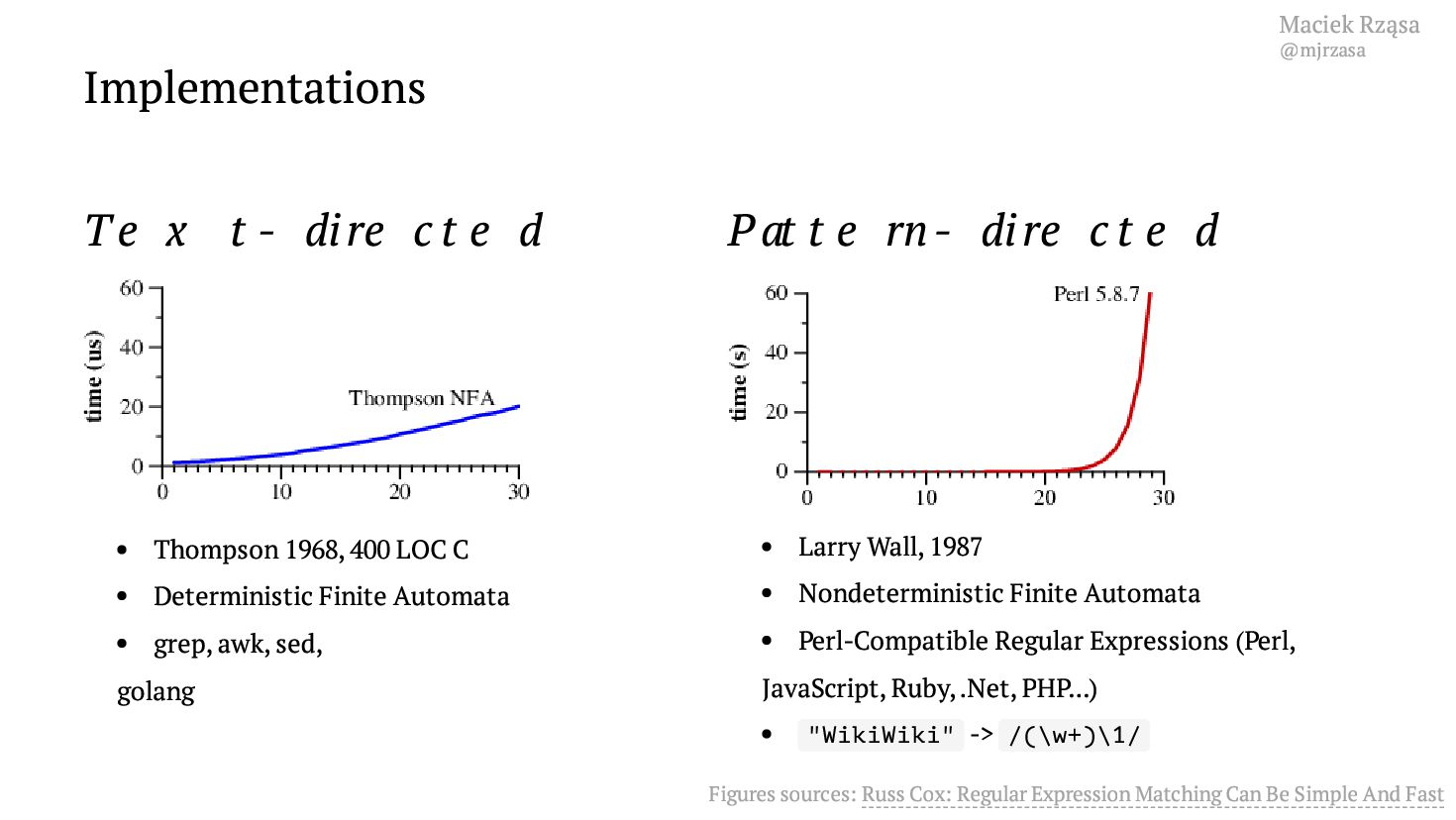

24. Maciek Rząsa @mjrzasa Implementations Te x t - dire ct e d Thompson 1968, 400 LOC C Deterministic Finite Automata grep, awk, sed, golang Pat t e rn- dire ct e d Larry Wall, 1987 Nondeterministic Finite Automata Perl-Compatible Regular Expressions (Perl, JavaScript, Ruby, .Net, PHP...) "WikiWiki" -> /(\w+)\1/ Figures sources: Russ Cox: Regular Expression Matching Can Be Simple And Fast

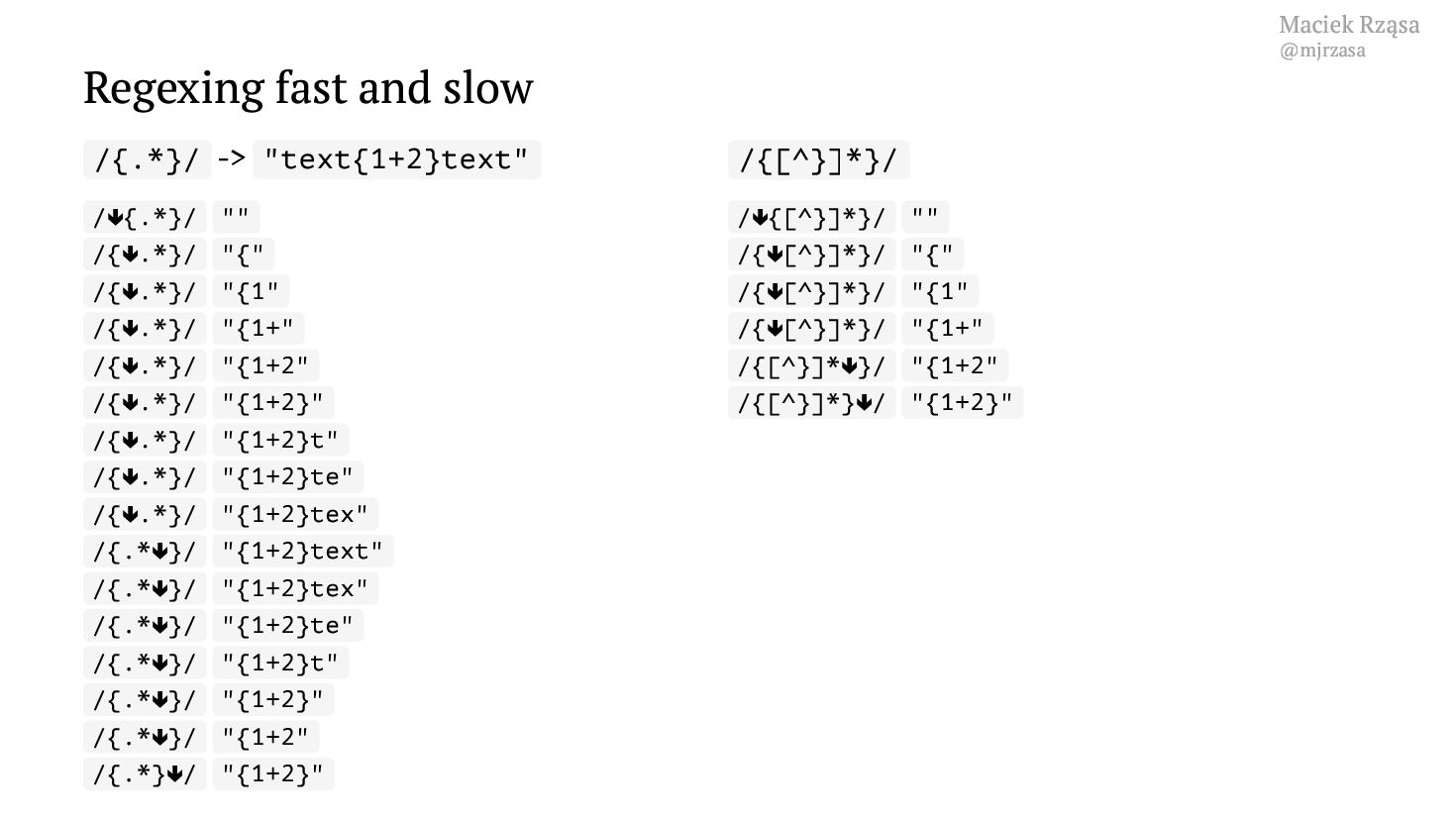

25. Maciek Rząsa @mjrzasa Regexing fast and slow /🢃{.*}/ "" /{🢃.*}/ "{" /{🢃.*}/ "{1" /{🢃.*}/ "{1+" /{🢃.*}/ "{1+2" /{🢃.*}/ "{1+2}" /{🢃.*}/ "{1+2}t" /{🢃.*}/ "{1+2}te" /{🢃.*}/ "{1+2}tex" /{.*🢃}/ "{1+2}text" /{.*🢃}/ "{1+2}tex" /{.*🢃}/ "{1+2}te" /{.*🢃}/ "{1+2}t" /{.*🢃}/ "{1+2}" /{.*🢃}/ "{1+2" /{.*}🢃/ "{1+2}" /🢃{[^}]*}/ "" /{🢃[^}]*}/ "{" /{🢃[^}]*}/ "{1" /{🢃[^}]*}/ "{1+" /{[^}]*🢃}/ "{1+2" /{[^}]*}🢃/ "{1+2}" /{.*}/ -> "text{1+2}text" /{[^}]*}/

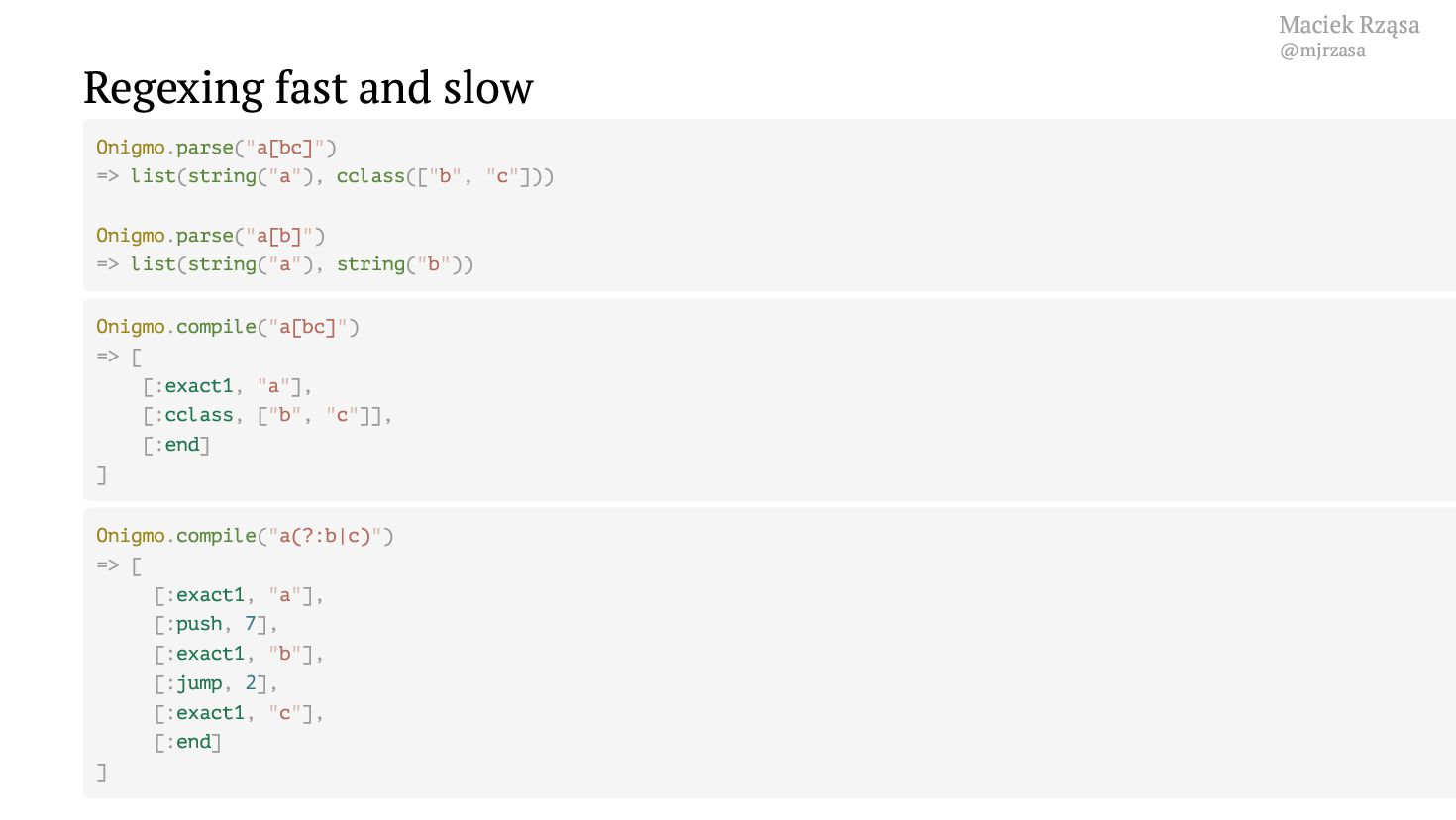

26. Maciek Rząsa @mjrzasa Regexing fast and slow Onigmo.parse("a[bc]") => list(string("a"), cclass(["b", "c"])) Onigmo.parse("a[b]") => list(string("a"), string("b")) Onigmo.compile("a[bc]") => [ [:exact1, "a"], [:cclass, ["b", "c"]], [:end] ] Onigmo.compile("a(?:b|c)") => [ [:exact1, "a"], [:push, 7], [:exact1, "b"], [:jump, 2], [:exact1, "c"], [:end] ]

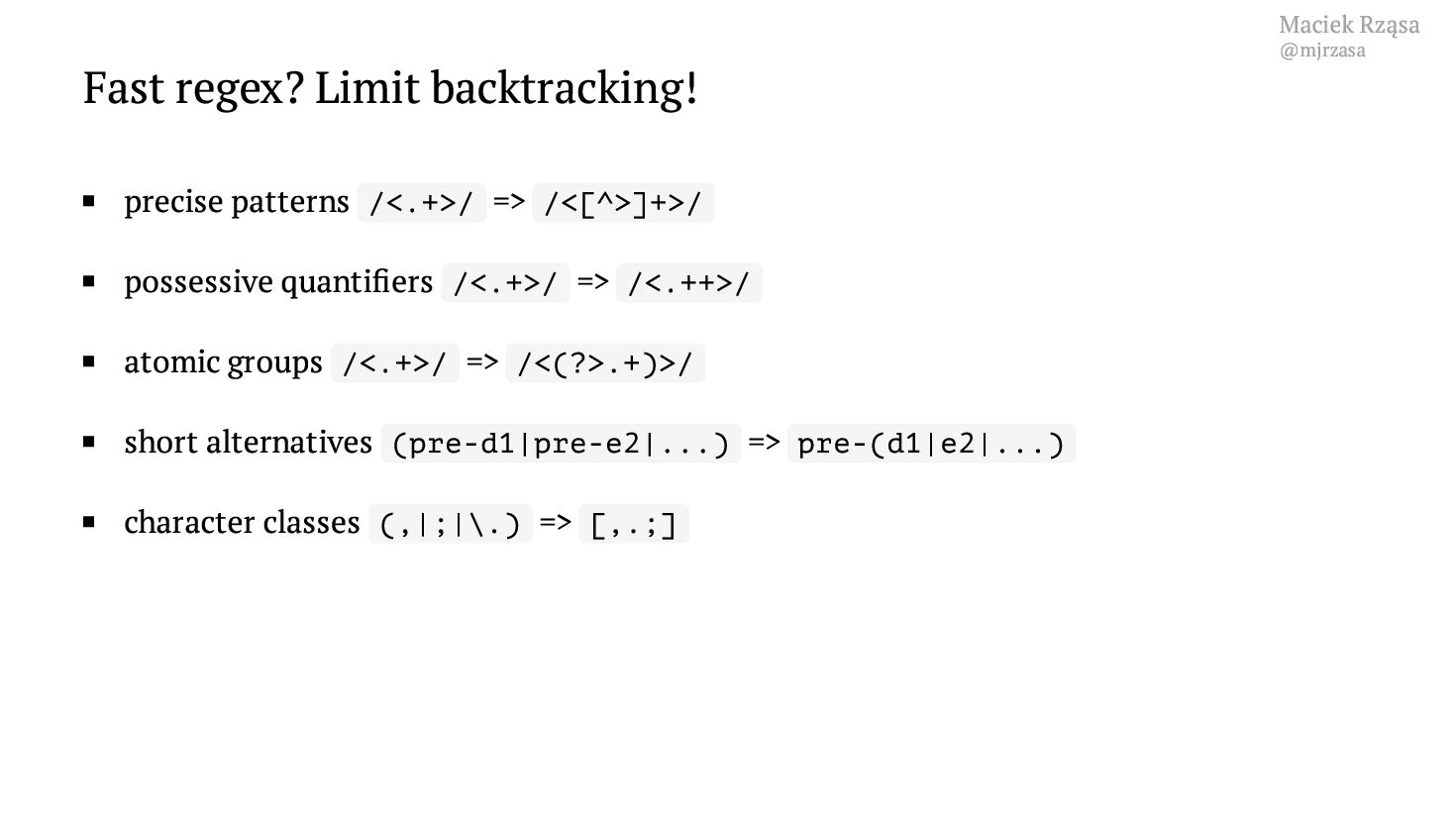

27. Maciek Rząsa @mjrzasa Fast regex? Limit backtracking! precise patterns /<.+>/ => /<[^>]+>/ possessive quantifiers /<.+>/ => /<.++>/ atomic groups /<.+>/ => /<(?>.+)>/ short alternatives (pre-d1|pre-e2|...) => pre-(d1|e2|...) character classes (,|;|\.) => [,.;]
28. Maciek Rząsa @mjrzasa Can a Regex kill your app? Photo by Jakob Owens on Unsplash

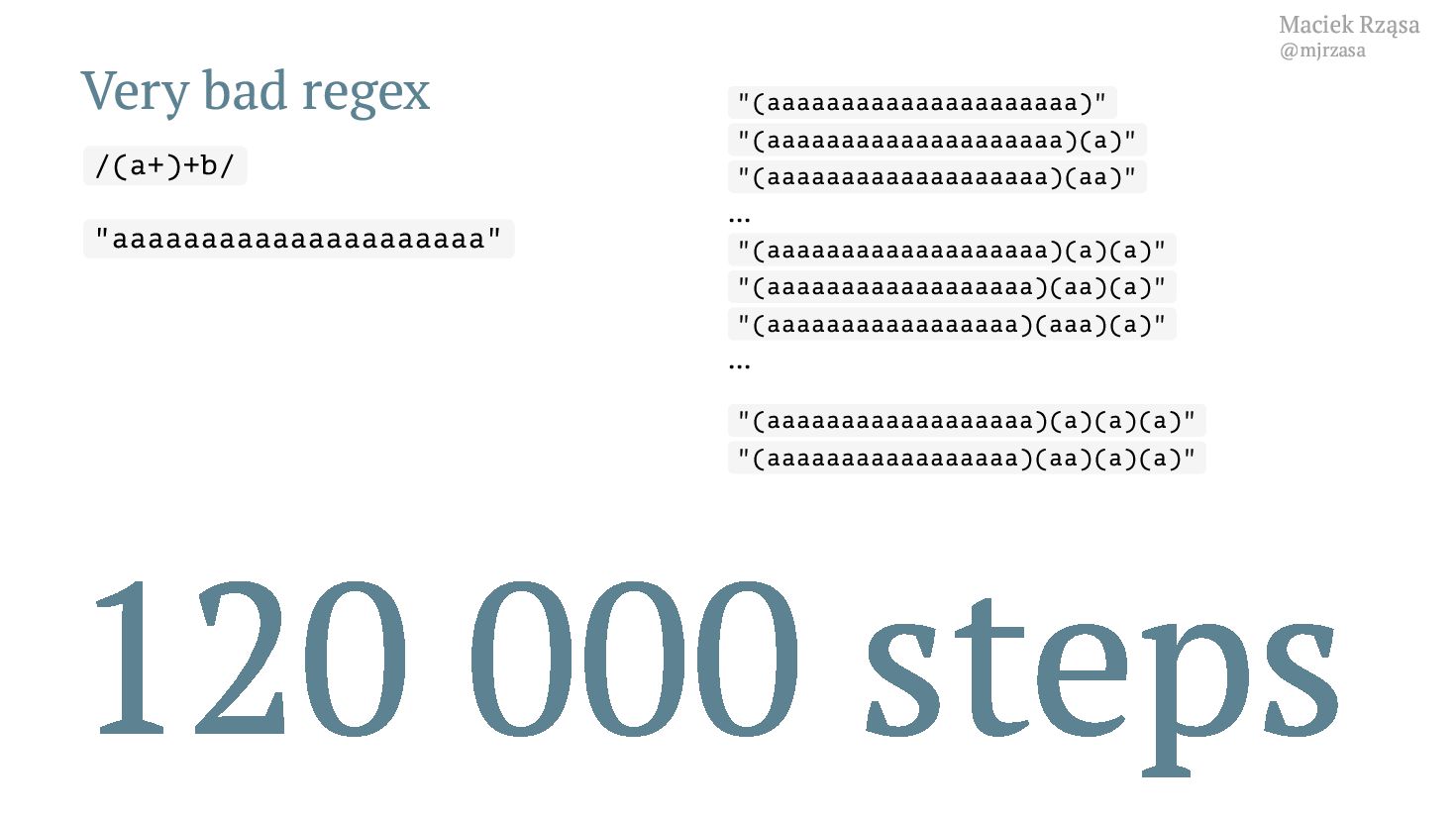

29. Maciek Rząsa @mjrzasa Very bad regex "(aaaaaaaaaaaaaaaaaaaaa)" "(aaaaaaaaaaaaaaaaaaaa)(a)" "(aaaaaaaaaaaaaaaaaaa)(aa)" … "(aaaaaaaaaaaaaaaaaaa)(a)(a)" "(aaaaaaaaaaaaaaaaaa)(aa)(a)" "(aaaaaaaaaaaaaaaaa)(aaa)(a)" … "(aaaaaaaaaaaaaaaaaa)(a)(a)(a)" "(aaaaaaaaaaaaaaaaa)(aa)(a)(a)" /(a+)+b/ "aaaaaaaaaaaaaaaaaaaaa" 120 000 steps

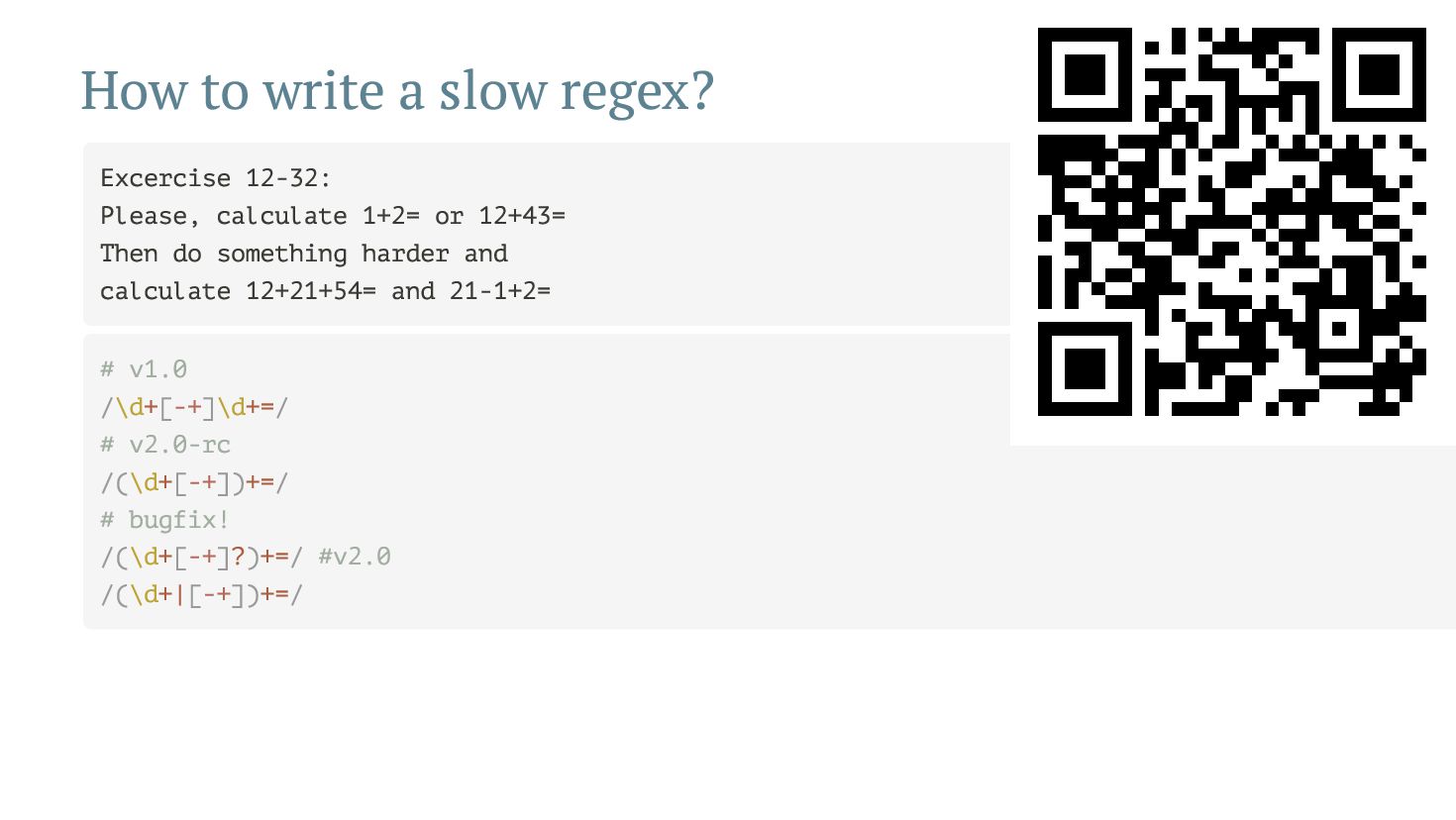

30. Maciek Rząsa @mjrzasa How to write a slow regex? Excercise 12-32: Please, calculate 1+2= or 12+43= Then do something harder and calculate 12+21+54= and 21-1+2= # v1.0 /\d+[-+]\d+=/ # v2.0-rc /(\d+[-+])+=/ # bugfix! /(\d+[-+]?)+=/ #v2.0 /(\d+|[-+])+=/
31. Maciek Rząsa @mjrzasa It can kill 10% of the Internet! Photo by JEFF VRBA on Unsplash

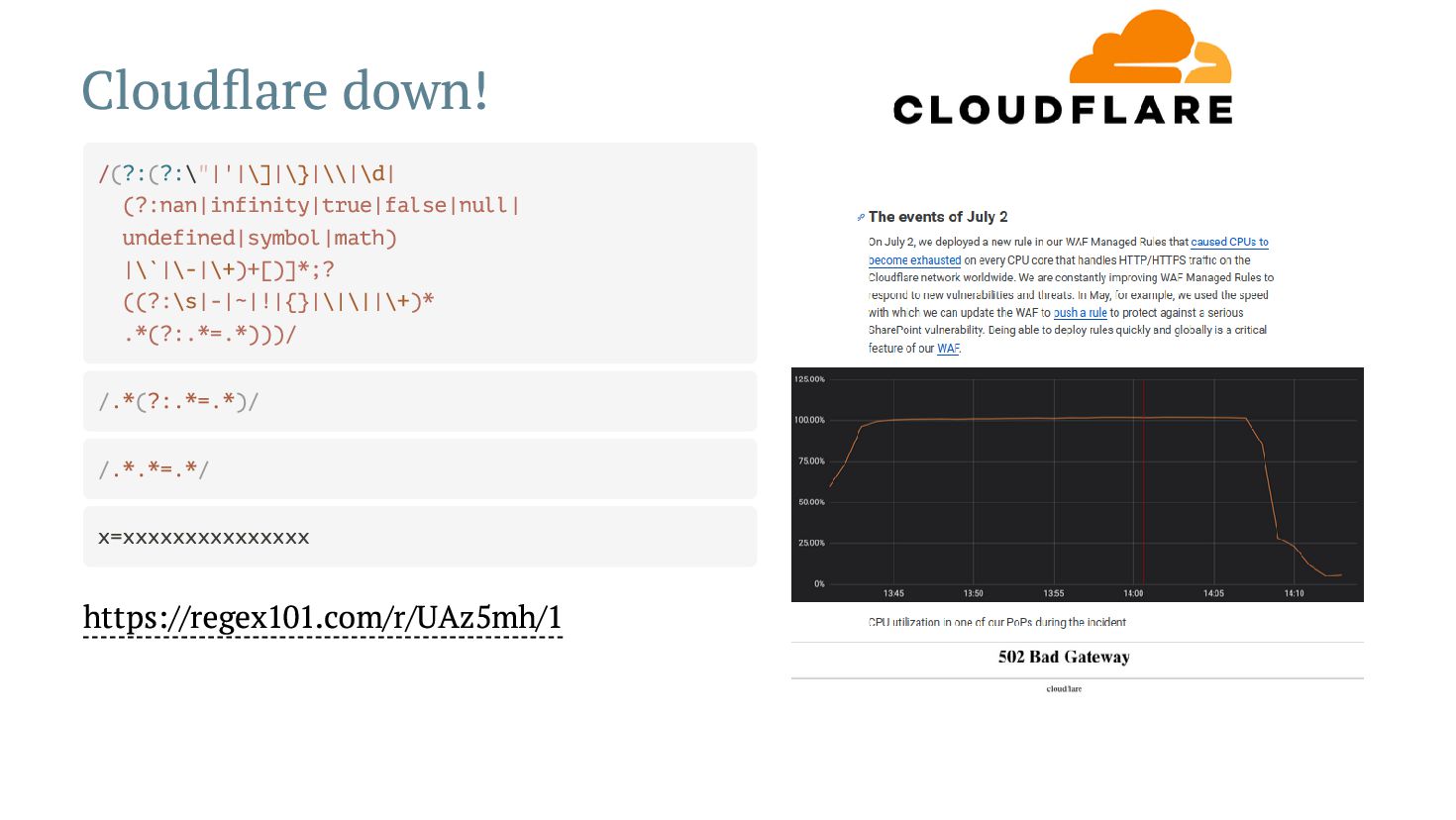

32. Maciek Rząsa @mjrzasa Cloudflare down! https://regex101.com/r/UAz5mh/1 /(?:(?:\"|'|\]|\}|\\|\d| (?:nan|infinity|true|false|null| undefined|symbol|math) |\`|\-|\+)+[)]*;? ((?:\s|-|~|!|{}|\|\||\+)* .*(?:.*=.*)))/ /.*(?:.*=.*)/ /.*.*=.*/ x=xxxxxxxxxxxxxxx

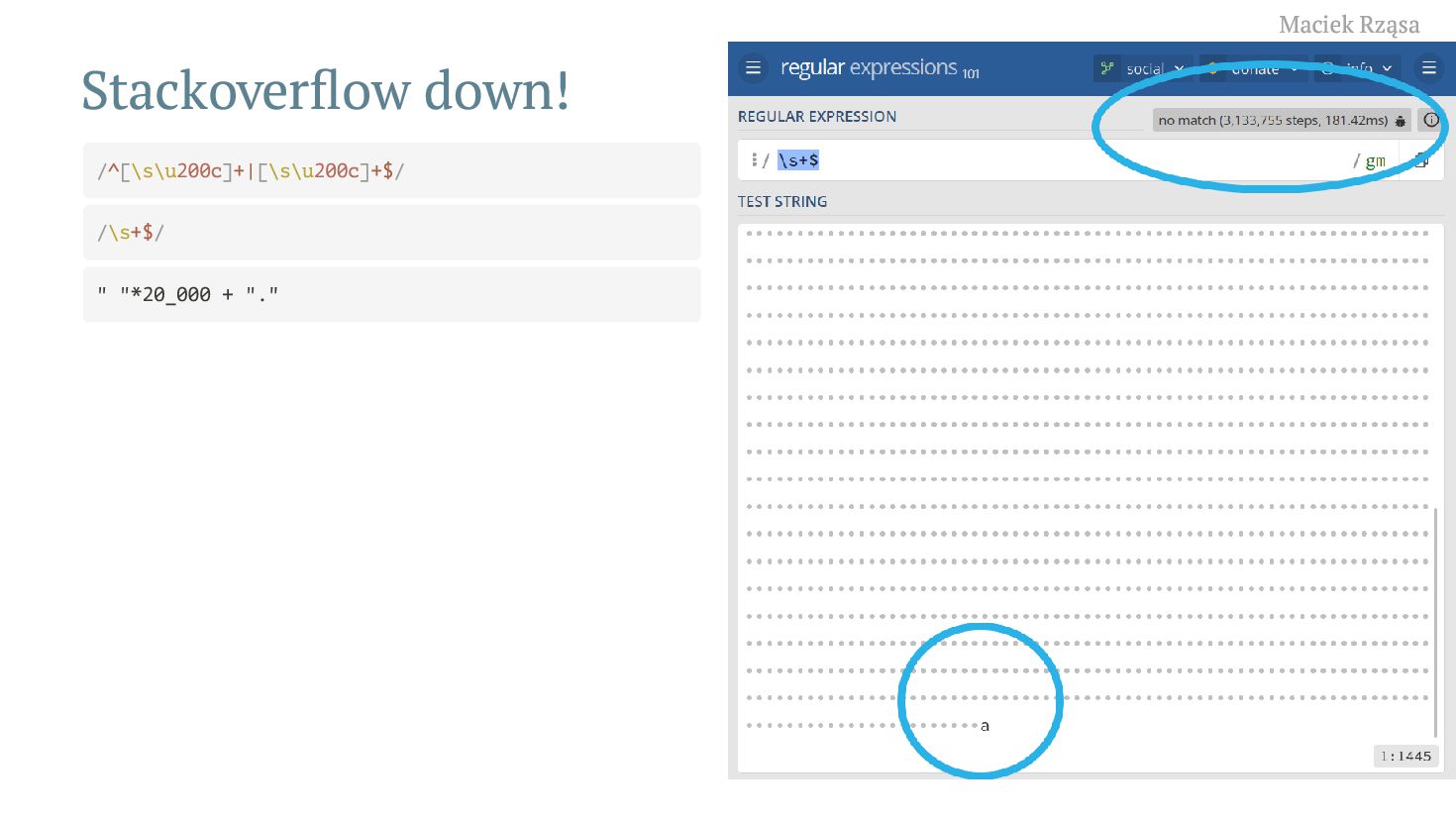

33. Maciek Rząsa @mjrzasa Stackoverflow down! /^[\s\u200c]+|[\s\u200c]+$/ /\s+$/ " "*20_000 + "."
34. Maciek Rząsa @mjrzasa Are We Doomed? Photo by carmen dominguez on Unsplash

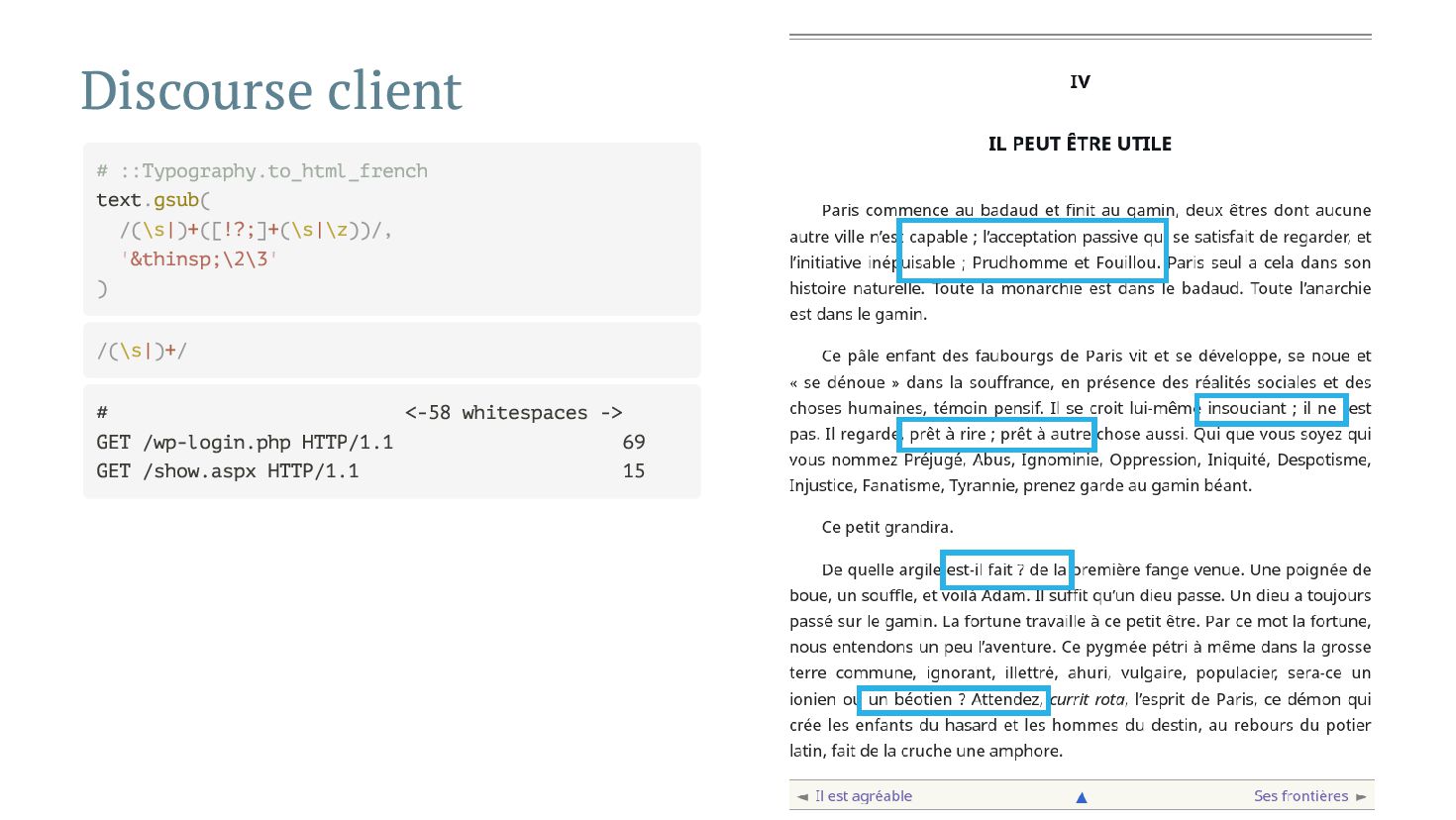

35. Maciek Rząsa @mjrzasa Discourse client # ::Typography.to_html_french text.gsub( /(\s|)+([!?;]+(\s|\z))/, '&thinsp;\2\3' ) /(\s|)+/ # <-58 whitespaces -> GET /wp-login.php HTTP/1.1 69 GET /show.aspx HTTP/1.1 15
36. Maciek Rząsa @mjrzasa Are we doomed?

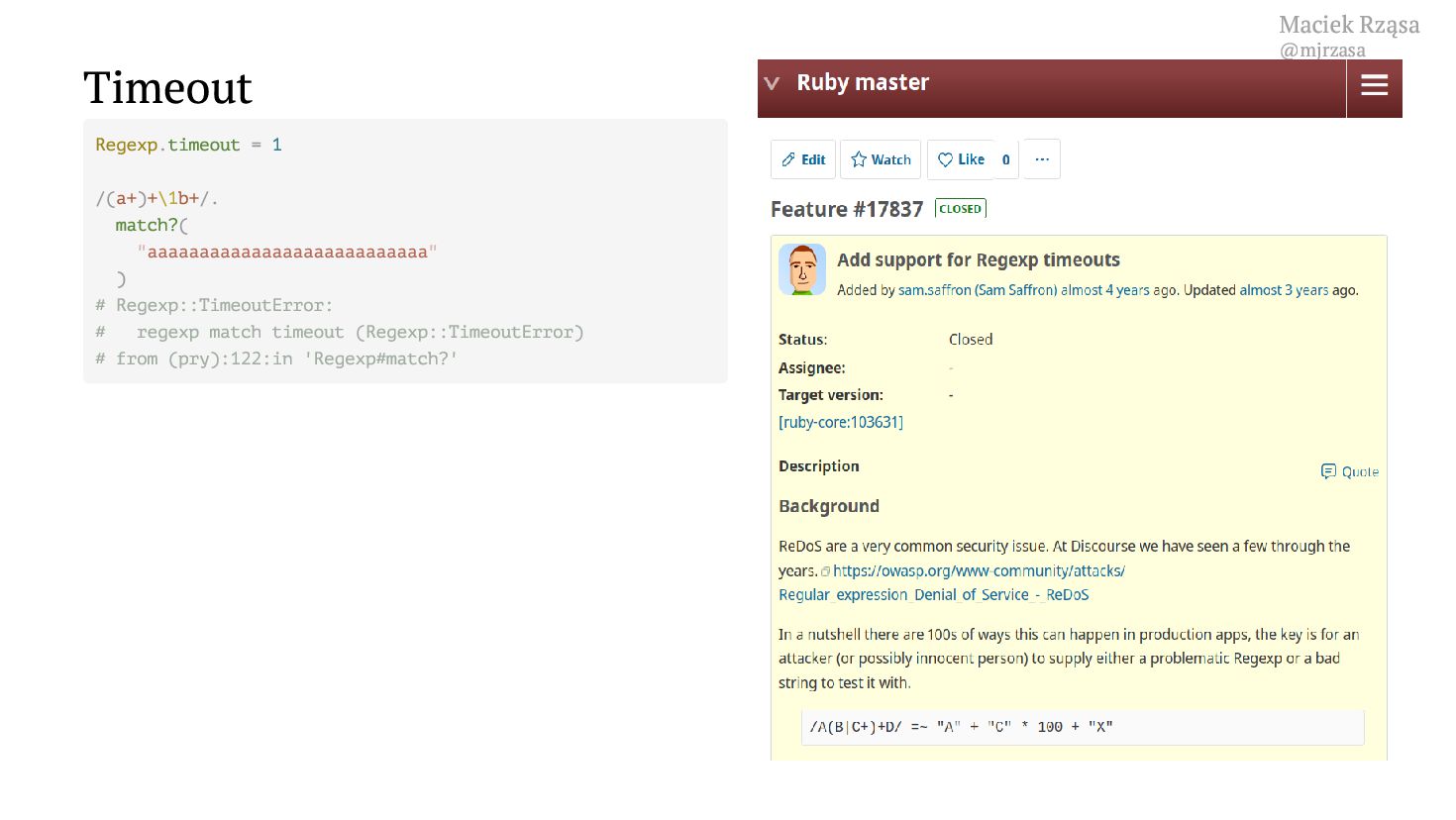

37. Maciek Rząsa @mjrzasa Timeout Regexp.timeout = 1 /(a+)+\1b+/. match?( "aaaaaaaaaaaaaaaaaaaaaaaaaaa" ) # Regexp::TimeoutError: # regexp match timeout (Regexp::TimeoutError) # from (pry):122:in 'Regexp#match?'

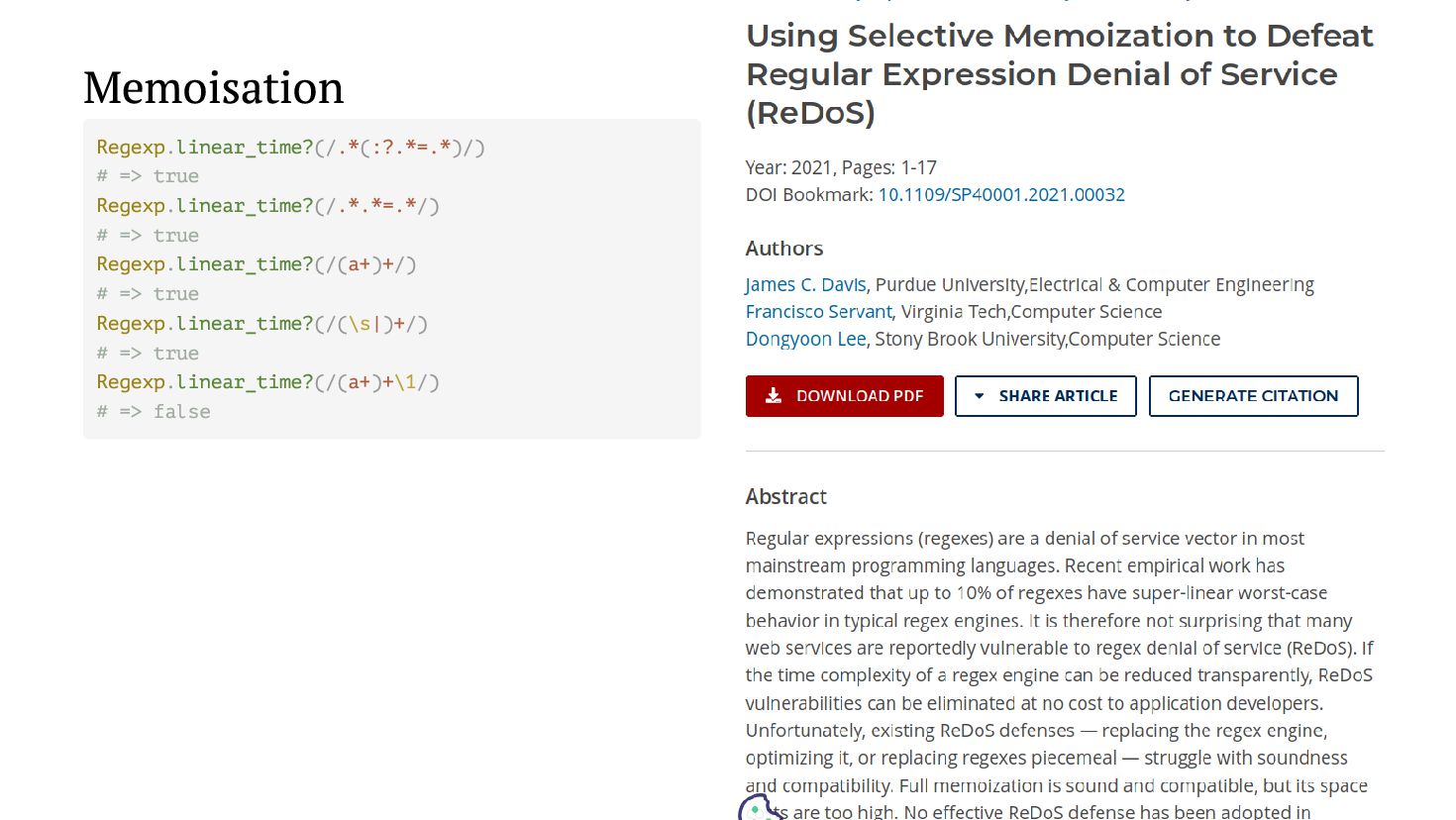

38. Maciek Rząsa @mjrzasa Memoisation Regexp.linear_time?(/.*(:?.*=.*)/) # => true Regexp.linear_time?(/.*.*=.*/) # => true Regexp.linear_time?(/(a+)+/) # => true Regexp.linear_time?(/(\s|)+/) # => true Regexp.linear_time?(/(a+)+\1/) # => false

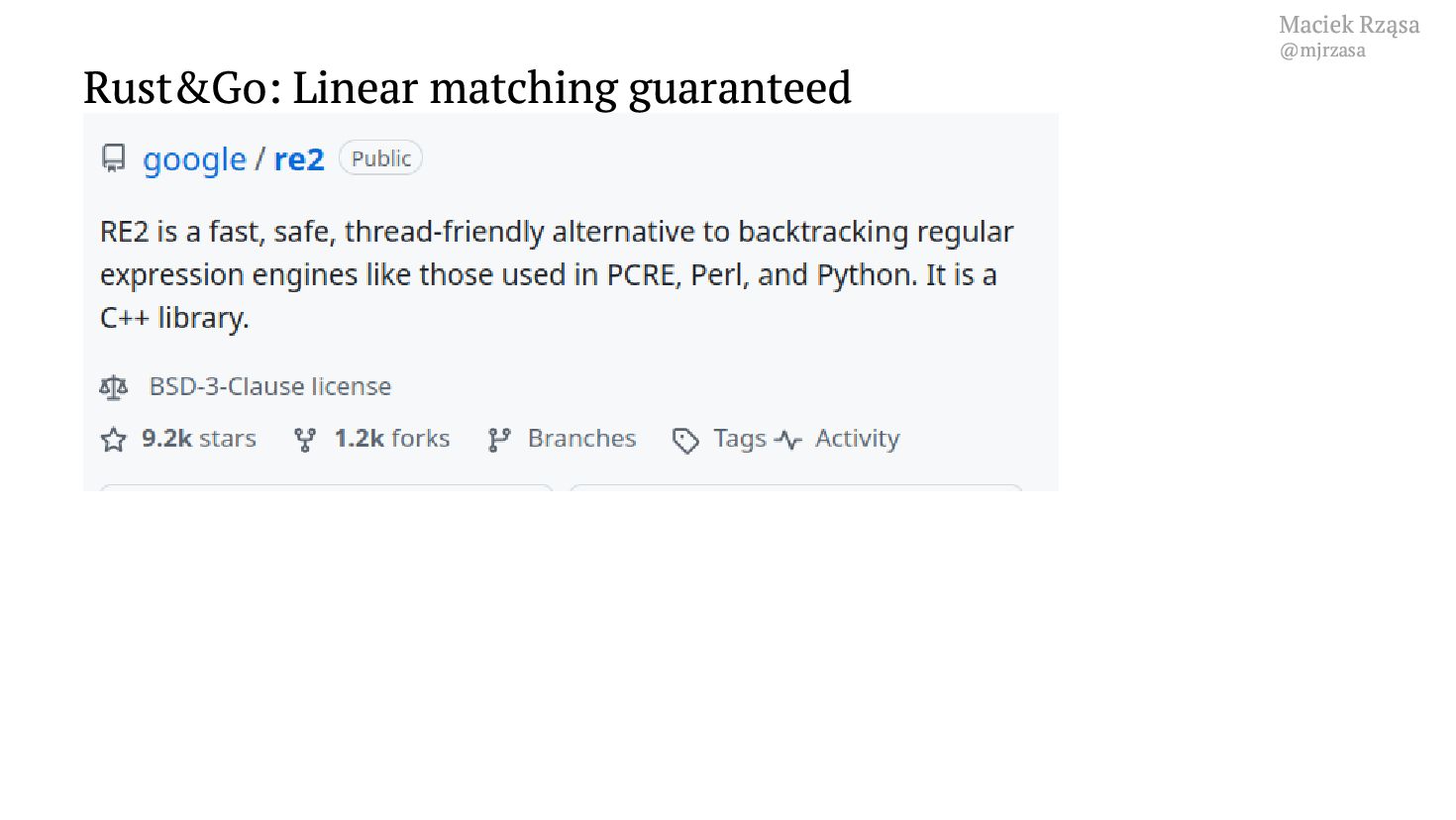

39. Maciek Rząsa @mjrzasa Rust&Go: Linear matching guaranteed
40. Maciek Rząsa @mjrzasa Regex engine optimisations Bhuiyan, Masudul & Çakar, Berk & Burmane, Ethan & Davis, James & Staicu, Cristian-Alexandru. (2024). SoK: A Literature and Engineering Review of Regular Expression Denial of Service. 10.48550/arXiv.2406.11618
41. Maciek Rząsa @mjrzasa Magic? Photo by Paulina B on Unsplash
42. Maciek Rząsa @mjrzasa Why understand Magic 1. 2. Performance 3. Security Designed by Freepik
43. Maciek Rząsa @mjrzasa 1. Curiosity I went through life like this, discovering next something that had first been discovered in 1889, then something from 1921... And finally I discovered something that had the same date as when I discovered it. (...) You are unlikely to discover something new without a lot of practice on old stuff. Richard Feynman, Feynman Lectures on Computation
44. Maciek Rząsa @mjrzasa Maciek Rzą sa @mjrzasa There is no magic, just software t Fn c , t Fn r
