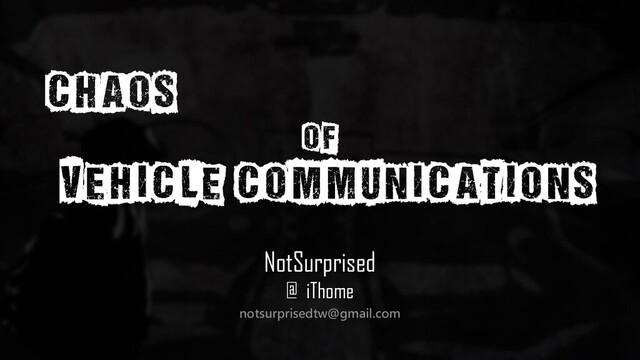

  1. NotSurprised @ iThome notsurprisedtw@gmail.com

  2. https://speakerdeck.com/notsurprised/ithome-cybersec2020-chaos-of-vehicle-communications

  3. > • Background – Introduction – Protocols – ECU/Components •

    OMA DM – Parser problems – Self-defined – Inconsistency • Summary – Recap – Suggestion – Resource
  4. > NotSurprised Intro • UCCU Hacker • AIS3 2016 trainee

    • HITCON Defend 2018 3rd (etc.) • SITCON 2019 speaker • MOPCON 2019 speaker • Becks.io#5 speaker • ITRI Engineer (serve my country) • 5-years Bachelor & Master of NSYSU Email : notsurprisedtw@gmail.com Skill • Windows Kernel Driver (Minifilter) • Penetration Test (Web) • Malware Analysis (Ransomware) • Ethereum Smart Contract (Solidity) • Car Security (OMA DM)
  5. • • •

  6. > Drone, IoT, AI Manufacture, AI Car(VANET) sounds great, but…

    Are They Secure?
  7. >

  8. > • Charlie Miller Jeep Cherokee – Charlie Miller share

    series attack vectors • Tencent KeenLab Tesla Model S • ADCD Key Signal repeat – Proof that signals can be simply trigger and enhance to repeat received signals • PWN2OWN 2019 Tesla Model 3 • Car2go Auto Review Application in Chicago – This connect to server problem, review mechanism can be fraud and unlock the car with fake person id
  9. > • RFID • CAN Bus • Bluetooth • Cellular

    Network (Internet) • VANET • OMA DM
  10. > Car Internal Communication Car external communication Key Manufacture server

  11. >

  12. None
  13. >

  14. > • RFID(Radio Frequency Identification), radio also • In vehicle,

    long distance, usually in high frequencies, UHF root@kali:~# nfc-list nfc-list uses libnfc 1.7.1 NFC device: pn532_uart:/dev/ttyUSB0 opened 1 ISO14443A passive target(s) found: ISO/IEC 14443A (106 kbps) target: ATQA (SENS_RES): 00 04 UID (NFCID1): 3c 3d f1 0d SAK (SEL_RES): 08 root@kali:~# nfc-mfsetuid 3c3df10d NFC reader: pn532_uart:/dev/ttyUSB0 opened Sent bits: 26 (7 bits) Received bits: 04 00 Sent bits: 93 20 Received bits: 0c 5c ee 0d b3 Sent bits: 93 70 0c 5c ee 0d b3 5c c2 Generate fake RFID key RFID Reader with Arduino
  15. > • Signal Amplification Relay Attack • Original designed to

    copy for backup and become all in one RFID key in personal used • Can copy 125 kHz (“low frequency”) RFID • Can not copy 13.56MHz (“high frequency”) NFC
  16. >

  17. >

  18. >

  19. > • Best way to get into CAN bus –

    Compromise the car’s mini computer ( OS: QNX, Win CE, Linux, Android, Green Hills) – As a component in car, mini computer connect to CAN bus and dash board • Message on CAN bus system – CAN message format • ISO 11519-2 / ISO 11898:1993 / ISO 11898:1995 • Make largest privilege code in your broadcast packet – Diagnostic trouble code format • Sometime trigger automatic reaction • Aircraft also use CAN bus – Same problem that microcontroller is the last defend line in simple aircraft
  20. >

  21. > • CAN – ISO-TP (ISO 15765-4) – CANopen –

    GMLAN bus • SEA J1850 – PWN – VPW • KWP – KWP2000 (ISO 9141-2) – ISO 14230-4 • LIN Bus • MOST – Independent from bus line, for IVI, connect to speaker and cellular network. • FlexRay • Ethernet
  22. > credit :

  23. > credit :

  24. > credit :

  25. > • FlexRay bus – Fastest – Expensive – Top

    class car – Sensitive • CAN bus – Good CP value – Widely used credit :
  26. > • OBDII (On-Board Diagnostic System II) ft. EcomCat credit

    :
  27. > ECOM2 OBDII Cable US $203.37 ValueCan3 OBDII Cable US

    $395.00
  28. > ELM327 OBDII Cable US $8.40~$2.50

  29. > Expensive OBD2 Cable Cheap OBD2 Cable Normal Limited Usually

    not Sometimes GUI / Auto Link Open Source / Self-defined High Low (china copycat) Yes No Lots None Yes None
  30. > Some interesting tool: • ICSim: Instrument Cluster Simulator –

    For Can
  31. > • MyCar, CarDoctor, Car Scanner – Type of product

    connect to OBDII and APP – Control your car’s status to prevent frauded by repair shop – Usually Bluetooth(shorter distance, more secure), WIFI/3G/4G – As IoT, default AC/PW remain problem – Bluetooth default paring key: 0000/1234 (sometime even not give a request)
  32. > • Using uuid and handle (company identifier) primary and

    characteristic command. • Sometime you can brutal force it or OSINT for hint. • MiBand2 no auth key, MiBand3 has breakable auth key.
  33. > • Torque • Car scanner • OBD Auto Doctor

  34. > • ELM327 OBD2 BLE • Cannot change PIN •

    Support several client APP credit :
  35. > • ELM327 OBD2 WiFi • Default IP & Port

    • Support several client APP
  36. >

  37. None
  38. > credit : Semantic

  39. > • HTTP sniffer than you will get the AC/PW

    • Door seq. being shown on URL query as plaintext • Even you have no AC/PW, you can unlock most door remote by SQLi • There's a password to switch to setting mode on product’s user manual, you can find it on internet. e.g. #123456#
  40. > • A human-readable JSON protocol “encrypted” with an easily

    reversible autokey (-85) XOR cipher and a binary DES-encrypted configuration (AC/PW : admin/admin)
  41. > • Not just Bluetooth, also using GPS and a

    cellular connection to extend their range to anywhere with an internet connection. credit :
  42. > • Acoount & Password is default in factoryBootstrap and

    popular • User Guide which contain AC/PW public on internet – https://fccid.io/2AEB4AG21/User-Manual/User-manual-3104674 credit :
  43. > • Such Vulhub website provide by MyCar Vendors credit

    :
  44. > • SQLi to other account and launch other’s car

    engine by web API credit :
  45. credit : BUG BUG CVE CVE MyCar Vendor MyCar Vendor

    MyCar Vendor MyCar Vendor
  46. None
  47. None
  48. > credit : Automotive Electronics

  49. > credit :

  50. > credit : LGACL Simulator

  51. Vehicular Ad Hoc Network On-Board Unit, OBU Road Side Unit,

    RSU • On board device to receive/send message system • Combined with sensors • microcontroller, speed sensor, brake sensor, radar, GPS, etc… • Road side sensor to receive/send message system • Has computing abilities • Co-work with OBU to make V2V communication happened • RSU can connect to central control center to make road state under control > credit : yenchih.kuo@NSYSU
  52. • Communication between car:Vehicle to Vehicle, V2V • Communication between

    car and road:Vehicle to infrastructure, V2I • Dedicated Short Range Communications (DSRC) • 5.85GHz~5.925GHz • Infrared、RFID、IEEE802.11p、IEEE1609 • in IEEE1609.x Wireless Access in the Vehicular Environment (WAVE) • Transmission Rate:3~27Mbps • Most Range:1km > credit : yenchih.kuo@NSYSU
  53. > • Every sec, car will delivered its own basic

    info. Including highway ID, delivered time, position, speed. • Attacker can overwrite Beacon info to make MDS make mistake. • Therefore, vehicle need to confirm pkg from valid node, and check checksum. VANET Attack can conclude into 5 phases: • Abnormal Data Check • Alert Check • Node Oriental Detecting Method • Data Oriental Detecting Method • Privacy
  54. > In next section →

  55. > In next section →

  56. > • JTAG – A kind of debugging protocol, can

    download and upload the firmware, find the PIN on manual • JTAGulator – A tool to help researcher find the JTAG PIN on chip credit : attify
  57. > • SWD (serial wire debug) – A kind of

    debugging protocol, support by STM32F4 series (STM32F4 is the most widely used car chip) • STM32F4 Discovery Kit – A debug tool provide by ST themself credit : st
  58. > • IVI (In-Vehicle Information System) • MCU (Microcontroller Unit)

    credit : iotm2mcouncil
  59. > MobilePhone / Server HMI MicroController HTTP Modbus Canbus Device

    PLC ECU No No / TLS1.2 No Strong Normal Weak Lots Few Few *Public Private *Public *Few *Few Lots Remote / Extranet Remote / Extranet Physical / Short-dist / Remote
  60. > • Most are targeted attack • Vehicle security base

    on close-source and inconsistency, just like OT • Revenue is totally different class in IoT device, worth targeted attack • As AI raise, automatous vehicle definitely need standards to connect to the road system and collect info for AI, therefore, it bring problems in security
  61. >

  62. >
