1. How to automate web application using HtmlElements framework Raman Patsiayuk Test Automation Engineer, Exadel

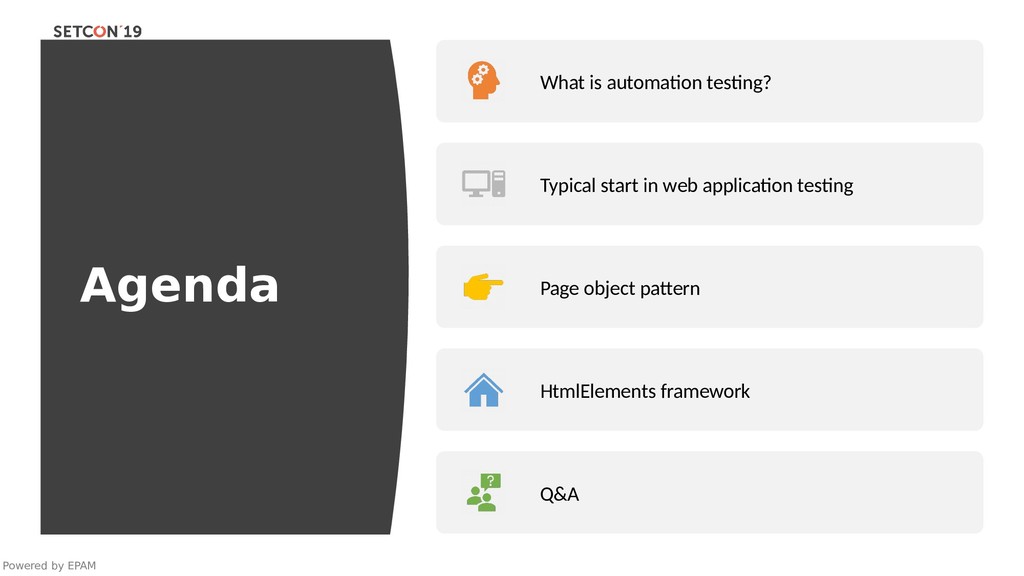

2. Agenda Powered by EPAM What is automation testing? Typical start in web application testing Page object pattern HtmlElements framework Q&A

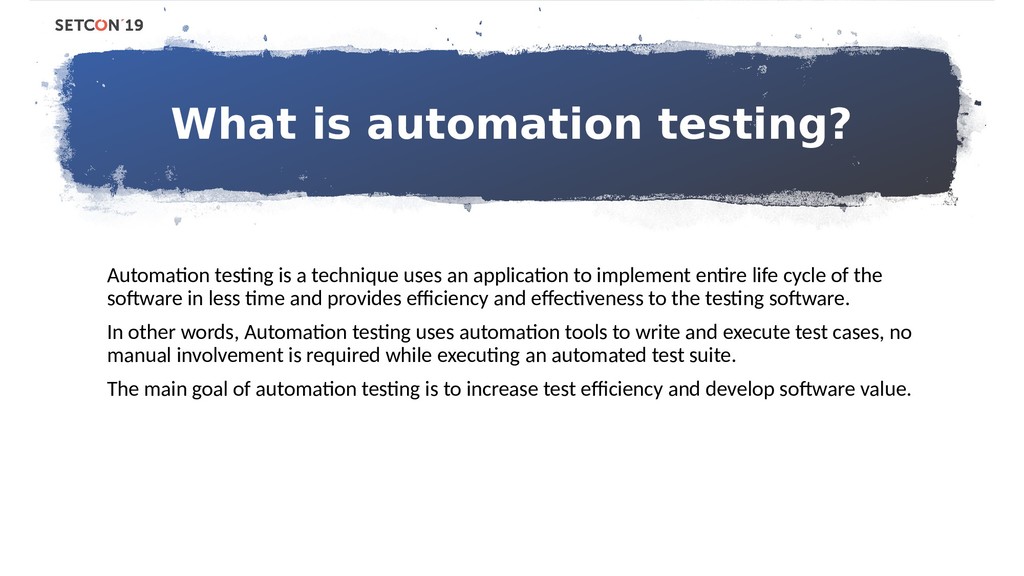

3. What is automation testing? Automation testing is a technique uses an application to implement entire life cycle of the software in less time and provides efficiency and effectiveness to the testing software. In other words, Automation testing uses automation tools to write and execute test cases, no manual involvement is required while executing an automated test suite. The main goal of automation testing is to increase test efficiency and develop software value.
4. Programming languages

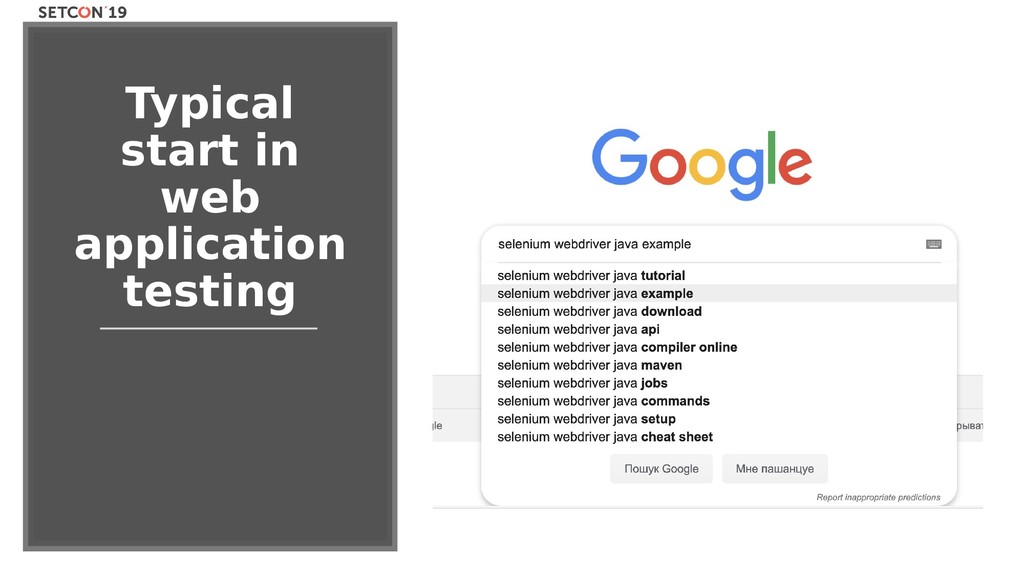

5. Typical start in web application testing

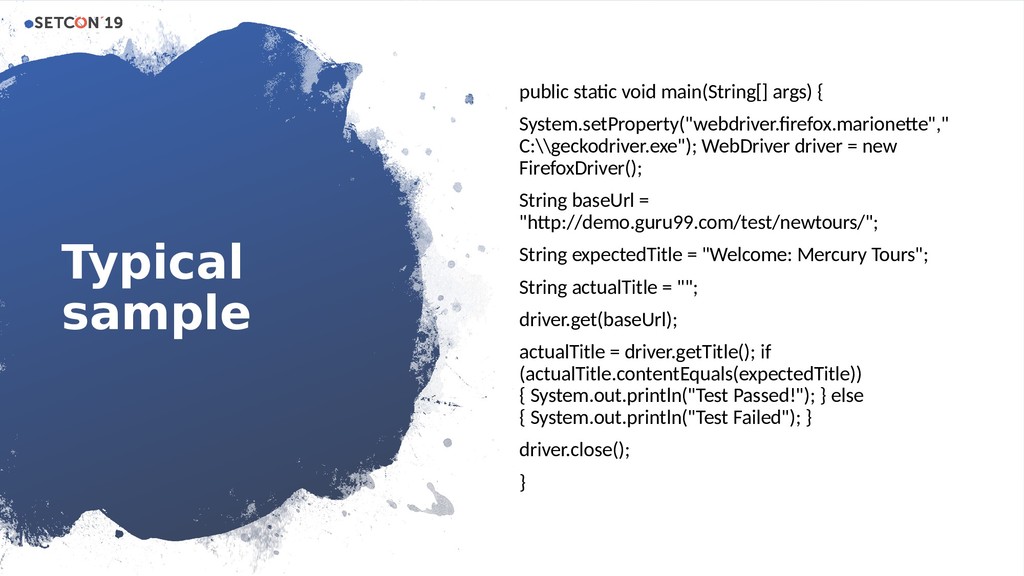

6. Typical sample public static void main(String[] args) { System.setProperty("webdriver.firefox.marionette"," C:\\geckodriver.exe"); WebDriver driver = new FirefoxDriver(); String baseUrl = "http://demo.guru99.com/test/newtours/"; String expectedTitle = "Welcome: Mercury Tours"; String actualTitle = ""; driver.get(baseUrl); actualTitle = driver.getTitle(); if (actualTitle.contentEquals(expectedTitle)) { System.out.println("Test Passed!"); } else { System.out.println("Test Failed"); } driver.close(); }

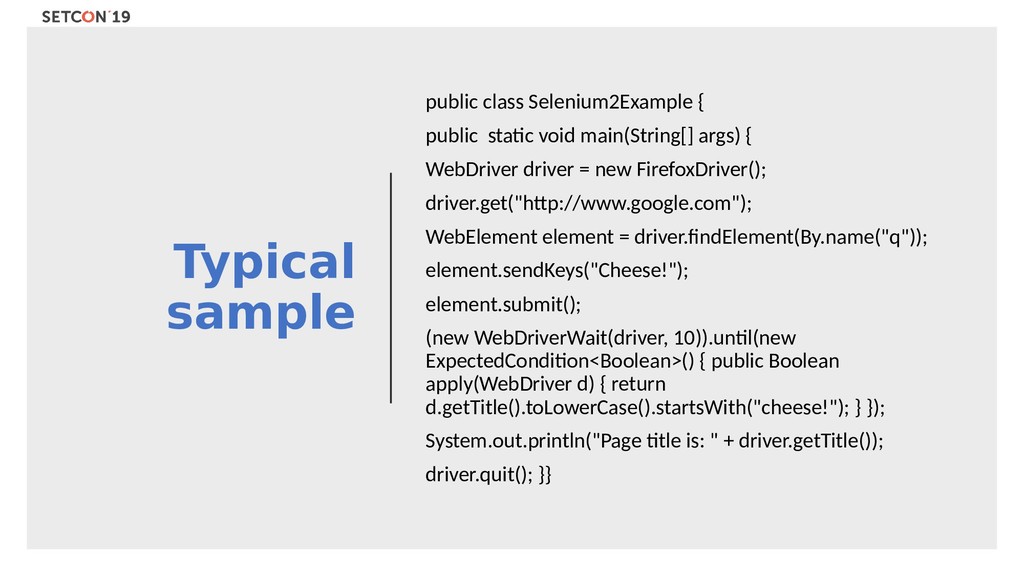

7. Typical sample public class Selenium2Example { public static void main(String[] args) { WebDriver driver = new FirefoxDriver(); driver.get("http://www.google.com"); WebElement element = driver.findElement(By.name("q")); element.sendKeys("Cheese!"); element.submit(); (new WebDriverWait(driver, 10)).until(new ExpectedCondition<Boolean>() { public Boolean apply(WebDriver d) { return d.getTitle().toLowerCase().startsWith("cheese!"); } }); System.out.println("Page title is: " + driver.getTitle()); driver.quit(); }}

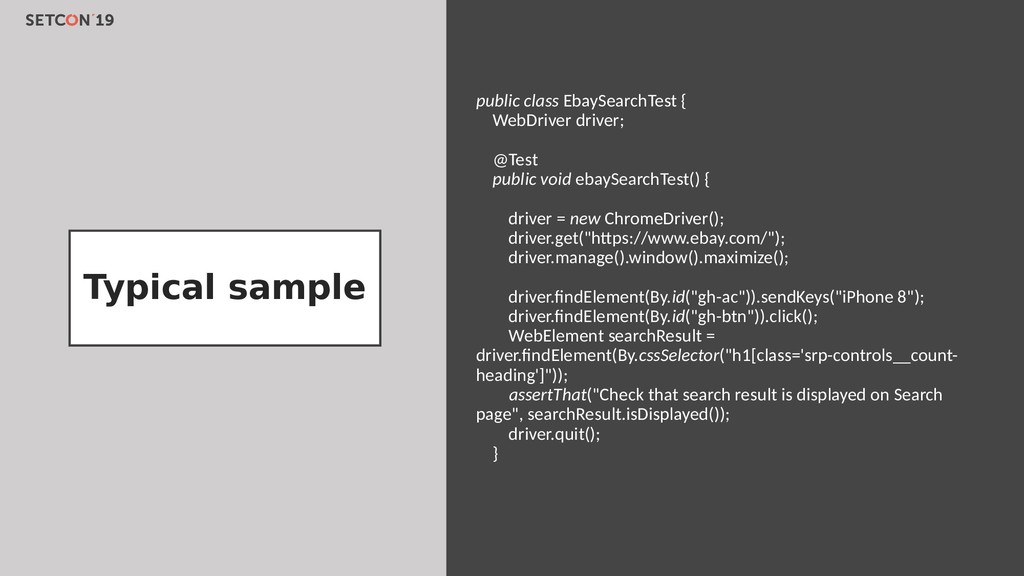

8. Typical sample public class EbaySearchTest { WebDriver driver; @Test public void ebaySearchTest() { driver = new ChromeDriver(); driver.get("https://www.ebay.com/"); driver.manage().window().maximize(); driver.findElement(By.id("gh-ac")).sendKeys("iPhone 8"); driver.findElement(By.id("gh-btn")).click(); WebElement searchResult = driver.findElement(By.cssSelector("h1[class='srp-controls__count- heading']")); assertThat("Check that search result is displayed on Search page", searchResult.isDisplayed()); driver.quit(); }
10. Disadvantages Unreadable Unreusable Unsupported
11. Page Object pattern

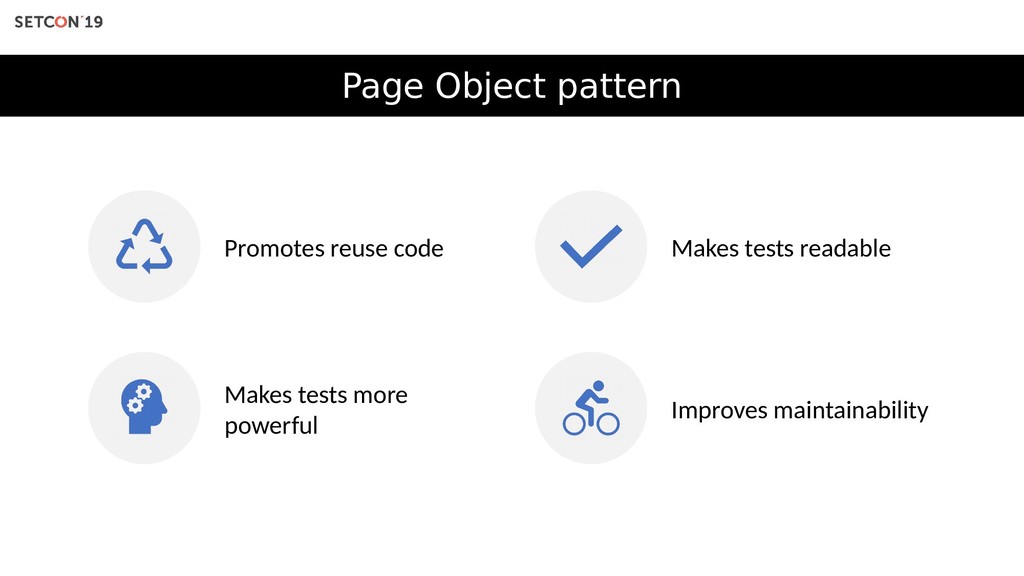

12. Page Object pattern Promotes reuse code Makes tests readable Makes tests more powerful Improves maintainability

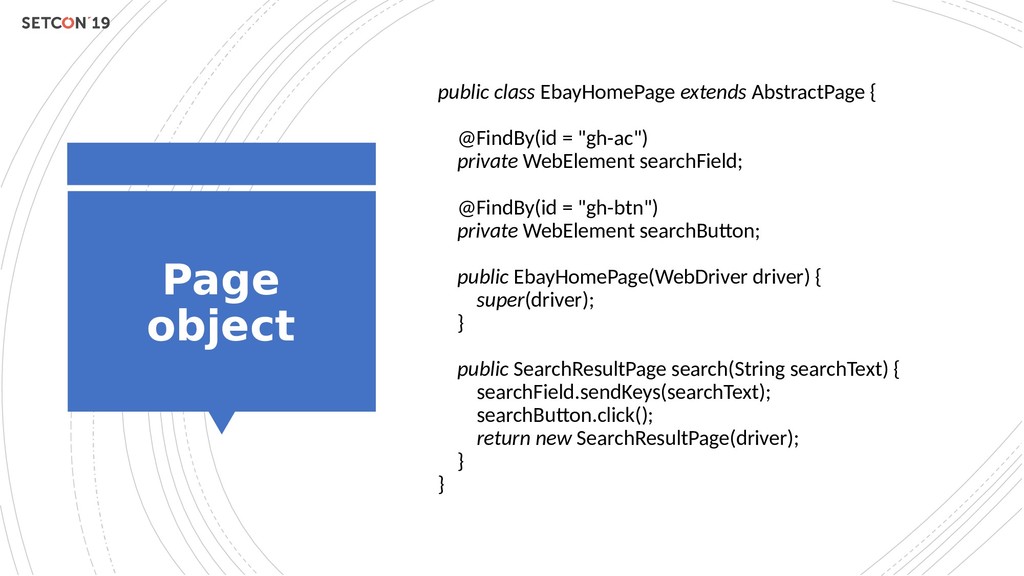

14. Page object public class EbayHomePage extends AbstractPage { @FindBy(id = "gh-ac") private WebElement searchField; @FindBy(id = "gh-btn") private WebElement searchButton; public EbayHomePage(WebDriver driver) { super(driver); } public SearchResultPage search(String searchText) { searchField.sendKeys(searchText); searchButton.click(); return new SearchResultPage(driver); } }

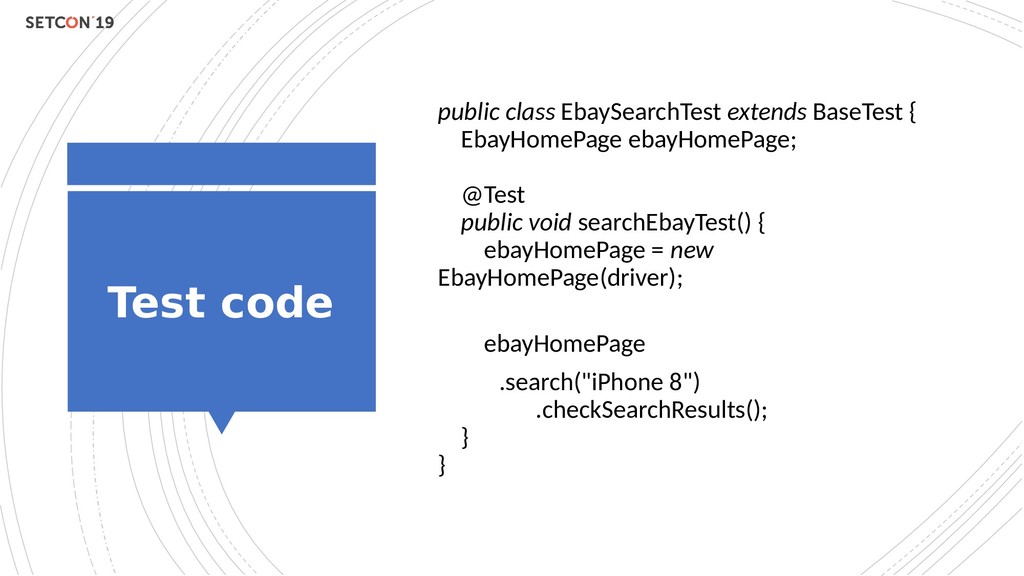

15. Test code public class EbaySearchTest extends BaseTest { EbayHomePage ebayHomePage; @Test public void searchEbayTest() { ebayHomePage = new EbayHomePage(driver); ebayHomePage .search("iPhone 8") .checkSearchResults(); } }

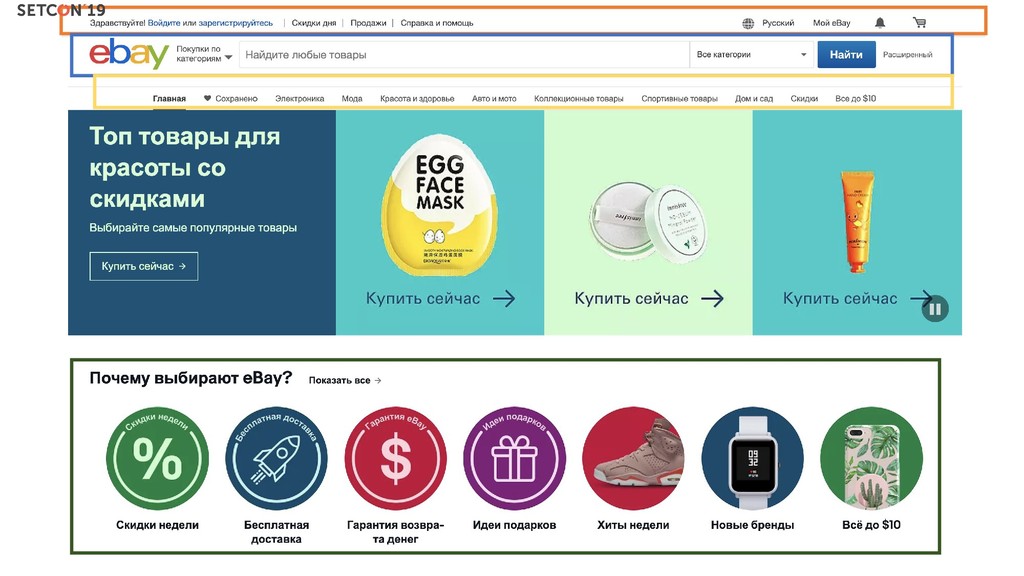

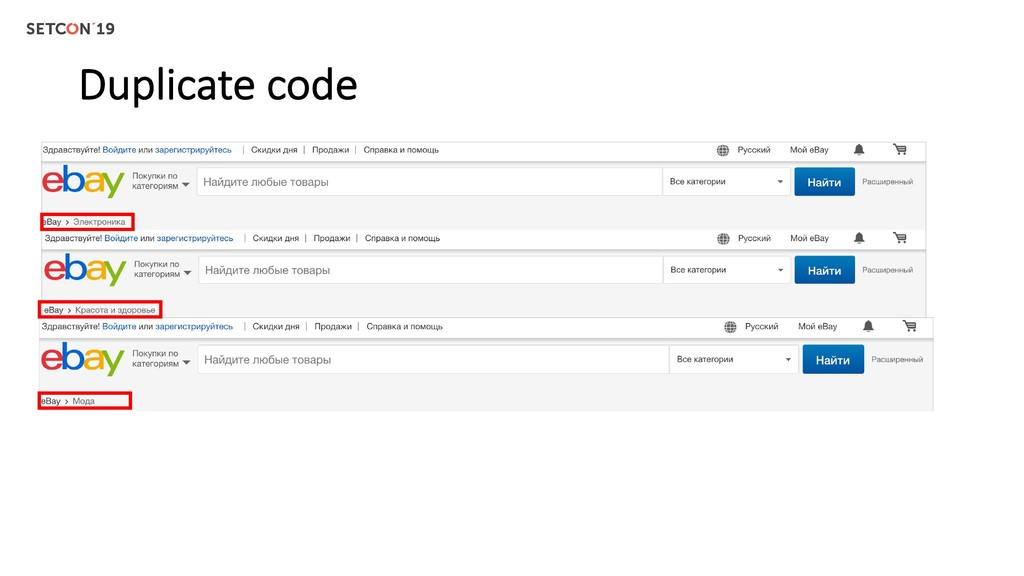

17. Duplicate code

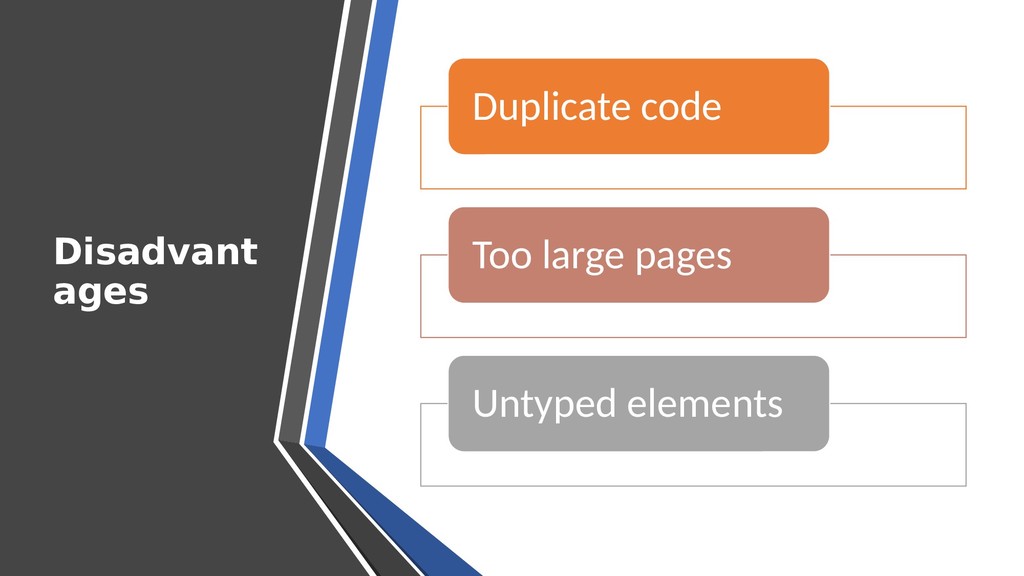

19. Disadvant ages Duplicate code Too large pages Untyped elements

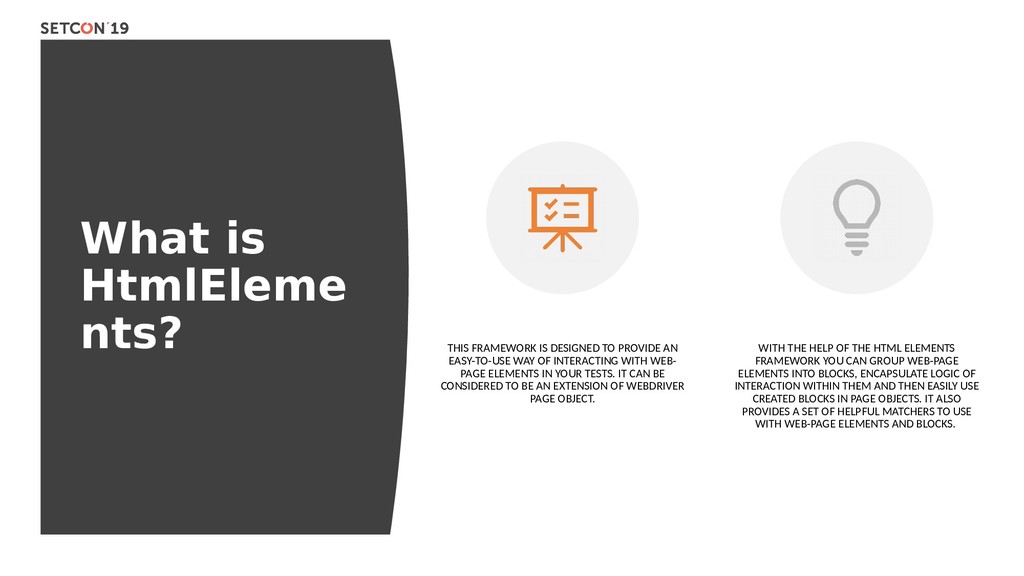

21. What is HtmlEleme nts? THIS FRAMEWORK IS DESIGNED TO PROVIDE AN EASY-TO-USE WAY OF INTERACTING WITH WEB- PAGE ELEMENTS IN YOUR TESTS. IT CAN BE CONSIDERED TO BE AN EXTENSION OF WEBDRIVER PAGE OBJECT. WITH THE HELP OF THE HTML ELEMENTS FRAMEWORK YOU CAN GROUP WEB-PAGE ELEMENTS INTO BLOCKS, ENCAPSULATE LOGIC OF INTERACTION WITHIN THEM AND THEN EASILY USE CREATED BLOCKS IN PAGE OBJECTS. IT ALSO PROVIDES A SET OF HELPFUL MATCHERS TO USE WITH WEB-PAGE ELEMENTS AND BLOCKS.
23. Designer

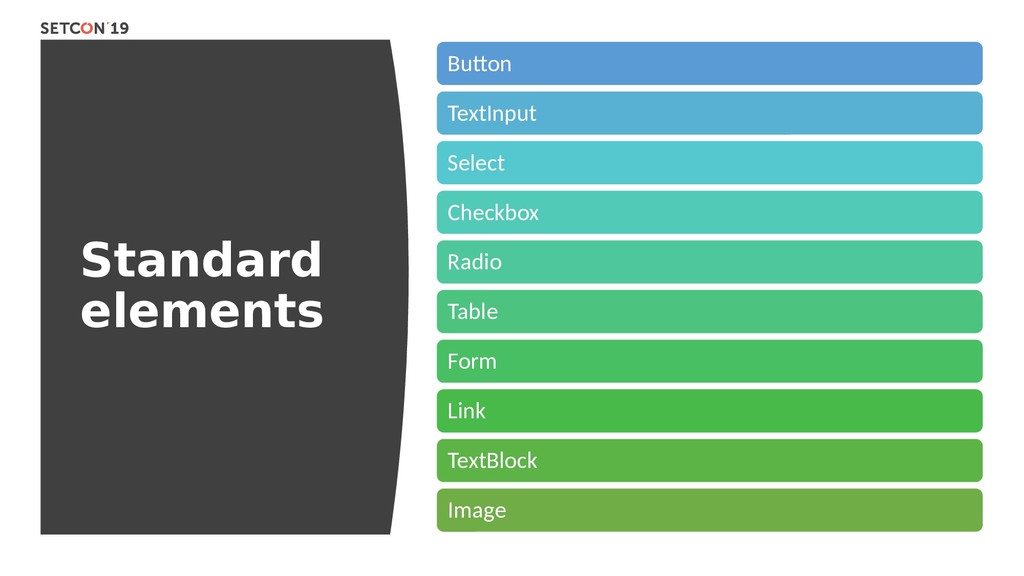

24. Standard elements Button TextInput Select Checkbox Radio Table Form Link TextBlock Image

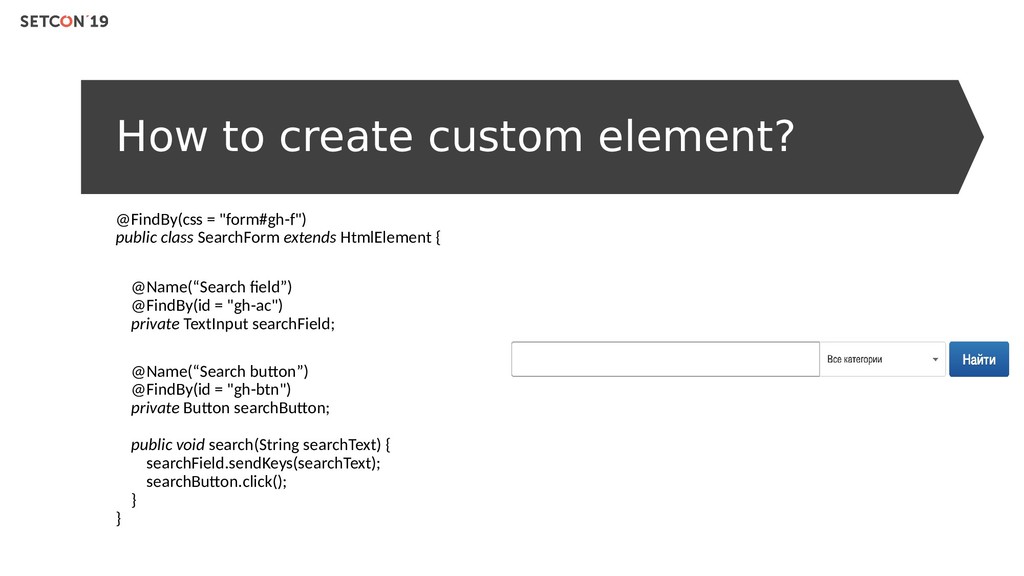

25. How to create custom element? @FindBy(css = "form#gh-f") public class SearchForm extends HtmlElement { @Name(“Search field”) @FindBy(id = "gh-ac") private TextInput searchField; @Name(“Search button”) @FindBy(id = "gh-btn") private Button searchButton; public void search(String searchText) { searchField.sendKeys(searchText); searchButton.click(); } }

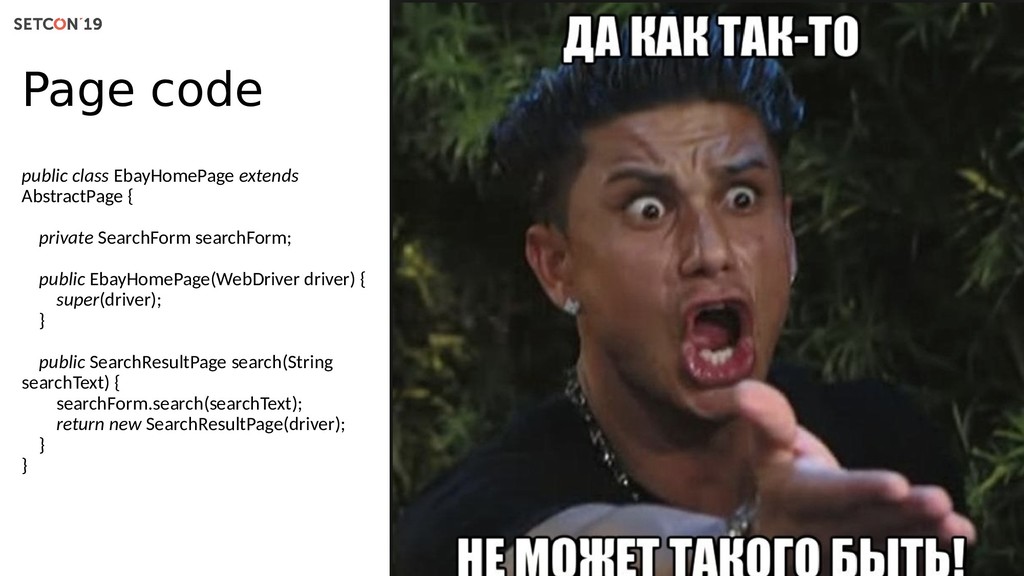

26. Page code public class EbayHomePage extends AbstractPage { private SearchForm searchForm; public EbayHomePage(WebDriver driver) { super(driver); } public SearchResultPage search(String searchText) { searchForm.search(searchText); return new SearchResultPage(driver); } }

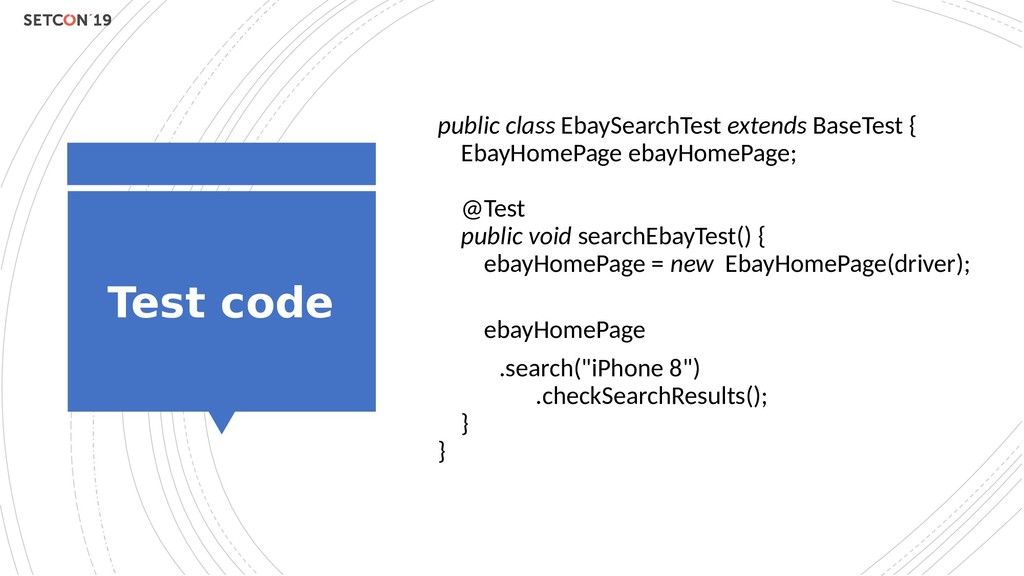

27. Test code public class EbaySearchTest extends BaseTest { EbayHomePage ebayHomePage; @Test public void searchEbayTest() { ebayHomePage = new EbayHomePage(driver); ebayHomePage .search("iPhone 8") .checkSearchResults(); } }

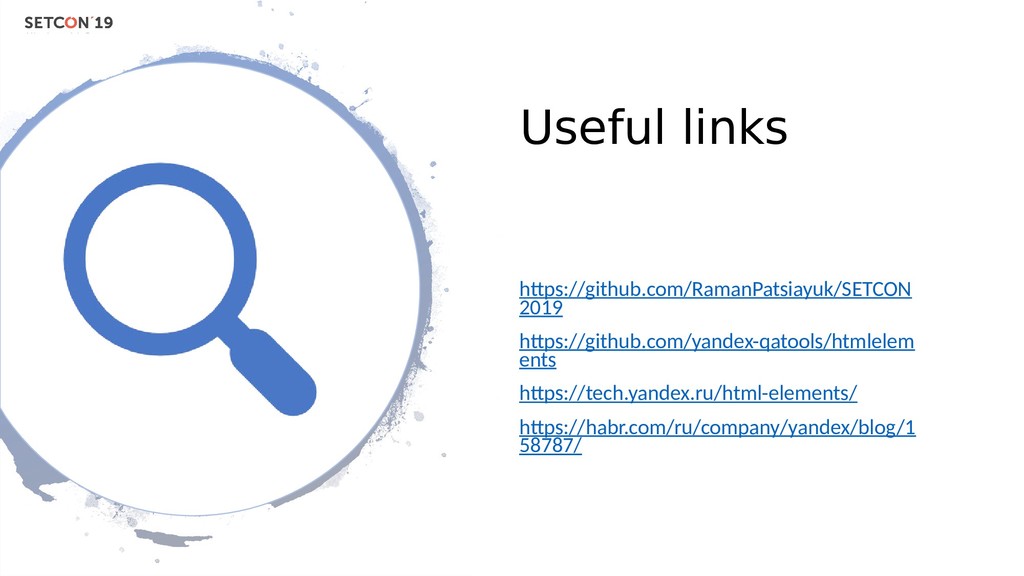

29. Useful links https://github.com/RamanPatsiayuk/SETCON 2019 https://github.com/yandex-qatools/htmlelem ents https://tech.yandex.ru/html-elements/ https://habr.com/ru/company/yandex/blog/1 58787/
30. My contacts SKYPE: RAMAN_PATSIAYUK TELEGRAM: @RAMAN_PATSIAYUK
