Gitkube: Continuous Deployment to Kubernetes using Git Push

A short demo on Gitkube and it's architecture as presented at ContainerDays 2018, Hamburg.

Transcript

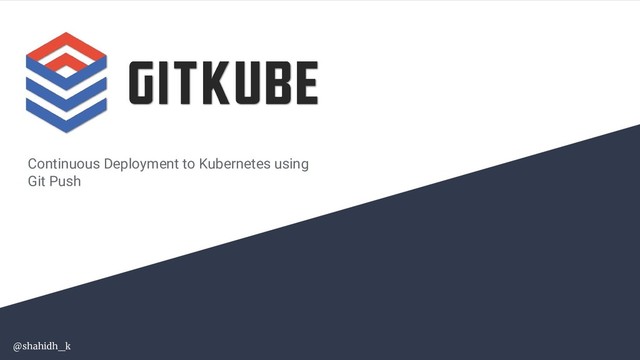

1. @shahidh_k
   Continuous Deployment to Kubernetes using
   Git Push


   View Slide

2. @shahidh_k
   Guten Morgen!
   I’m Shahidh
   GraphQL on Postgres


   View Slide

3. @shahidh_k
   git push


   View Slide

4. @shahidh_k
   Before <> After
   $ git push dev master
   $ docker build -t registry.com/my-image:my-tag
   $ docker push registry.com/my-image:my-tag
   $ kubectl set image deployment/my-deployment
   container=registry.com/my-image:my-tag


   View Slide

5. @shahidh_k
   Git hooks
   client-side
   > pre-push Exit can abort push
   server-side
   > pre-receive Exit can abort push
   > post-receive Cannot abort push
   Executable files in .git/hooks/ named
   .git/hooks/pre-receive


   View Slide

6. @shahidh_k
   Demo time
   (In case Gods are not kind enough today!)


   View Slide

7. @shahidh_k
   Architecture
   - Git remote agent on the cluster.
   Pre-receive hook:
   - Build docker image
   - Apply to k8s deployment
   - Configuration:
   - SSH keys
   - Dockerfile path
   - Sync configuration changes with
   the git-remote agent - K8s
   Operator
   git-remote
   k8s :: deployment,svc
   Exposed externally
   SSH-key based auth
   deployment
   $ git push dev master
   CRD configuration
   k8s :: CRD
   Deployments to update
   authorized-keys
   Dockerfile path
   controller
   k8s :: operator
   Apply changes
   $ kubectl ... remote.yaml
   > your computer
   Kubernetes cluster


   View Slide

8. @shahidh_k
   remote.yaml
   apiVersion: gitkube.sh/v1alpha1
   kind: Remote
   metadata:
   name: dev
   spec:
   authorizedKeys:
   - "ssh-rsa your-ssh-public-key"
   deployments:
   - name: app
   containers:
   - name: app
   path: app
   dockerfile: app/Dockerfile
   Kubernetes CRD


   View Slide

9. @shahidh_k
   remote.yaml
   apiVersion: gitkube.sh/v1alpha1
   kind: Remote
   metadata:
   name: dev
   spec:
   authorizedKeys:
   - "ssh-rsa your-ssh-public-key"
   deployments:
   - name: app
   containers:
   - name: app
   path: app
   dockerfile: app/Dockerfile
   Access control


   View Slide

10. @shahidh_k
    remote.yaml
    apiVersion: gitkube.sh/v1alpha1
    kind: Remote
    metadata:
    name: dev
    spec:
    authorizedKeys:
    - "ssh-rsa your-ssh-public-key"
    deployments:
    - name: app
    containers:
    - name: app
    path: app
    dockerfile: app/Dockerfile
    app
    ├── Dockerfile
    ├── k8s.yaml
    └── src
    ├── app.py
    ├── requirements.txt
    └── server.py


    View Slide

11. @shahidh_k
    Why Gitkube?
    git just works for AllTheThings™
    git checkout
    git push dev my-branch:master
    ● git push to apply changes to kubernetes
    objects.
    ● Every developer is familiar with git.
    ● Quick iteration time when used on
    dev/staging clusters
    ● Simple permission system based on public
    keys
    ● Very small surface area. Can easily be
    replaced with more sophisticated CI/CD
    pipelines when moving to production.


    View Slide

12. @shahidh_k
    Thanks for listening.
    Questions?


    View Slide
