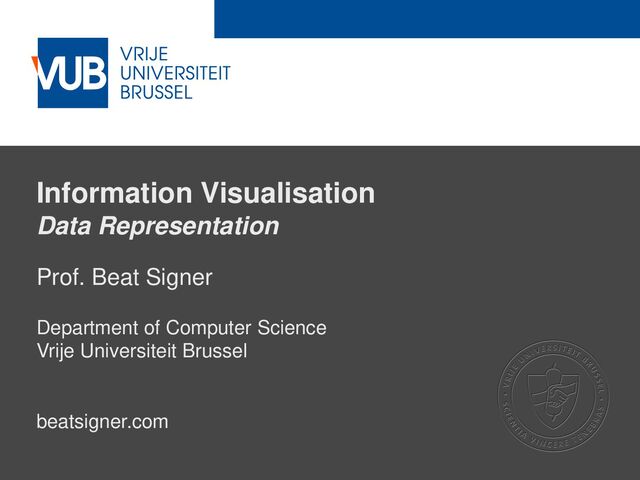

  1. 2 December 2005
    Information Visualisation
    Data Representation
    Prof. Beat Signer
    Department of Computer Science
    Vrije Universiteit Brussel
    beatsigner.com

    View Slide

  2. Beat Signer - Department of Computer Science - [email protected] 2
    March 2, 2023
    Information Visualisation Process
    Data
    Representation
    Data
    Data
    Presentation
    Interaction
    mapping
    perception and
    visual thinking

    View Slide

  3. Beat Signer - Department of Computer Science - [email protected] 3
    March 2, 2023
    Data Representation and Abstraction
    ▪ Detailed look at the what part of the earlier
    what-why-how question
    → what-why-how analysis framework
    ▪ Provide a language that is meaningful and useful for
    vis design
    ▪ Data is typically described with domain language
    ▪ in order to find the suitable visual representations, we have to
    translate the data into more abstract structures that we know
    how to encode
    ▪ Data abstraction helps to narrow down the design space

    View Slide

  4. Beat Signer - Department of Computer Science - [email protected] 4
    March 2, 2023
    Semantics and Types
    ▪ Many aspects of vis design driven by the kind of data
    ▪ semantics (real-world meaning)
    ▪ types (data as well as datasets)
    ▪ What do the following datasets represent?
    15, 2.7, 27, 27, 15, 10021
    Basil, 7, S, Pear

    View Slide

  5. Beat Signer - Department of Computer Science - [email protected] 5
    March 2, 2023
    Semantics and Types …
    [Visualization Analysis & Design, Tamara Munzner, 2014]

    View Slide

  6. Beat Signer - Department of Computer Science - [email protected] 6
    March 2, 2023
    Data Types
    ▪ Item
    ▪ individual discrete entity
    ▪ e.g. table row or network node
    ▪ Attribute
    ▪ also referred to as variable or dimension
    ▪ property that can be measured, observed or logged
    ▪ e.g. price or temperature
    ▪ Link
    ▪ relationship between items
    ▪ e.g. between items (nodes) in a network

    View Slide

  7. Beat Signer - Department of Computer Science - [email protected] 7
    March 2, 2023
    Data Types …
    ▪ Position
    ▪ spatial data
    ▪ e.g. location in two-dimensional or three-dimensional space
    ▪ Grids
    ▪ sampling continous data in terms of geometric and topological
    relationships between its cells

    View Slide

  8. Beat Signer - Department of Computer Science - [email protected] 8
    March 2, 2023
    Dataset Types
    ▪ Dataset
    ▪ collection of information to be analysed
    ▪ made out of the five data types
    ▪ complex combinations of basic dataset types are common

    View Slide

  9. Beat Signer - Department of Computer Science - [email protected] 9
    March 2, 2023
    Tables
    ▪ Flat table
    ▪ row represents an item of data
    ▪ column represents an attribute of the dataset
    ▪ a cell contains the value for a given item and attribute
    ▪ Multidimensional table
    ▪ indexing into a cell via multiple keys

    View Slide

  10. Beat Signer - Department of Computer Science - [email protected] 10
    March 2, 2023
    Networks and Trees
    ▪ Network (graph)
    ▪ defines relationships between two or more nodes (items) via links
    ▪ nodes can have associated attributes
    ▪ links can have associated attributes
    ▪ e.g. people and their friendships or gene interaction network
    ▪ Trees
    ▪ hierarchical structure without cycles
    ▪ each child node has one parent node
    ▪ e.g. company organisation chart or biological tree of life

    View Slide

  11. Beat Signer - Department of Computer Science - [email protected] 11
    March 2, 2023
    Fields
    ▪ Field
    ▪ each cell contains measurements or calculation from a continous
    domain
    ▪ continous data brings along the issues of sampling and
    interpolation

    View Slide

  12. Beat Signer - Department of Computer Science - [email protected] 12
    March 2, 2023
    Fields …
    ▪ Spatial fields
    ▪ sampling at spatial positions
    ▪ e.g. medical scan of a human body or measurements in
    wind tunnel
    ▪ if spatial position is given with dataset, we talk about scientific
    visualisation (scivis) (in contrast to information visualisation
    (infovis) where the use of space is chosen by the designer)
    ▪ Grid types
    ▪ uniform grid: sampling at regular intervals without any need to
    store the grid geometry or grid topology (connection of cells)
    ▪ rectilinear grid: supports non-uniform sampling
    - efficient storage of information with high complexity in some
    areas and low complexity in others (also store grid geometry)

    View Slide

  13. Beat Signer - Department of Computer Science - [email protected] 13
    March 2, 2023
    Fields …
    ▪ Grid types …
    ▪ structured grid: enables curvilinear shapes where the geometric
    location of each cell needs to be specified
    ▪ unstructured grid: complete flexibility but grid geometry as well as
    grid topology has to be stored explicitly

    View Slide

  14. Beat Signer - Department of Computer Science - [email protected] 14
    March 2, 2023
    Geometry
    ▪ Information about the shape of items with spatial
    positions
    ▪ points and one-dimensional lines or curves
    ▪ two-dimensional surfaces or regions
    ▪ three-dimensional volumes
    ▪ Geometry datasets do not necessarily have attributes
    ▪ e.g. contours derived from a spatial field or shapes generated
    from raw geographic data (e.g. boundaries of a forest)
    ▪ Shown alone or as backdrop for other data

    View Slide

  15. Beat Signer - Department of Computer Science - [email protected] 15
    March 2, 2023
    Other Combinations
    ▪ Cluster
    ▪ grouping items based on similarity of attributes
    ▪ Set
    ▪ unordered group of items
    ▪ List (array)
    ▪ ordered group of items
    ▪ Path
    ▪ ordered set of segments formed by links connecting nodes in a
    network
    ▪ Compound network (multilevel network)
    ▪ network combined with superimposed tree (with all the nodes of
    the network as leaves)

    View Slide

  16. Beat Signer - Department of Computer Science - [email protected] 16
    March 2, 2023
    Dataset Availability
    ▪ Static file (offline)
    ▪ entire dataset is available all at once
    ▪ Dynamic stream (online)
    ▪ dataset information trickles in over time
    ▪ addition, update or deletion of items
    ▪ adds complexity to the vis process
    - no longer have all data at a given time

    View Slide

  17. Beat Signer - Department of Computer Science - [email protected] 17
    March 2, 2023
    Attribute Types
    ▪ Categorical (nominal) attributes
    ▪ no implicit ordering (but often hierarchical structure)
    ▪ external ordering can be superimposed
    ▪ e.g. different types of fruits

    View Slide

  18. Beat Signer - Department of Computer Science - [email protected] 18
    March 2, 2023
    Attribute Types …
    ▪ Ordered attributes
    ▪ ordinal data
    - well-defined ordering but cannot do full-fledged arithmetic
    - e.g. t-shirt size
    ▪ quantitative data
    - measurement of magnitude that supports arithmetic comparison (integers as
    well as real numbers)
    - e.g. height, temperature or stock price
    ▪ Ordering directions
    ▪ sequential
    - homogeneous range from minimum to maximum value
    - e.g. mountain heights (from sea level to height of Mount Everest)
    ▪ diverging
    - e.g. valleys in the sea and mountains on land

    View Slide

  19. Beat Signer - Department of Computer Science - [email protected] 19
    March 2, 2023
    Attribute Types …
    ▪ Ordering directions …
    ▪ cyclic
    - values wrap around back to the starting point
    - e.g. time measurements like the hour of the day or the day of the week
    ▪ Hierarchical attributes
    ▪ hierarchical structures within or between multiple attributes
    ▪ e.g. time series of daily stock prices where time can be
    aggregated hierarchically (from days to weeks, months and years)

    View Slide

  20. Beat Signer - Department of Computer Science - [email protected] 20
    March 2, 2023
    Key Versus Value Semantics
    ▪ Type of an attribute does not tell us about its semantics
    ▪ key attribute (independent attribute) represents an index
    that is used to look up value attributes (dependant
    attributes)
    ▪ key attributes can be categorical or ordinal
    ▪ value attributes can be categorical, ordinal or quantitative
    ▪ Flat tables
    ▪ key might be implicit (simply the index of the row) or explicit
    (attribute within table with unique values)
    ▪ Multidimensional tables
    ▪ multiple keys are required to look up an item
    ▪ combination of all keys must be unique for each item

    View Slide

  21. Beat Signer - Department of Computer Science - [email protected] 21
    March 2, 2023
    Example: Order Table
    [Visualization Analysis & Design, Tamara Munzner, 2014]

    View Slide

  22. Beat Signer - Department of Computer Science - [email protected] 22
    March 2, 2023
    Key Versus Value Semantics …
    ▪ Fields
    ▪ independent variable to look up dependant variable
    ▪ multivariate structure
    - depends on number of value attributes
    - scalar field: one attribute per cell
    - vector field: two or more attributes per cell
    - tensor field: many attributes per cell
    ▪ multidimensional structure
    - depends on number of keys
    - e.g. 2D or 3D fields

    View Slide

  23. Beat Signer - Department of Computer Science - [email protected] 23
    March 2, 2023
    Temporal Semantics
    ▪ Temporal attribute is any kind of information that is
    related to time
    ▪ Data about time is complicated to handle
    ▪ time hierarchy is deeply multiscale (from nanoseconds to hours,
    decades or millennia)
    ▪ temporal scales do not all fit into a strict hierarchy (e.g. weeks do
    not cleanly fit into months)
    ▪ transformation and aggregation become complex
    ▪ Time-varying semantics
    ▪ time is one of the key attributes (opposed to being a value)
    ▪ Time-series dataset
    ▪ ordered sequence of time-value pairs

    View Slide

  24. Beat Signer - Department of Computer Science - [email protected] 24
    March 2, 2023
    Task Abstraction
    ▪ Next we have to investigate the why part of the
    what-why-how analysis framework
    ▪ what is the goal of using the vis?
    ▪ Transform task description from domain-specific
    language into abstract form
    ▪ enables reasoning about similarities
    ▪ Who has the goal?
    ▪ designer of the vis or the end user?

    View Slide

  25. Beat Signer - Department of Computer Science - [email protected] 25
    March 2, 2023
    Actions
    ▪ User goals can be defined by actions at three levels of
    abstractions
    ▪ Analyse
    - consume existing or also produce additional data
    ▪ Search
    - what kind of search is involved (are the target and location known)?
    ▪ Query
    - need to identify one target, compare some targets or summarise
    all of the targets?

    View Slide

  26. Beat Signer - Department of Computer Science - [email protected] 26
    March 2, 2023
    Analyse
    ▪ Most common use case for vis is to consume information
    that has already been generated

    View Slide

  27. Beat Signer - Department of Computer Science - [email protected] 27
    March 2, 2023
    Consume
    ▪ Discover (Explore)
    ▪ use vis to find new knowledge that was not previously known
    ▪ serendipitous observation of unexpected data
    ▪ may be motivated by theories, models or hypotheses
    ▪ outcome is to generate a new hypothesis or verify (or disconfirm)
    an existing hypothesis
    ▪ need for sophisticated interactive vis idioms since we do not know
    in advance what the user will need to see
    ▪ note that the why the vis is being used does not dictate the how
    ▪ Present (Explain)
    ▪ communication of information, telling a story with data or guiding
    an audience through a series of cognitive operations
    - decision making, planning, forecasting or instructional processes
    ▪ e.g. Gapminder application shown earlier

    View Slide

  28. Beat Signer - Department of Computer Science - [email protected] 28
    March 2, 2023
    Consume …
    ▪ Present (Explain) …
    ▪ output of a discover session might become input for
    a present session
    ▪ Enjoy
    ▪ casual encounter with vis
    - not driven by need to verify or generate a hypothesis
    Name Voyager

    View Slide

  29. Beat Signer - Department of Computer Science - [email protected] 29
    March 2, 2023
    Produce
    ▪ Generate new material which is often immediately used
    as input for a next instance
    ▪ Annotate
    ▪ graphical or textual annotations of existing visualisation elements
    - annotations of data items might be stored as a new attribute
    ▪ typically a manual user action
    ▪ Record
    ▪ save or capture visualisation elements
    ▪ screenshots, bookmarks, parameter settings or interaction logs
    ▪ e.g. graphical history with a snapshot of the output of each task

    View Slide

  30. Beat Signer - Department of Computer Science - [email protected] 30
    March 2, 2023
    Produce …
    ▪ Derive
    ▪ produce new data elements based on existing data elements
    ▪ strong relationship between the form of the data (attribute and
    dataset types) and the vis idioms that are effective at presenting it
    ▪ derived attributes can be used to extend the dataset
    - from quantitative to ordinal data (water temperature → cold, warm or hot)
    - adding latitude and longitude to city names (via lookup in separate DB)
    - arithmetic operations on existing attributes

    View Slide

  31. Beat Signer - Department of Computer Science - [email protected] 31
    March 2, 2023
    Targets
    ▪ Three high-level targets
    ▪ Trends
    ▪ high-level characterisation of a pattern in the data
    ▪ e.g. increases, decreases, peaks, plateaus, …

    View Slide

  32. Beat Signer - Department of Computer Science - [email protected] 32
    March 2, 2023
    Targets …
    ▪ Outliers
    ▪ data that does not fit well with the backdrop
    ▪ Features
    ▪ task-dependent structures of interest

    View Slide

  33. Beat Signer - Department of Computer Science - [email protected] 33
    March 2, 2023
    Targets …
    ▪ Single attributes
    ▪ individual values, minimum or maximum, …
    ▪ Multiple attributes
    ▪ dependencies, correlations and similarities

    View Slide

  34. Beat Signer - Department of Computer Science - [email protected] 34
    March 2, 2023
    Targets …
    ▪ network topology as well as specific paths

    View Slide

  35. Beat Signer - Department of Computer Science - [email protected] 35
    March 2, 2023
    Targets …
    ▪ understanding and comparing geometric shapes

    View Slide

  36. Beat Signer - Department of Computer Science - [email protected] 36
    March 2, 2023
    Search
    ▪ Lookup
    ▪ user knows what they are looking for and where it is

    View Slide

  37. Beat Signer - Department of Computer Science - [email protected] 37
    March 2, 2023
    Search …
    ▪ Locate
    ▪ user knows what they are looking for but does not know where it is
    ▪ Browse
    ▪ user does not know exactly what they are looking for but
    has a location in mind where to look for it
    ▪ Explore
    ▪ user does not know what they are looking for and where to search
    ▪ often beginning from an overview of everything
    ▪ e.g. searching for outliers in a scatterplot

    View Slide

  38. Beat Signer - Department of Computer Science - [email protected] 38
    March 2, 2023
    Query
    ▪ Once a target or set of targets is found, query these
    targets to identify, compare or summarise the data

    View Slide

  39. Beat Signer - Department of Computer Science - [email protected] 39
    March 2, 2023
    Query …
    ▪ Identify
    ▪ if the search returns known targets (lookup or locate) then
    identify returns their characteristics
    ▪ if the search returns targets matching particular characteristics
    (browse or explore) the identify returns specific references
    ▪ Compare
    ▪ comparing multiple targets
    ▪ more difficult than identify task and requires more sophisticated
    vis idioms to support the user
    ▪ Summarise (overview)
    ▪ scope are all possible targets

    View Slide

  40. Beat Signer - Department of Computer Science - [email protected] 40
    March 2, 2023
    Exercise 3
    ▪ Preprocessing and Data Analysis Using Python

    View Slide

  41. Beat Signer - Department of Computer Science - [email protected] 41
    March 2, 2023
    Further Reading
    ▪ This lecture is mainly based on the
    book Visualization Analysis & Design
    ▪ chapter 2
    - What: Data Abstraction
    ▪ chapter 3
    - Why: Task Abstraction

    View Slide

  42. Beat Signer - Department of Computer Science - [email protected] 42
    March 2, 2023
    References
    ▪ Visualization Analysis & Design, Tamara
    Munzner, Taylor & Francis Inc, (Har/Psc edition),
    May, November 2014,
    ISBN-13: 978-1466508910
    ▪ Name Voyager
    ▪ https://www.babynamewizard.com/voyager/
    ▪ M. Brehmer and T. Munzner, A Multi-Level Typology of
    Abstract Visualization Tasks, IEEE Transactions on
    Visualization and Computer Graphics 19(12), 2013
    ▪ https://doi.org/10.1109/TVCG.2013.124

    View Slide

  43. 2 December 2005
    Next Lecture
    Analysis and Validation

    View Slide
