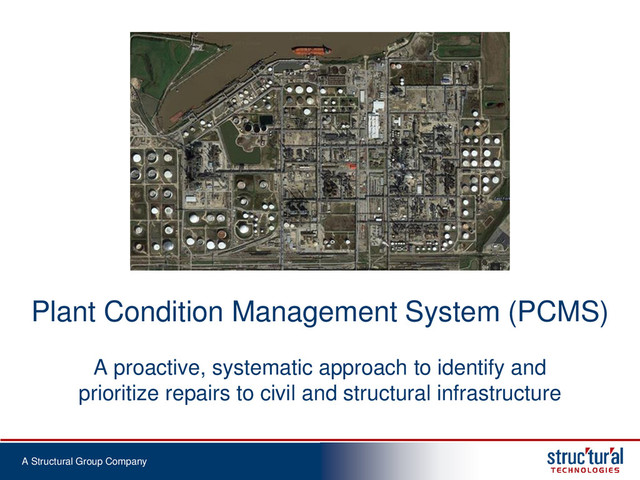

  1. A Structural Group Company Plant Condition Management System (PCMS) A

    proactive, systematic approach to identify and prioritize repairs to civil and structural infrastructure
  2. A Structural Group Company Plant Condition Management System (PCMS) Overall

    Process PHASE 2 SURVEY • Walkthrough evaluation • Select tactile investigation • Non-destructive testing (NDT) • Semi-destructive testing (SDT) • Visual inspection • Scope definition • Units & areas included / not included • Access requirements • Training requirements PHASE 1 PROJECT DEFINITION PRELIMINARY REPORT & RANKINGS • Survey documentation • Order of magnitude repair investment • Proposal(s) • Full condition assessment • Repairs
  3. A Structural Group Company Plant Condition Management System (PCMS) Process

    – Phase 2 Survey PHASE 2 SURVEY • Walkthrough evaluation • Select tactile investigation • Non-destructive testing (NDT) • Semi-destructive testing (SDT) Survey & Selective Plant Sampling 1) Walkthrough Evaluation Visual Inspection Non-Destructive Testing (NDT) Acoustic Impact Testing 2) Select Tactile Investigation Non-Destructive Testing (NDT) Ferroscan, Pachometer, GPR Rebound Hammer Ultrasonic Thickness Measurement Semi-Destructive Testing (SDT) Powder Samples Core Samples Chunk Samples
  4. A Structural Group Company Plant Condition Management System (PCMS) Process

    – Visual Inspection PHASE 2 SURVEY • Walkthrough evaluation • Select tactile investigation • Non-destructive testing (NDT) • Semi-destructive testing (SDT)
  5. A Structural Group Company Plant Condition Management System (PCMS) Process

    – Select Tactile Investigation  Non-Destructive Testing  Visual Inspection - Site Survey  Acoustic Impact Testing  Rebound Hammer Testing  Pachometer / Ground Penetrating Radar (GPR)  Ultrasonic Thickness Testing (Structural Steel)  Semi-Destructive Testing  Powder Samples  Core Samples  Chunk Samples  Lab Tests (if necessary) PHASE 2 SURVEY • Walkthrough evaluation • Select tactile investigation • Non-destructive testing (NDT) • Semi-destructive testing (SDT)
  6. A Structural Group Company PRELIMINARY REPORT & RANKINGS • Survey

    documentation • Order of magnitude repair investment • Proposal(s) • Full condition assessment • Repairs Plant Condition Management System (PCMS) Process – Preliminary Report
  7. A Structural Group Company Plant Condition Management System (PCMS) Process

    – Preliminary Report 1 2 3 Safety Risk & Diminished Structural Integrity Performance Risk Long-Term Durability Issues
  8. A Structural Group Company PRELIMINARY REPORT & RANKINGS • Survey

    documentation • Order of magnitude repair investment • Proposal(s) • Full condition assessment • Repairs Plant Condition Management System (PCMS) Process – Preliminary Report  General findings  Quantify number of units found satisfactory  Locate & identify diminished structural integrity & falling concrete material hazards (i.e. safety) at reviewed structures  Locate & identify examples of deterioration of materials-of-construction related to diminished serviceability/durability (i.e., reinforced concrete, structural steel, fireproofing, etc.)  Recommendations  Repair priorities  Course of action  Conceptual repair strategies  Order of magnitude repair costs
