AGL and 5G Multi-Slice Network Data Communication in SDV Era
This deck is intended for COSUP 2025 SDV Track on August 10, 2025 in Taiwan.
thatsdone
August 10, 2025
Transcript
34 slides
-
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. AGL
and 5G Multi-Slice Network Data Communication in SDV Era August 10, 2025 Masanori Itoh TOYOTA MOTOR CORPORATION 2025 SDV Track -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025
SDV Track 2 About Me Masanori Itoh Affiliation TOYOTA MOTOR CORPORATION Digital Information and Communication Dept. InfoTech Div. Open Source Program Group (Toyota OSPO) Works R&D for Connected Vehicle Systems • E2E Observability, Standardization, Diagnostics, … OSPO Operations Keywords Operating System, Cloud Infrastructure, etc. URLs https://github.com/thatsdone https://www.linkedin.com/in/masanori-itoh-6401603/ me (by my daughter) -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

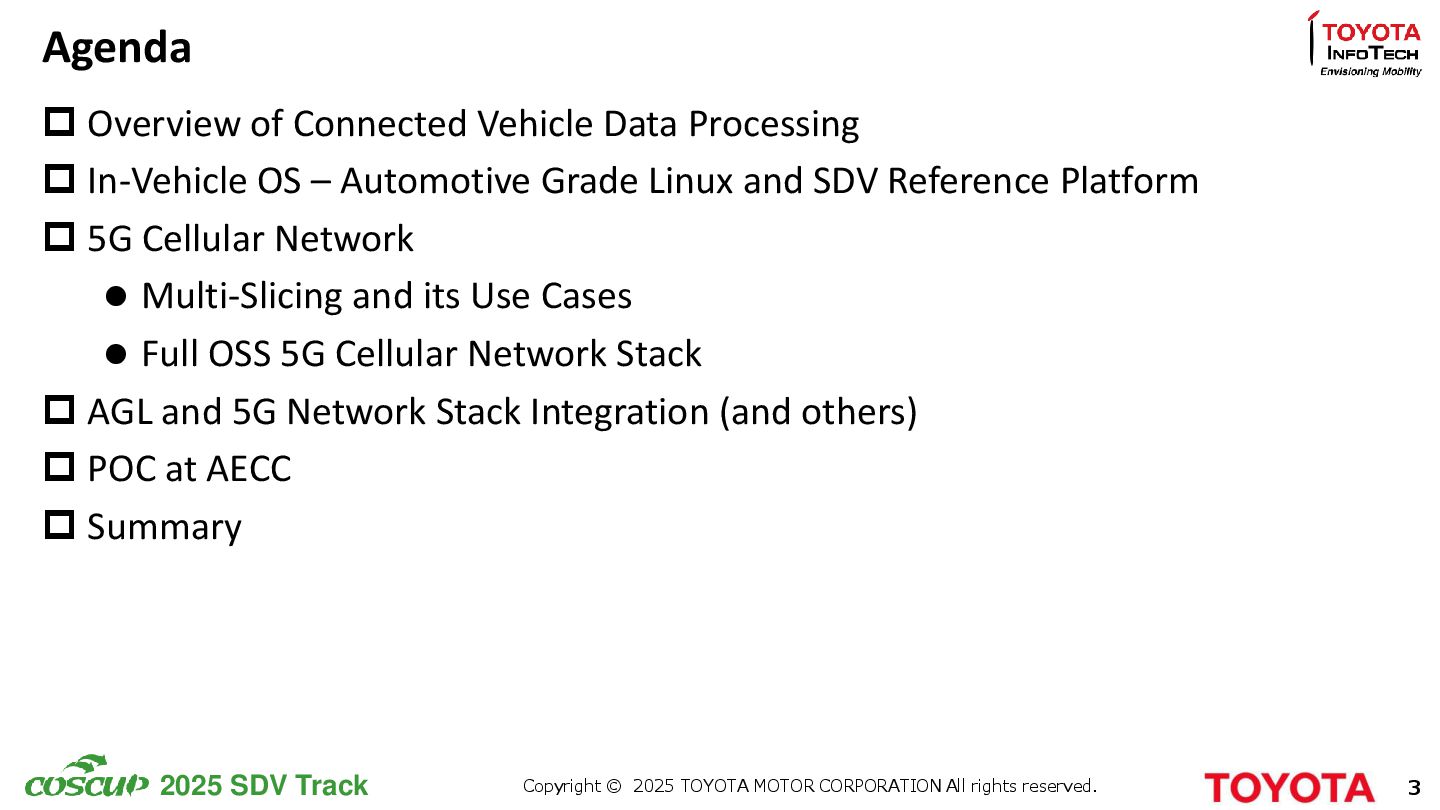

SDV Track 3 Agenda Overview of Connected Vehicle Data Processing In-Vehicle OS – Automotive Grade Linux and SDV Reference Platform 5G Cellular Network Multi-Slicing and its Use Cases Full OSS 5G Cellular Network Stack AGL and 5G Network Stack Integration (and others) POC at AECC Summary -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025
SDV Track 4 Overview of Connected Vehicle Data Processing In-Vehicle OS – Automotive Grade Linux and SDV Reference Platform 5G Cellular Network AGL and 5G Network Stack Integration (and others) POC at AECC Summary -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

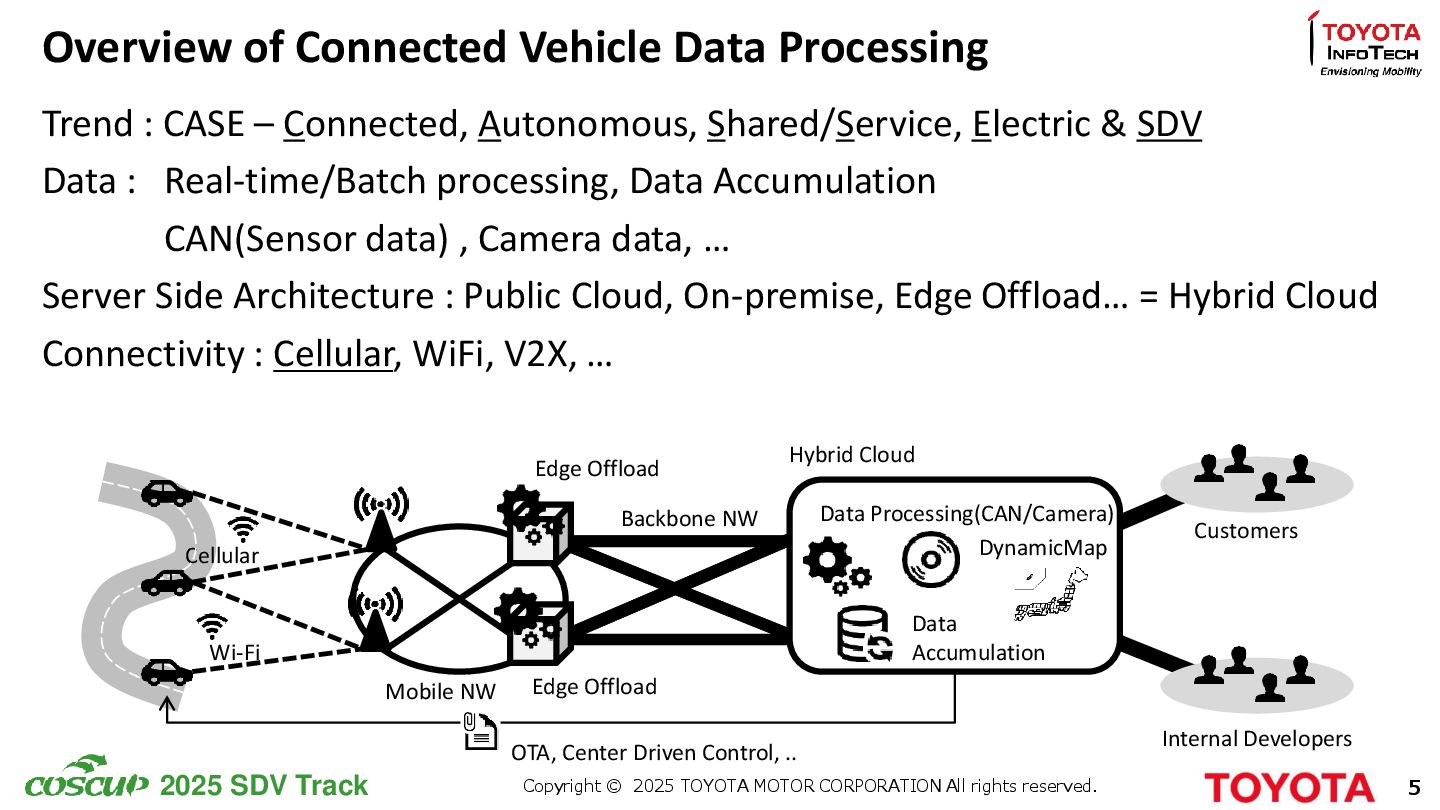

SDV Track 5 Overview of Connected Vehicle Data Processing Trend : CASE – Connected, Autonomous, Shared/Service, Electric & SDV Data : Real-time/Batch processing, Data Accumulation CAN(Sensor data) , Camera data, … Server Side Architecture : Public Cloud, On-premise, Edge Offload… = Hybrid Cloud Connectivity : Cellular, WiFi, V2X, … Internal Developers Customers Wi-Fi Cellular Mobile NW Backbone NW DynamicMap Data Processing(CAN/Camera) Data Accumulation Edge Offload Hybrid Cloud OTA, Center Driven Control, .. Edge Offload -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

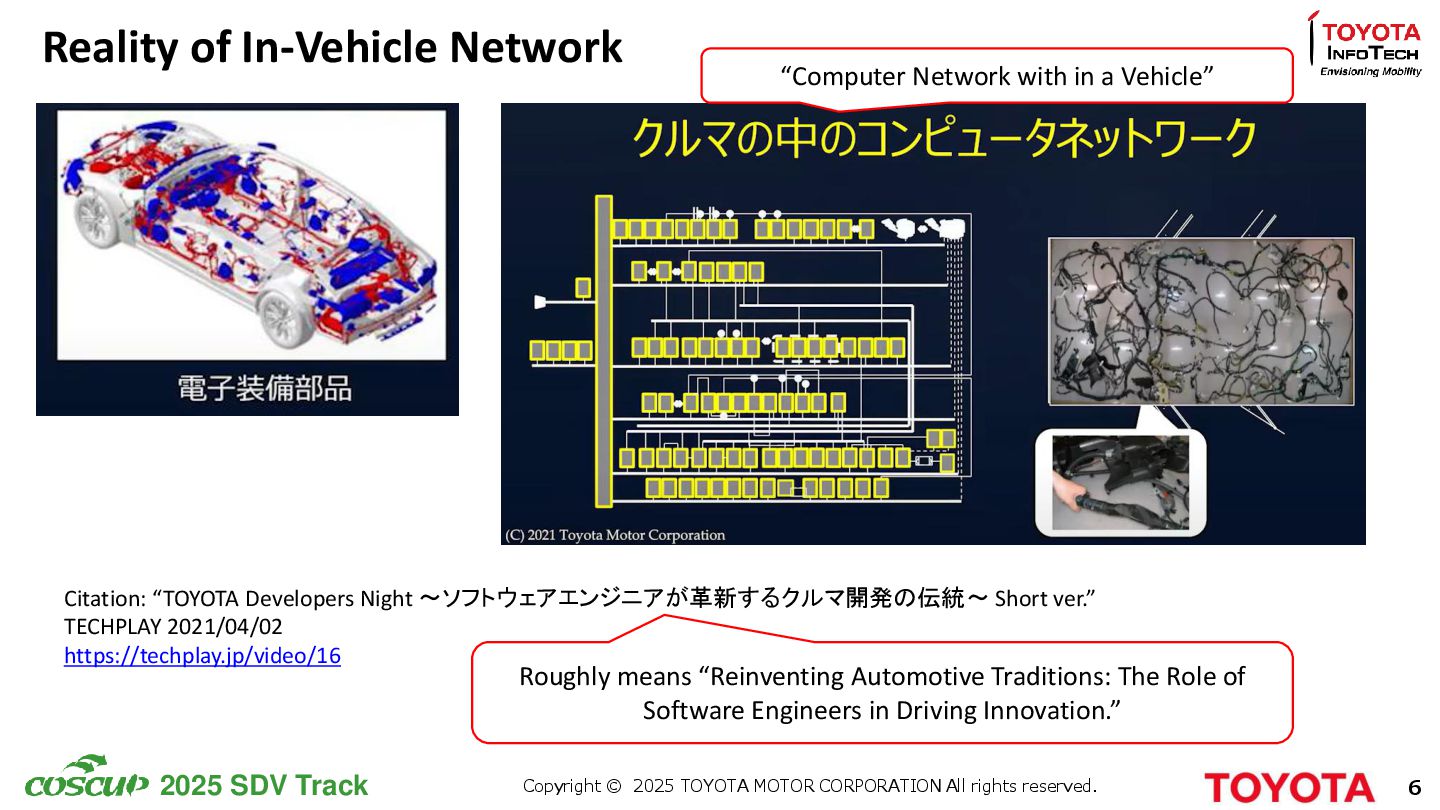

SDV Track 6 Reality of In-Vehicle Network Citation: “TOYOTA Developers Night 〜ソフトウェアエンジニアが革新するクルマ開発の伝統〜 Short ver.” TECHPLAY 2021/04/02 https://techplay.jp/video/16 Roughly means “Reinventing Automotive Traditions: The Role of Software Engineers in Driving Innovation.” “Computer Network with in a Vehicle” -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

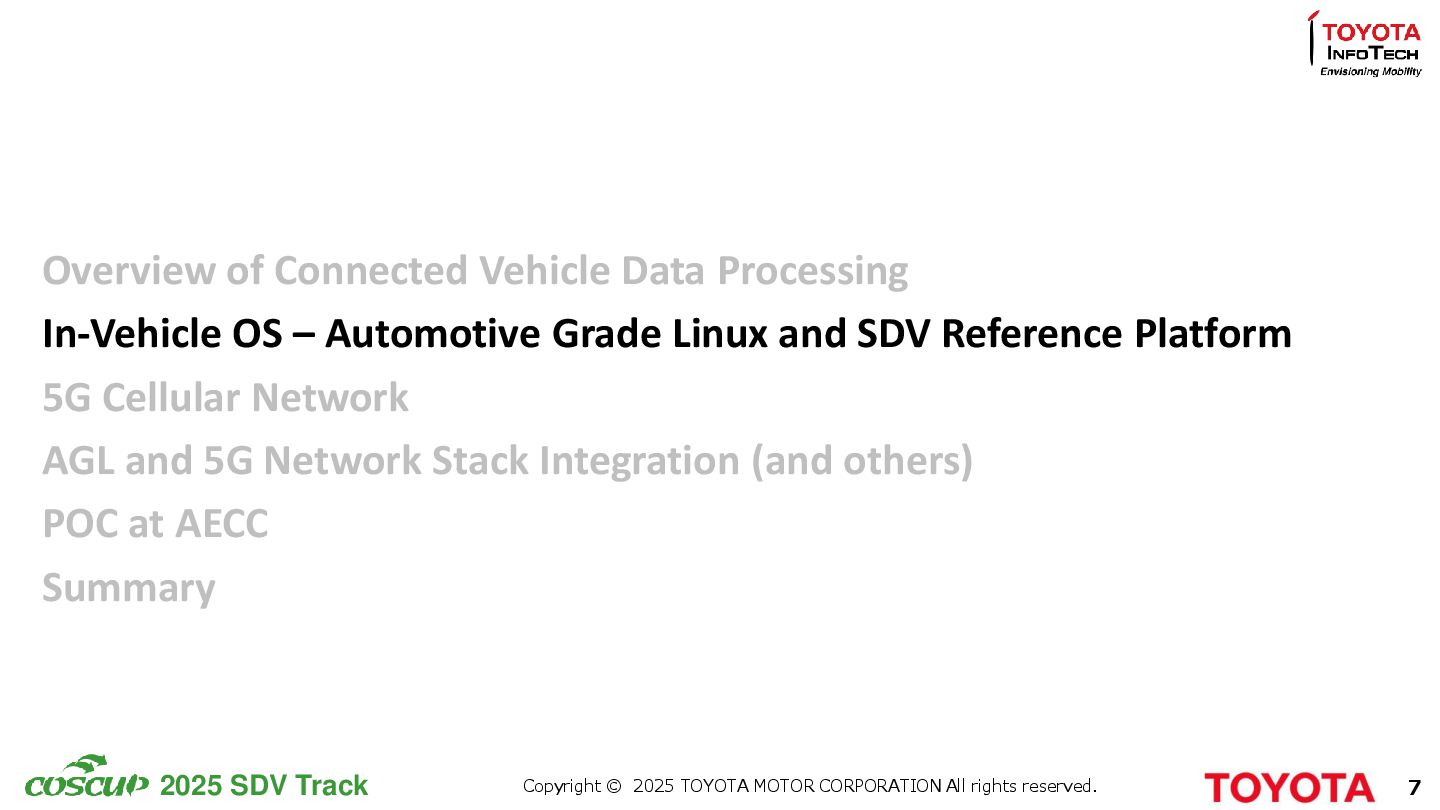

SDV Track 7 Overview of Connected Vehicle Data Processing In-Vehicle OS – Automotive Grade Linux and SDV Reference Platform 5G Cellular Network AGL and 5G Network Stack Integration (and others) POC at AECC Summary -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

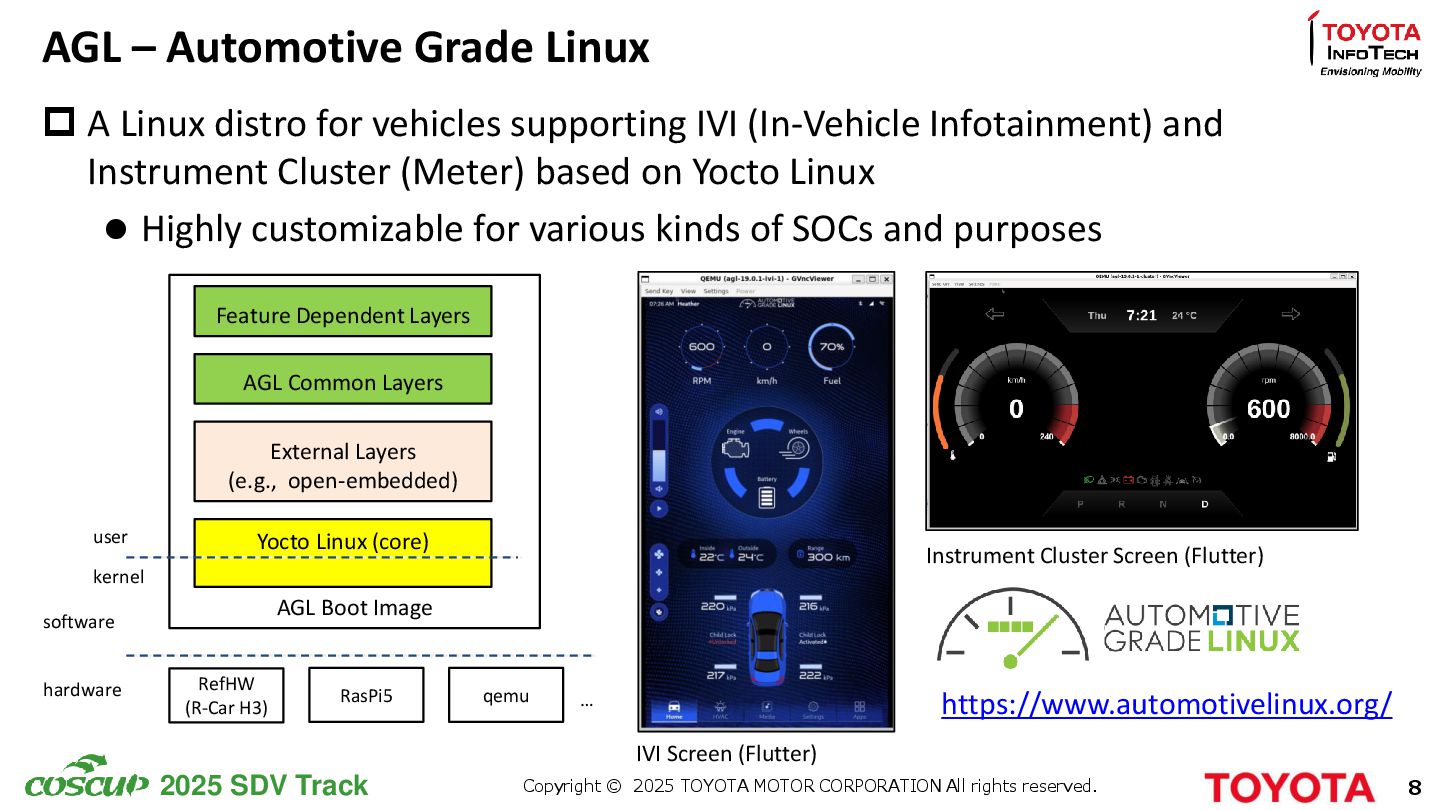

SDV Track 8 AGL – Automotive Grade Linux A Linux distro for vehicles supporting IVI (In-Vehicle Infotainment) and Instrument Cluster (Meter) based on Yocto Linux Highly customizable for various kinds of SOCs and purposes AGL Boot Image Yocto Linux (core) External Layers (e.g., open-embedded) AGL Common Layers Feature Dependent Layers RefHW (R-Car H3) RasPi5 qemu kernel user software hardware … IVI Screen (Flutter) Instrument Cluster Screen (Flutter) https://www.automotivelinux.org/ -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

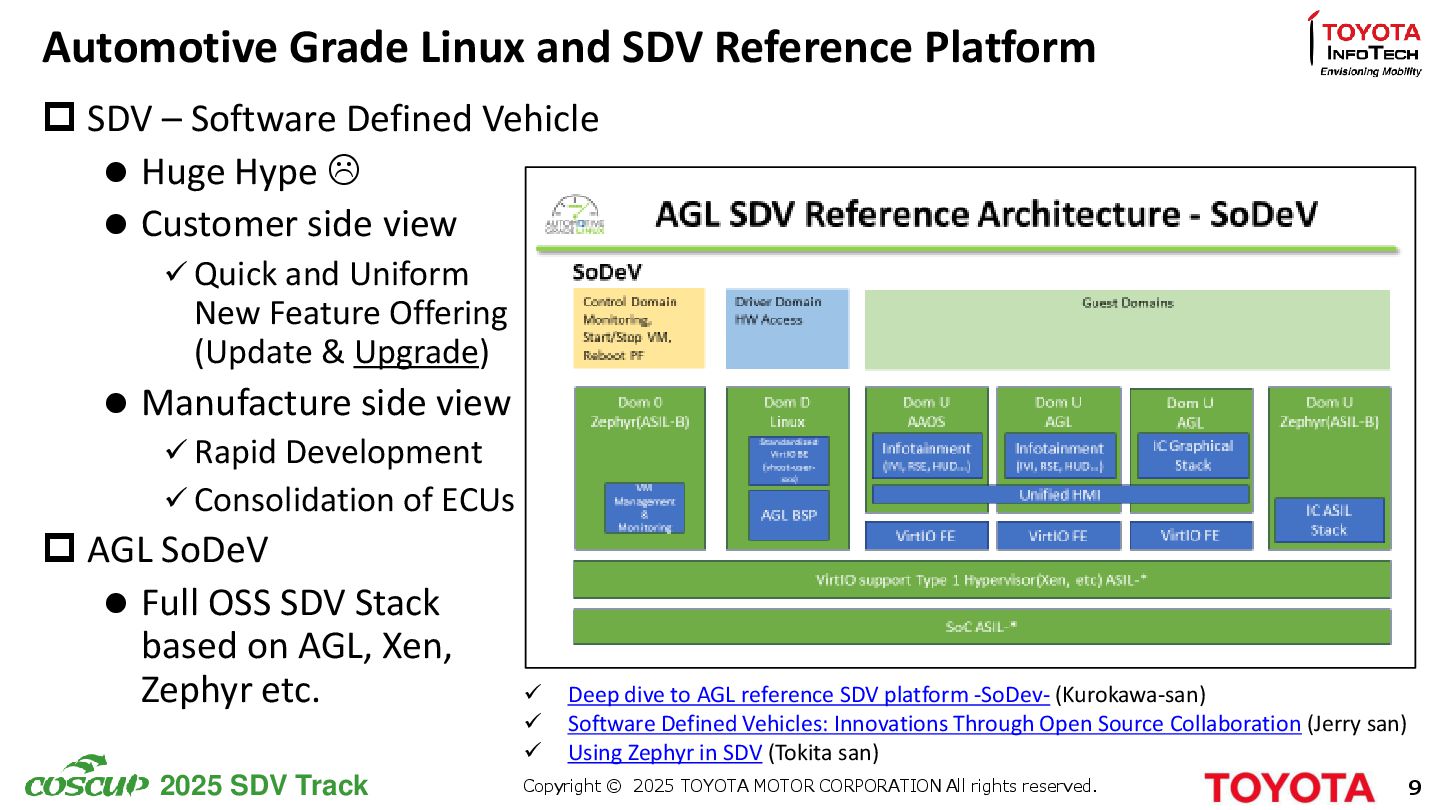

SDV Track 9 Automotive Grade Linux and SDV Reference Platform SDV – Software Defined Vehicle Huge Hype Customer side view Quick and Uniform New Feature Offering (Update & Upgrade) Manufacture side view Rapid Development Consolidation of ECUs AGL SoDeV Full OSS SDV Stack based on AGL, Xen, Zephyr etc. Deep dive to AGL reference SDV platform -SoDev- (Kurokawa-san) Software Defined Vehicles: Innovations Through Open Source Collaboration (Jerry san) Using Zephyr in SDV (Tokita san) -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025
SDV Track 10 Overview of Connected Vehicle Data Processing In-Vehicle OS – Automotive Grade Linux and SDV Reference Platform 5G Cellular Network AGL and 5G Network Stack Integration (and others) POC at AECC Summary -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

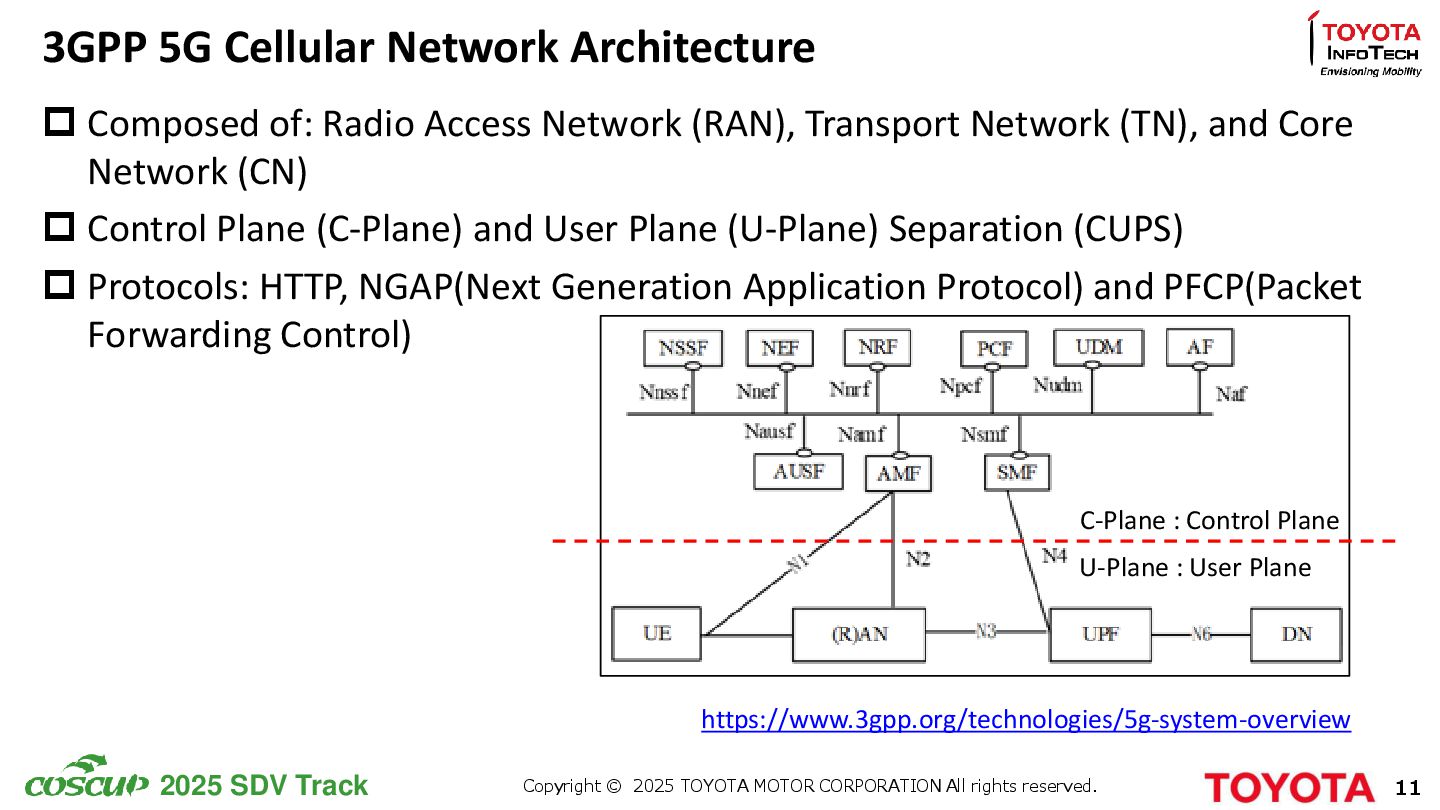

SDV Track 11 3GPP 5G Cellular Network Architecture Composed of: Radio Access Network (RAN), Transport Network (TN), and Core Network (CN) Control Plane (C-Plane) and User Plane (U-Plane) Separation (CUPS) Protocols: HTTP, NGAP(Next Generation Application Protocol) and PFCP(Packet Forwarding Control) https://www.3gpp.org/technologies/5g-system-overview U-Plane : User Plane C-Plane : Control Plane -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

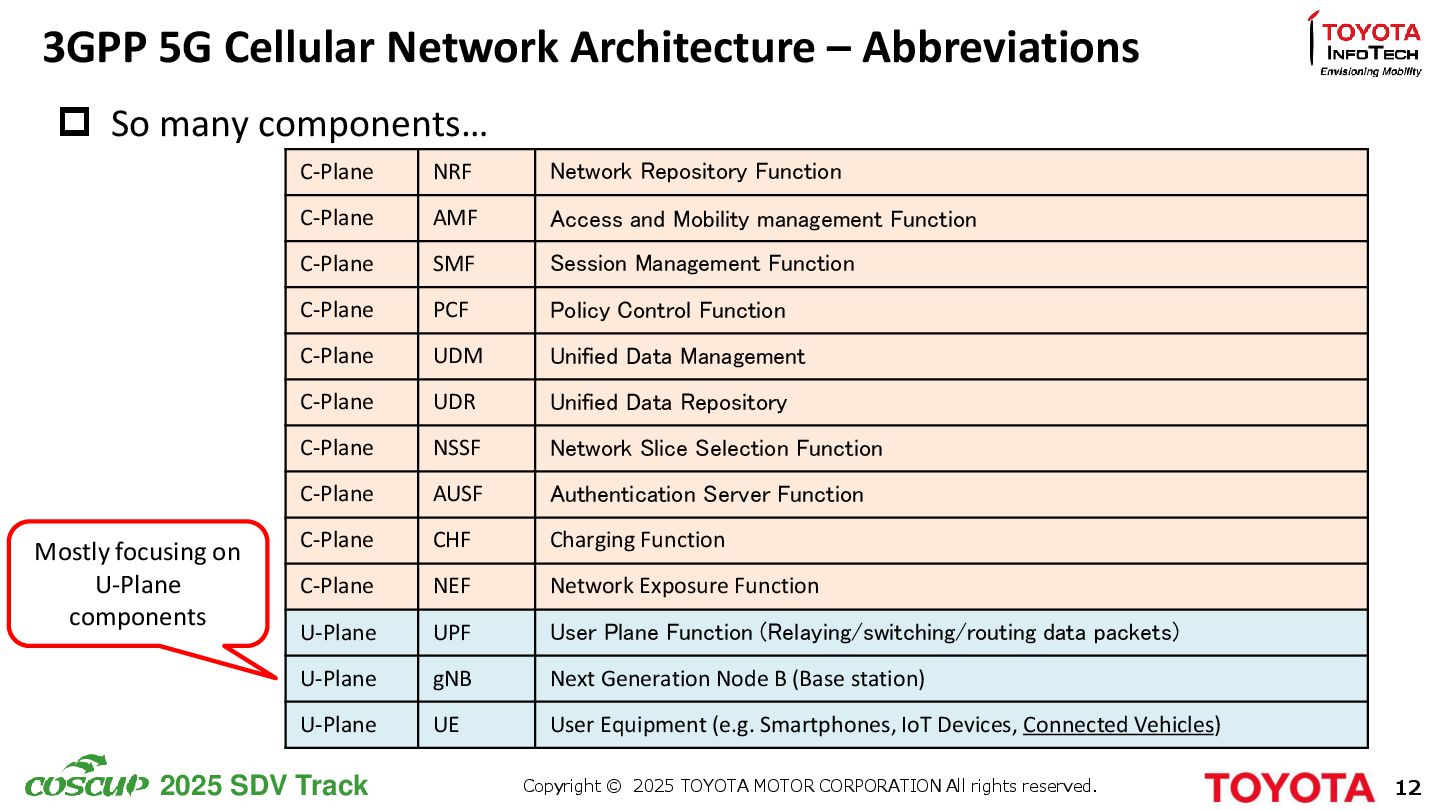

SDV Track 12 3GPP 5G Cellular Network Architecture – Abbreviations So many components… C-Plane NRF Network Repository Function C-Plane AMF Access and Mobility management Function C-Plane SMF Session Management Function C-Plane PCF Policy Control Function C-Plane UDM Unified Data Management C-Plane UDR Unified Data Repository C-Plane NSSF Network Slice Selection Function C-Plane AUSF Authentication Server Function C-Plane CHF Charging Function C-Plane NEF Network Exposure Function U-Plane UPF User Plane Function (Relaying/switching/routing data packets) U-Plane gNB Next Generation Node B (Base station) U-Plane UE User Equipment (e.g. Smartphones, IoT Devices, Connected Vehicles) Mostly focusing on U-Plane components -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

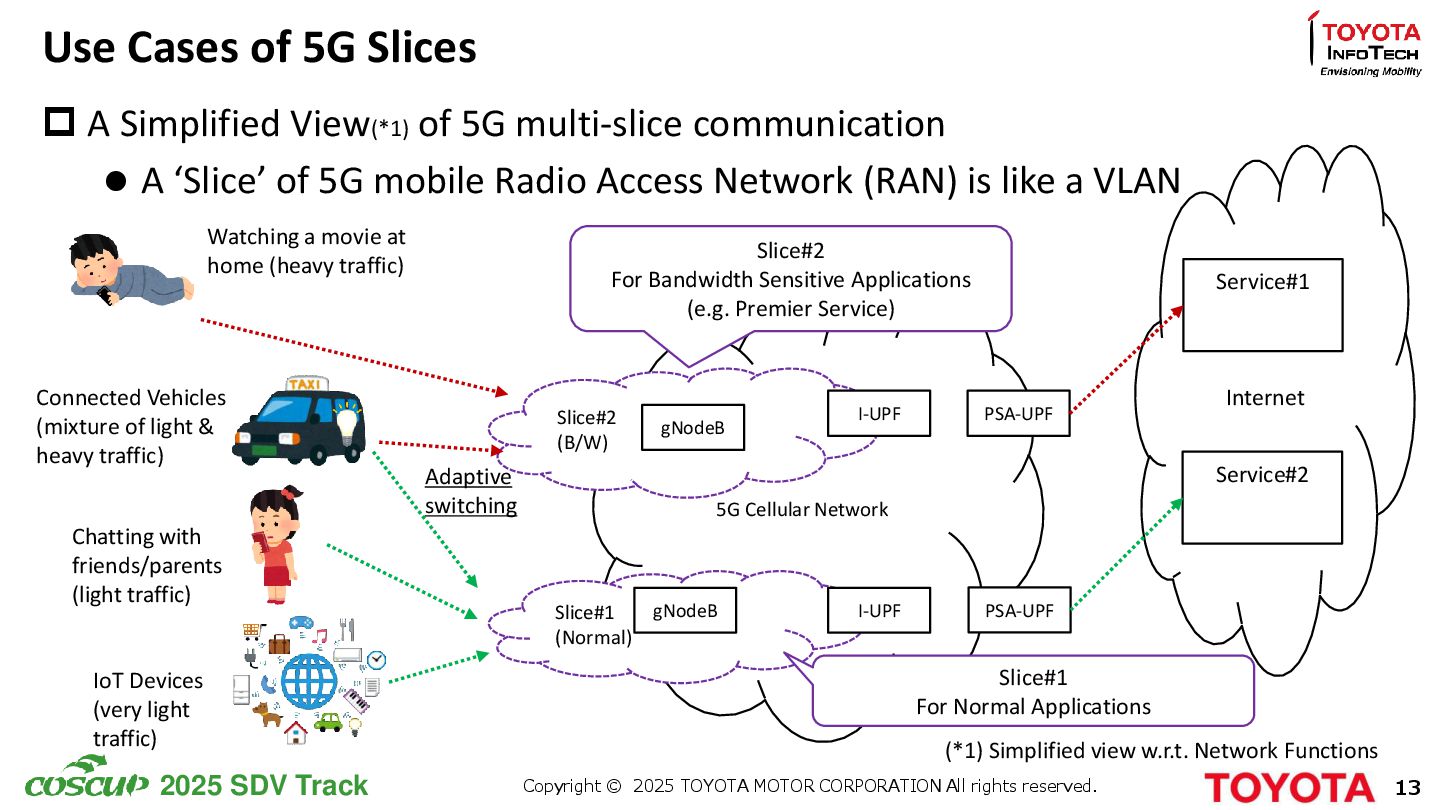

SDV Track 13 Use Cases of 5G Slices A Simplified View(*1) of 5G multi-slice communication A ‘Slice’ of 5G mobile Radio Access Network (RAN) is like a VLAN 5G Cellular Network Internet Slice#1 (Normal) Slice#2 (B/W) I-UPF PSA-UPF I-UPF PSA-UPF gNodeB gNodeB Service#1 Service#2 (*1) Simplified view w.r.t. Network Functions Slice#2 For Bandwidth Sensitive Applications (e.g. Premier Service) Slice#1 For Normal Applications IoT Devices (very light traffic) Chatting with friends/parents (light traffic) Watching a movie at home (heavy traffic) Connected Vehicles (mixture of light & heavy traffic) Adaptive switching -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025
SDV Track 14 Overview of Connected Vehicle Data Processing In-Vehicle OS – Automotive Grade Linux and SDV Reference Platform 5G Cellular Network AGL and 5G Network Stack Integration (and others) POC at AECC Summary -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

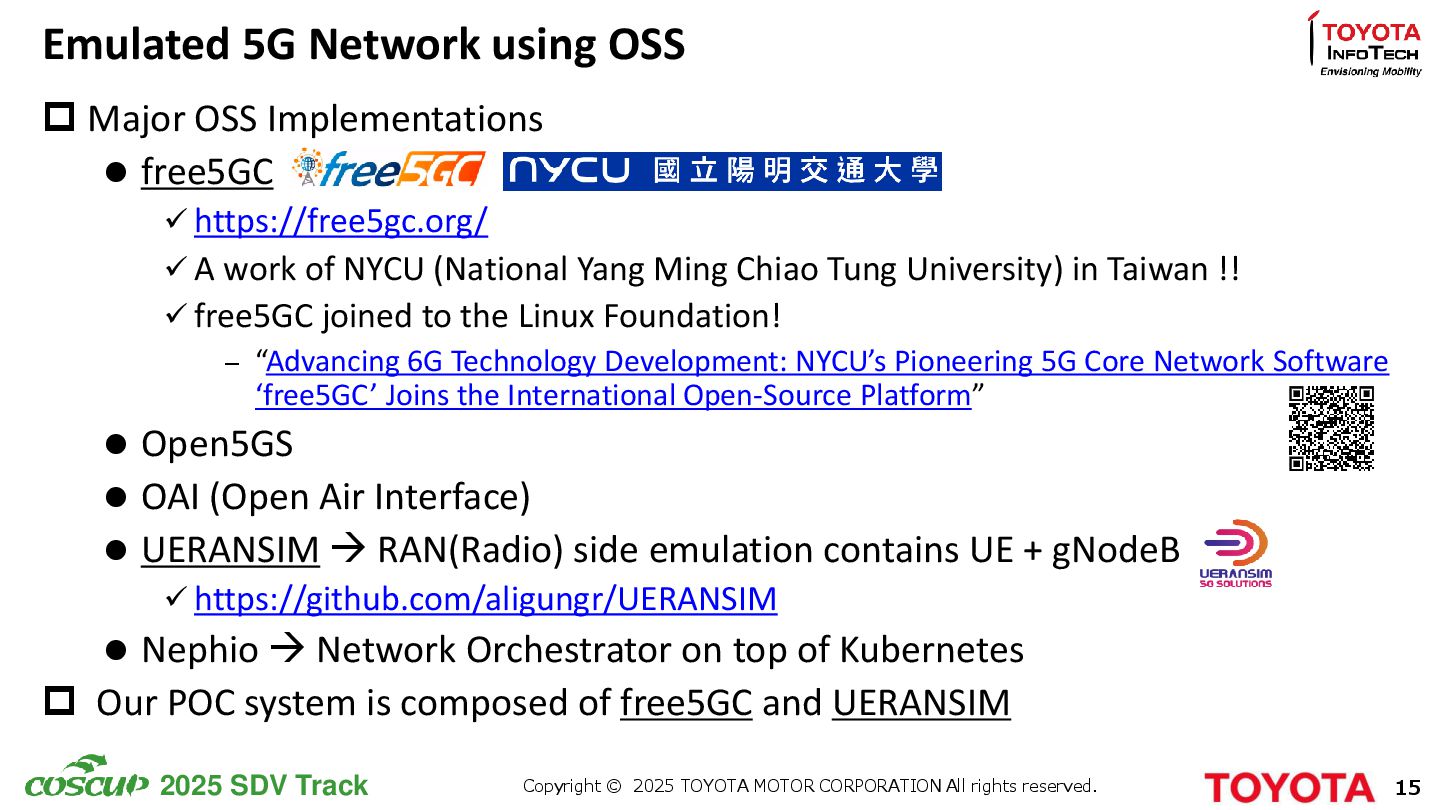

SDV Track 15 Emulated 5G Network using OSS Major OSS Implementations free5GC https://free5gc.org/ A work of NYCU (National Yang Ming Chiao Tung University) in Taiwan !! free5GC joined to the Linux Foundation! – “Advancing 6G Technology Development: NYCU’s Pioneering 5G Core Network Software ‘free5GC’ Joins the International Open-Source Platform” Open5GS OAI (Open Air Interface) UERANSIM RAN(Radio) side emulation contains UE + gNodeB https://github.com/aligungr/UERANSIM Nephio Network Orchestrator on top of Kubernetes Our POC system is composed of free5GC and UERANSIM -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

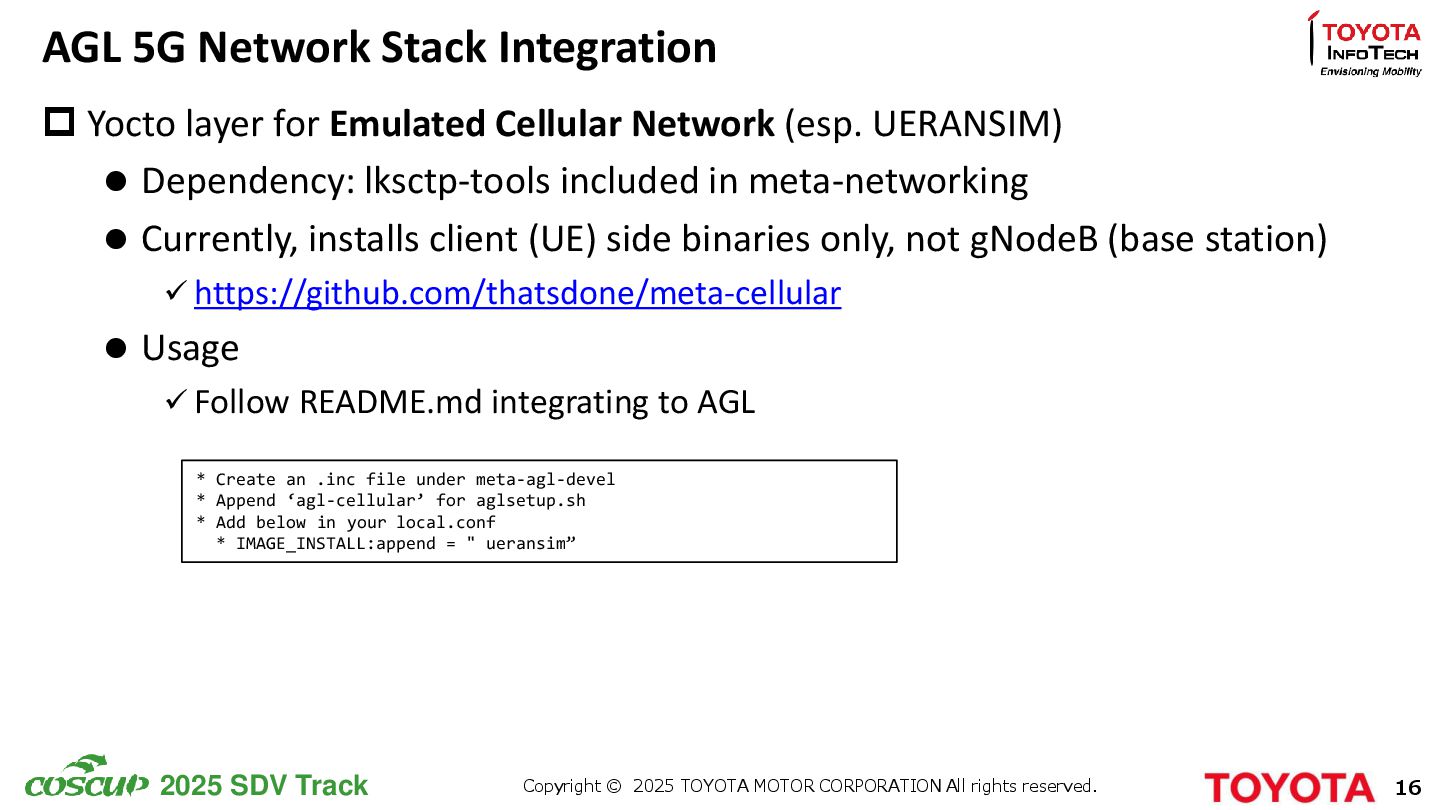

SDV Track 16 AGL 5G Network Stack Integration Yocto layer for Emulated Cellular Network (esp. UERANSIM) Dependency: lksctp-tools included in meta-networking Currently, installs client (UE) side binaries only, not gNodeB (base station) https://github.com/thatsdone/meta-cellular Usage Follow README.md integrating to AGL * Create an .inc file under meta-agl-devel * Append ‘agl-cellular’ for aglsetup.sh * Add below in your local.conf * IMAGE_INSTALL:append = " ueransim” -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

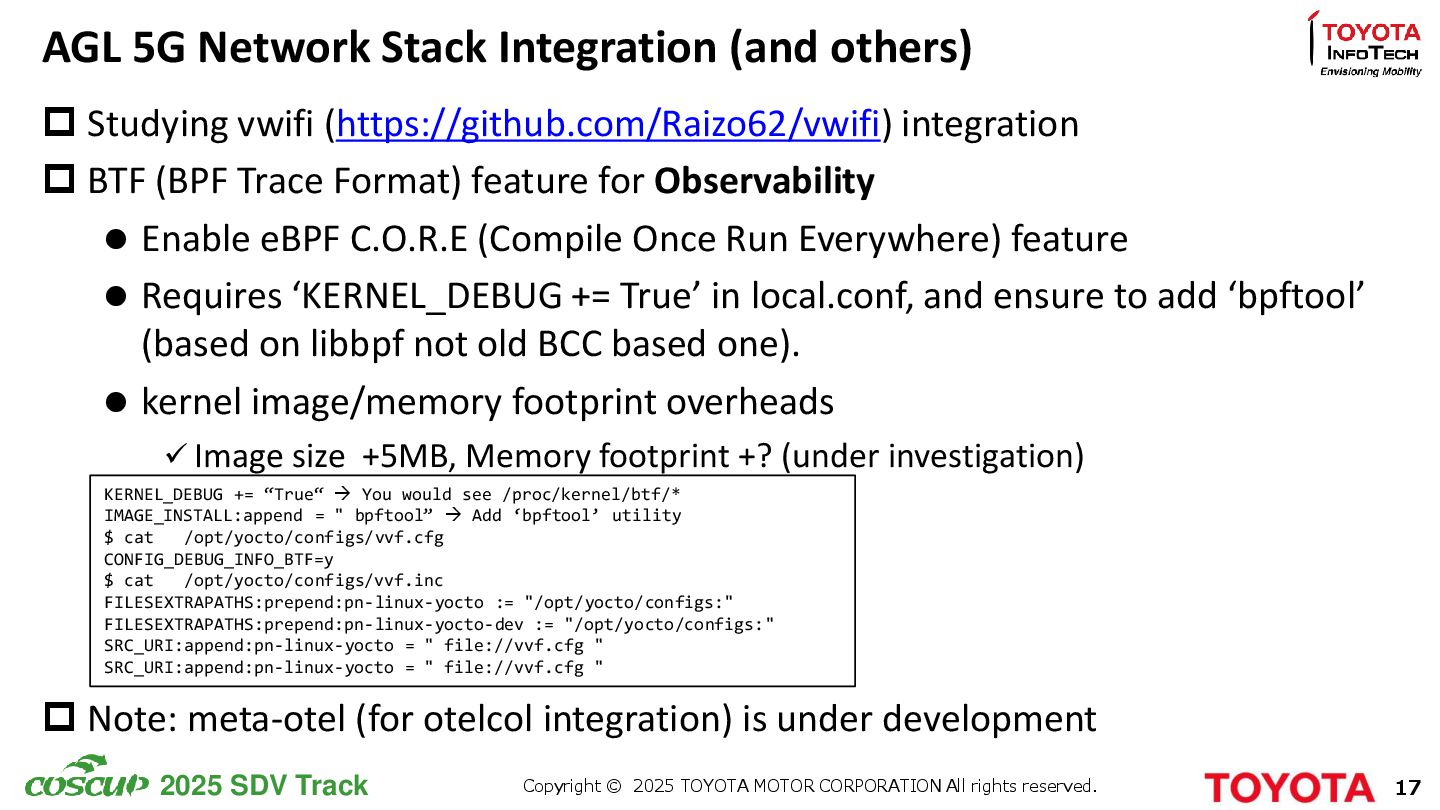

SDV Track 17 AGL 5G Network Stack Integration (and others) Studying vwifi (https://github.com/Raizo62/vwifi) integration BTF (BPF Trace Format) feature for Observability Enable eBPF C.O.R.E (Compile Once Run Everywhere) feature Requires ‘KERNEL_DEBUG += True’ in local.conf, and ensure to add ‘bpftool’ (based on libbpf not old BCC based one). kernel image/memory footprint overheads Image size +5MB, Memory footprint +? (under investigation) Note: meta-otel (for otelcol integration) is under development KERNEL_DEBUG += “True“ You would see /proc/kernel/btf/* IMAGE_INSTALL:append = " bpftool” Add ‘bpftool’ utility $ cat /opt/yocto/configs/vvf.cfg CONFIG_DEBUG_INFO_BTF=y $ cat /opt/yocto/configs/vvf.inc FILESEXTRAPATHS:prepend:pn-linux-yocto := "/opt/yocto/configs:" FILESEXTRAPATHS:prepend:pn-linux-yocto-dev := "/opt/yocto/configs:" SRC_URI:append:pn-linux-yocto = " file://vvf.cfg " SRC_URI:append:pn-linux-yocto = " file://vvf.cfg " -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

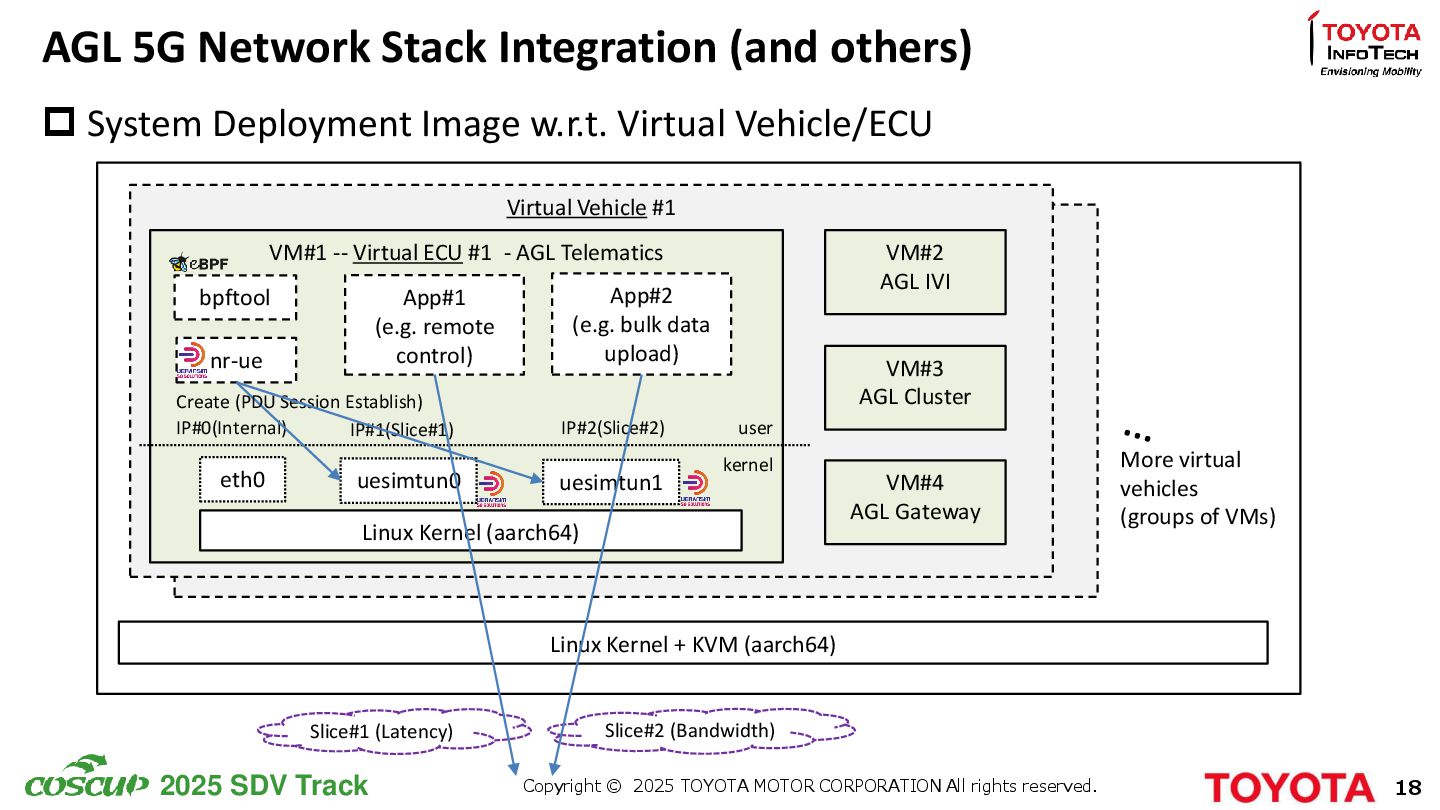

SDV Track 18 System Deployment Image w.r.t. Virtual Vehicle/ECU Virtual Vehicle #2 AGL 5G Network Stack Integration (and others) Virtual Vehicle #1 Linux Kernel + KVM (aarch64) VM#3 AGL Cluster VM#1 -- Virtual ECU #1 - AGL Telematics VM#2 AGL IVI VM#4 AGL Gateway Linux Kernel (aarch64) uesimtun1 eth0 uesimtun0 nr-ue bpftool IP#2(Slice#2) IP#1(Slice#1) IP#0(Internal) Create (PDU Session Establish) App#1 (e.g. remote control) App#2 (e.g. bulk data upload) user kernel Slice#2 (Bandwidth) Slice#1 (Latency) More virtual vehicles (groups of VMs) -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

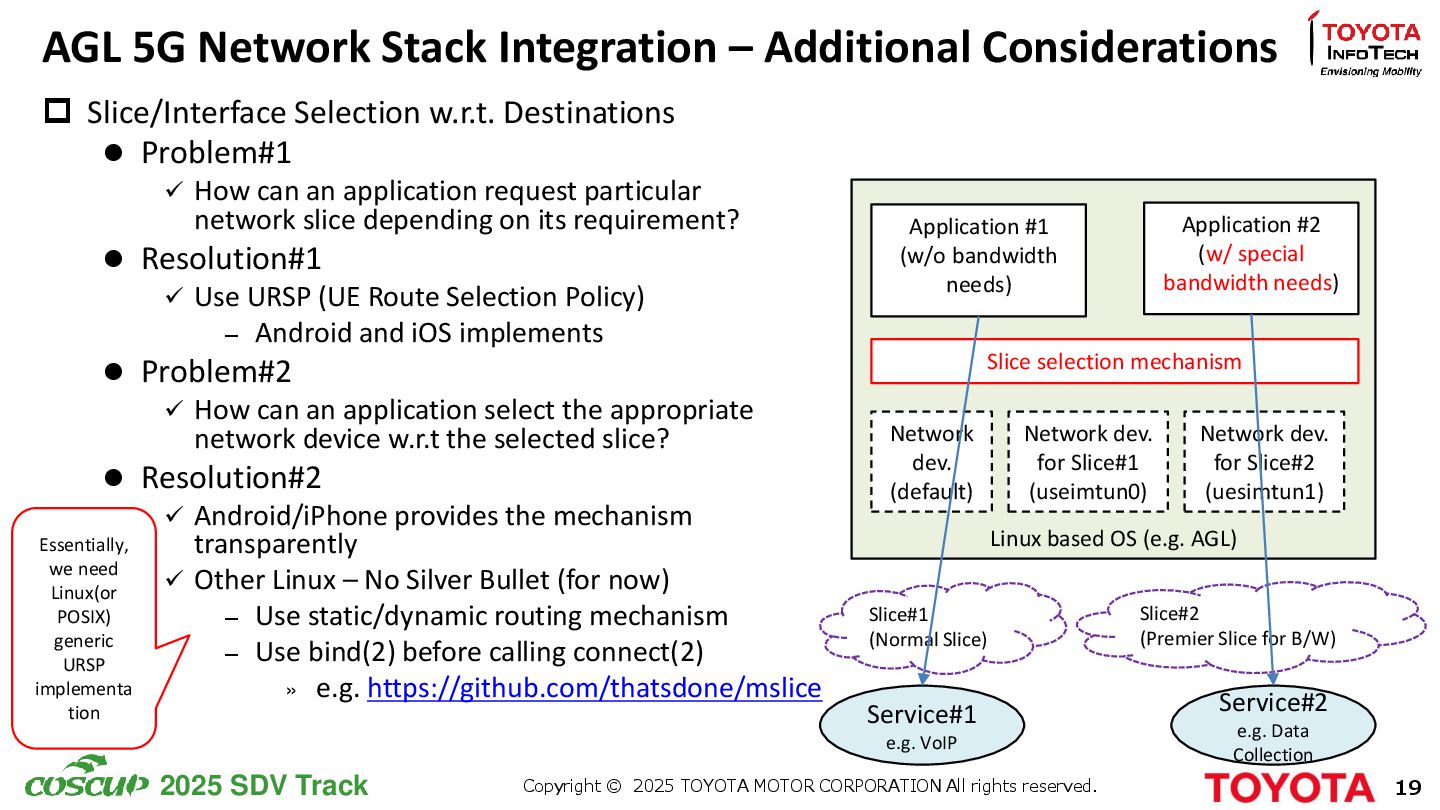

SDV Track 19 Slice/Interface Selection w.r.t. Destinations Problem#1 How can an application request particular network slice depending on its requirement? Resolution#1 Use URSP (UE Route Selection Policy) – Android and iOS implements Problem#2 How can an application select the appropriate network device w.r.t the selected slice? Resolution#2 Android/iPhone provides the mechanism transparently Other Linux – No Silver Bullet (for now) – Use static/dynamic routing mechanism – Use bind(2) before calling connect(2) » e.g. https://github.com/thatsdone/mslice Slice#1 (Normal Slice) AGL 5G Network Stack Integration – Additional Considerations Linux based OS (e.g. AGL) Network dev. for Slice#1 (useimtun0) Application #1 (w/o bandwidth needs) Slice selection mechanism Application #2 (w/ special bandwidth needs) Network dev. for Slice#2 (uesimtun1) Slice#2 (Premier Slice for B/W) Network dev. (default) Service#1 e.g. VoIP Service#2 e.g. Data Collection Essentially, we need Linux(or POSIX) generic URSP implementa tion -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

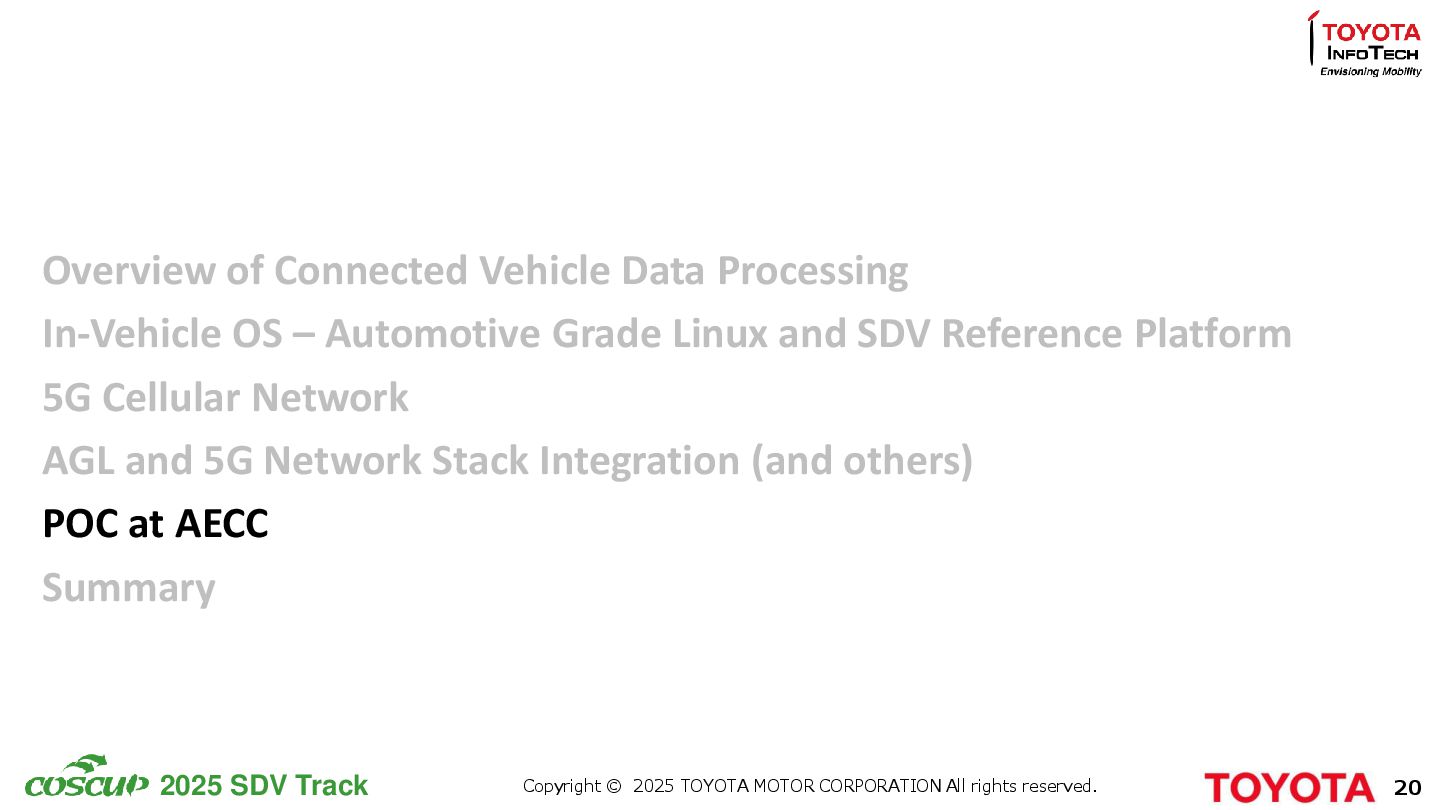

SDV Track 20 Overview of Connected Vehicle Data Processing In-Vehicle OS – Automotive Grade Linux and SDV Reference Platform 5G Cellular Network AGL and 5G Network Stack Integration (and others) POC at AECC Summary -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

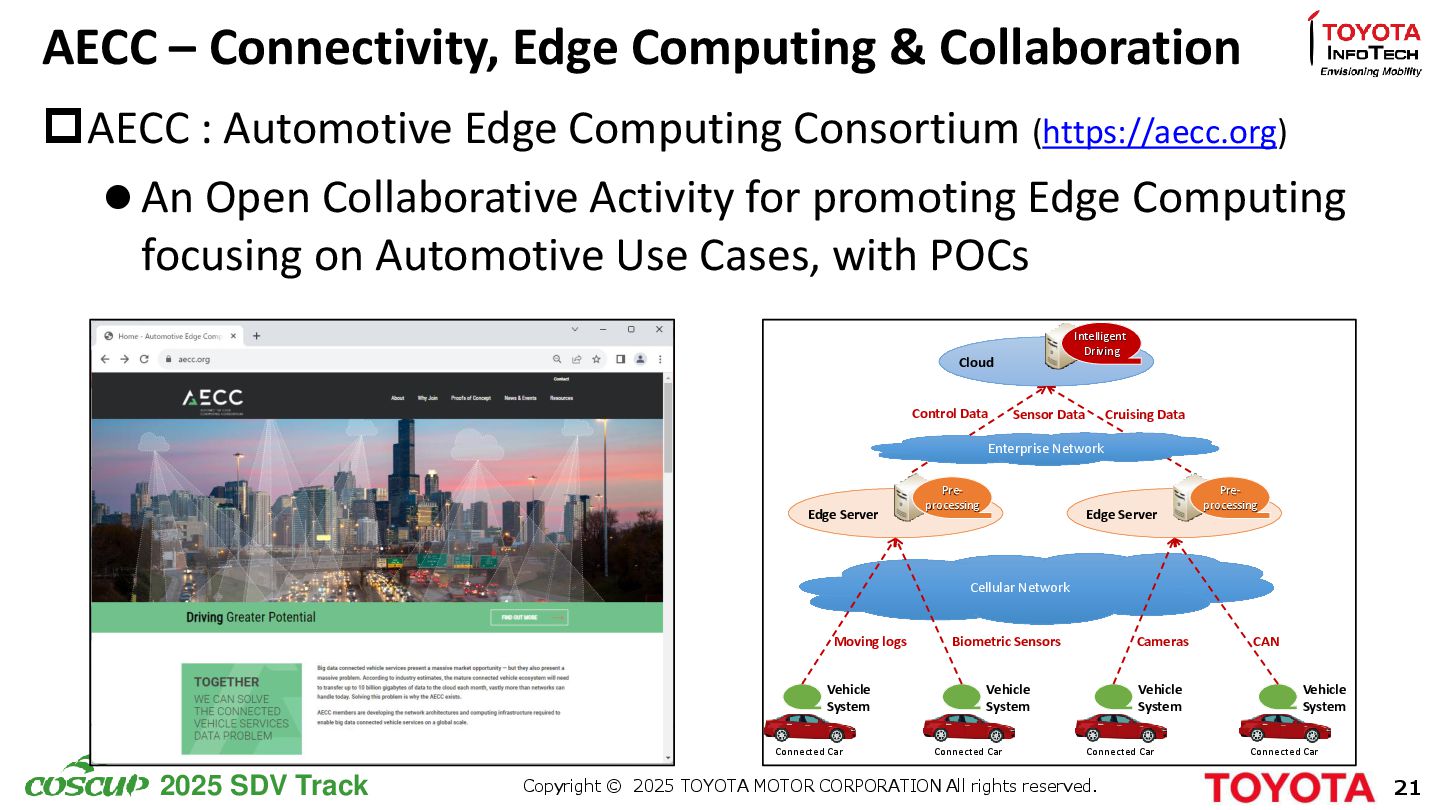

SDV Track 21 AECC – Connectivity, Edge Computing & Collaboration AECC : Automotive Edge Computing Consortium (https://aecc.org) An Open Collaborative Activity for promoting Edge Computing focusing on Automotive Use Cases, with POCs Vehicle System Connected Car Vehicle System Connected Car Vehicle System Connected Car Vehicle System Connected Car Cellular Network Edge Server Pre- processing Cloud Edge Server Pre- processing Moving logs Biometric Sensors Cameras Cruising Data Sensor Data Control Data Intelligent Driving Enterprise Network CAN -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

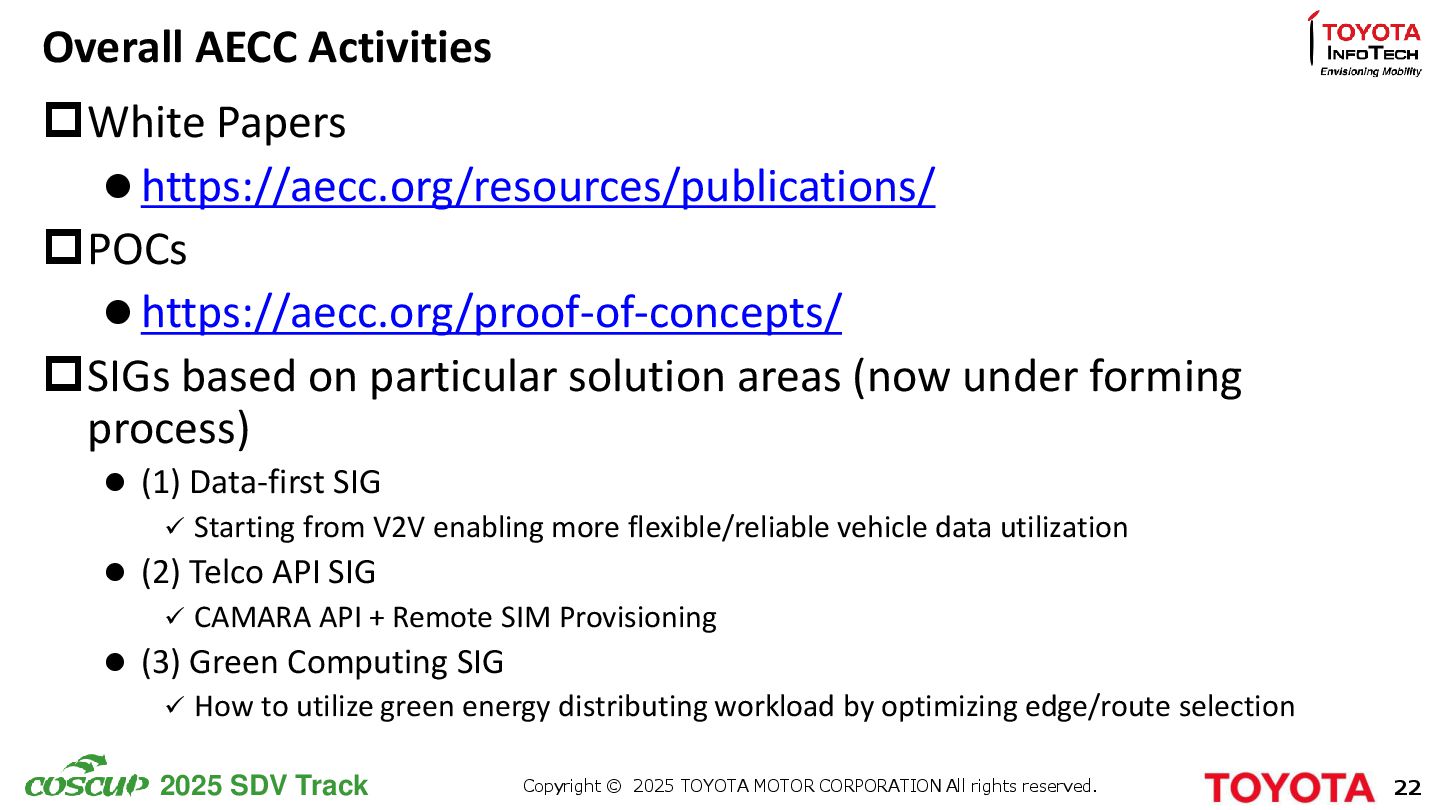

SDV Track 22 Overall AECC Activities White Papers https://aecc.org/resources/publications/ POCs https://aecc.org/proof-of-concepts/ SIGs based on particular solution areas (now under forming process) (1) Data-first SIG Starting from V2V enabling more flexible/reliable vehicle data utilization (2) Telco API SIG CAMARA API + Remote SIM Provisioning (3) Green Computing SIG How to utilize green energy distributing workload by optimizing edge/route selection -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

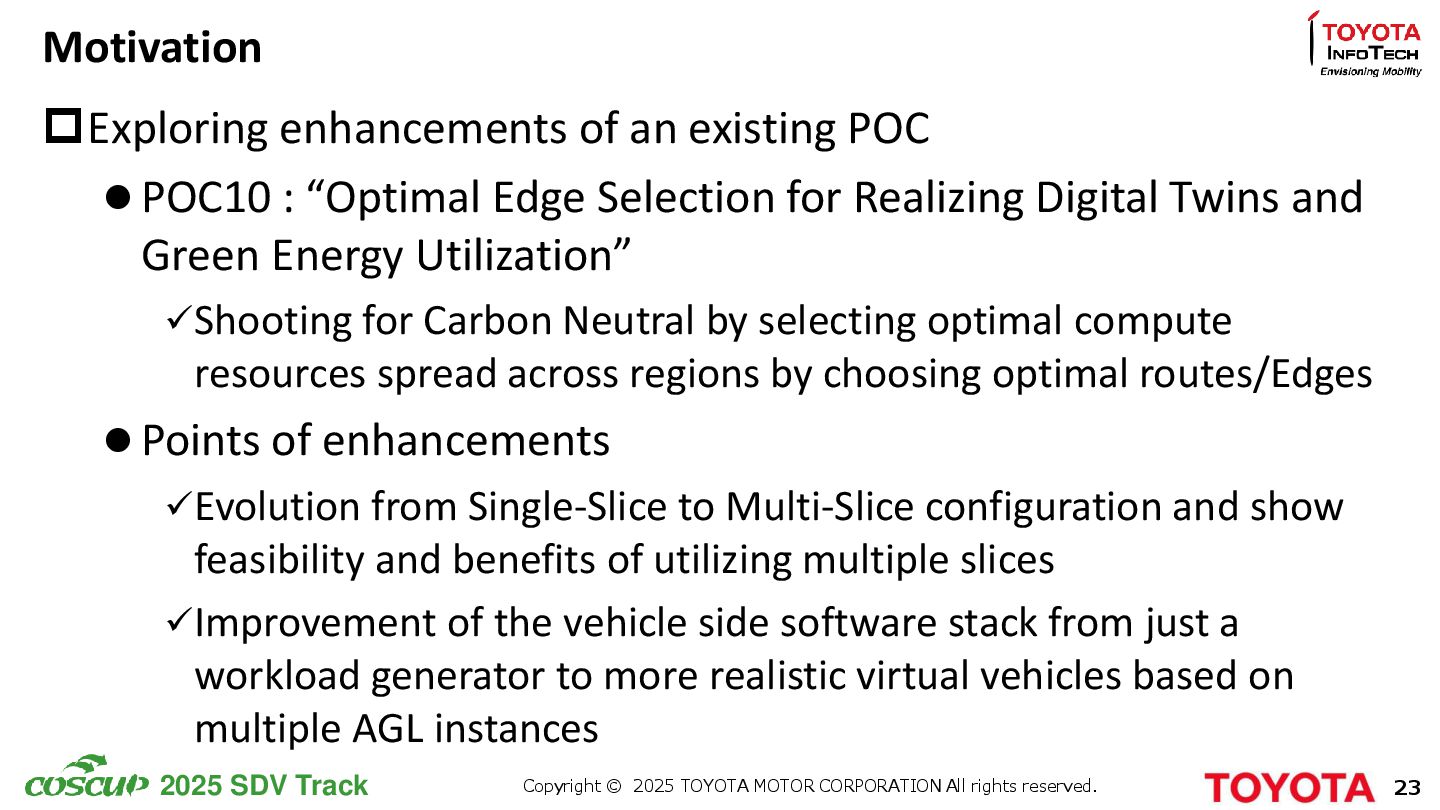

SDV Track 23 Motivation Exploring enhancements of an existing POC POC10 : “Optimal Edge Selection for Realizing Digital Twins and Green Energy Utilization” Shooting for Carbon Neutral by selecting optimal compute resources spread across regions by choosing optimal routes/Edges Points of enhancements Evolution from Single-Slice to Multi-Slice configuration and show feasibility and benefits of utilizing multiple slices Improvement of the vehicle side software stack from just a workload generator to more realistic virtual vehicles based on multiple AGL instances -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

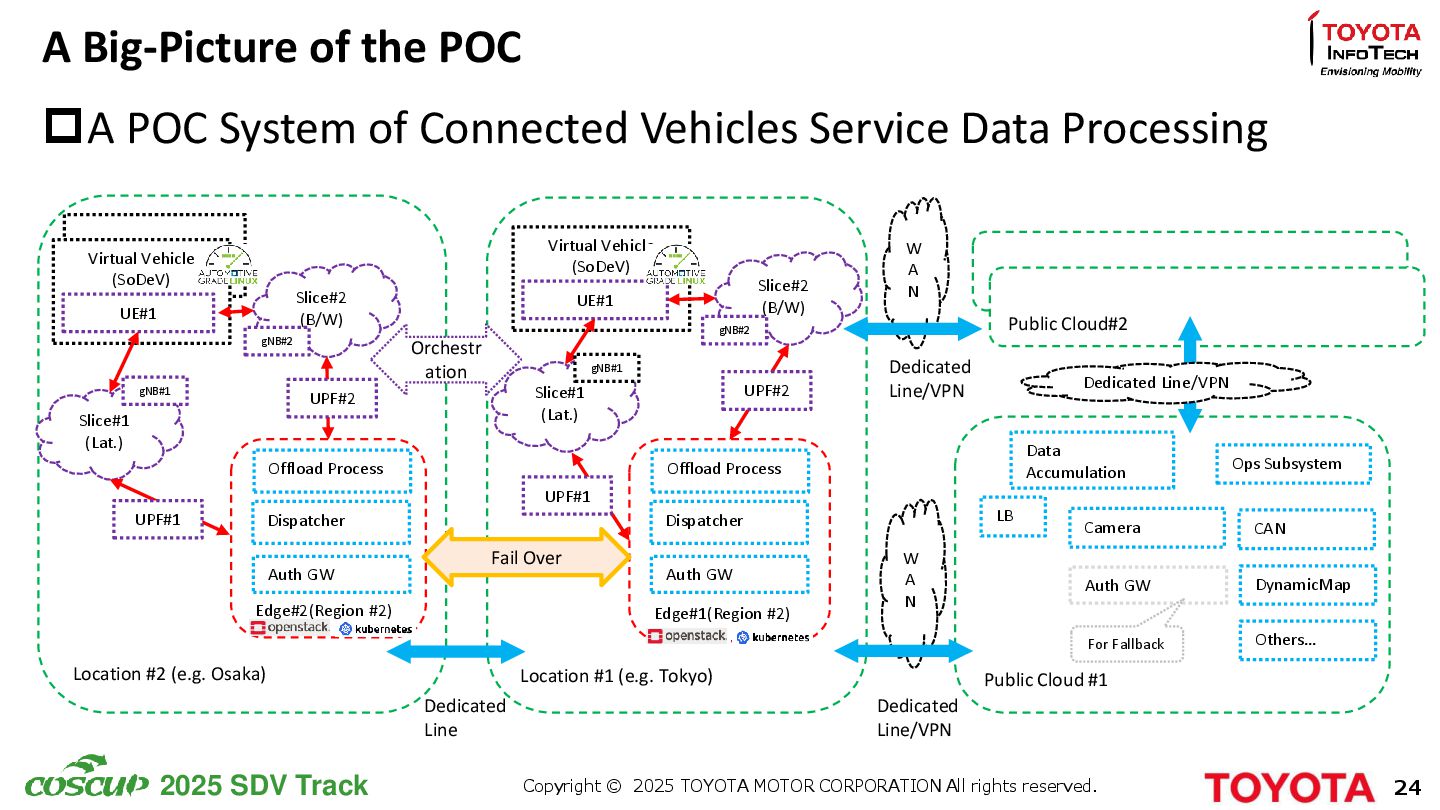

SDV Track 24 A Big-Picture of the POC A POC System of Connected Vehicles Service Data Processing gNB#1 W A N Location #1 (e.g. Tokyo) Location #2 (e.g. Osaka) Public Cloud #1 CAN Camera DynamicMap Others… LB Ops Subsystem Pseudo Vehicle Virtual Vehicle (SoDeV) Edge#1(Region #2) Auth GW Dispatcher Offload Process Slice#1 (Lat.) Auth GW For Fallback W A N Data Accumulation Edge#2(Region #2) Auth GW Dispatcher Offload Process UE#1 Slice#2 (B/W) UPF#2 UPF#1 Dedicated Line Virtual Vehicle (SoDeV) UE#1 Slice#1 (Lat.) Slice#2 (B/W) OCI /etc. Public Cloud#2 UPF#2 UPF#1 Fail Over gNB#2 gNB#2 gNB#1 Orchestr ation gNB#1 Dedicated Line/VPN Dedicated Line/VPN Dedicated Line/VPN -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

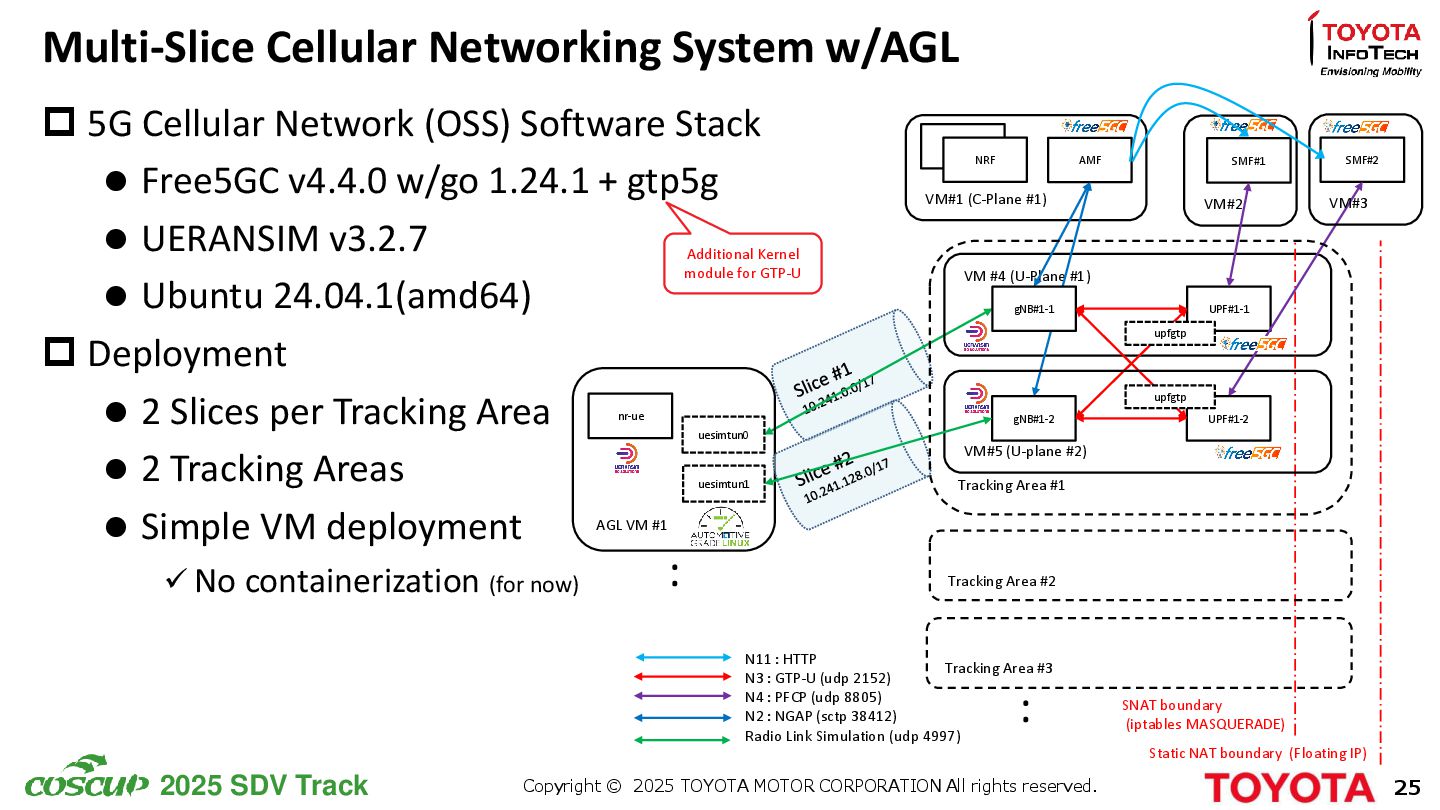

SDV Track 25 5G Cellular Network (OSS) Software Stack Free5GC v4.4.0 w/go 1.24.1 + gtp5g UERANSIM v3.2.7 Ubuntu 24.04.1(amd64) Deployment 2 Slices per Tracking Area 2 Tracking Areas Simple VM deployment No containerization (for now) Multi-Slice Cellular Networking System w/AGL UPF#1-1 VM #4 (U-Plane #1) AGL VM #1 uesimtun0 VM#1 (C-Plane #1) NRF SMF#1 uesimtun1 SNAT boundary (iptables MASQUERADE) SMF#2 VM#2 AMF nr-ue NRF Static NAT boundary (Floating IP) UPF#1-2 gNB#1-2 gNB#1-1 upfgtp upfgtp VM#5 (U-plane #2) N11 : HTTP N3 : GTP-U (udp 2152) N4 : PFCP (udp 8805) N2 : NGAP (sctp 38412) Radio Link Simulation (udp 4997) Tracking Area #1 Tracking Area #2 Tracking Area #3 : : VM#3 Additional Kernel module for GTP-U -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

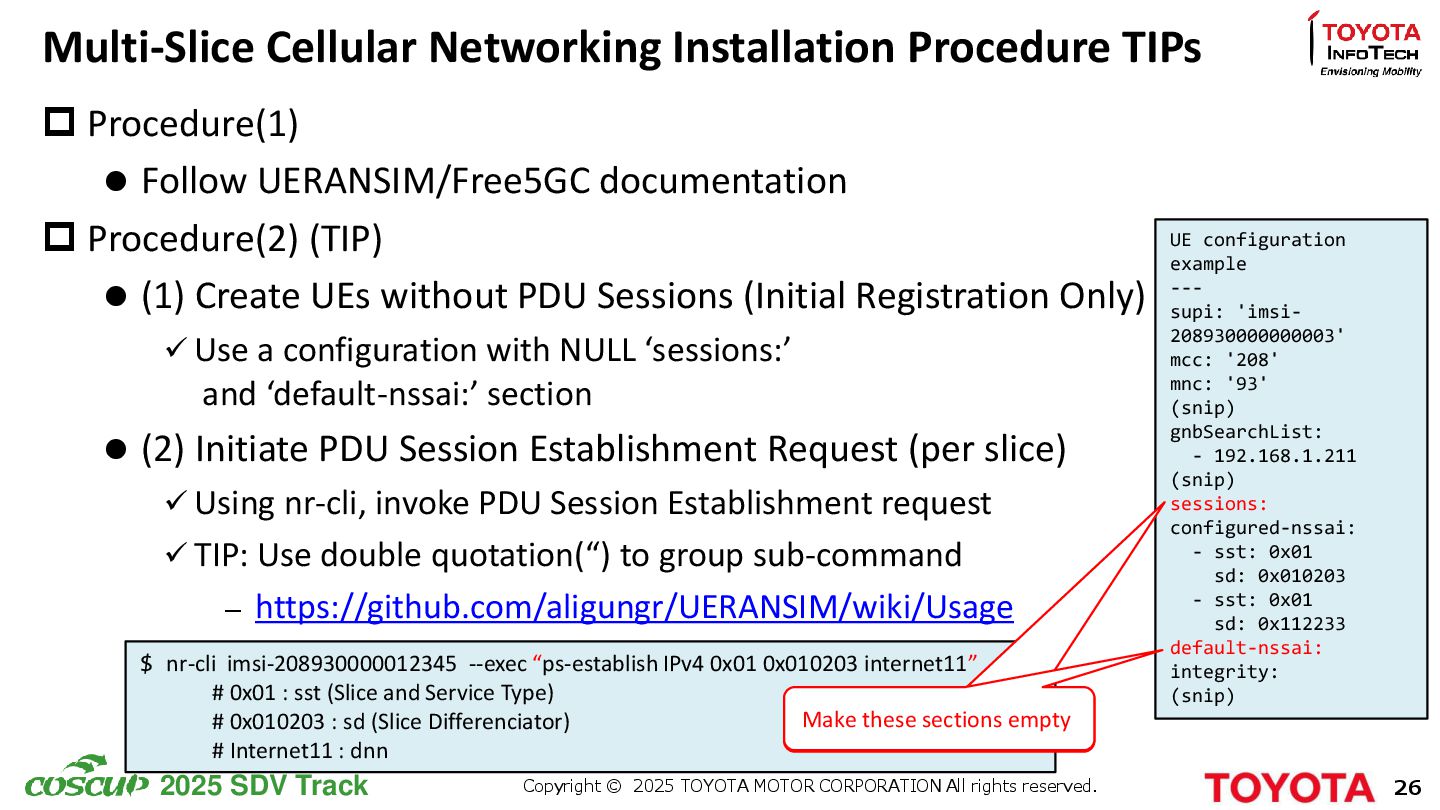

SDV Track 26 Procedure(1) Follow UERANSIM/Free5GC documentation Procedure(2) (TIP) (1) Create UEs without PDU Sessions (Initial Registration Only) Use a configuration with NULL ‘sessions:’ and ‘default-nssai:’ section (2) Initiate PDU Session Establishment Request (per slice) Using nr-cli, invoke PDU Session Establishment request TIP: Use double quotation(“) to group sub-command – https://github.com/aligungr/UERANSIM/wiki/Usage Multi-Slice Cellular Networking Installation Procedure TIPs $ nr-cli imsi-208930000012345 --exec “ps-establish IPv4 0x01 0x010203 internet11” # 0x01 : sst (Slice and Service Type) # 0x010203 : sd (Slice Differenciator) # Internet11 : dnn UE configuration example --- supi: 'imsi- 208930000000003' mcc: '208' mnc: '93' (snip) gnbSearchList: - 192.168.1.211 (snip) sessions: configured-nssai: - sst: 0x01 sd: 0x010203 - sst: 0x01 sd: 0x112233 default-nssai: integrity: (snip) Make these sections empty Make these sections empty -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

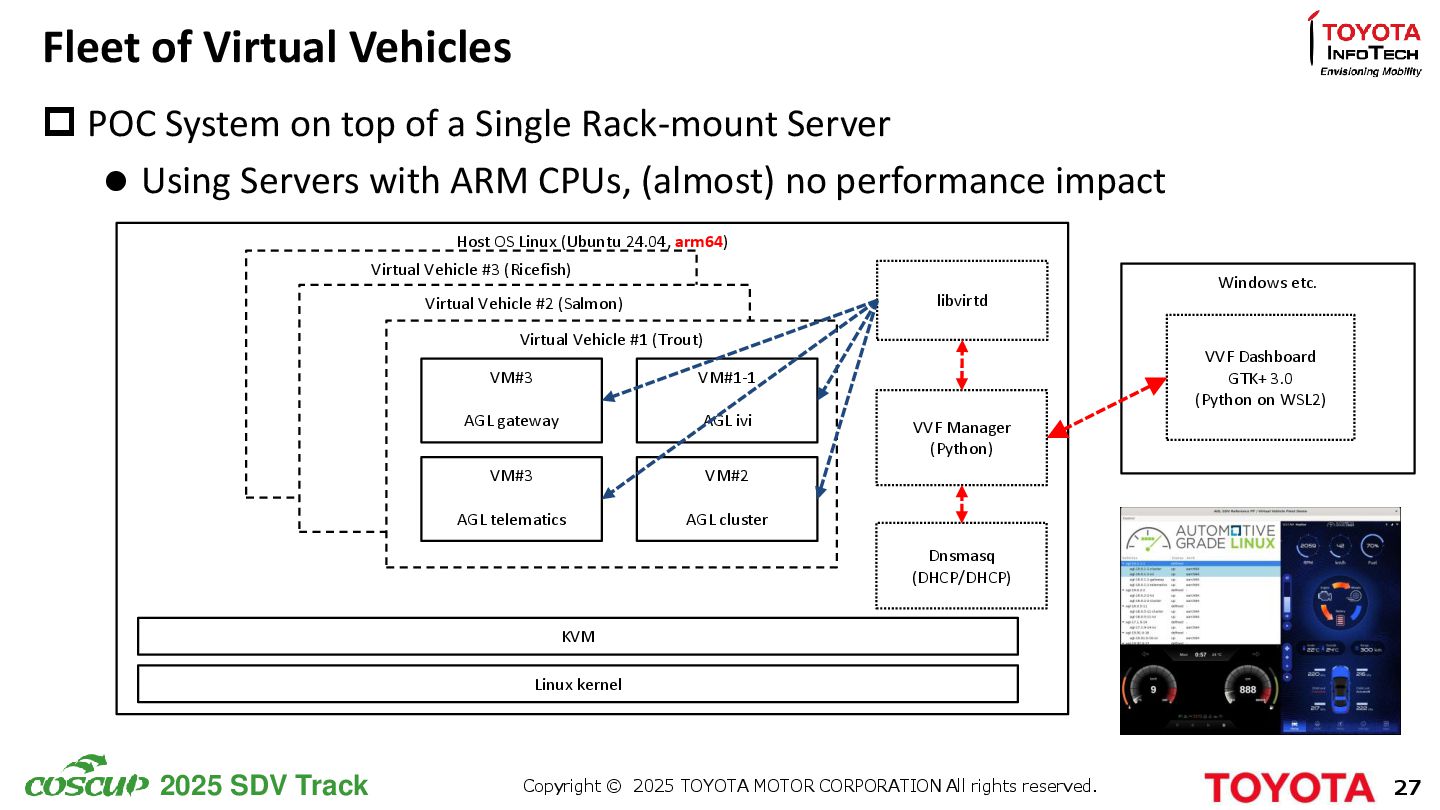

SDV Track 27 Fleet of Virtual Vehicles POC System on top of a Single Rack-mount Server Using Servers with ARM CPUs, (almost) no performance impact Virtual Vehicle #3 (Ricefish) Virtual Vehicle #2 (Salmon) Host OS Linux (Ubuntu 24.04, arm64) Virtual Vehicle #1 (Trout) KVM VM#1-1 AGL ivi VM#2 AGL cluster VVF Manager (Python) Windows etc. VVF Dashboard GTK+ 3.0 (Python on WSL2) Linux kernel VM#3 AGL gateway VM#3 AGL telematics libvirtd Dnsmasq (DHCP/DHCP) -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

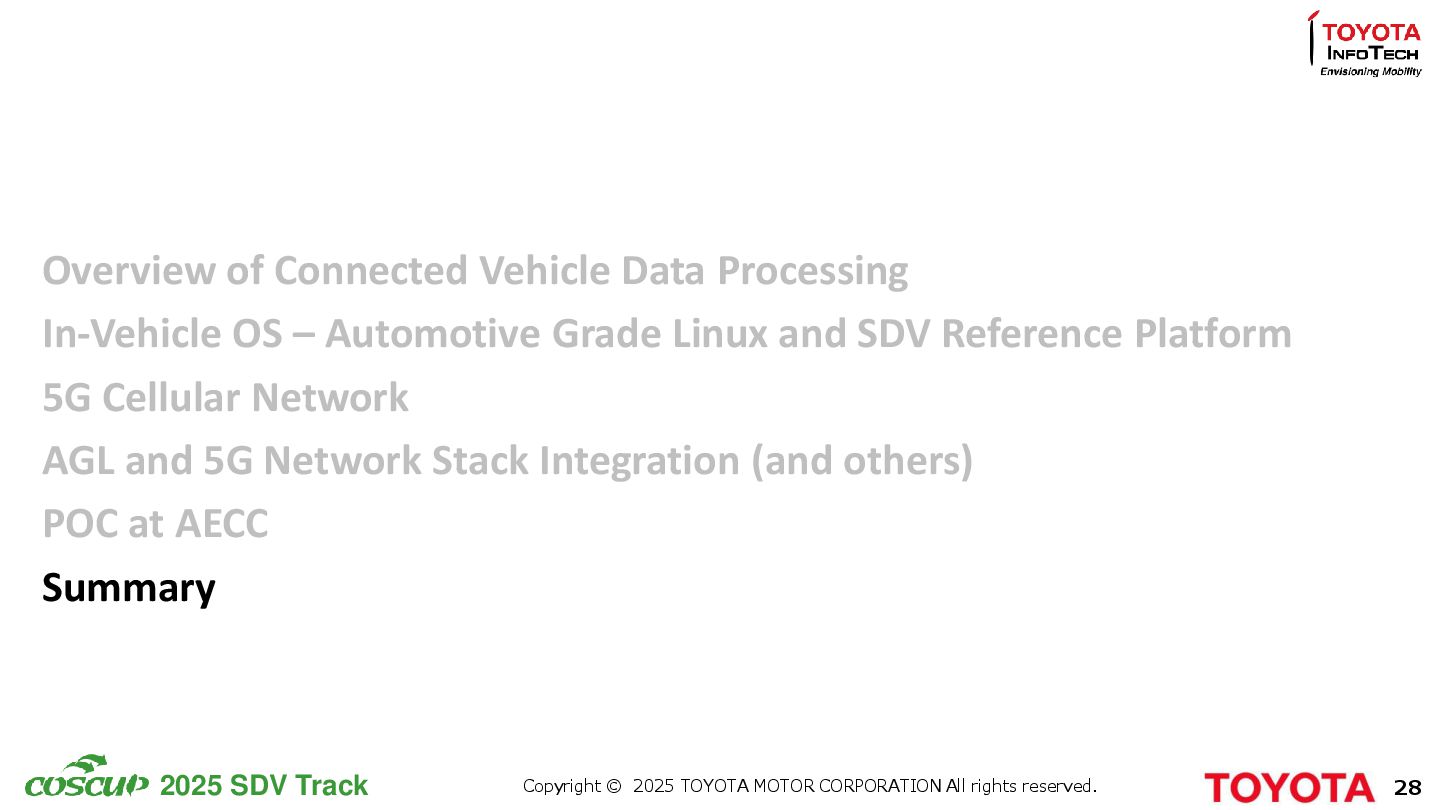

SDV Track 28 Overview of Connected Vehicle Data Processing In-Vehicle OS – Automotive Grade Linux and SDV Reference Platform 5G Cellular Network AGL and 5G Network Stack Integration (and others) POC at AECC Summary -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

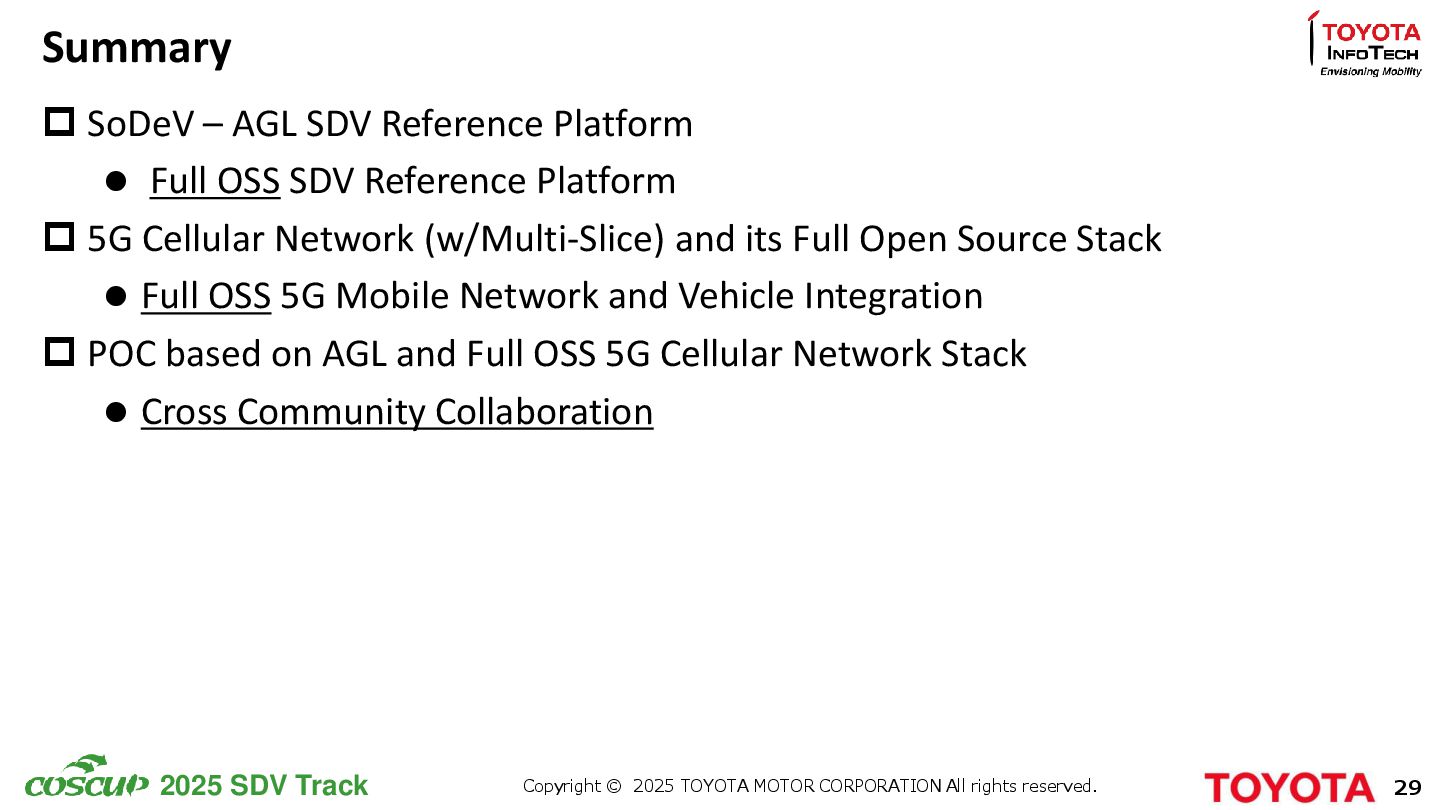

SDV Track 29 Summary SoDeV – AGL SDV Reference Platform Full OSS SDV Reference Platform 5G Cellular Network (w/Multi-Slice) and its Full Open Source Stack Full OSS 5G Mobile Network and Vehicle Integration POC based on AGL and Full OSS 5G Cellular Network Stack Cross Community Collaboration -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

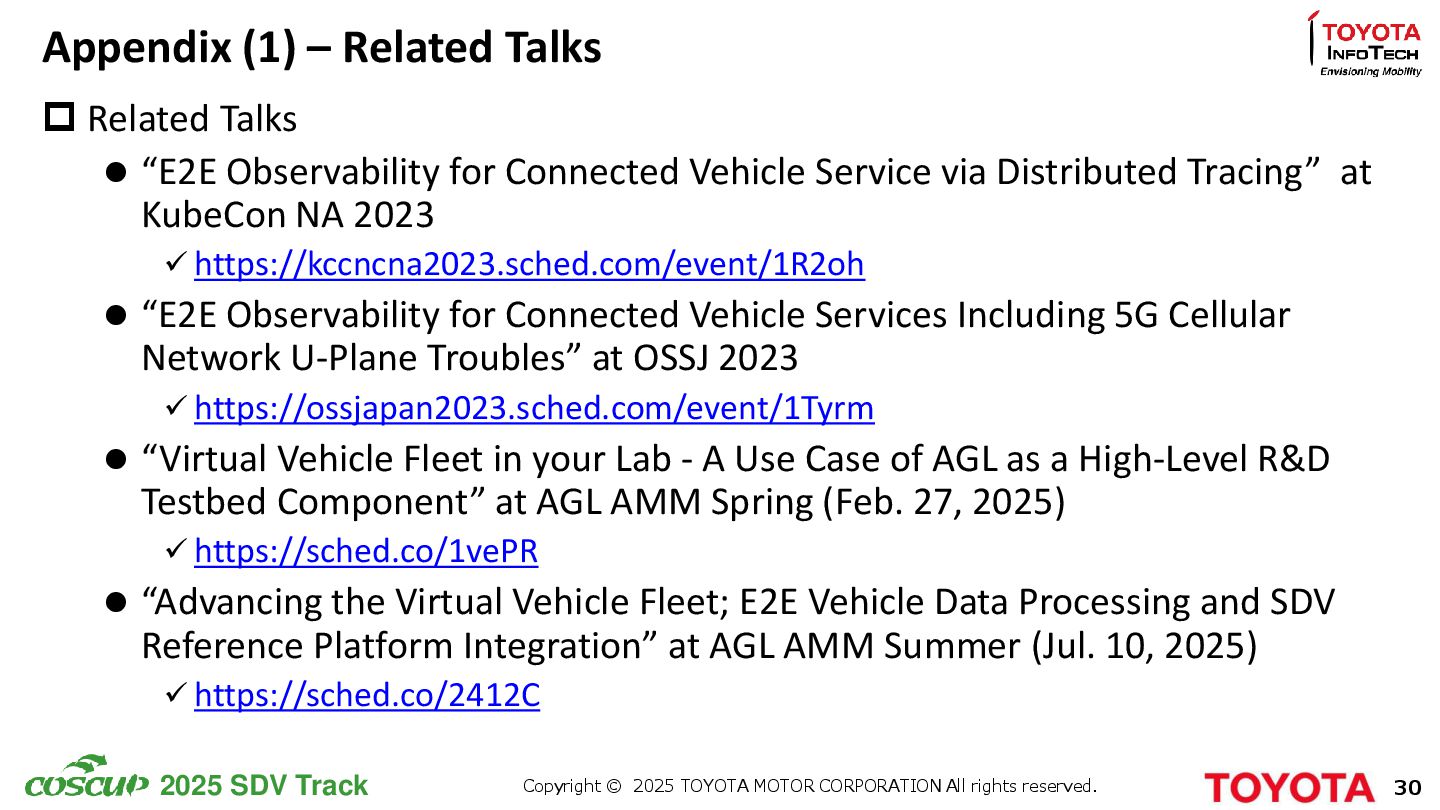

SDV Track 30 Appendix (1) – Related Talks Related Talks “E2E Observability for Connected Vehicle Service via Distributed Tracing” at KubeCon NA 2023 https://kccncna2023.sched.com/event/1R2oh “E2E Observability for Connected Vehicle Services Including 5G Cellular Network U-Plane Troubles” at OSSJ 2023 https://ossjapan2023.sched.com/event/1Tyrm “Virtual Vehicle Fleet in your Lab - A Use Case of AGL as a High-Level R&D Testbed Component” at AGL AMM Spring (Feb. 27, 2025) https://sched.co/1vePR “Advancing the Virtual Vehicle Fleet; E2E Vehicle Data Processing and SDV Reference Platform Integration” at AGL AMM Summer (Jul. 10, 2025) https://sched.co/2412C -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

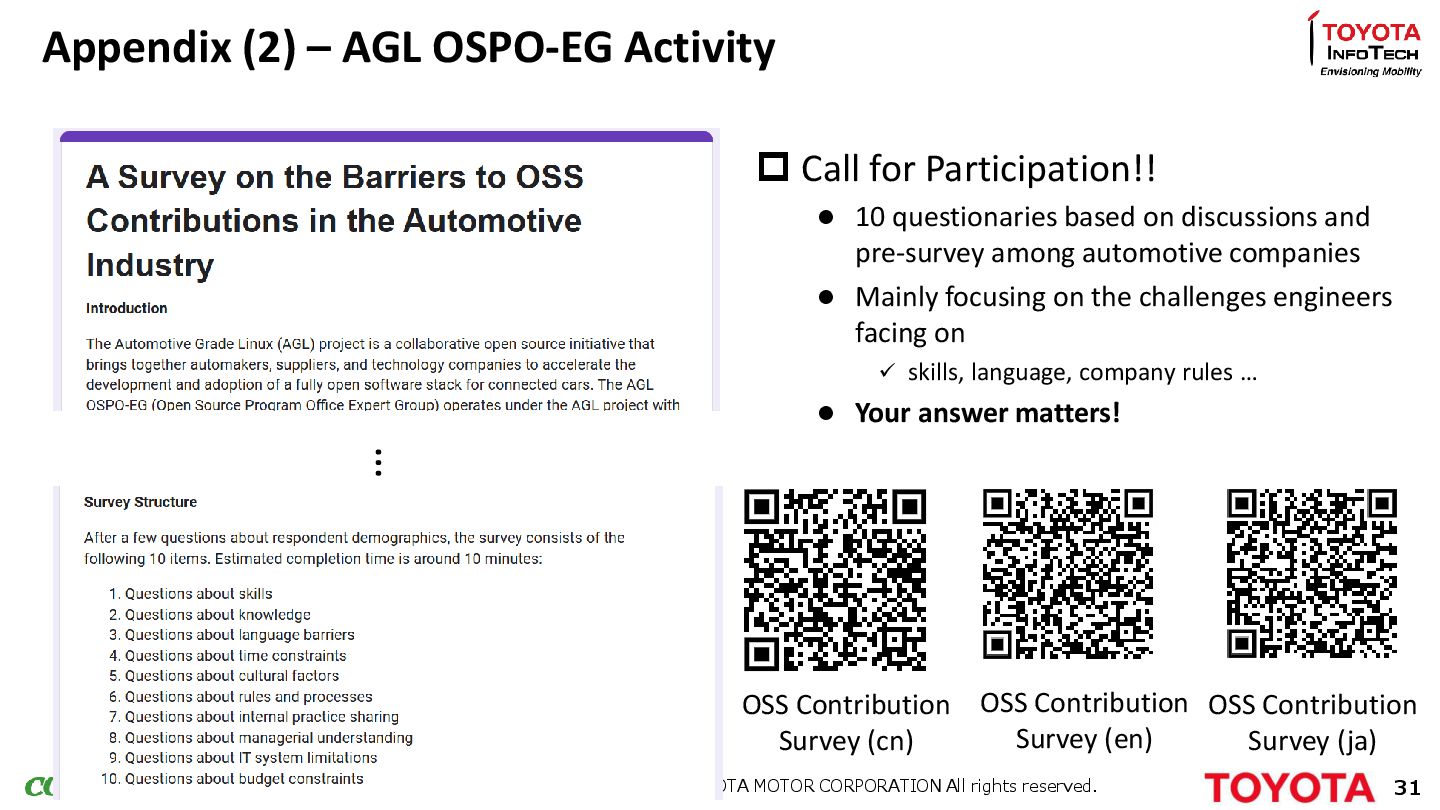

SDV Track 31 Appendix (2) – AGL OSPO-EG Activity … OSS Contribution Survey (cn) OSS Contribution Survey (ja) Call for Participation!! 10 questionaries based on discussions and pre-survey among automotive companies Mainly focusing on the challenges engineers facing on skills, language, company rules … Your answer matters! OSS Contribution Survey (en) -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

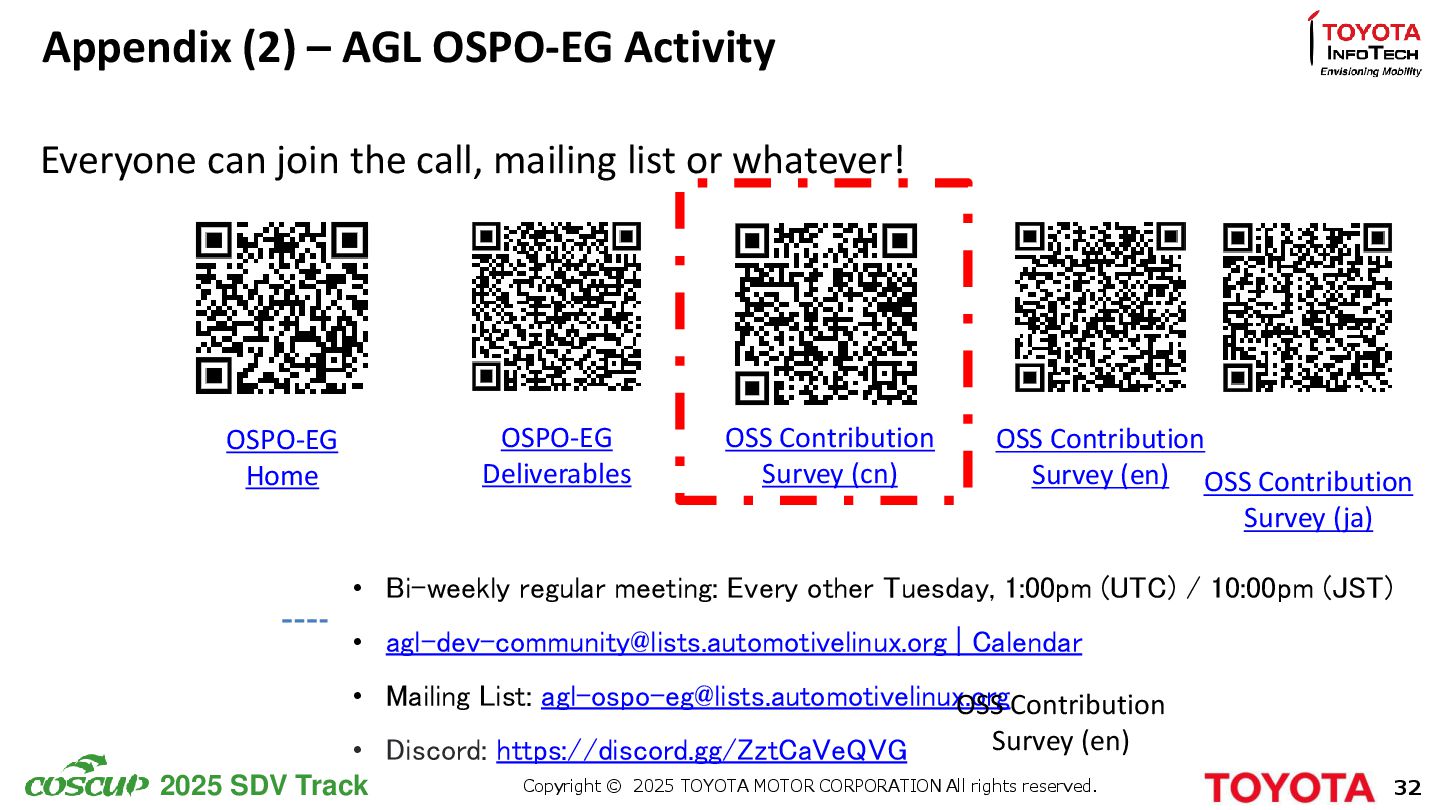

SDV Track 32 Appendix (2) – AGL OSPO-EG Activity OSPO-EG Home OSPO-EG Deliverables OSS Contribution Survey (cn) OSS Contribution Survey (ja) • Bi-weekly regular meeting: Every other Tuesday, 1:00pm (UTC) / 10:00pm (JST) • [email protected] | Calendar • Mailing List: [email protected] • Discord: https://discord.gg/ZztCaVeQVG Everyone can join the call, mailing list or whatever! OSS Contribution Survey (en) OSS Contribution Survey (en) -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025

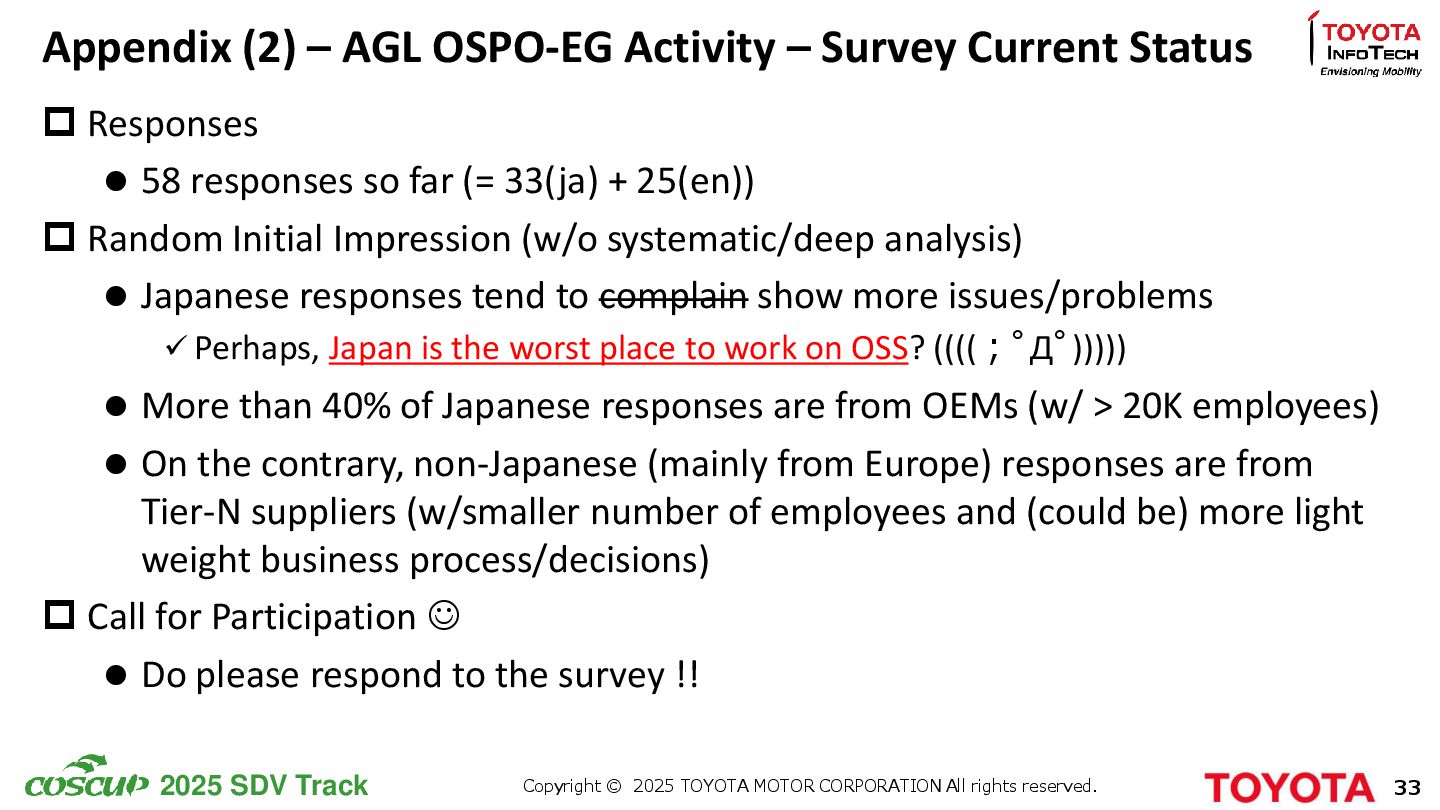

SDV Track 33 Appendix (2) – AGL OSPO-EG Activity – Survey Current Status Responses 58 responses so far (= 33(ja) + 25(en)) Random Initial Impression (w/o systematic/deep analysis) Japanese responses tend to complain show more issues/problems Perhaps, Japan is the worst place to work on OSS? ((((;゚Д゚))))) More than 40% of Japanese responses are from OEMs (w/ > 20K employees) On the contrary, non-Japanese (mainly from Europe) responses are from Tier-N suppliers (w/smaller number of employees and (could be) more light weight business process/decisions) Call for Participation Do please respond to the survey !! -
Copyright © 2025 TOYOTA MOTOR CORPORATION All rights reserved. 2025
SDV Track 34 Thank you very much!
