Tri-Tech Medical Inc. — Medical Air in Healthcare: A Comprehensive Guide

Medical air is one of the most critical gases in any healthcare facility, driving ventilators and anesthesia machines, powering nebulizers, and blending with oxygen to deliver precise concentrations. This guide from Tri-Tech Medical Inc. explains what medical air is, how it differs from medical oxygen, and how a medical air system works, from compression, drying and filtration to monitoring and gas-specific wall outlets. It also covers NFPA 99 and USP requirements, key safety measures, common problems like contamination and pressure fluctuations, the latest technologies, and answers to the most common medical air questions. Read the full guide at https://tri-techmedical.com/medical-air-and-its-use-in-healthcare-a-comprehensive-guide/

📞 440-937-6244 | 📍 35401 Avon Commerce Pkwy, Avon, OH 44011

Transcript

1. T R I -T E C H M E D I C A L I N C . · A V O N , O H I O · E S T. 1 9 8 9 Medical Air in Healthcare: A Comprehensive Guide What it is · How it works · Standards · Safety · New technology Clean, purity-controlled compressed air, piped to the point of care for ventilators, anesthesia machines and nebulizers. Read the full guide at tri-techmedical.com · 440-937-6244 MEDICAL AIR

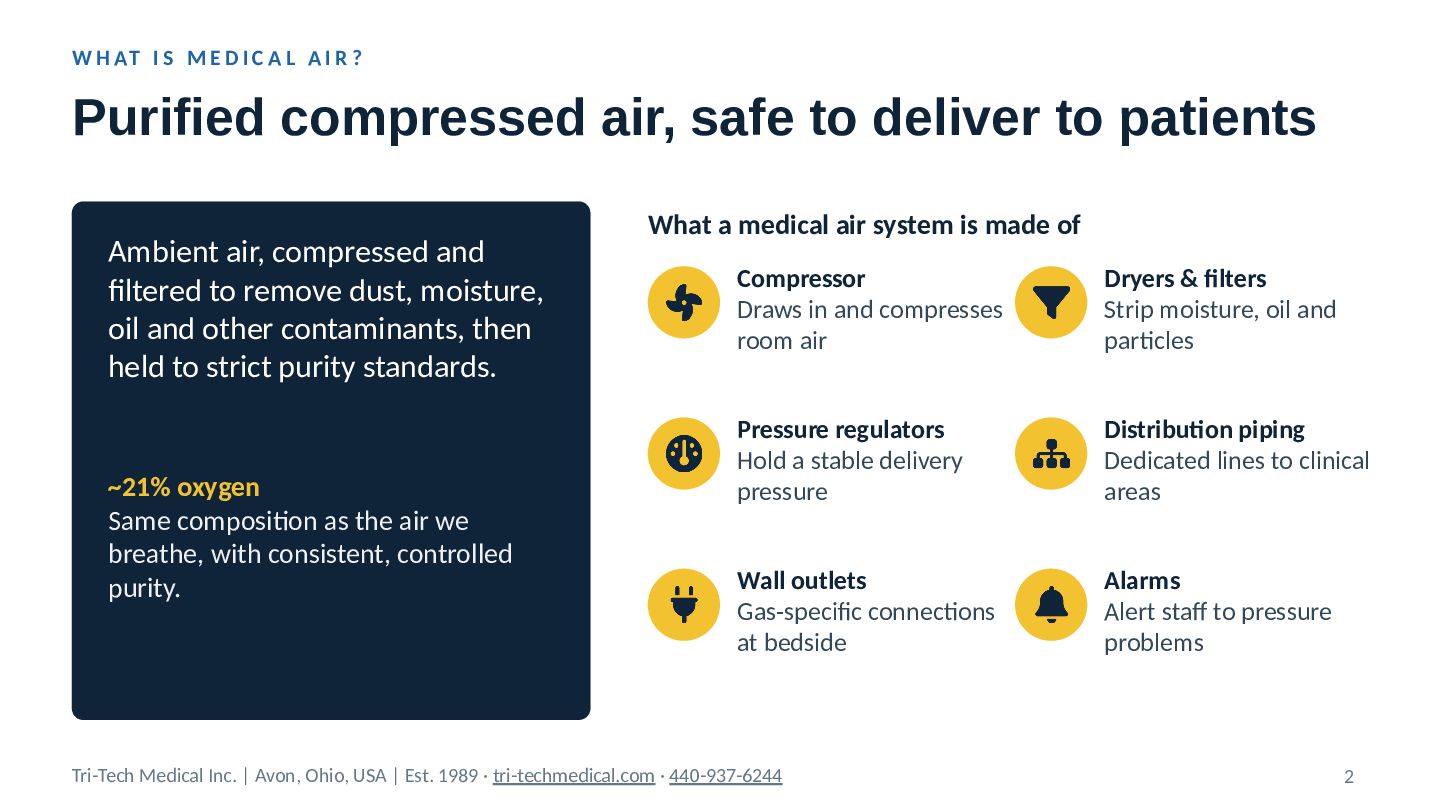

2. W H AT I S M E D I C A L A I R ? Purified compressed air, safe to deliver to patients Ambient air, compressed and filtered to remove dust, moisture, oil and other contaminants, then held to strict purity standards. ~21% oxygen Same composition as the air we breathe, with consistent, controlled purity. What a medical air system is made of Compressor Draws in and compresses room air Dryers & filters Strip moisture, oil and particles Pressure regulators Hold a stable delivery pressure Distribution piping Dedicated lines to clinical areas Wall outlets Gas-specific connections at bedside Alarms Alert staff to pressure problems Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 2

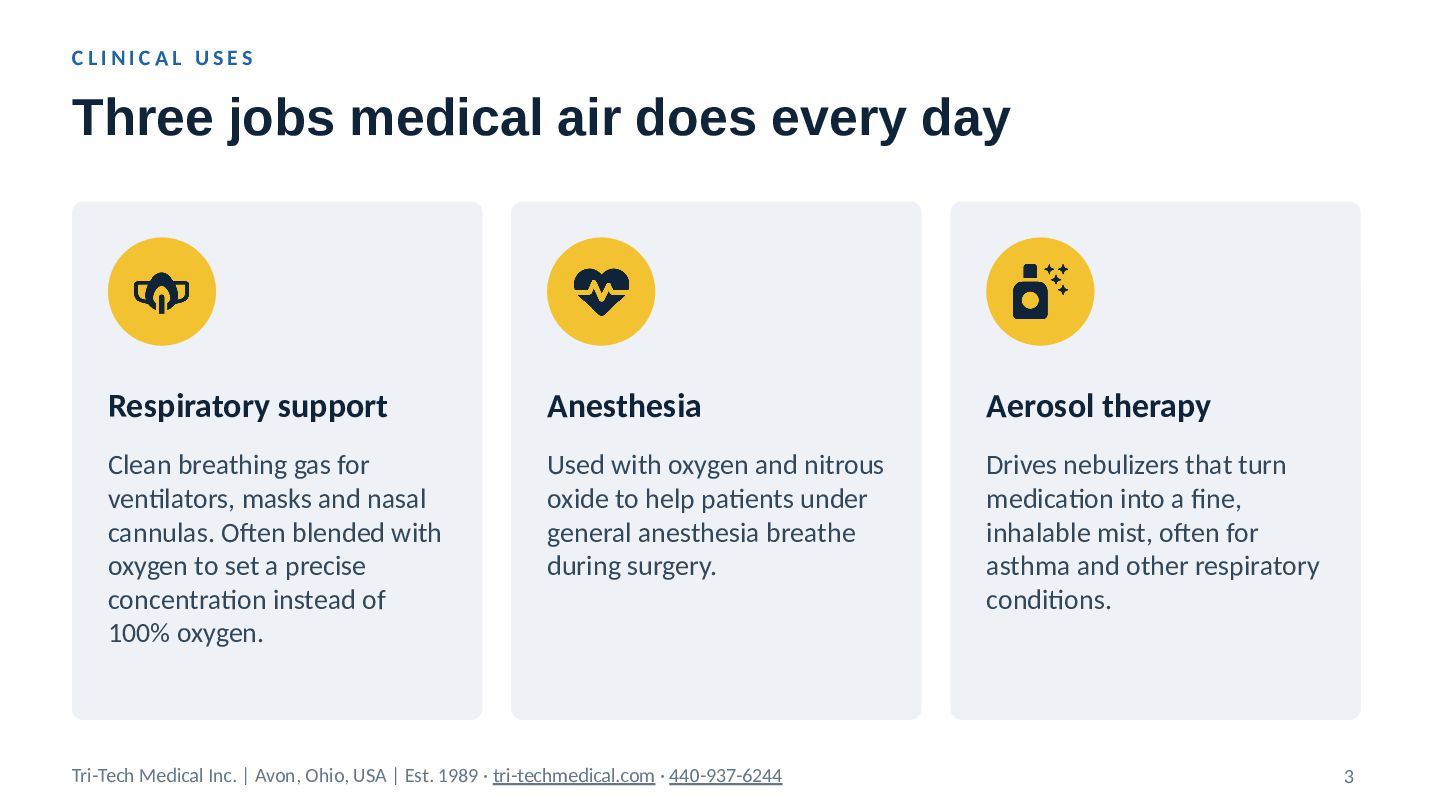

3. CLINICAL USES Three jobs medical air does every day Respiratory support Anesthesia Aerosol therapy Clean breathing gas for ventilators, masks and nasal cannulas. Often blended with oxygen to set a precise concentration instead of 100% oxygen. Used with oxygen and nitrous oxide to help patients under general anesthesia breathe during surgery. Drives nebulizers that turn medication into a fine, inhalable mist, often for asthma and other respiratory conditions. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 3

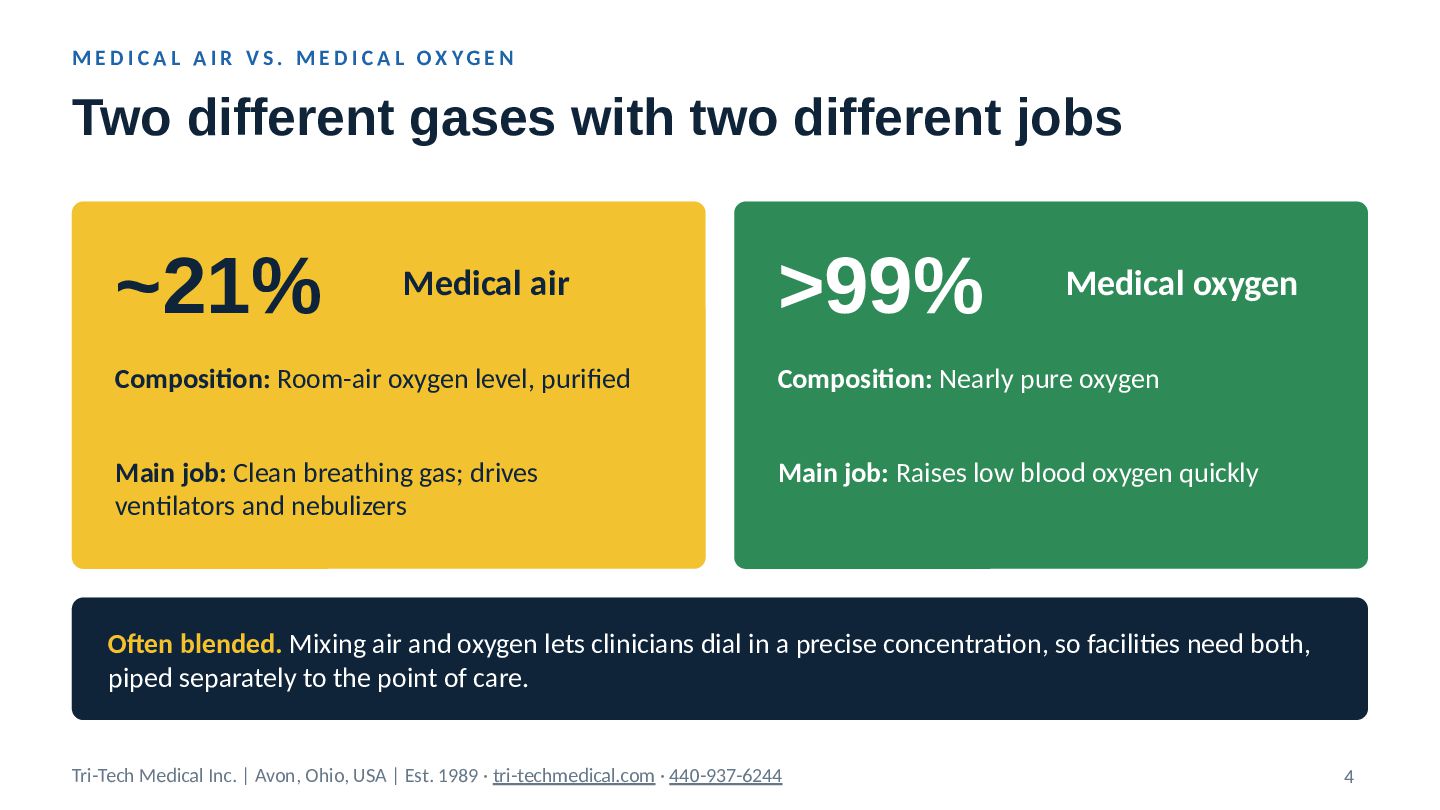

4. ME D IC A L A I R VS. ME DI CA L OX YGE N Two different gases with two different jobs ~21% Medical air >99% Medical oxygen Composition: Room-air oxygen level, purified Composition: Nearly pure oxygen Main job: Clean breathing gas; drives ventilators and nebulizers Main job: Raises low blood oxygen quickly Often blended. Mixing air and oxygen lets clinicians dial in a precise concentration, so facilities need both, piped separately to the point of care. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 4

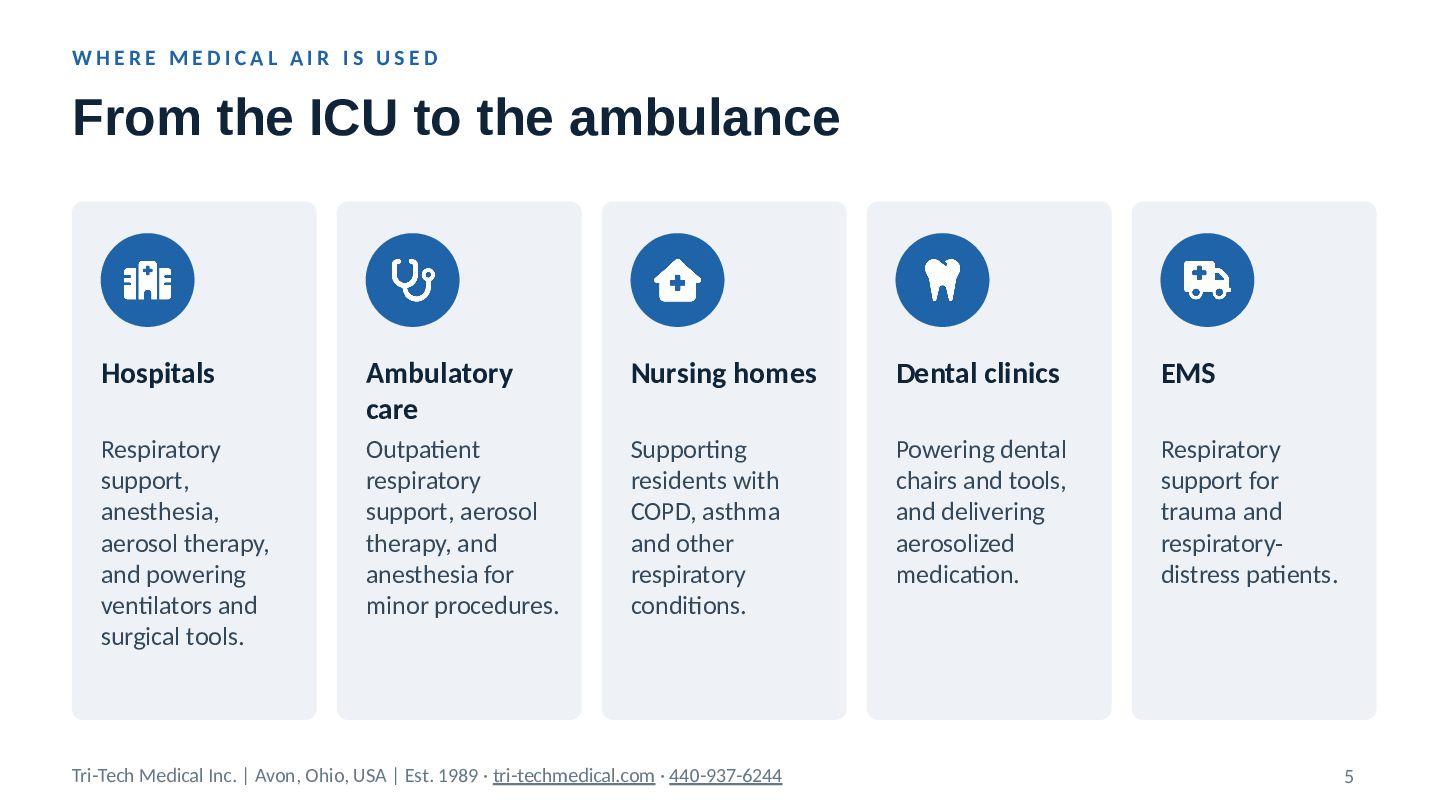

5. WHERE MEDICAL AIR IS USED From the ICU to the ambulance Hospitals Ambulatory care Nursing homes Dental clinics EMS Respiratory support, anesthesia, aerosol therapy, and powering ventilators and surgical tools. Outpatient respiratory support, aerosol therapy, and anesthesia for minor procedures. Supporting residents with COPD, asthma and other respiratory conditions. Powering dental chairs and tools, and delivering aerosolized medication. Respiratory support for trauma and respiratorydistress patients. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 5

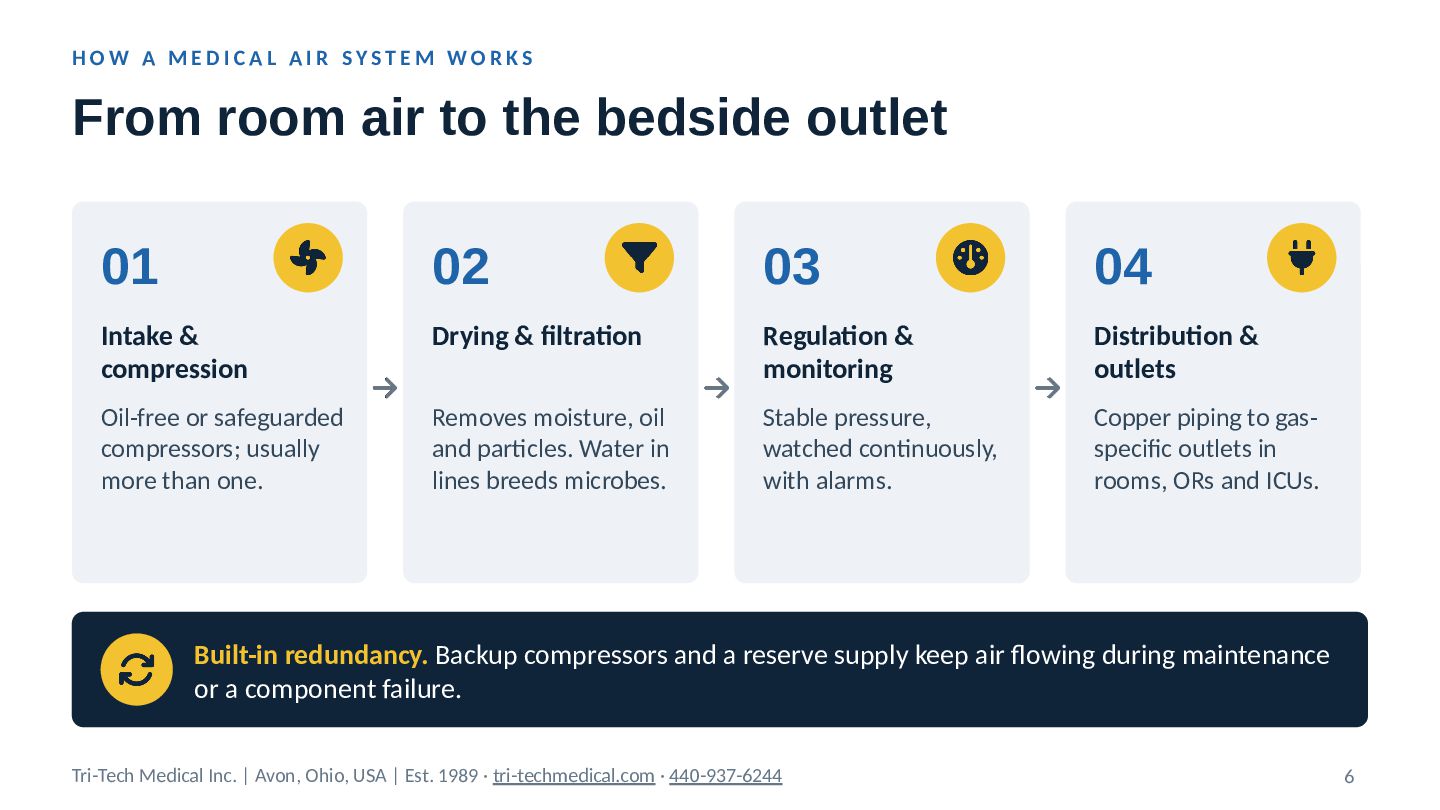

6. HOW A MEDICAL AIR SYSTEM WORKS From room air to the bedside outlet 01 02 03 04 Intake & compression Drying & filtration Regulation & monitoring Distribution & outlets Oil-free or safeguarded compressors; usually more than one. Removes moisture, oil and particles. Water in lines breeds microbes. Stable pressure, watched continuously, with alarms. Copper piping to gasspecific outlets in rooms, ORs and ICUs. Built-in redundancy. Backup compressors and a reserve supply keep air flowing during maintenance or a component failure. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 6

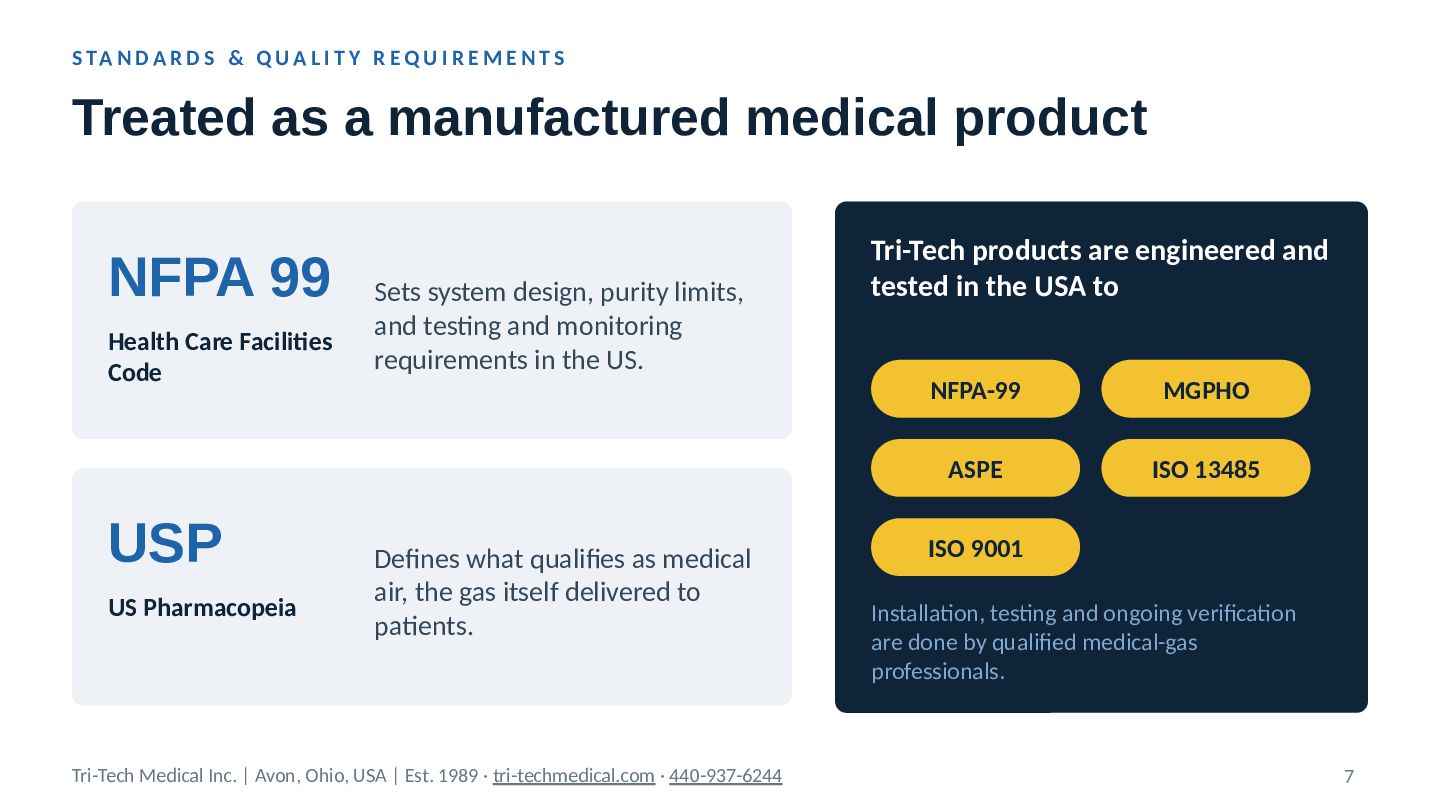

7. S TA N D A R D S & Q U A L I T Y R E Q U I R E M E N T S Treated as a manufactured medical product NFPA 99 Health Care Facilities Code USP US Pharmacopeia Sets system design, purity limits, and testing and monitoring requirements in the US. Defines what qualifies as medical air, the gas itself delivered to patients. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 Tri-Tech products are engineered and tested in the USA to NFPA-99 MGPHO ASPE ISO 13485 ISO 9001 Installation, testing and ongoing verification are done by qualified medical-gas professionals. 7

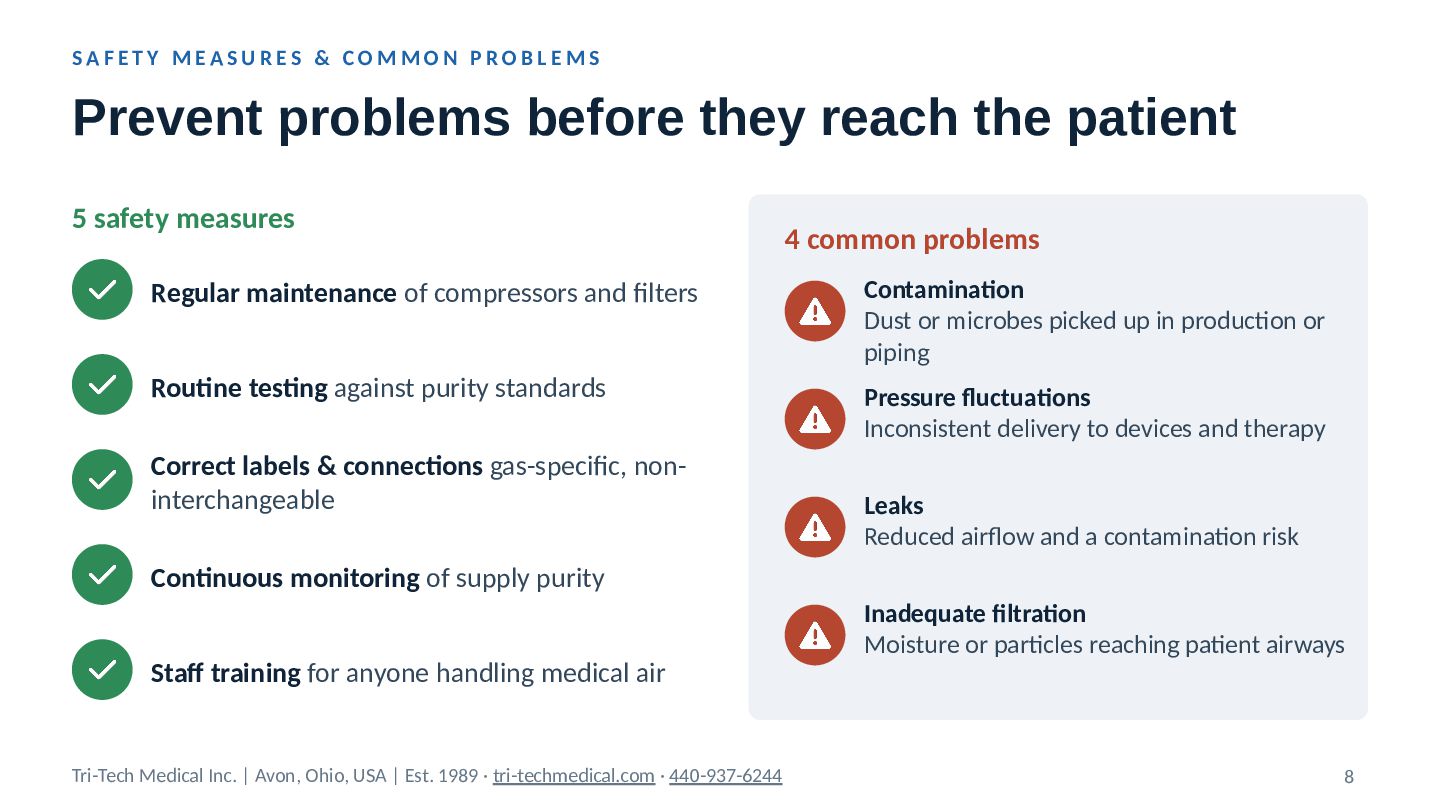

8. SAFETY MEASURES & COMMON PROBLEMS Prevent problems before they reach the patient 5 safety measures 4 common problems Regular maintenance of compressors and filters Contamination Dust or microbes picked up in production or piping Routine testing against purity standards Pressure fluctuations Inconsistent delivery to devices and therapy Correct labels & connections gas-specific, noninterchangeable Leaks Reduced airflow and a contamination risk Continuous monitoring of supply purity Staff training for anyone handling medical air Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 Inadequate filtration Moisture or particles reaching patient airways 8

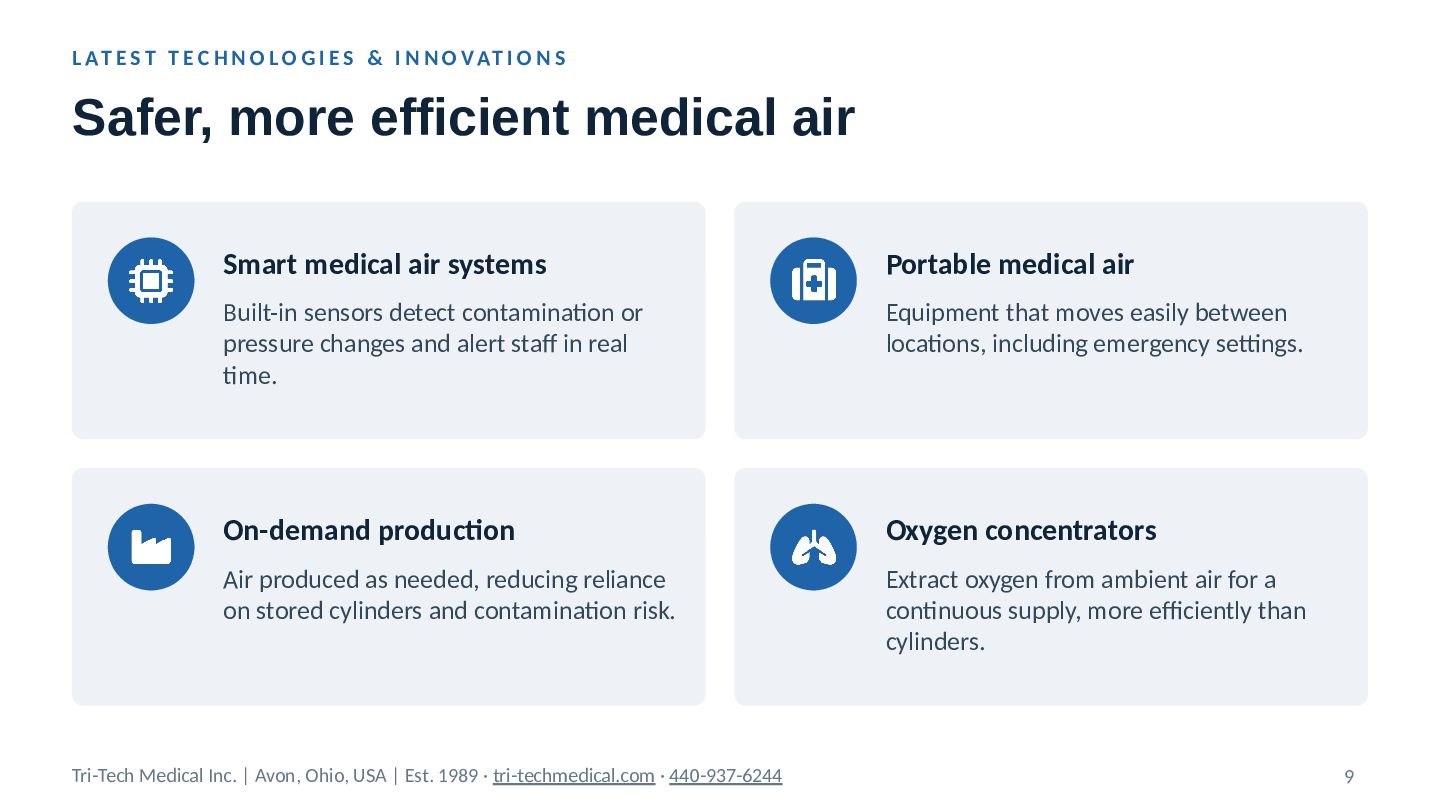

9. L AT E S T T E C H N O L O G I E S & I N N O VAT I O N S Safer, more efficient medical air Smart medical air systems Portable medical air Built-in sensors detect contamination or pressure changes and alert staff in real time. Equipment that moves easily between locations, including emergency settings. On-demand production Oxygen concentrators Air produced as needed, reducing reliance on stored cylinders and contamination risk. Extract oxygen from ambient air for a continuous supply, more efficiently than cylinders. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 9

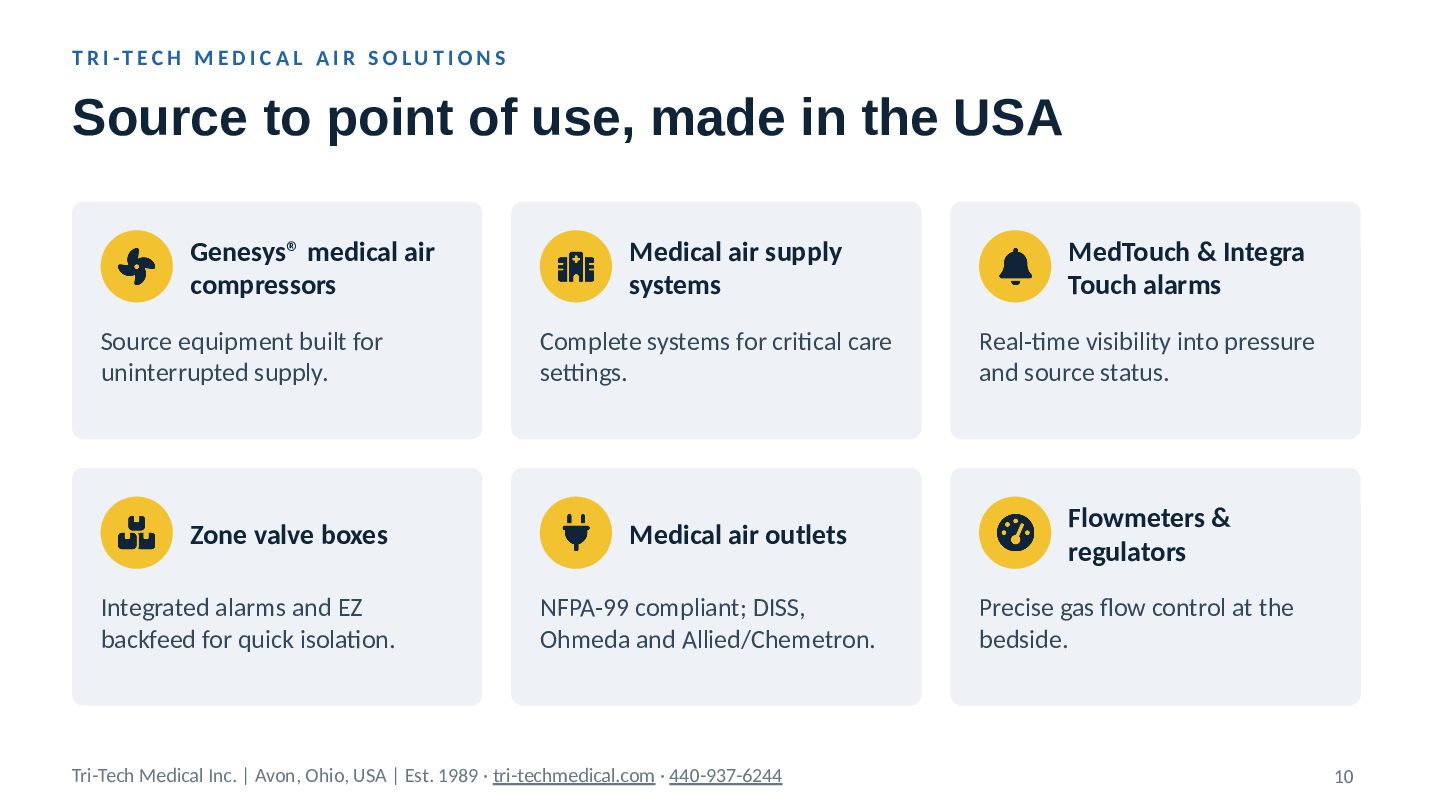

10. T R I -T E C H M E D I C A L A I R S O L U T I O N S Source to point of use, made in the USA Genesys® medical air compressors Source equipment built for uninterrupted supply. Zone valve boxes Integrated alarms and EZ backfeed for quick isolation. Medical air supply systems Complete systems for critical care settings. Medical air outlets NFPA-99 compliant; DISS, Ohmeda and Allied/Chemetron. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 MedTouch & Integra Touch alarms Real-time visibility into pressure and source status. Flowmeters & regulators Precise gas flow control at the bedside. 10
11. W H Y T R I -T E C H Infrastructure built for patient safety and uptime 1989 engineering medical gas equipment in Avon, Ohio Every unit tested Built to code In-house testing before anything ships. Engineered to NFPA-99, MGPHO and ASPE. 50+ countries served worldwide Lower total cost USA manufactured and tested in-house Less maintenance and fewer patient-room disruptions. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 End-to-end support From planning through installation and maintenance. 11

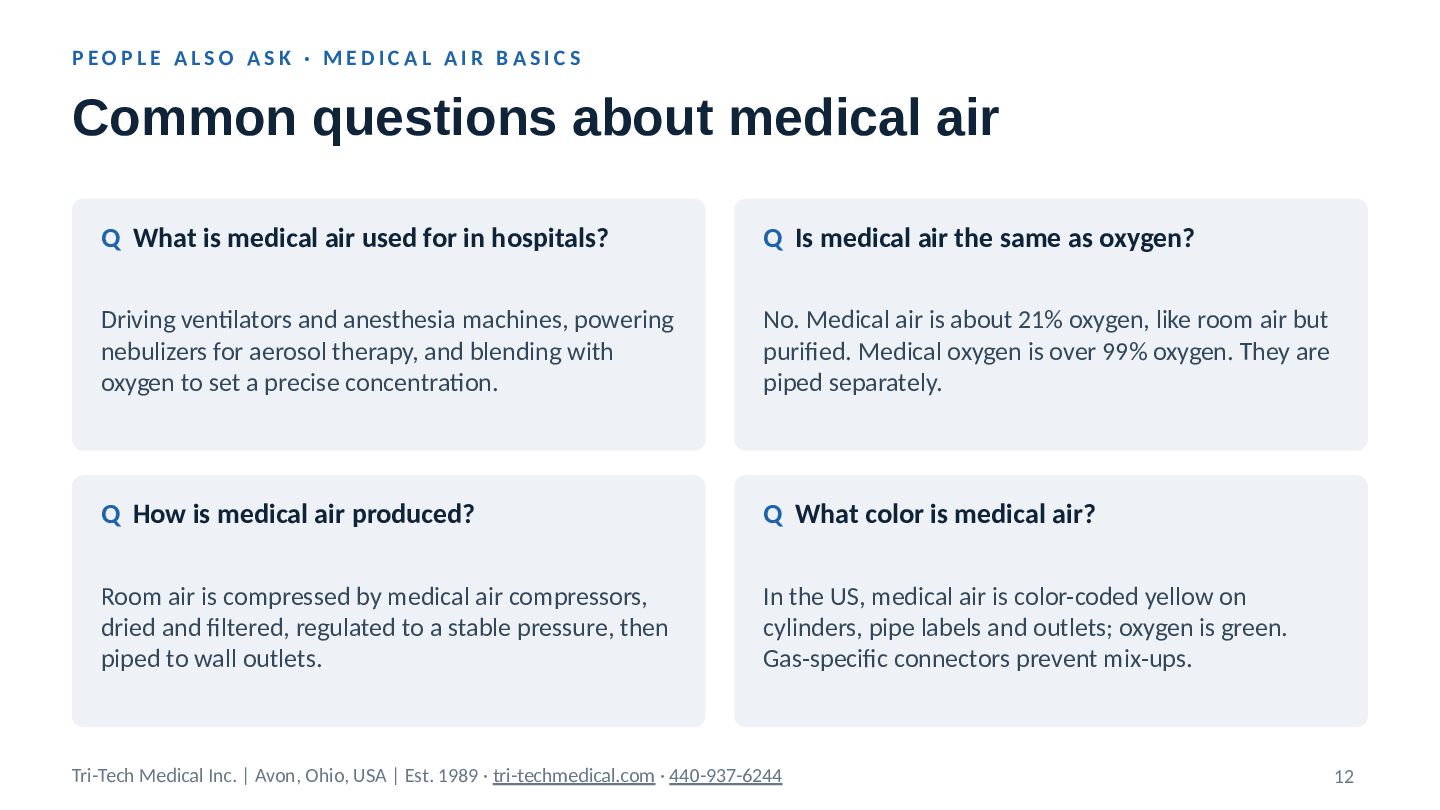

12. PEOPLE ALSO ASK · MEDICAL AIR BASICS Common questions about medical air Q What is medical air used for in hospitals? Q Is medical air the same as oxygen? Driving ventilators and anesthesia machines, powering nebulizers for aerosol therapy, and blending with oxygen to set a precise concentration. No. Medical air is about 21% oxygen, like room air but purified. Medical oxygen is over 99% oxygen. They are piped separately. Q How is medical air produced? Q What color is medical air? Room air is compressed by medical air compressors, dried and filtered, regulated to a stable pressure, then piped to wall outlets. In the US, medical air is color-coded yellow on cylinders, pipe labels and outlets; oxygen is green. Gas-specific connectors prevent mix-ups. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 12

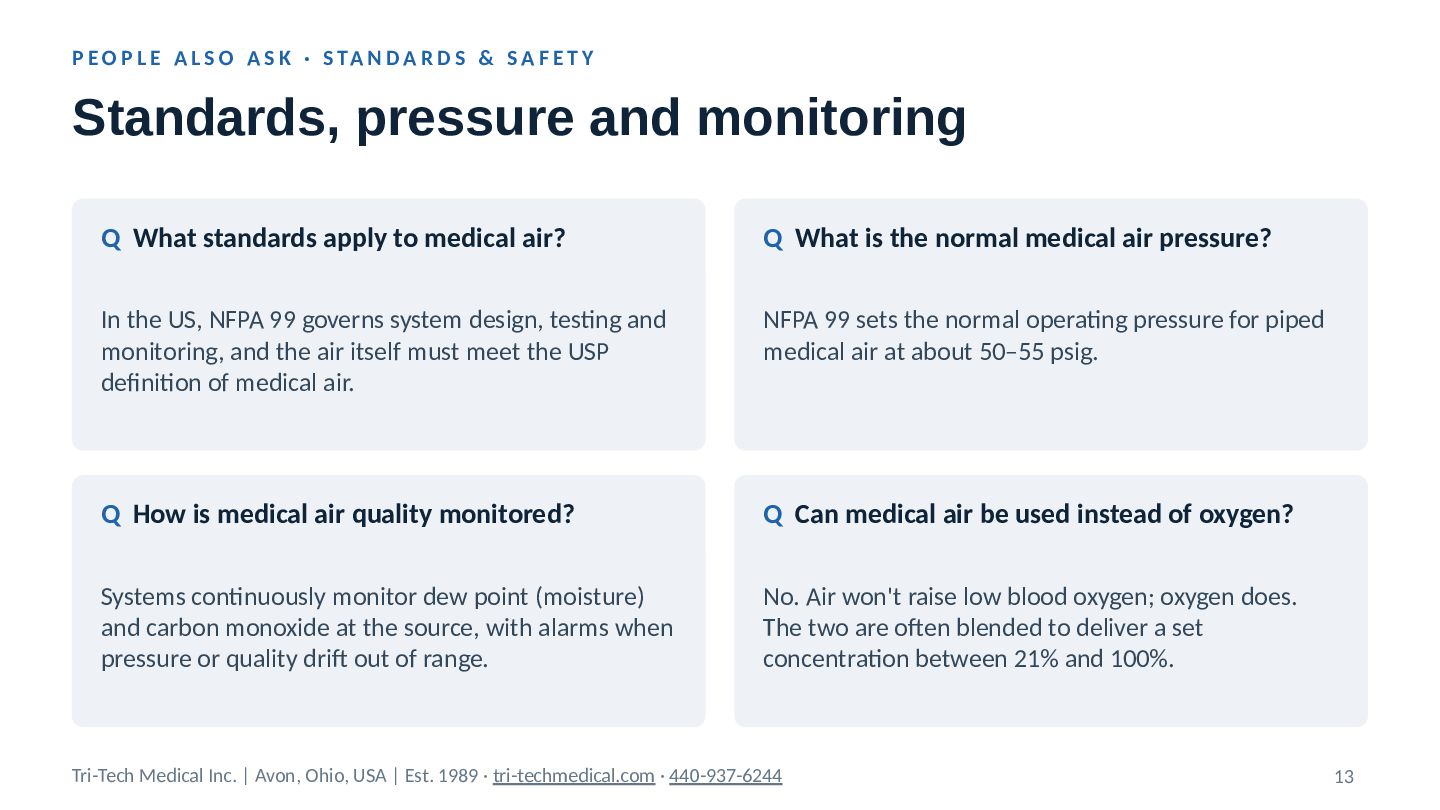

13. P E O P L E A L S O A S K · S TA N D A R D S & S A F E T Y Standards, pressure and monitoring Q What standards apply to medical air? Q What is the normal medical air pressure? In the US, NFPA 99 governs system design, testing and monitoring, and the air itself must meet the USP definition of medical air. NFPA 99 sets the normal operating pressure for piped medical air at about 50–55 psig. Q How is medical air quality monitored? Q Can medical air be used instead of oxygen? Systems continuously monitor dew point (moisture) and carbon monoxide at the source, with alarms when pressure or quality drift out of range. No. Air won't raise low blood oxygen; oxygen does. The two are often blended to deliver a set concentration between 21% and 100%. Tri-Tech Medical Inc. | Avon, Ohio, USA | Est. 1989 · tri-techmedical.com · 440-937-6244 13
14. REQUEST A QUOTE Medical air infrastructure you can count on Talk to Tri-Tech about compressors, alarms, zone valves and outlets for your facility. 440-937-6244 sales@tri-techmedical.com tri-techmedical.com 35401 Avon Commerce Pkwy, Avon, OH 44011 Fax: 440-937-5060 Mon–Fri 8am–5pm Read the full guide: Medical Air and its Use in Healthcare
