MapReduce to Spark - Why and How

In this talk, I have tried to compare MapReduce with Spark with a brief introduction to what is MapReduce leading to programming to distributed collections with Spark

Transcript

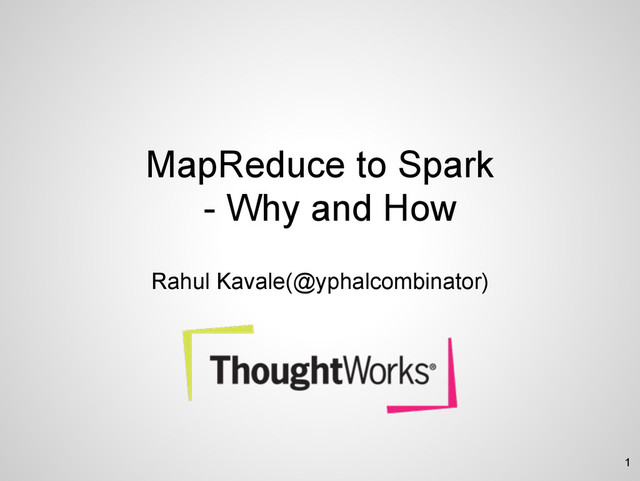

1. MapReduce to Spark - Why and How Rahul Kavale(@yphalcombinator) 1
2. Map Reduce - what it means? 1. The Map and Reduce collection operations 2. Programming Model in Hadoop 3. MapReduce implementation in Hadoop 2
3. Map and Reduce traditional collection operations 1. Ruby (1..5).map{|x| x*2 } #=> [2, 4, 6, 8, 10] (1..5).reduce(:+) #=> 15 2.Python map(lambda x: x**2, range(5)) reduce(lambda x, y: x + y, range(5)) 3.Scala (1 to 5).map(number => number * 2) (1 to 5).reduce((a, b) => a + b) 4.Clojure (map inc [1 2 3 4 5]) (reduce + [1 2 3 4 5]) 4.Java List<T> tempList = new ArrayList<T>(); for(T elem : elements){ tempList.add(elem * 2) } int result = 0; for(T elem : elements){ result += elem } 3
4. • Collection is in memory • What if collection does not fit in memory? • We divide and conquer! 4
5. Challenges for distributing the work • break a large problem into smaller tasks • distribute each sub task to a different machine • feed workers the data locally • sharing partial results among workers • Hardware faults? 5
6. Hadoop Map Reduce Implementation • Abstracts from lot of low level concerns • Handles the Distributed computing aspects • Handles faults in hardware with Replication • Data is stored with distributed storage • sharing the results between tasks is done by the framework • Splitting the problem into smaller ones 6
7. Map Reduce programming model • Two phases Map Reduce • Implicit Shuffle and sort phase Responsible for sharing results across sub tasks • MapReduce requires imposing the key and value structure on arbitrary datasets 7
8. Map Phase - Mapper map: (k1, v1) → [(k2, v2)] https://developer.yahoo.com/hadoop/tutorial/module4.html#basics 8
9. 9 public static class MyMapper extends Mapper<Object, Text, Text, IntWritable>{ public void map(Object key, Text value, Context context) throws IOException, InterruptedException { } }
10. Reducer(Reduce phase) reduce: (k2, [v2]) → [(k3, v3)] https://developer.yahoo.com/hadoop/tutorial/module4.html#basics 10
11. public static class MyReducer extends Reducer<Text,IntWritable,Text,IntWritable> { public void reduce(Text key, Iterable<IntWritable> values, Context context) throws IOException, InterruptedException { } } 11
12. http://www.admin-magazine.com/HPC/Articles/MapReduce-and-Hadoop 12
13. MapReduce pain points • only Map and Reduce phases • results into complex workflow • Non trivial to test • considerable latency • Not suitable for Iterative processing 13
14. Few wrappers over MapReduce And lot others... 14 Apache Crunch
15. What these wrappers don’t offer performance 15
16. Wouldn’t it be very nice if we could have • Low latency • Programmer friendly programming model • Unified ecosystem • Fault tolerance and other typical distributed system properties • Easily testable code • Of course open source :) 16
17. Let me introduce you…. Lightning-fast cluster computing 17
18. What is Apache Spark • Cluster computing Engine • Abstracts the storage and cluster management • Unified interfaces to data • API in Scala, Python, Java, R* 18
19. Where does it fit in existing Bigdata ecosystem http://www.kdnuggets.com/2014/06/yarn-all-rage-hadoop-summit.html 19
20. Spark performance metrics • Petabyte sort record https://databricks.com/blog/2014/10/10/spark-petabyte-sort.html 20
21. Programming model for Apache Spark 21
22. Word Count example val file = spark.textFile("input path") val counts = file.flatMap(line => line.split(" ")) .map(word => (word, 1)) .reduceByKey((a, b) => a + b) counts.saveAsTextFile("destination path") 22
23. Comparing example with MapReduce 23
24. RDD • RDD stands for Resilient Distributed Dataset. • Basic abstraction for Spark • Evaluated Lazily 24
25. • Equivalent of Distributed collections. • The interface makes distributed nature of underlying data transparent. • RDD is immutable • Can be created via, • parallelising a collection, • transforming an existing RDD by applying a transformation function, • reading from a persistent data store like HDFS. 25
26. RDD has two type of operations • Transformations Create a DAG of transformations to be applied on the RDD Does not evaluating anything eg. map, flatMap, filter etc • Actions Evaluate the DAG of transformations eg. count, saveAsTextFile 26
27. Word Count example val file = spark.textFile("input path") val counts = file.flatMap(line => line.split(" ")) .map(word => (word, 1)) .reduceByKey((a, b) => a + b) counts.saveAsTextFile("destination path") 27
28. Why is Spark more performant than MapReduce 28
29. Reduced IO • No disk IO between phases since phases themselves are pipelined • No network IO involved unless a shuffle is required 29
30. No Mandatory Shuffle • Programs not bounded by map and reduce phases • No mandatory Shuffle and sort required 30
31. In memory caching of data • Optional In memory caching • DAG engine can apply certain optimisations since when an action is called, it knows what all transformations as to be applied 31
32. Questions? 32
33. Thank You! 33
