RefDiff: Detecting Refactorings in Version Histories (MSR 2017)

Refactoring is a well-known technique that is widely adopted by software engineers to improve the design and enable the evolution of a system. Knowing which refactoring operations were applied in a code change is a valuable information to understand software evolution, adapt software components, merge code changes, and other applications. In this paper, we present RefDiff, an automated approach that identifies refactorings performed between two code revisions in a git repository. RefDiff employs a combination of heuristics based on static analysis and code similarity to detect 13 well-known refactoring types. In an evaluation using an oracle of 448 known refactoring operations, distributed across seven Java projects, our approach achieved precision of 100% and recall of 88%. Moreover, our evaluation suggests that RefDiff has superior precision and recall than existing state-of-the-art approaches.

Transcript

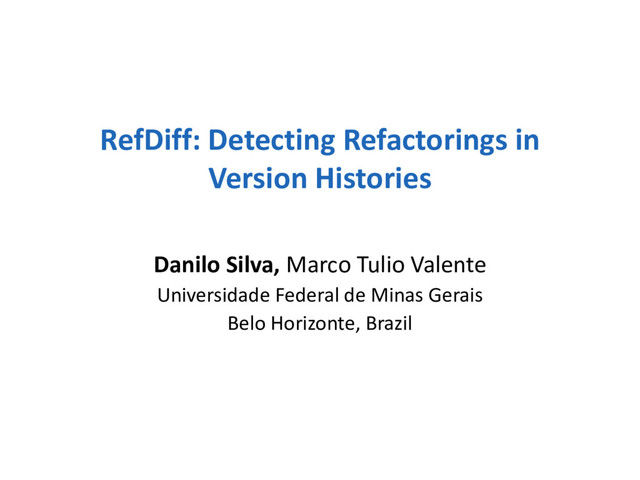

1. RefDiff: Detecting Refactorings in
   Version Histories
   Danilo Silva, Marco Tulio Valente
   Universidade Federal de Minas Gerais
   Belo Horizonte, Brazil


   View Slide

2. Introduction
   • Software components are in constant change
   • One important kind of change is refactoring
   2


   View Slide

3. Introduction
   • Knowledge of the refactoring operations
   applied is a valuable information
   – Analyze software evolution
   – Study refactoring practice
   – Review and merge code
   3


   View Slide

4. Problem: Finding refactoring activity is a non-
   trivial task
   4


   View Slide

5. Problem: Finding refactoring activity is a non-
   trivial task
   Documentation?
   • Refactorings are rarely documented
   5


   View Slide

6. Problem: Finding refactoring activity is a non-
   trivial task
   Instrumenting refactoring engines?
   • Refactorings are not always performed using
   automated support
   6


   View Slide

7. Problem: Finding refactoring activity is a non-
   trivial task
   Source code analysis?
   • Viable, but current approaches have precision
   and recall issues
   – Refactoring Miner: 63% precision
   – Ref-Finder: 35% precision and 24% recall
   7


   View Slide

8. PROPOSED SOLUTION
   8


   View Slide

9. RefDiff
   9
   • A refactoring detection approach
   – Employs a combination of heuristics based on
   static analysis and code similarity
   – 13 well-known refactoring types
   – TF-IDF based similarity index


   View Slide

10. RefDiff: Overview
    10
    Version
    before
    Version
    after
    Input


    View Slide

11. RefDiff: Overview
    11
    Version
    before
    Version
    after
    Source Code
    Analysis
    Types,
    methods,
    and fields
    }


    View Slide

12. RefDiff: Overview
    12
    Version
    before
    Version
    after
    Relationship
    Analysis
    Rename
    Extract
    Move


    View Slide

13. Relationships
    13


    View Slide

14. Relationship Example: Rename Method
    14


    View Slide

15. Relationship Example: Rename Method
    15
    names of mb
    and ma
    should be different


    View Slide

16. Relationship Example: Rename Method
    16
    mb
    and ma
    are in “the same” class


    View Slide

17. Relationship Example: Rename Method
    17
    the similarity index between mb
    and ma
    should be greater than a threshold


    View Slide

18. Computing Similarity
    18
    • Source code represented as a multiset (or bag)
    of tokens
    • Similarity index based on Information
    Retrieval techniques (TF-IDF)


    View Slide

19. Calibration of Thresholds
    19
    • Oracle of known refactorings in 10 commits of
    a public dataset (Silva et al., 2016)
    • Thresholds from 0.1 to 0.9 by 0.1 increments
    • We choose the value that optimize the F1
    score


    View Slide

20. Calibration Results
    20


    View Slide

21. EVALUATION
    21


    View Slide

22. Evaluation: Precision and Recall
    22
    • Oracle of known refactorings applied by
    students
    – 7 open-source systems
    – 448 refactoring relationships
    • Compare RefDiff’s precison and recall with
    – Refactoring Miner
    – Refactoring Crawler
    – Ref-Finder


    View Slide

23. Evaluation: Precision and Recall
    23


    View Slide

24. Conclusion
    24
    • RefDiff has better precision and recall than
    other approaches
    • Execution time is acceptable (1.96s per commit)


    View Slide

25. Future Work
    25
    • Extended evaluation of RefDiff using
    actual refactorings applied in open-source
    systems


    View Slide

26. THANK YOU!
    https://github.com/aserg-ufmg/RefDiff


    View Slide

27. Evaluation: Precision and Recall
    27


    View Slide

28. Evaluation: Execution Time
    28


    View Slide

29. Evaluation: Execution Time
    29
    • We analyzed each commit between January 1,
    2017 and March 27, of 10 Java repositories
    – 1990 commits
    • We compared execution time with Refactoring
    Miner


    View Slide

30. Evaluation: Execution Time
    30
    Approach Avg. time (s) Total time(s)
    RefDiff 1.96 3,893
    Ref. Miner 0.89 1,779


    View Slide

31. Computing Similarity: Example
    31


    View Slide

32. Computing Similarity: Example
    32


    View Slide

33. Computing Similarity: Example
    33


    View Slide

34. Computing Similarity
    34
    token frequency in entity e inverse document frequency of
    the token in the collection
    weighted Jaccard coefficient
