1. ICS 212 Program Structure William McDaniel Albritton M.S.
2. Memory Allocation  Structure Initialization  Operator sizeof()  Functions and Arrays  Using typedef
4. Structure Initialization
5. What is a Structure?  Related variables grouped under one name  Can have different data types in one structure  Used in data structures to create nodes  Used in files to create records
6. Data Hierarchy  Byte: 8 bits (ASCII character ‘A’ = 01000001)  Field: Group of characters (character string “Fred”)  Record: Composed of related fields (struct)  File: Group of related records (student record file)  Database: Group of related files (students, faculty, and staff files)

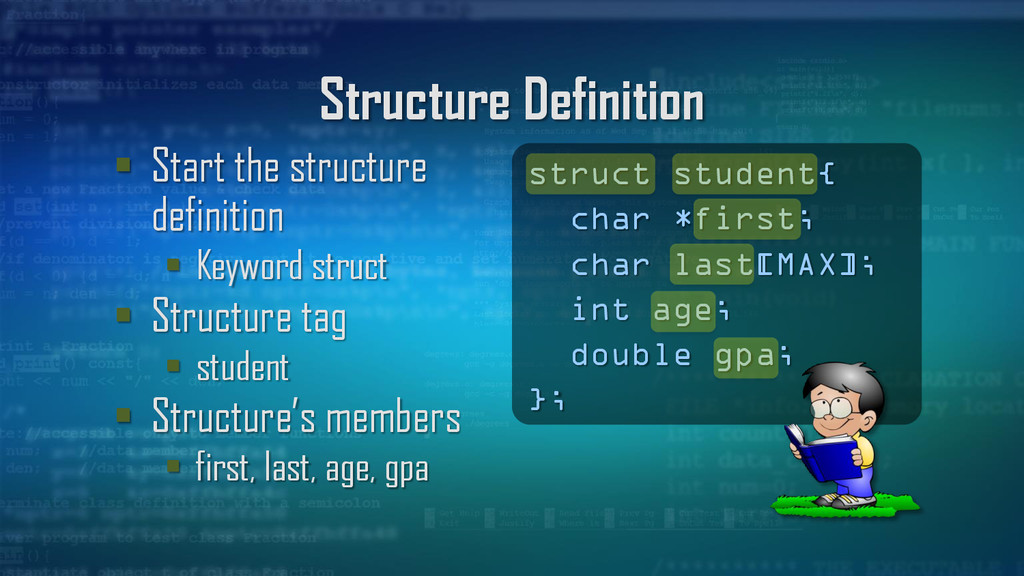

7. Structure Definition  Start the structure definition  Keyword struct  Structure tag  student  Structure’s members  first, last, age, gpa struct student{ char *first; char last[MAX]; int age; double gpa; };

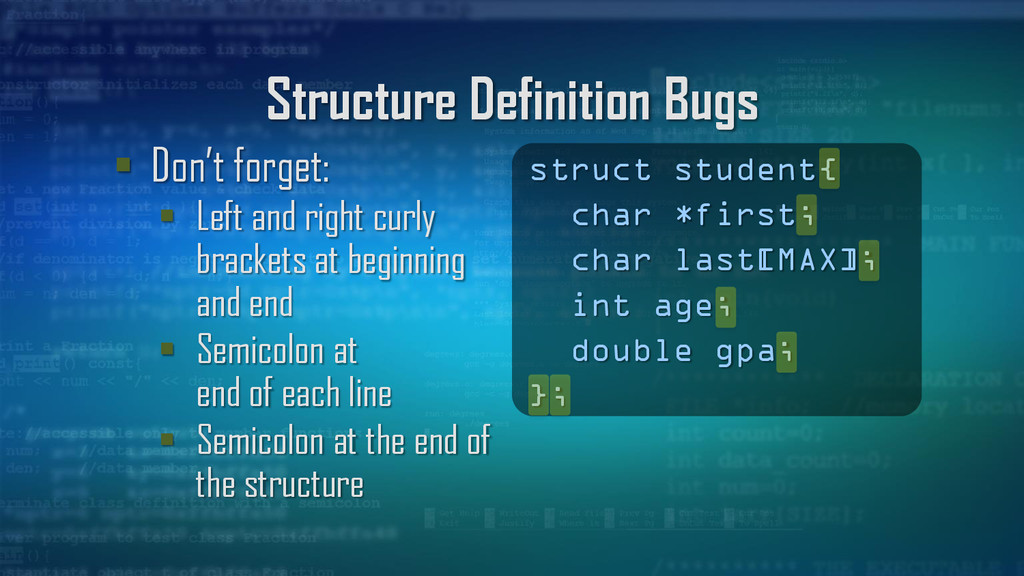

8. Structure Definition Bugs  Don’t forget:  Left and right curly brackets at beginning and end  Semicolon at end of each line  Semicolon at the end of the structure struct student{ char *first; char last[MAX]; int age; double gpa; };

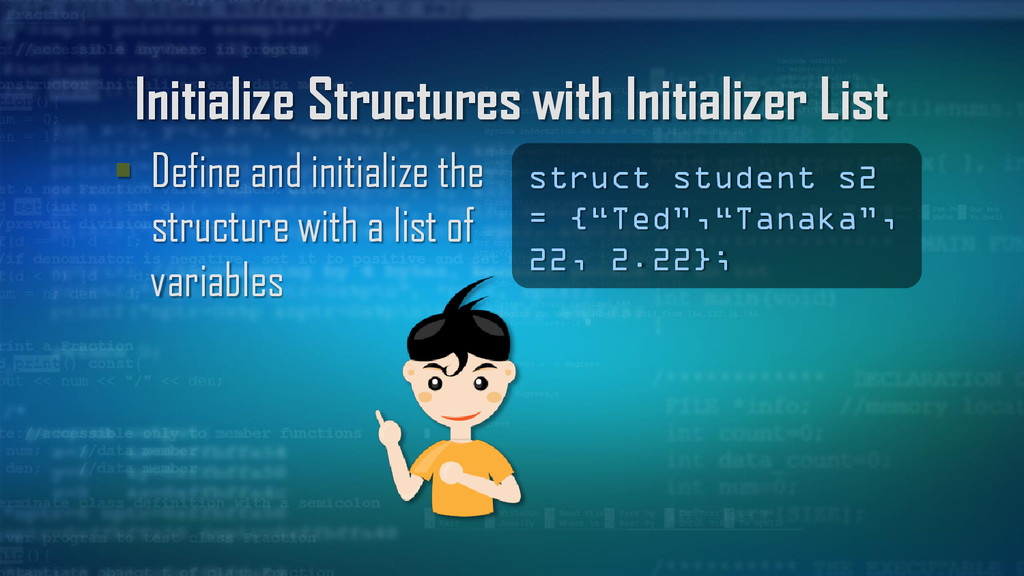

9. Initialize Structures with Initializer List  Define and initialize the structure with a list of variables struct student s2 = {“Ted”,“Tanaka”, 22, 2.22};

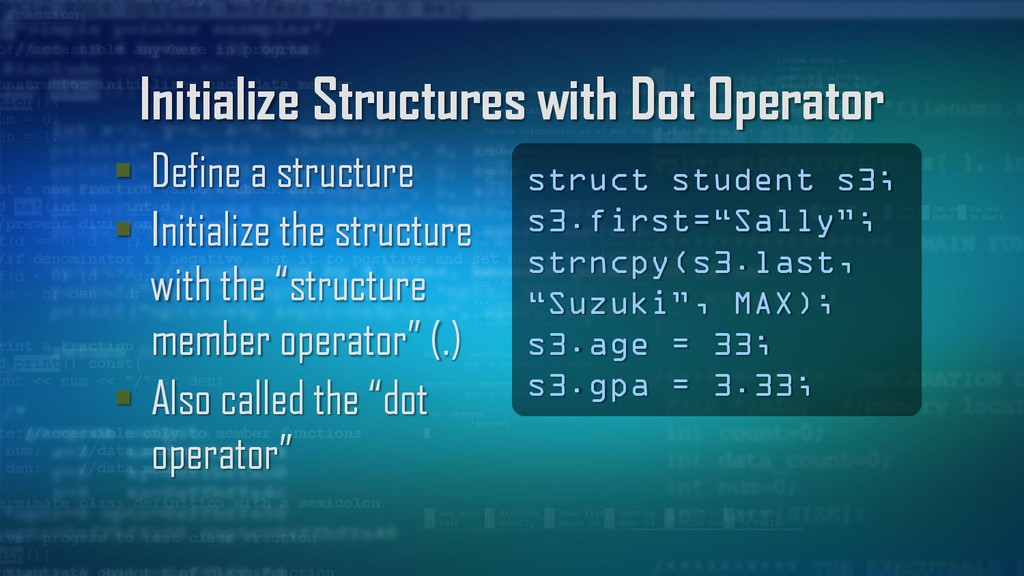

10. Initialize Structures with Dot Operator  Define a structure  Initialize the structure with the “structure member operator” (.)  Also called the “dot operator” struct student s3; s3.first=“Sally”; strncpy(s3.last, “Suzuki”, MAX); s3.age = 33; s3.gpa = 3.33;

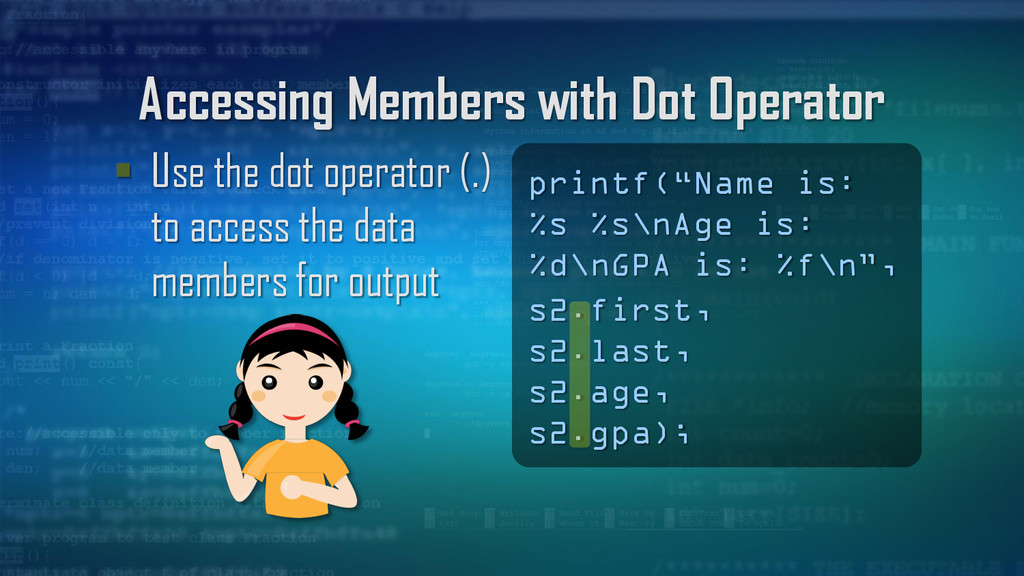

11. Accessing Members with Dot Operator  Use the dot operator (.) to access the data members for output printf(“Name is: %s %s\nAge is: %d\nGPA is: %f\n”, s2.first, s2.last, s2.age, s2.gpa);

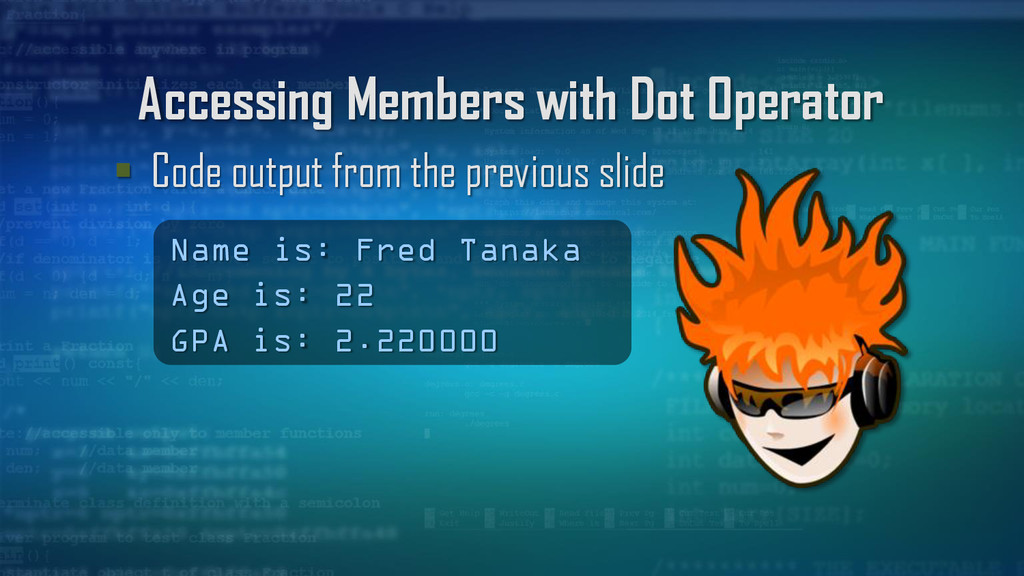

12. Accessing Members with Dot Operator  Code output from the previous slide Name is: Fred Tanaka Age is: 22 GPA is: 2.220000

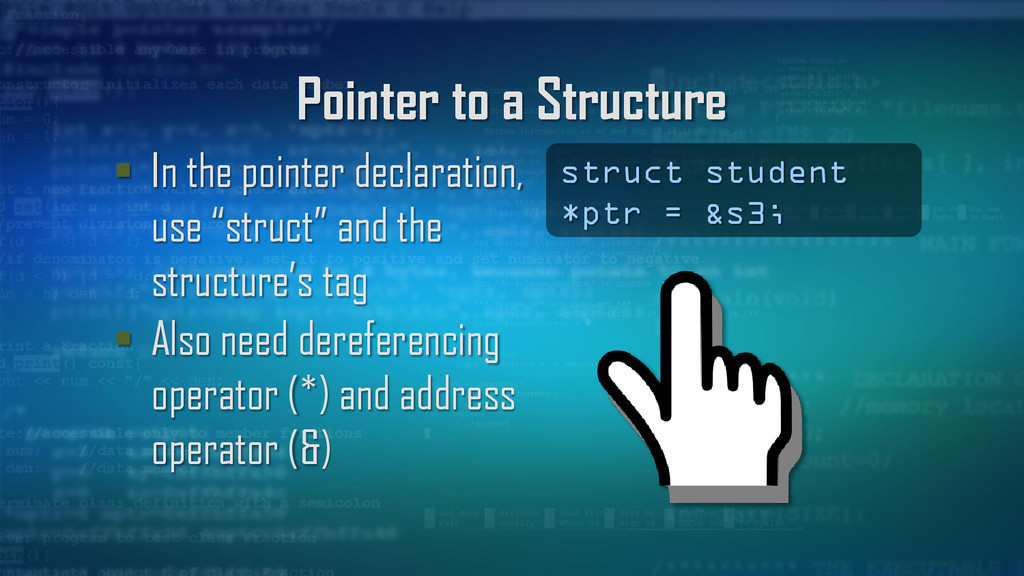

13. Pointer to a Structure  In the pointer declaration, use “struct” and the structure’s tag  Also need dereferencing operator (*) and address operator (&) struct student *ptr = &s3;

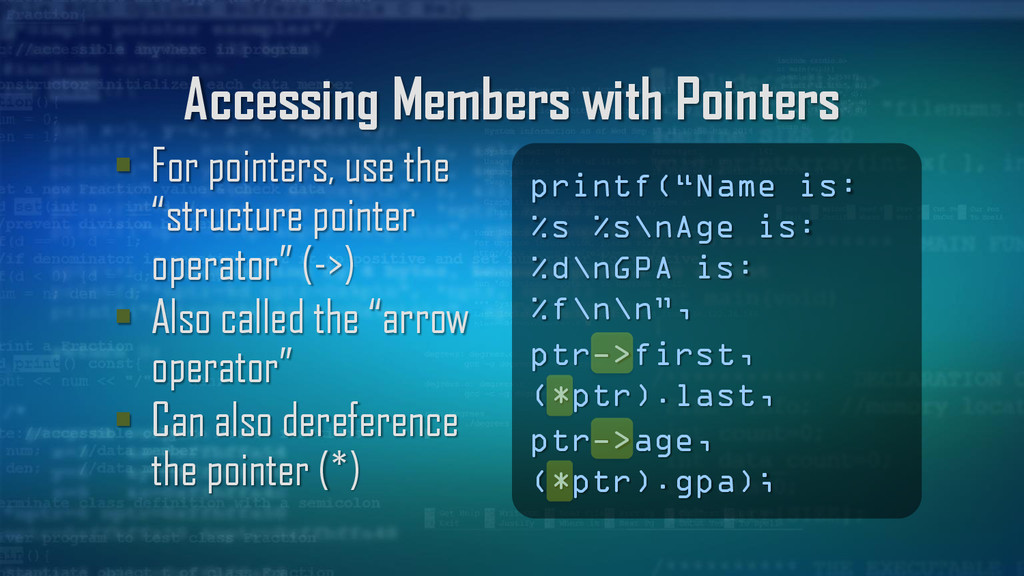

14. Accessing Members with Pointers  For pointers, use the “structure pointer operator” (->)  Also called the “arrow operator”  Can also dereference the pointer (*) printf(“Name is: %s %s\nAge is: %d\nGPA is: %f\n\n”, ptr->first, (*ptr).last, ptr->age, (*ptr).gpa);

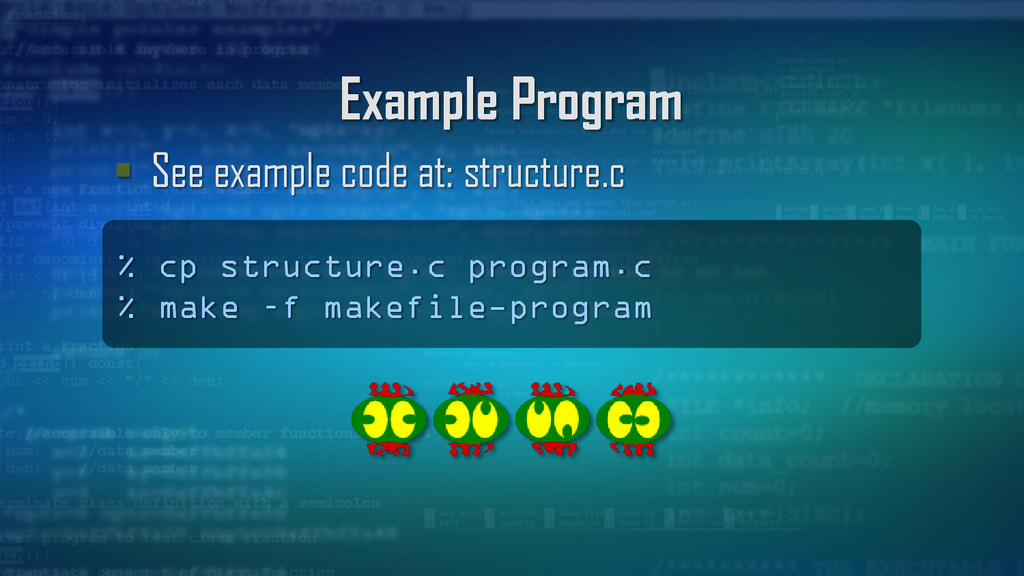

15. Example Program  See example code at: structure.c % cp structure.c program.c % make –f makefile-program
17. Operator sizeof()

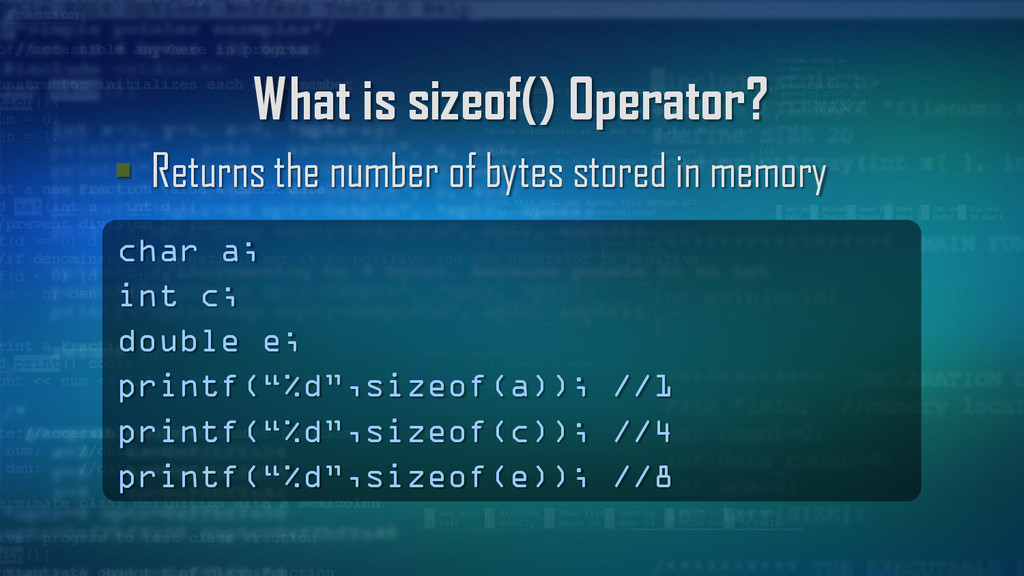

18. What is sizeof() Operator?  Returns the number of bytes stored in memory char a; int c; double e; printf(“%d”,sizeof(a)); //1 printf(“%d”,sizeof(c)); //4 printf(“%d”,sizeof(e)); //8

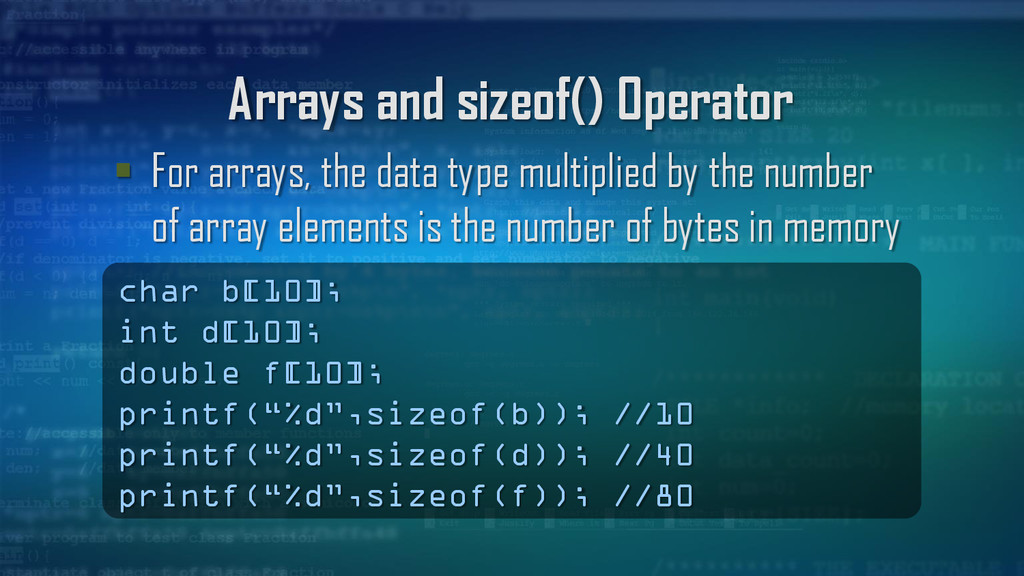

19. Arrays and sizeof() Operator  For arrays, the data type multiplied by the number of array elements is the number of bytes in memory char b[10]; int d[10]; double f[10]; printf(“%d”,sizeof(b)); //10 printf(“%d”,sizeof(d)); //40 printf(“%d”,sizeof(f)); //80

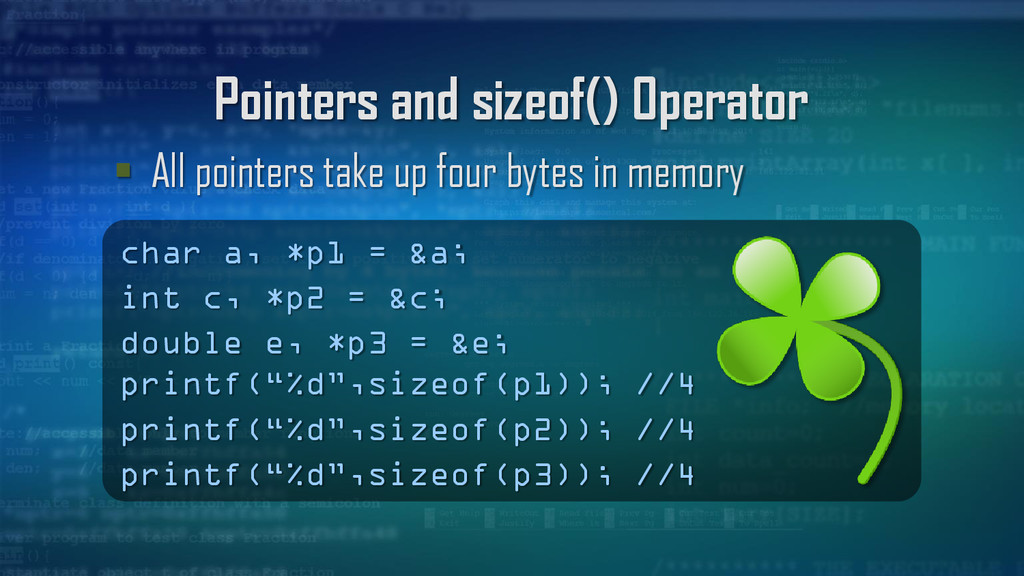

20. Pointers and sizeof() Operator  All pointers take up four bytes in memory char a, *p1 = &a; int c, *p2 = &c; double e, *p3 = &e; printf(“%d”,sizeof(p1)); //4 printf(“%d”,sizeof(p2)); //4 printf(“%d”,sizeof(p3)); //4

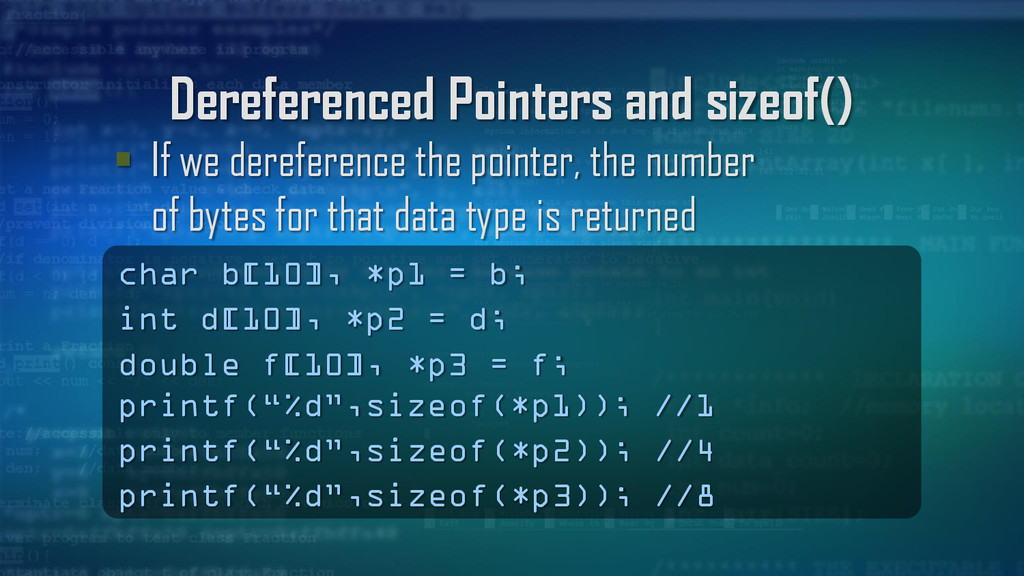

21. Dereferenced Pointers and sizeof()  If we dereference the pointer, the number of bytes for that data type is returned char b[10], *p1 = b; int d[10], *p2 = d; double f[10], *p3 = f; printf(“%d”,sizeof(*p1)); //1 printf(“%d”,sizeof(*p2)); //4 printf(“%d”,sizeof(*p3)); //8

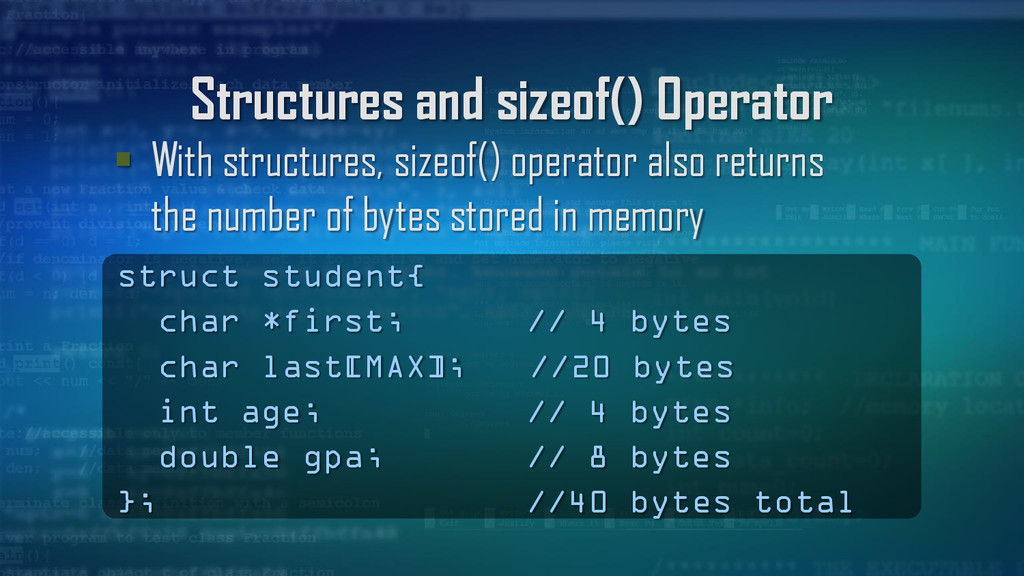

22. Structures and sizeof() Operator  With structures, sizeof() operator also returns the number of bytes stored in memory struct student{ char *first; // 4 bytes char last[MAX]; //20 bytes int age; // 4 bytes double gpa; // 8 bytes }; //40 bytes total

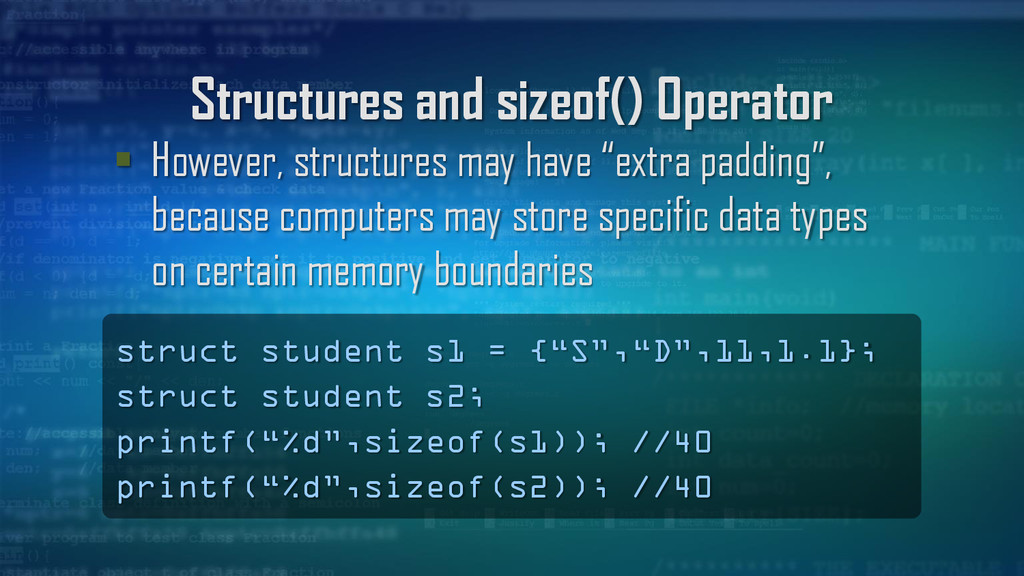

23. Structures and sizeof() Operator  However, structures may have “extra padding”, because computers may store specific data types on certain memory boundaries struct student s1 = {“S”,“D”,11,1.1}; struct student s2; printf(“%d”,sizeof(s1)); //40 printf(“%d”,sizeof(s2)); //40

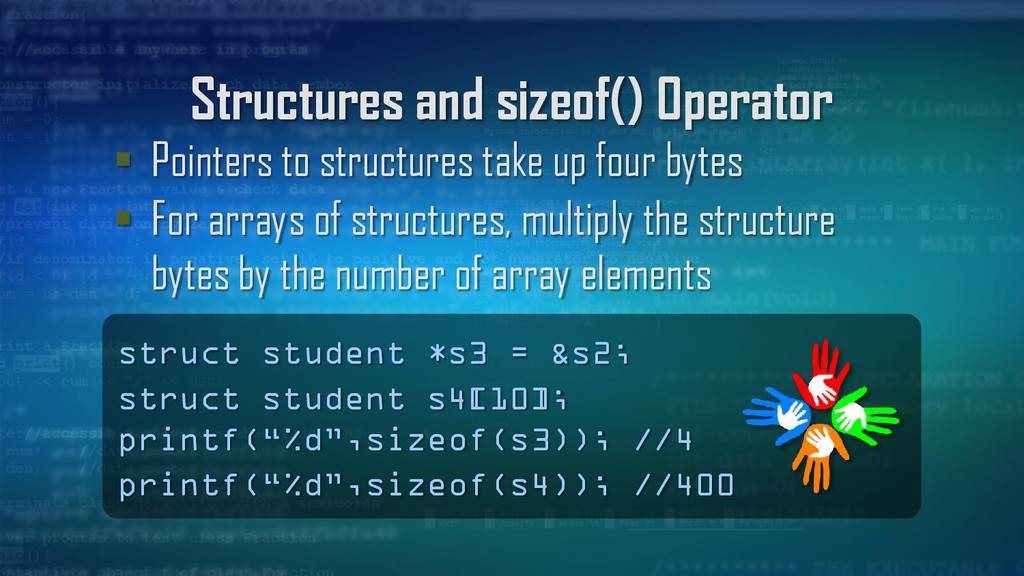

24. Structures and sizeof() Operator  Pointers to structures take up four bytes  For arrays of structures, multiply the structure bytes by the number of array elements struct student *s3 = &s2; struct student s4[10]; printf(“%d”,sizeof(s3)); //4 printf(“%d”,sizeof(s4)); //400

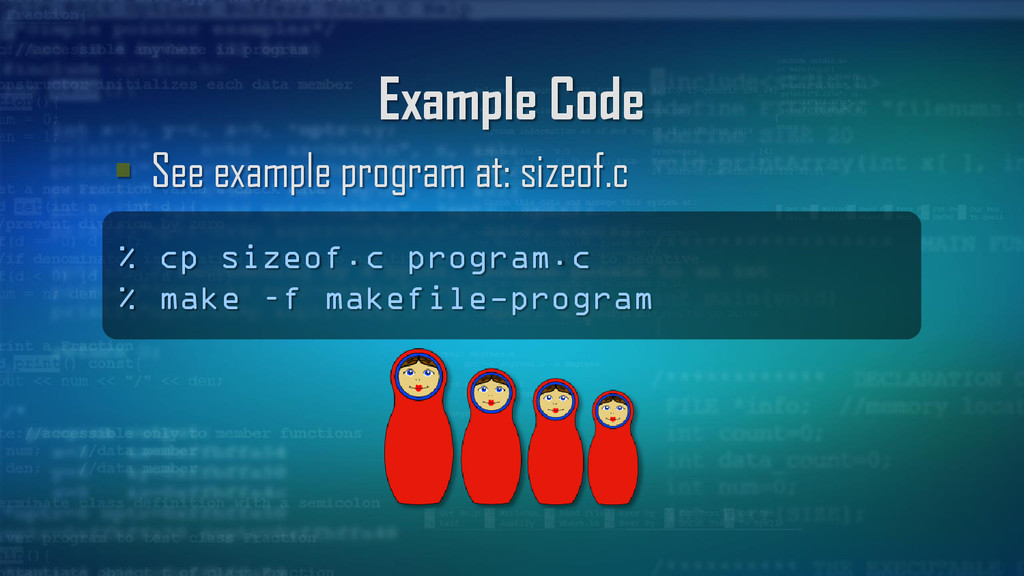

25. Example Code  See example program at: sizeof.c % cp sizeof.c program.c % make –f makefile-program
27. Structures and Functions

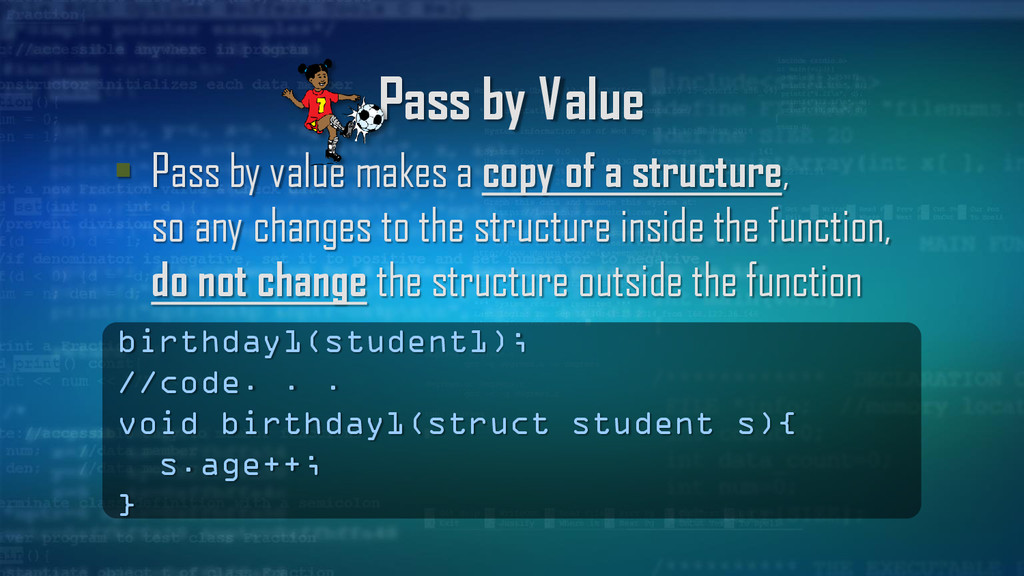

28. Pass by Value  Pass by value makes a copy of a structure, so any changes to the structure inside the function, do not change the structure outside the function birthday1(student1); //code. . . void birthday1(struct student s){ s.age++; }

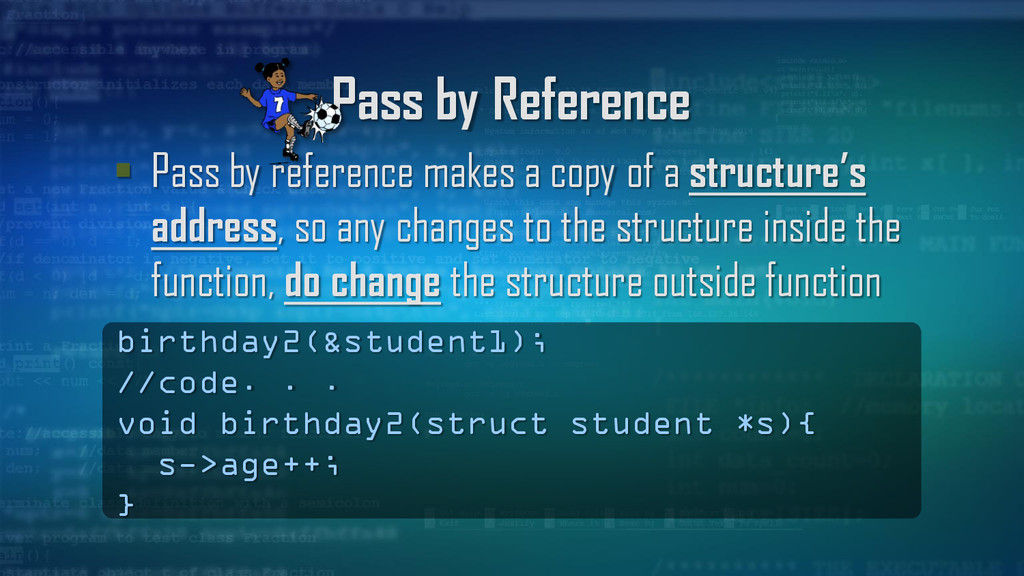

29. Pass by Reference  Pass by reference makes a copy of a structure’s address, so any changes to the structure inside the function, do change the structure outside function birthday2(&student1); //code. . . void birthday2(struct student *s){ s->age++; }

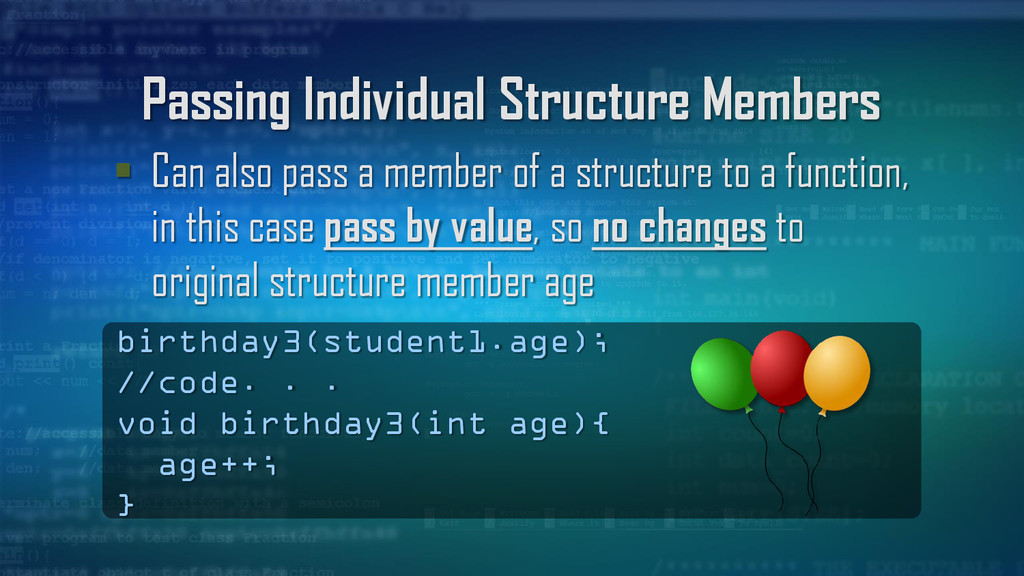

30. Passing Individual Structure Members  Can also pass a member of a structure to a function, in this case pass by value, so no changes to original structure member age birthday3(student1.age); //code. . . void birthday3(int age){ age++; }

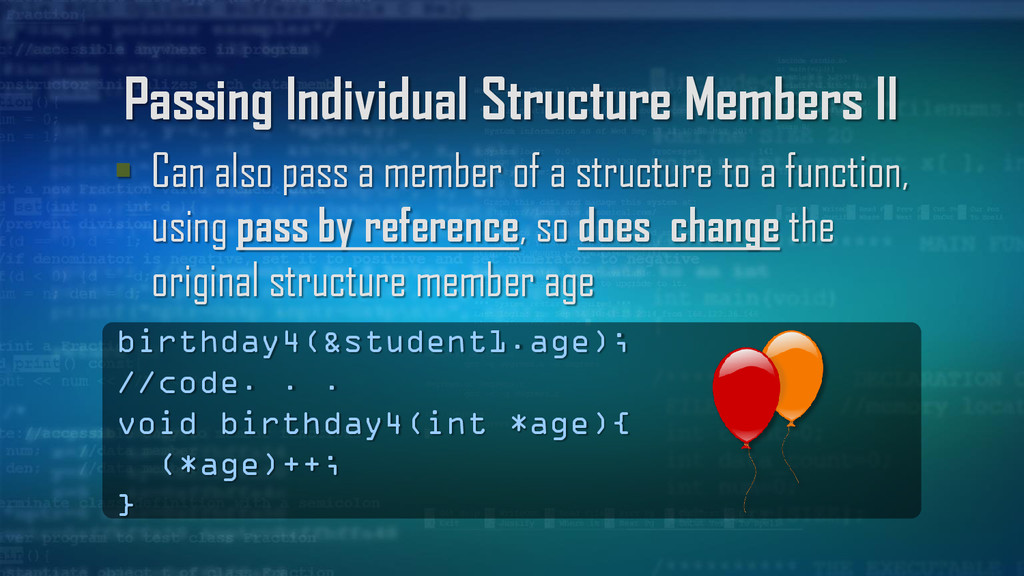

31. Passing Individual Structure Members II  Can also pass a member of a structure to a function, using pass by reference, so does change the original structure member age birthday4(&student1.age); //code. . . void birthday4(int *age){ (*age)++; }

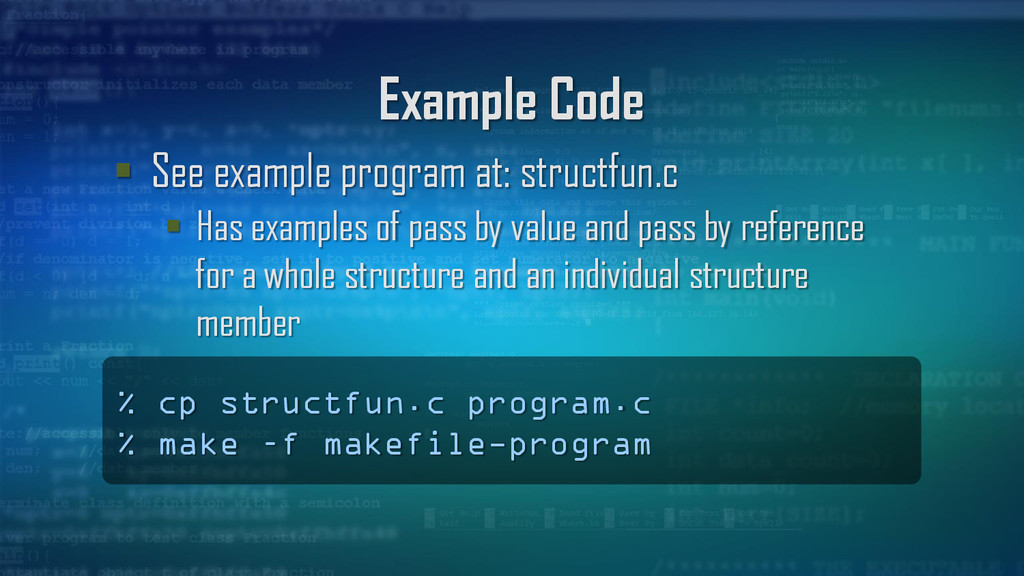

32. Example Code  See example program at: structfun.c  Has examples of pass by value and pass by reference for a whole structure and an individual structure member % cp structfun.c program.c % make –f makefile-program

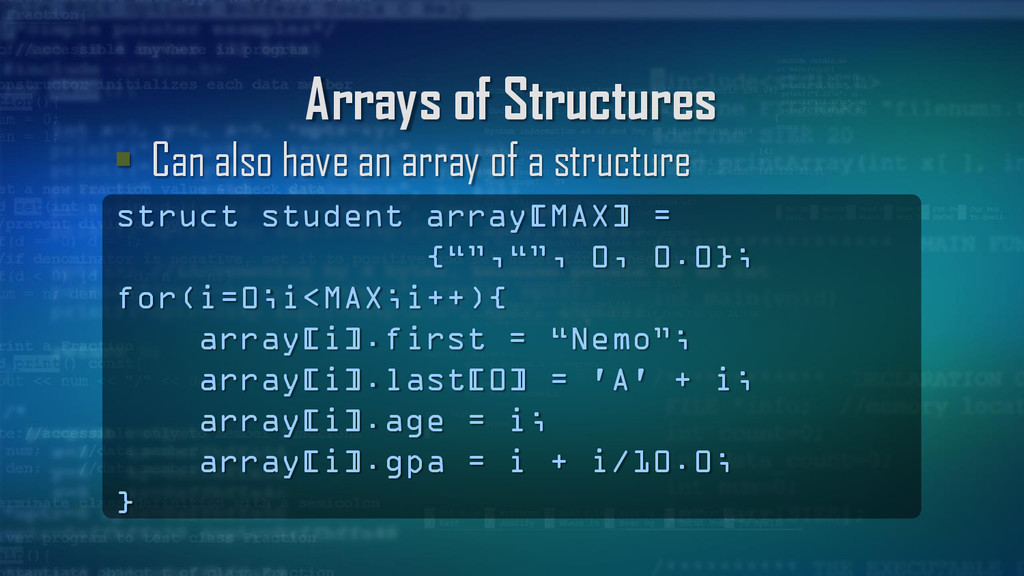

33. Arrays of Structures  Can also have an array of a structure struct student array[MAX] = {“”,“”, 0, 0.0}; for(i=0;i<MAX;i++){ array[i].first = “Nemo”; array[i].last[0] = 'A' + i; array[i].age = i; array[i].gpa = i + i/10.0; }

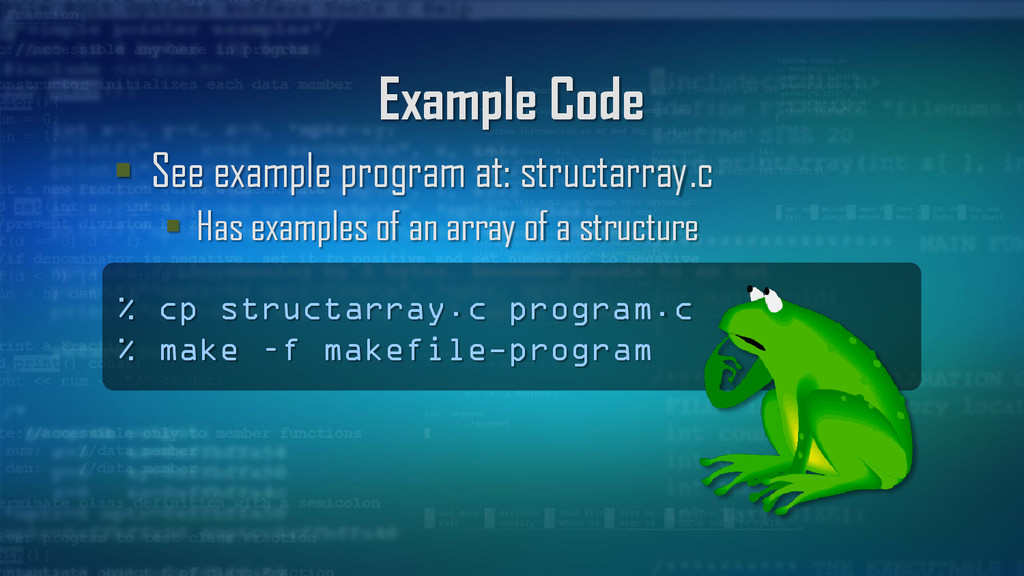

34. Example Code  See example program at: structarray.c  Has examples of an array of a structure % cp structarray.c program.c % make –f makefile-program
36. Using typedef

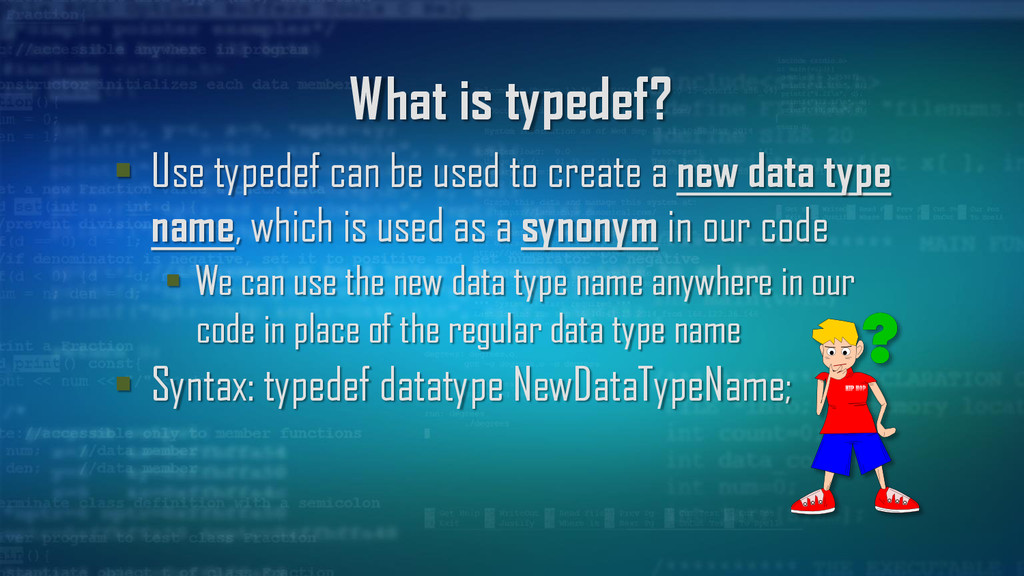

37. What is typedef?  Use typedef can be used to create a new data type name, which is used as a synonym in our code  We can use the new data type name anywhere in our code in place of the regular data type name  Syntax: typedef datatype NewDataTypeName;

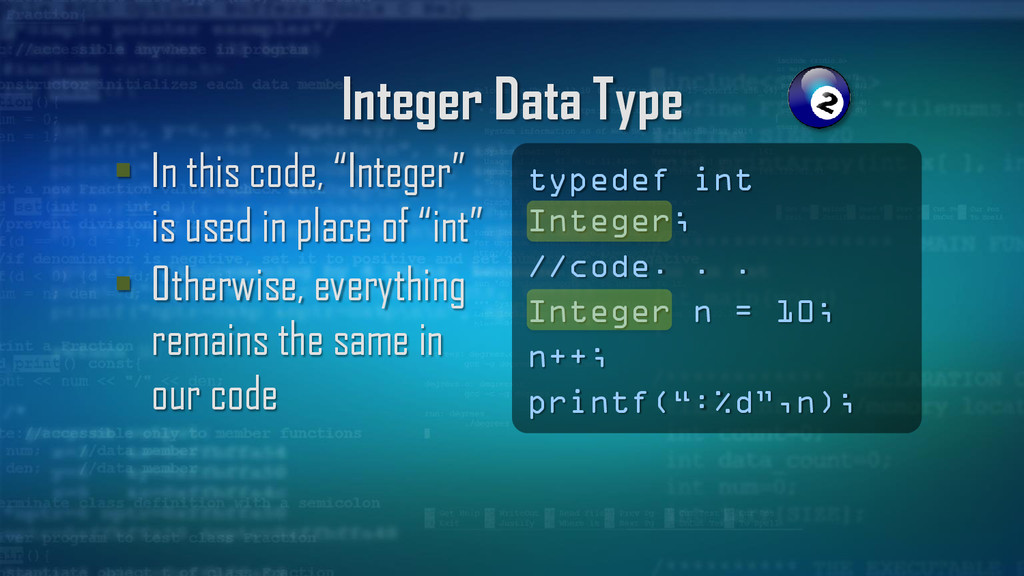

38. Integer Data Type  In this code, “Integer” is used in place of “int”  Otherwise, everything remains the same in our code typedef int Integer; //code. . . Integer n = 10; n++; printf(“:%d”,n);

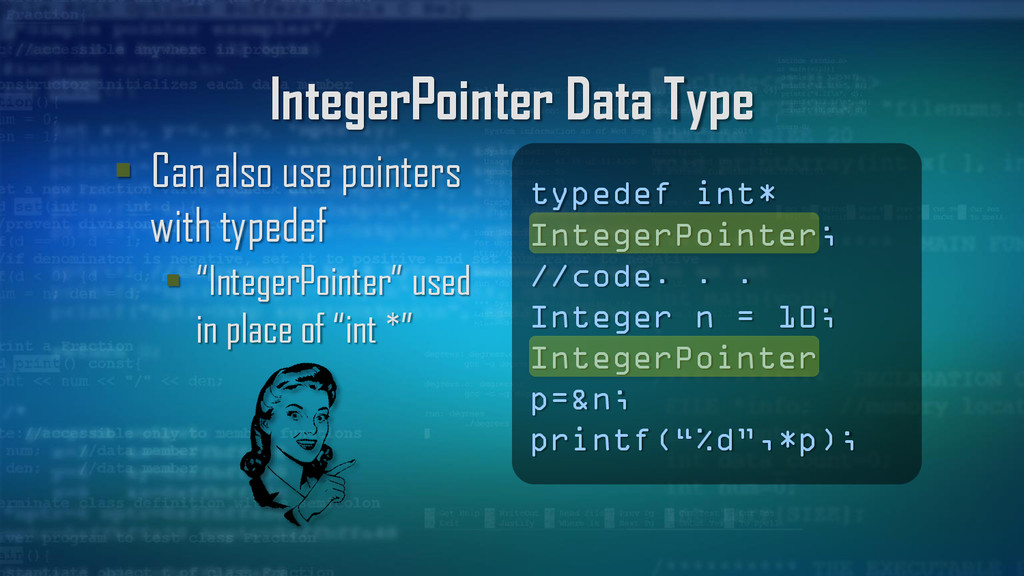

39. IntegerPointer Data Type  Can also use pointers with typedef  “IntegerPointer” used in place of “int *” typedef int* IntegerPointer; //code. . . Integer n = 10; IntegerPointer p=&n; printf(“%d”,*p);

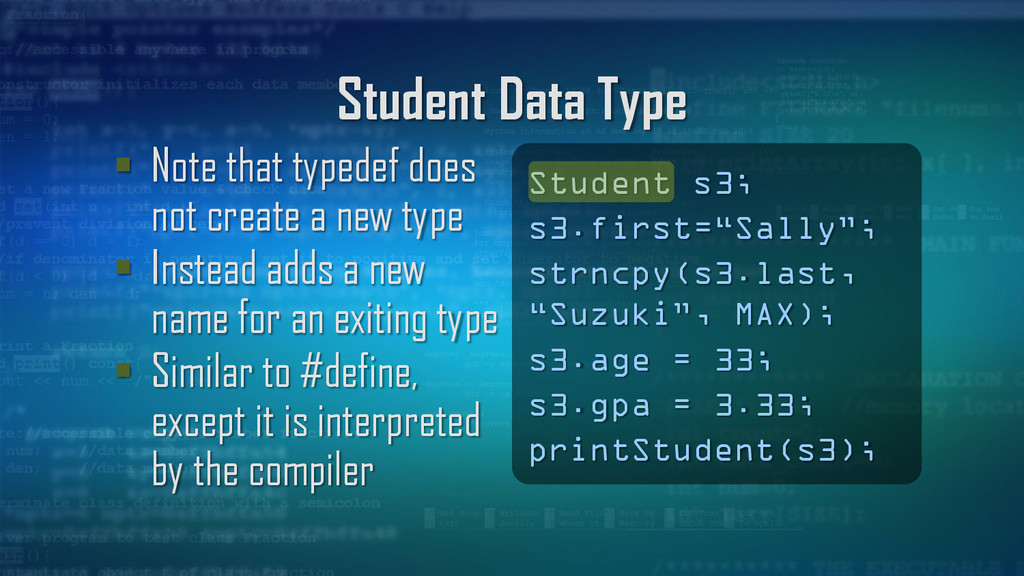

40. Student Data Type  Note that typedef does not create a new type  Instead adds a new name for an exiting type  Similar to #define, except it is interpreted by the compiler Student s3; s3.first=“Sally”; strncpy(s3.last, “Suzuki”, MAX); s3.age = 33; s3.gpa = 3.33; printStudent(s3);

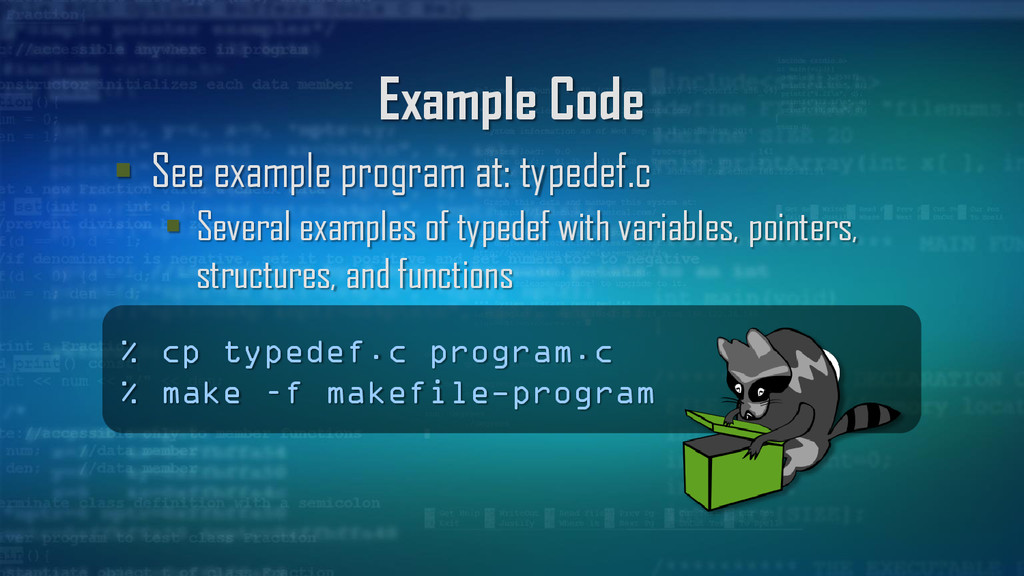

41. Example Code  See example program at: typedef.c  Several examples of typedef with variables, pointers, structures, and functions % cp typedef.c program.c % make –f makefile-program

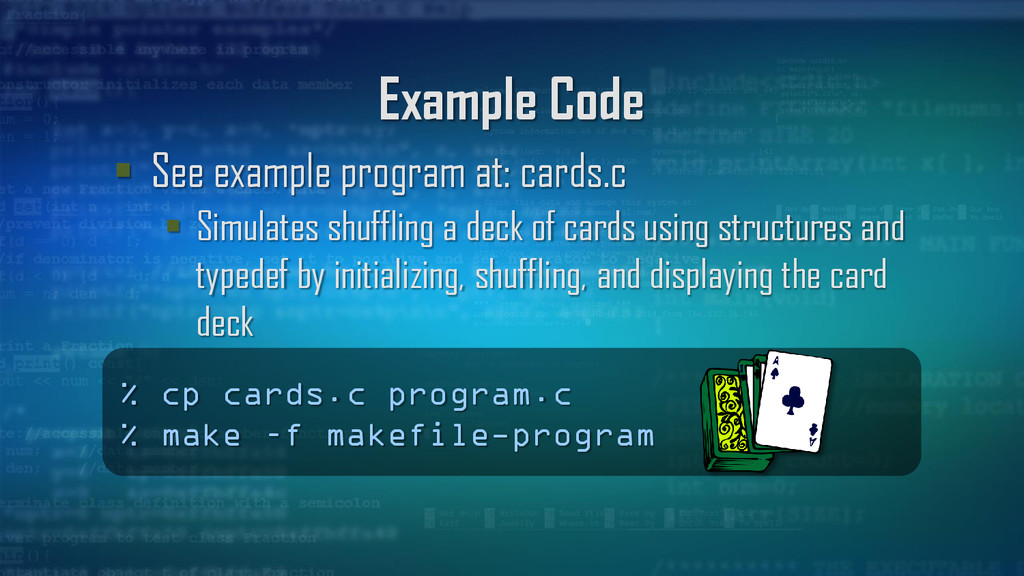

42. Example Code  See example program at: cards.c  Simulates shuffling a deck of cards using structures and typedef by initializing, shuffling, and displaying the card deck % cp cards.c program.c % make –f makefile-program

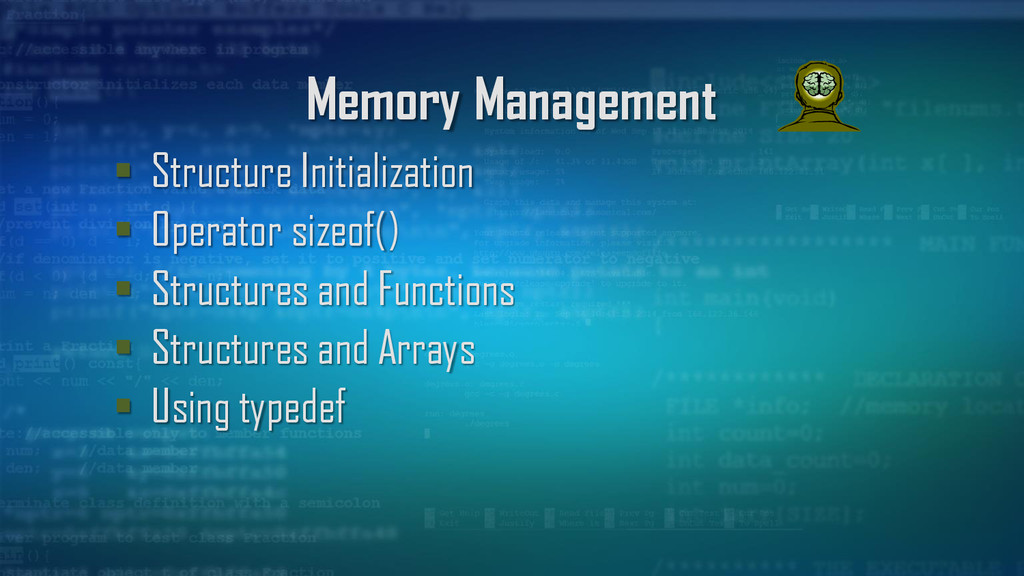

43. Memory Management  Structure Initialization  Operator sizeof()  Structures and Functions  Structures and Arrays  Using typedef
