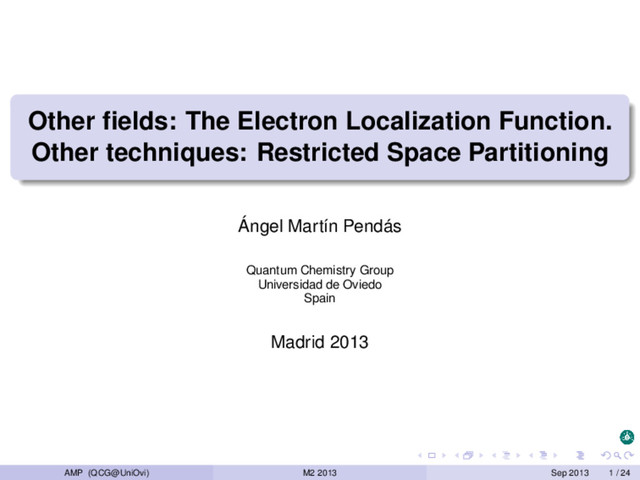

  1. Other fields: The Electron Localization Function. Other techniques: Restricted Space

    Partitioning Ángel Martín Pendás Quantum Chemistry Group Universidad de Oviedo Spain Madrid 2013 AMP (QCG@UniOvi) M2 2013 Sep 2013 1 / 24
  2. Outline 1 Electron Localization 2 Local indicators: ELF Topology of

    ELF 3 Restricted Space Partitioning AMP (QCG@UniOvi) M2 2013 Sep 2013 2 / 24
  3. Electron Localization I How do we measure where electrons are

    localized? The pair function ρ2 (x 1 , x 2 ; x1 , x2 ) = N(N − 1) dx3 . . . xN Ψ∗(x 1 , x 2 , . . . , xN )Ψ(x1 , x2 , . . . , xN ) If the electrons were not correlated objects, the pair density would only depend on the 1-particle density: ρind 2 (x1 , x2 ) = N−1 N ρ(x1 )ρ(x2 ) The Pauli principles force ρ2 (x 1 , x 2 ; x1 x2 ) = −ρ2 (x 2 , x 1 ; x1 , x2 ), so ρ2 (x1 , x1 ) = 0 If a reference electron (ER) is at x1 , the conditional density that any other be found at x2 is ρ(x2 |x1 ) = ρ2 (x1 ,x2 ) ρ(x1 ) The exchange-correlation hole is defined as hxc (x2 |x1 ) = ρ(x2 |x1 ) − ρ(x2 ) dx2 hxc (x2 |x1 ) = −1, hxc (x2 → x1 |x1 ) = −ρ(x1 ). AMP (QCG@UniOvi) M2 2013 Sep 2013 3 / 24
  4. Electron Localization II It is important to distinguish correlation due

    to same spin (Fermi) and opposite spin (Coulomb) electrons. We thus divide the exchange-correlation hole, hxc (x2 |x1 ) = hxc (r2 (s2 = s1 )|x1 ) + hxc (r2 (s2 = s1 )|x1 ) = hF (r2 |r1 ) + hC (r2 |r1 ). Only The Fermi hole is responsible from exclusion dr2 hF (r2 |r1 ) = −1, hF (r2 → r1 |r1 ) = −ρ(r1 ), dr2 hC (r2 |r1 ) = 0. The FH is negative definite, deep around the RE, and goes to zero quickly as we get far from it. If the RE is far from the molecular frame, hF will be shallow close to it, and since it integrates to −1, it will leave the RE behind. AMP (QCG@UniOvi) M2 2013 Sep 2013 4 / 24
  5. Electron Localization III H2 hF h h C xc R~Re

    R>>R e − e − e − e e− e− e− hF Static and hC dynamic: HF dissociation problem. AMP (QCG@UniOvi) M2 2013 Sep 2013 5 / 24
  6. Pair density and Localization I Let Ω = R3 −

    Ω. Then Pn(Ω), determines the probability of finding a given number of electrons, n, in Ω is: Pn(Ω) = N n Ω dx1 . . . Ω dxn Ω dxn+1 . . . Ω dxNΨ∗(x1, . . . , xN)Ψ(x1, . . . , xN). Since the total number of electrons in N, n=N n=1 Pn(Ω) = 1, NΩ = n=N n=1 nPn(Ω), With this σ2(Ω) = n=N n=1 (n − NΩ)2Pn(Ω) = n=N n=1 n2Pn(Ω) − n=N n=1 nPn(Ω) 2 . σ2(Ω) may only vanish if there exists just one term in the sum, n = l ⇒ Pl(Ω) = 1, NΩ = l. We dfine hte pair population of a region, DΩ,Ω = 1 2 Ω dx1 Ω dx2 ρ2(x1, x2) = n=N n=1 n(n − 1) 2 Pn(Ω). σ2(Ω) = 2DΩ,Ω − NΩ(NΩ − 1), AMP (QCG@UniOvi) M2 2013 Sep 2013 6 / 24
  7. Pair density and Localization II If the variance vanishes, then

    DΩ,Ω = l(l − 1)/2. We say that we have a pure pair population. There is spatial localization since knowing the number of electrons and its pairing just requires ρ1 y ρ2 in that region. If the variance is not null, 2DΩ,Ω > NΩ(NΩ − 1). Using the hxc definition, σ2(Ω) = NΩ + Ω dx1ρ(x1) Ω dx2hxc(x2|x1) = NΩ + FΩ,Ω, wher FΩ,Ω is a measure of the correlation in region Ω. If hxc is completely localized in Ω, hxc(x2 / ∈ Ω|x1 ∈ Ω) = 0, Ω dx2hxc(x2|x1) = −1, σ2(Ω) = 0, y so complete localization of the hole implies a pure pair population. We will get a perfect localization if the hole is completely localized in a a region, independently of the position of the RE. If the space is made up of regions with completely localized holes, interbasin repulsion is only classical. Thus hole localization is equivalent to electron localization AMP (QCG@UniOvi) M2 2013 Sep 2013 7 / 24
  8. Pair density and Localization III If the holes of two

    regions ΩA and ΩB are completely localized, then in the joint region ΩA ∪ ΩB we find that σ2(ΩA ∪ ΩB) = FΩA,ΩB = 0, FΩA,ΩB = 2 ΩA dx1ρ(x1) ΩB dx2hxc(x2|x1), where we have used A ↔ B. FΩA,ΩB is thus a measure of inter-basin correlation. We thus introduce the interbasin pair population DΩA,ΩB . When FΩA,ΩB is negligible, DΩA,ΩB = NΩA NΩB , the number of order pairs. These leads to the following indices Sinde |FAA | < NA , we introduce the localization index, λA = |FAA | and the delocalization index, δAB = |FAB | FAA + 1 2 B=A FAB = −NA. AMP (QCG@UniOvi) M2 2013 Sep 2013 8 / 24
  9. Pair density and Localization IV HF data 6-311++G(2d,2p) Molecule NA

    DAA λA DAB δAB DAB/2 FAB/2 H2 H 1.000 0.250 0.500 0.500 1.000 1.000 -2.000 N2 N 7.000 21.761 5.479 47.479 3.042 91.000 -14.000 F2 F 9.000 36.321 8.358 80.358 1.283 153.000 -18.000 LiF Li 2.060 1.136 1.971 20.387 0.178 66.001 -12.000 F 9.940 44.447 9.851 CO C 4.647 8.865 3.860 42.677 1.574 91.006 -14.000 O 9.354 39.463 8.567 CN− C 5.227 11.598 4.121 44.748 2.210 90.995 -13.999 N 8.773 34.649 7.668 NO+ N 5.525 13.102 4.323 45.622 2.405 91.000 -14.000 O 8.475 32.276 7.273 HF data 6-311++G(2d,2p) Molecule NA DAA λA DAB δAB DAB/2 FAB/2 H2 H 1.000 0.212 0.575 0.573 0.849 1.000 -2.000 N2 N 7.000 21.555 5.891 47.890 2.219 91.000 -14.001 F2 F 9.000 36.251 8.498 80.497 1.005 LiF Li 2.067 1.151 1.973 20.440 0.193 65.999 -12.005 F 9.932 44.409 9.838 CO C 4.794 9.454 4.072 43.410 1.443 90.997 -14.001 O 9.206 38.133 8.484 CN− C 5.434 12.519 4.490 45.601 1.888 90.995 -14.000 N 8.566 32.874 7.621 NO+ N 5.803 14.421 4.837 46.605 1.934 91.008 -14.001 O 8.197 29.982 7.231 He2 He 2.000 1.001 1.998 3.998 0.004 6.000 -4.000 Ar2 Ar 18.000 153.003 17.993 323.994 0.013 630.000 -36.000 AMP (QCG@UniOvi) M2 2013 Sep 2013 9 / 24
  10. Local indicators I Is it possible to define a scalar

    field with localization information? Seminal work of Becke & Edgecombe (JCP 92, 5398 (1990)) Leads to the Electron Localization Function (ELF) Let Pαα be the same spin conditional 2-particle probability for a 1det, Pαα(r, r ) = ραα 2 (r, r ) ρα(r) = ρα(r ) − |ρα 1 (r, r )|2 ρα(r) = ρα(r ) − | α i ψ∗ i (r )ψi (r)|2 ρα(r) Pαα for a RE at r and another at distance s admits a Taylor expansion, Pαα(r, s) = 1 3 α i |∇ψi (r)|2 − |∇ρα(r)|2 4ρα(r) s2 + . . . = 1 3 Dα(r)s2 + . . . This is calibrated with Dα(r) for the homogeneous electron gas of the same density, Dα h (r) = 3 5 (6π2)2/3ρα(r)5/3 AMP (QCG@UniOvi) M2 2013 Sep 2013 10 / 24
  11. Local indicators II The ELF kernel The adimensional ELF kernel

    is defined as χBE (r) = Dα(r) Dα h (r) , and in order to get a reasonable scaled quantity, a Lorenztian projection is made, ELF(r) = η(r) = 1 1 + χ2 BE (r) This map preserves the topology of χ (number and type of CPs) η = 1/2 ≡ fully delocalized system (electron gas). η = 1 ≡ fully localized system. AMP (QCG@UniOvi) M2 2013 Sep 2013 11 / 24
  12. Local indicators III ELF for DFT The pair density is

    undefined in KS DFT. Savin et. al. found a way our. t(r) ≥ 1 8 |∇ρ(r)|2 ρ(r) , the equality being valid for a bosonic system, Thus the excess kinetic energy is called the Pauli density, tP (r) = t(r) − 1 8 |∇ρ(r)|2 ρ(r) Again, if we take the value for the uniform electron gas, th (r) = cF ρ(r)5/3, cF = 3 10(3π2)2/3 , we may define the Savin kernel, χS (r) = tP (r) th (r) , ηS = 1 1 + χ2 S formally equivalent to BE for a closed shell. ηS ≈ 1 for bosonic behavior (lone pairs, bonds...) The interpretation of ELF is full of subtleties. AMP (QCG@UniOvi) M2 2013 Sep 2013 12 / 24
  13. Topology of ELF I χ is a scalar field, so

    the standard topological tools have been used. Localization domains An f−localization domain is a region of η > f. If it contains only 1 attractor, irreducible. Localization domains in CF4 with f = 0.75 → 0.885 (a-c), Li, LiF, LiH Silvi & Savin, Nature 371, 683 (1994). AMP (QCG@UniOvi) M2 2013 Sep 2013 13 / 24
  14. Topology of ELF II Bifurcation diagrams As η increases, the

    domains split as CPs are traversed. These are the bips, bond interaction points. This process may be followed by constructing a tree, the bifurcation diagram, where we see the different entities of a system arise: molecules, cores, lone pairs, valences, etc. Solid N2 . N2 N2 N2 V(N) C(N) V(N) V(N,N) 0.0050 0.7187 0.1334 AMP (QCG@UniOvi) M2 2013 Sep 2013 14 / 24
  15. Topology of ELF III Synaptic order, integration The synaptic order

    of a valence basin (V) is the number of core (C) basins with which it shares a separatrix (a proton is counted as formal core) Monosynaptic: shells, lone pairs Polisynaptic: multicenter bonds. Densities may also be integrated in ELF basins (care with T). Charges: Those of cores, LPs, and disynaptic basins related to the number of pairs. variances, covariance: Fluctuaction (λ = σ2/N) Base Ω N(Ω) σ2 λ 6-311++G(3df,2p) C(O) 2.10 0.36 0.17 H2 O V(H1,O) 1.65 0.78 0.47 V(O) 2.30 1.08 0.47 Rules: populations of monsynaptic and disynaptic greater and smaller than 2. etc AMP (QCG@UniOvi) M2 2013 Sep 2013 15 / 24
  16. Examples Localization domains for ethane, ethene, ethyne AMP (QCG@UniOvi) M2

    2013 Sep 2013 16 / 24
  17. Examples Localization domains NH2 -BN-H AMP (QCG@UniOvi) M2 2013 Sep

    2013 17 / 24
  18. Restricted Space Partitioning. I Examine samples of constant property in

    real space. For continuous distributions, a sample volume Vi given by region µi centered around position ai such that the integral of the control function has a fixed value ω. w−restricted space partitioning (RSP) is the decomposition of volume such that the integral of the control function in each region is ω. If ω is small enough, the RSP regions are small: micro-cells. Integrals may be replaced by polynomials in terms of Taylor expansions. AMP (QCG@UniOvi) M2 2013 Sep 2013 18 / 24
  19. Restricted Space Partitioning. II Restricted Populations The RSP decomposition into

    µ-cells, allows us to sample with another function fs , such that adding the integral of fs over all the cells gives the total F fs will provide a discrete distribution of values ζi . depending on the control function fc . If fs = fc , the sampling has only one value, ω. If fs =const, the sampling will mimic fs for small ω. On decreasing ω, the density of samples will increase, its value will decrease: Rescaling so that there is a ω → 0 limit. ω = µi dr1 . . . µi fc (r1 , . . . , rm ) drm = tc (ai ) Vϑc i + εc (ai ) with tc depending on the first non-vanishing Taylor term. AMP (QCG@UniOvi) M2 2013 Sep 2013 19 / 24
  20. Restricted Space Partitioning. III The same applied to fs gives

    ζi = µi dr1 . . . µi fs (r1 , . . . , rn ) drn = ts (ai ) Vϑs i + εs (ai ) . so ζi = ts (ai ) ω − εc (ai ) tc (ai ) ϑs /ϑc + εs (ai ) = ts (ai ) ω tc (ai ) ϑs /ϑc + ε(ai ) scaling ζ by ωϑs /ϑc will have the limit lim ω→0 {ζi ωϑc /ϑs } = ts (r) 1 tc (r) ϑs /ϑc = ts (r) ˜ Vϑs (r) which is termed a quasi-continuous distributions AMP (QCG@UniOvi) M2 2013 Sep 2013 20 / 24
  21. Electron Localizability Indicator (ELI) I Let us use ρ and

    ρ2 as control and sample functions (both possibilities). ELI is the rescaled discrete distribution of electron populations (ELI-D, ΥD ) or electron pairs (ELI-q, Υq ) Same-spin Electron Pairs Due to Pauli, the firsti r2 Taylor term for the same spin pair population is Dσσ i ≈ 1 2 dr1 µ ((r2 − a) · ∇r2 )2ρσσ 2 (r1 , r2 ) r→a dr2 A bit of algebra leads to Dσσ i ≈ 1 12 V8/3 i gσ(ai ), where gσ(ai ) is the Fermi-hole curvature at the µ-cell. gσ(ai ) = σ i<j σ k<l Pij,kl [φi (ai )∇φj (ai )−φj (ai )∇φi (ai )] [φk (ai )∇φl (ai )−φl (ai )∇φk (ai )] AMP (QCG@UniOvi) M2 2013 Sep 2013 21 / 24
  22. Electron Localizability Indicator (ELI) II ELI-D With this, Vi ≈

    12ω gσ(ai) 3/8 : ˜ VD(r) = lim ω→0 1 ω3/8 Vi = 12 gσ(r) 3/8 . Υσ D (µi) = 1 ω3/8 µ ρσ 1 (r) dr = Υσ D (ai) ≈ 1 ω3/8 ρσ 1 (ai) Vi and, after rescaling, ˜ Υσ D (r) = lim ω→0 {Υσ D (µi)} = ρσ 1 (r) ˜ VD(r) . Υα D in Ar atom using the basis of Clementi and Roetti; black bars: discrete distribution of charges from the integration of ρα 1 over the µ-cells of the ωRSP restricted to enclose 10−8 αα-pairs 1 2 3 4 5 6 r / a 0 1.0 2.0 q / 10-3 e- AMP (QCG@UniOvi) M2 2013 Sep 2013 22 / 24
  23. Electron Localizability Indicator (ELI) III ELI-q ELI-q related to ELI-D

    by ΥD (r)Υ3/8 q (r) = 1. At the 1-det level gσ(r) = ρσ(r)Dα(r) where Dα is the numerator of the ELF kernel. The ELF kernel is proportional to ELI-q. ELI-D and ELF (1/(1 + χ2)) have the same topology. ELI-q for a CAS(8,14)/VDZ calculation of CH4 . 0.91-localization domains of Υq . The hydrogen positions are marked by grey spheres AMP (QCG@UniOvi) M2 2013 Sep 2013 23 / 24
  24. Bibliography A. D. Becke, K. E. Edgecombe Journal of Chemical

    Physics 1990, 92, 5397-5403. A. Savin, A.D. Becke, J. Flad, R. Nesper, H. Preuss, G. von Schnering. Angewandte Chemie-International Edition in English 1991, 30, 409-412. B Silvi, A. Savin. Nature 1994, 371, 683. R. F. W. Bader, S. Johnson, T. H. Tang, P. L. A. Popelier Journal of Physical Chemistry 1996, 100, 15398-15415. M. Kohout, A. Savin, International Journal of Quantum Chemistry 1996, 60, 875-882. M. Kohout. International Journal of Quantum Chemistry 2004, 97, 651-658. M. Kohout, K. Pernal, F. R. Wagner, Y. Grin, Theoretical Chemistry Accounts 2004, 112, 453-459. A. Ormeci, H. Rosner F. R. Wagner M. Kohout, Y Grin, Journal of Physical Chemistry A 2006, 110, 1100-1105. AMP (QCG@UniOvi) M2 2013 Sep 2013 24 / 24
