Composed for Success - Automatic Instrumentation in Jetpack Compose

As Jetpack Compose gains popularity for developing Android apps, it's crucial to ensure that apps built with it are reliable and bug-free. At Sentry, we've been working on making it easier for developers to monitor their apps by providing automatic instrumentation for capturing user interactions and navigation breadcrumbs.

In this talk, we'll discuss our journey of adding automatic instrumentation to the open-source Sentry Android SDK for Jetpack Compose and share best practices for capturing and analyzing user interactions and navigation events.

We’ll dive into

- Global Android system hooks
- Jetpack Compose internals
- Accessing Compose internals from Java and why
- A bit of Bytecode Manipulation
- Kotlin Compiler Plugins

Transcript

1. @romtsn
 Composed for Success Automatic Instrumentation in Jetpack Compose @markushi_

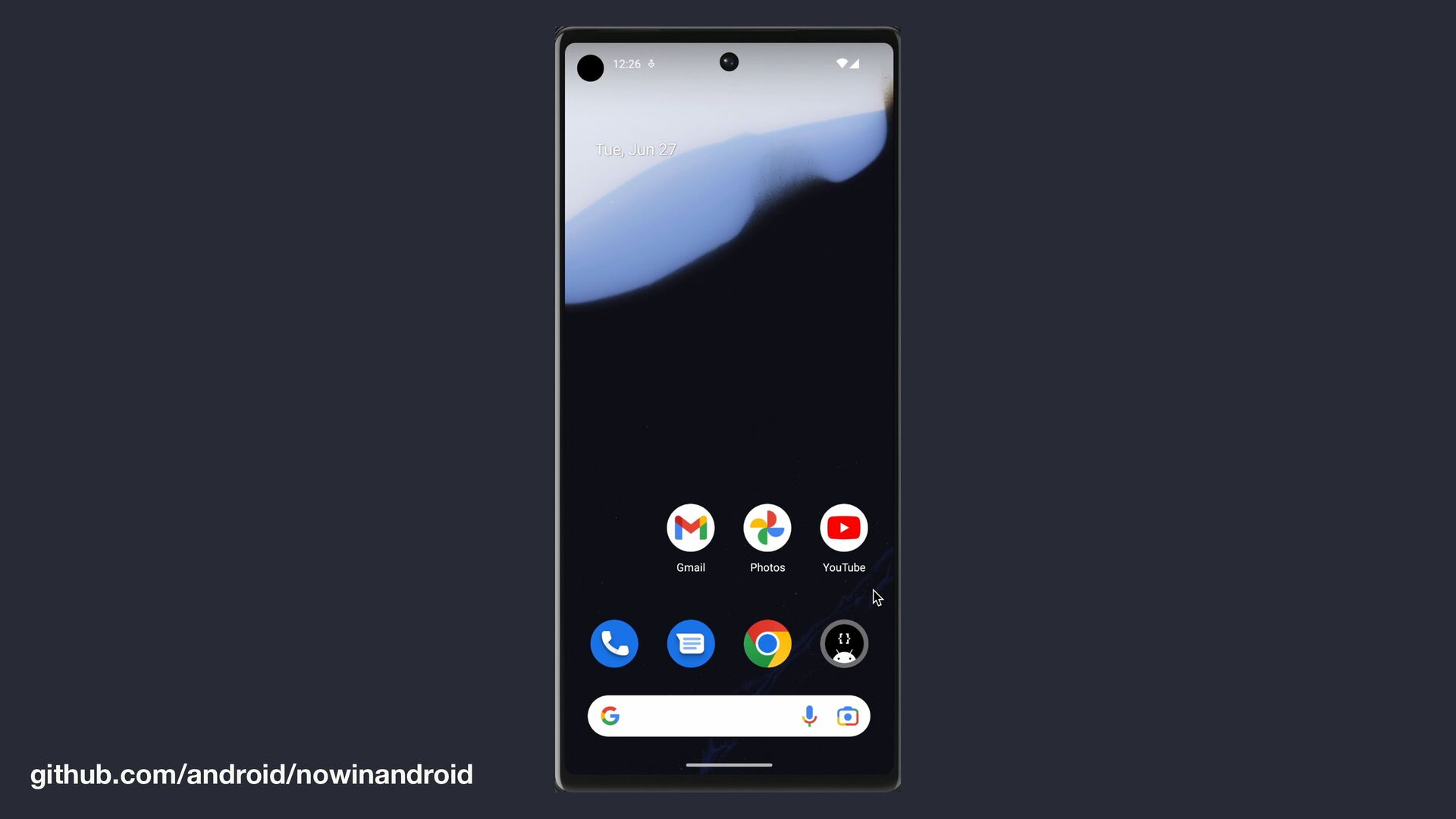

2. github.com/android/nowinandroid

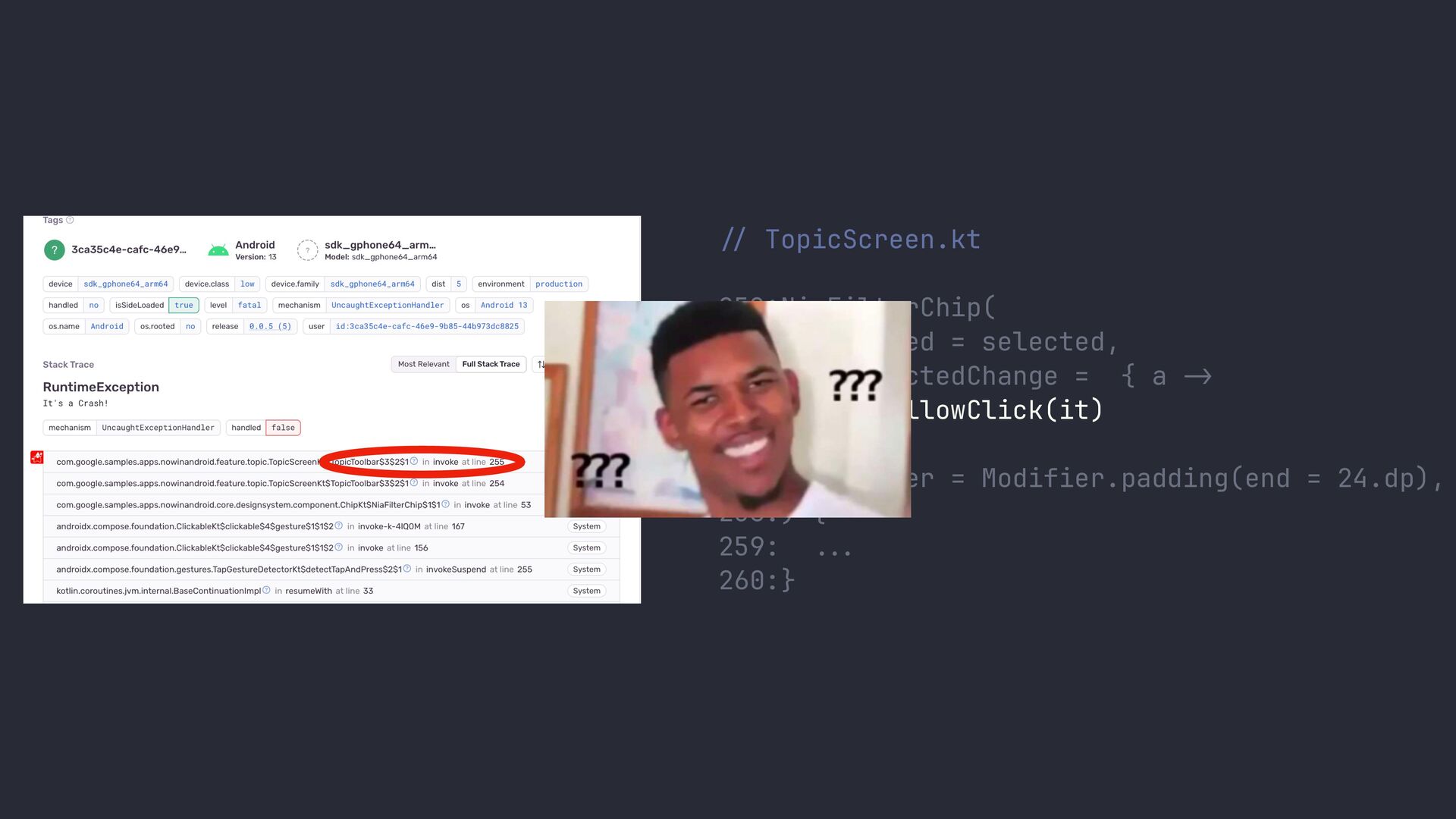

5. // TopicScreen.kt 252 : NiaFilterChip( 253: selected = selected, 254: onSelectedChange = { a -> 255: onFollowClick(it) 256: }, 257: modifier = Modifier.padding(end = 24.dp), 258:) { 259: .. . 260:}

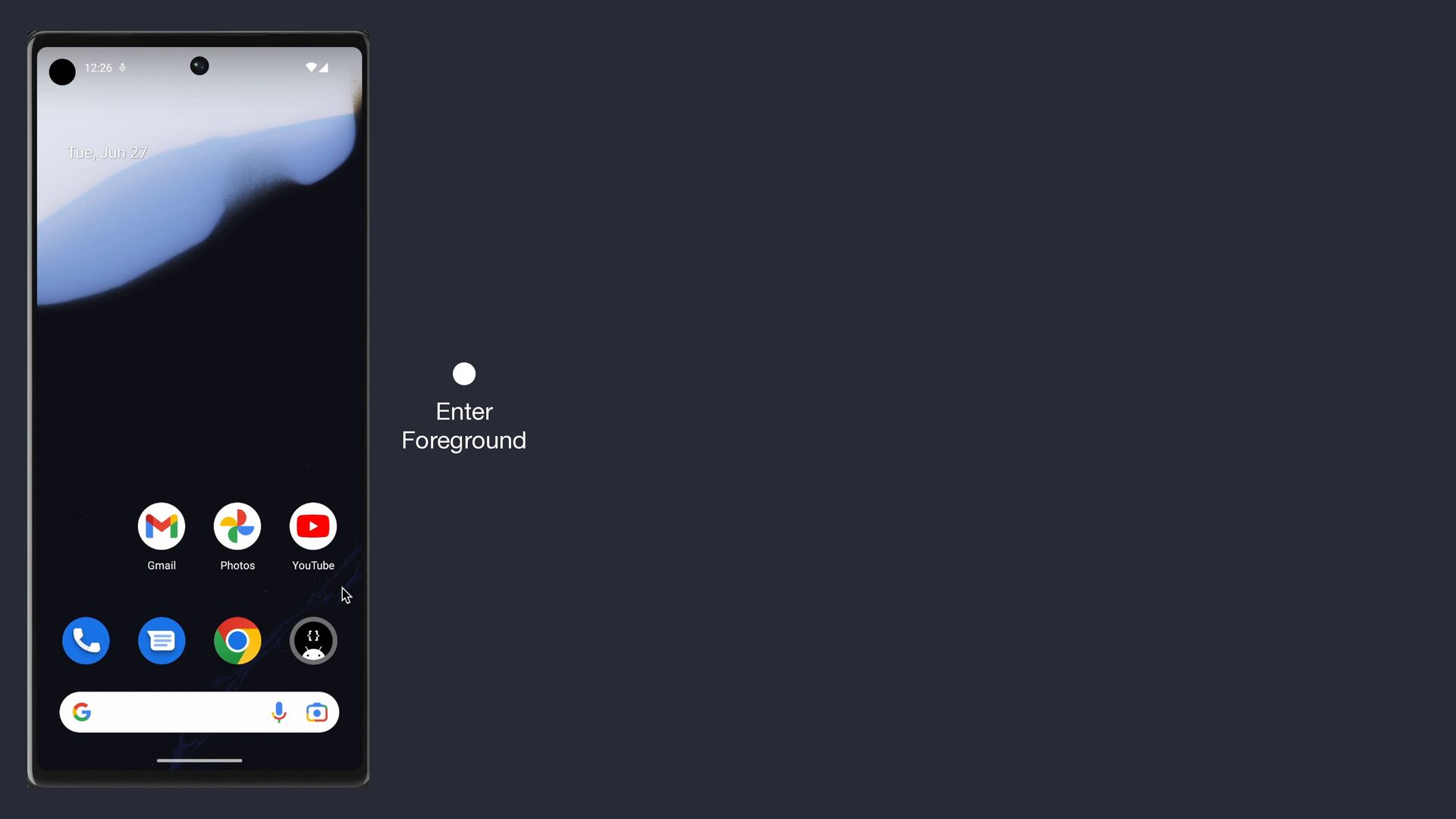

6. Enter Foreground

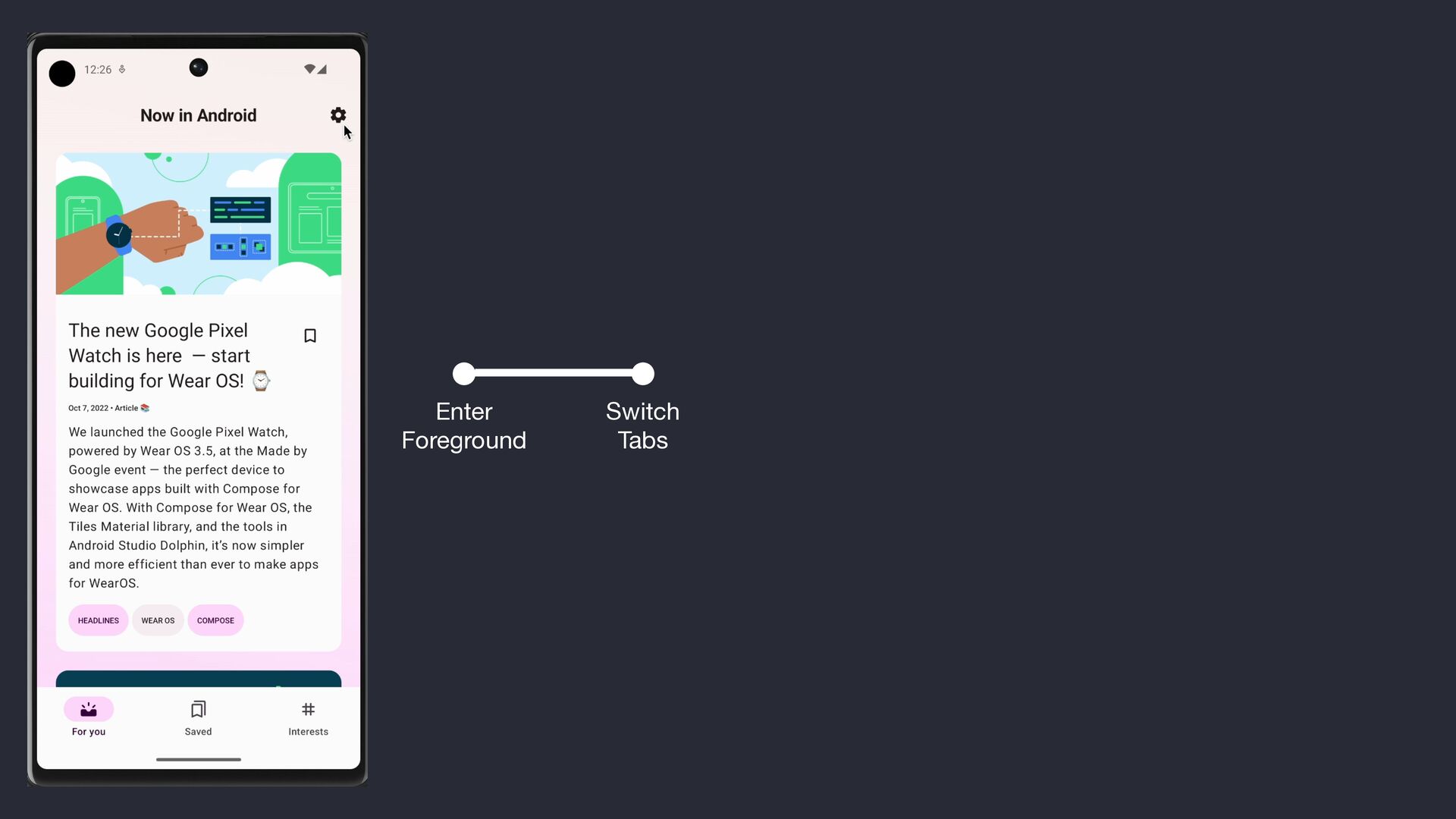

7. Enter Foreground Switch Tabs

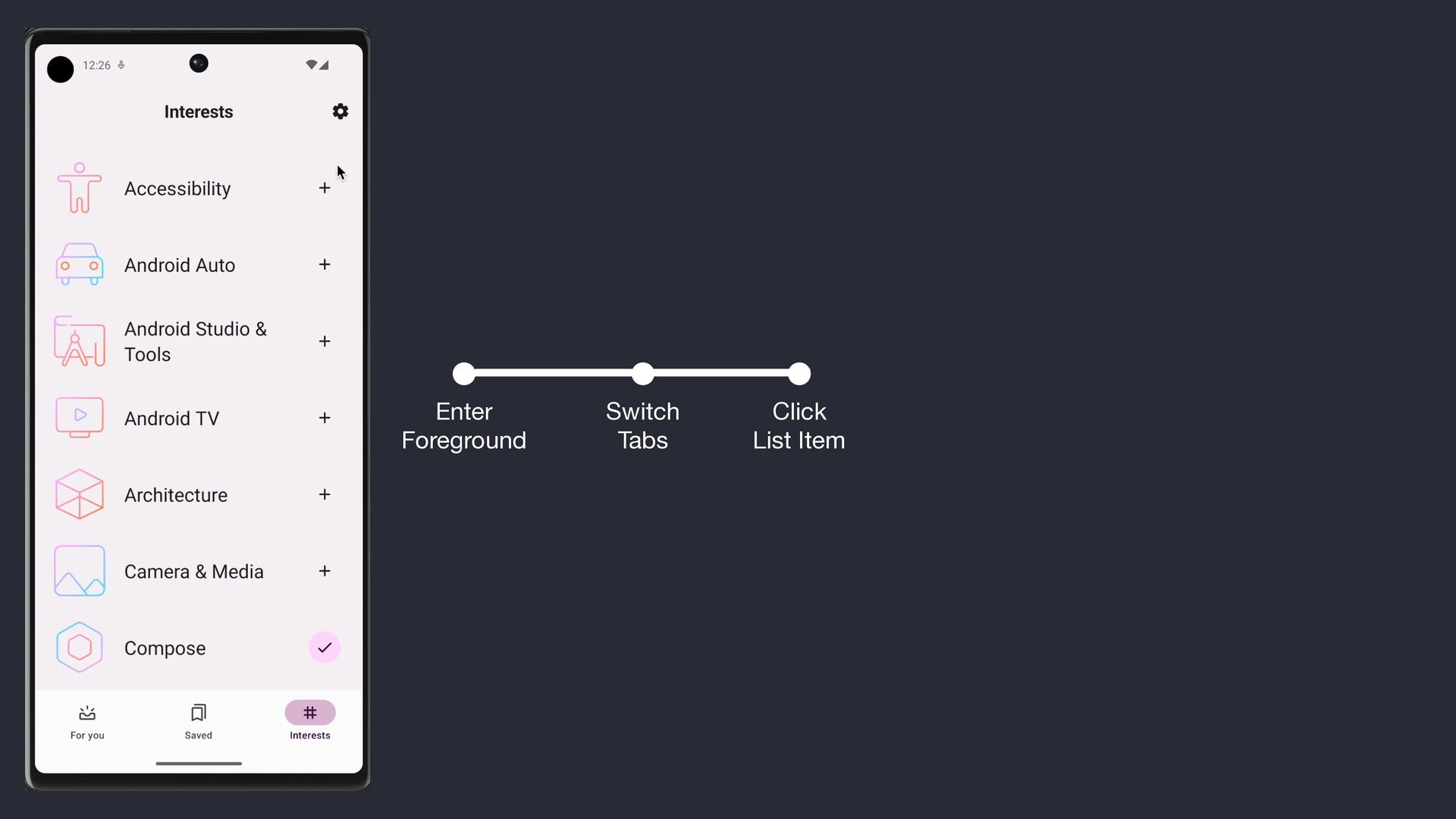

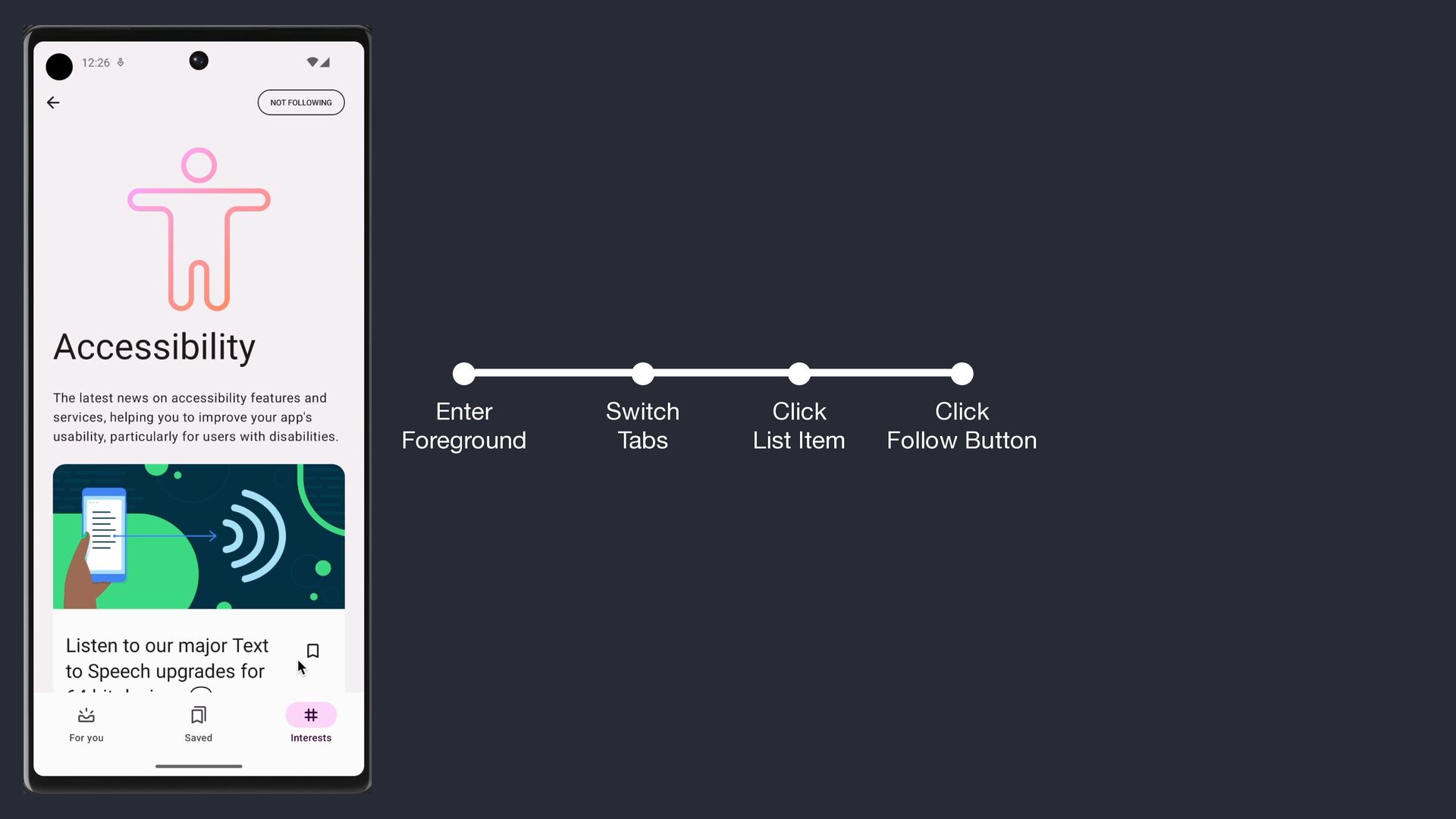

8. Enter Foreground Switch Tabs Click List Item
9. Enter Foreground Switch Tabs Click List Item Click Follow Button

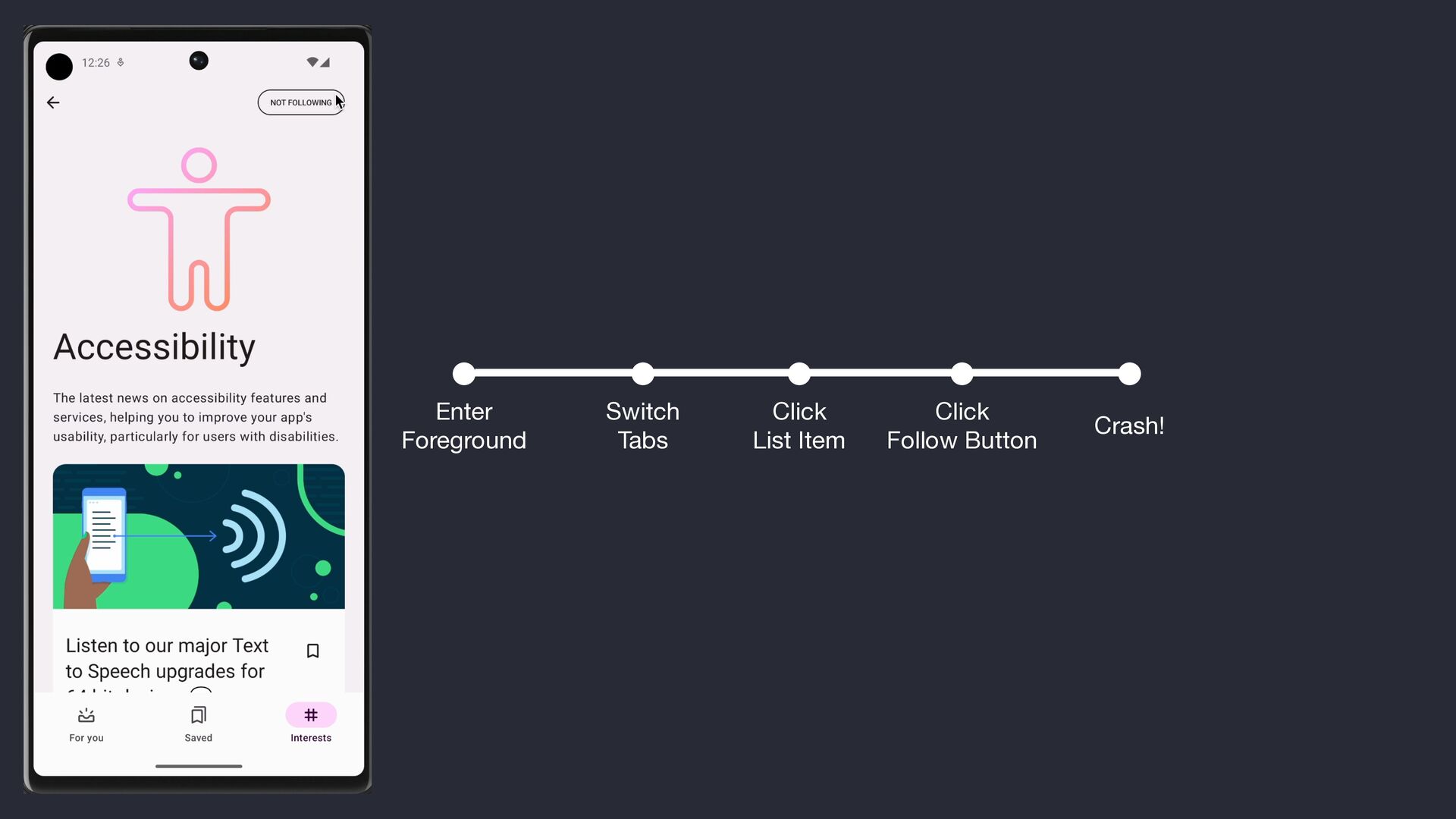

10. Enter Foreground Switch Tabs Click List Item Click Follow Button Crash!

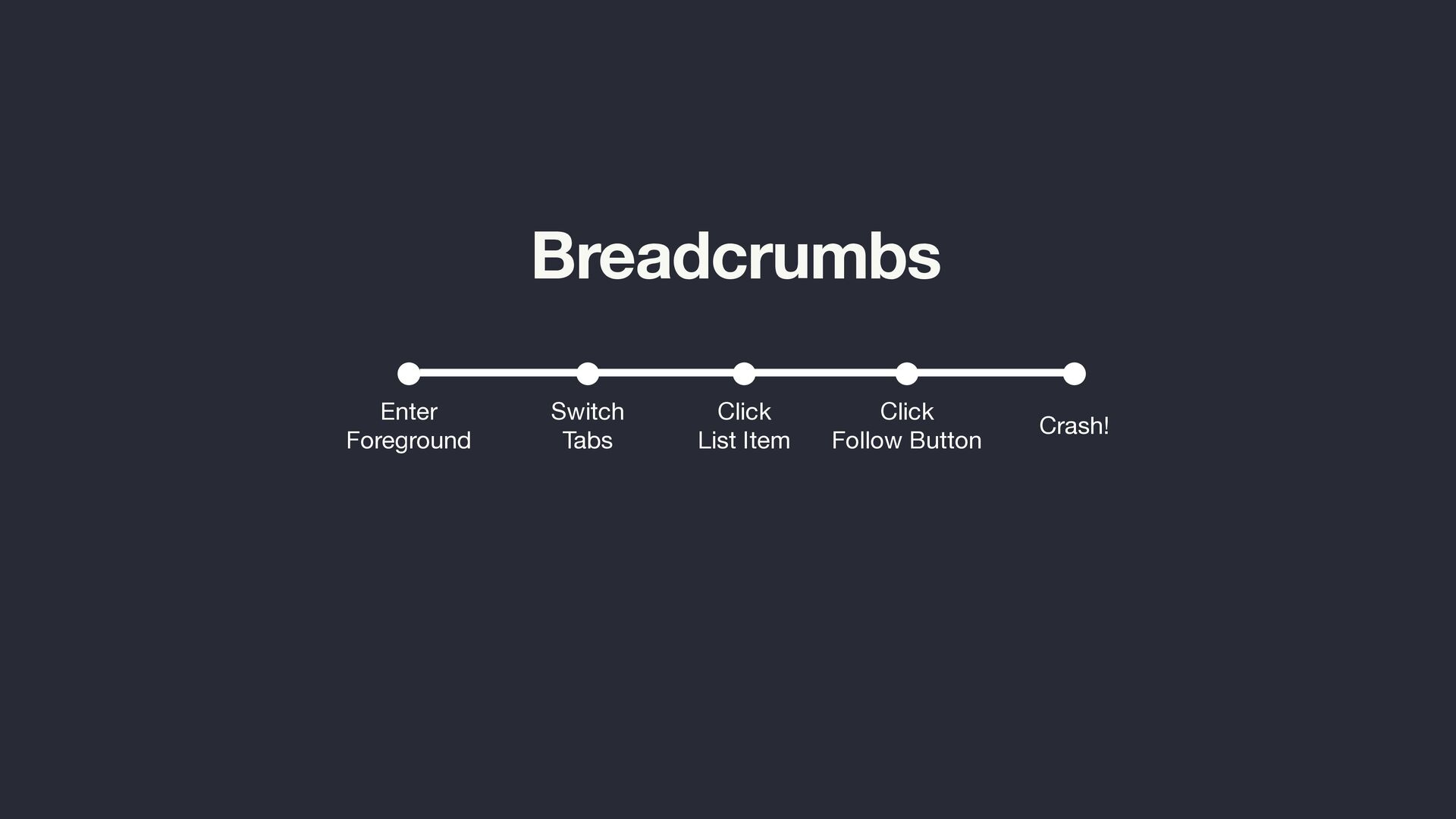

11. Enter Foreground Switch Tabs Click List Item Click Follow Button Crash! Breadcrumbs

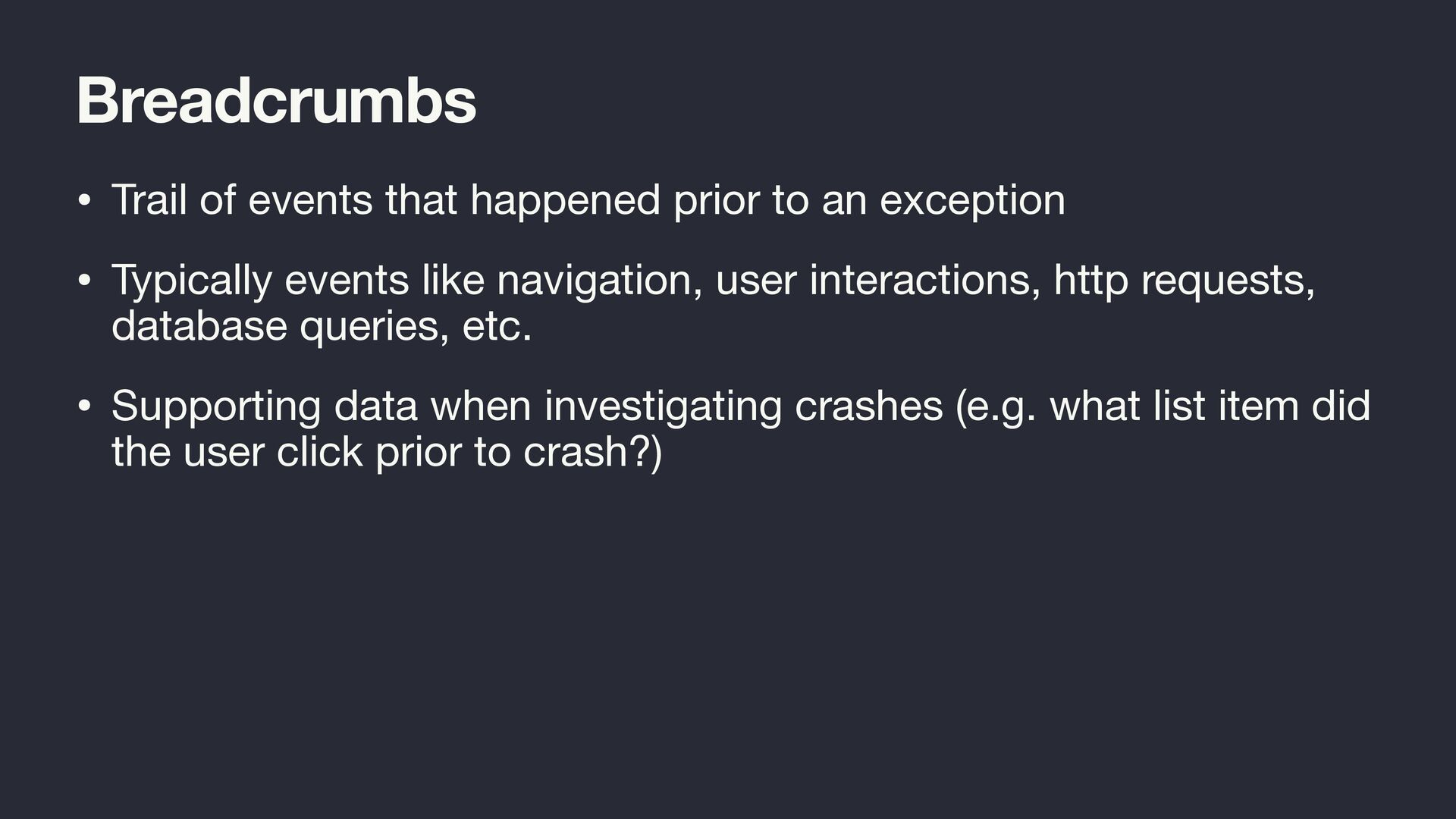

12. Breadcrumbs • Trail of events that happened prior to an exception • Typically events like navigation, user interactions, http requests, database queries, etc. • Supporting data when investigating crashes (e.g. what list item did the user click prior to crash?)

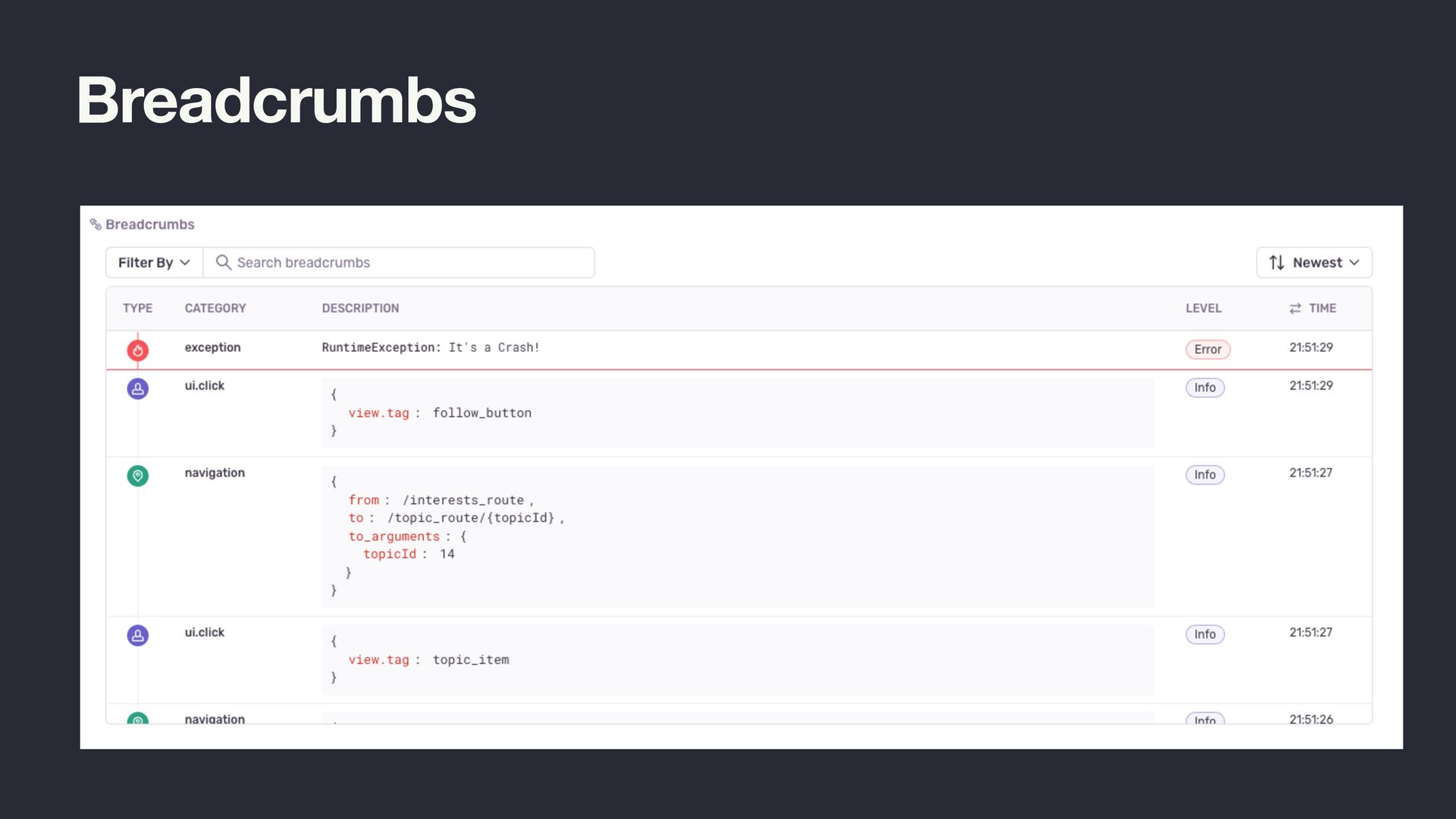

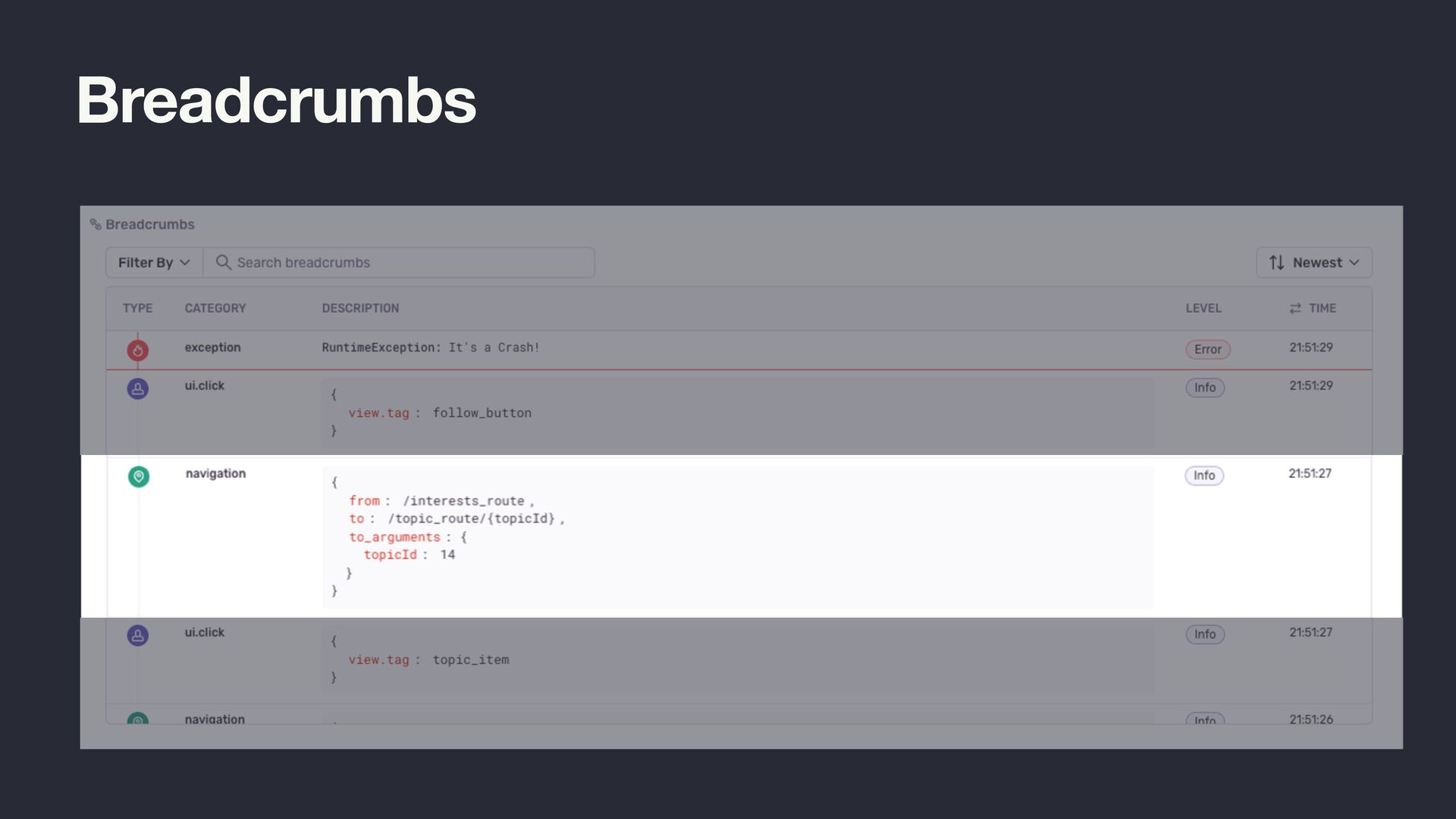

13. Breadcrumbs
14. Breadcrumbs

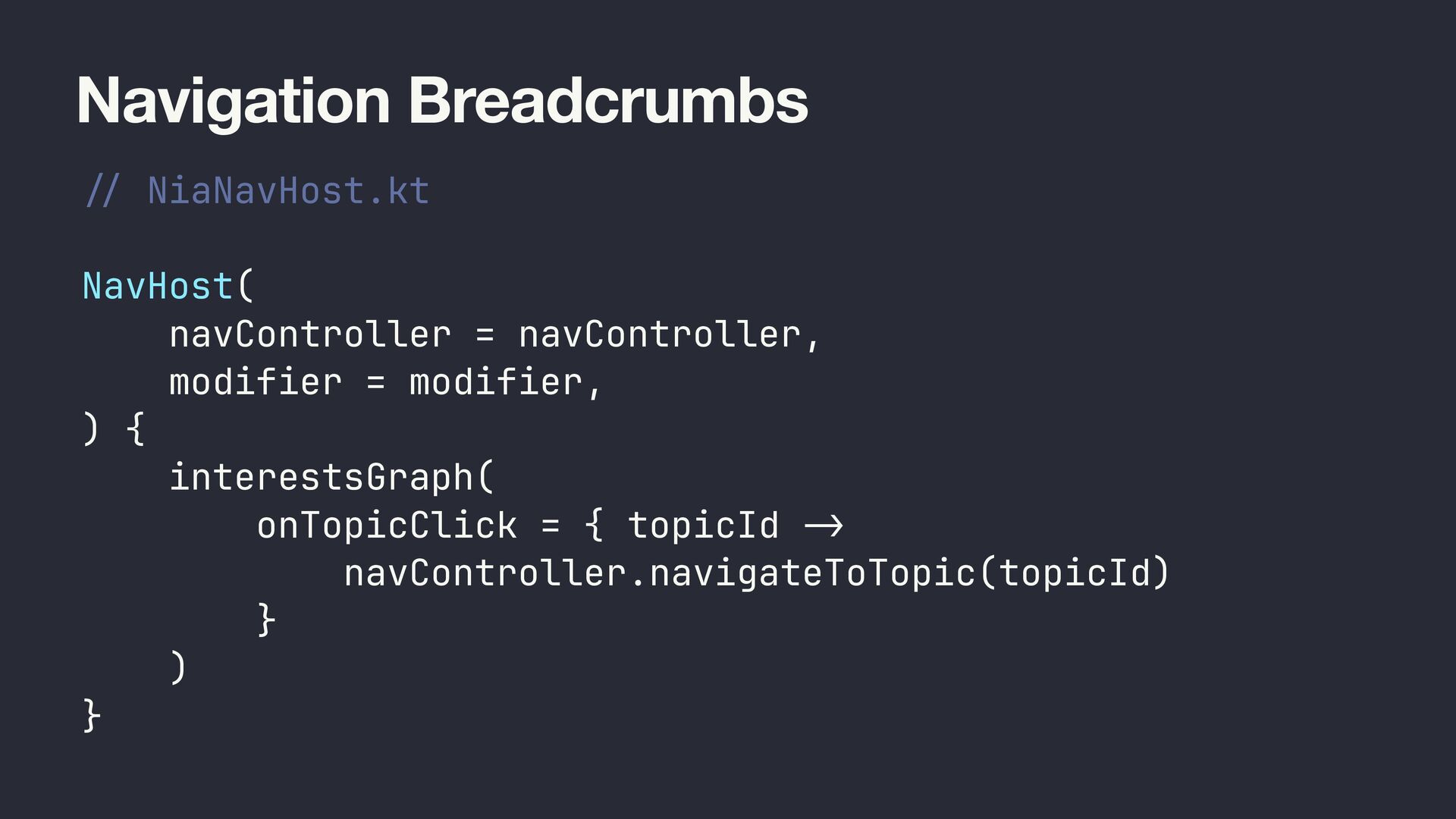

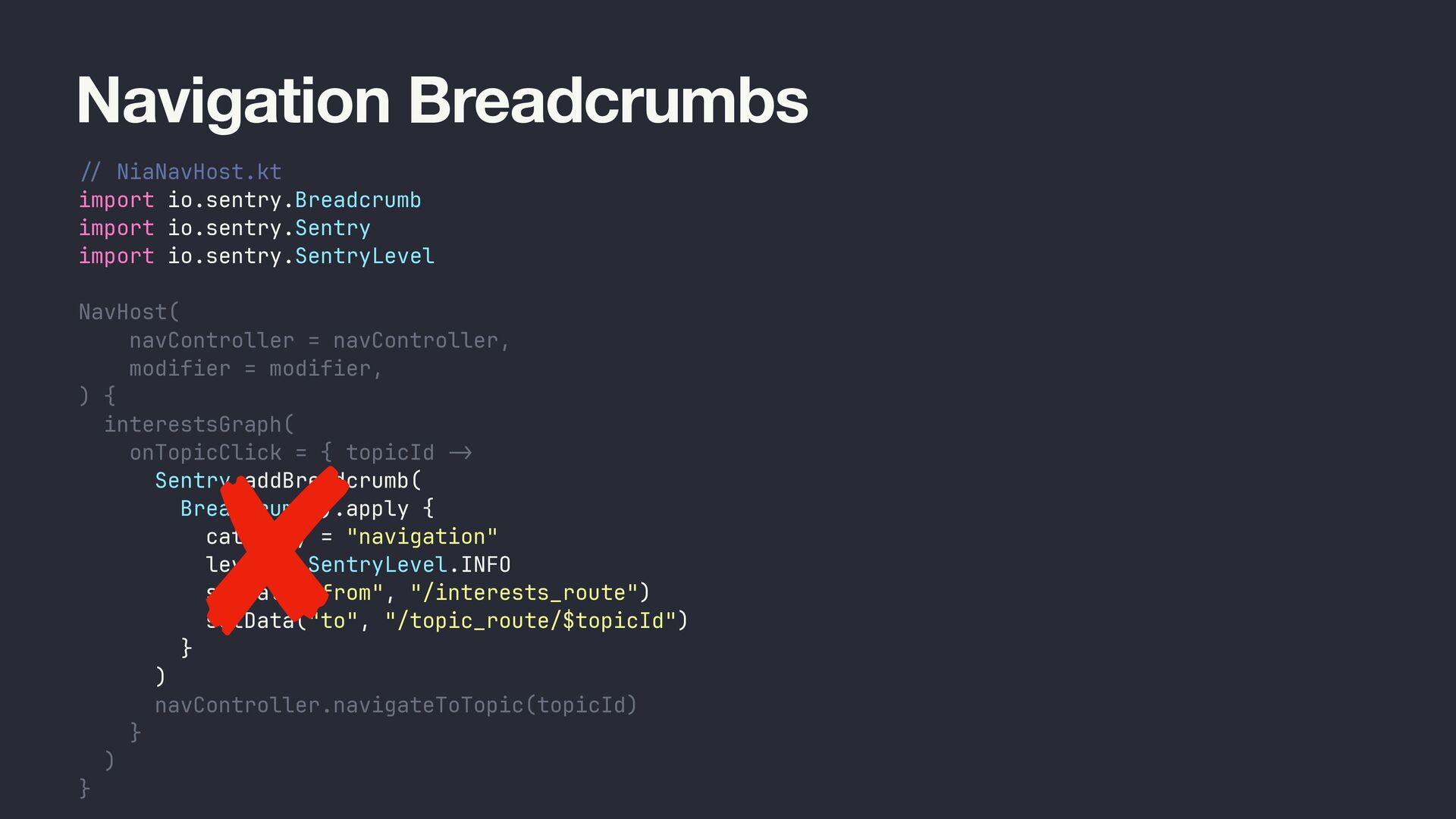

15. Navigation Breadcrumbs / / NiaNavHost.kt NavHost( navController = navController, modifier = modifier, ) { interestsGraph( onTopicClick = { topicId - > navController.navigateToTopic(topicId) } ) }
16. Navigation Breadcrumbs // NiaNavHost.kt import io.sentry.Breadcrumb import io.sentry.Sentry import io.sentry.SentryLevel NavHost( navController = navController, modifier = modifier, ) { interestsGraph( onTopicClick = { topicId -> Sentry.addBreadcrumb( Breadcrumb().apply { category = "navigation" level = SentryLevel.INFO setData("from", "/interests_route") setData("to", "/topic_route/$topicId") } ) navController.navigateToTopic(topicId) } ) }

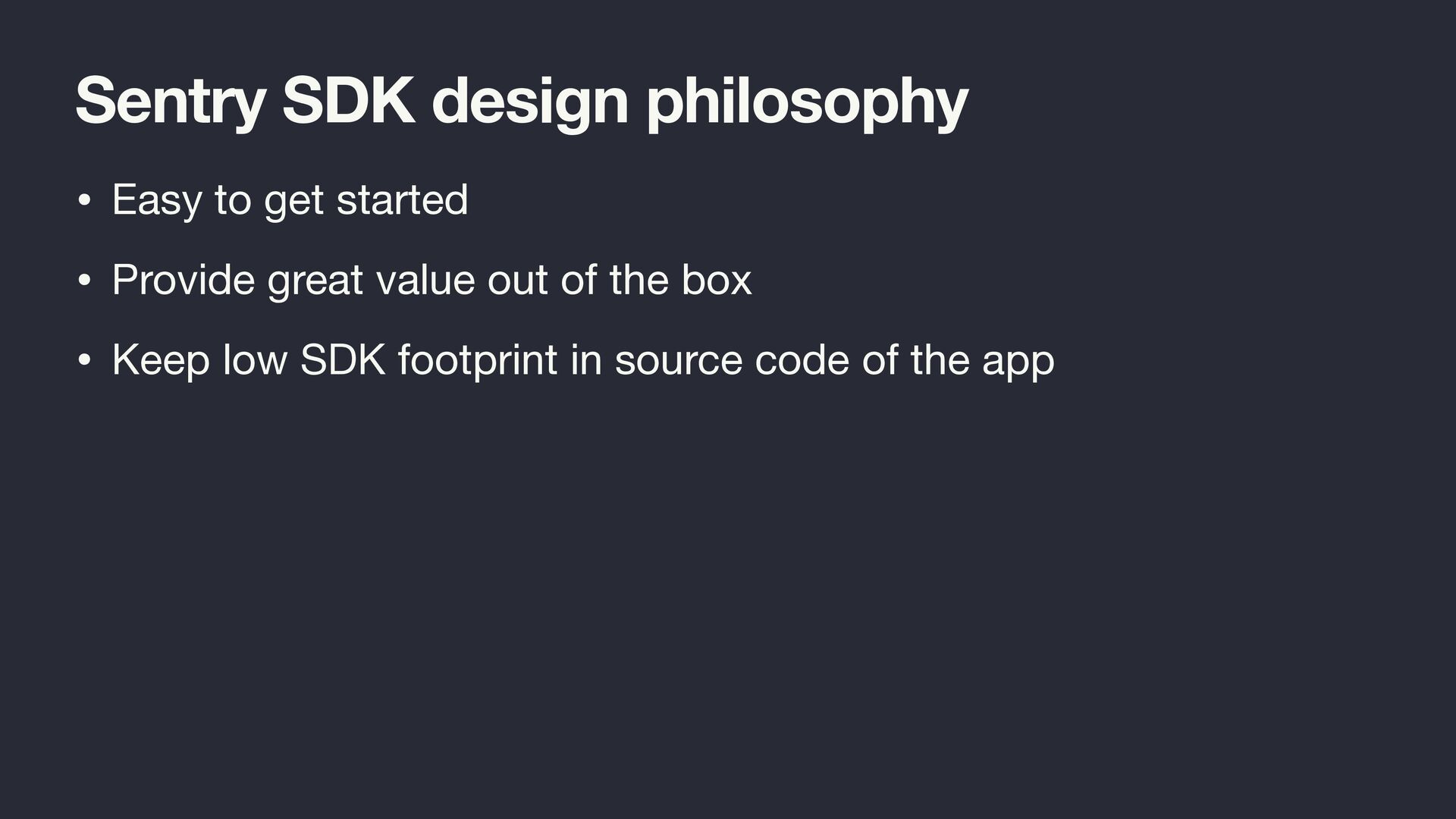

17. Sentry SDK design philosophy • Easy to get started • Provide great value out of the box • Keep low SDK footprint in source code of the app
18. How can we automate this for our users?
19. Navigation Breadcrumbs

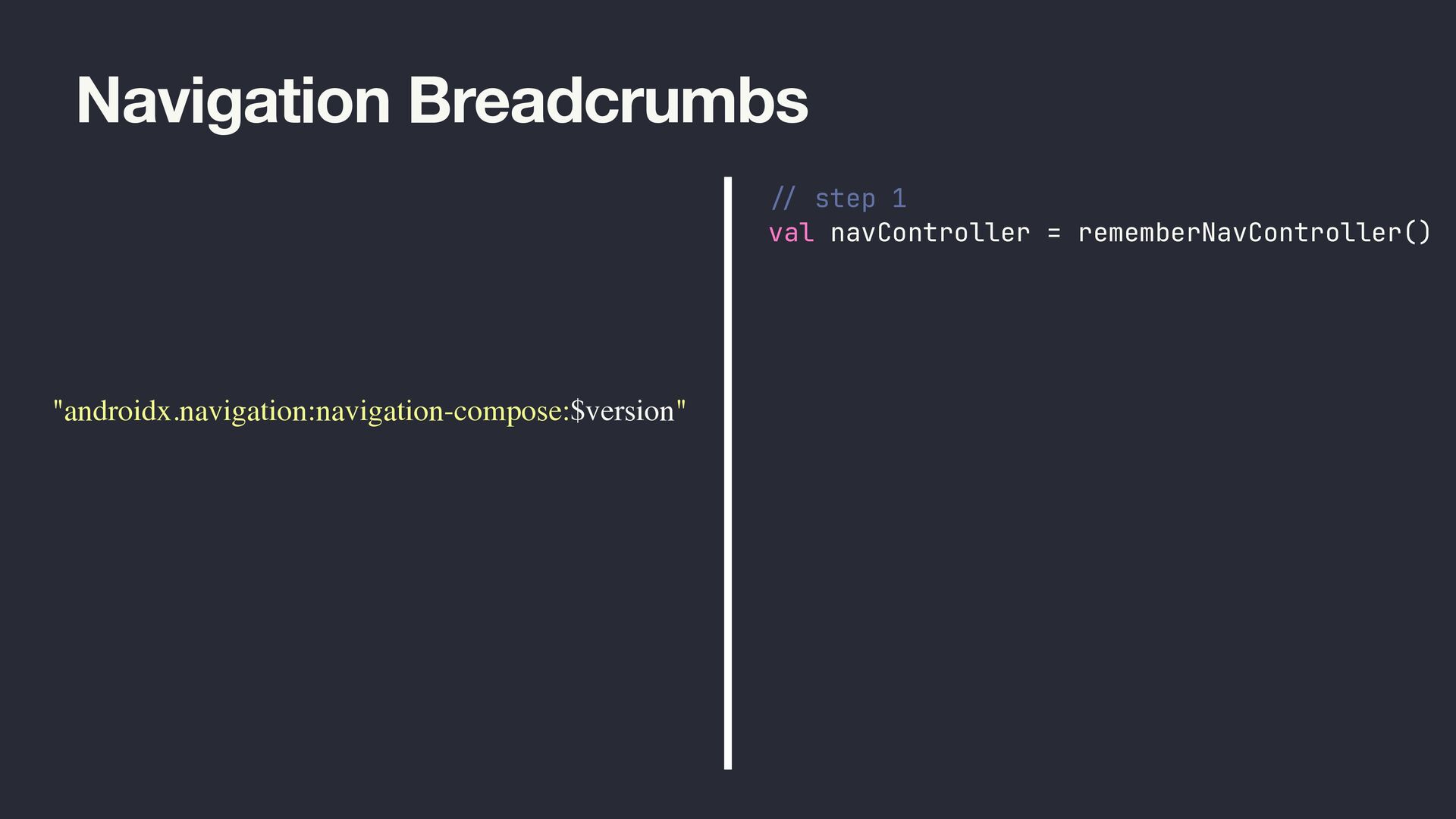

20. Navigation Breadcrumbs "androidx.navigation:navigation-compose:$version" // step 1 val navController = rememberNavController()

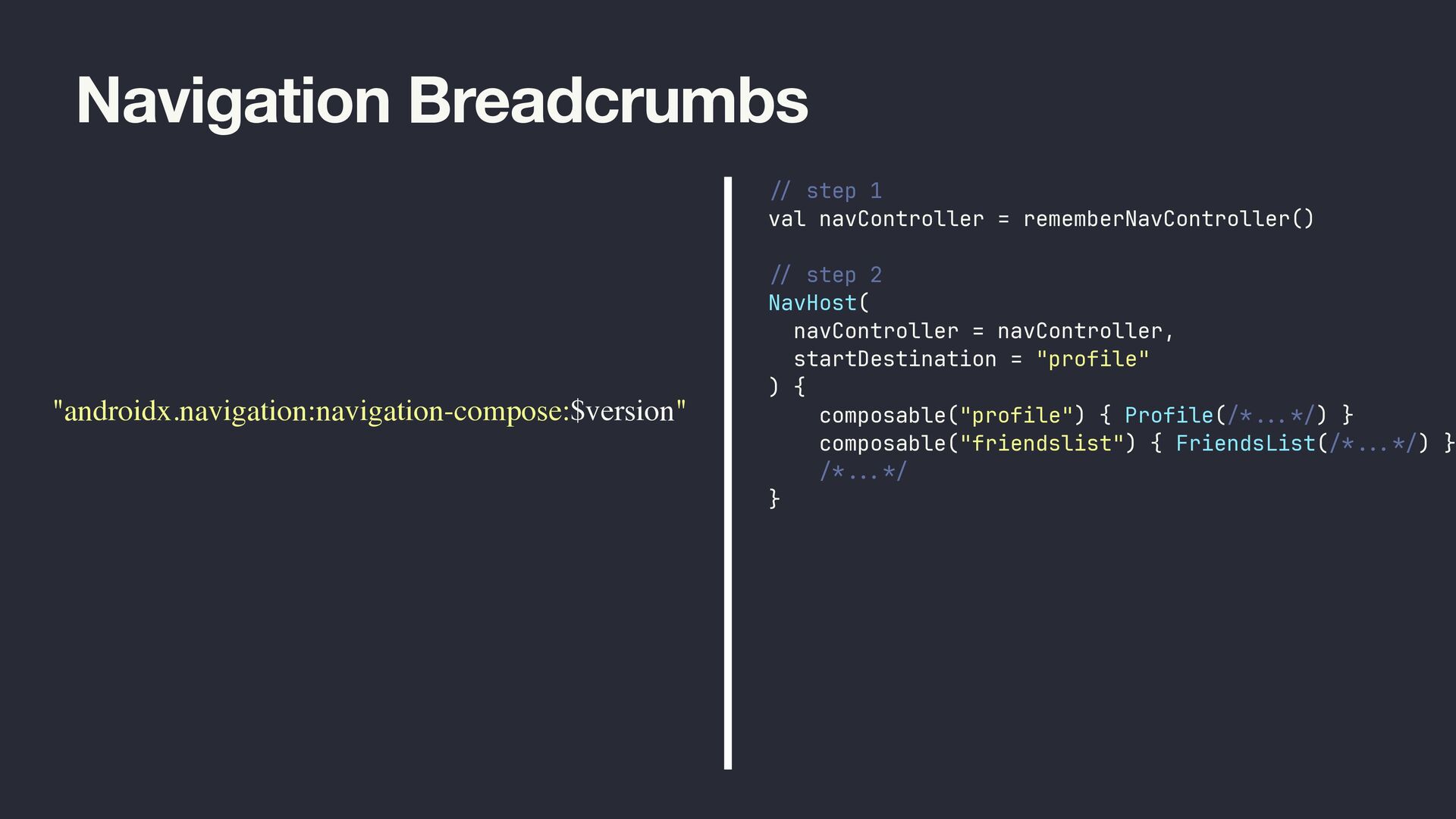

21. Navigation Breadcrumbs "androidx.navigation:navigation-compose:$version" // step 1 val navController = rememberNavController() // step 2 NavHost( navController = navController, startDestination = "profile" ) { composable("profile") { Profile(/* . .. */) } composable("friendslist") { FriendsList(/* . .. */) } /* ... */ }

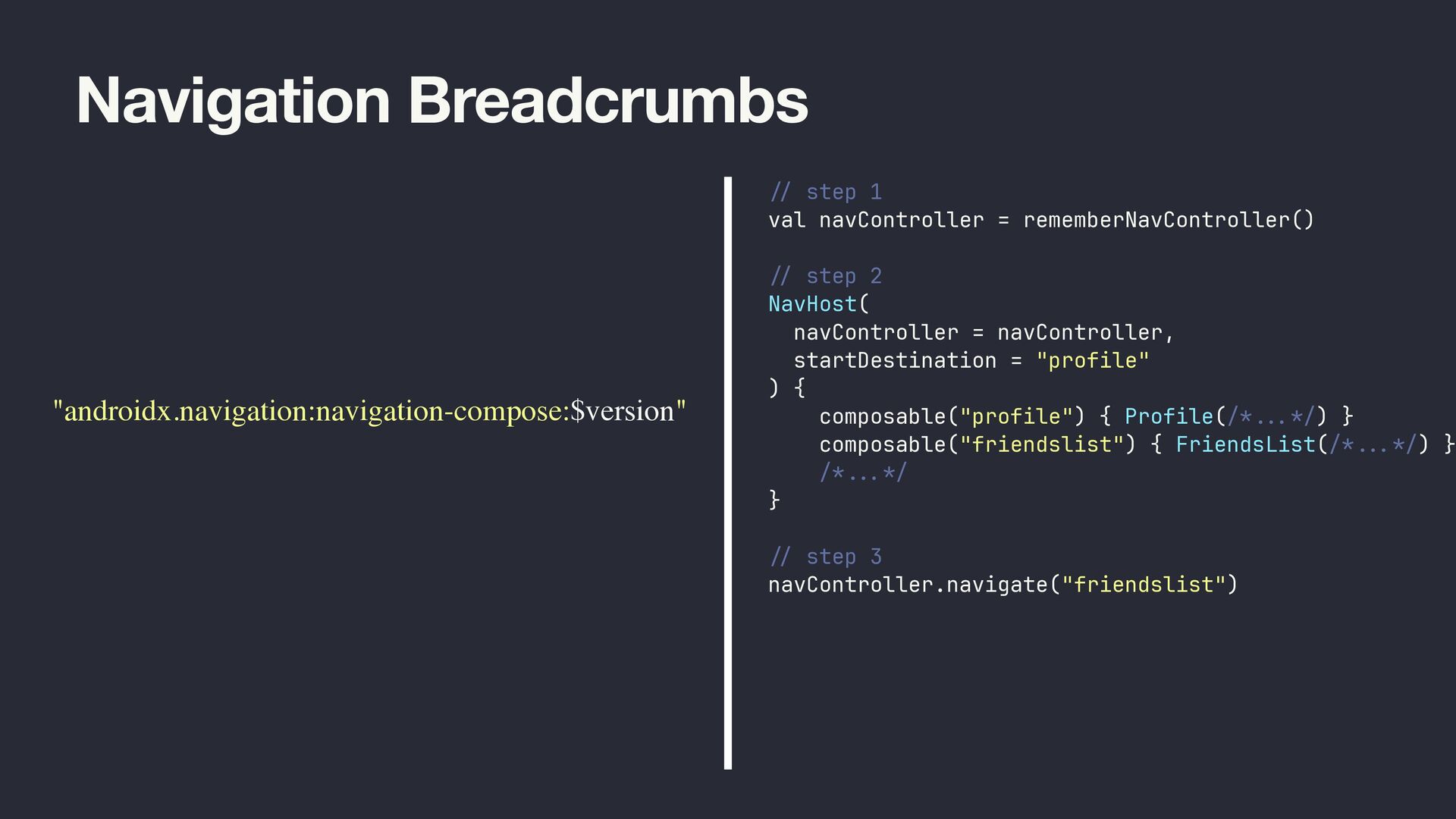

22. Navigation Breadcrumbs "androidx.navigation:navigation-compose:$version" // step 1 val navController = rememberNavController() // step 2 NavHost( navController = navController, startDestination = "profile" ) { composable("profile") { Profile(/* . .. */) } composable("friendslist") { FriendsList(/* . .. */) } /* ... */ } // step 3 navController.navigate("friendslist")

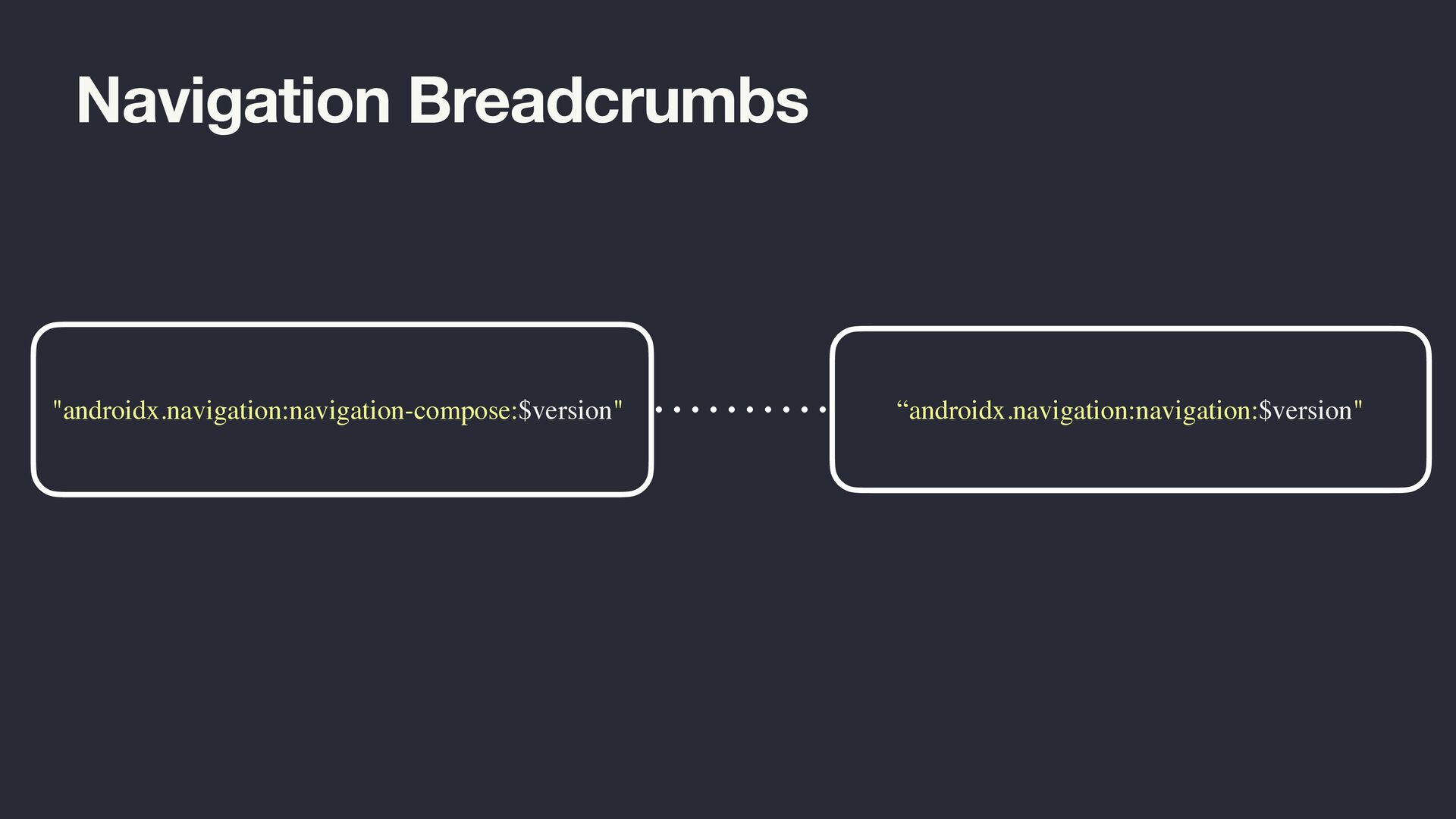

23. Navigation Breadcrumbs "androidx.navigation:navigation-compose:$version" “androidx.navigation:navigation:$version"

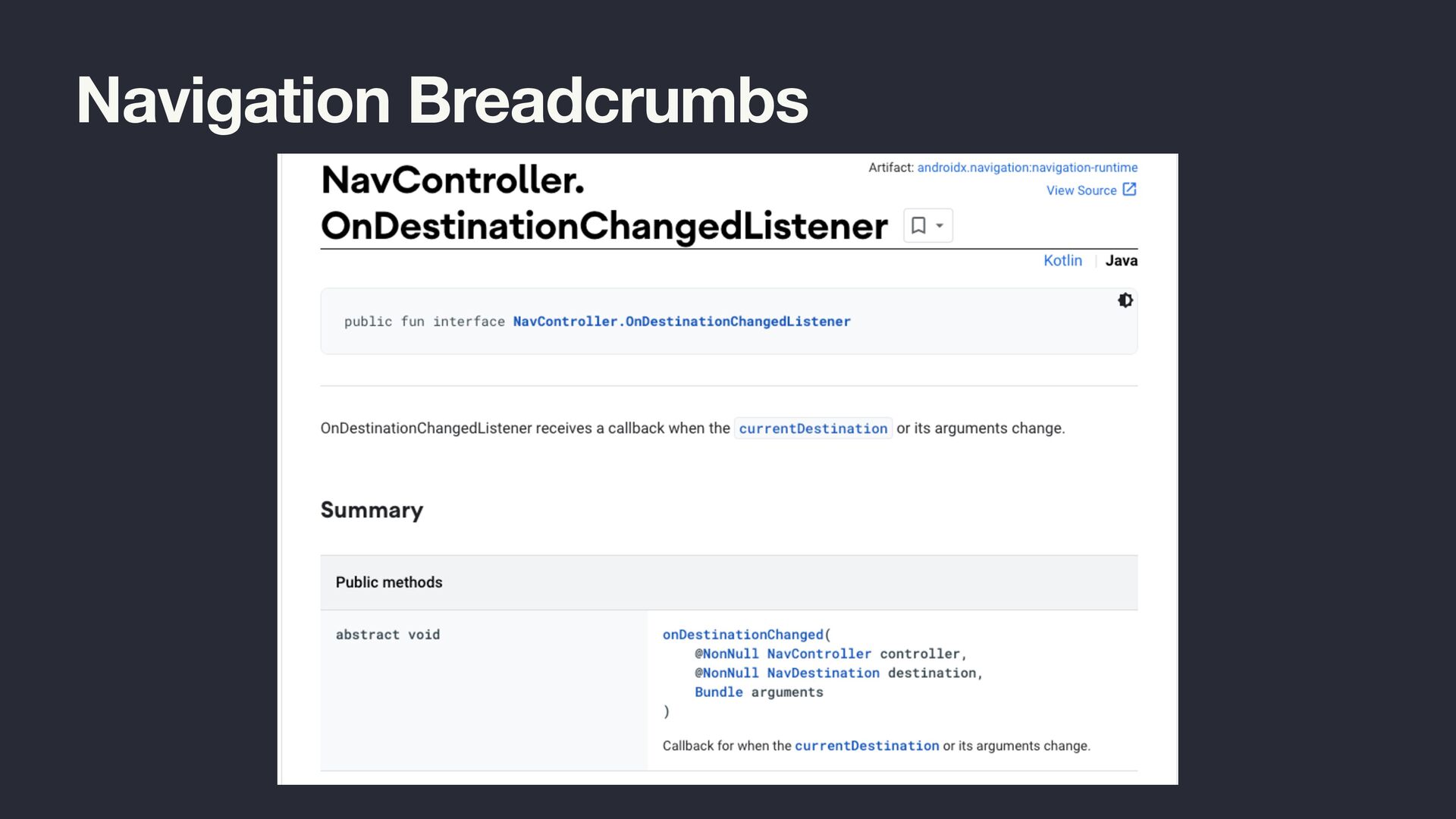

24. Navigation Breadcrumbs
25. Navigation Listener

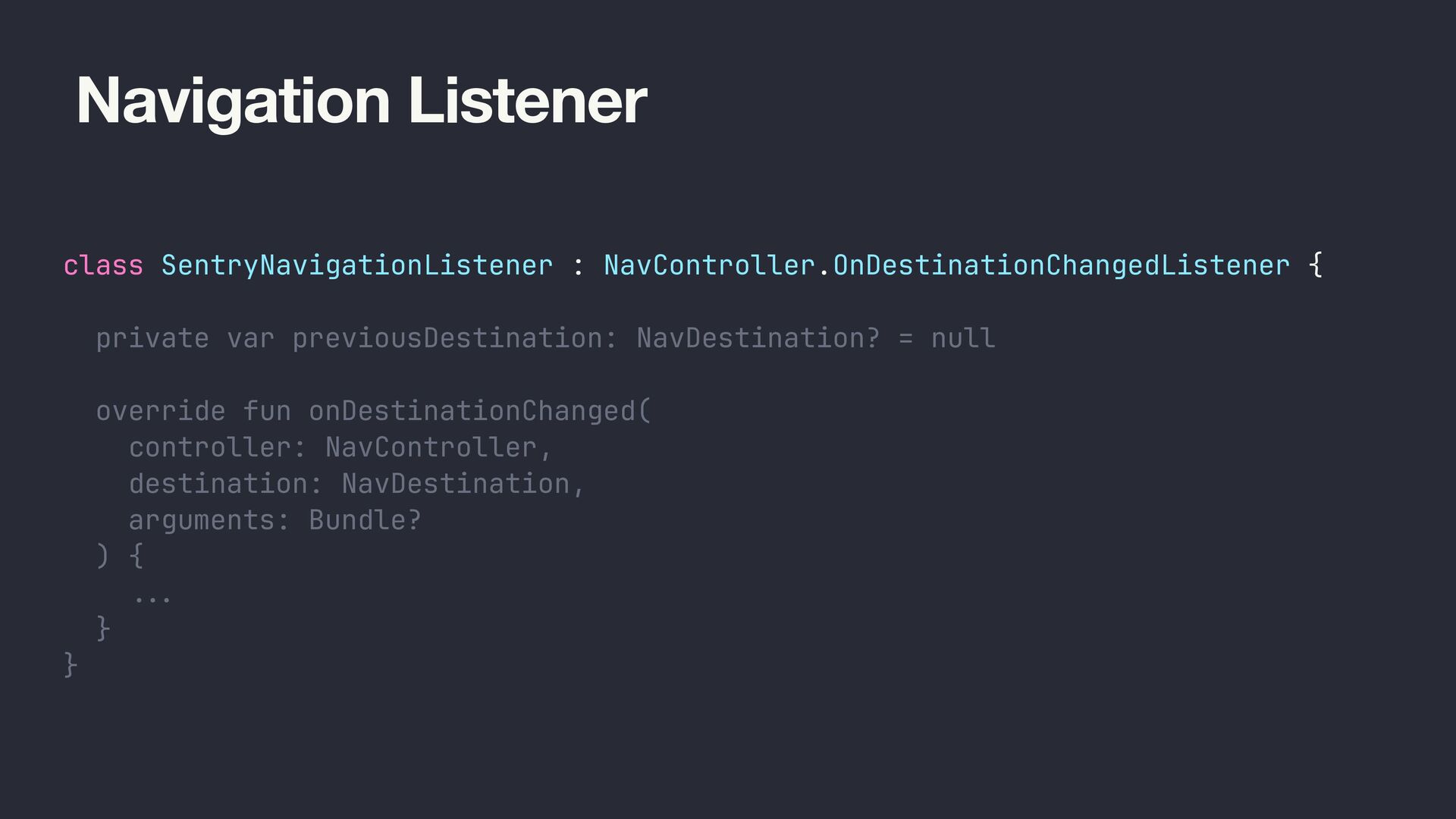

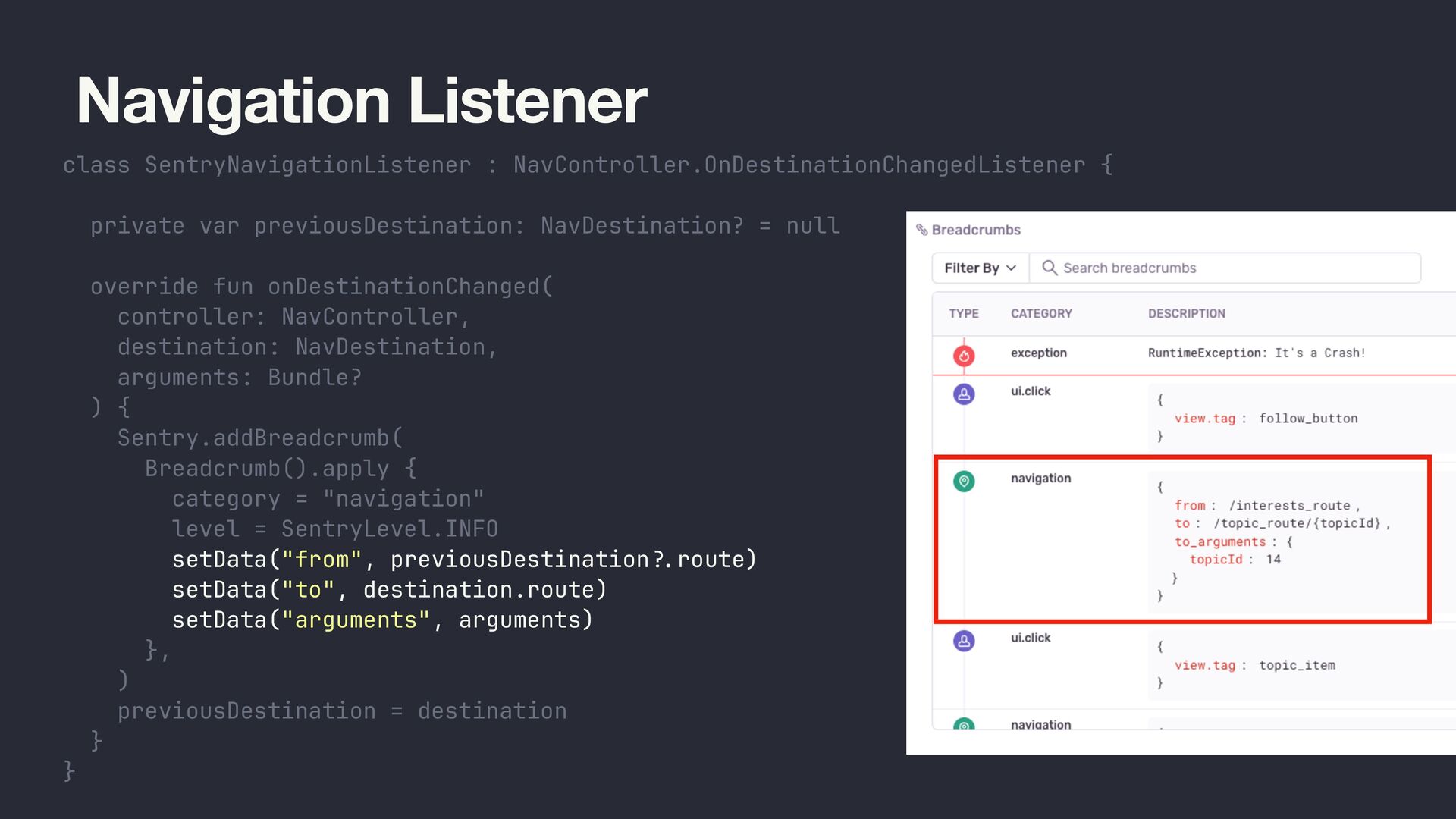

26. Navigation Listener class SentryNavigationListener : NavController.OnDestinationChangedListener { private var previousDestination: NavDestination? = null override fun onDestinationChanged( controller: NavController, destination: NavDestination, arguments: Bundle? ) { ... } }

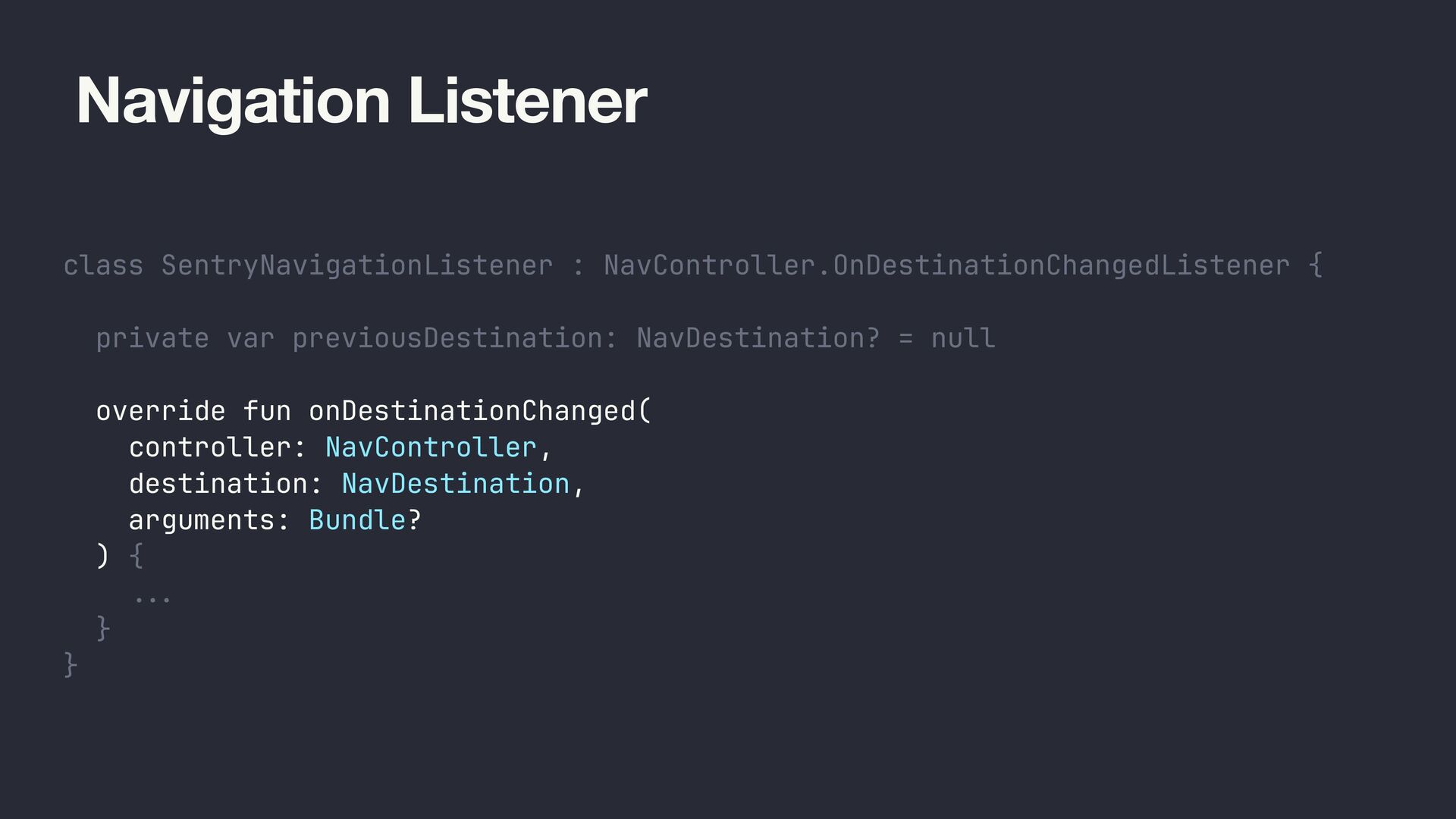

27. Navigation Listener class SentryNavigationListener : NavController.OnDestinationChangedListener { private var previousDestination: NavDestination? = null override fun onDestinationChanged( controller: NavController, destination: NavDestination, arguments: Bundle? ) { ... } }
28. Navigation Listener class SentryNavigationListener : NavController.OnDestinationChangedListener { private var previousDestination: NavDestination? = null override fun onDestinationChanged( controller: NavController, destination: NavDestination, arguments: Bundle? ) { ... } }

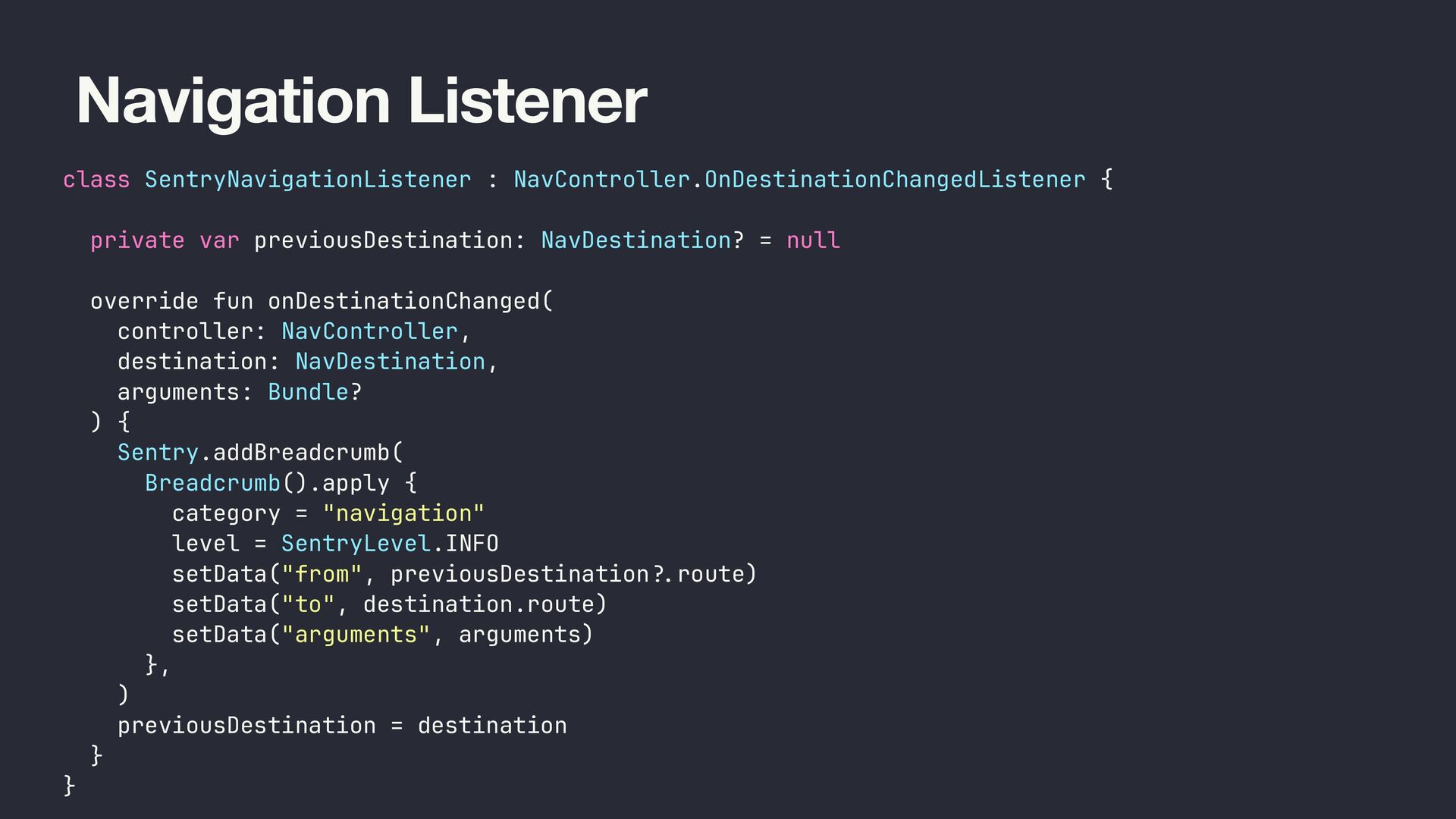

29. Navigation Listener class SentryNavigationListener : NavController.OnDestinationChangedListener { private var previousDestination: NavDestination? = null override fun onDestinationChanged( controller: NavController, destination: NavDestination, arguments: Bundle? ) { Sentry.addBreadcrumb( Breadcrumb().apply { category = "navigation" level = SentryLevel.INFO setData("from", previousDestination ?. route) setData("to", destination.route) setData("arguments", arguments) }, ) previousDestination = destination } }
30. Navigation Listener class SentryNavigationListener : NavController.OnDestinationChangedListener { private var previousDestination: NavDestination? = null override fun onDestinationChanged( controller: NavController, destination: NavDestination, arguments: Bundle? ) { Sentry.addBreadcrumb( Breadcrumb().apply { category = "navigation" level = SentryLevel.INFO setData("from", previousDestination ?. route) setData("to", destination.route) setData("arguments", arguments) }, ) previousDestination = destination } }

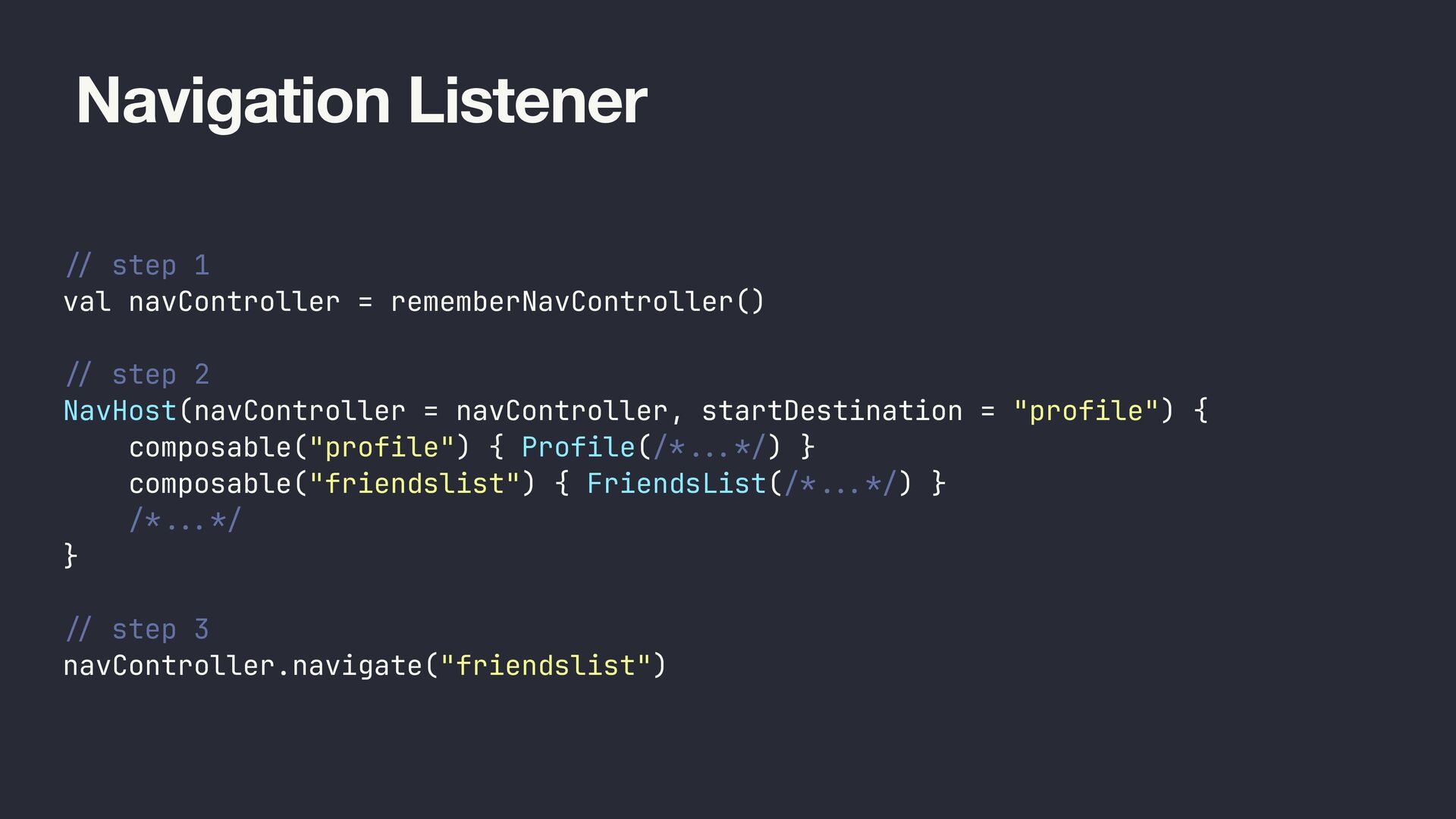

31. Navigation Listener / / step 1 val navController = rememberNavController() / / step 2 NavHost(navController = navController, startDestination = "profile") { composable("profile") { Profile(/* ... */) } composable("friendslist") { FriendsList(/* ... */) } /* .. . */ } / / step 3 navController.navigate("friendslist")

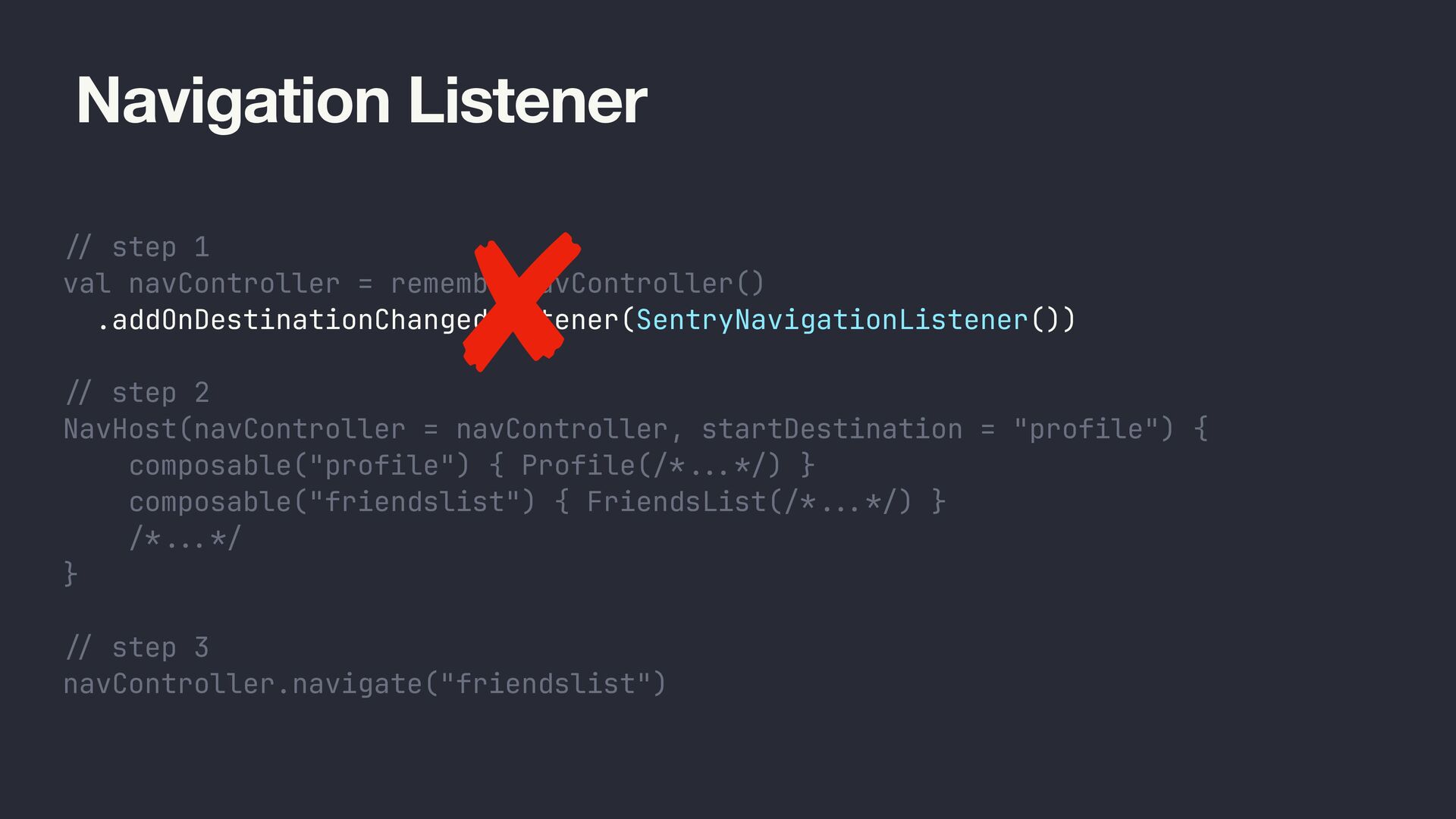

32. Navigation Listener / / step 1 val navController = rememberNavController() .addOnDestinationChangedListener(SentryNavigationListener()) / / step 2 NavHost(navController = navController, startDestination = "profile") { composable("profile") { Profile(/* ... */) } composable("friendslist") { FriendsList(/* ... */) } /* .. . */ } / / step 3 navController.navigate("friendslist")
33. Navigation Listener Lifecycle

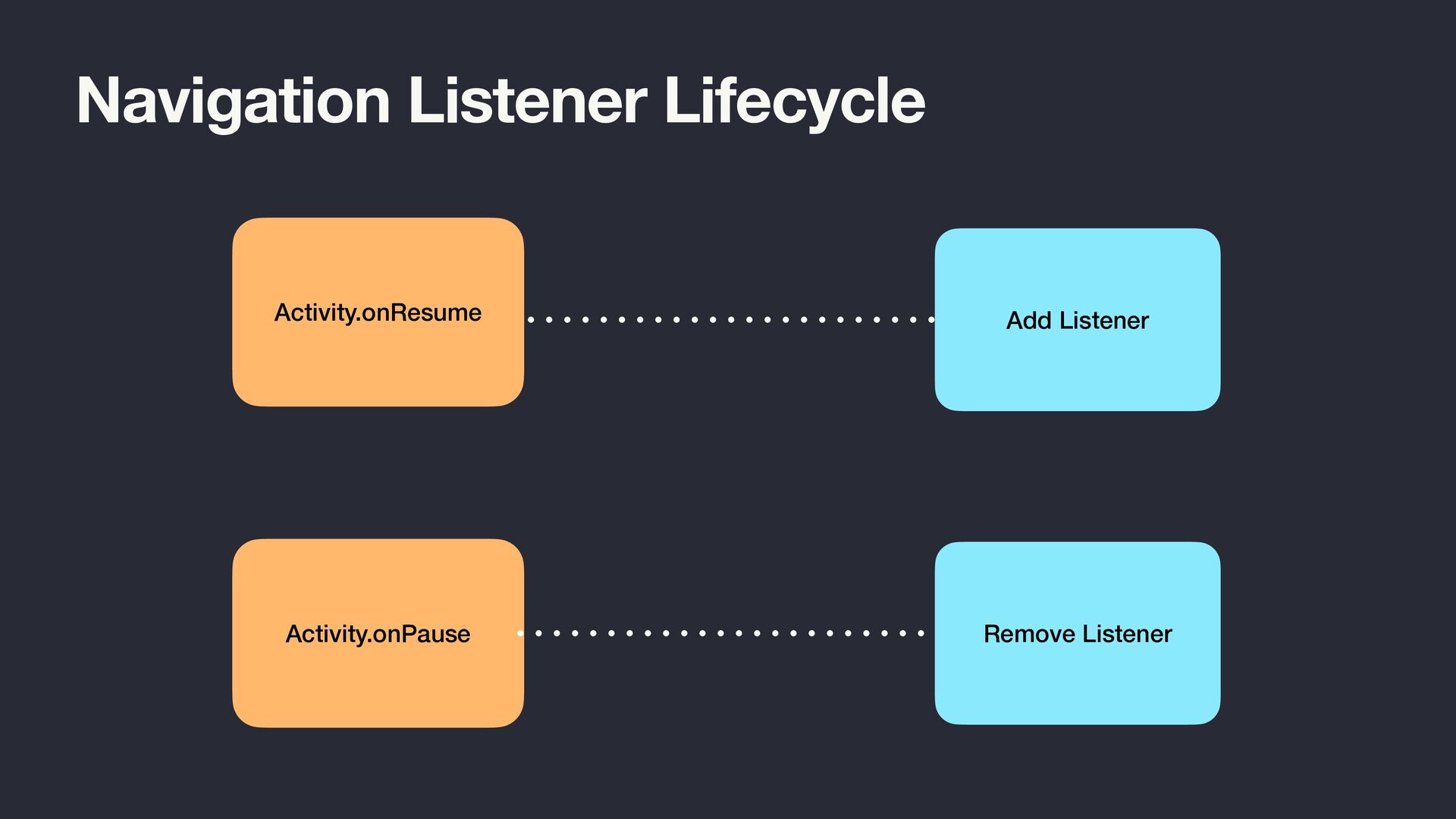

34. Navigation Listener Lifecycle Activity.onResume Activity.onPause Remove Listener Add Listener

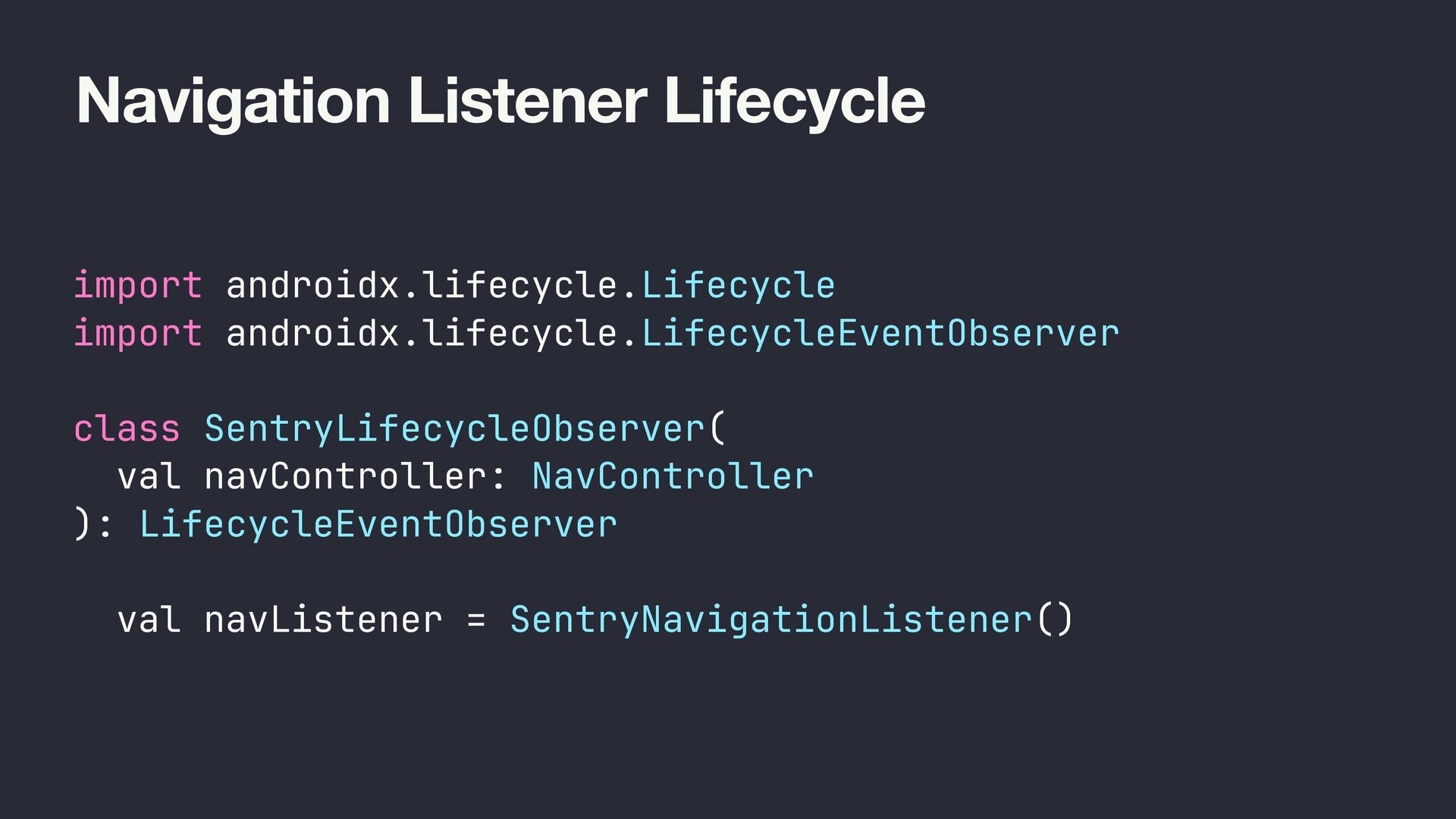

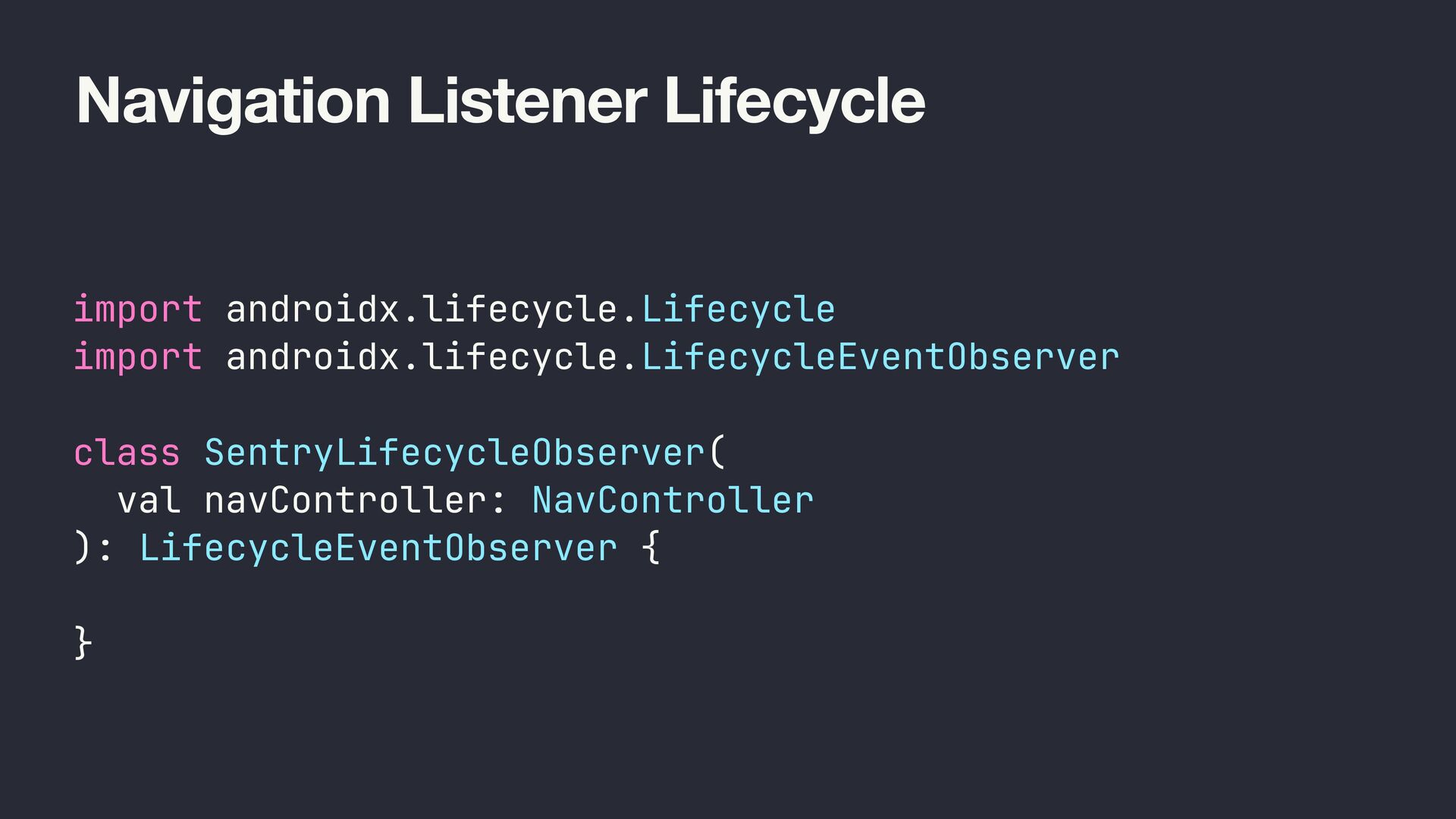

35. Navigation Listener Lifecycle import androidx.lifecycle.Lifecycle import androidx.lifecycle.LifecycleEventObserver class SentryLifecycleObserver( val navController: NavController ): LifecycleEventObserver { }

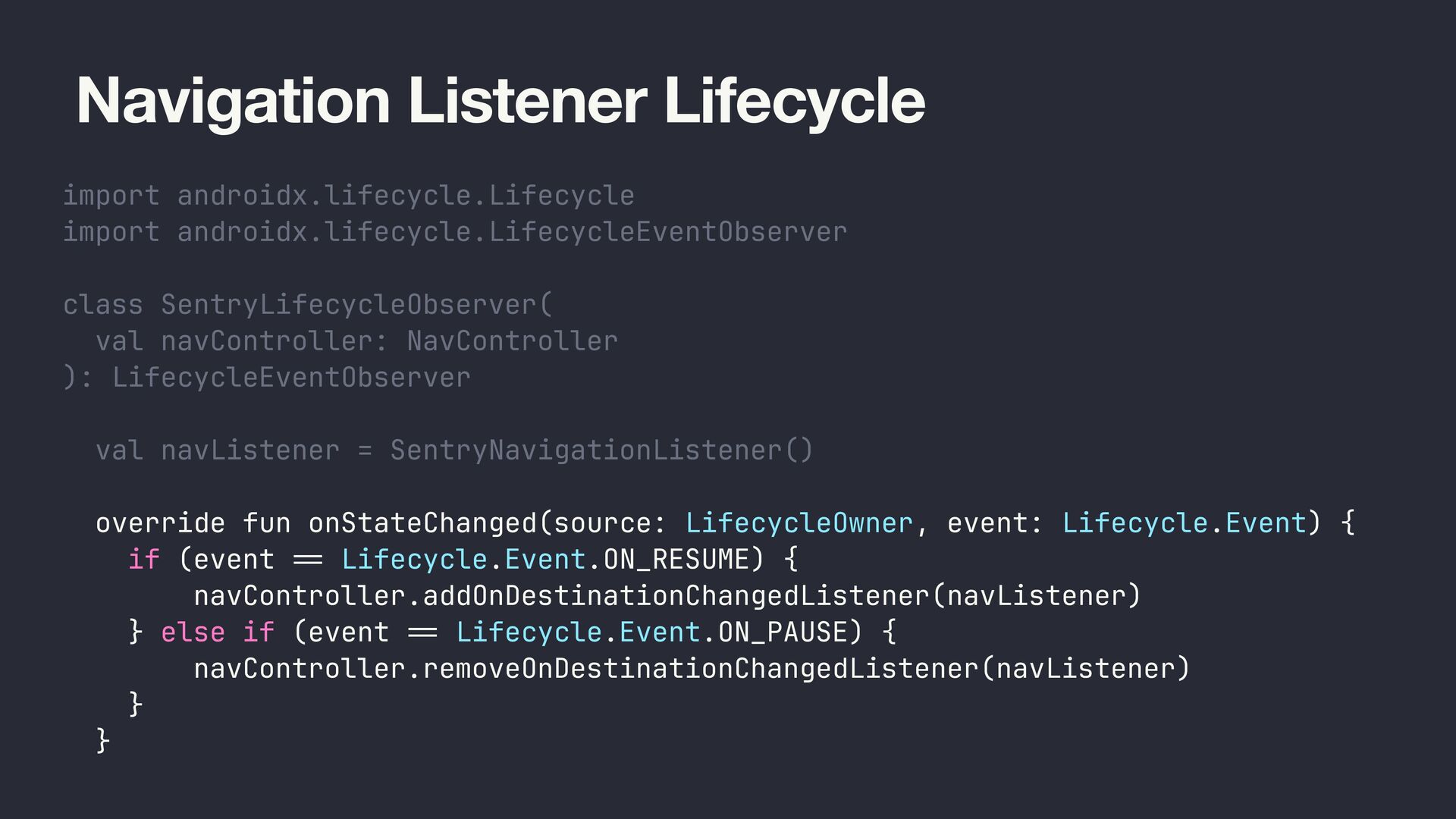

36. Navigation Listener Lifecycle import androidx.lifecycle.Lifecycle import androidx.lifecycle.LifecycleEventObserver class SentryLifecycleObserver( val navController: NavController ): LifecycleEventObserver { val navListener = SentryNavigationListener() }
37. Navigation Listener Lifecycle import androidx.lifecycle.Lifecycle import androidx.lifecycle.LifecycleEventObserver class SentryLifecycleObserver( val navController: NavController ): LifecycleEventObserver { val navListener = SentryNavigationListener() override fun onStateChanged(source: LifecycleOwner, event: Lifecycle.Event) { if (event == Lifecycle.Event.ON_RESUME) { navController.addOnDestinationChangedListener(navListener) } else if (event = = Lifecycle.Event.ON_PAUSE) { navController.removeOnDestinationChangedListener(navListener) } } }
38. Tying with Compose

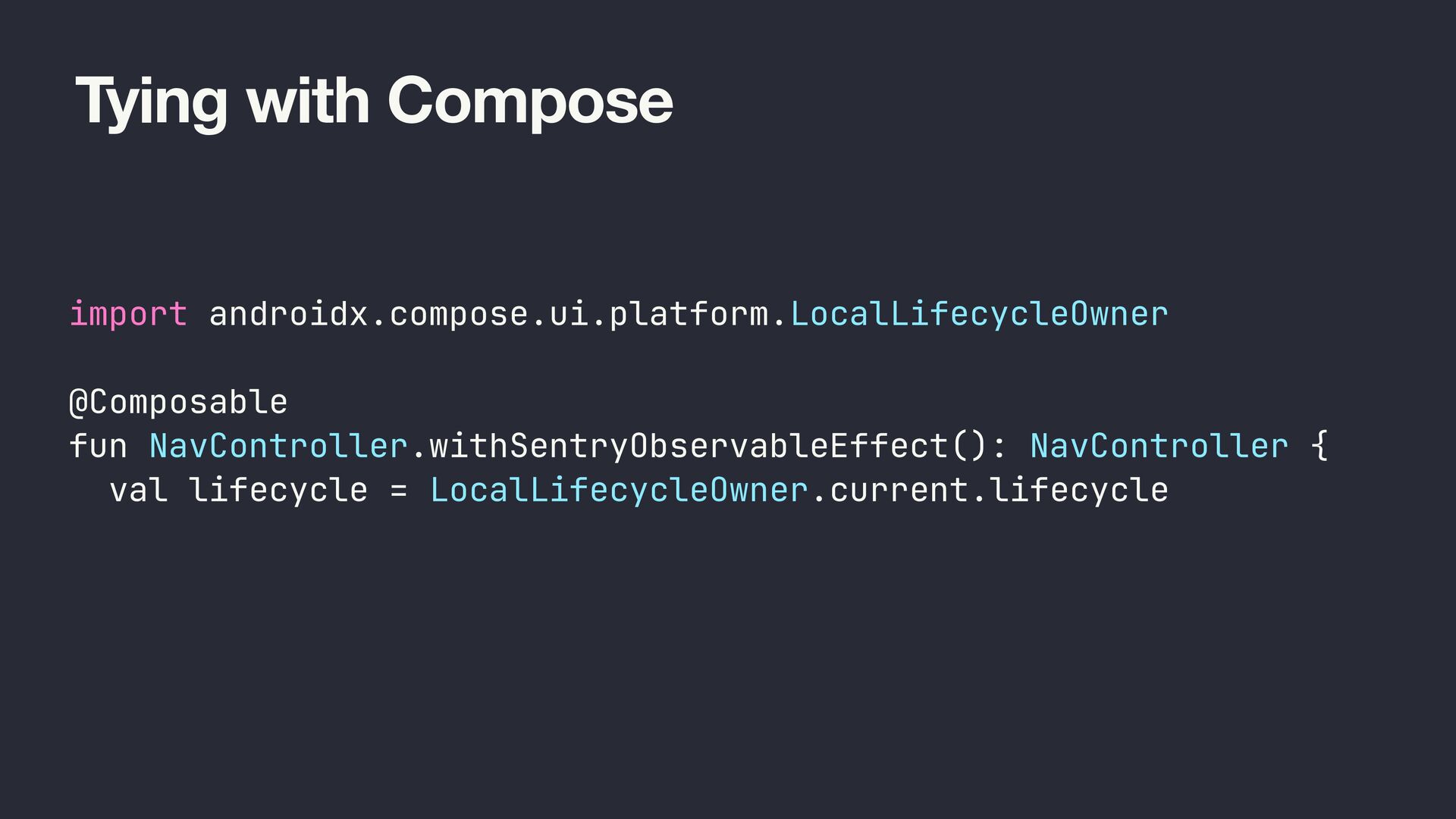

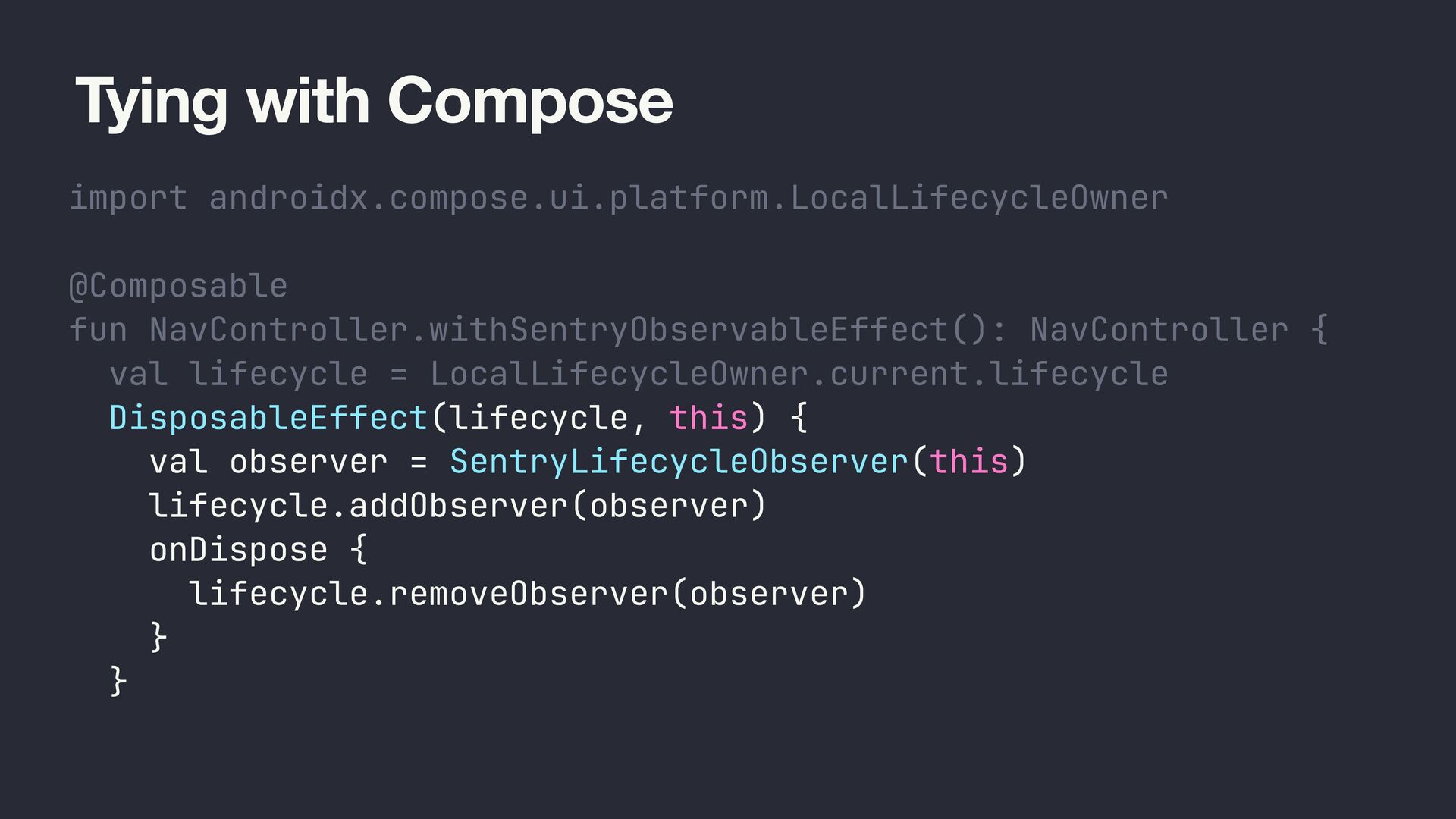

39. Tying with Compose import androidx.compose.ui.platform.LocalLifecycleOwner @Composable fun NavController.withSentryObservableEffect(): NavController { val lifecycle = LocalLifecycleOwner.current.lifecycle }

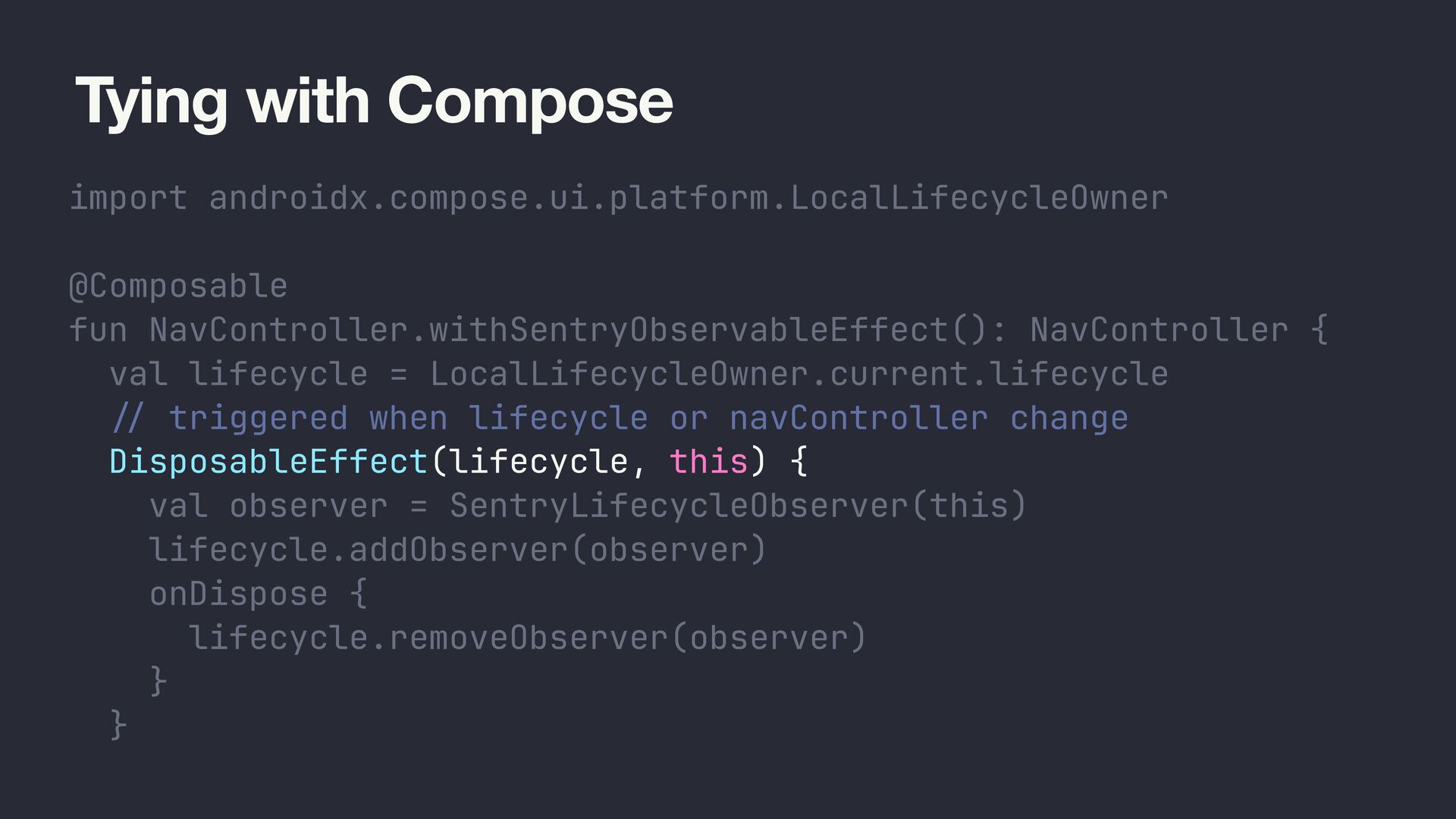

40. Tying with Compose import androidx.compose.ui.platform.LocalLifecycleOwner @Composable fun NavController.withSentryObservableEffect(): NavController { val lifecycle = LocalLifecycleOwner.current.lifecycle DisposableEffect(lifecycle, this) { val observer = SentryLifecycleObserver(this) lifecycle.addObserver(observer) onDispose { lifecycle.removeObserver(observer) } } }
41. Tying with Compose import androidx.compose.ui.platform.LocalLifecycleOwner @Composable fun NavController.withSentryObservableEffect(): NavController { val lifecycle = LocalLifecycleOwner.current.lifecycle / / triggered when lifecycle or navController change DisposableEffect(lifecycle, this) { val observer = SentryLifecycleObserver(this) lifecycle.addObserver(observer) onDispose { lifecycle.removeObserver(observer) } } }

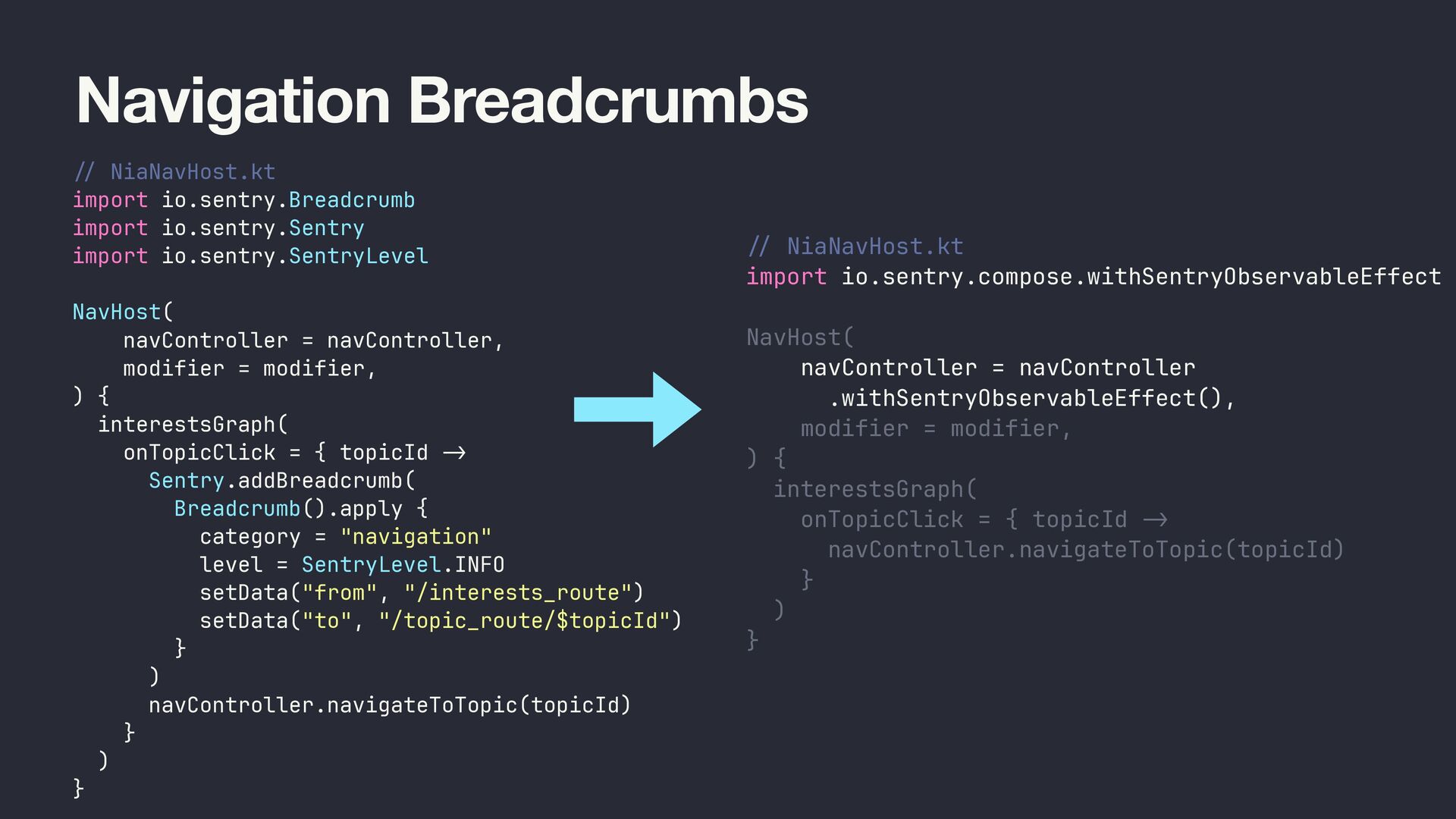

42. Navigation Breadcrumbs // NiaNavHost.kt import io.sentry.Breadcrumb import io.sentry.Sentry import io.sentry.SentryLevel NavHost( navController = navController, modifier = modifier, ) { interestsGraph( onTopicClick = { topicId -> Sentry.addBreadcrumb( Breadcrumb().apply { category = "navigation" level = SentryLevel.INFO setData("from", "/interests_route") setData("to", "/topic_route/$topicId") } ) navController.navigateToTopic(topicId) } ) } // NiaNavHost.kt import io.sentry.compose.withSentryObservableEffect NavHost( navController = navController .withSentryObservableEffect(), modifier = modifier, ) { interestsGraph( onTopicClick = { topicId -> navController.navigateToTopic(topicId) } ) }

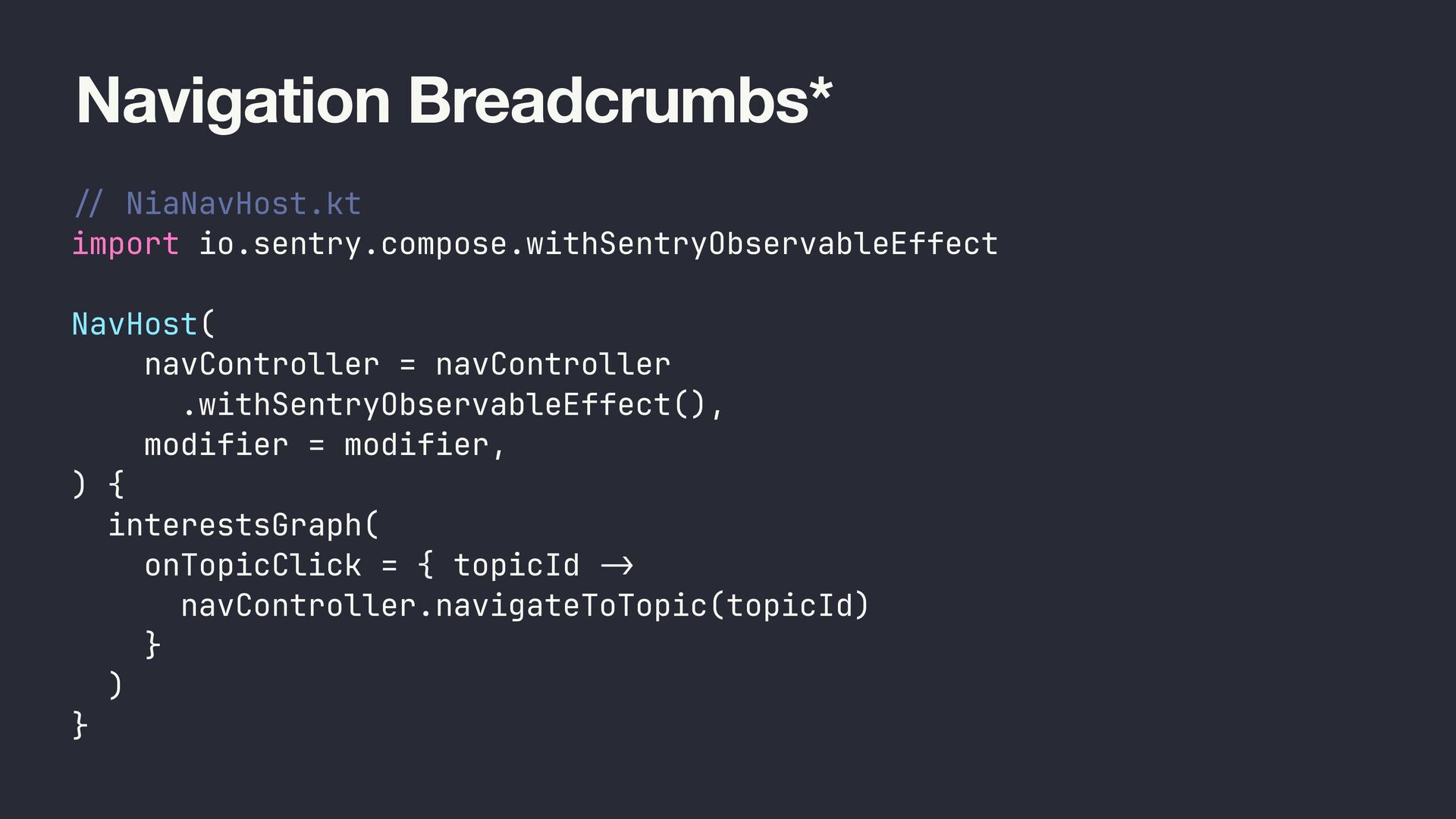

43. Navigation Breadcrumbs* // NiaNavHost.kt import io.sentry.compose.withSentryObservableEffect NavHost( navController = navController .withSentryObservableEffect(), modifier = modifier, ) { interestsGraph( onTopicClick = { topicId -> navController.navigateToTopic(topicId) } ) }

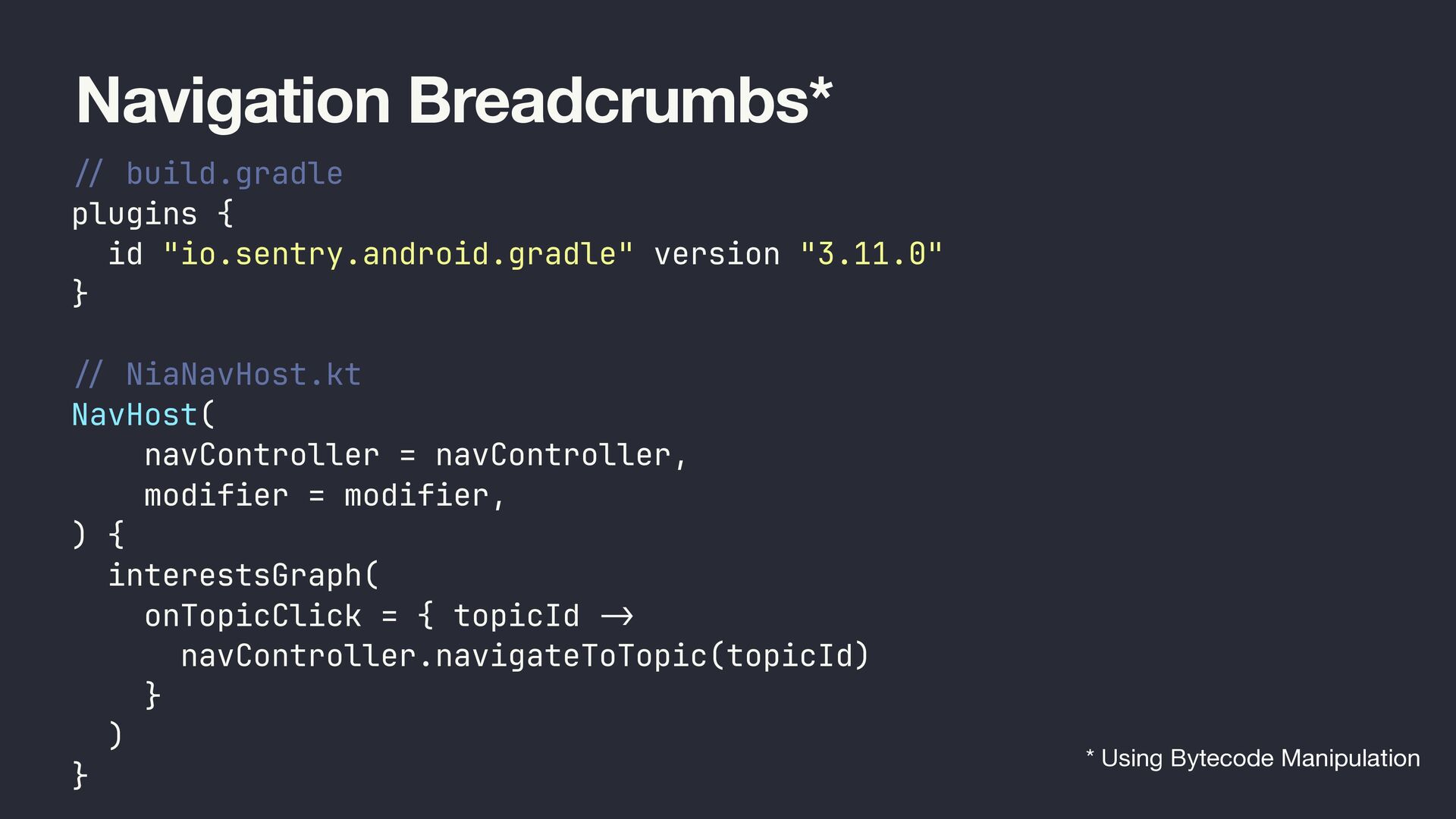

44. Navigation Breadcrumbs* // build.gradle plugins { id "io.sentry.android.gradle" version "3.11.0" } // NiaNavHost.kt NavHost( navController = navController, modifier = modifier, ) { interestsGraph( onTopicClick = { topicId -> navController.navigateToTopic(topicId) } ) } * Using Bytecode Manipulation
45. User Interaction Breadcrumbs

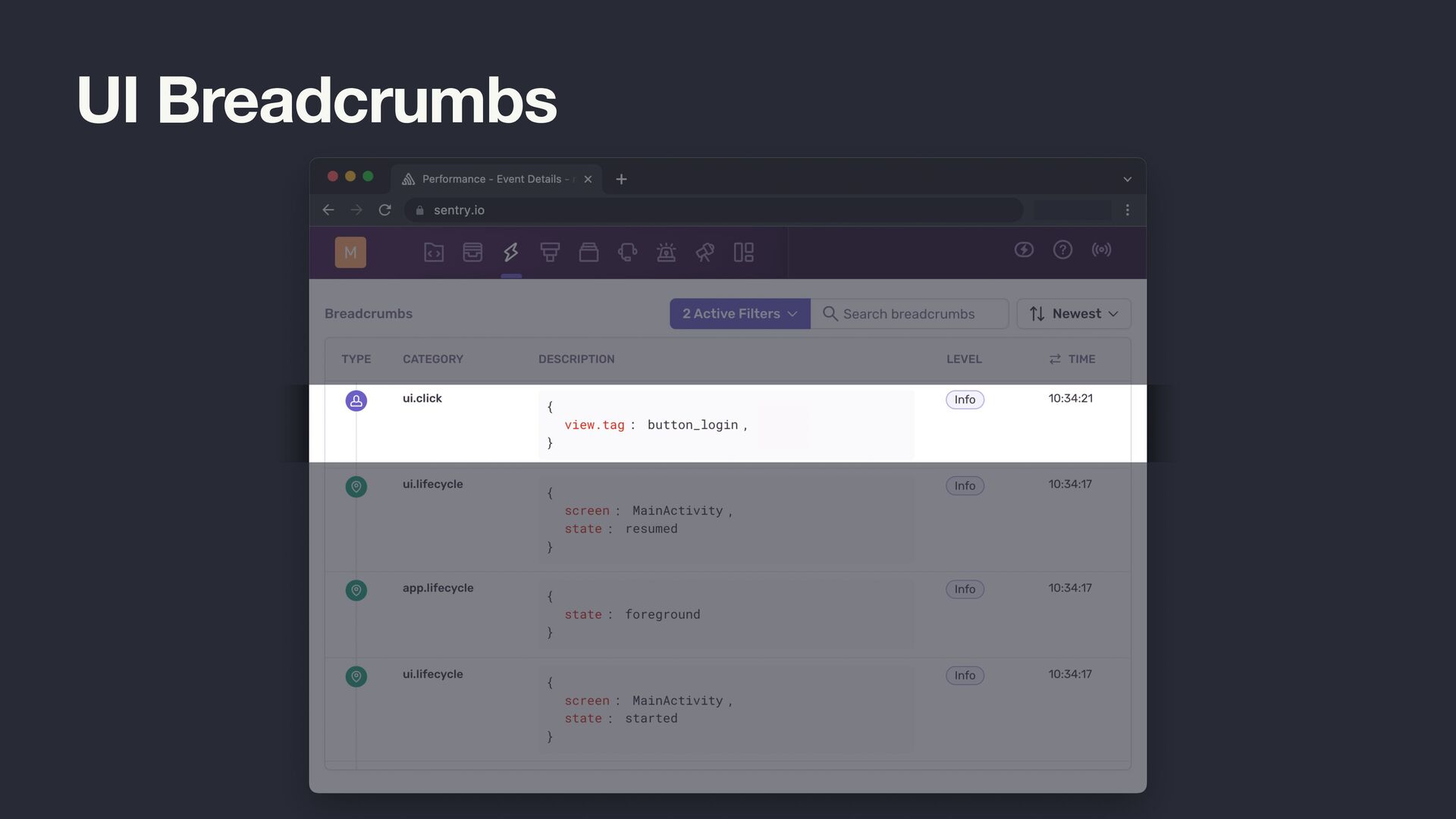

46. UI Breadcrumbs
47. UI Breadcrumbs @Composable fun LoginScreen(onLoginClicked: () -> Unit) { Column { Button(onClick = { onLoginClicked() }) { Text(text = "Login") } } }
48. UI Breadcrumbs @Composable fun LoginScreen(onLoginClicked: () -> Unit) { Column { Button(onClick = { Sentry.addBreadcrumb(Breadcrumb().apply { category = "ui.click" message = "button_login" }) onLoginClicked() }) { Text(text = "Login") } } }
49. UI Breadcrumbs @Composable fun LoginScreen(onLoginClicked: () -> Unit) { Column { Button(onClick = { Sentry.addBreadcrumb(Breadcrumb().apply { category = "ui.click" message = "button_login" }) onLoginClicked() }) { Text(text = "Login") } } }

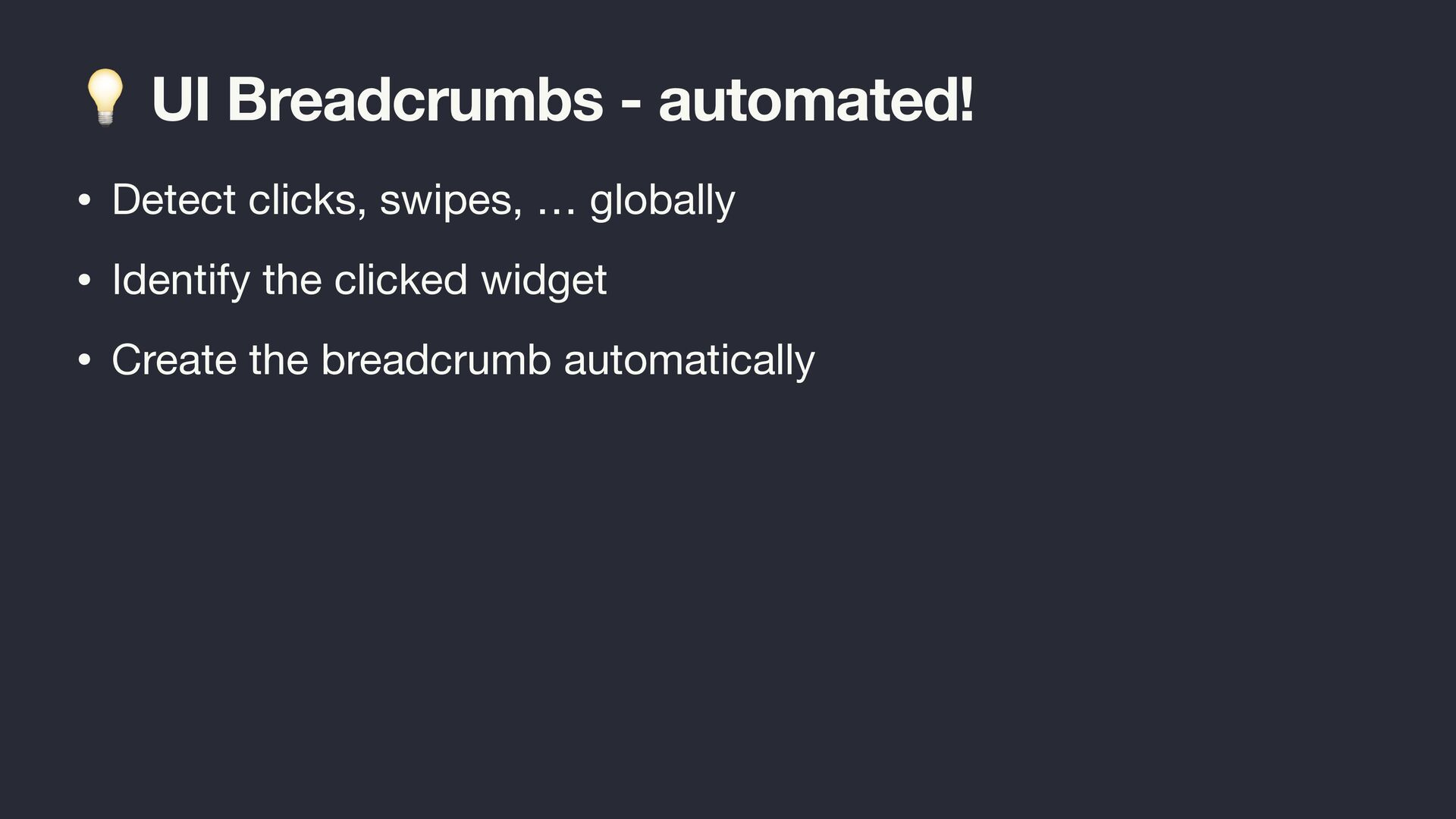

50. 💡 UI Breadcrumbs - automated! • Detect clicks, swipes, … globally • Identify the clicked widget • Create the breadcrumb automatically

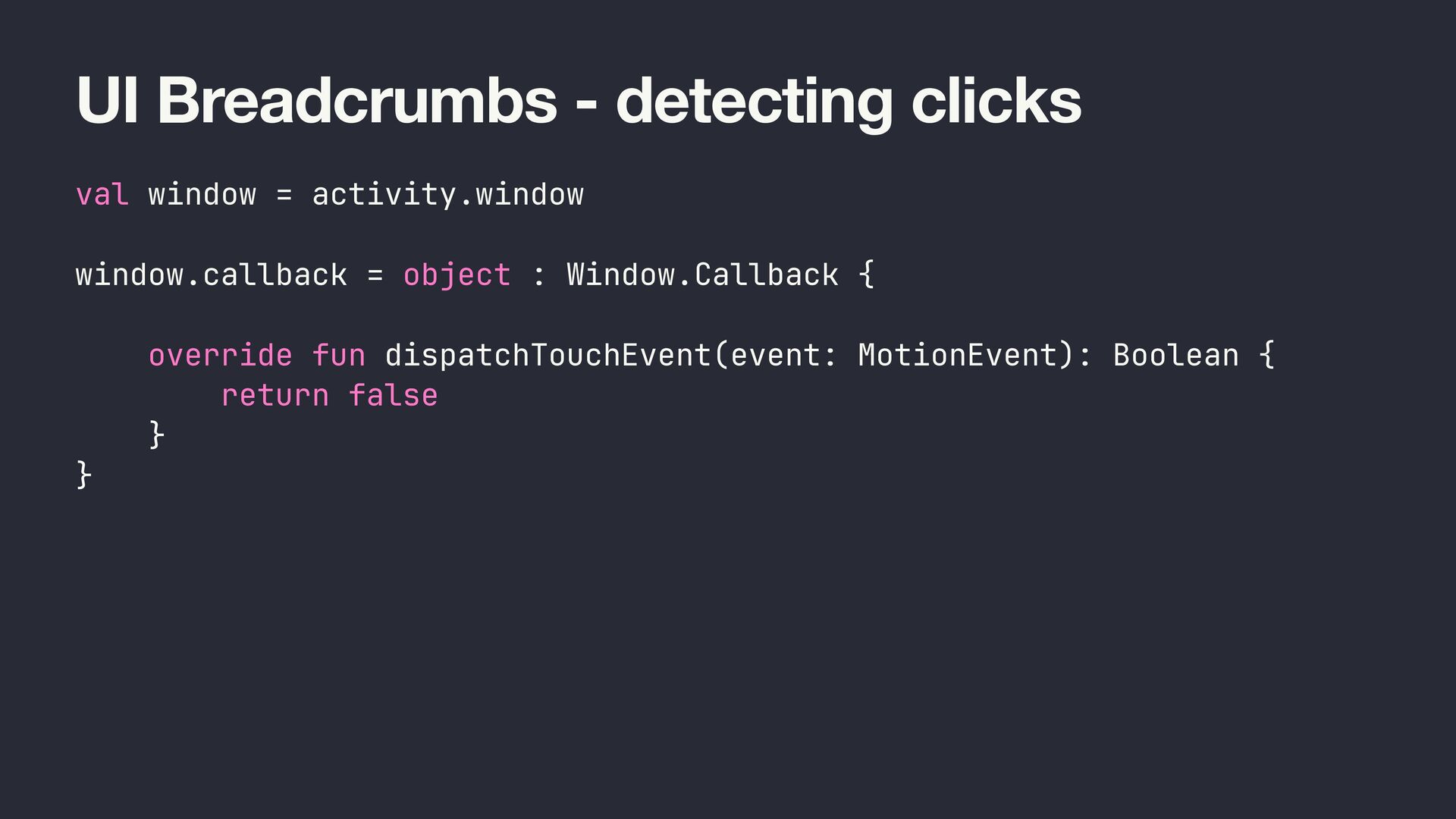

51. UI Breadcrumbs - detecting clicks val window = activity.window window.callback = object : Window.Callback { override fun dispatchTouchEvent(event: MotionEvent): Boolean { return false } }

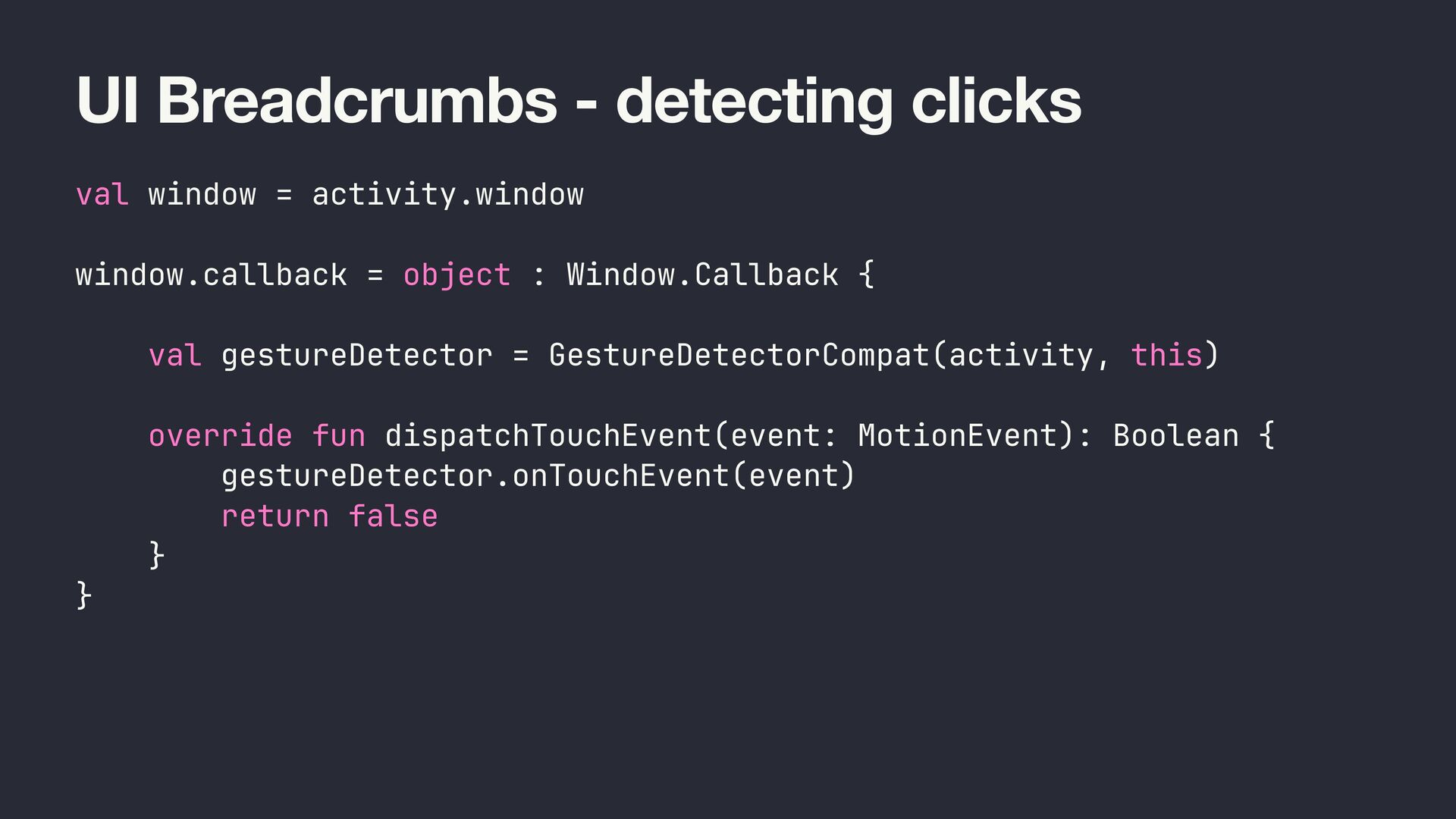

52. UI Breadcrumbs - detecting clicks val window = activity.window window.callback = object : Window.Callback { val gestureDetector = GestureDetectorCompat(activity, this) override fun dispatchTouchEvent(event: MotionEvent): Boolean { gestureDetector.onTouchEvent(event) return false } }

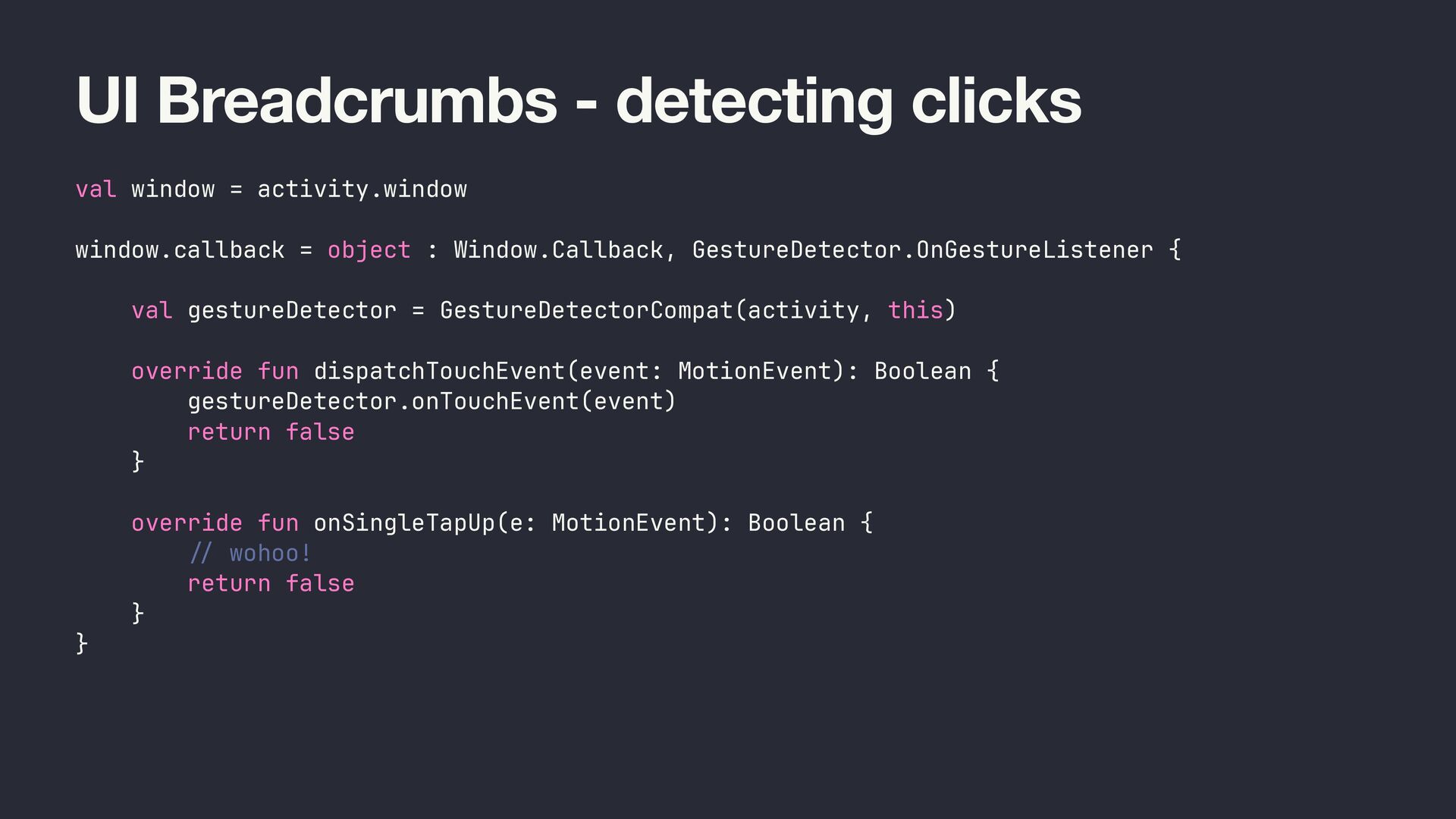

53. UI Breadcrumbs - detecting clicks val window = activity.window window.callback = object : Window.Callback, GestureDetector.OnGestureListener { val gestureDetector = GestureDetectorCompat(activity, this) override fun dispatchTouchEvent(event: MotionEvent): Boolean { gestureDetector.onTouchEvent(event) return false } override fun onSingleTapUp(e: MotionEvent): Boolean { / / wohoo! return false } }

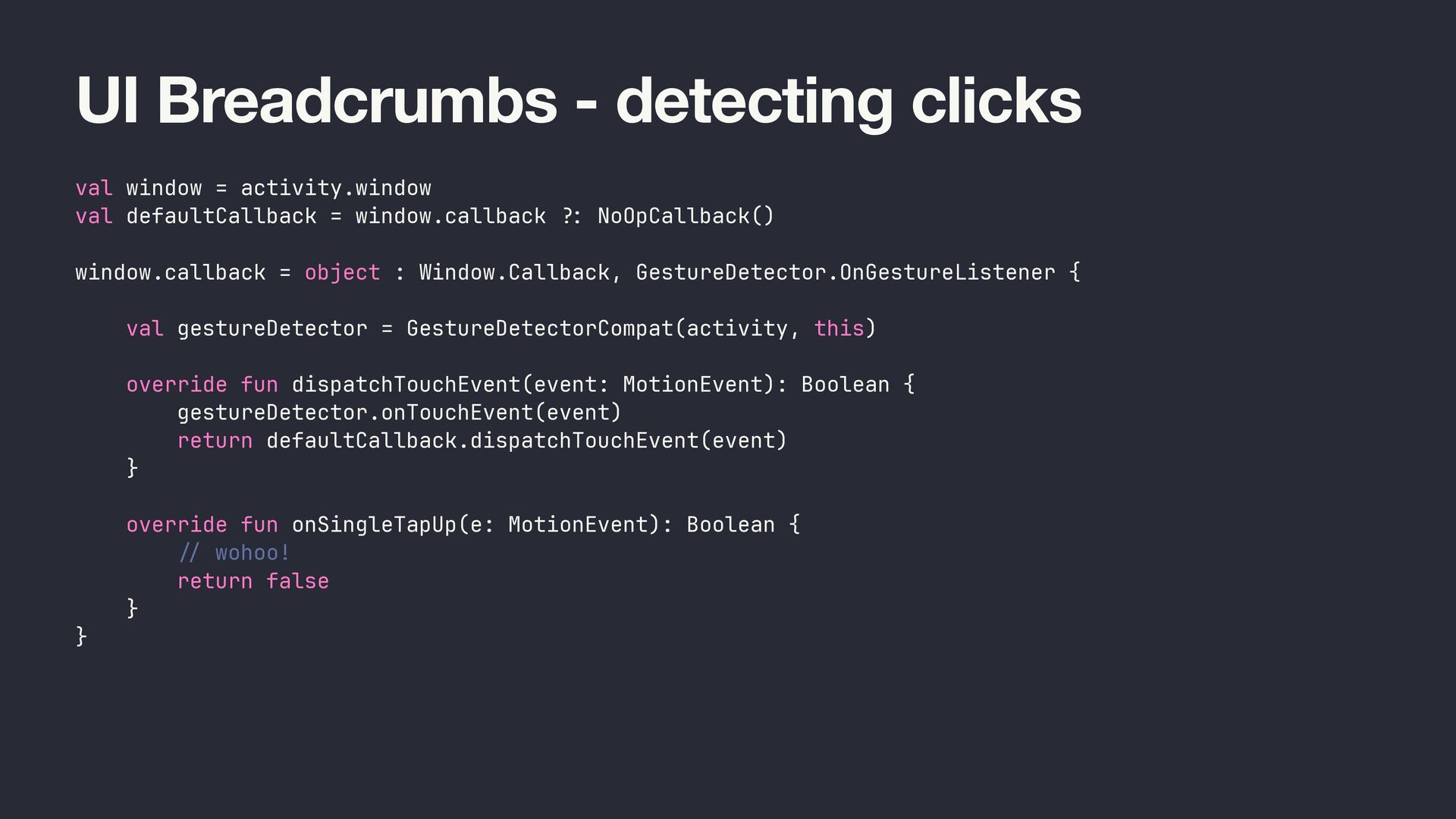

54. UI Breadcrumbs - detecting clicks val window = activity.window val defaultCallback = window.callback ? : NoOpCallback() window.callback = object : Window.Callback, GestureDetector.OnGestureListener { val gestureDetector = GestureDetectorCompat(activity, this) override fun dispatchTouchEvent(event: MotionEvent): Boolean { gestureDetector.onTouchEvent(event) return defaultCallback.dispatchTouchEvent(event) } override fun onSingleTapUp(e: MotionEvent): Boolean { / / wohoo! return false } }
55. Clicked … what? 🥹

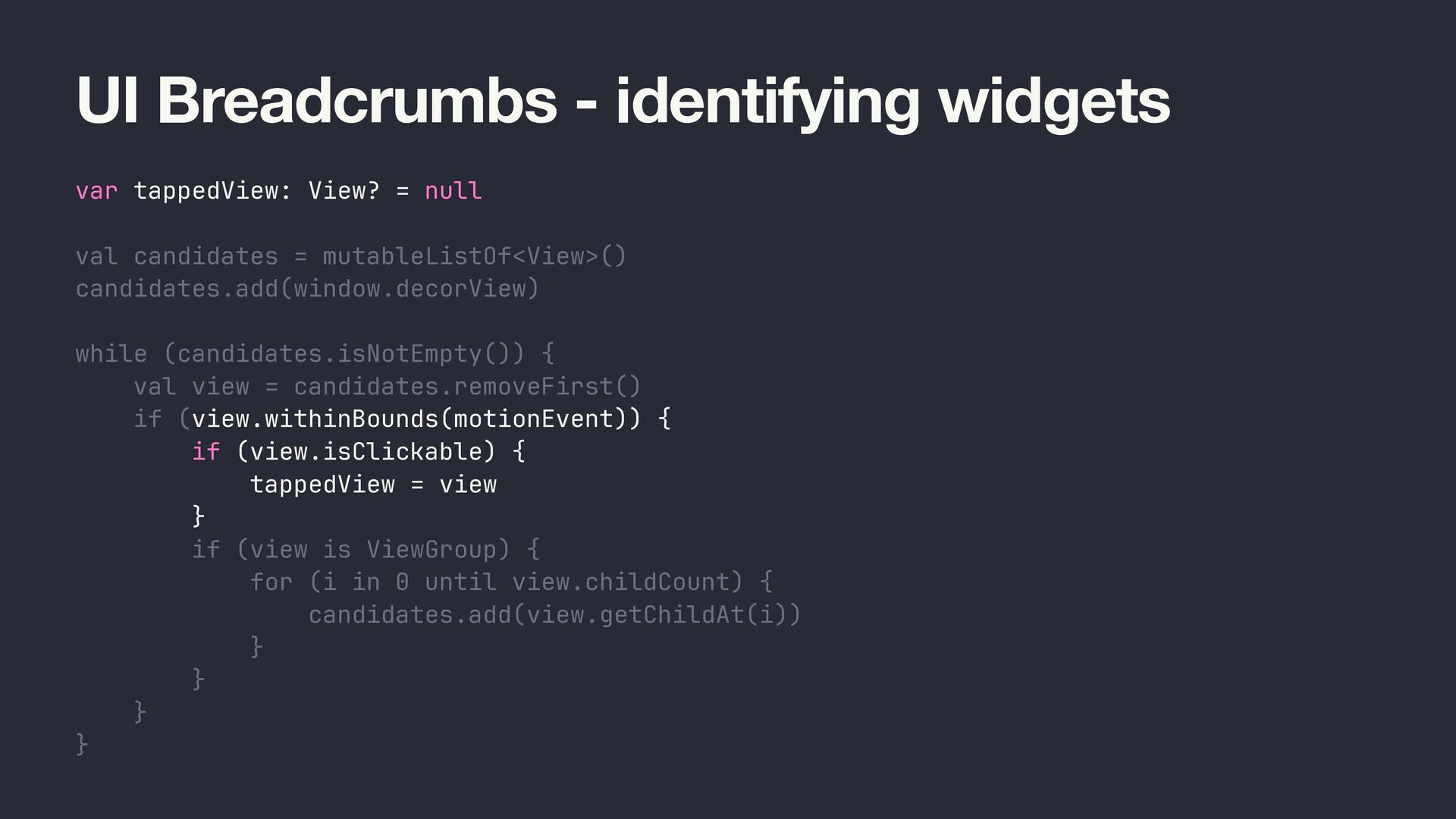

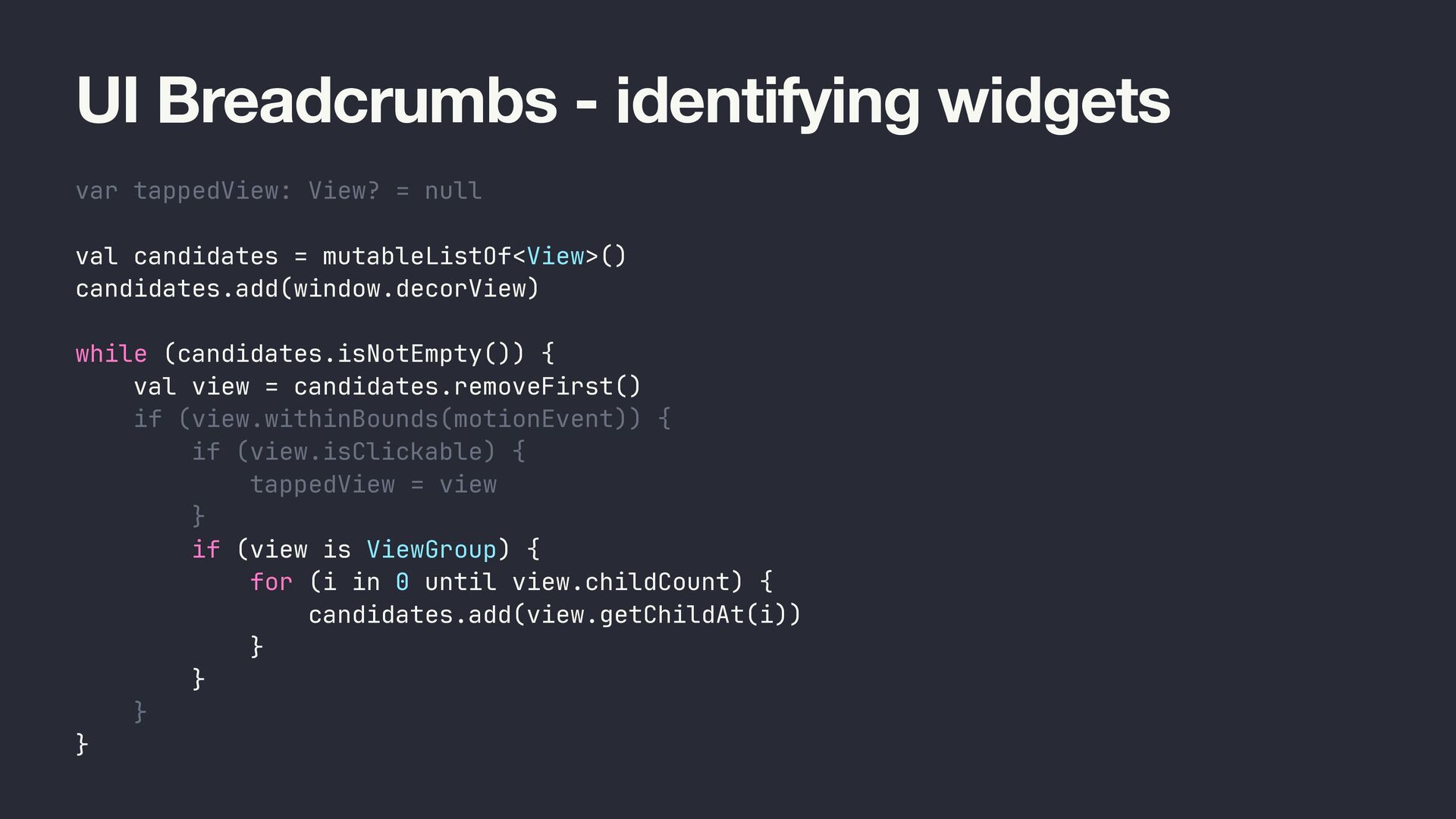

56. UI Breadcrumbs - identifying widgets var tappedView: View? = null val candidates = mutableListOf<View>() candidates.add(window.decorView) while (candidates.isNotEmpty()) { val view = candidates.removeFirst() if (view.withinBounds(motionEvent)) { if (view.isClickable) { tappedView = view } if (view is ViewGroup) { for (i in 0 until view.childCount) { candidates.add(view.getChildAt(i)) } } } }
57. UI Breadcrumbs - identifying widgets var tappedView: View? = null val candidates = mutableListOf<View>() candidates.add(window.decorView) while (candidates.isNotEmpty()) { val view = candidates.removeFirst() if (view.withinBounds(motionEvent)) { if (view.isClickable) { tappedView = view } if (view is ViewGroup) { for (i in 0 until view.childCount) { candidates.add(view.getChildAt(i)) } } } }

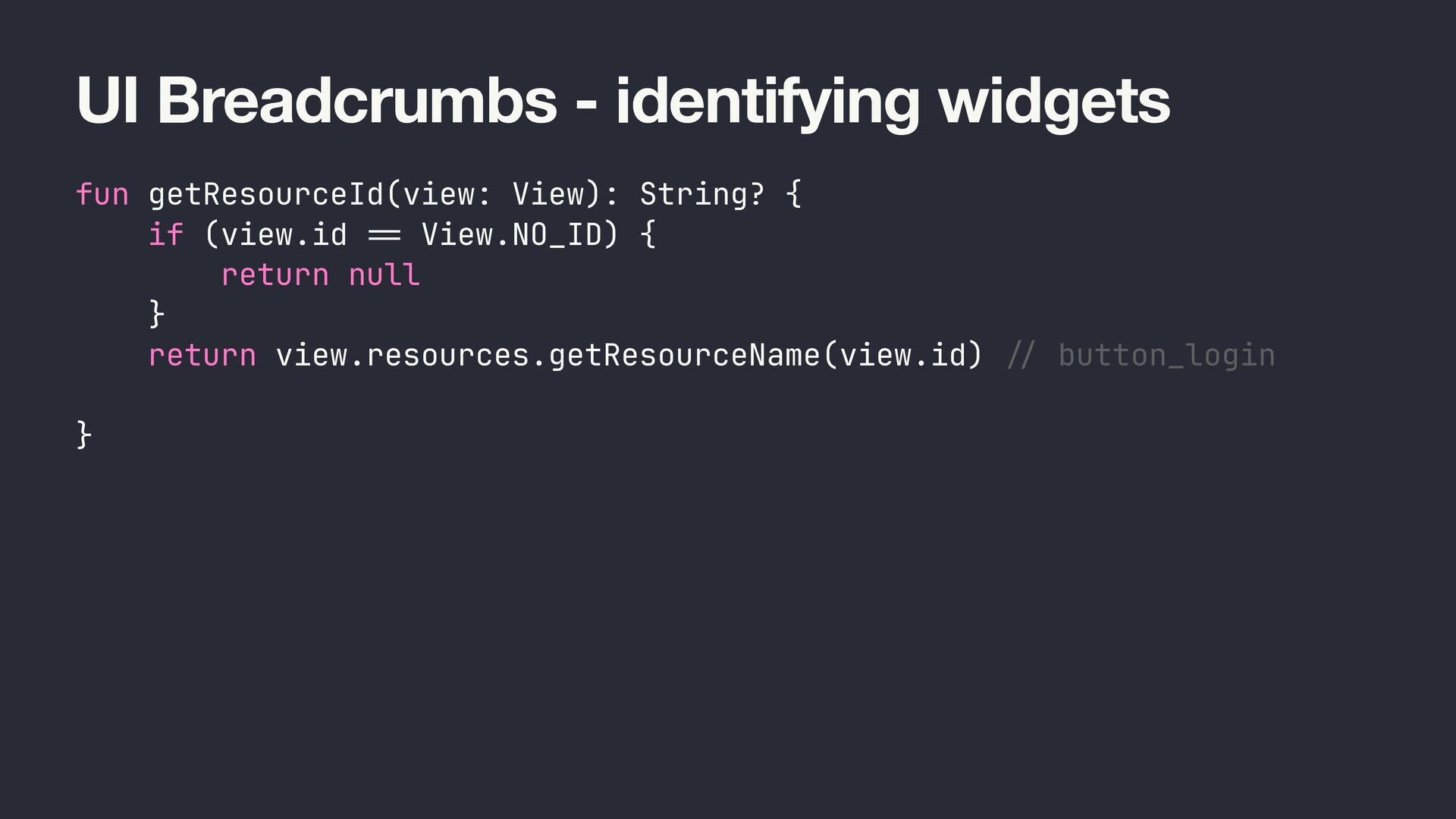

58. UI Breadcrumbs - identifying widgets fun getResourceId(view: View): String? { if (view.id == View.NO_ID) { return null } return view.resources.getResourceName(view.id) // button_login }

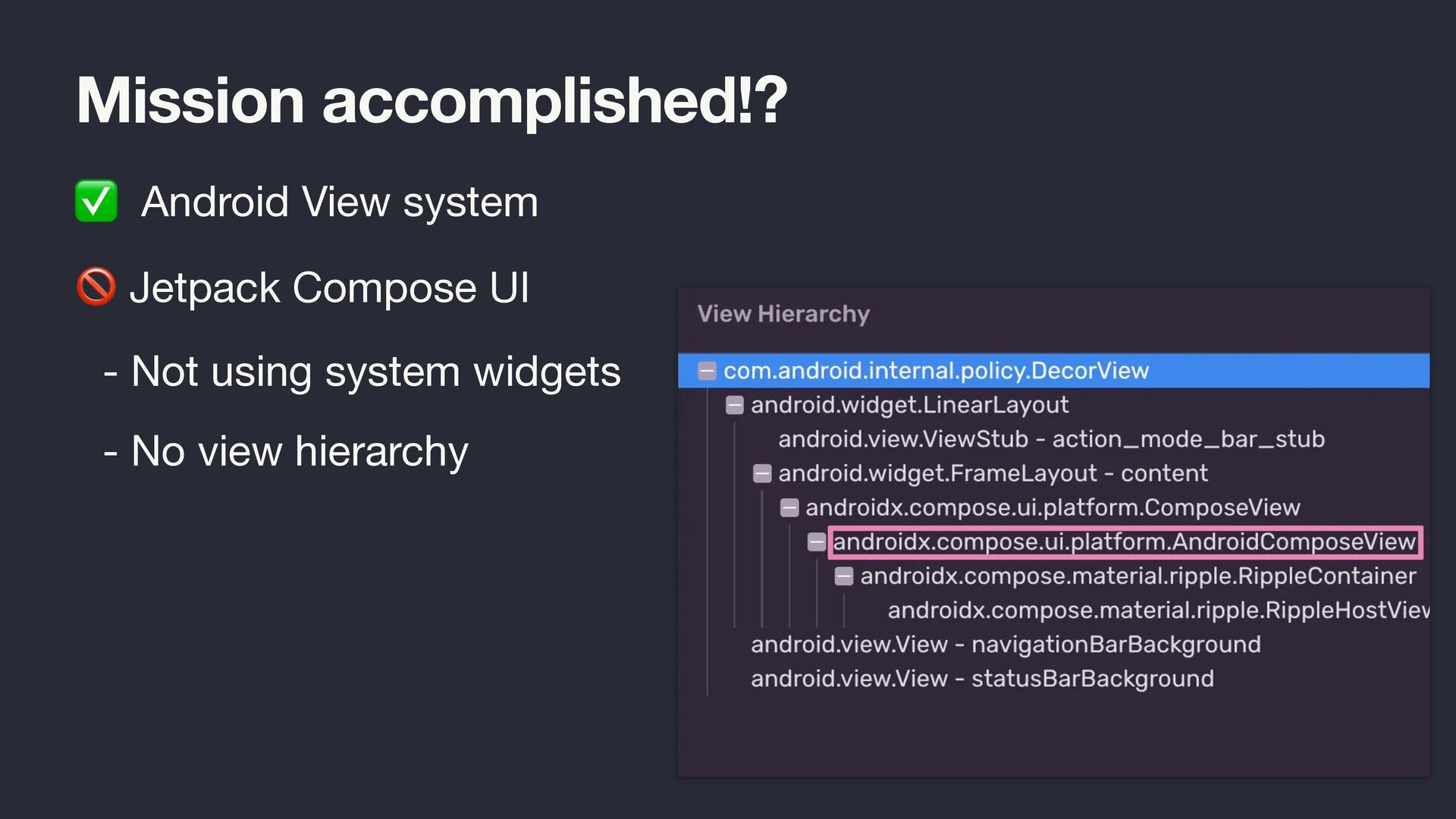

59. Mission accomplished!? ✅ Android View system 🚫 Jetpack Compose UI - Not using system widgets - No view hierarchy

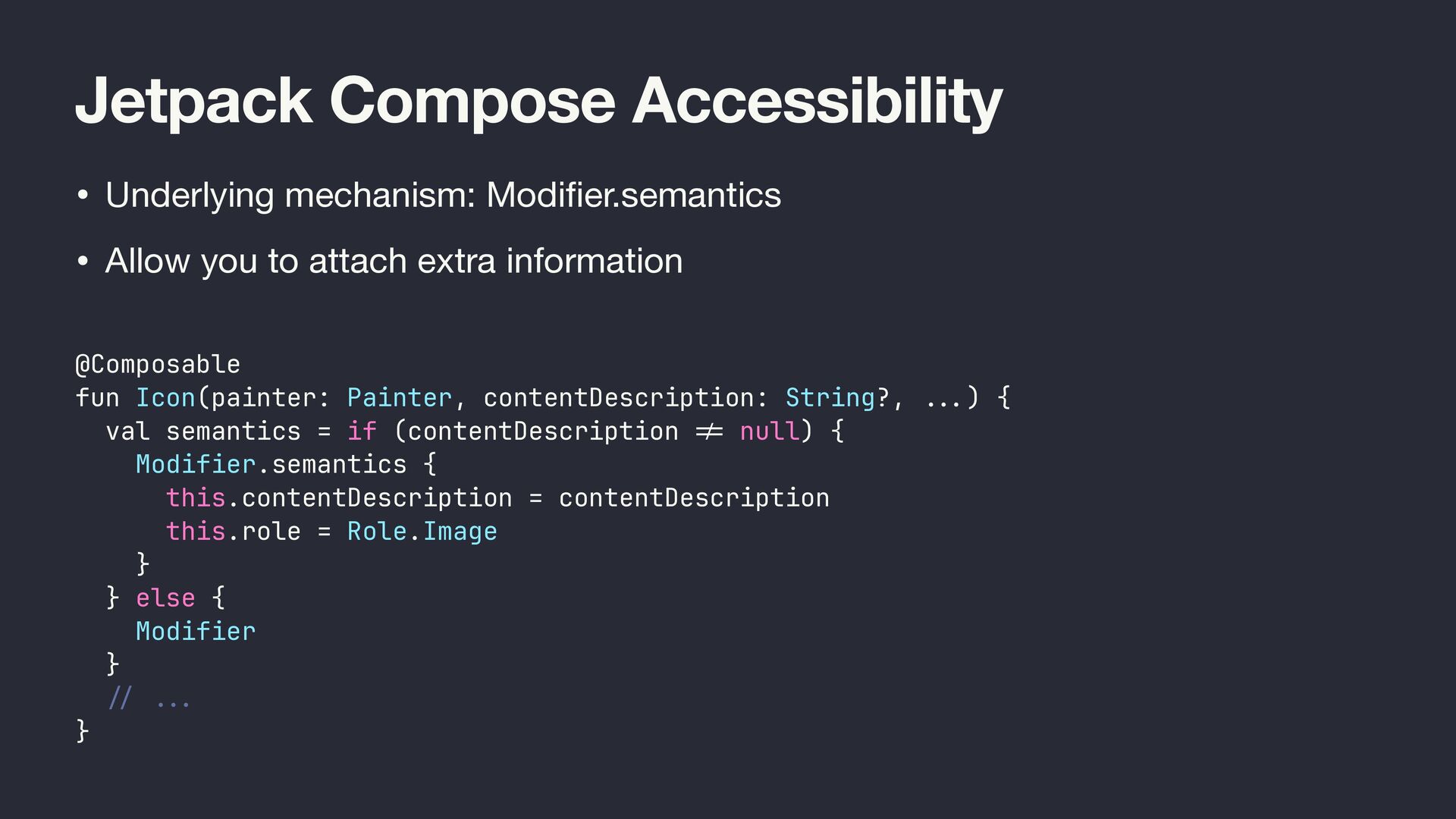

60. Jetpack Compose Accessibility • Underlying mechanism: Modi fi er.semantics • Allow you to attach extra information @Composable fun Icon(painter: Painter, contentDescription: String?, .. . ) { val semantics = if (contentDescription != null) { Modifier.semantics { this.contentDescription = contentDescription this.role = Role.Image } } else { Modifier } / / ... }
61. Jetpack Compose Semantics /** * Applies a tag to allow modified element to be found in tests. * * This is a convenience method for a [semantics] that sets [SemanticsPropertyReceiver.testTag]. */ @Stable fun Modifier.testTag(tag: String) = semantics( properties = { testTag = tag } )

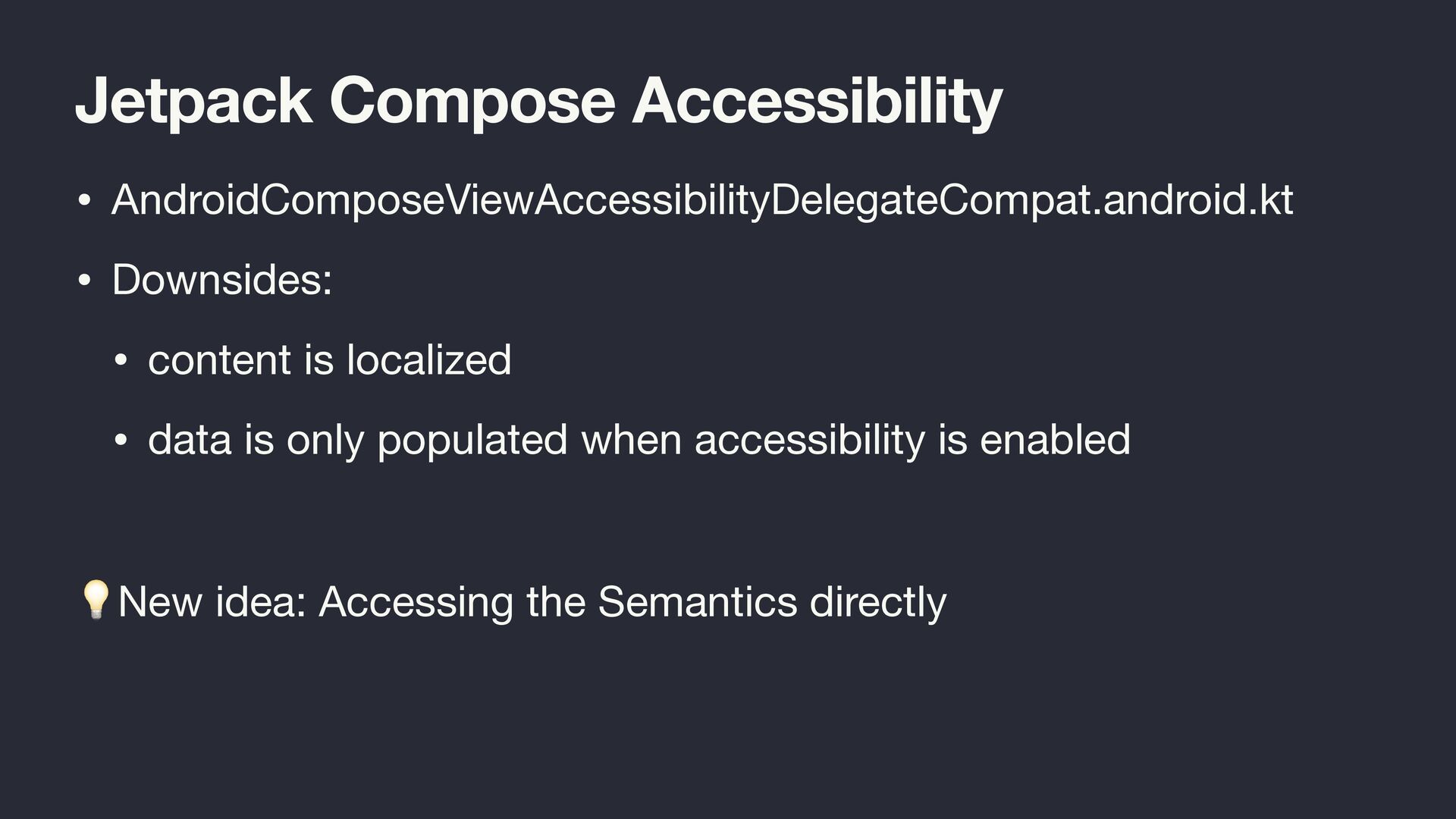

62. Jetpack Compose Accessibility • AndroidComposeViewAccessibilityDelegateCompat.android.kt • Downsides: • content is localized • data is only populated when accessibility is enabled 💡New idea: Accessing the Semantics directly

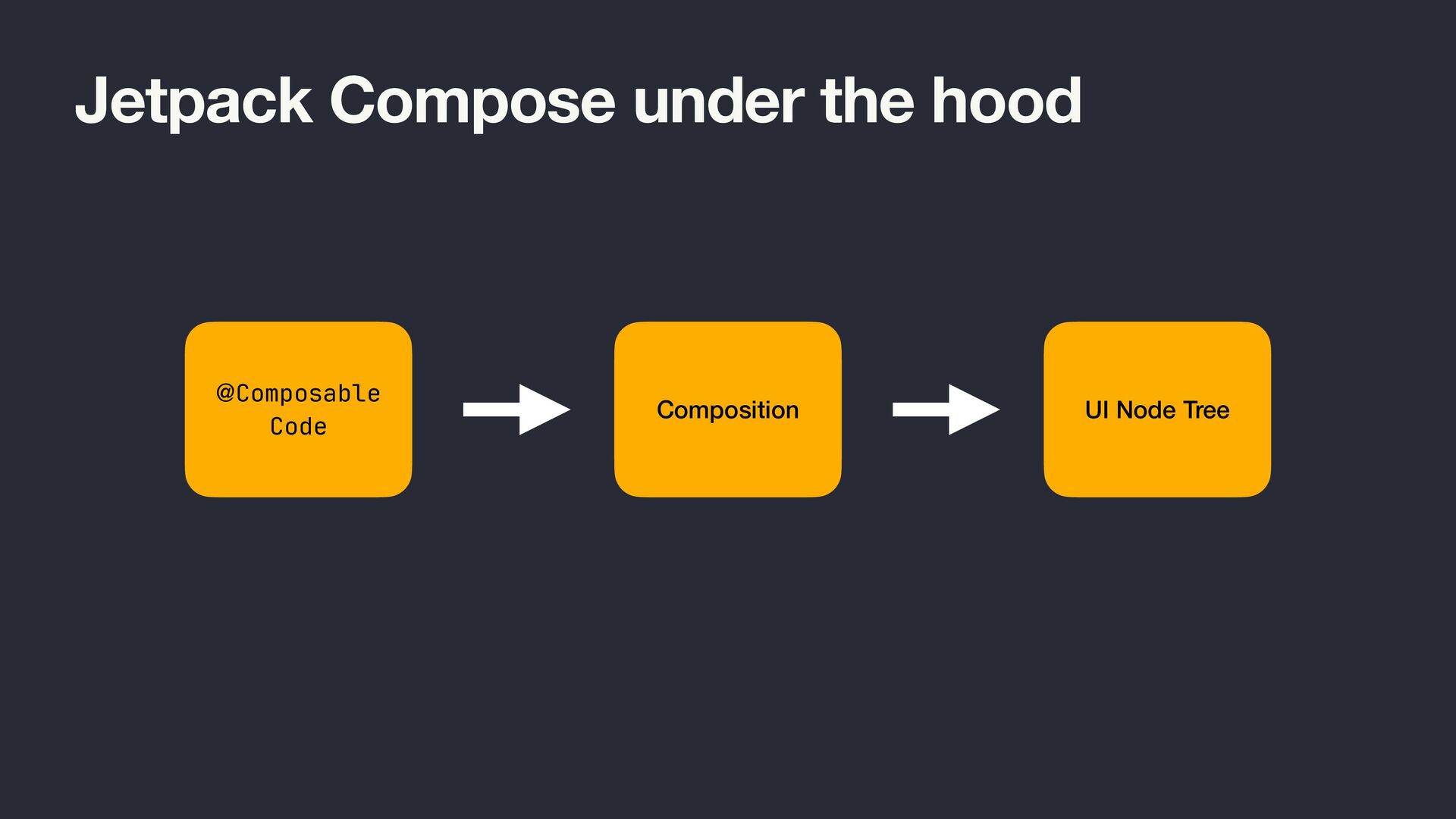

63. Jetpack Compose under the hood @Composable Code Composition UI Node Tree

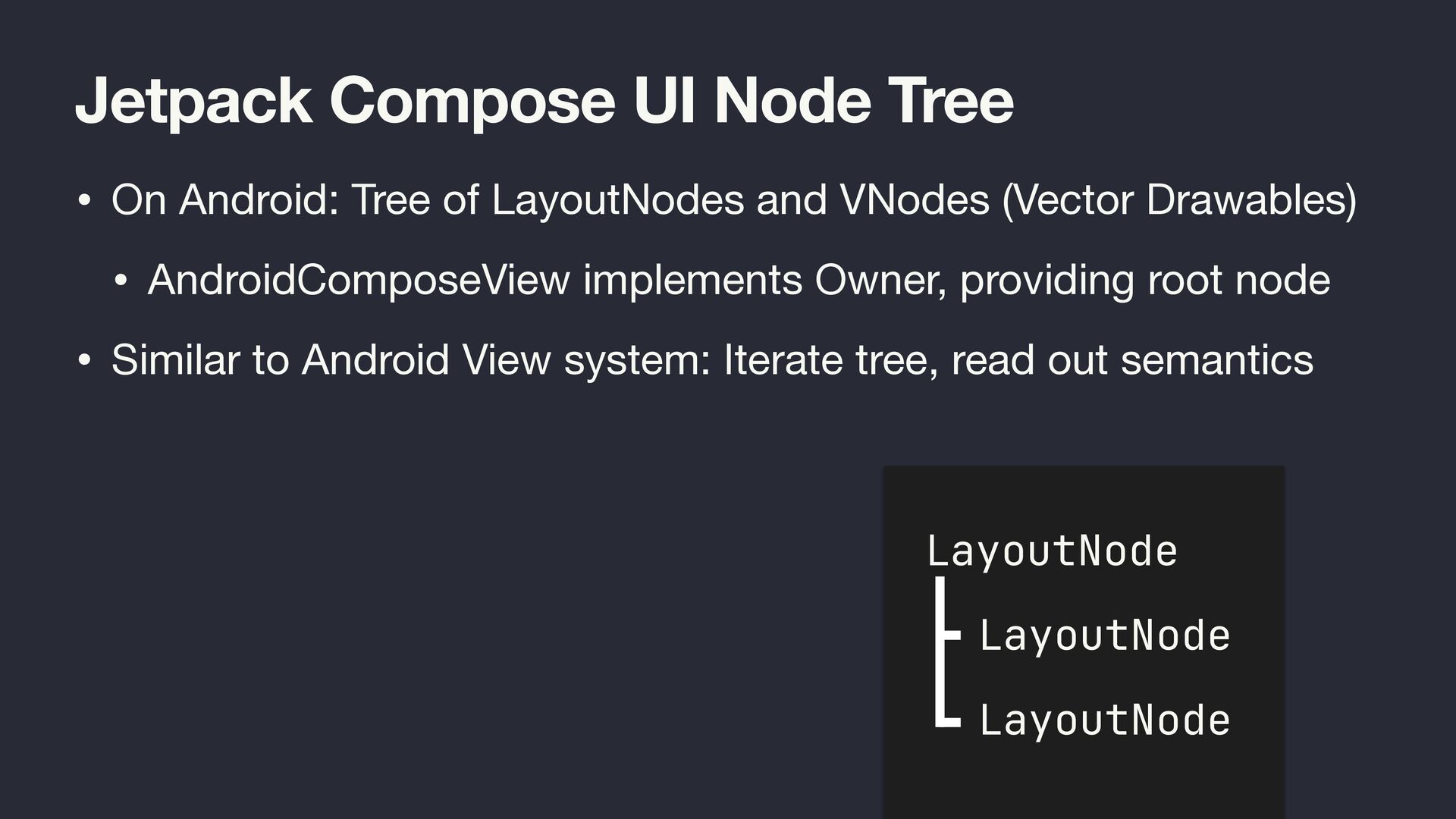

64. Jetpack Compose UI Node Tree • On Android: Tree of LayoutNodes and VNodes (Vector Drawables) • AndroidComposeView implements Owner, providing root node • Similar to Android View system: Iterate tree, read out semantics LayoutNode LayoutNode LayoutNode

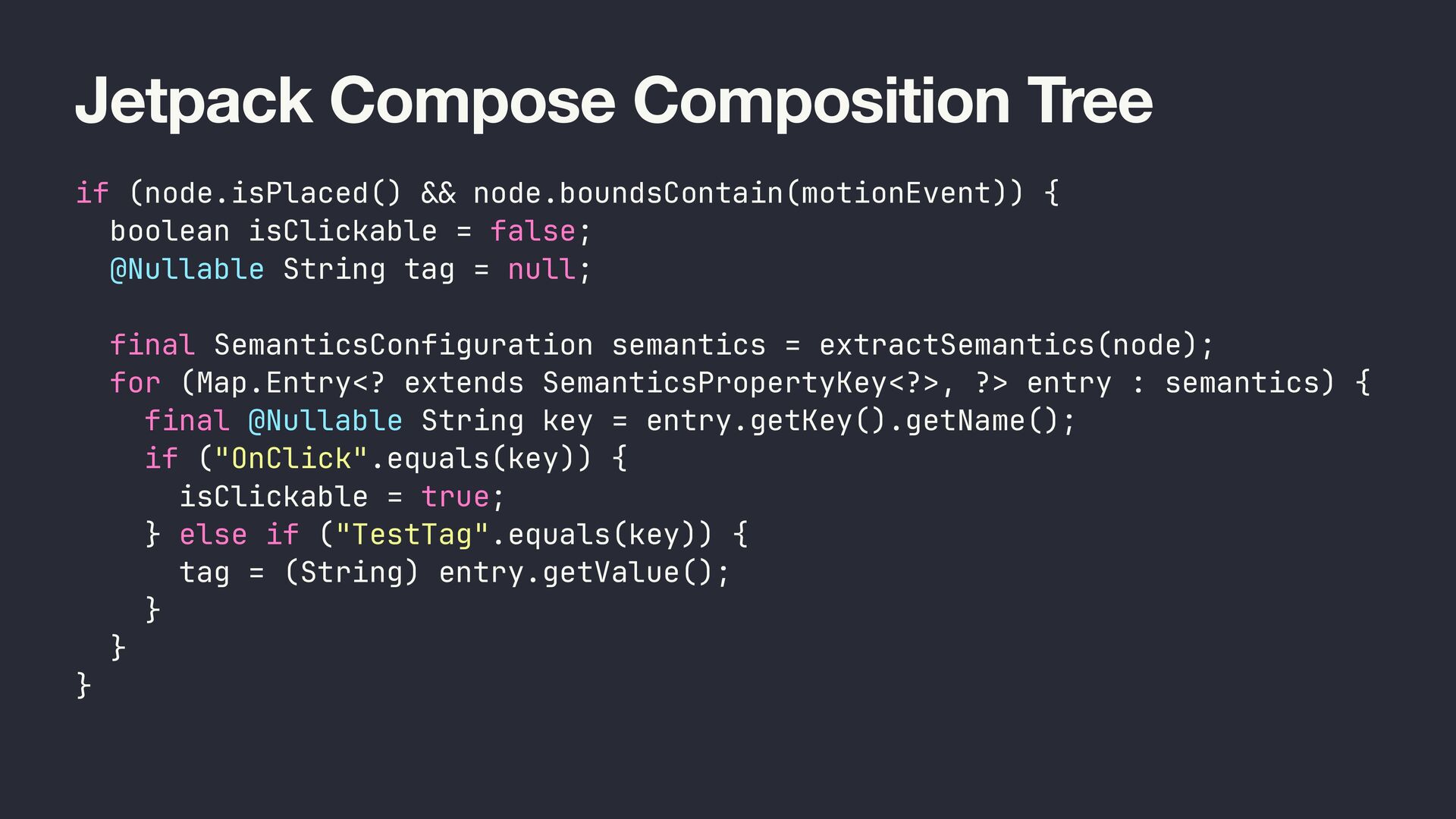

65. Jetpack Compose Composition Tree if (node.isPlaced() && node.boundsContain(motionEvent)) { boolean isClickable = false; @Nullable String tag = null; final SemanticsConfiguration semantics = extractSemantics(node); for (Map.Entry<? extends SemanticsPropertyKey<?>, ?> entry : semantics) { final @Nullable String key = entry.getKey().getName(); if ("OnClick".equals(key)) { isClickable = true; } else if ("TestTag".equals(key)) { tag = (String) entry.getValue(); } } }

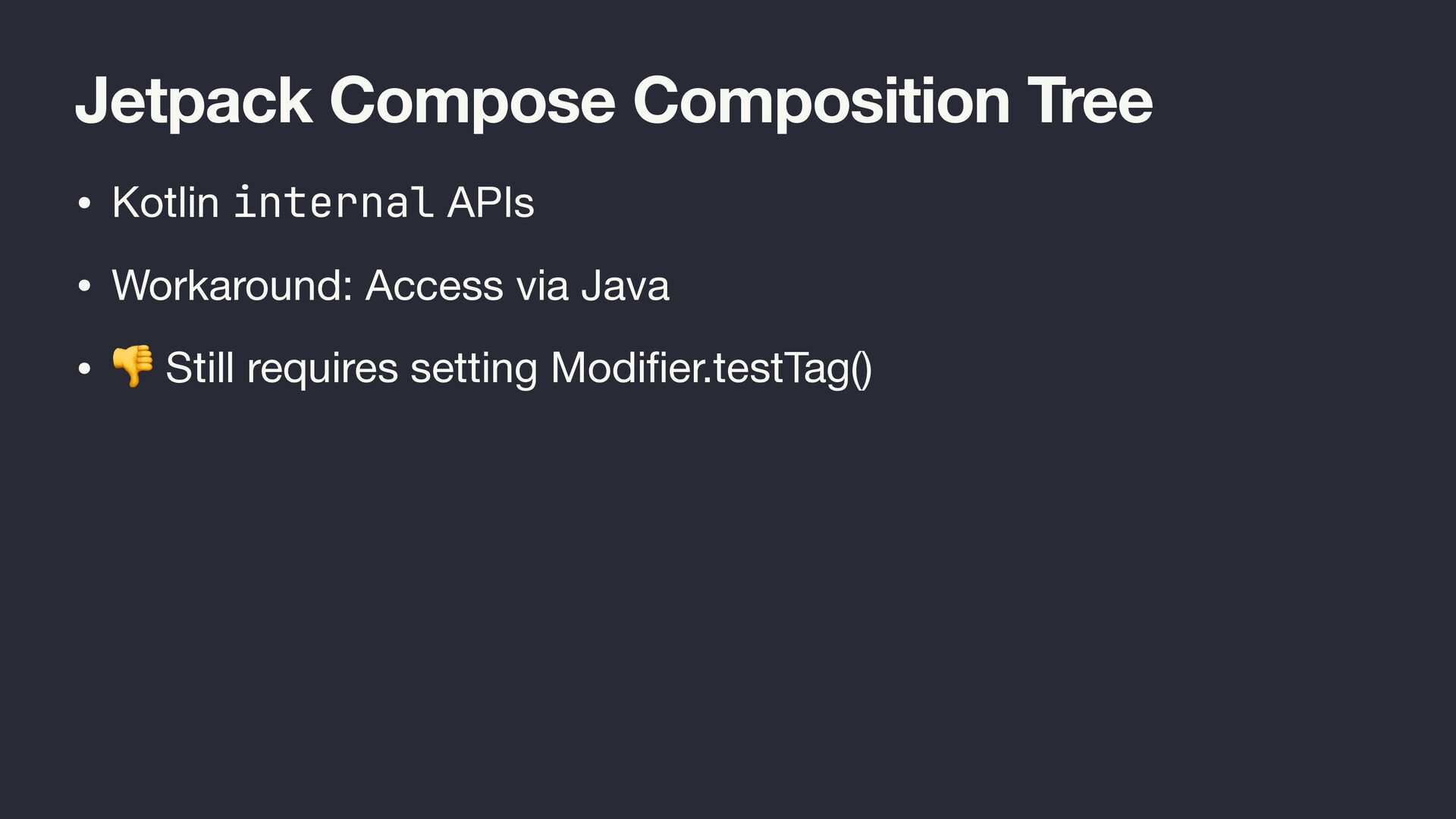

66. Jetpack Compose Composition Tree • Kotlin internal APIs • Workaround: Access via Java • 👎 Still requires setting Modi fi er.testTag()

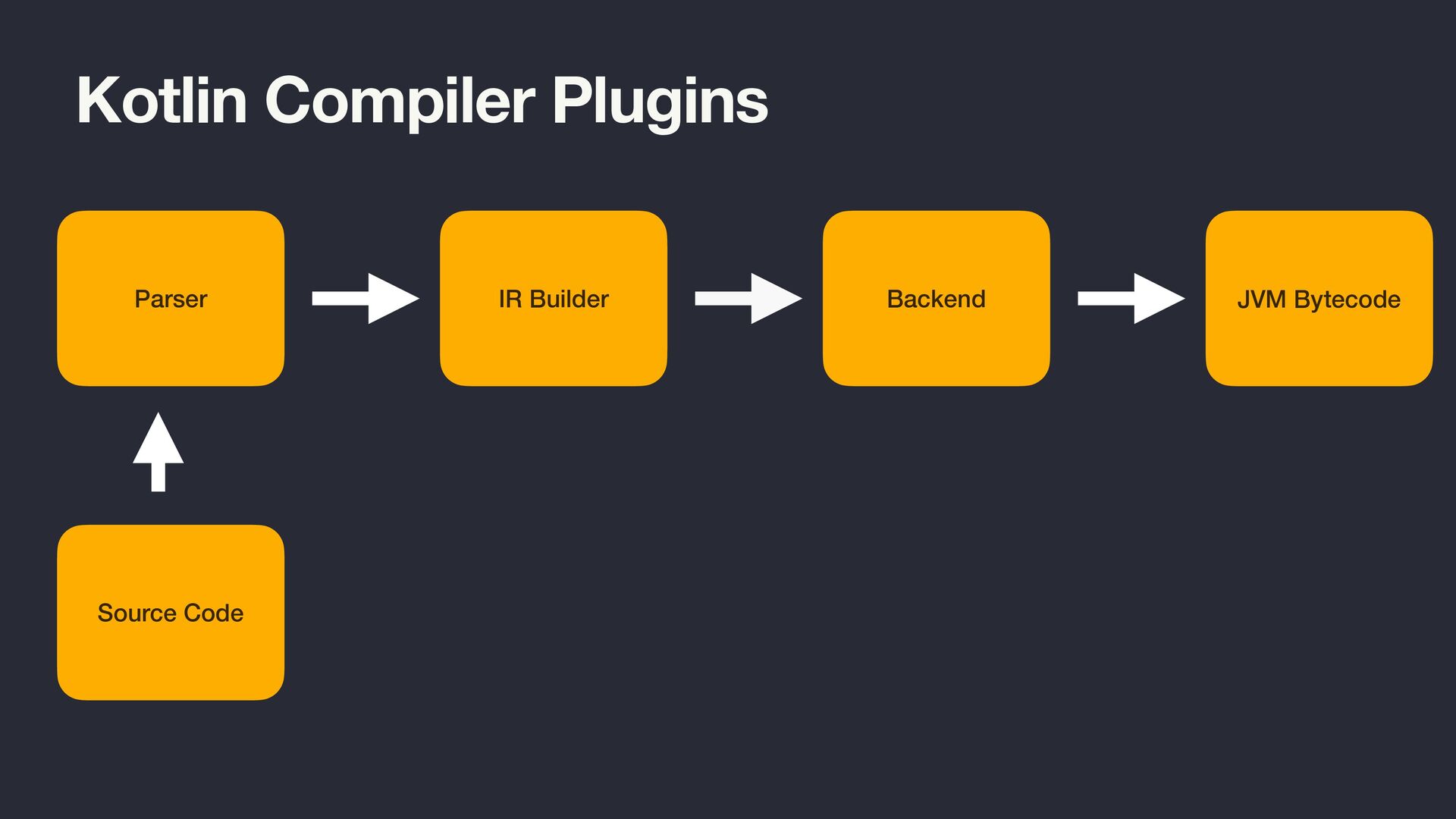

67. Kotlin Compiler Plugins Parser IR Builder Backend Source Code JVM Bytecode

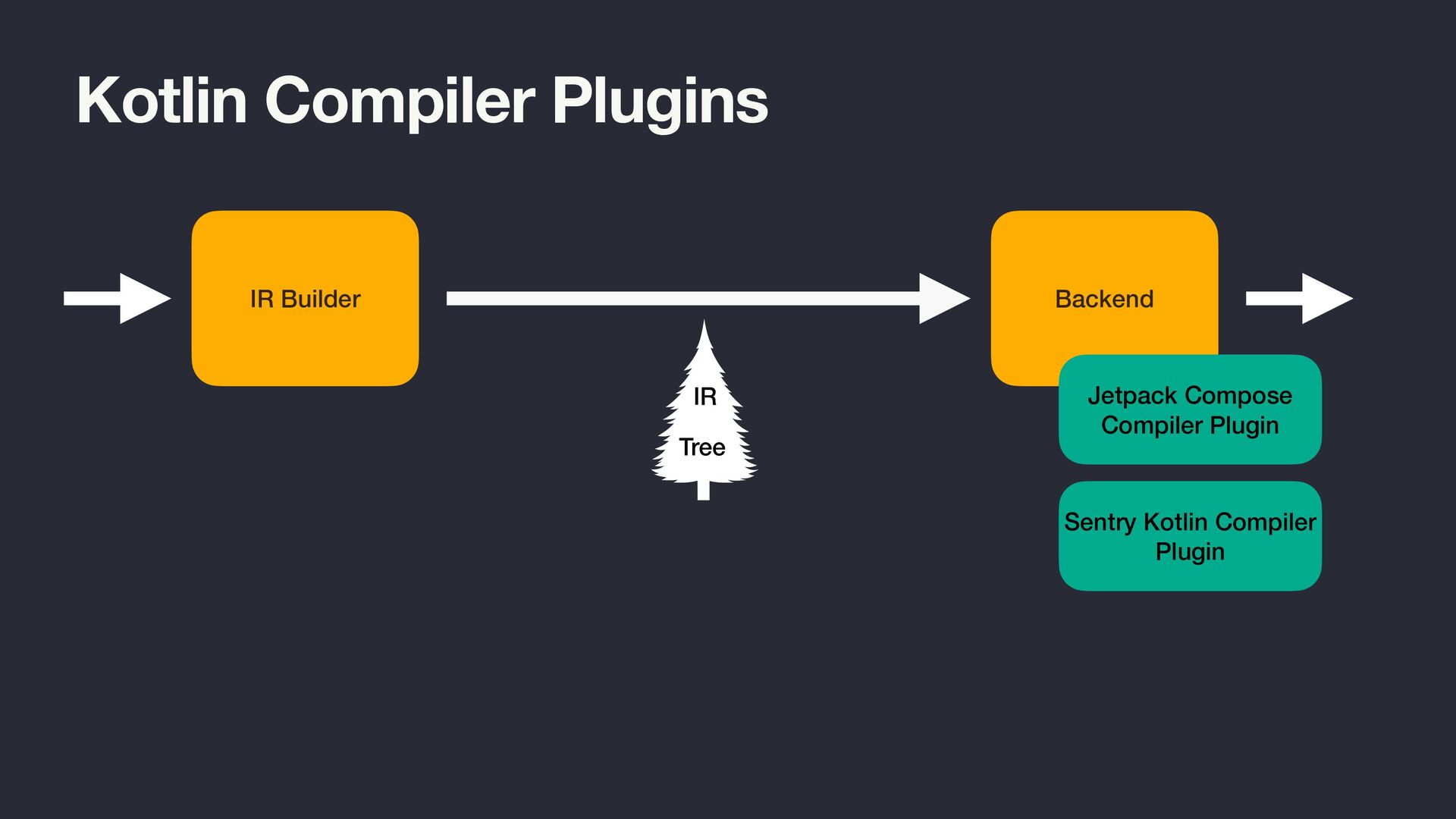

68. Kotlin Compiler Plugins IR Builder Backend Jetpack Compose Compiler Plugin IR Tree Sentry Kotlin Compiler Plugin

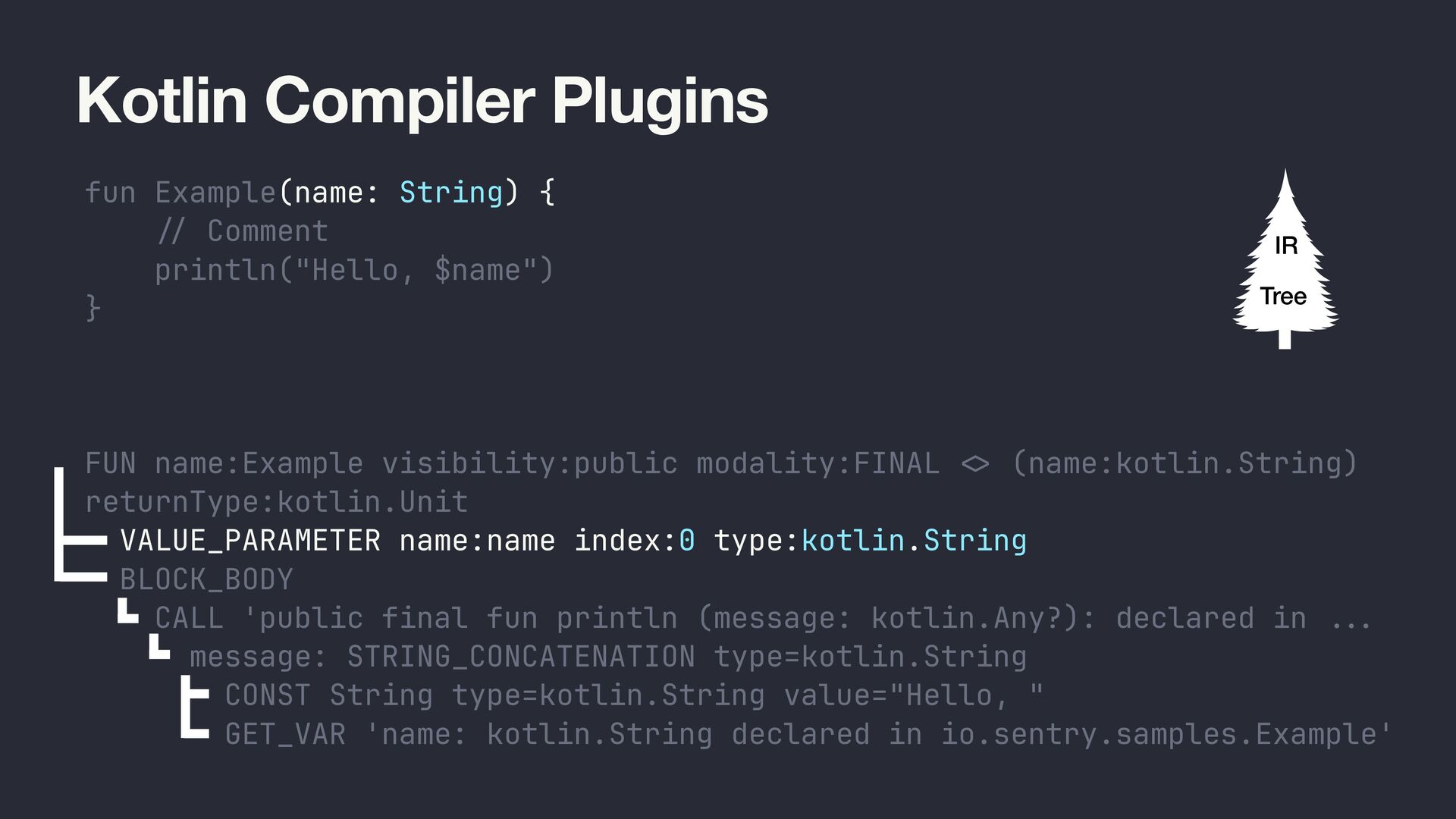

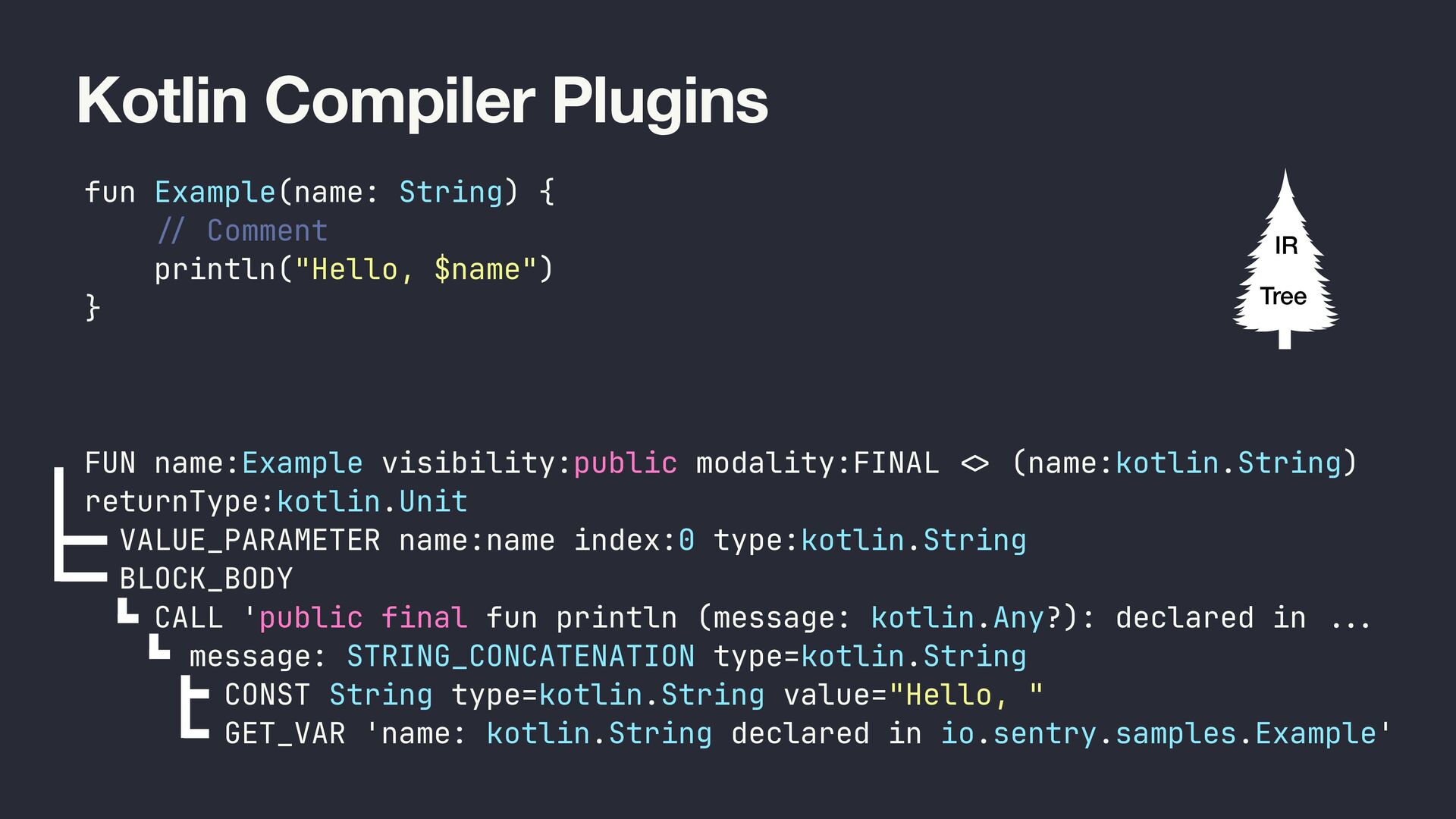

69. Kotlin Compiler Plugins fun Example(name: String) { / / Comment println("Hello, $name") } FUN name:Example visibility:public modality:FINAL <> (name:kotlin.String) returnType:kotlin.Unit VALUE_PARAMETER name:name index:0 type:kotlin.String BLOCK_BODY CALL 'public final fun println (message: kotlin.Any?): declared in .. . message: STRING_CONCATENATION type=kotlin.String CONST String type=kotlin.String value="Hello, " GET_VAR 'name: kotlin.String declared in io.sentry.samples.Example' IR Tree

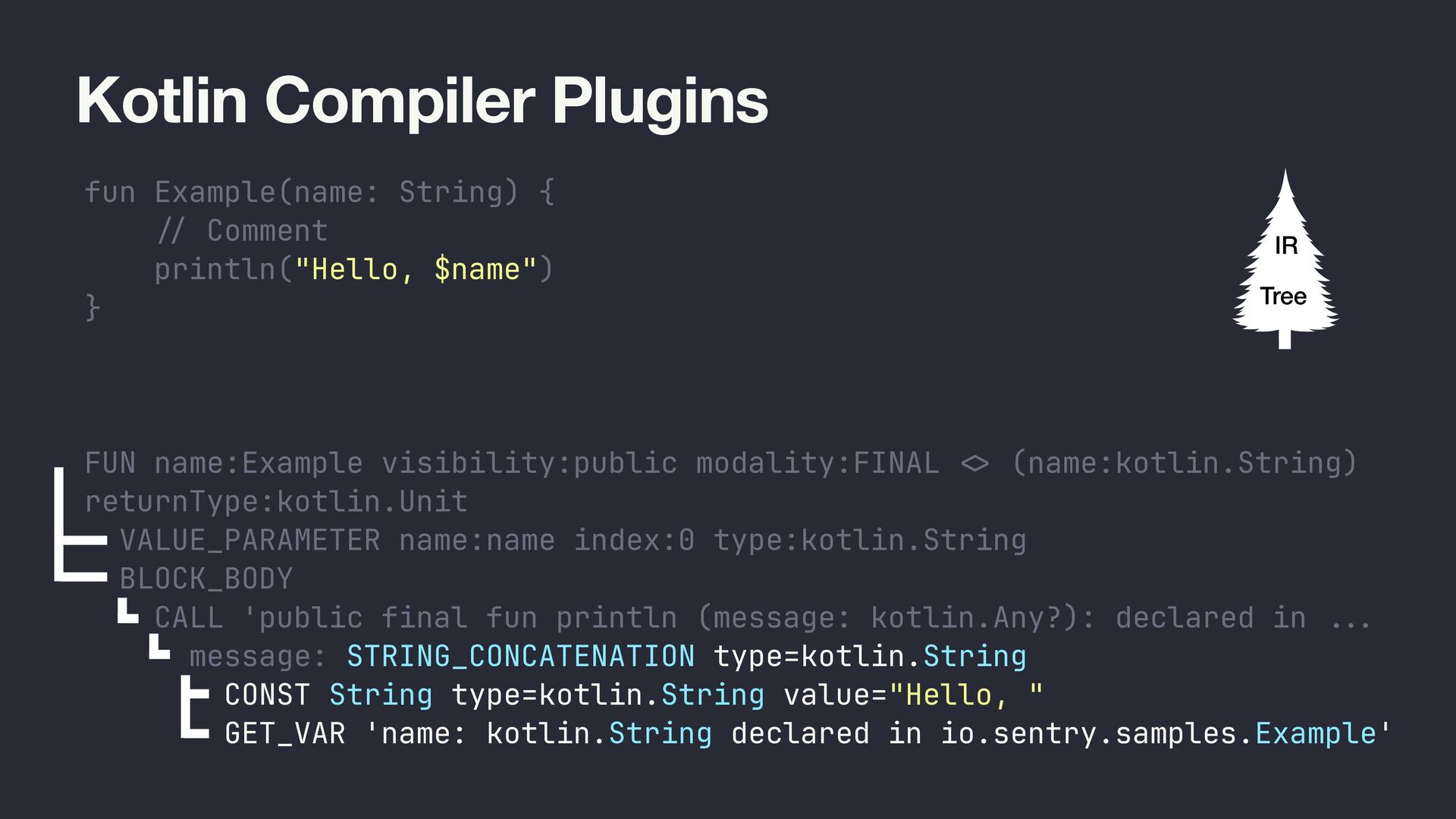

70. Kotlin Compiler Plugins fun Example(name: String) { / / Comment println("Hello, $name") } FUN name:Example visibility:public modality:FINAL <> (name:kotlin.String) returnType:kotlin.Unit VALUE_PARAMETER name:name index:0 type:kotlin.String BLOCK_BODY CALL 'public final fun println (message: kotlin.Any?): declared in .. . message: STRING_CONCATENATION type=kotlin.String CONST String type=kotlin.String value="Hello, " GET_VAR 'name: kotlin.String declared in io.sentry.samples.Example' IR Tree
71. Kotlin Compiler Plugins fun Example(name: String) { / / Comment println("Hello, $name") } FUN name:Example visibility:public modality:FINAL <> (name:kotlin.String) returnType:kotlin.Unit VALUE_PARAMETER name:name index:0 type:kotlin.String BLOCK_BODY CALL 'public final fun println (message: kotlin.Any?): declared in .. . message: STRING_CONCATENATION type=kotlin.String CONST String type=kotlin.String value="Hello, " GET_VAR 'name: kotlin.String declared in io.sentry.samples.Example' IR Tree

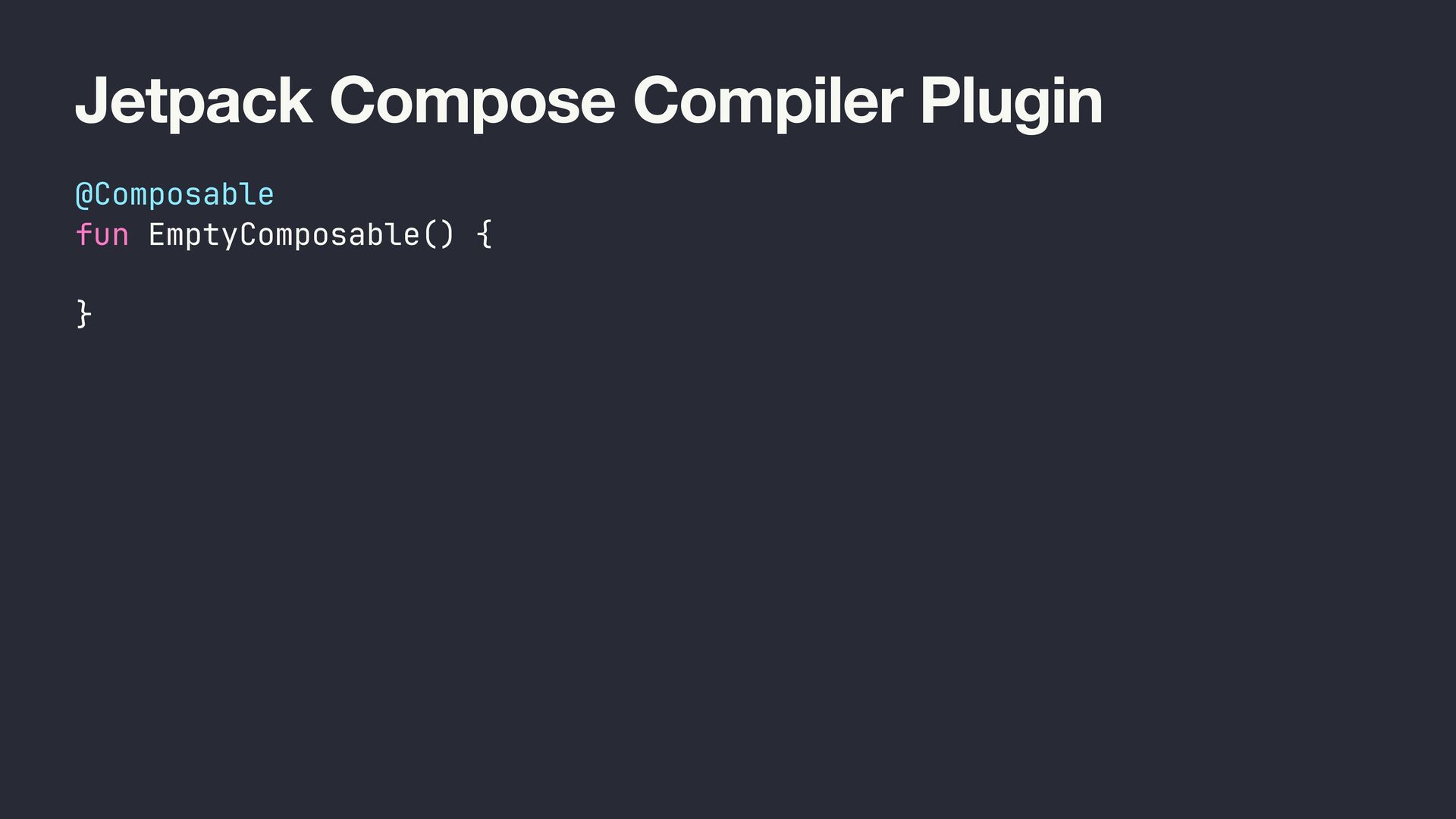

72. Jetpack Compose Compiler Plugin @Composable fun EmptyComposable() { }

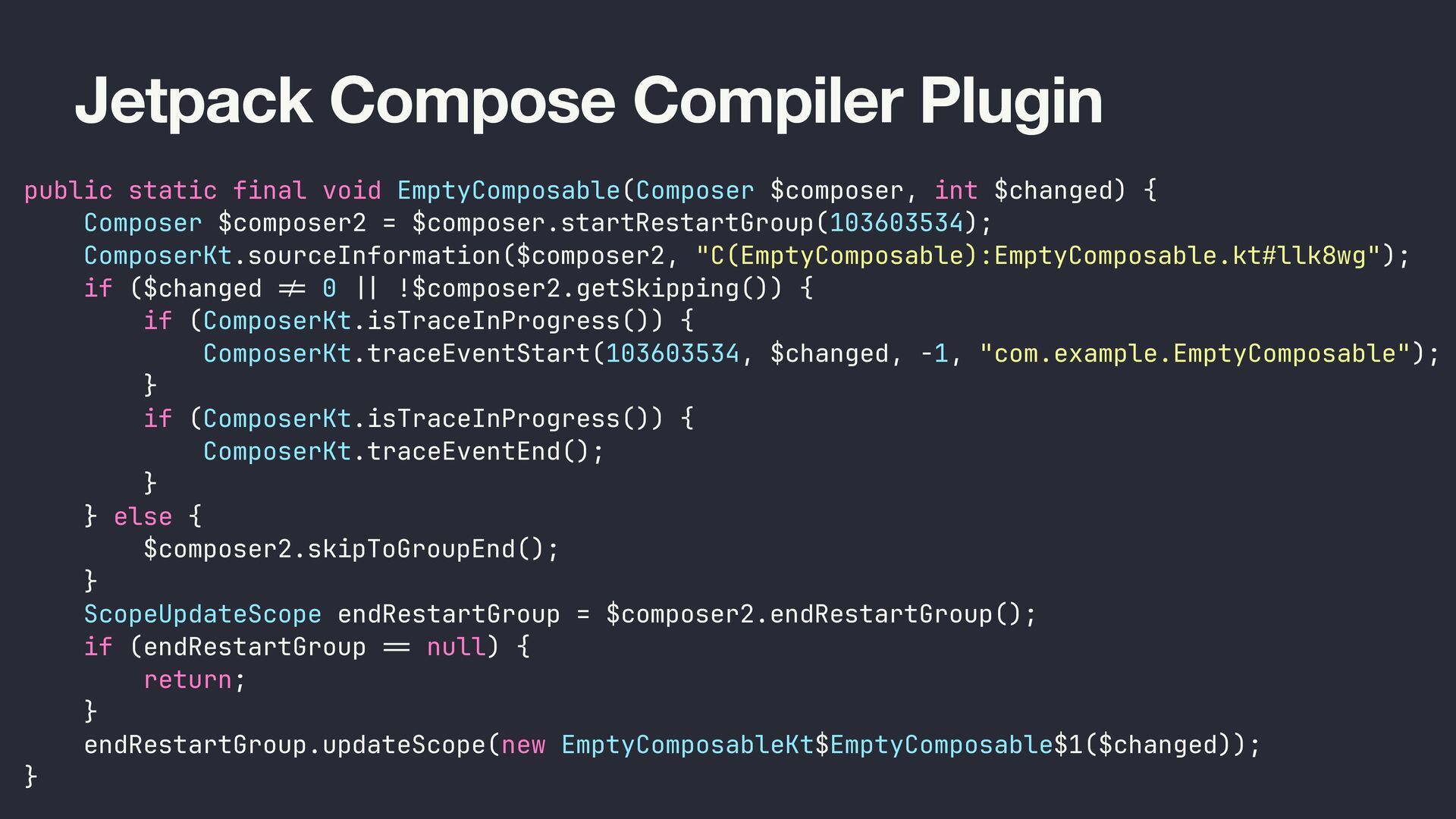

73. Jetpack Compose Compiler Plugin public static final void EmptyComposable(Composer $composer, int $changed) { Composer $composer2 = $composer.startRestartGroup(103603534); ComposerKt.sourceInformation($composer2, "C(EmptyComposable):EmptyComposable.kt#llk8wg"); if ($changed != 0 | | !$composer2.getSkipping()) { if (ComposerKt.isTraceInProgress()) { ComposerKt.traceEventStart(103603534, $changed, -1, "com.example.EmptyComposable"); } if (ComposerKt.isTraceInProgress()) { ComposerKt.traceEventEnd(); } } else { $composer2.skipToGroupEnd(); } ScopeUpdateScope endRestartGroup = $composer2.endRestartGroup(); if (endRestartGroup == null) { return; } endRestartGroup.updateScope(new EmptyComposableKt$EmptyComposable$1($changed)); }

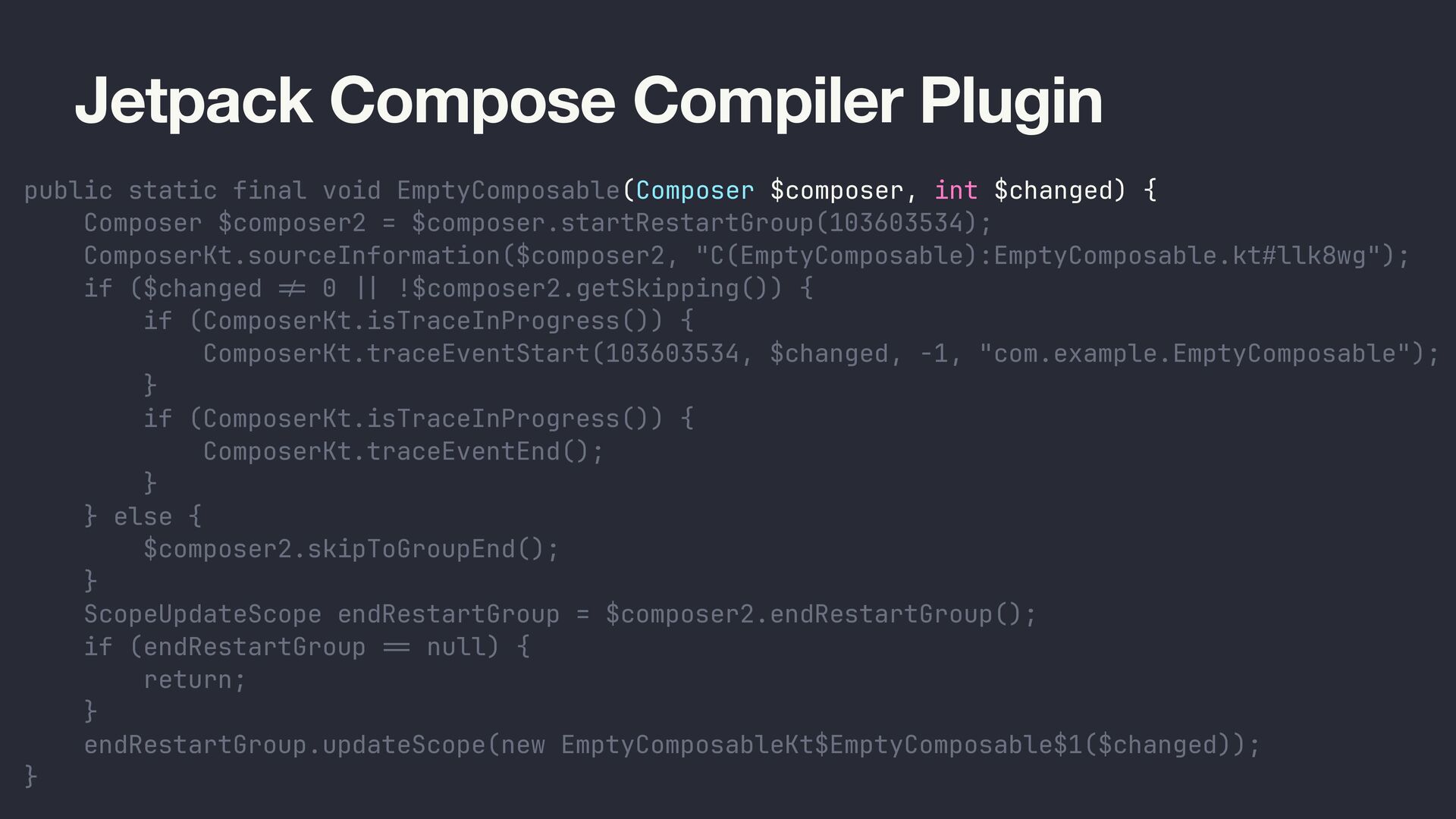

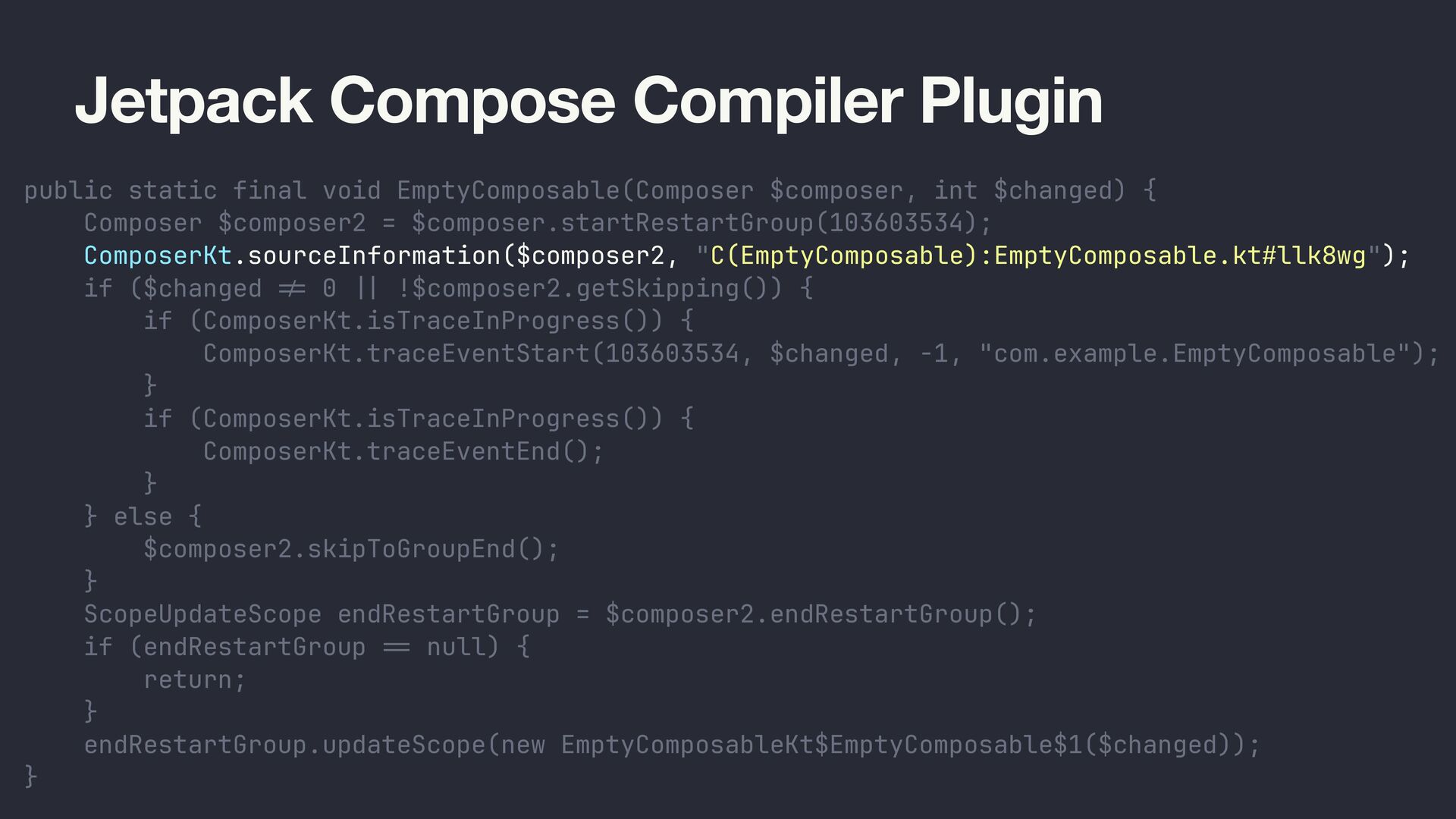

74. Jetpack Compose Compiler Plugin public static final void EmptyComposable(Composer $composer, int $changed) { Composer $composer2 = $composer.startRestartGroup(103603534); ComposerKt.sourceInformation($composer2, "C(EmptyComposable):EmptyComposable.kt#llk8wg"); if ($changed != 0 | | !$composer2.getSkipping()) { if (ComposerKt.isTraceInProgress()) { ComposerKt.traceEventStart(103603534, $changed, -1, "com.example.EmptyComposable"); } if (ComposerKt.isTraceInProgress()) { ComposerKt.traceEventEnd(); } } else { $composer2.skipToGroupEnd(); } ScopeUpdateScope endRestartGroup = $composer2.endRestartGroup(); if (endRestartGroup == null) { return; } endRestartGroup.updateScope(new EmptyComposableKt$EmptyComposable$1($changed)); }
75. Jetpack Compose Compiler Plugin public static final void EmptyComposable(Composer $composer, int $changed) { Composer $composer2 = $composer.startRestartGroup(103603534); ComposerKt.sourceInformation($composer2, "C(EmptyComposable):EmptyComposable.kt#llk8wg"); if ($changed != 0 | | !$composer2.getSkipping()) { if (ComposerKt.isTraceInProgress()) { ComposerKt.traceEventStart(103603534, $changed, -1, "com.example.EmptyComposable"); } if (ComposerKt.isTraceInProgress()) { ComposerKt.traceEventEnd(); } } else { $composer2.skipToGroupEnd(); } ScopeUpdateScope endRestartGroup = $composer2.endRestartGroup(); if (endRestartGroup == null) { return; } endRestartGroup.updateScope(new EmptyComposableKt$EmptyComposable$1($changed)); }

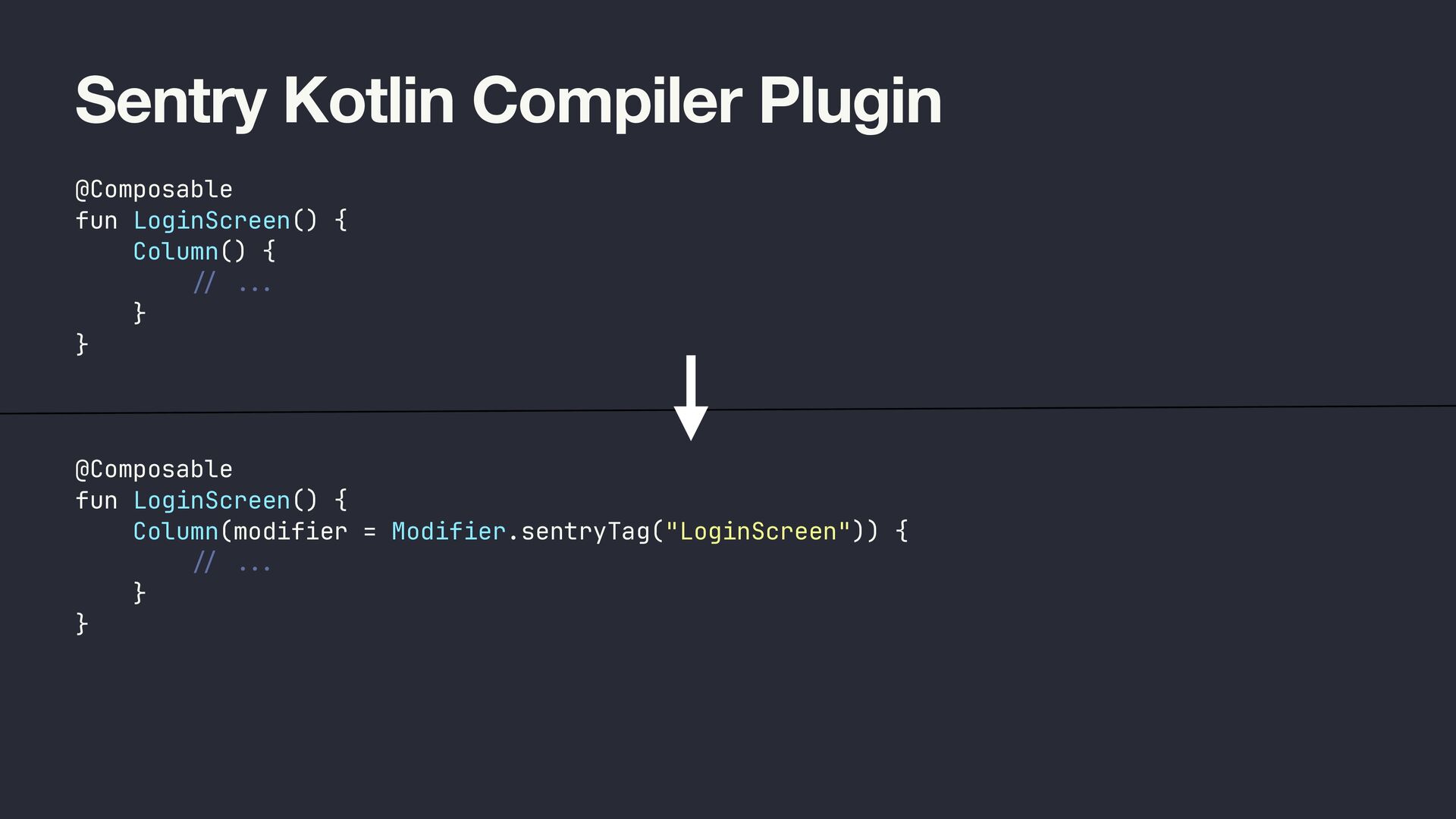

76. Sentry Kotlin Compiler Plugin @Composable fun LoginScreen() { Column() { / / ... } } @Composable fun LoginScreen() { Column(modifier = Modifier.sentryTag("LoginScreen")) { / / ... } }

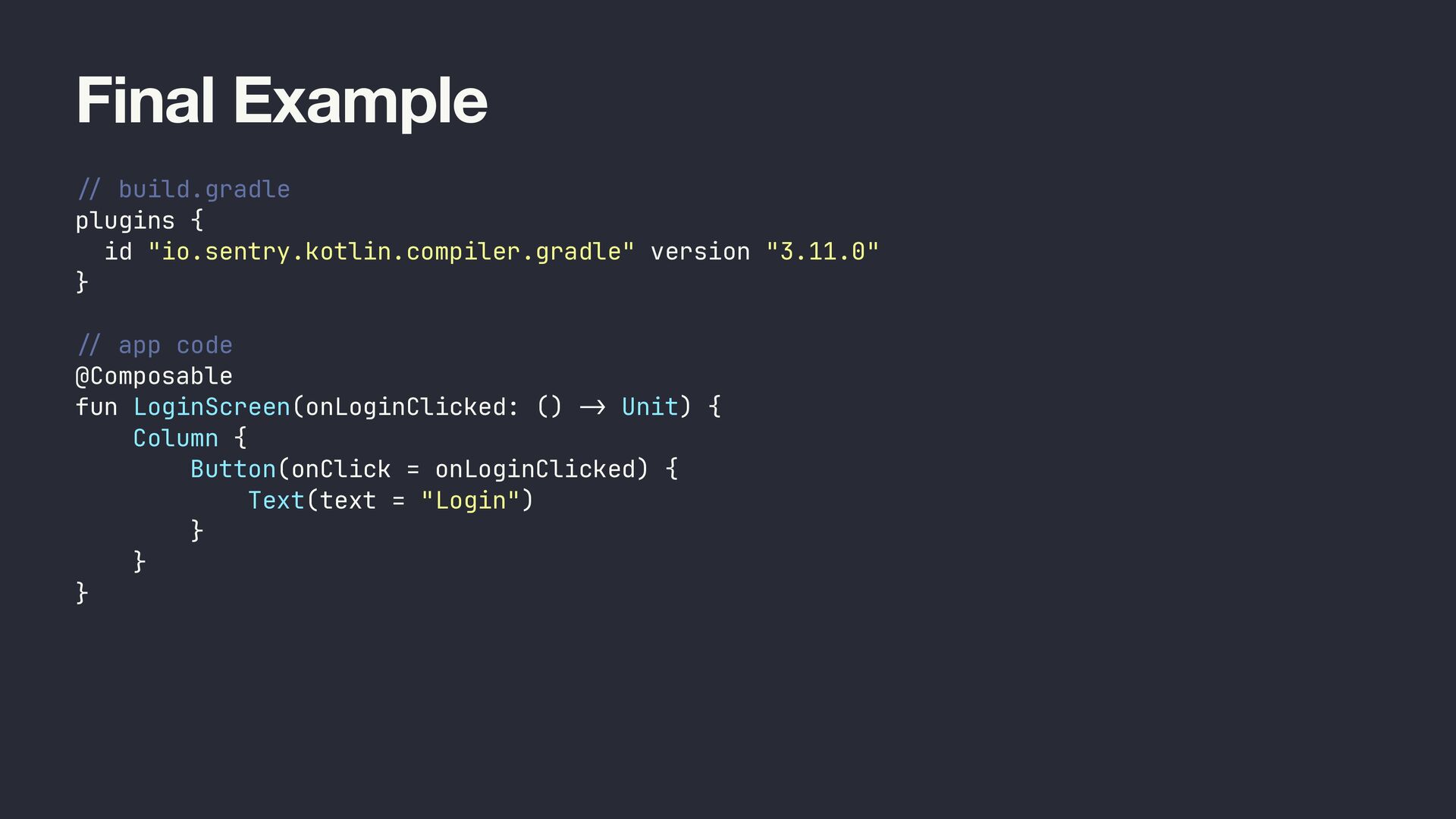

77. Final Example / / build.gradle plugins { id "io.sentry.kotlin.compiler.gradle" version "3.11.0" } / / app code @Composable fun LoginScreen(onLoginClicked: () - > Unit) { Column { Button(onClick = onLoginClicked) { Text(text = "Login") } } }

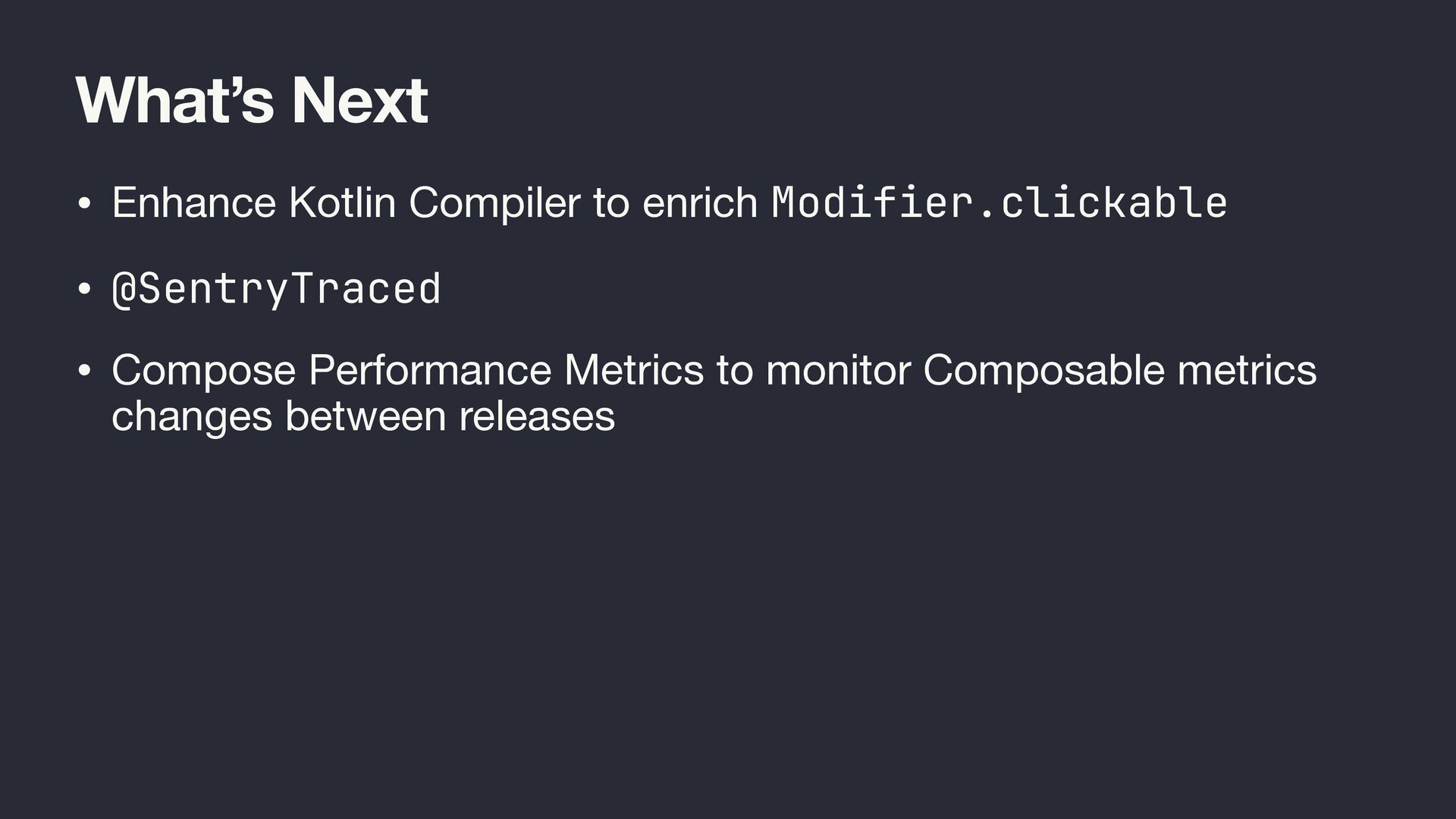

78. What’s Next • Enhance Kotlin Compiler to enrich Modifier.clickable • @SentryTraced • Compose Performance Metrics to monitor Composable metrics changes between releases

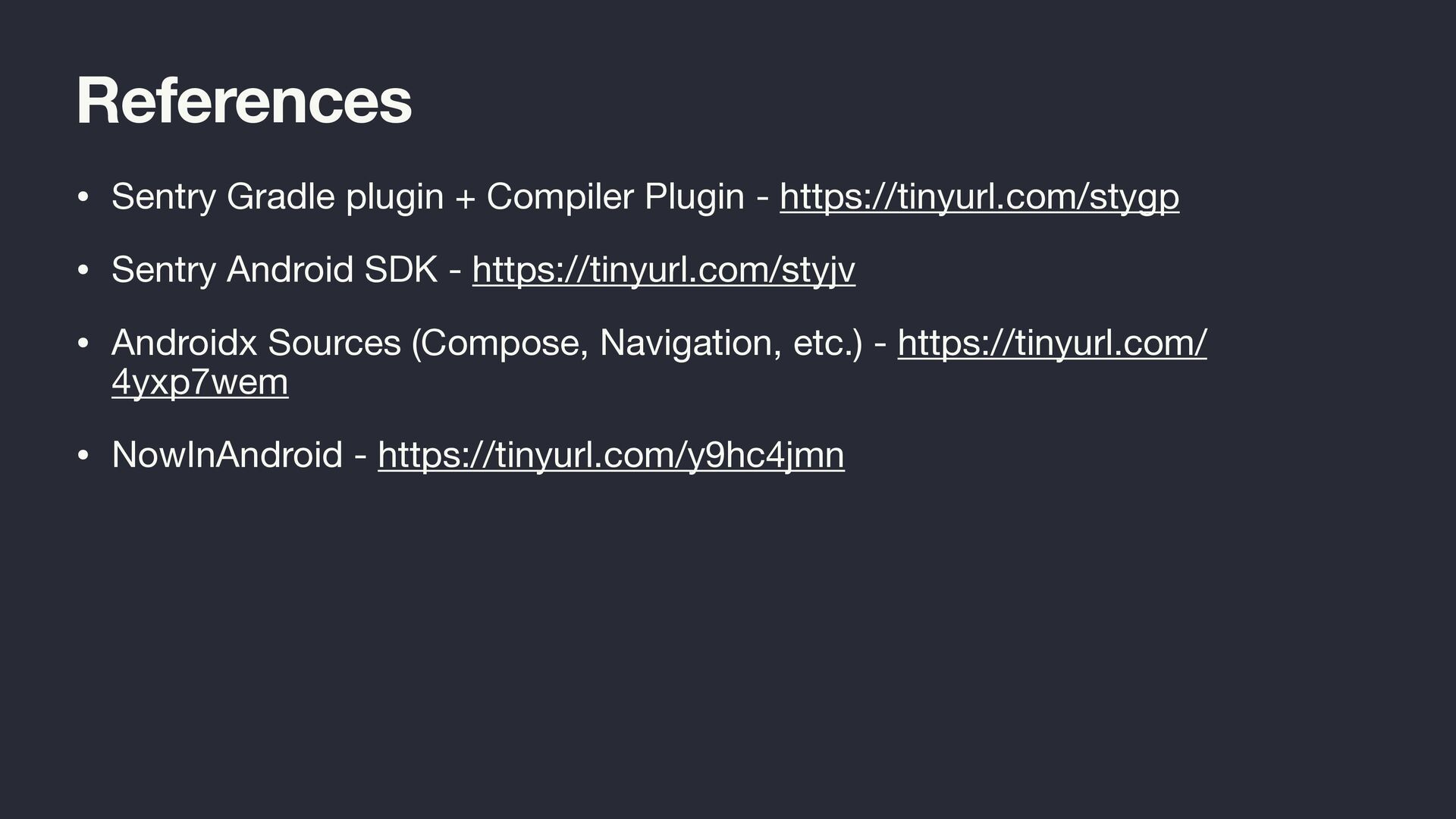

79. References • Sentry Gradle plugin + Compiler Plugin - https://tinyurl.com/stygp • Sentry Android SDK - https://tinyurl.com/styjv • Androidx Sources (Compose, Navigation, etc.) - https://tinyurl.com/ 4yxp7wem • NowInAndroid - https://tinyurl.com/y9hc4jmn
80. Thank you! @romtsn
 @markushi_
