Online Monitoring in Small Modular Reactors

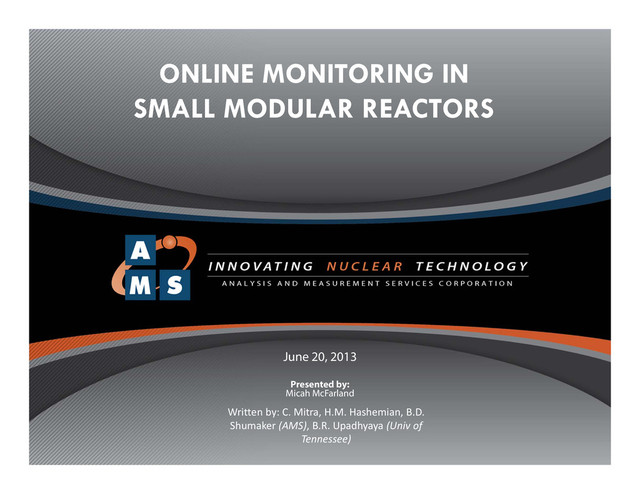

of 16 ONLINE MONITORING IN SMALL MODULAR REACTORS
June 20, 2013 Presented by: Micah McFarland Written by: C. Mitra, H.M. Hashemian, B.D. Shumaker (AMS), B.R. Upadhyaya (Univ of Tennessee)

of 16 PROJECT OBJECTIVES (PHASE I) Adapt existing
OLM technology for automated, hands-off maintenance of SMR I&C systems and other equipment

of 16 REPRESENTATIVE SMRS Design Organization Country Type
Thermal Output Status Design Life Coolant CAREM CNEA Argentina iPWR 100 MWth Licensing 60 years Light Water SMART KAERI S Korea iPWR 330 MWth Licensed 60 years Light Water KLT-40S OKBM Afrikantov Russia PWR 150 MWth Construction 40 years Light Water IRIS Westing- house Int’l iPWR 1000 MWth Cancelled 60 years Light Water mPower B&W/ Bechtel USA iPWR 500 MWth Design 60 years Light Water NuScale Fluor USA iPWR 165 MWth Design 60 years Light Water Westinghouse SMR Westinghouse USA iPWR 800 MWth Conceptual 60 years Light Water FBNR FURGS Brazil iPWR 134 MWth Conceptual Unknow n Light Water EM2 General Atomics USA HTGCFR 500 MWth Conceptual 30 years Helium 4S Toshiba Japan LMCFR 30 MWth Conceptual 30 years Sodium Prism General Electric USA LMCFR 471 MWth Conceptual Unknow n Sodium

of 16 U.S. DESIGNED LIGHT WATER REACTORS

of 16 PROJECT BACKGROUND PH. 1: FEASIBILITY STUDY,
PH. 2: AWARD PENDING

of 16 ONLINE MONITORING PWR Schematic (Simplified)

of 16 SMR INTERNALS (GENERIC)

of 16 OLM VALIDATION ACTIVITIES

of 16 IRIS SIMULATOR

of 16 TURBINE DEMAND FEEDWATER FLOW CORE POWER
HOT LEG TEMP STEAM FLOW RATE STEAM PRESSURE REACTIVITY STEAM TEMP COLD LEG TEMP

of 16 MODEL VALIDATION RESULTS

of 16 MODEL TRAINING Modeling Region Feedwater Flow
Time Time Error Model 1 Time Time Feedwater Flow Error Modeling Region Model 3 TABLE043-01 Modeling Region Feedwater Flow Time Time Error in OLM Process Estimate Model 2

of 16 TRANSIENT CORRECTIONS

of 16 KEY FINDINGS – Phase I •
Technology developed for current PWRs can serve as a starting point for SMRs • SMR vendors agree that OLM must have a role in maintenance optimization of SMRs • SMRs must include provisions in their design for adoption of OLM during or after construction. • Additional research is needed to establish the reliability of OLM results for SMRs. See PHASE II.

of 16 WORK NEEDED – Phase II •
Establish provisions in SMR design for OLM integration • Develop Empirical and Physical Models for OLM monitoring SMRs • Customize / Validate OLM algorithms • Build Data Acquisition System for SMR’s • Evaluate the use of prognostics for real- time asset management • Build prototype OLM system for SMRs • Design a commercial OLM system for SMRs

of 16 THANK YOU QUESTIONS?
