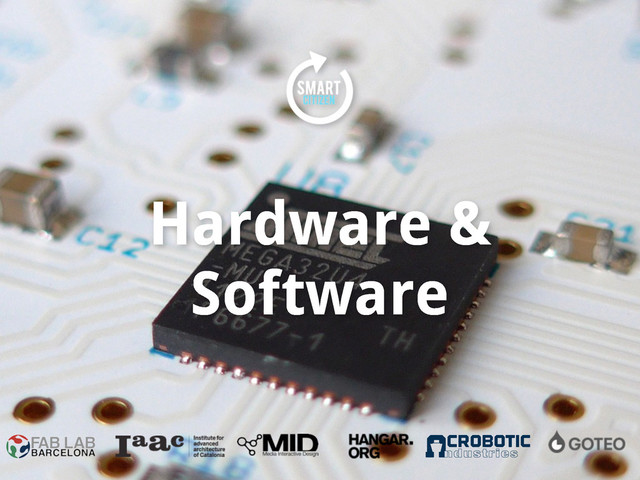

  1. Hardware & Software

  2. The Evolution

  3. 2010

  4. 2011

  5. 2012

  6. 2012

  7. None

  8. SCK 1.0

  9. None

  10. SCK 1.1

  11. SCK Data Board

  12. SCK Data Board

  13. Internet connectivity RTC Data time tracking Mini Usb connector &EŻIV]'LEVKIV

    Solar Panel Charger Micro SD card storage Arduino IDE compatible TM

  14. www.github.com/fablabbcn

  15. Partnership http://arduino.cc/en/ArduinoAtHeart/Products

  16. The Sensors

  17. TEMPERATURE HUMIDITY LIGHT NOISE CO NO2 SOLAR PANEL SCK Urban

    Shield

  18. Temperature ºC SHT21 Humidity % rel SHT21 Carbon Monoxide (CO)

    kOhm (ppm) MIC4514 Dioxide Nitrogen (NO2) kOhm (ppm) MIC4514 Noise dB Electret Mic Ambient light lux BH1730FVC

  19. Accelerometer G ADXL345 Panel mV ADC Battery % ADC Net

    Units WiFly RN-131G

  20. Temperature and Relative Humidity Lux (1 lm/m2) SHT21 http://www.sensirion.com/fileadmin/ user_upload/customers/sensirion/

    Dokumente/Humidity/ Sensirion_Humidity_SHT21_Datasheet _V3.pdf

  21. Carbon Monoxide (CO) and Dioxide Nitrogen (NO2) kOhm (PPM) MIC4514

    http://files.manylabs.org/datasheets/ MICS-4514.pdf

  22. Carbon Monoxide (CO) and Dioxide Nitrogen (NO2) Based on our

    own tests we consider 75KΩ to be the default R0 for the CO sensors and 10KΩ to be the default R0 for NO2. We can calculate ppm as RS/R0. Example: RS = 641KΩ will around 8.3 PPM PPM = RS/R0

  23. Ambient light Lux (1 lm/m2) BH1730FVC http://rohmfs.rohm.com/en/products/ databook/datasheet/ic/sensor/light/ bh1730fvc-e.pdf

  24. Noise (Sound Pressure) dB Electret Mic

  25. https://github.com/fablabbcn/Smart-Citizen-Kit

  26. The Platform

  27. API api.smartcitizen.me www.smartcitizen.me The platform

  28. smartcitizen.me

  29. api.smartcitizen.me

  30. Current Architecture

  31. Tools and resources

  32. docs.smartcitizen.me/#/

  33. data.smartcitizen.me/debug

  34. data.smartcitizen.me/test?device=29

  35. The API

  36. api.smartcitizen.me/

  37. google.com/fusiontables/data?

  38. https://freeboard.io/board/fiDu1z

  39. http://jsfiddle.net/X6BxP/4/

  40. gist.github.com/pral2a/

  41. None

  42. www.smartcitizen.me
