Demo - Query-Based Simple and Scalable Recommender Systems with Apache Hivemall

ACM RecSys 2018 https://dl.acm.org/citation.cfm?id=3241592

Transcript

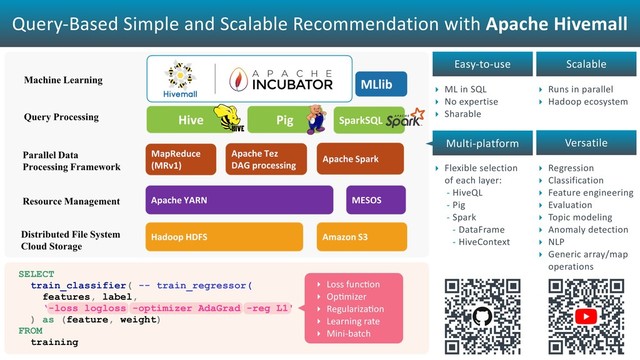

1. Query-Based Simple and Scalable Recommendation with Apache Hivemall
   Easy-to-use
   ‣ ML in SQL
   ‣ No expertise
   ‣ Sharable
   SELECT
   train_classifier( -- train_regressor(
   features, label,
   ‘-loss logloss -optimizer AdaGrad -reg L1'
   ) as (feature, weight)
   FROM
   training
   ‣ Loss func?on
   ‣ Op?mizer
   ‣ Regulariza?on
   ‣ Learning rate
   ‣ Mini-batch
   Scalable
   ‣ Runs in parallel
   ‣ Hadoop ecosystem
   ‣ Flexible selection
   of each layer:
   - HiveQL
   - Pig
   - Spark
   - DataFrame
   - HiveContext
   Versatile
   ‣ Regression
   ‣ Classification
   ‣ Feature engineering
   ‣ Evaluation
   ‣ Topic modeling
   ‣ Anomaly detection
   ‣ NLP
   ‣ Generic array/map
   operations
   Multi-platform


   View Slide

2. Item-Based Collaborative Filtering in Query Language
   itemid other cnt
   583266 621056 231
   583266 583266 923
   31231 13212 129
   31231 31231 542
   … … …
   CREATE TABLE cooccurrence as
   SELECT
   u1.itemid, u2.itemid as other,
   count(1) as cnt
   FROM
   user_purchased u1
   JOIN user_purchased u2 ON (u1.userid = u2.userid)
   WHERE
   u1.itemid != u2.itemid
   GROUP BY
   u1.itemid, u2.itemid
   userid itemid purchased_at
   1 31231 2015-04-09 00:29:02
   1 13212 2016-05-24 16:29:02
   2 312 2016-06-03 23:29:02
   3 2312 2016-06-04 19:29:02
   … … …
   CREATE TABLE user_purchased as
   SELECT
   userid,
   itemid,
   count(1) as purchase_count
   FROM
   history
   GROUP BY
   userid,
   itemid
   Count # of transac?ons for each user-item pair Compute item-item co-count What’s next?


   View Slide

3. Matrix Factorization in Query Language
   CREATE TABLE sgd_model
   as
   SELECT
   idx,
   array_avg(u_rank) as Pu,
   array_avg(i_rank) as Qi,
   avg(u_bias) as Bu,
   avg(i_bias) as Bi
   FROM (
   SELECT
   train_mf_sgd(
   user_id, item_id, rating,
   '-factor ${factor} -mu ${mu} -iter ${iters}'
   ) as (idx, u_rank, i_rank, u_bias, i_bias)
   FROM
   training
   ) t
   GROUP BY idx
   SELECT
   mf_predict(t2.Pu, p2.Qi, t2.Bu, p2.Bi, ${mu}) as predicted
   FROM (
   SELECT
   t1.user_id,
   t1.item_id,
   m1.Pu,
   m1.Bu
   FROM
   target t1
   LEFT OUTER JOIN
   sgd_model m1
   ON (t1.user_id = m1.idx)
   ) t2
   LEFT OUTER JOIN
   sgd_model m2
   ON (t2.item_id = m2.idx)


   View Slide

4. List of Recommender Related Capabilities
   ‣ List top-3 items per user:
   item user score
   1 B 70
   2 A 80
   3 A 90
   4 B 60
   5 A 70
   … … …
   SELECT
   each_top_k(
   2, user, score,
   user, item -- output columns
   ) as (rank, score, user, item)
   FROM (
   SELECT * FROM table
   CLUSTER BY user
   ) t
   Complete in 2 hrs.
   k-nearest-neighbor
   ‣ MinHash and b-Bit MinHash (LSH)
   ‣ Similari?es
   - Euclid
   - Cosine
   - Jaccard
   - Angular
   Efficient top-k retrieval
   Efficient item-based CF techniques
   ‣ Sparse Linear Method (SLIM)
   ‣ Approximated all-pair similari?es (DIMSUM)
   Matrix completion
   ‣ Matrix Factoriza?on
   ‣ (Field-Aware) Factoriza?on Machines
   SELECT
   item, user, score, rank
   FROM (
   SELECT
   item, user, score,
   rank() over
   (PARTITION BY user
   ORDER BY score DESC) as rank
   FROM
   table
   ) t
   WHERE rank <= 2
   NOT finish in 24 hrs. for
   20M users and

   ~1k items in each


   View Slide
