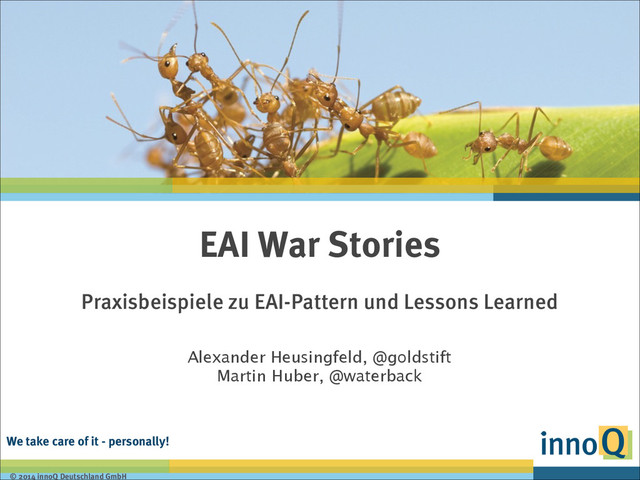

   EAI War Stories
   Praxisbeispiele zu EAI-Pattern und Lessons Learned
   !
   Alexander Heusingfeld, @goldstift
   Martin Huber, @waterback


   View Slide

2. © 2014 innoQ Deutschland GmbH
   EAI Pattern in 2013?
   Nobody uses them anymore!


   View Slide

3. © 2014 innoQ Deutschland GmbH
   That’s THE problem!


   View Slide

4. © 2014 innoQ Deutschland GmbH
   Multitude of potential service consumers
   Integration is ubiquitous
   CRM
   Application


   View Slide

5. © 2014 innoQ Deutschland GmbH
   Multitude of potential service consumers
   Integration is ubiquitous
   CRM
   Application
   ERP
   Application


   View Slide

6. © 2014 innoQ Deutschland GmbH
   Multitude of potential service consumers
   Integration is ubiquitous
   CRM
   Application
   ?


   View Slide

7. © 2014 innoQ Deutschland GmbH
   Multitude of potential service consumers
   Integration is ubiquitous
   CRM
   Application


   View Slide

8. We take care of it - personally!
   © 2014 innoQ Deutschland GmbH
   Integration Styles


   View Slide

9. © 2014 innoQ Deutschland GmbH
   File Transfer
   http://www.eaipatterns.com/FileTransferIntegration.


   View Slide

10. © 2014 innoQ Deutschland GmbH
    Shared Database
    http://www.eaipatterns.com/SharedDataBaseIntegration.


    View Slide

11. © 2014 innoQ Deutschland GmbH
    Remote Procedure Invocation
    http://www.eaipatterns.com/EncapsulatedSynchronousIntegration.


    View Slide

12. © 2014 innoQ Deutschland GmbH
    Messaging
    http://www.eaipatterns.com/Messaging.h


    View Slide

13. © 2013 innoQ Deutschland GmbH
    Messaging?
    http://bit.ly/PtrhWy


    View Slide

14. © 2014 innoQ Deutschland GmbH
    Searching for a book?
    Enterprise Integration Patterns
    (Hohpe & Woolf), 2003
    www.eaipatterns.com
    Swiss-army knife for asynchronous messaging


    View Slide

15. We take care of it - personally!
    © 2014 innoQ Deutschland GmbH
    Theories in practice


    View Slide

16. © 2014 innoQ Deutschland GmbH
    Simple order management system (CRUD)
    Real Life Scenario
    order
    management
    system


    View Slide

17. © 2014 innoQ Deutschland GmbH
    Simple ChangeRequest
    order
    management
    system


    View Slide

18. © 2014 innoQ Deutschland GmbH
    Simple ChangeRequest
    We need an importer!
    order
    management
    system


    View Slide

19. © 2013 innoQ Deutschland GmbH
    A Java EE servlet to the rescue
    @WebServlet(urlPatterns = {"/order/import"})!
    public class ImporterServlet extends HttpServlet {!
    !
    @Inject OrderBean bean;!
    @Inject CsvDataParser parser;!
    !
    @Override!
    protected void doPost(HttpServletRequest request,!
    HttpServletResponse response)!
    throws ServletException, IOException {!
    String data = request.getParameter("csvdata");!
    List orders = parser.transform(data);!
    for (Order order : orders) {!
    bean.persist(order);!
    }!
    }!
    }


    View Slide

20. © 2014 innoQ Deutschland GmbH
    System
    Simple Change done
    order
    management
    system
    HTTP
    csv
    Transfor
    Business Partner


    View Slide

21. © 2014 innoQ Deutschland GmbH
    Integrate the system of a forwarder
    System
    Change happens
    order
    management
    system
    HTTP
    csv
    Transfor
    Business Partner
    forwarder
    system
    FTP
    SMTP
    SOAP WSSE
    REST


    View Slide

22. © 2014 innoQ Deutschland GmbH
    What are the lessons learned?


    View Slide

23. © 2014 innoQ Deutschland GmbH
    Recognize an integration task
    when it‘s staring in your face?


    View Slide

24. © 2013 innoQ Deutschland GmbH
    EASY!
    http://www.flickr.com/photos/wespionage/184793114


    View Slide

25. © 2014 innoQ Deutschland GmbH
    Build an easy and maintainable solution
    for multiple integration challenges?


    View Slide

26. © 2013 innoQ Deutschland GmbH
    NO PROBLEM!
    http://www.flickr.com/p


    View Slide

27. © 2014 innoQ Deutschland GmbH
    Any help in the toolbox?


    View Slide

28. © 2013 innoQ Deutschland GmbH
    ADAPTERS?
    http://www.flickr.com/photo
    Property of ChinBuye Limited. http://bit.ly/xBKwGw


    View Slide

29. © 2013 innoQ Deutschland GmbH
    EAI Frameworks
    Apache Camel Spring Integration


    View Slide

30. © 2013 innoQ Deutschland GmbH
    Pipes and Filters
    divide your task into small steps


    View Slide

31. © 2011 innoQ Deutschland GmbH
    Camel-XML with Spring

    ...








    !



    !





    View Slide

32. © 2011 innoQ Deutschland GmbH
    Camel fluent API in Java
    public class PipelineExample extends RouteBuilder {
    !
    @Override
    public void configure() throws Exception {
    from("file://Users/martinh/temp/sample1")
    .to("bean:orderTransform?method=transformOrder")
    .to("bean:orderCheckBean?method=validateOrder")
    .to("jms:queue:order.process");
    }
    }


    View Slide

33. © 2011 innoQ Deutschland GmbH
    Pipes & Filters
    public class PipesFiltersExample extends RouteBuilder {
    !
    @Override
    public void configure() throws Exception {
    from("jms:queue:order.in?maxConcurrentConsumers=5")
    .to("bean:decryptBean")
    .to("seda:authenticate");
    !
    from("seda:authenticate")
    .process(new AuthenticationProcessor())
    .to("seda:dedup");
    !
    from("seda:dedup")
    .process(new DeDupProcessor()
    .to("jms:queue:order.processfurther");
    !
    }
    }


    View Slide

34. © 2011 innoQ Deutschland GmbH
    from("seda:authenticate")!
    .process(new AuthenticationProcessor())!
    .to("seda:dedup");!
    public class AuthenticationProcessor implements Processor {!
    ! @Override!
    ! public void process(Exchange exchange) throws Exception {!
    MyOrder order = (MyOrder)exchange.getIn().getBody();!
    String type = exchange.getIn().getHeader("orderType");!
    ! }!
    }
    Pipes & Filters


    View Slide

35. © 2014 innoQ Deutschland GmbH
    All you need are the right tools for the job?


    View Slide

36. © 2013 innoQ Deutschland GmbH
    ALMOST
    http://www.flickr.com/p


    View Slide

37. © 2014 innoQ Deutschland GmbH
    OracleDB + AQ
    Admin UI
    Real-life scenario: Control Bus
    xml-route-
    EAI-Node
    EAI-Node
    EAI-Node
    ctrl-queue
    Tomcat
    Embedded Jetty


    View Slide

38. © 2014 innoQ Deutschland GmbH
    OracleDB + AQ
    Real-life scenario: Control Bus
    xml-route-
    EAI-Node
    database connection
    EAI-Node
    EAI-Node
    ctrl-queue
    Initial Node configuration
    node type (command line arg)
    Admin UI


    View Slide

39. © 2014 innoQ Deutschland GmbH
    OracleDB + AQ
    Real-life scenario: Control Bus
    xml-route-
    EAI-Node
    subscribe to control queue
    EAI-Node
    EAI-Node
    ctrl-queue
    1. Server startup
    Admin UI


    View Slide

40. © 2014 innoQ Deutschland GmbH
    OracleDB + AQ
    Real-life scenario: Control Bus
    xml-route-
    EAI-Node
    load node-type specific config
    EAI-Node
    EAI-Node
    ctrl-queue
    subscribe to control queue
    1. Server startup
    Admin UI


    View Slide

41. © 2014 innoQ Deutschland GmbH
    OracleDB + AQ
    Config change @Runtime
    xml-route-
    EAI-Node
    EAI-Node
    EAI-Node
    ctrl-queue
    2. during runtime
    route config is changed
    Admin UI


    View Slide

42. © 2014 innoQ Deutschland GmbH
    OracleDB + AQ
    Config change @Runtime
    xml-route-
    EAI-Node
    EAI-Node
    EAI-Node
    ctrl-queue
    route config is changed
    publish config update message
    Admin UI
    2. during runtime


    View Slide

43. © 2014 innoQ Deutschland GmbH
    OracleDB + AQ
    Config change @Runtime
    xml-route-
    EAI-Node
    interpret relevance of control message
    EAI-Node
    EAI-Node
    ctrl-queue
    3. upon control message arrival
    Admin UI


    View Slide

44. © 2014 innoQ Deutschland GmbH
    OracleDB + AQ
    Config change @Runtime
    xml-route-
    EAI-Node
    affected nodes reload configuration
    EAI-Node
    EAI-Node
    ctrl-queue
    interpret relevance of control message
    Admin UI
    3. upon control message arrival


    View Slide

45. © 2014 innoQ Deutschland GmbH
    OracleDB + AQ
    Admin UI
    Lessons Learned?
    xml-route-
    EAI-Node
    EAI-Node
    EAI-Node
    ctrl-queue


    View Slide

46. © 2014 innoQ Deutschland GmbH
    Testbarkeit vs. Konfigurierbarkeit?


    View Slide

47. © 2014 innoQ Deutschland GmbH
    Testbarkeit und Konfigurierbarkeit


    View Slide

48. © 2013 innoQ Deutschland GmbH
    Message Ordering


    View Slide

49. © 2013 innoQ Deutschland GmbH
    Message Ordering


    View Slide

50. © 2013 innoQ Deutschland GmbH
    from(“ibmmq:QUEUE.IN“).noAutoStartup()
    .transacted()
    .policy(required)
    .routeId(BasicRouteBuilder
    .stdfromRouteId(this.componentBaseName))
    .process(vslHeadersProcessor)
    .setHeader(HDR_DUMMYCOMPLCHK_IBR, constant(PASSEDMSG))
    .bean(inboundTargetDispatcherBean)
    .wireTap("seda:inboundRouter.log");
    Message Ordering


    View Slide

51. © 2013 innoQ Deutschland GmbH
    Message Ordering


    View Slide

52. © 2013 innoQ Deutschland GmbH
    Message Ordering


    View Slide

53. © 2013 innoQ Deutschland GmbH
    SpringTransactionPolicy required = lookup("PROPAGATION_REQUIRED",
    SpringTransactionPolicy.class);
    for (int i = 0; i < NROFROUTES; i++) {
    String iasS = String.valueOf(i);
    from(fromEndpoint.replaceAll("§", iasS)).noAutoStartup()
    .transacted()
    .policy(required)
    .routeId(KONTO_ZP_PREROUTEID + iasS)
    .process(new CheckRedeliveryProcessor())
    .process(new ZahlplanFacetConverter())
    .bean(zpBean, "process")
    .to("bean:kontostatctr?method=stopCounter")
    .wireTap(logEndpoint);
    }
    Message Ordering


    View Slide

54. © 2014 innoQ Deutschland GmbH
    Does it save money?


    View Slide

55. © 2014 innoQ Deutschland GmbH
    Does it save money?


    View Slide

56. © 2014 innoQ Deutschland GmbH
    Backward compatibility via EAI


    View Slide

57. © 2013 innoQ Deutschland GmbH
    Transformation mit BPMN-System (1)


    View Slide

58. © 2013 innoQ Deutschland GmbH
    Transformation für BPMN-System (2)


    View Slide

59. © 2013 innoQ Deutschland GmbH
    Transformation für BPMN-System (2)


    View Slide

60. © 2013 innoQ Deutschland GmbH
    Transformation für BPMN-System (2)


    View Slide

61. © 2013 innoQ Deutschland GmbH
    Transformation für BPMN-System (3)


    View Slide

62. © 2014 innoQ Deutschland GmbH


    View Slide

63. © 2014 innoQ Deutschland GmbH
    Should I always use an EAI-Framework?


    View Slide

64. © 2014 innoQ Deutschland GmbH
    Should I always use an EAI-Framework?
    It depends!


    View Slide

65. © 2014 innoQ Deutschland GmbH
    Scenario: Kilogramm vs. Stück


    View Slide

66. © 2014 innoQ Deutschland GmbH
    Lagerverwalt-
    ungssystem
    Touren-
    planung
    Ein Integrationsproblem?
    Produktions
    system


    View Slide

67. © 2014 innoQ Deutschland GmbH
    Lagerverwalt-
    ungssystem
    Touren-
    planung
    Ein Integrationsproblem?
    Produktions
    system
    Kg
    Kg
    Kg Kg Stck


    View Slide

68. © 2014 innoQ Deutschland GmbH
    Lagerverwalt-
    ungssystem
    Touren-
    planung
    Kein Integrationsproblem
    Produktions
    system
    Kg
    Kg
    Stck Stck Stck


    View Slide

69. © 2014 innoQ Deutschland GmbH
    Further tips considering EAI


    View Slide

70. © 2014 innoQ Deutschland GmbH
    Further tips considering EAI
    small building blocks


    View Slide

71. © 2014 innoQ Deutschland GmbH
    Further tips considering EAI
    small building blocks
    no shared mutable state


    View Slide

72. © 2014 innoQ Deutschland GmbH
    Further tips considering EAI
    small building blocks
    no shared mutable state
    use immutable DTOs


    View Slide

73. © 2014 innoQ Deutschland GmbH
    Further tips considering EAI
    small building blocks
    no shared mutable state
    use immutable DTOs
    => increased scalability


    View Slide

74. © 2014 innoQ Deutschland GmbH
    Further tips considering EAI
    small building blocks
    no shared mutable state
    use immutable DTOs
    => increased scalability
    advanced: see “SEDA” & “actor model”


    View Slide

75. We take care of it - personally!
    © 2014 innoQ Deutschland GmbH
    Alexander Heusingfeld, @goldstift
    alexander.heusingfeld@innoq.com
    Martin Huber, @waterback
    martin.huber@innoq.com
    http://www.innoq.com/de/talks
    Vielen Dank!


    View Slide
