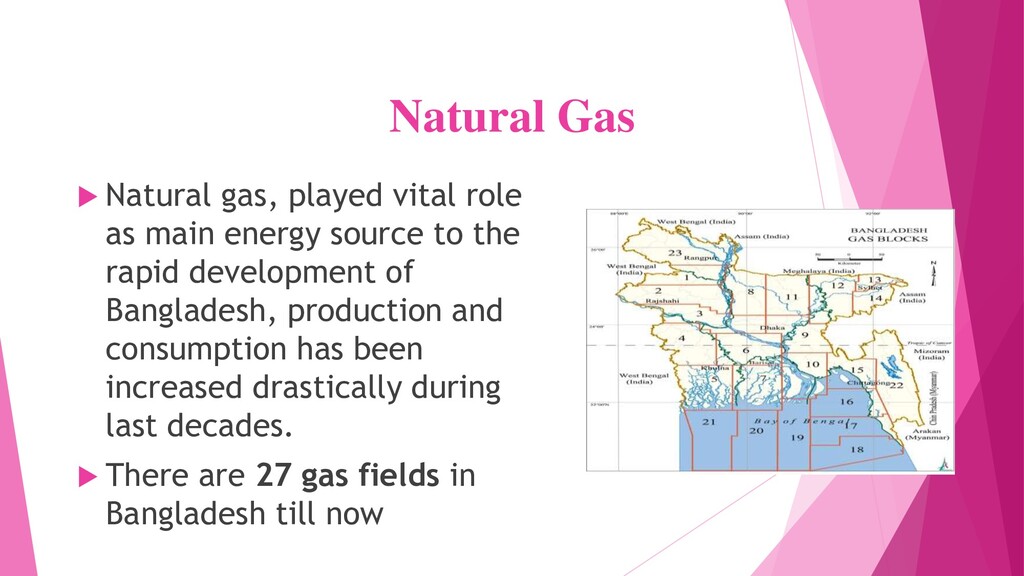

energy source to the rapid development of Bangladesh, production and consumption has been increased drastically during last decades. There are 27 gas fields in Bangladesh till now

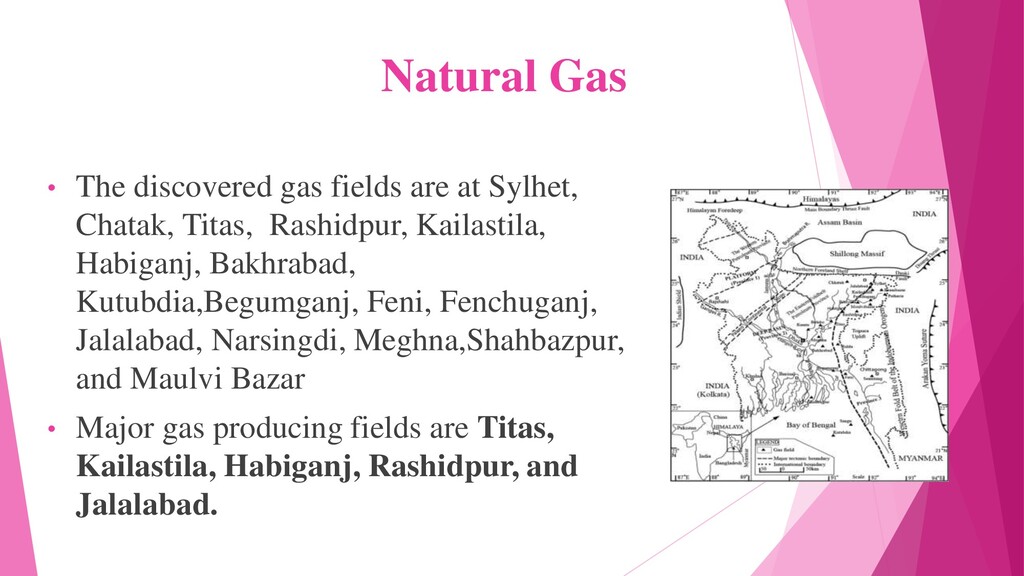

Chatak, Titas, Rashidpur, Kailastila, Habiganj, Bakhrabad, Kutubdia,Begumganj, Feni, Fenchuganj, Jalalabad, Narsingdi, Meghna,Shahbazpur, and Maulvi Bazar • Major gas producing fields are Titas, Kailastila, Habiganj, Rashidpur, and Jalalabad.
discovered at “Haripur” in 1986. It has an estimated in-place oil reserve of about 40 million barrels, with a recoverable reserve of about 6 million barrels. The oil field produced 0.56 million barrels of oil in six and a half years, but production remained suspended from 1994. Bangladesh imports annually about 1.3 million metric tons of crude oil.
Bangladesh imports yearly about 1.3 million metric Tons of crude oil. Bangladesh imports annually about 1.3 million metric tons of crude oil. Besides these, another 2.7 million metric Tons (approx.) of refined petroleum products per annum is imported. Condensate is mixed with crude oil. Major consumer of liquid fuel is transport sector followed by agriculture, industry and commercial sector which is mostly met by imported liquid fuel.
ranks: 1. Lignite or brown coal 2. Sub-bituminous coal 3. Bituminous coal 4. Anthracite coal. Coal first discovered in the country by Geological Survey of Pakistan (GSP) in 1959 was at great depth. Geological survey of Bangladesh (GSB) continued its efforts for exploration that resulted in the discovery of 4 coalfields
in April 2003 with the expectation to produce 1 million short tons of coal/year. Coal imported from India, China, and Indonesia is mainly consumed in brickfields both in public and private sectors, and in small industries.

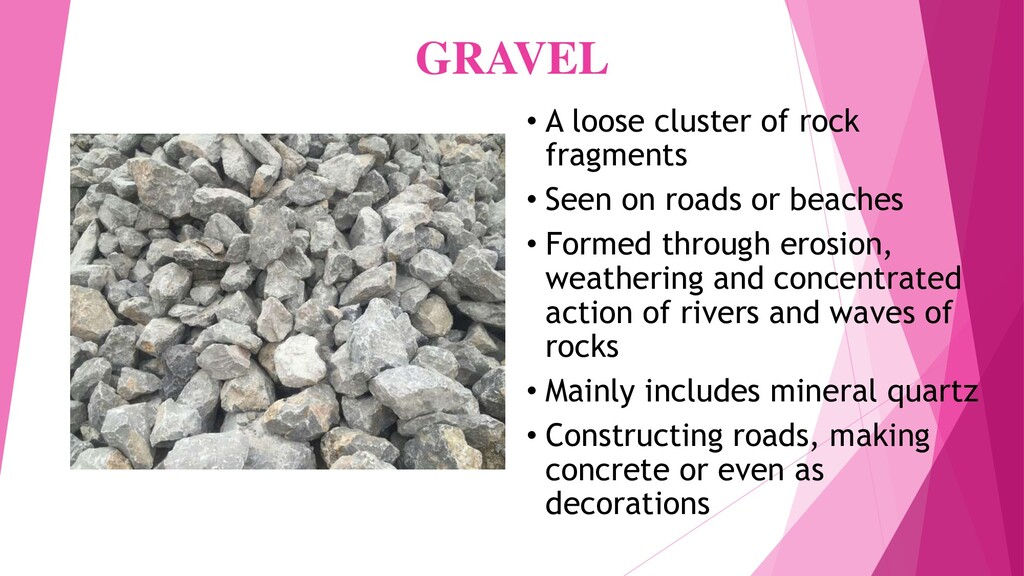

on roads or beaches • Formed through erosion, weathering and concentrated action of rivers and waves of rocks • Mainly includes mineral quartz • Constructing roads, making concrete or even as decorations

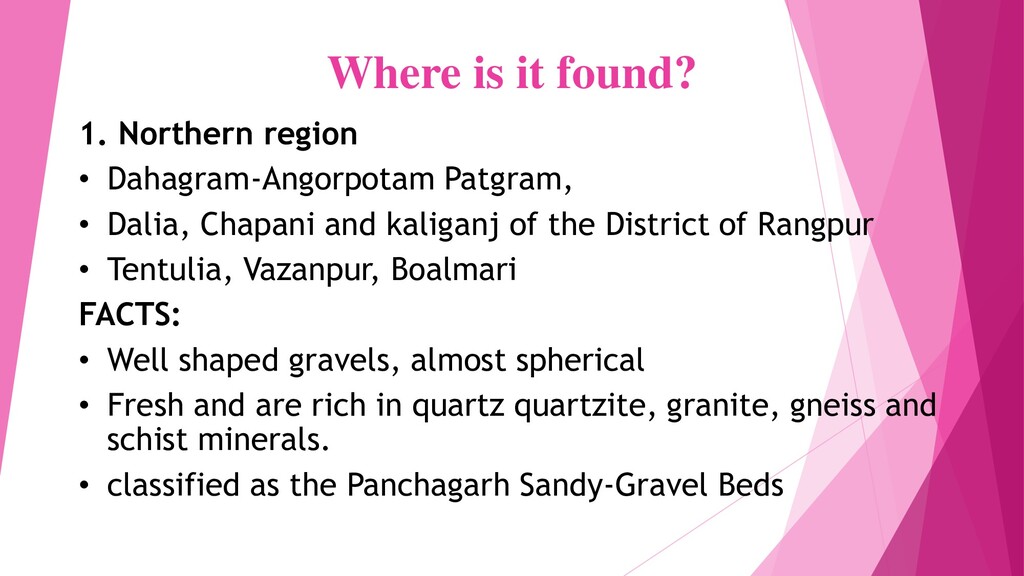

• Dalia, Chapani and kaliganj of the District of Rangpur • Tentulia, Vazanpur, Boalmari FACTS: • Well shaped gravels, almost spherical • Fresh and are rich in quartz quartzite, granite, gneiss and schist minerals. • classified as the Panchagarh Sandy-Gravel Beds
FACTS Jaintiapur area and Binda tila are called the ‘Sona Tila Gravel bed’of the high terrace Bholaganj and the riverbed deposits of the current river system are called the ‘Bholaganj Gravel Bed’ of the Low terrace

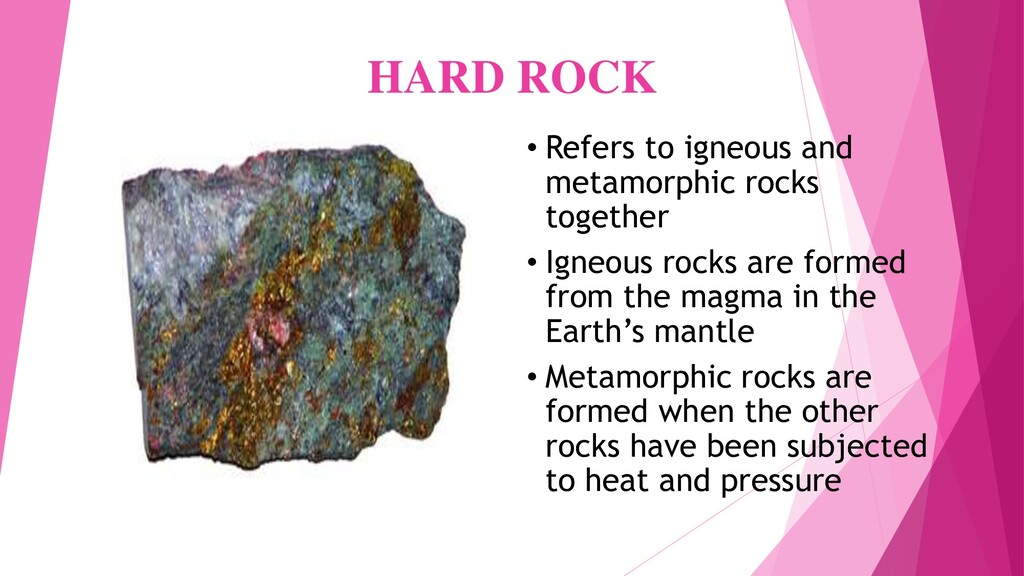

• Igneous rocks are formed from the magma in the Earth’s mantle • Metamorphic rocks are formed when the other rocks have been subjected to heat and pressure
SURVEY OF BANGLADESH (GSB) drilled six wells in and around Maddhyapara Depths of 128m and 154m 2.Ranipukur and Pirganj 3.Jamalganj and Kansat of Rajshahi District

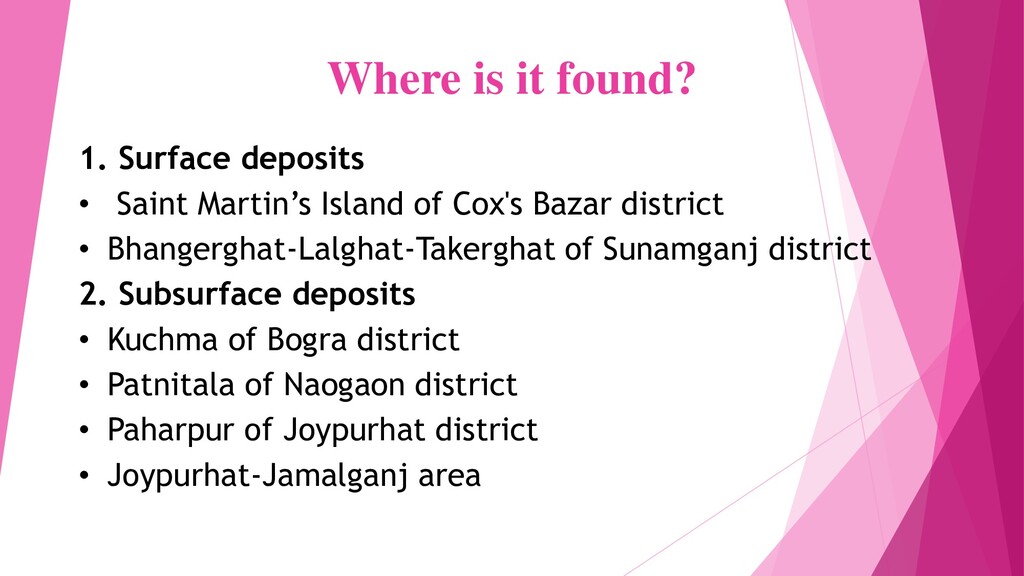

Island of Cox's Bazar district • Bhangerghat-Lalghat-Takerghat of Sunamganj district 2. Subsurface deposits • Kuchma of Bogra district • Patnitala of Naogaon district • Paharpur of Joypurhat district • Joypurhat-Jamalganj area
beaches of Chittagong and Cox’s Bazaar district. • There are 17 placer deposits; 15 are in the Cox's Bazar-Chittagong sea beaches, of which 7 are from the Cox's Bazar-Teknaf sea beaches (Cox's Bazar, Inani, Silkhali, TEKNAF, Sabrang and Badarmokam), 7 from Maheshkhali Island, 1 each from Matarbari, Kutubdia and Nijhum islands, and Kuakata. • 20.5 million tons of raw sands which contains 4.4 million tons of minerals.

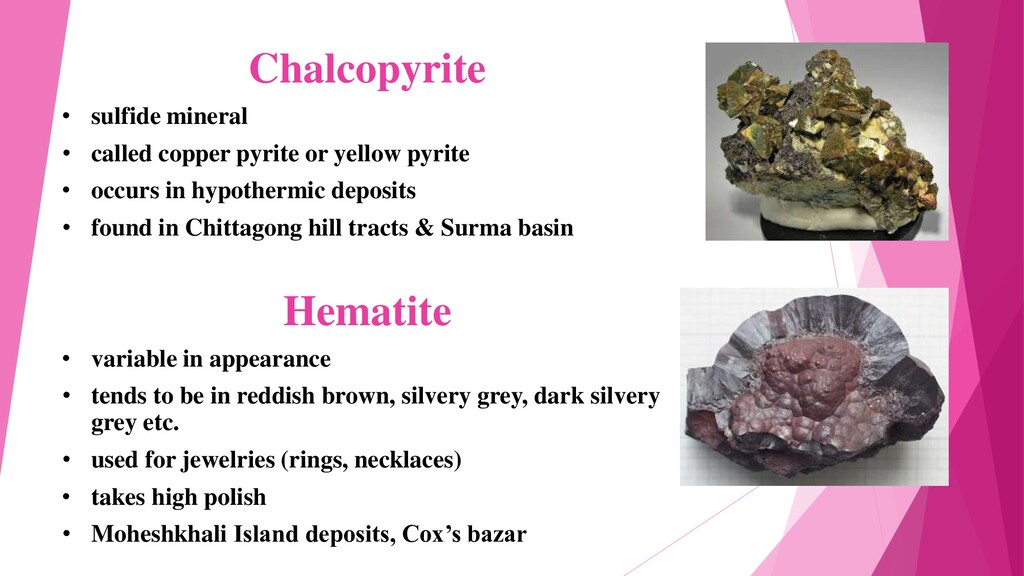

pyrite • occurs in hypothermic deposits • found in Chittagong hill tracts & Surma basin Hematite • variable in appearance • tends to be in reddish brown, silvery grey, dark silvery grey etc. • used for jewelries (rings, necklaces) • takes high polish • Moheshkhali Island deposits, Cox’s bazar
enriched with silica, lime and magnesia • Pleistocene Madhupur clay is enriched with alumina and iron oxide • Madhupur clay is recommended for ideal brick clay
Bazar, Pagla and salla of Sunamganj region. • In 1953 GSB Baghia-Chanda Beel of Madaripur district. • In 1955 peat was found scattered upto 500 sq km • About 150 tons of dry peat is calculated.
in northwest of Bangladesh • A hint of gold in the subsurface volcanic stone from northwestern part of nation • Ilmenite, rutile, leucoxene is utilized in slag, weilding and liquefying metal • Zircon is utilized to make foundry, sand and stubborn block.
that exist without actions of humankind. Richness in natural resource is the main indicator of socio- economic infrastructure for any country all over the world. The vital mineral deposits of Bangladesh are natural gas, coal, limestone, hard rock, gravel, boulder, glass sand, construction sand, white clay, brick clay, peat, and beach sand heavy minerals. At present, natural gas is the only mineral commodity significantly contributing to the national economy of our country. Energy and Mineral Resources Department are entrusted to make all approaches associated with the mineral and energy resources of Bangladesh.
country is looking forward to use their natural mineral resources better to make our economy industrialized. Considering “Natural Gas” as the main natural mineral resource of our country. ✓For cooking purposes ✓Industrial development & raw material in Bangladesh ✓Transportation and Communication ✓Power source
buildings ✓Development of Agriculture ✓Solving Unemployment Problem: I. Huge Employment Opportunity II. Transportation in the “raw material industry” and “industrialized product”. III. Making the agriculture sector more productive ✓Higher Standard of Living
use natural gas: I. Ensuring fund provision as per plan. II. Ensuring the drilling and development of well as per plan through the uninterrupted work procedure. Strategies to increase supply & use of coal: I. Creating mass awareness and mass involvement regarding the extraction procedure of coal. II. Constructing coal mining plan which is depended with the demand of the country.
use others minerals: I. We should create more reservoirs for storing minerals which will help us to meet the future demand. II. The government and the private companies should make maximum use of these minerals. Using our renewable energy resource properly by using the following some strategies: 1. Removing VAT/Tax for all type of solar accessories and wind turbine raw materials to reduce cost. 2. The govt. should make it mandatory to have all commercial buildings to install solar rather than residential buildings. 3. Implementing hybrid system.
is its expanding population and most the population is uneducated which makes the existing minerals insufficient to mee the demands of ots population. So, to overcome this problem more mineral resources should be discovered both in land and the ocean which would be important for achieving the goal of a sustainable future
