Exploit the smart speaker at Pwn2Own

In this talk I'm going to talk about how I and my teammate got an unauthenticated RCE on the Sonos Era 100 smart speaker. In this talk, I will cover the following topics:

- Why we chose this target?
- The SMB protocol
- How libsmb2 library works
- The use-after-free bug
- The information leak
- Demo video

Transcript

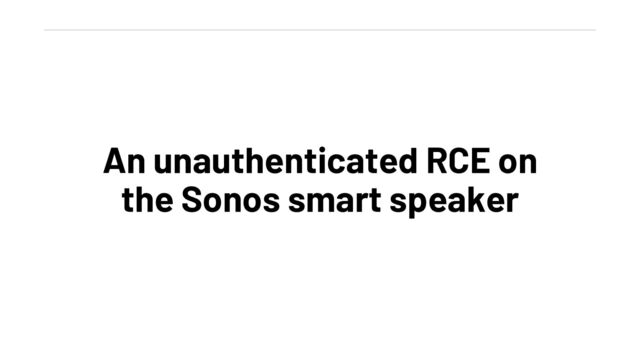

1. An unauthenticated RCE on the Sonos smart speaker
2. $ whoami § I am Trung from VN AST § Interested in RE, pwn things for fun § Member of Qrious Secure
3. Qrious Secure § A small CTF group with 6 members § Exploited Linux kernel, v8, Virtualbox, routers, Android phones and many more … § https://x.com/qriousec
4. Content § Why we chose this target? § How SMB protocols works? § How the bugs were found? § The demo
5. Why we chose this target? ZDI published a research on the Sonos One Speaker (2023)
6. Why we chose this target? Later, Orange Tsai also published his research on the Sonos One Speaker
7. Why we chose this target? § Content of the ZDI blog post § 1 info leak and 1 use after free (UAF) inside the libsmb2 library § 1 info leak inside the HTTP server code § 1 stack buffer overflow inside the MPEG-TS parser § Content of Orange’s talk § He talked about the file format parsers § He also mentioned the libsmb2 library
8. Why we chose this target? § We choose to look at libsmb2 library § It is an open source project § It bases on https://github.com/sahlberg/libsmb2 with some modification
9. How the Sonos speaker utilizes the libsmb2 library? Unauthenticated user The Sonos speaker The remote SMB server Send remote play request Fetch music from a remote SMB server using libsmb2 library
10. How the Sonos speaker utilizes the libsmb2 library? Unauthenticated user The Sonos speaker The remote SMB server Send remote play request Fetch music from a remote SMB server using libsmb2 library Attacker can control this
11. What is libsmb2 library? § libsmb2 is written in pure C § libsmb2 supports asynchronous operations § When a task is done, libsmb2 will call the provided callback function
12. The SMB protocol
13. The SMB protocol § SMB protocol is a client-server communication protocol § Sharing files, printers, and other resources over network § Port 445
14. How libsmb2 works?
15. How libsmb2 works? Client Server Wait queue
16. How libsmb2 works? Client Server Wait queue Request 1
17. How libsmb2 works? Client Server Wait queue Request 1 | Function_1 | Data_1
18. How libsmb2 works? Client Server Wait queue Request 1 | Function_1 | Data_1 Request 2
19. How libsmb2 works? Client Server Wait queue Request 1 | Function_1 | Data_1 Request 2 | Function_2 | Data_2
20. How libsmb2 works? Client Server Wait queue Request 1 | Function_1 | Data_1 Request 2 | Function_2 | Data_2 Reply 1
21. How libsmb2 works? Client Server Wait queue Request 1 | Function_1 | Data_1 Request 2 | Function_2 | Data_2 Call Function_1(Data_1)
22. The UAF bug
23. The UAF bug § When a SMB client wants to get information of a file § libsmb2 sends 3 requests at once § OPEN request § QUERY request § CLOSE request
24. The UAF bug Wait queue OPEN | Function_1 | Data QUERY | Function_2 | Data CLOSE | Function_3 | Data
25. The UAF bug Wait queue OPEN | Function_1 | Data QUERY | Function_2 | Data CLOSE | Function_3 | Data Different callback functions but SAME callback data
26. The UAF bug § Normally the replies arrive in the order OPEN -> QUERY -> CLOSE § But a malicious SMB server can change the order of the replies § CLOSE -> QUERY -> OPEN § Then the callback order is Function_3 -> Function_2 -> Function_1 § Let’s look at these functions
27. static void getinfo_cb_3(struct smb2_context *smb2, int status, void *command_data _U_, void *private_data) { struct stat_cb_data *cb_data = private_data; // stripped free(cb_data); // ß free } static void getinfo_cb_2(struct smb2_context *smb2, int status, void *command_data, void *private_data) { struct stat_cb_data *cb_data = private_data; struct smb2_stat_64 *st = cb_data->st; // ß use st->smb2_nlink = fs->standard.number_of_links; // ß use /* stripped ... */ } Function_3 Function_2
28. The UAF bug § UAF confirmed § By reclaiming the cb_data, we can get arbitrary write static void getinfo_cb_2(struct smb2_context *smb2, int status, void *command_data, void *private_data) { struct stat_cb_data *cb_data = private_data; struct smb2_stat_64 *st = cb_data->st; st->smb2_nlink = fs->standard.number_of_links; /* stripped ... */ }
29. The UAF bug § But what/where to write? § Can’t write into GOT table (Full RELRO) § My idea is to overwrite __free_hook with system (glibc 2.29) § But don’t know their locations yet (ASLR, PIE) à Need a leak
30. The OOB read
31. static int encode_ntlm_auth(struct smb2_context *smb2, time_t ti, struct auth_data *auth_data, char *server_challenge) { /* ... */ memcpy(&u32, &auth_data->ntlm_buf[40], 4); u32 = le32toh(u32); // ß------------------------- We control this server_name_len = u32 >> 16; memcpy(auth_data->buf, server_name_buf, server_name_len); // Bug here } We can control server_name_len and no length check was made on them
32. The OOB read § Basically, we can do § memcpy(reply_buffer, buffer, Y) § We control Y § OOB read confirmed à Leak libc address à Defeat ASLR
33. The demo
35. Thanks for listening
