1. COLORPLUS IOT SPECIFICATIONS & REQUIREMENTS
2. SENSOR DETAILS

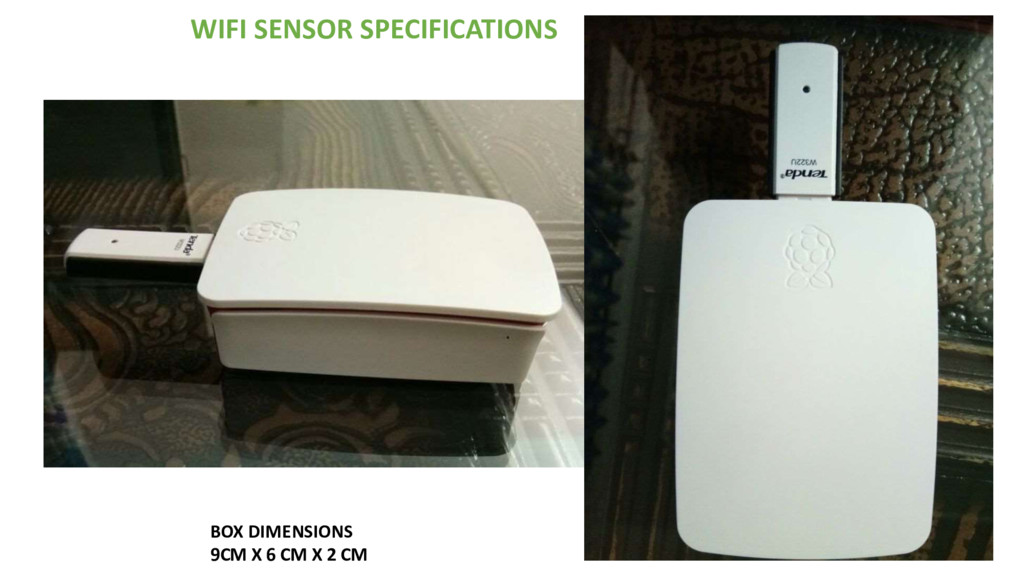

3. BOX DIMENSIONS 9CM X 6 CM X 2 CM WIFI SENSOR SPECIFICATIONS

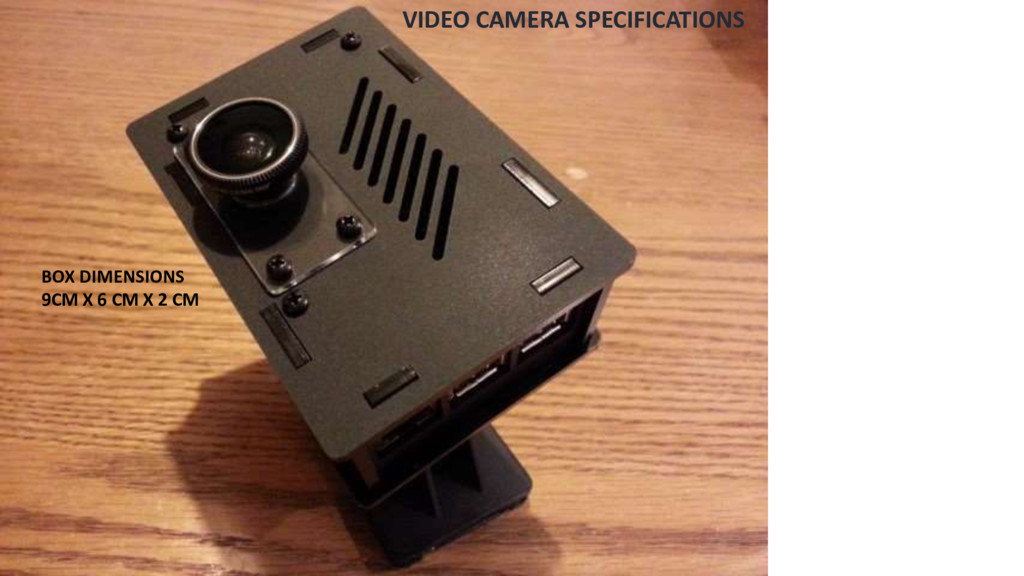

4. VIDEO CAMERA SPECIFICATIONS BOX DIMENSIONS 9CM X 6 CM X 2 CM
5. POWER SOURCE (In case 240 V supply is not feasible for some sensors)
6. HOW MANY SENSORS AND HOW
7. SENSOR REQUIREMENTS POWER SUPPLY Regular 240V power supply needed for each wifi sensor and video camera. OR Powered by Li ion batteries INTERNET CONNECTIVITY A master device will use the internet to send the data to our servers. Wifi connection would be preferable in order to make the analytics real time. NUMBER OF SENSORS Following number of sensors will need to be installed in the store 2 Video Cameras 6 Wifi sensors

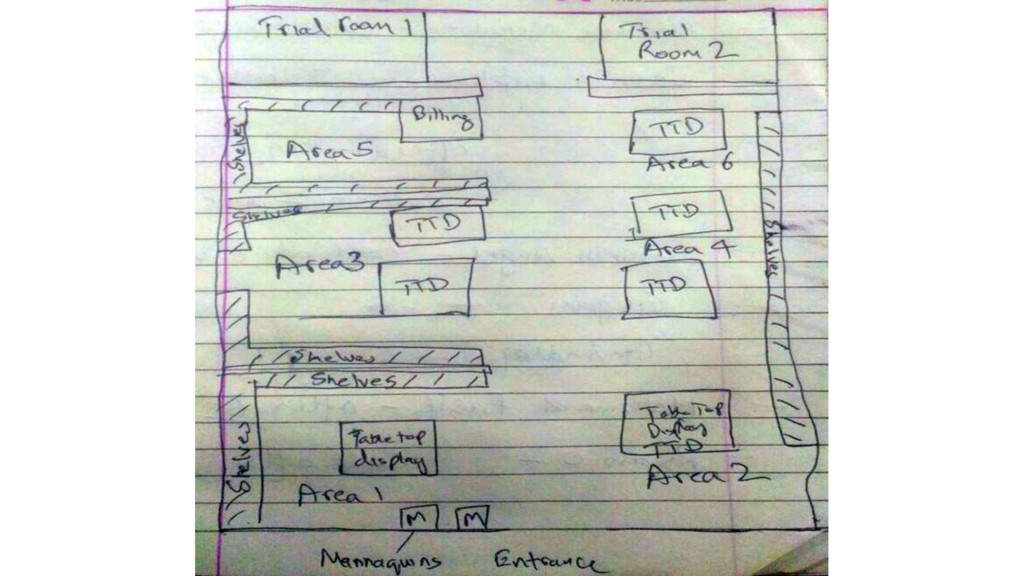

8. STORE MAP AND SUGGESTED SENSOR LOCATIONS

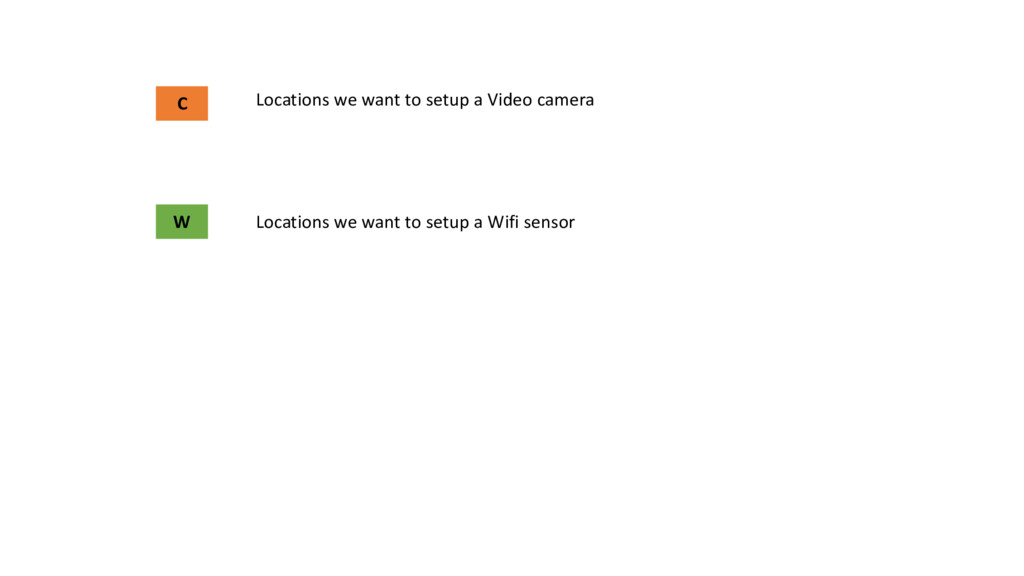

10. C W Locations we want to setup a Video camera Locations we want to setup a Wifi sensor
11. To capture the traffic outside One video camera outside near the entrance C

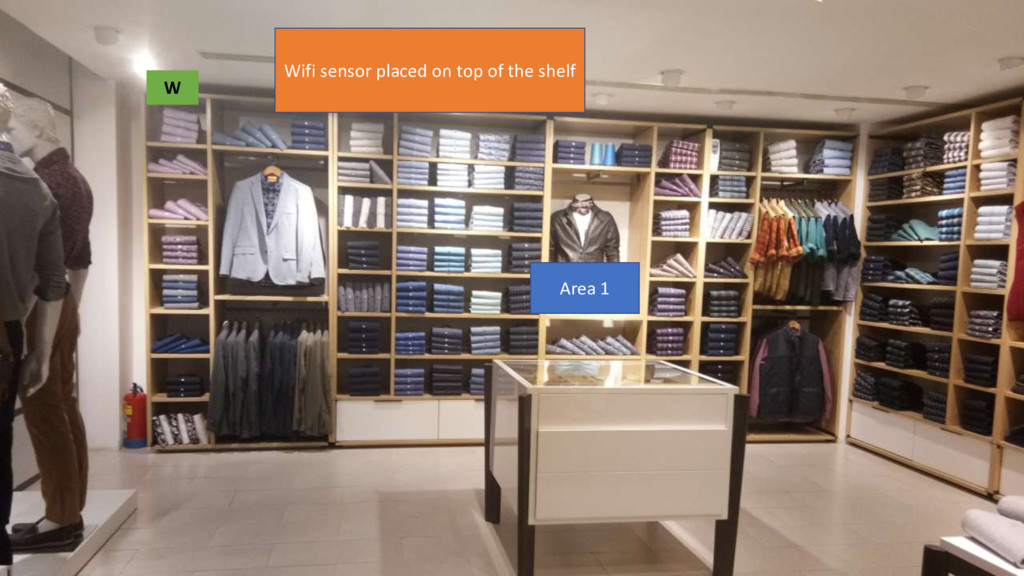

12. Area 1 W Wifi sensor placed on top of the shelf
13. Area 2 Area 4 W Two wifi sensors on the black rack for lights W
14. Area 3 W Wifi sensor placed on top of the shelf

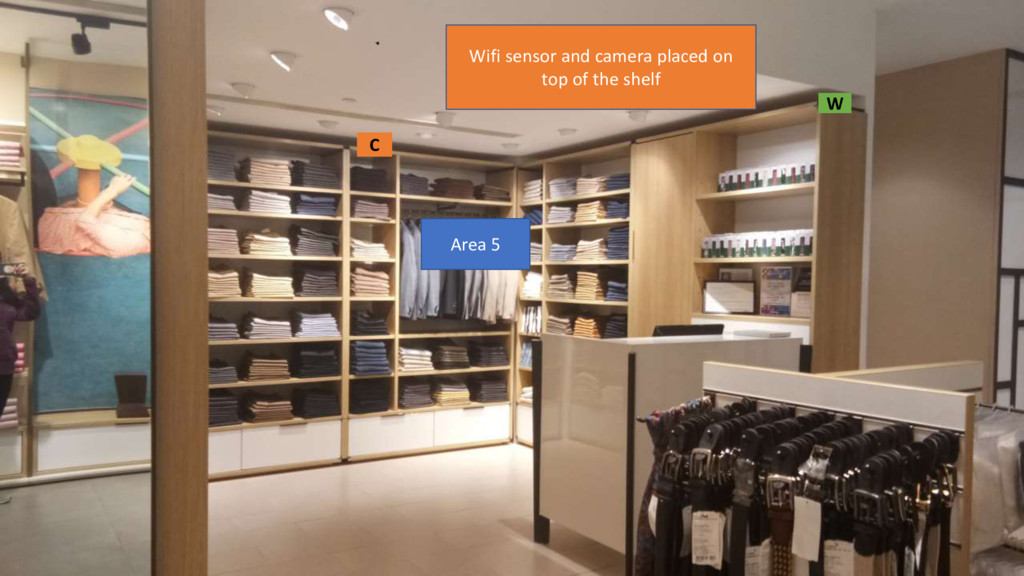

15. Area 5 W C Wifi sensor and camera placed on top of the shelf
16. Area 6 W One wifi sensor on the black light rack on top (not visible in this picture, but similar to as seen in Area 2 pictures)
17. OTHER REQUIREMENTS
18. 1. Sample videos from all the three video cameras installed in the store for initial testing and model training 2. Feed from the video cameras when the project is operational
