Lost Jobs, Zombie Tasks and AirFlow Nightmares: A debugging Deep Dive

"You wrote the DAG, you hit 'Start'... and then?
For most Data Engineers, Airflow just works—until it doesn't. Jobs vanish, logs break, workers restart for no reason, and suddenly, you're staring into the abyss of orchestration chaos.
In this talk, we dive deep under the hood of Apache Airflow & Google Cloud Composer, peeling back the layers of executors, workers, Kubernetes pods, Celery queues, and mysterious zombie jobs. We’ll follow a real-world debugging story: how a seemingly harmless DAG update led to disappearing jobs, broken logs, and workers getting whacked out of existence.

Transcript

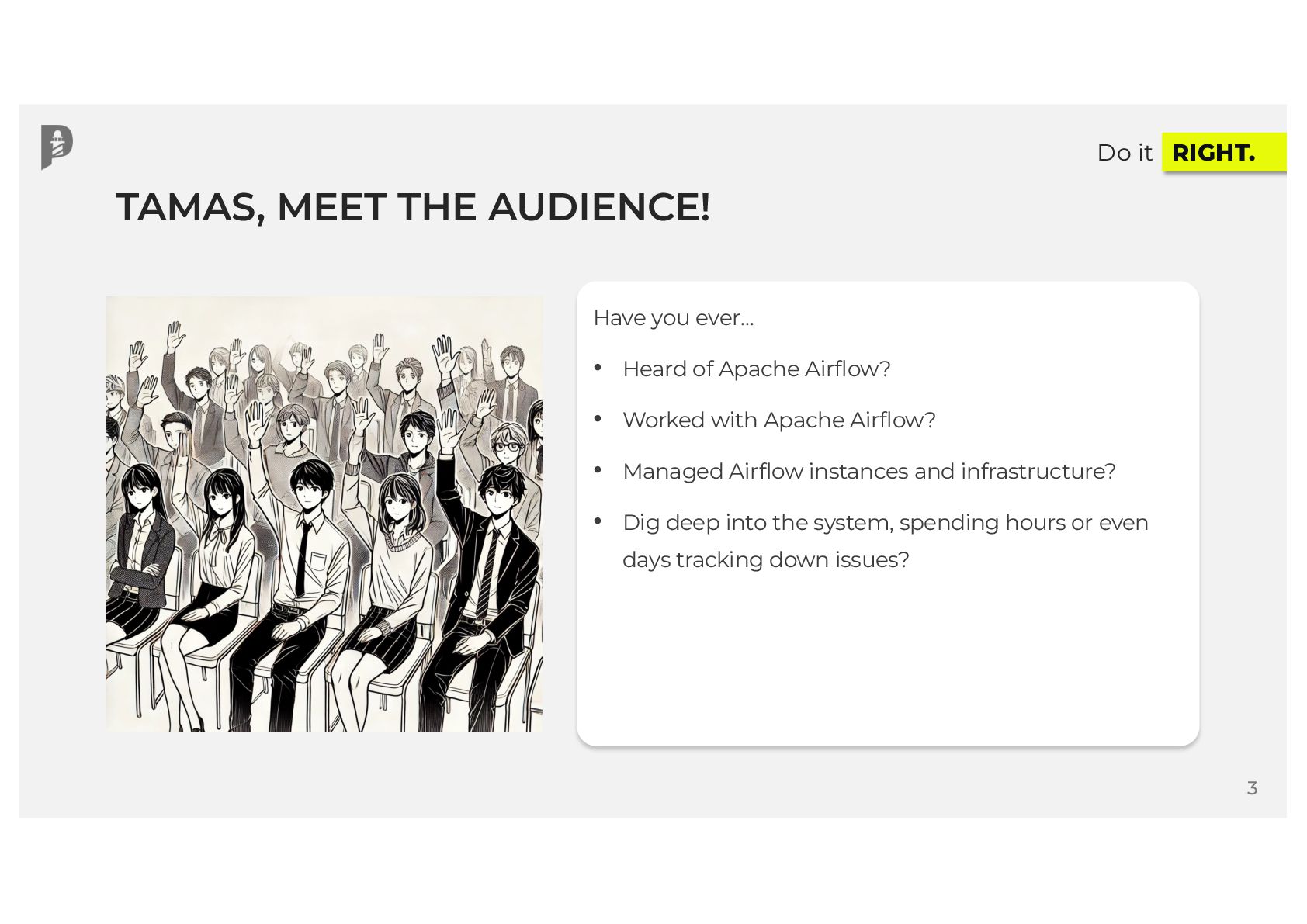

2. Do it RIGHT. TAMAS, MEET THE AUDIENCE! 3 Have you ever… • Heard of Apache Airflow? • Worked with Apache Airflow? • Managed Airflow instances and infrastructure? • Dig deep into the system, spending hours or even days tracking down issues?
3. Do it RIGHT. 4 • Brief introduction to Apache Airflow Do it RIGHT. LET’S EMBARK ON A JOURNEY!

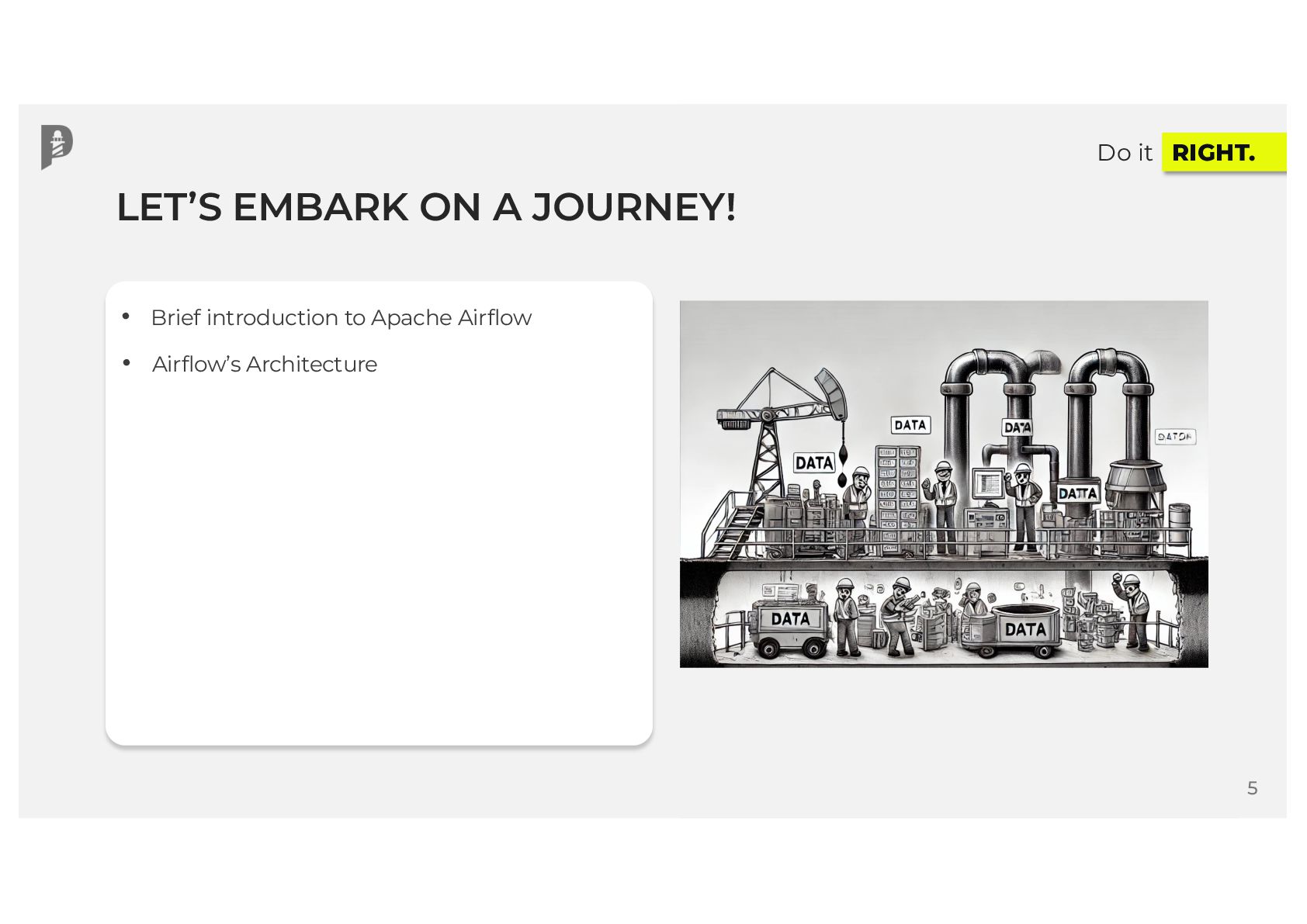

4. Do it RIGHT. 5 • Brief introduction to Apache Airflow LET’S EMBARK ON A JOURNEY! Do it RIGHT. • Airflow’s Architecture
5. Do it RIGHT. 6 Do it RIGHT. LET’S EMBARK ON A JOURNEY! • Airflow’s Architecture • Execution environments • Brief introduction to Apache Airflow

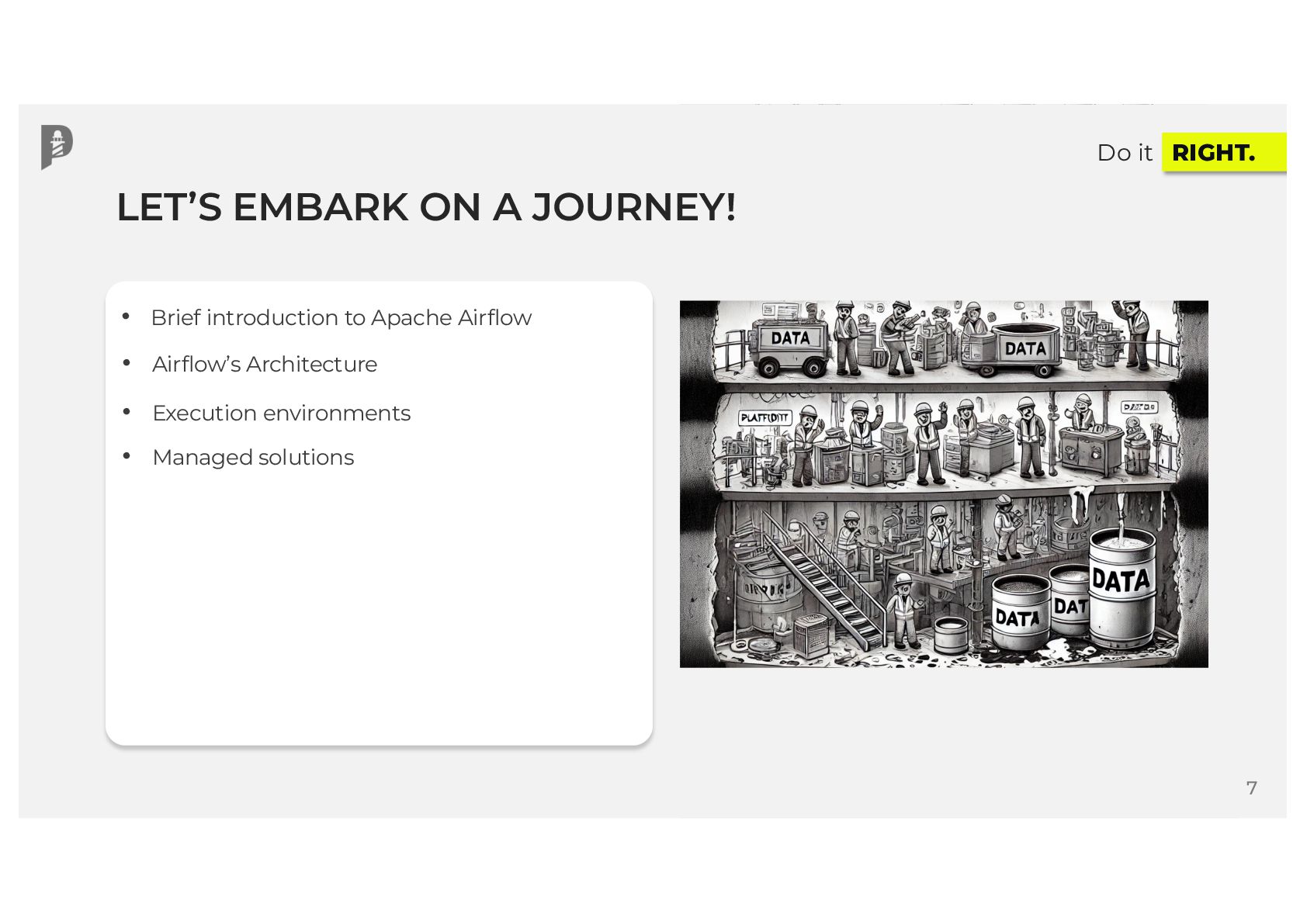

6. Do it RIGHT. 7 Do it RIGHT. LET’S EMBARK ON A JOURNEY! • Airflow’s Architecture • Execution environments • Managed solutions • Brief introduction to Apache Airflow
7. Do it RIGHT. 8 Do it RIGHT. LET’S EMBARK ON A JOURNEY! • Brief introduction to Apache Airflow • Airflow’s Architecture • Execution environments • Managed solutions • Outage & root cause analysis
8. Do it RIGHT. LET’S EMBARK ON A JOURNEY! 9
9. Do it RIGHT. Apache Airflow 01

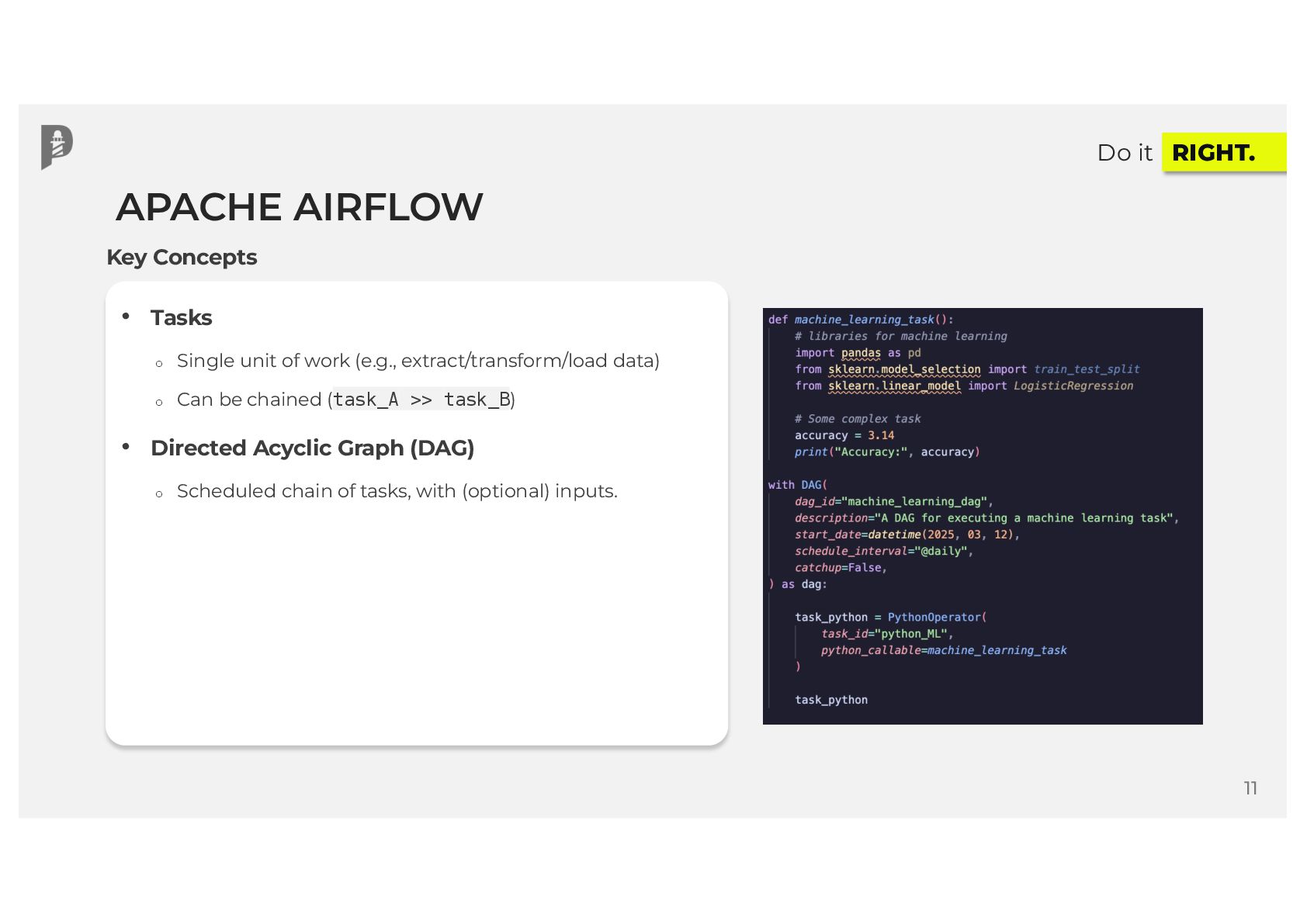

10. Do it RIGHT. APACHE AIRFLOW 11 • Tasks o Single unit of work (e.g., extract/transform/load data) o Can be chained (task_A >> task_B) • Directed Acyclic Graph (DAG) o Scheduled chain of tasks, with (optional) inputs. Key Concepts

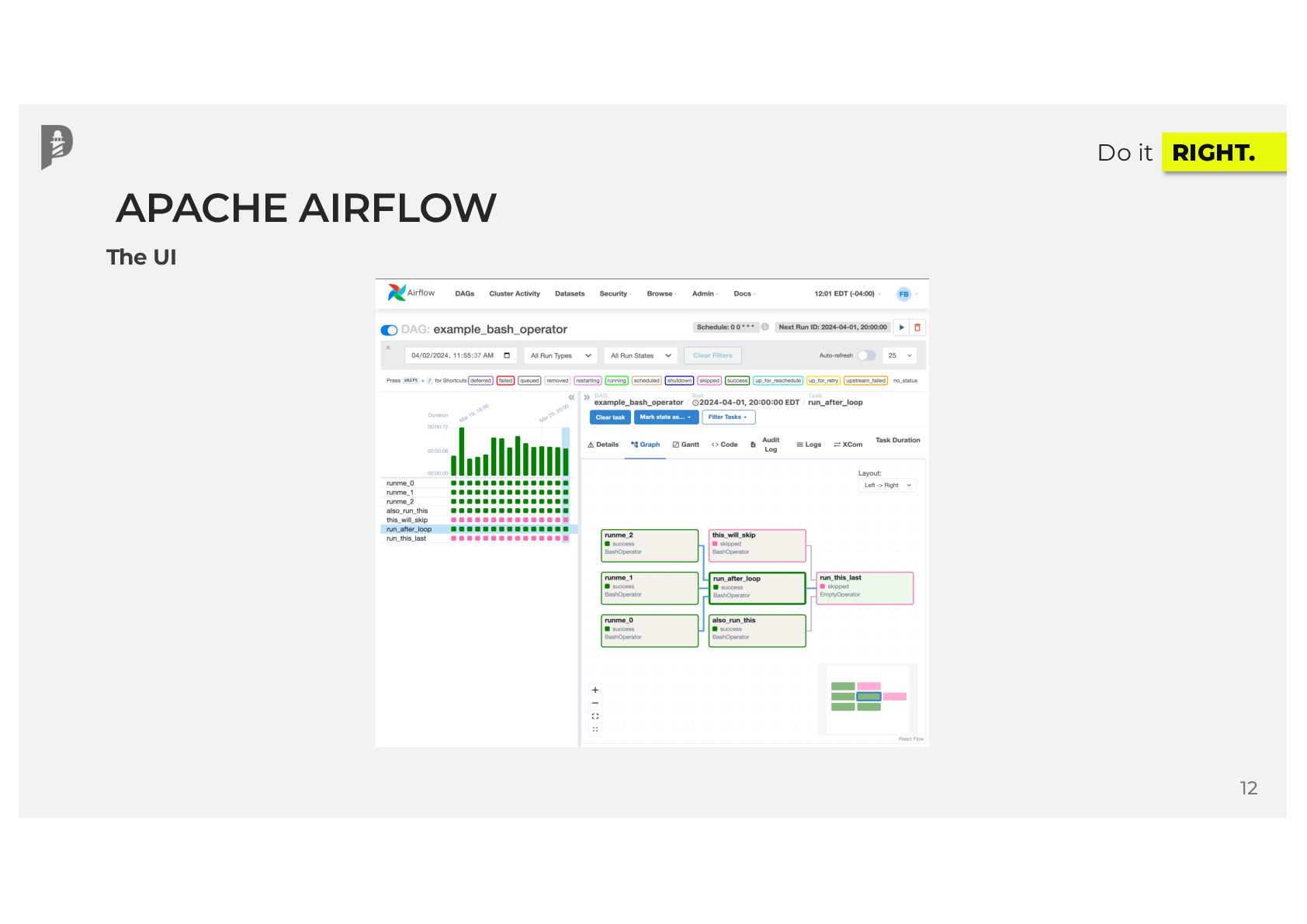

11. Do it RIGHT. APACHE AIRFLOW 12 The UI

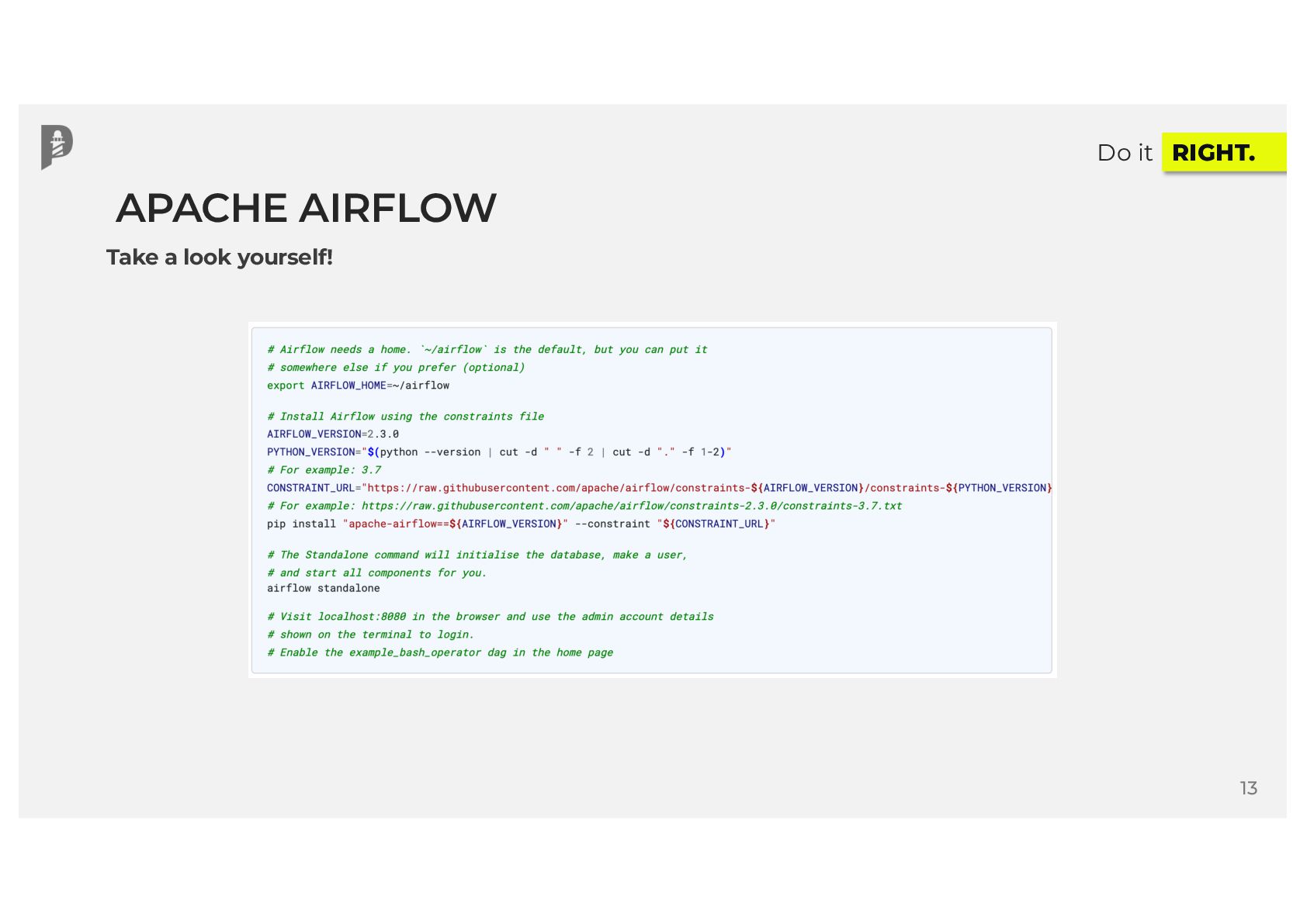

12. Do it RIGHT. APACHE AIRFLOW 13 Take a look yourself!
13. Do it RIGHT. Airflow’s Architecture 02

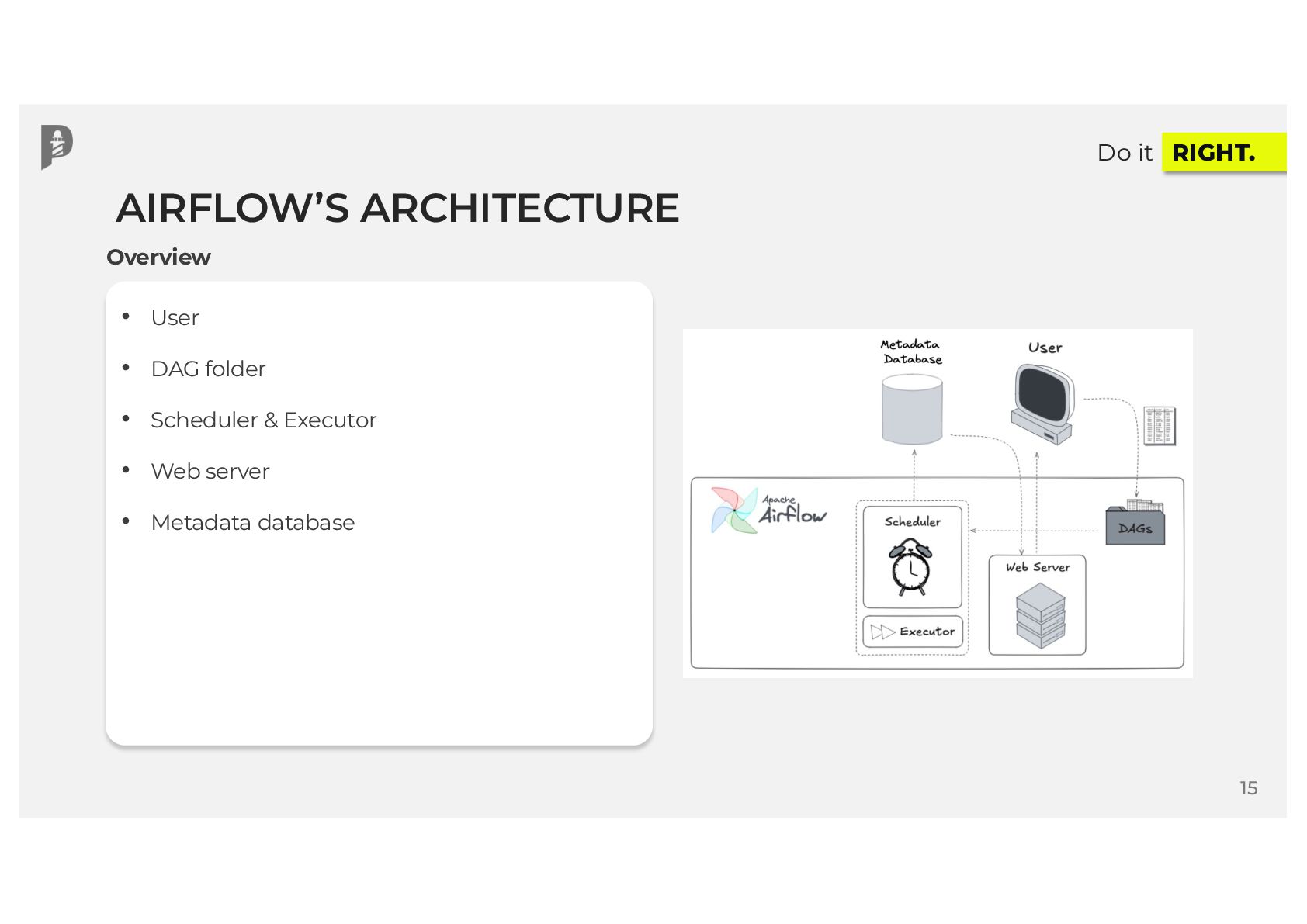

14. Do it RIGHT. AIRFLOW’S ARCHITECTURE 15 • User • DAG folder • Scheduler & Executor • Web server • Metadata database Overview

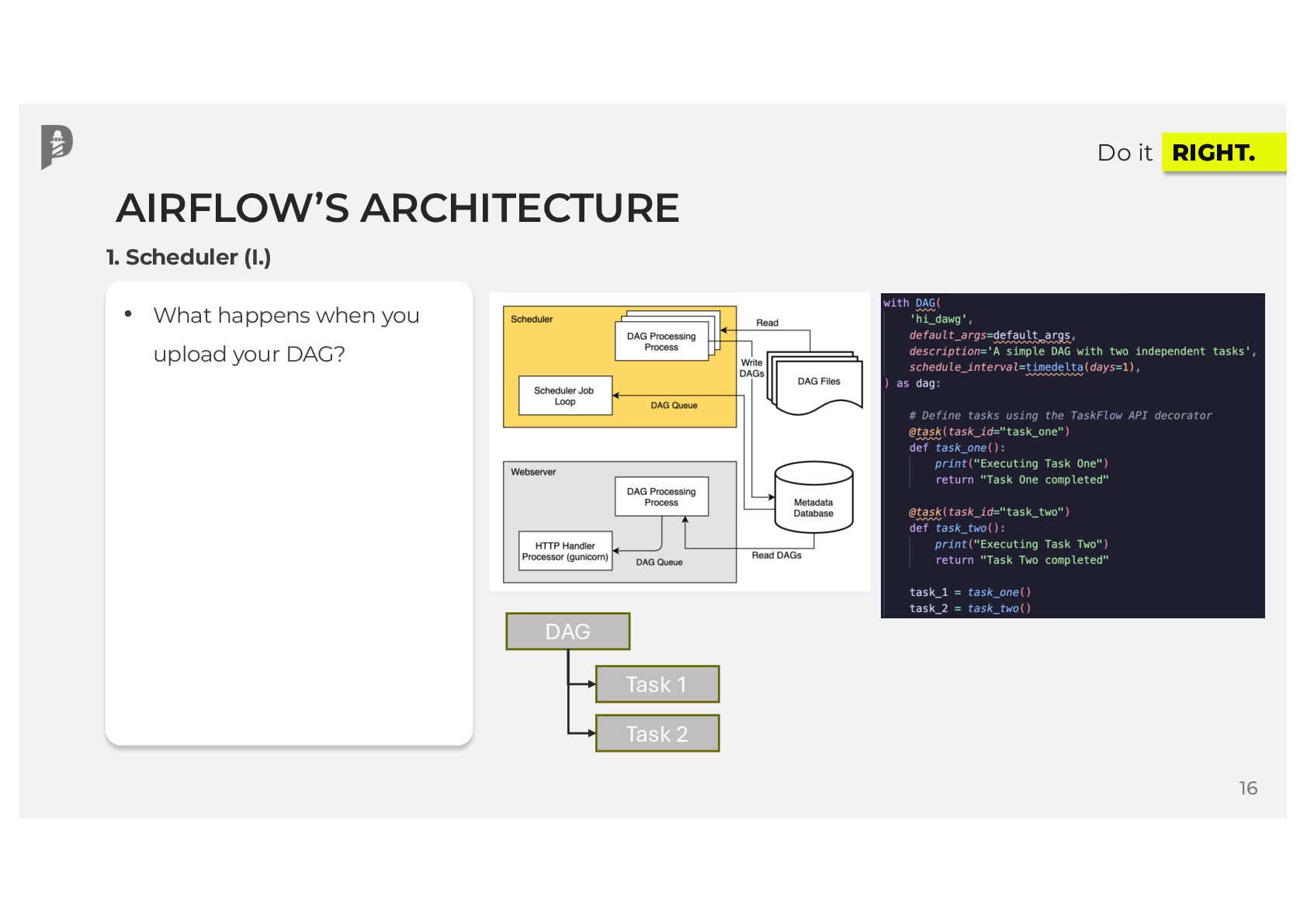

15. Do it RIGHT. AIRFLOW’S ARCHITECTURE 16 1. Scheduler (I.) • What happens when you upload your DAG? DAG Task 1 Task 2

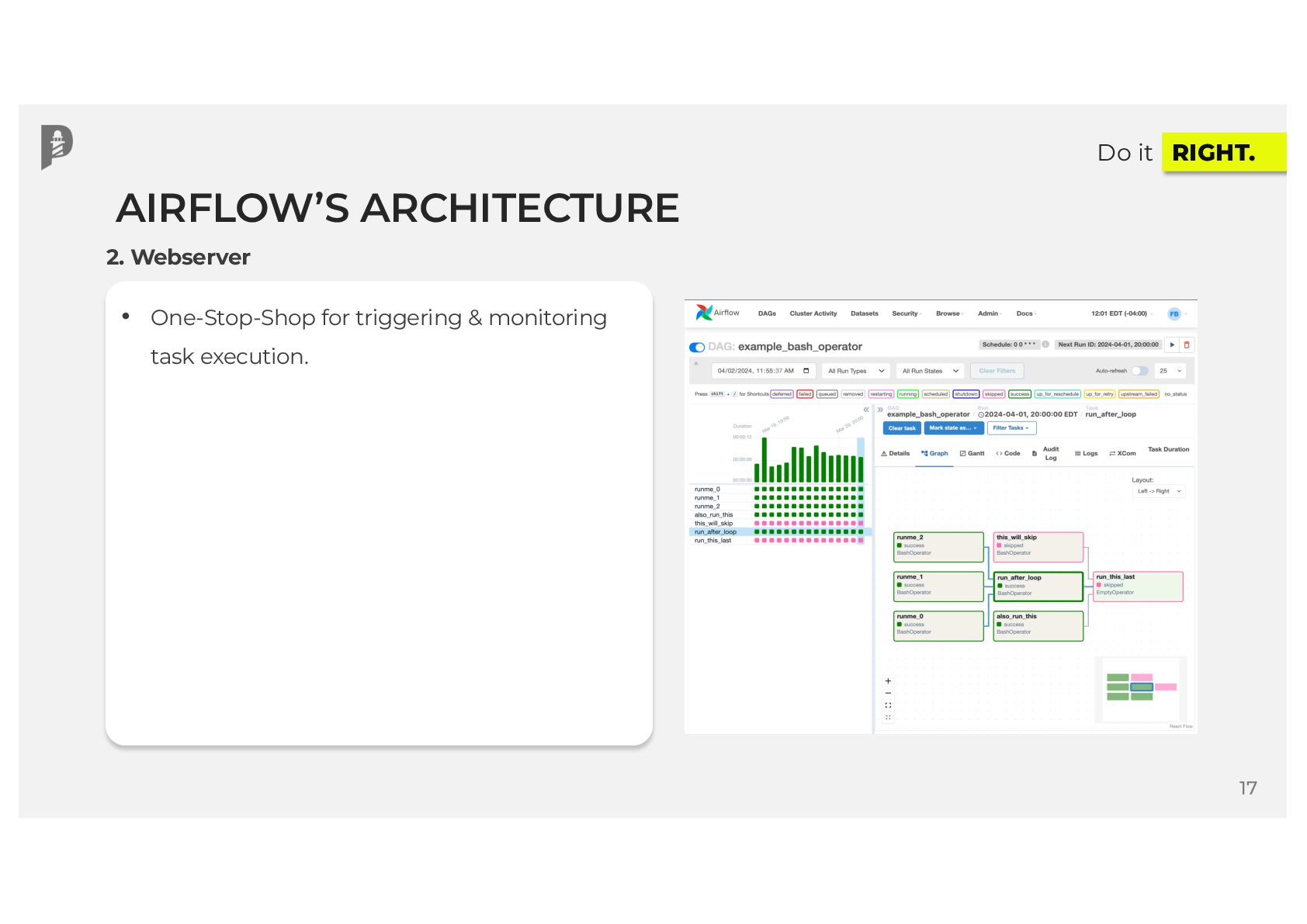

16. Do it RIGHT. AIRFLOW’S ARCHITECTURE 17 • One-Stop-Shop for triggering & monitoring task execution. 2. Webserver

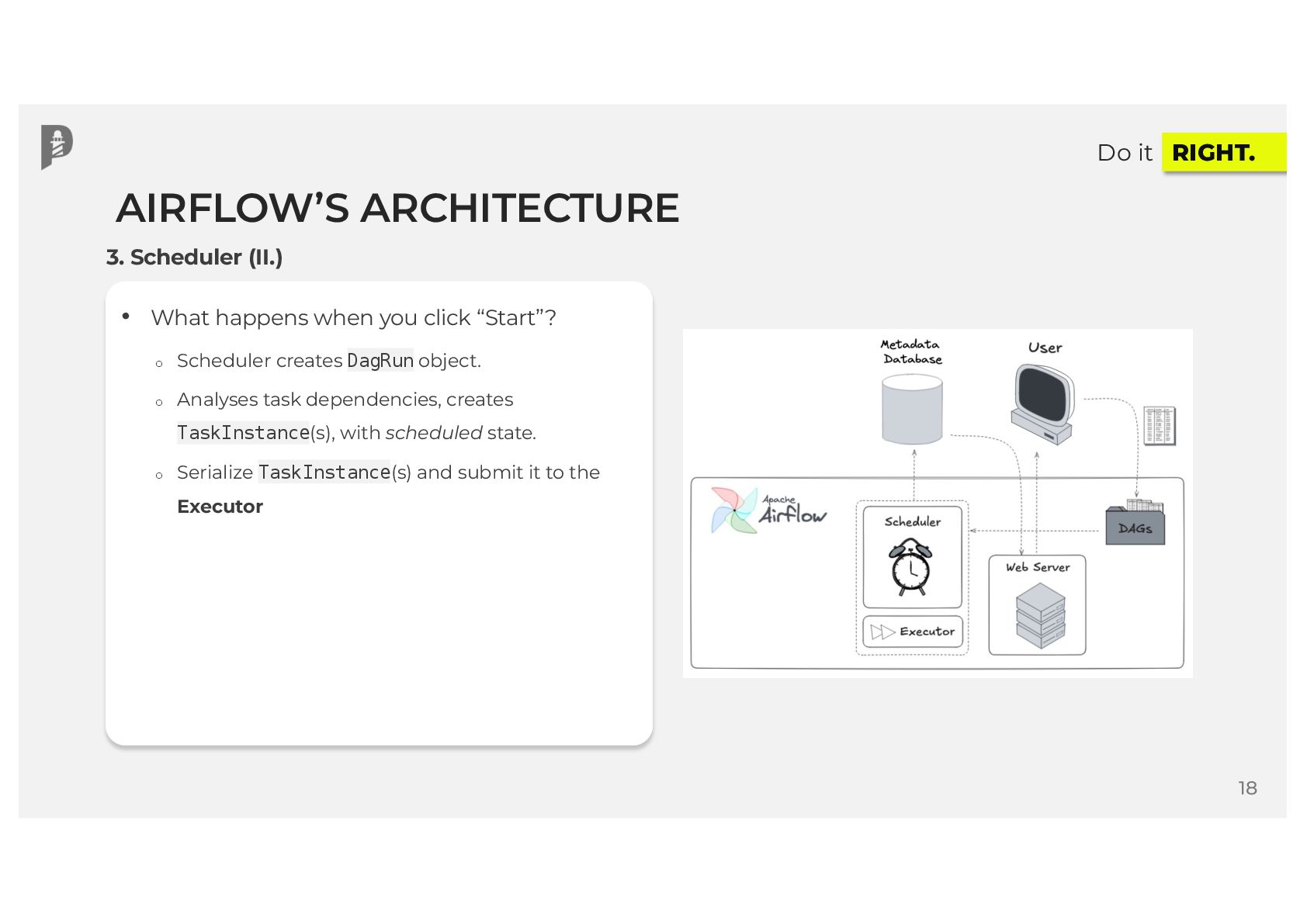

17. Do it RIGHT. AIRFLOW’S ARCHITECTURE 18 • What happens when you click “Start”? o Scheduler creates DagRun object. o Analyses task dependencies, creates TaskInstance(s), with scheduled state. o Serialize TaskInstance(s) and submit it to the Executor 3. Scheduler (II.)

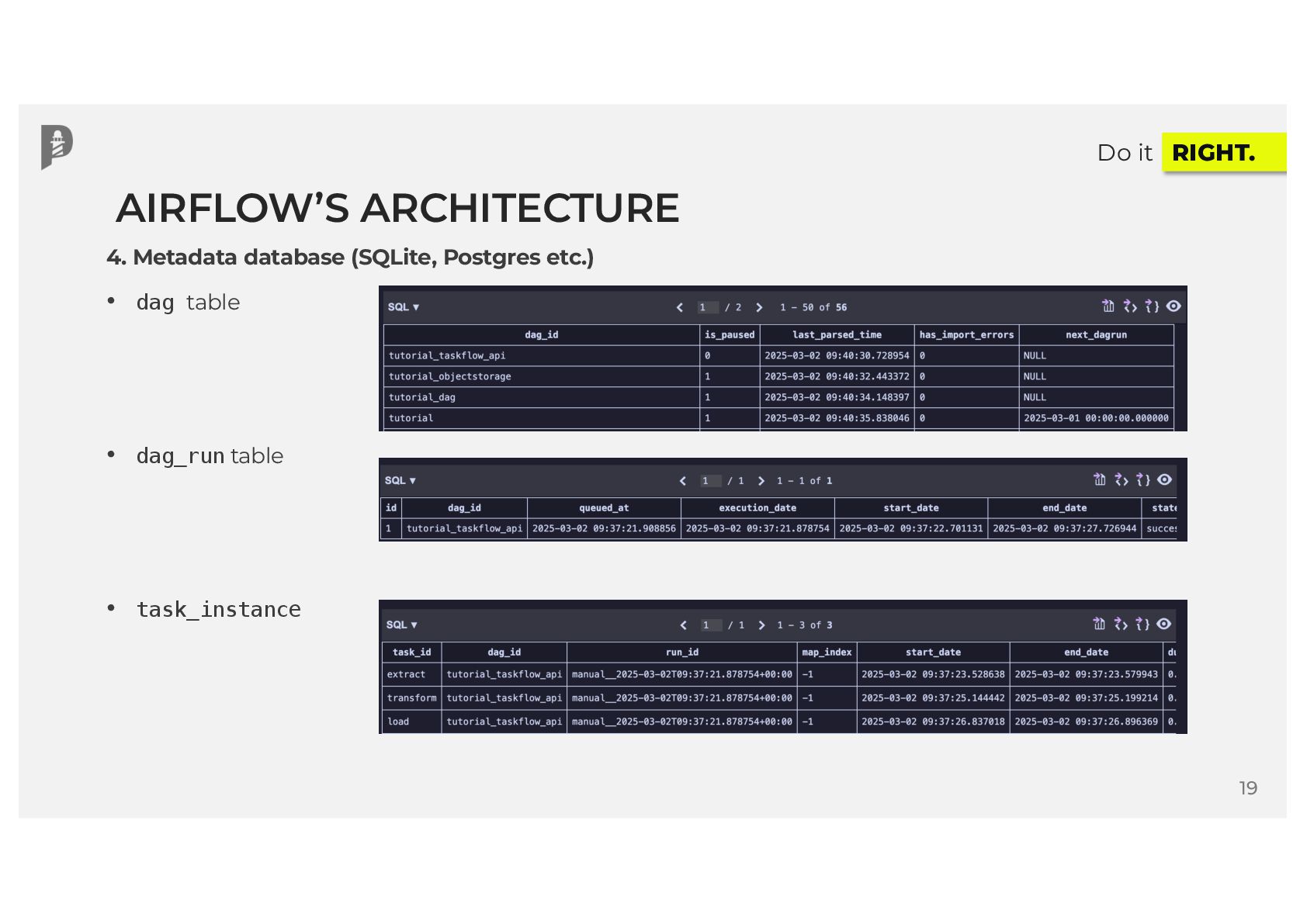

18. Do it RIGHT. AIRFLOW’S ARCHITECTURE 19 • dag table • dag_run table • task_instance 4. Metadata database (SQLite, Postgres etc.)

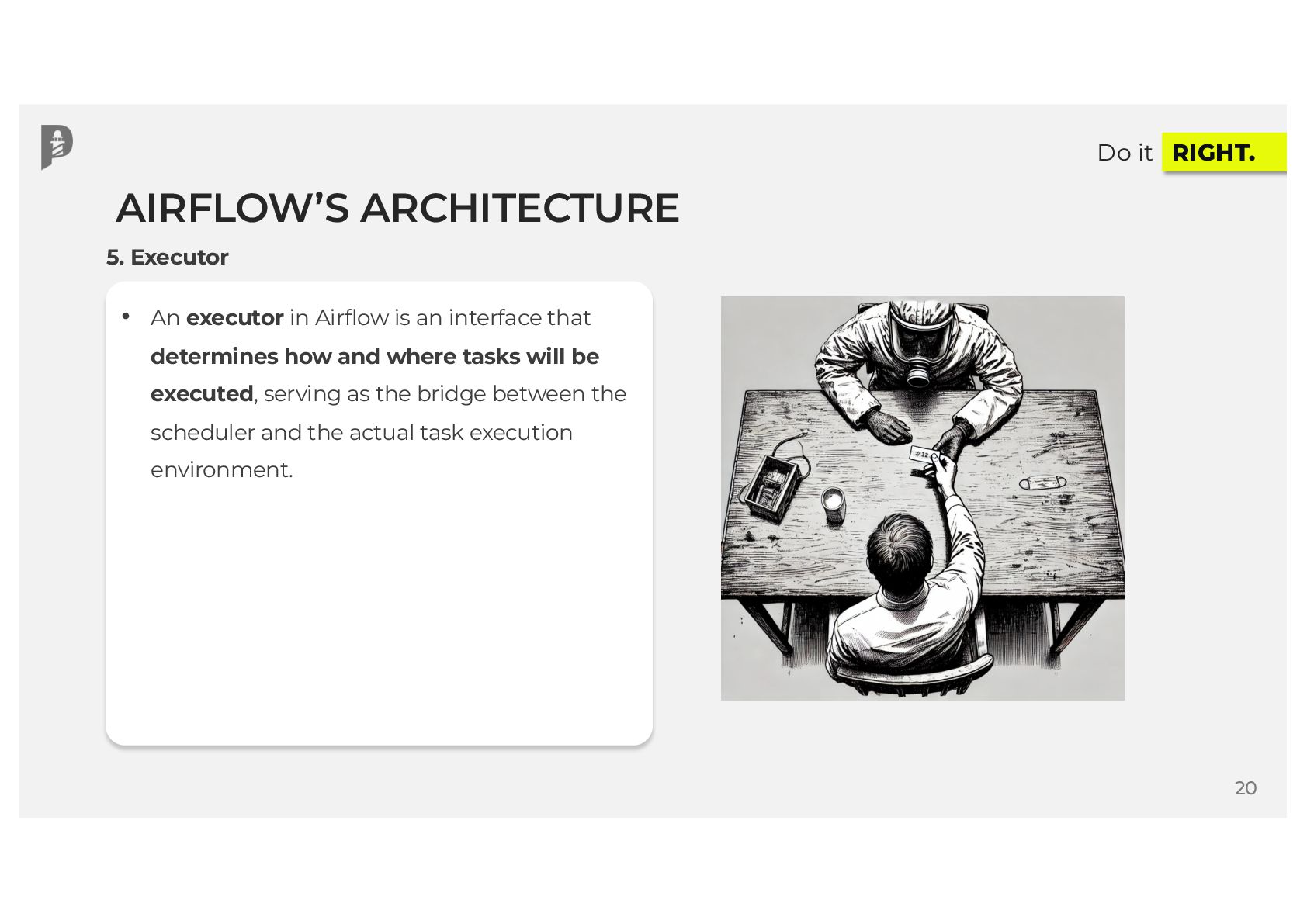

19. Do it RIGHT. 20 • An executor in Airflow is an interface that determines how and where tasks will be executed, serving as the bridge between the scheduler and the actual task execution environment. 5. Executor AIRFLOW’S ARCHITECTURE

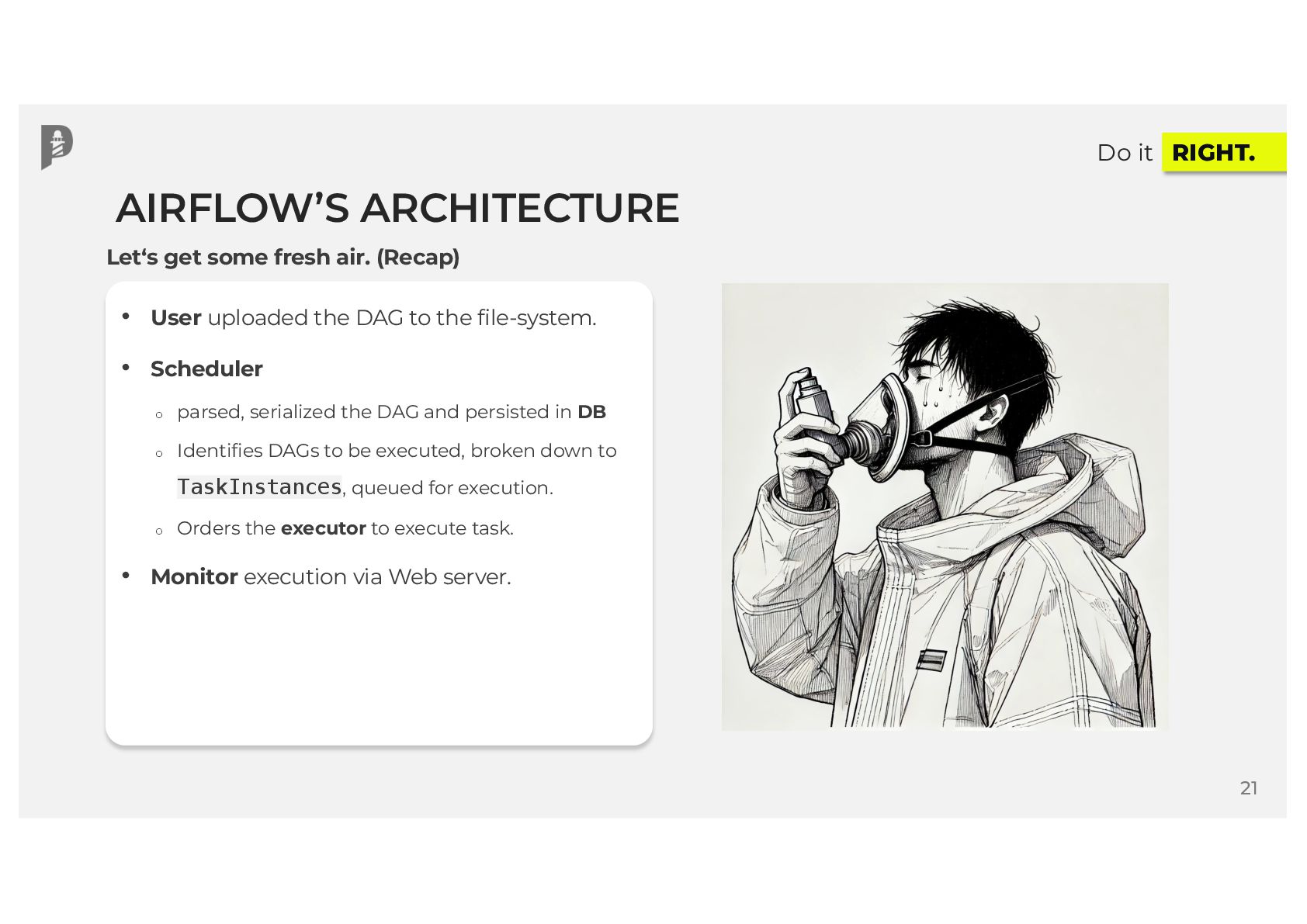

20. Do it RIGHT. 21 • User uploaded the DAG to the file-system. • Scheduler o parsed, serialized the DAG and persisted in DB o Identifies DAGs to be executed, broken down to TaskInstances, queued for execution. o Orders the executor to execute task. • Monitor execution via Web server. Let‘s get some fresh air. (Recap) AIRFLOW’S ARCHITECTURE
21. Do it RIGHT. AIRFLOW’S ARCHITECTURE 22 • An executor in Airflow is an interface that determines how and where tasks will be executed. 5. Executors – Take your pick
22. Do it RIGHT. AIRFLOW’S ARCHITECTURE 23 • An executor in Airflow is an interface that determines how and where tasks will be executed. • An Airflow executor must implement these key components: 1. Task Queue Management: Accept and manage task instances from the scheduler 2. Task Execution: Run tasks either directly or by delegating to workers 3. State Tracking: Update and report the state of tasks back to the scheduler 5. Executor

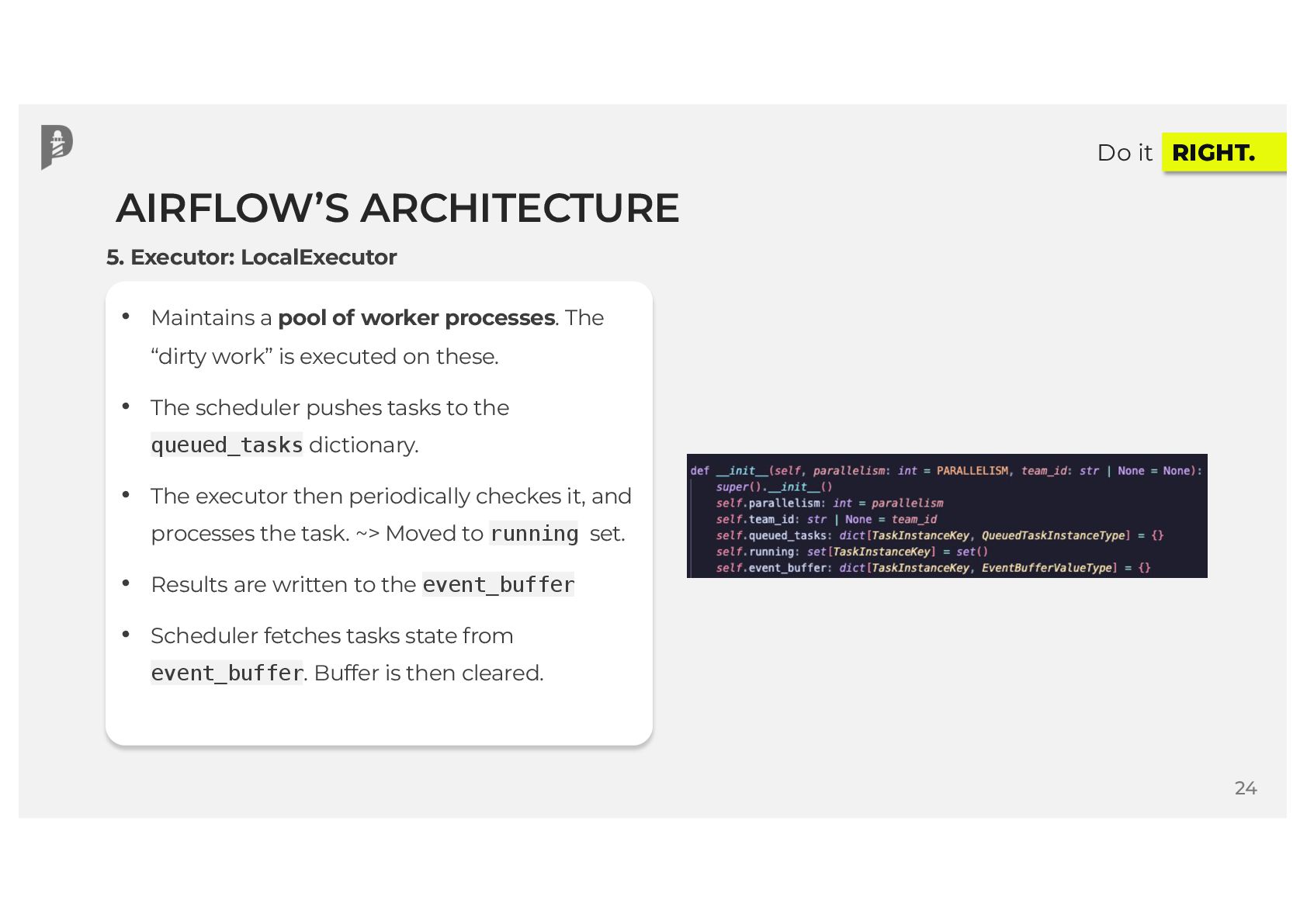

23. Do it RIGHT. AIRFLOW’S ARCHITECTURE 24 • Maintains a pool of worker processes. The “dirty work” is executed on these. • The scheduler pushes tasks to the queued_tasks dictionary. • The executor then periodically checkes it, and processes the task. ~> Moved to running set. • Results are written to the event_buffer • Scheduler fetches tasks state from event_buffer. Buffer is then cleared. 5. Executor: LocalExecutor

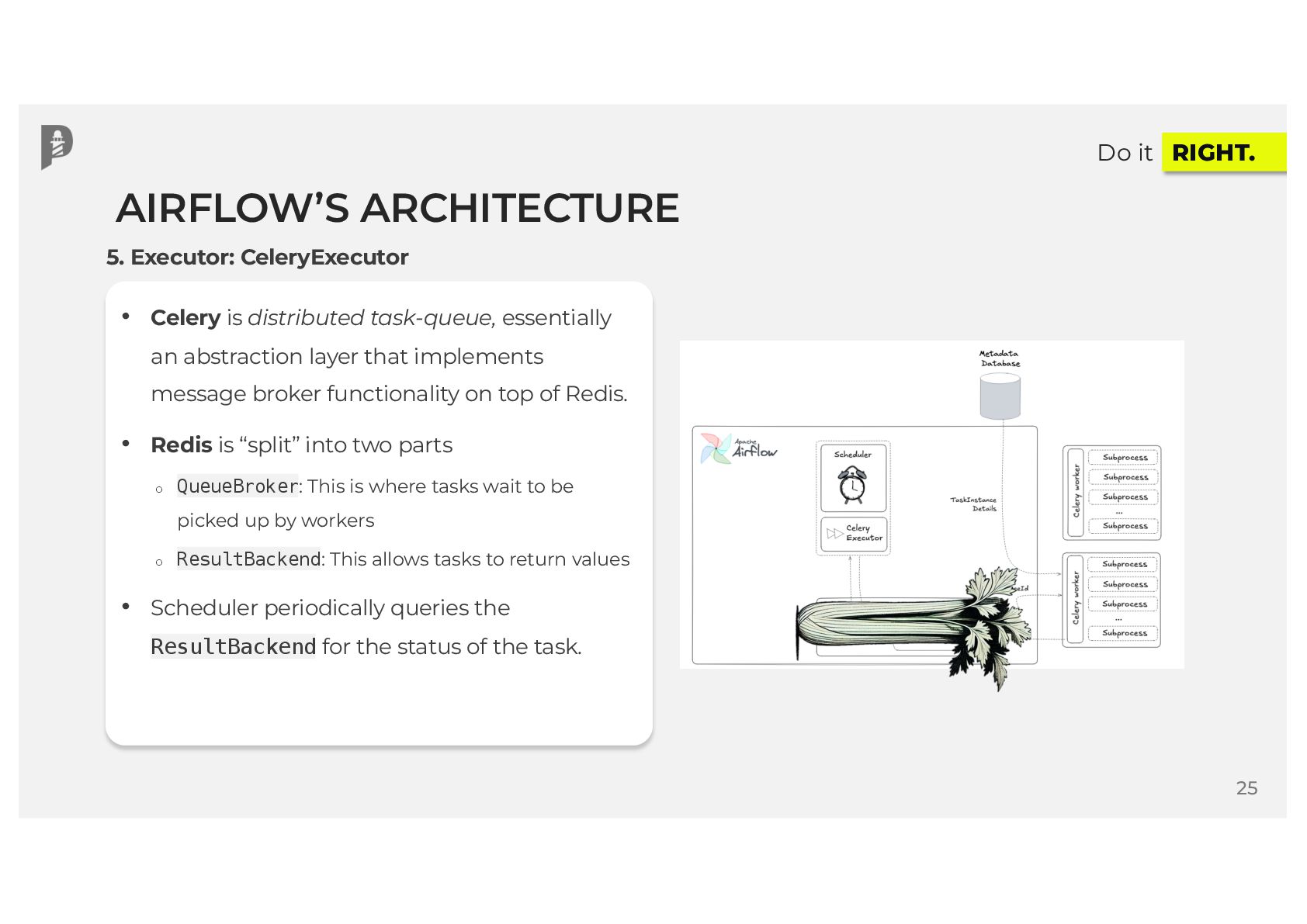

24. Do it RIGHT. 25 • Celery is distributed task-queue, essentially an abstraction layer that implements message broker functionality on top of Redis. • Redis is “split” into two parts o QueueBroker: This is where tasks wait to be picked up by workers o ResultBackend: This allows tasks to return values • Scheduler periodically queries the ResultBackend for the status of the task. 5. Executor: CeleryExecutor AIRFLOW’S ARCHITECTURE

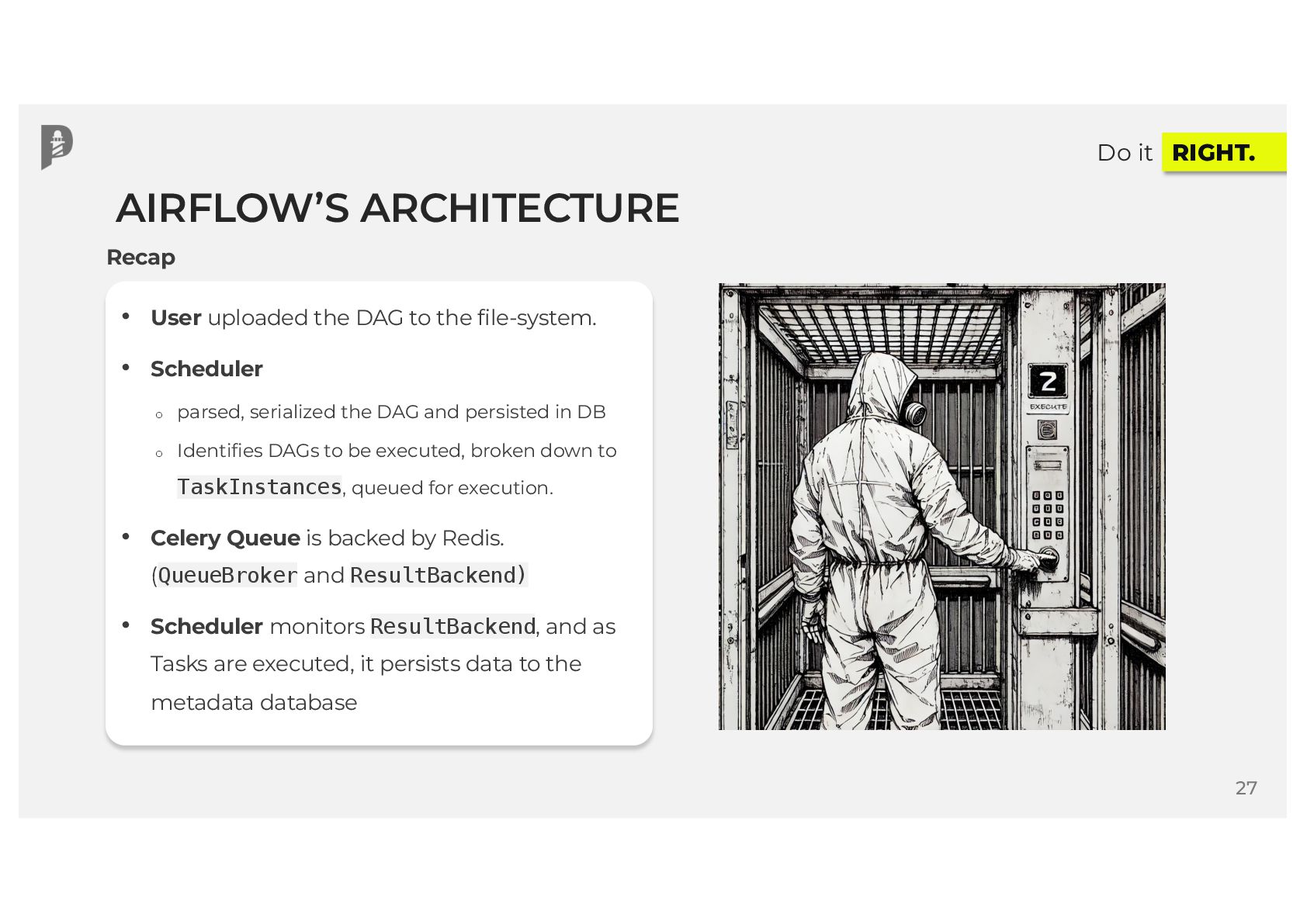

25. Do it RIGHT. 27 • User uploaded the DAG to the file-system. • Scheduler o parsed, serialized the DAG and persisted in DB o Identifies DAGs to be executed, broken down to TaskInstances, queued for execution. • Celery Queue is backed by Redis. (QueueBroker and ResultBackend) • Scheduler monitors ResultBackend, and as Tasks are executed, it persists data to the metadata database Recap AIRFLOW’S ARCHITECTURE
26. Do it RIGHT. Execution Environments 03

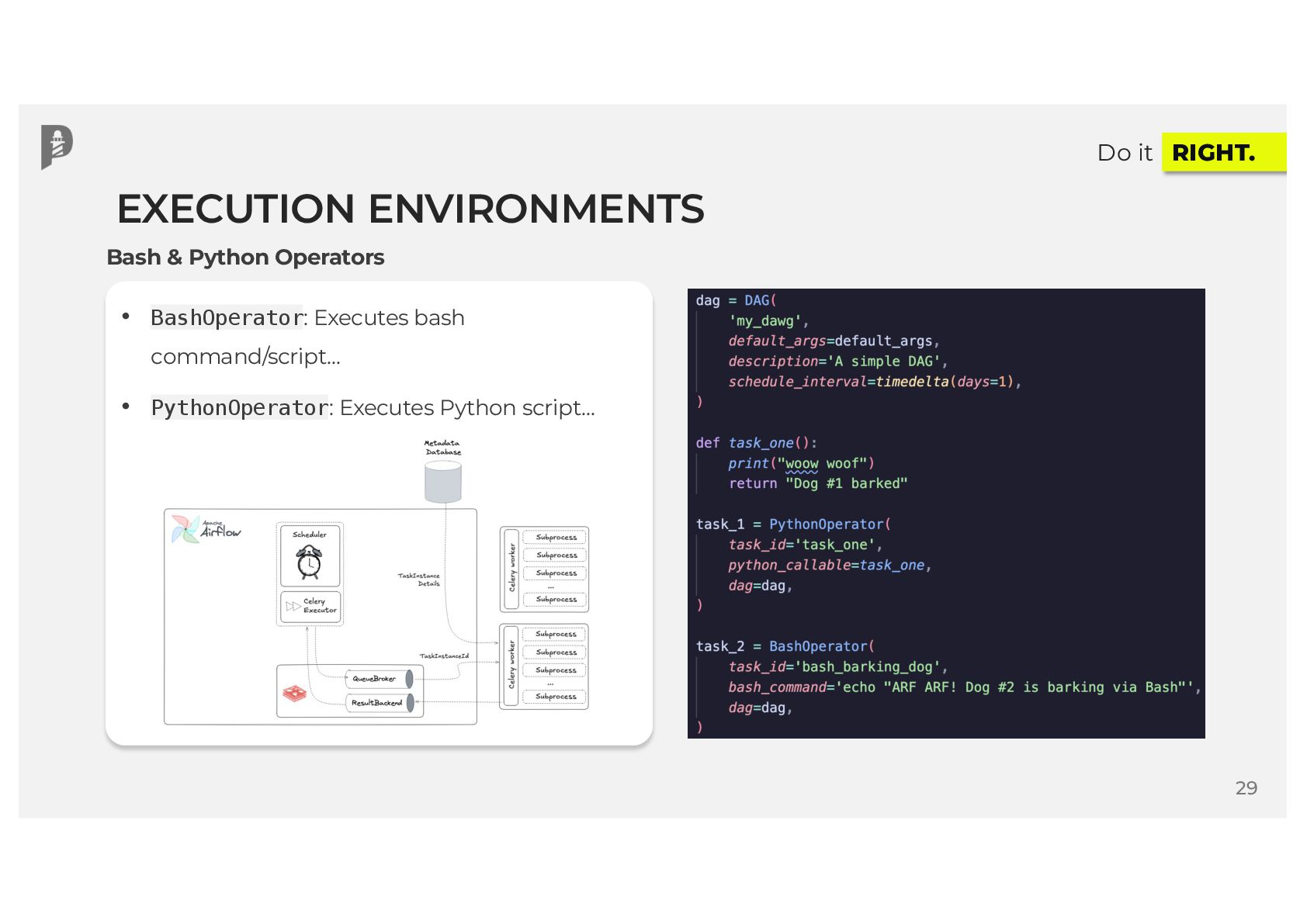

27. Do it RIGHT. EXECUTION ENVIRONMENTS 29 • BashOperator: Executes bash command/script… • PythonOperator: Executes Python script… Bash & Python Operators

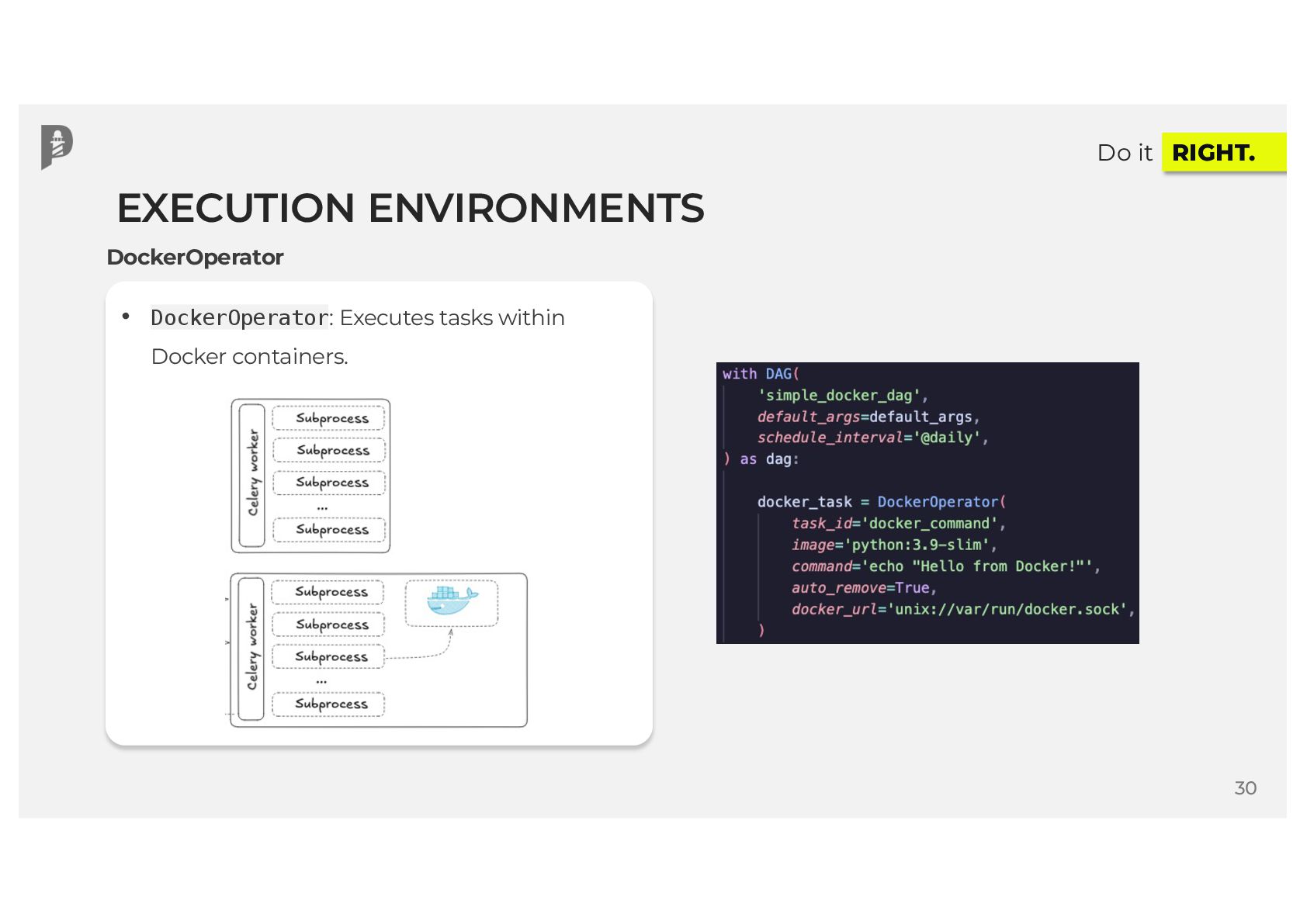

28. Do it RIGHT. EXECUTION ENVIRONMENTS 30 • DockerOperator: Executes tasks within Docker containers. DockerOperator
29. Do it RIGHT. KUBERNETES 31 "Give a platform engineer Kubernetes, and suddenly, every problem starts looking like a cluster.”

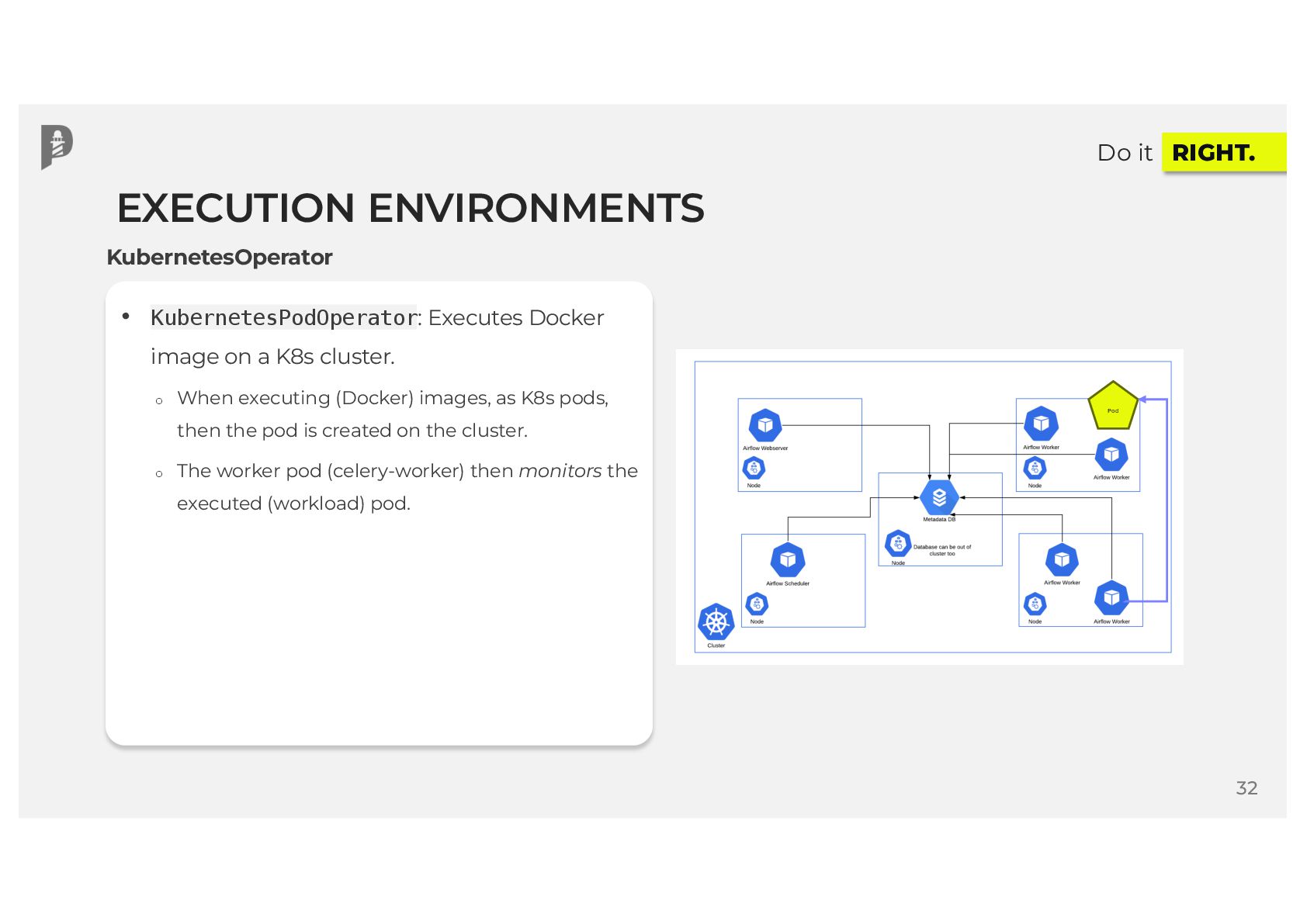

30. Do it RIGHT. EXECUTION ENVIRONMENTS 32 • KubernetesPodOperator: Executes Docker image on a K8s cluster. o When executing (Docker) images, as K8s pods, then the pod is created on the cluster. o The worker pod (celery-worker) then monitors the executed (workload) pod. KubernetesOperator Pod

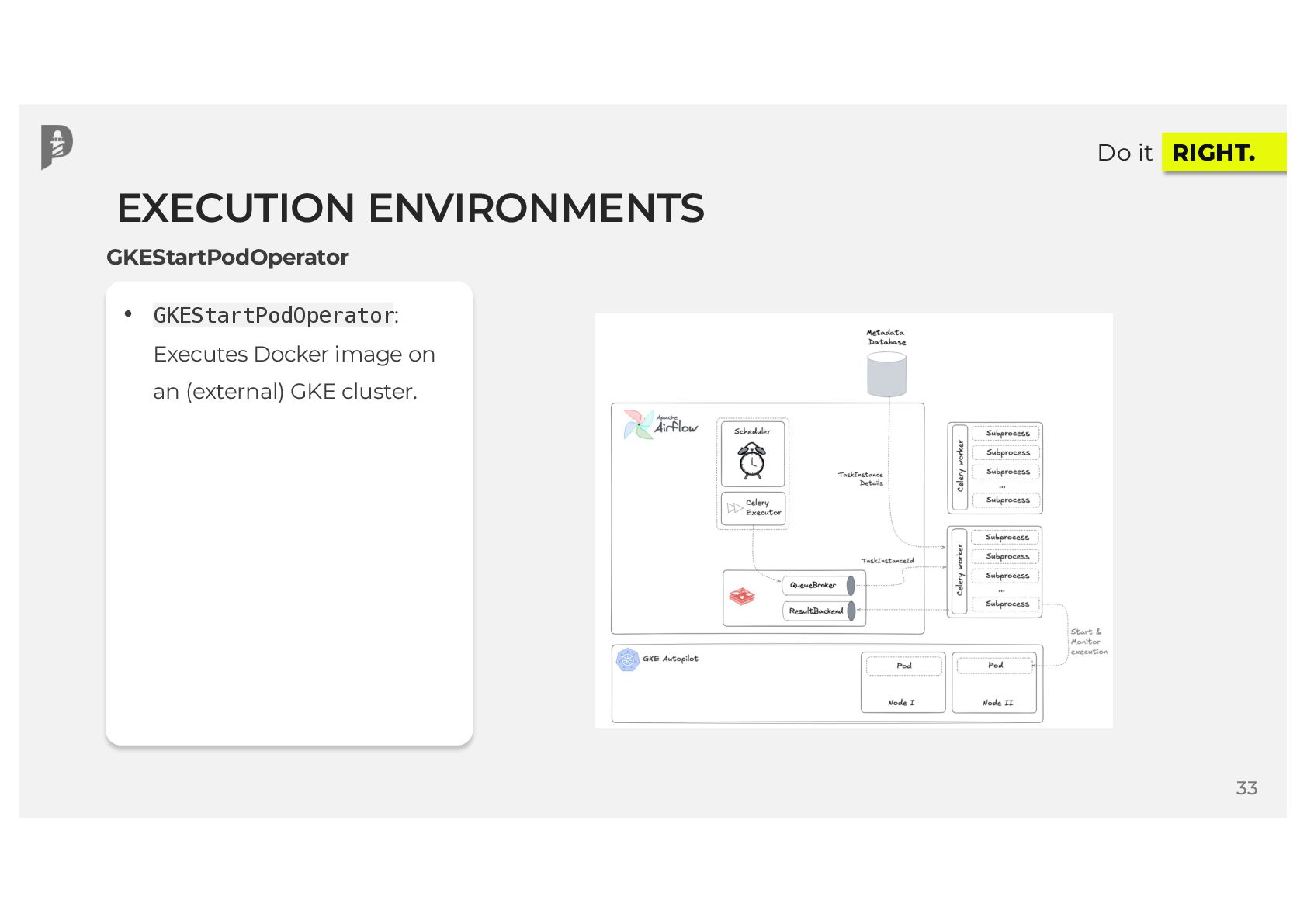

31. Do it RIGHT. EXECUTION ENVIRONMENTS 33 GKEStartPodOperator • GKEStartPodOperator: Executes Docker image on an (external) GKE cluster.
32. Do it RIGHT. Managed Solutions 04

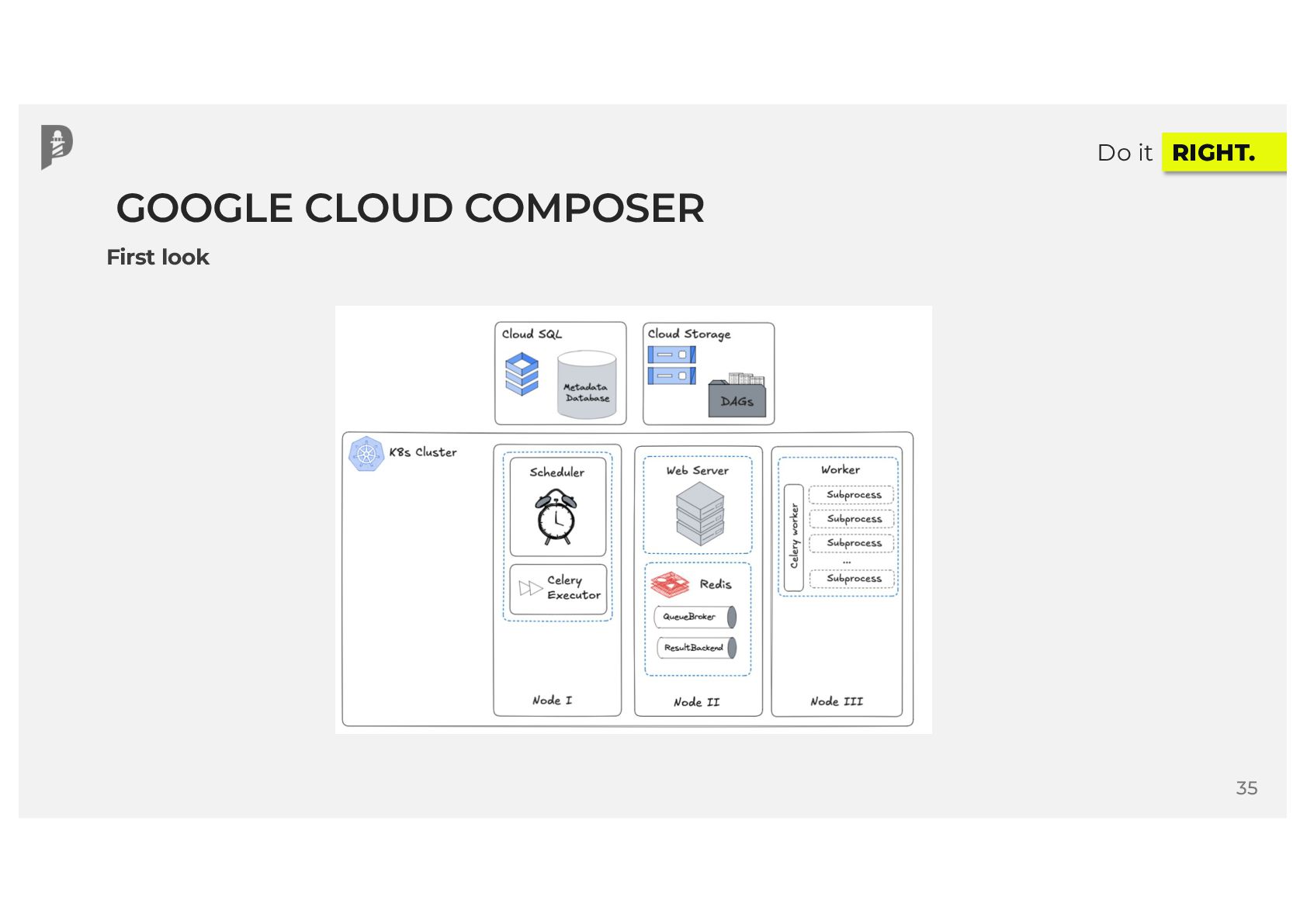

33. Do it RIGHT. GOOGLE CLOUD COMPOSER 35 First look

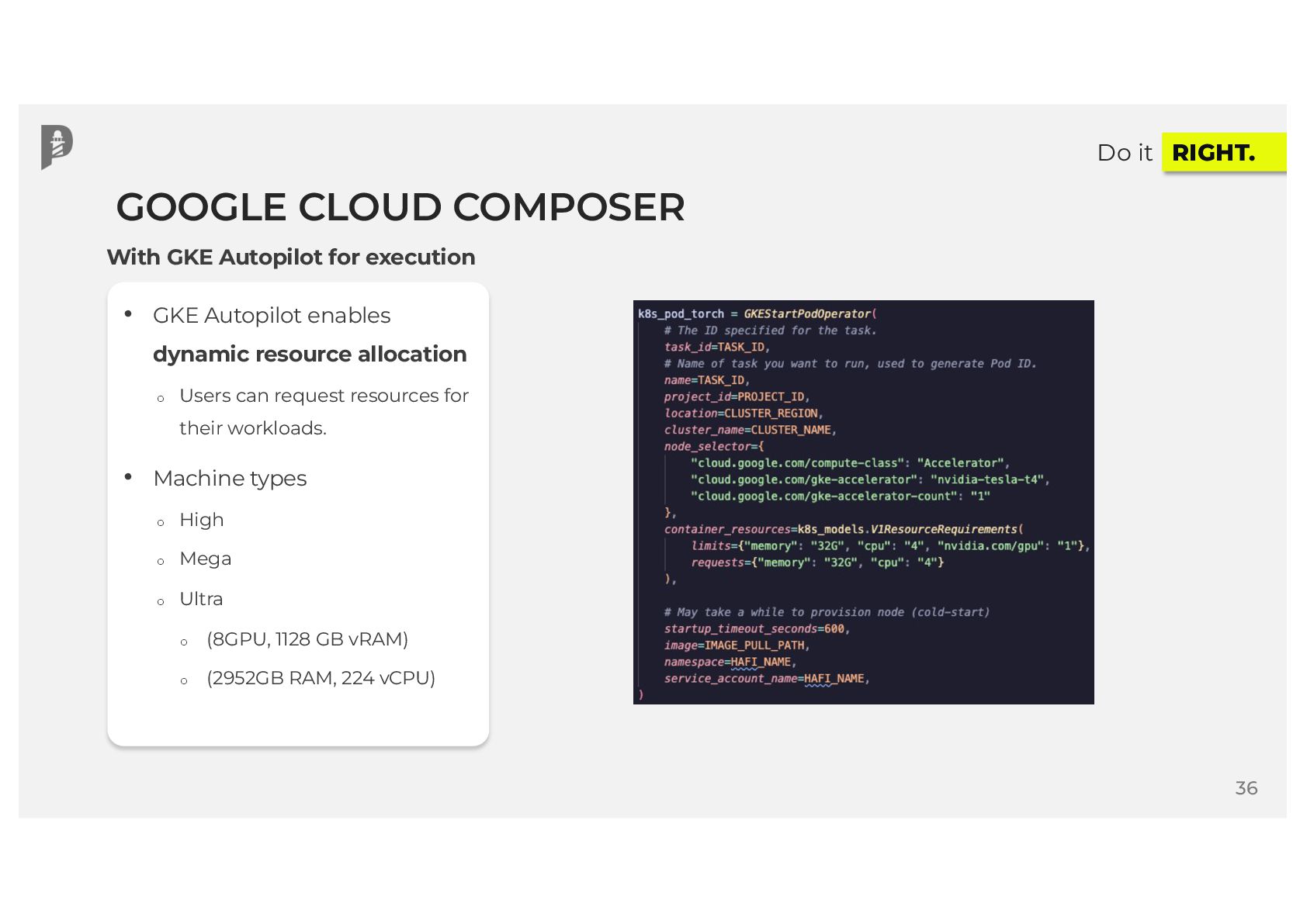

34. Do it RIGHT. GOOGLE CLOUD COMPOSER 36 With GKE Autopilot for execution • GKE Autopilot enables dynamic resource allocation o Users can request resources for their workloads. • Machine types o High o Mega o Ultra o (8GPU, 1128 GB vRAM) o (2952GB RAM, 224 vCPU)

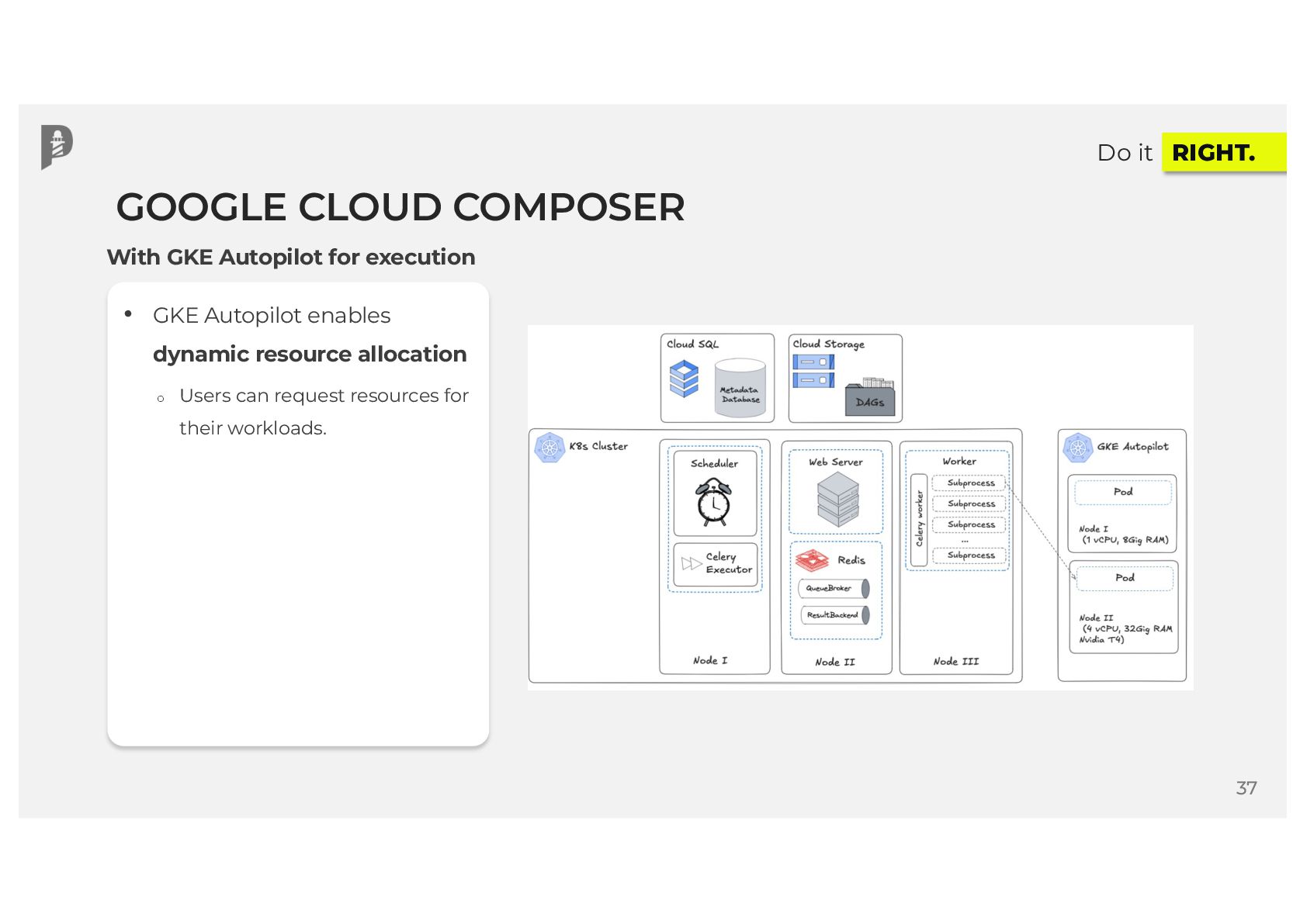

35. Do it RIGHT. GOOGLE CLOUD COMPOSER 37 With GKE Autopilot for execution • GKE Autopilot enables dynamic resource allocation o Users can request resources for their workloads.
36. Do it RIGHT. WE ARE NOW READY FOR THE NEXT CHALLENGE! 38

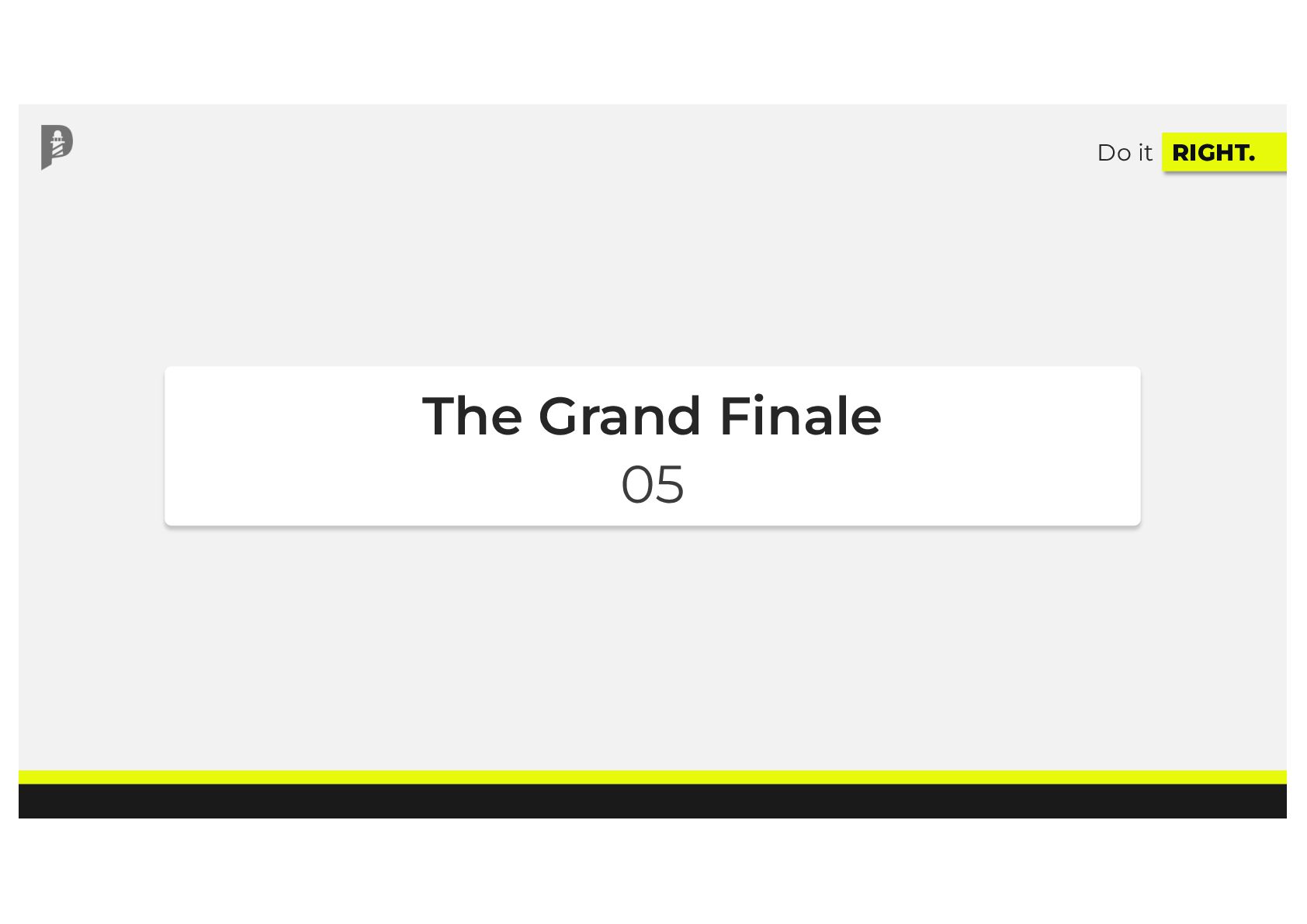

37. Do it RIGHT. The Grand Finale 05

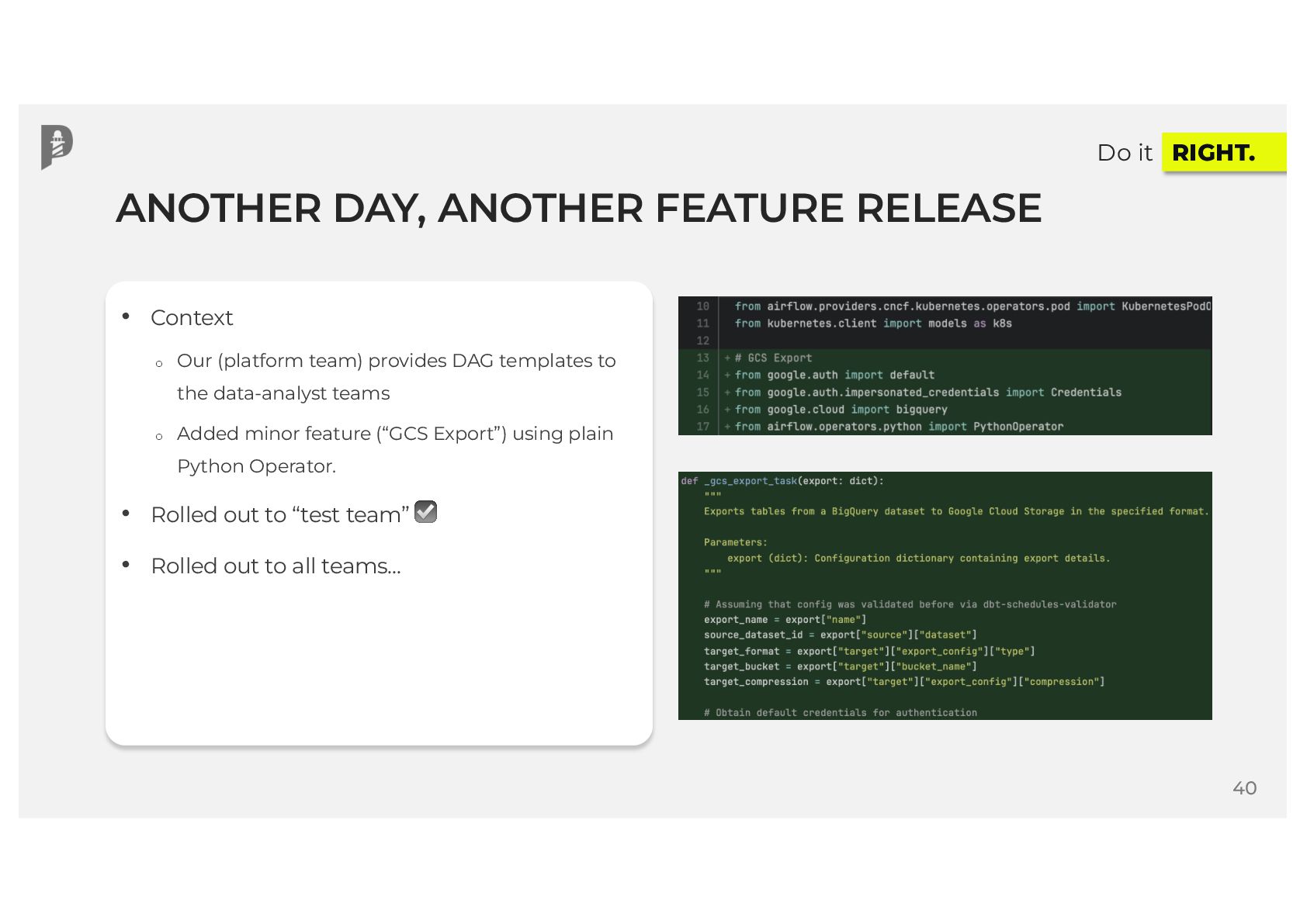

38. Do it RIGHT. ANOTHER DAY, ANOTHER FEATURE RELEASE 40 • Context o Our (platform team) provides DAG templates to the data-analyst teams o Added minor feature (“GCS Export”) using plain Python Operator. • Rolled out to “test team” ☑ • Rolled out to all teams…

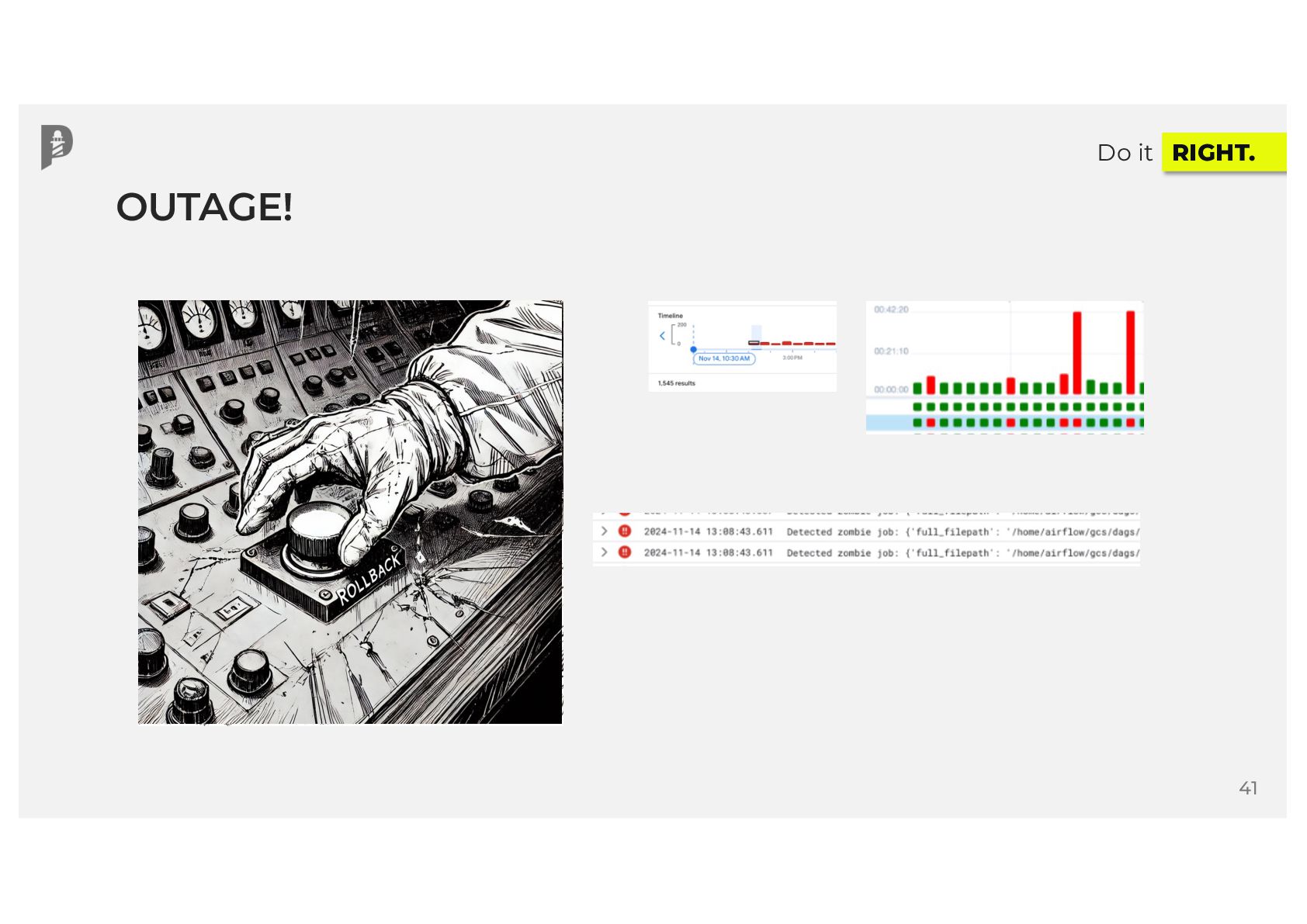

39. Do it RIGHT. OUTAGE! 41

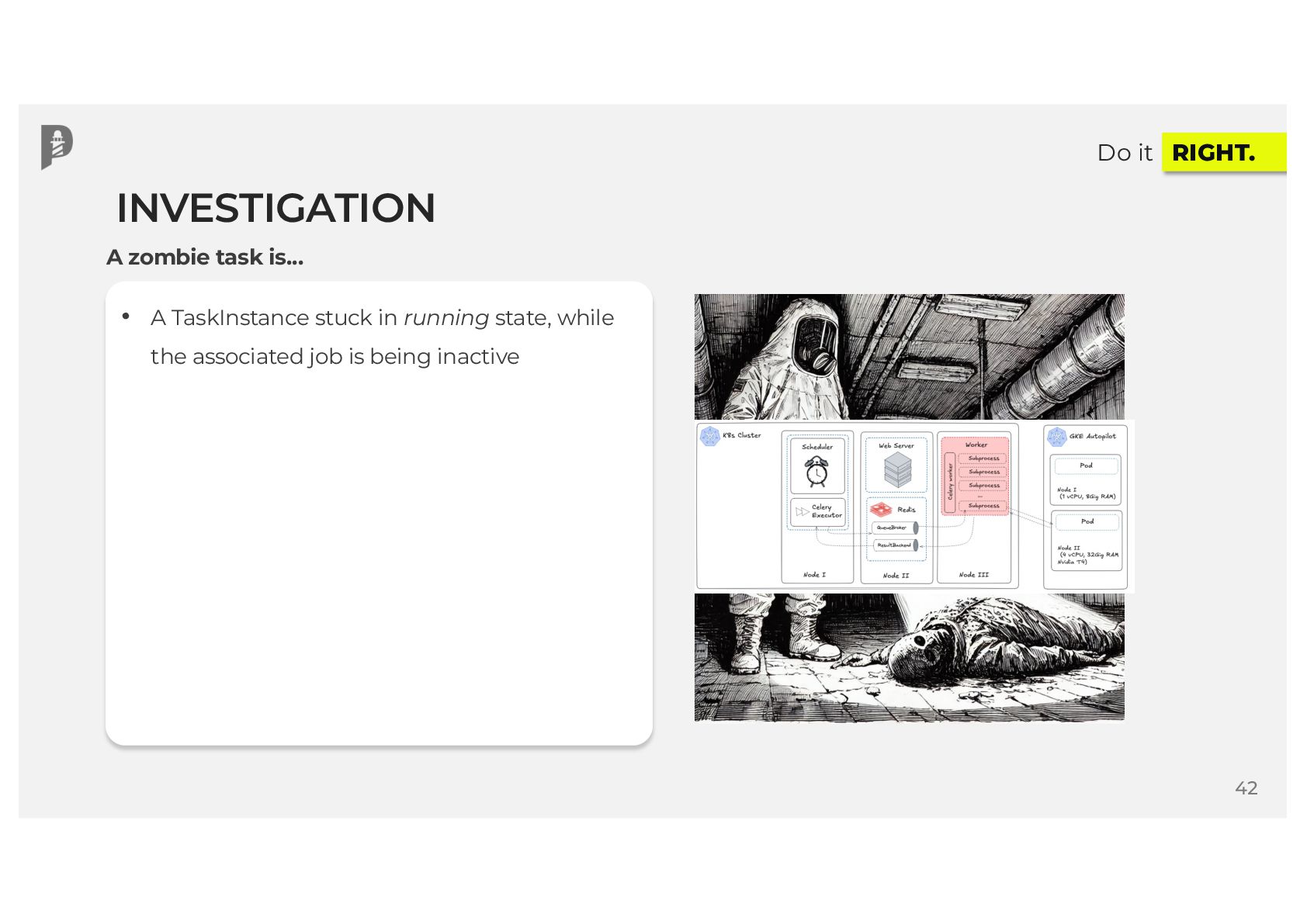

40. Do it RIGHT. INVESTIGATION 42 • A TaskInstance stuck in running state, while the associated job is being inactive A zombie task is…

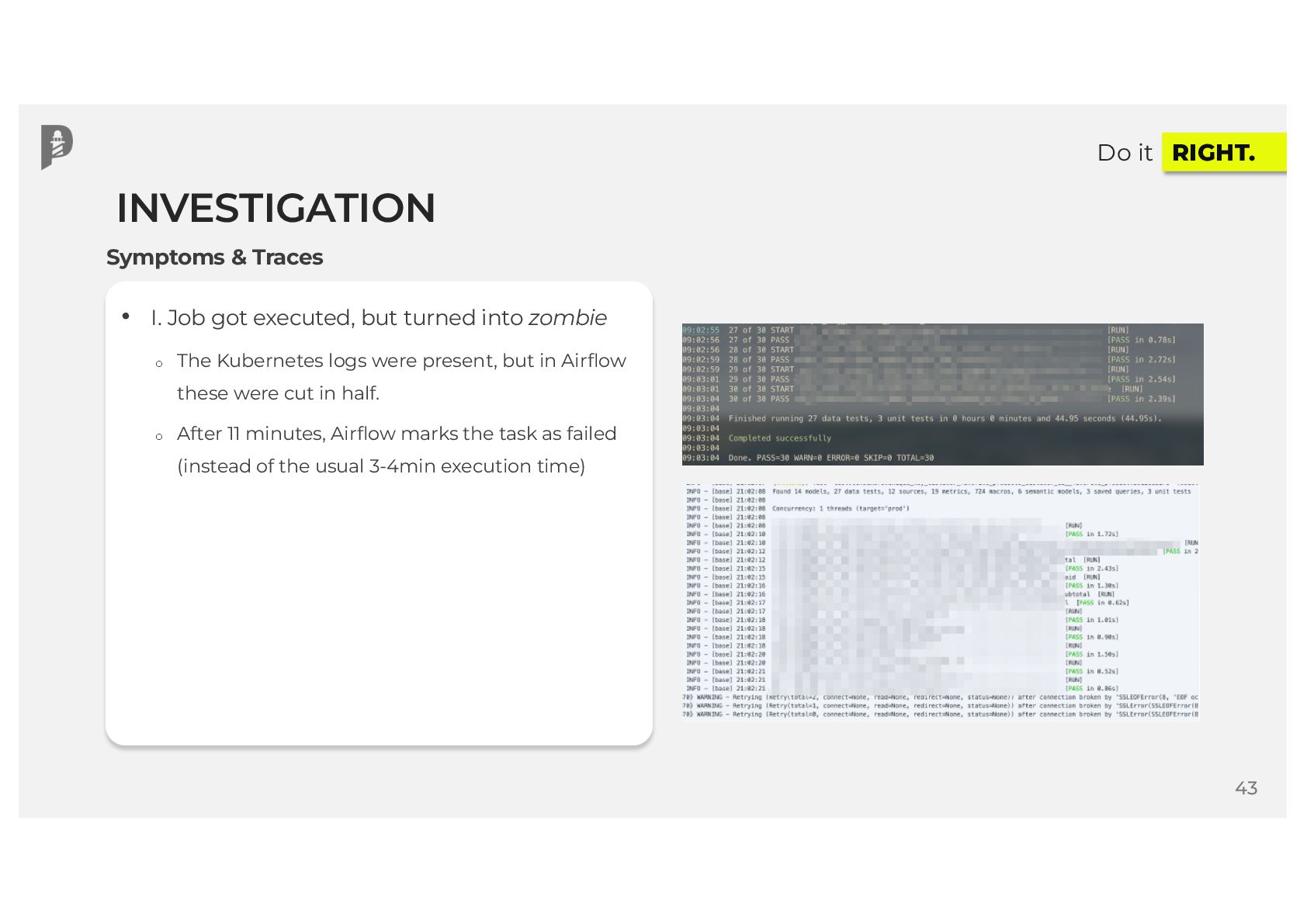

41. Do it RIGHT. INVESTIGATION 43 • I. Job got executed, but turned into zombie o The Kubernetes logs were present, but in Airflow these were cut in half. o After 11 minutes, Airflow marks the task as failed (instead of the usual 3-4min execution time) Symptoms & Traces

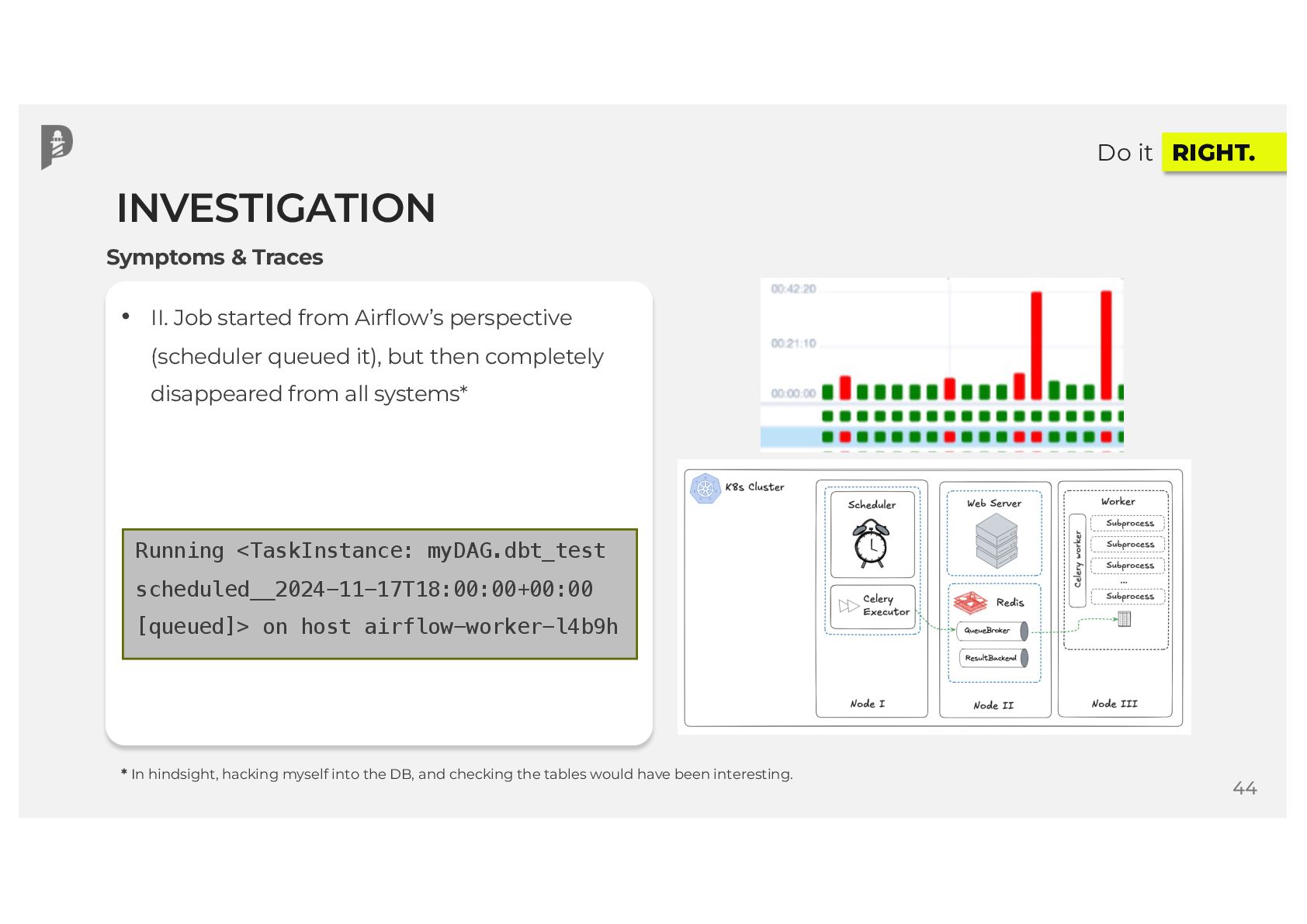

42. Do it RIGHT. INVESTIGATION 44 • II. Job started from Airflow’s perspective (scheduler queued it), but then completely disappeared from all systems* Symptoms & Traces * In hindsight, hacking myself into the DB, and checking the tables would have been interesting. Running <TaskInstance: myDAG.dbt_test scheduled__2024-11-17T18:00:00+00:00 [queued]> on host airflow-worker-l4b9h

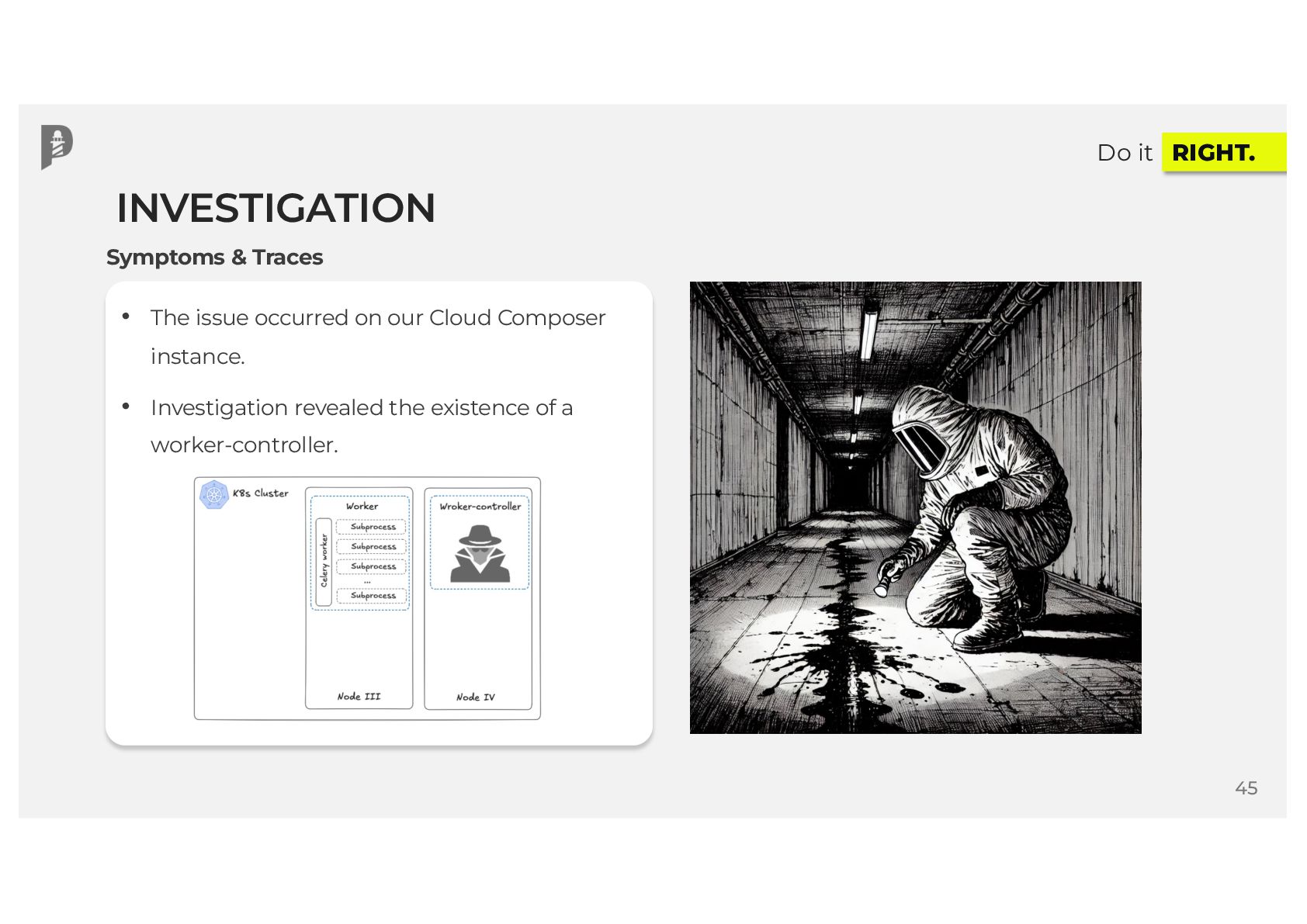

43. Do it RIGHT. INVESTIGATION 45 • The issue occurred on our Cloud Composer instance. • Investigation revealed the existence of a worker-controller. Symptoms & Traces

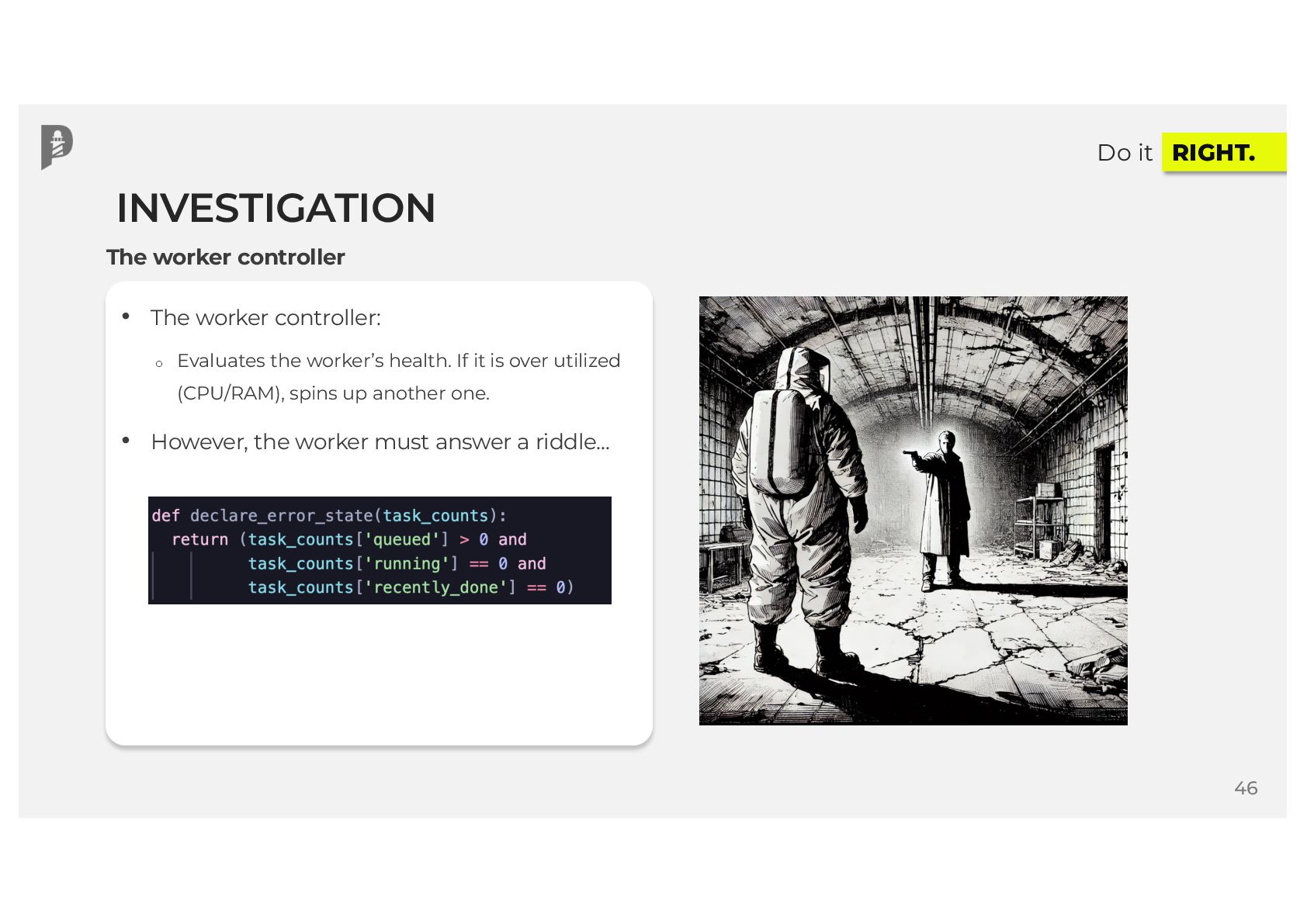

44. Do it RIGHT. INVESTIGATION 46 • The worker controller: o Evaluates the worker’s health. If it is over utilized (CPU/RAM), spins up another one. • However, the worker must answer a riddle… The worker controller

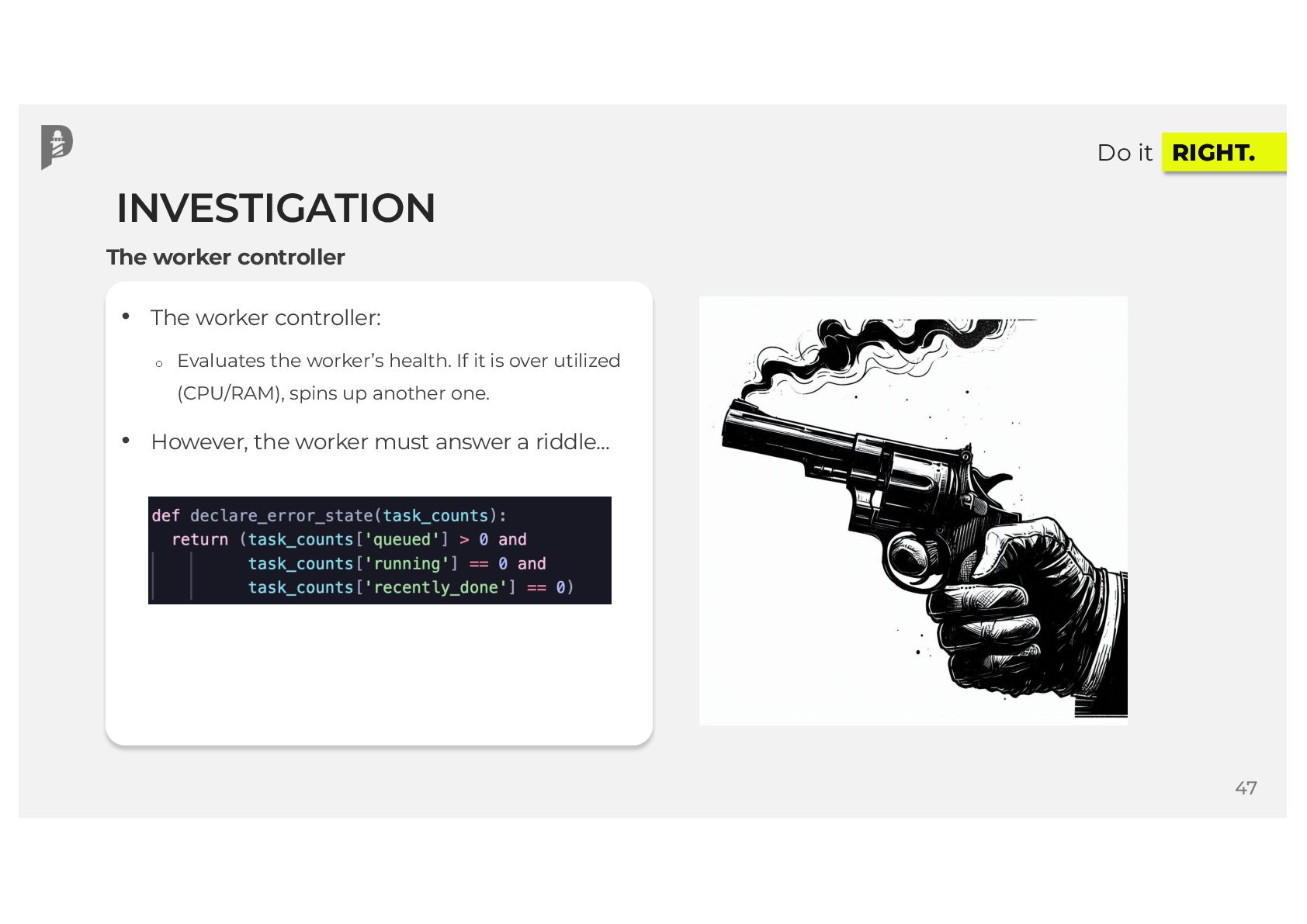

45. Do it RIGHT. INVESTIGATION 47 • The worker controller: o Evaluates the worker’s health. If it is over utilized (CPU/RAM), spins up another one. • However, the worker must answer a riddle… The worker controller

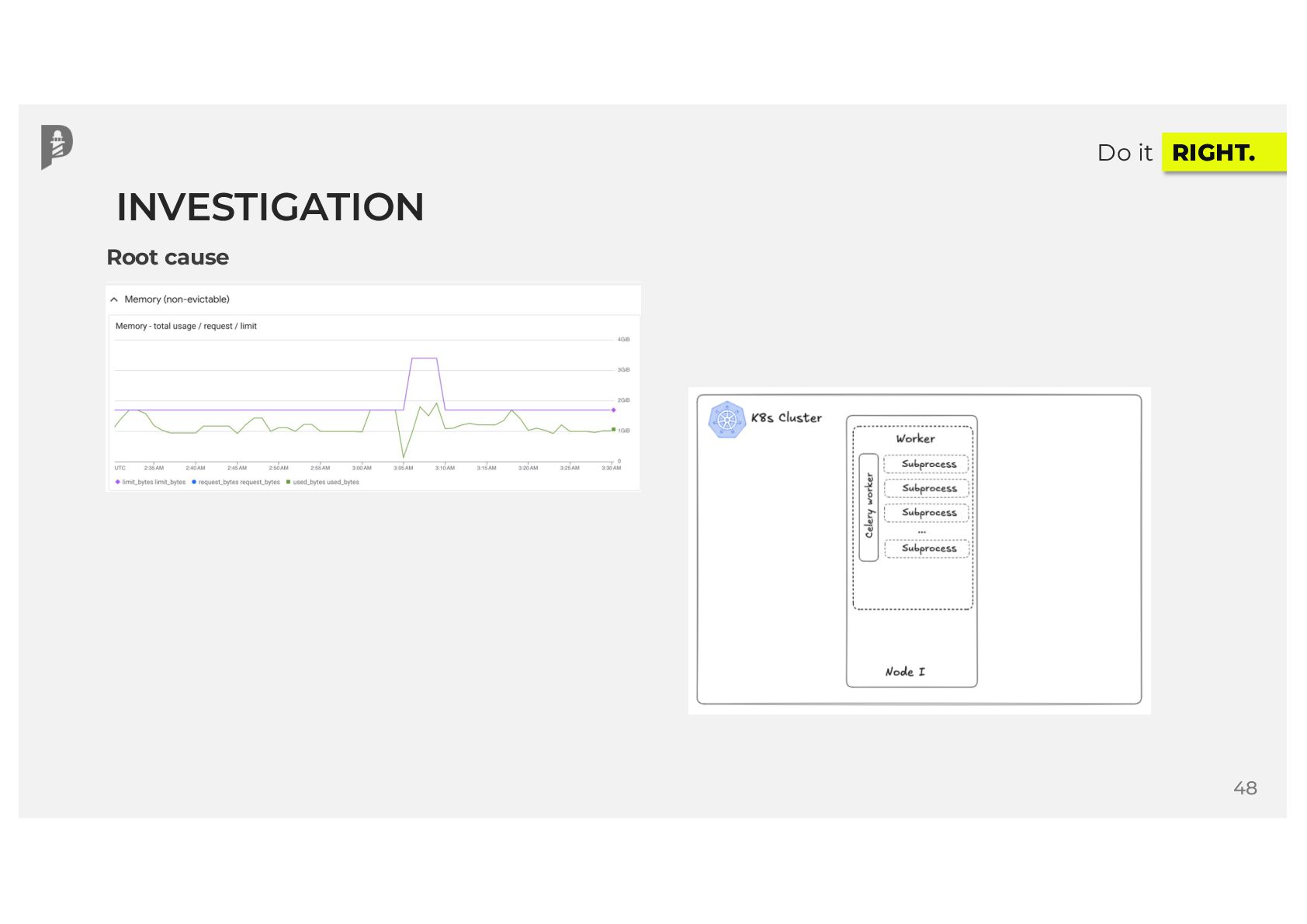

46. Do it RIGHT. INVESTIGATION 48 Root cause

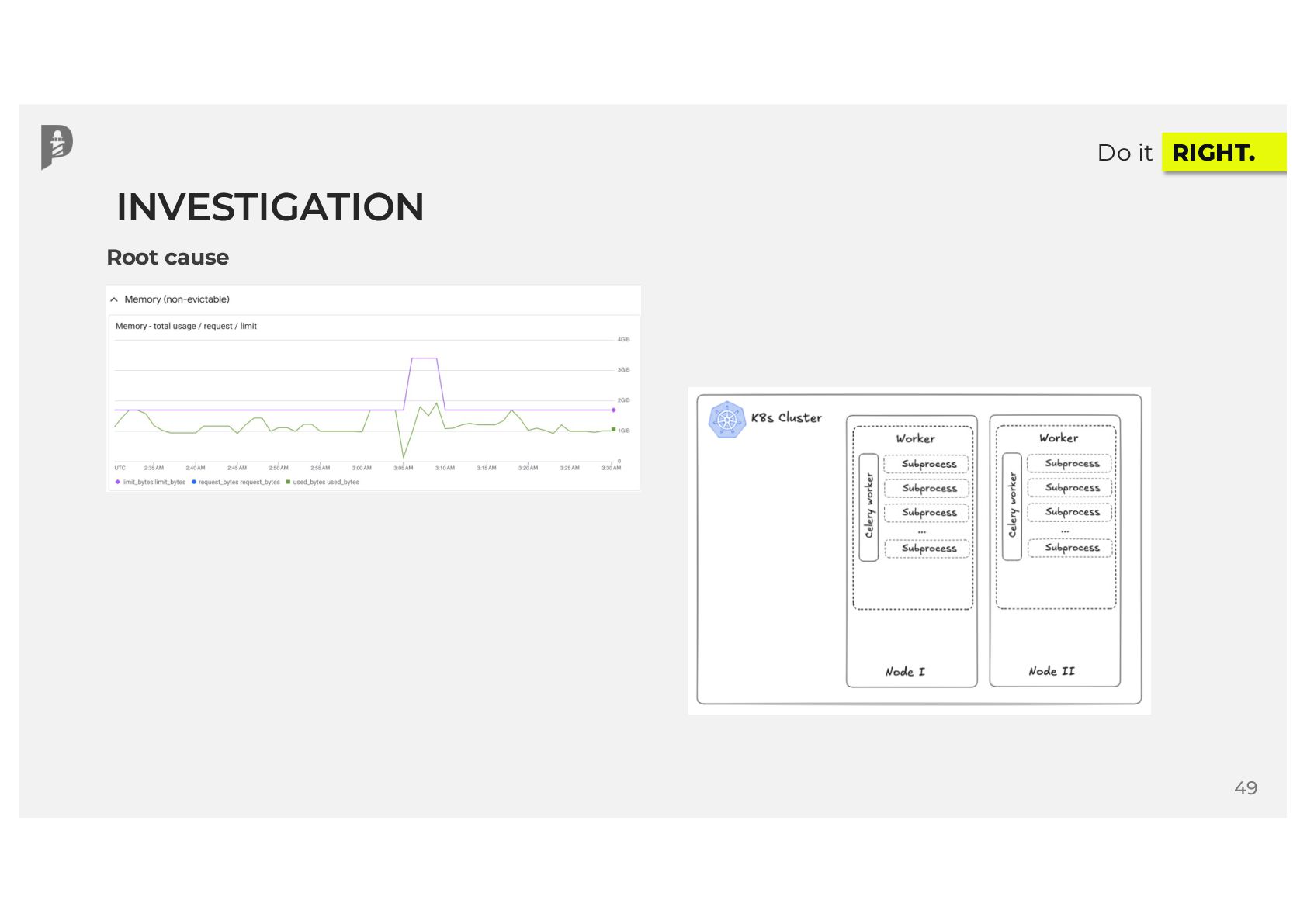

47. Do it RIGHT. INVESTIGATION 49 Root cause

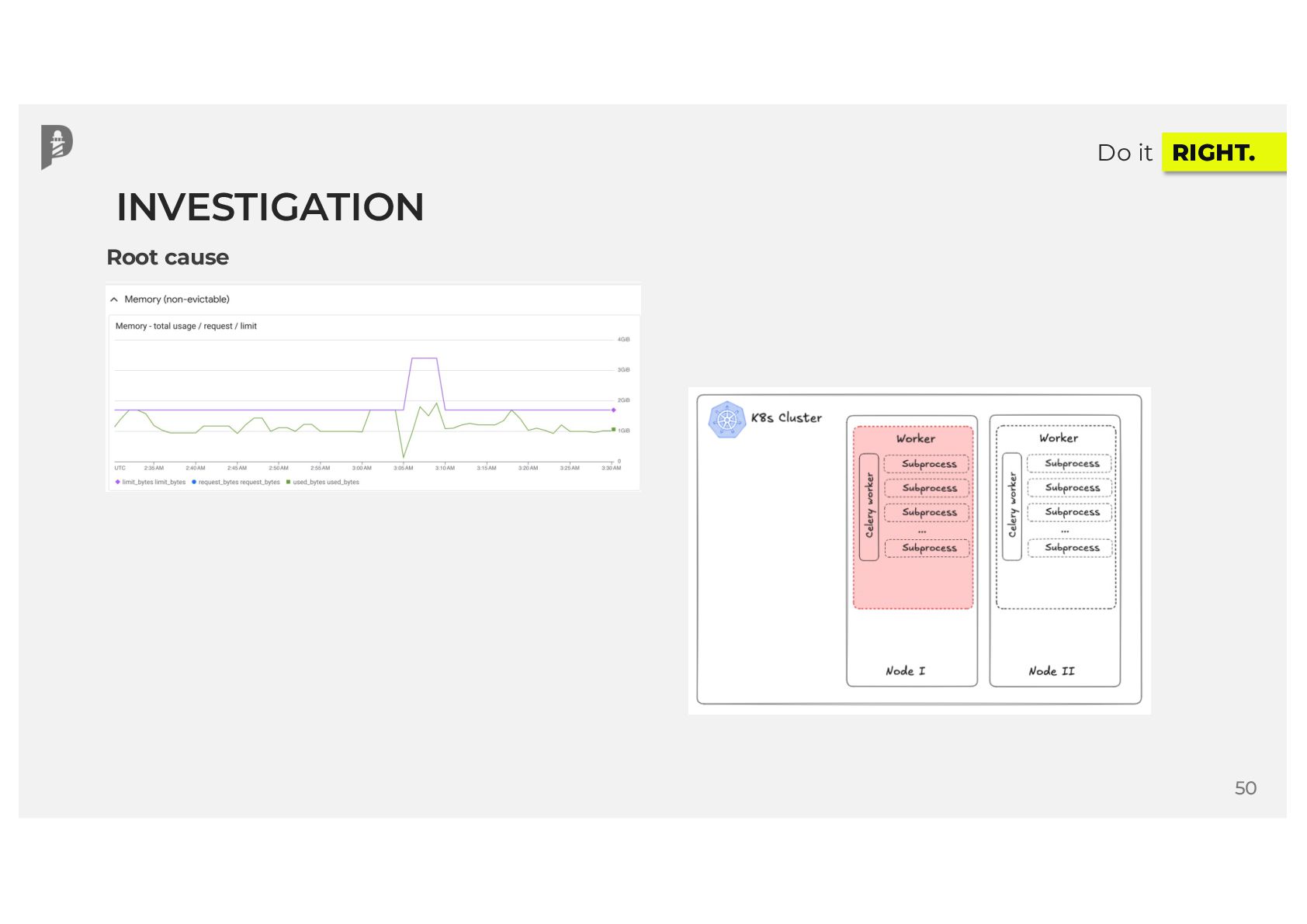

48. Do it RIGHT. INVESTIGATION 50 Root cause

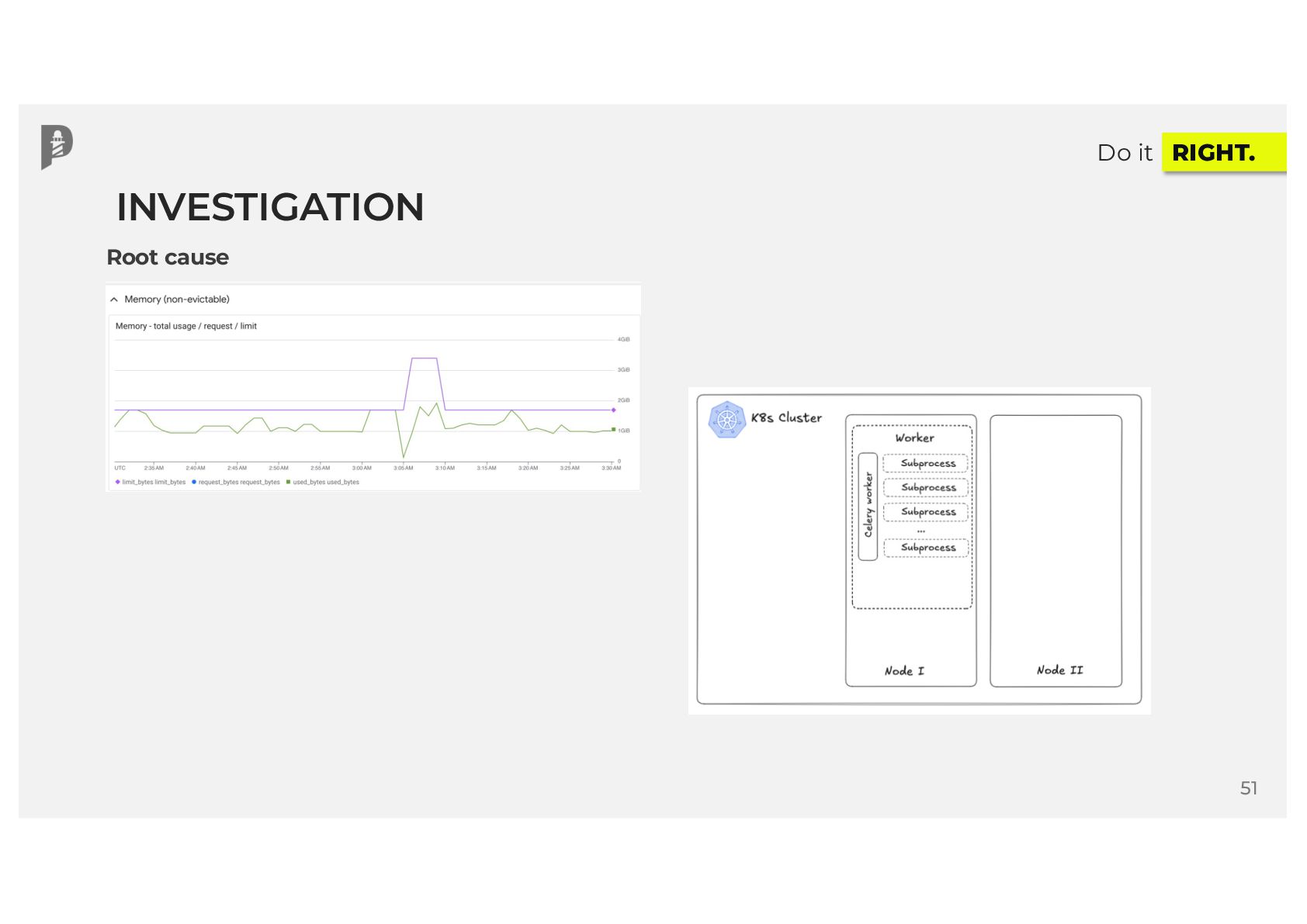

49. Do it RIGHT. INVESTIGATION 51 Root cause

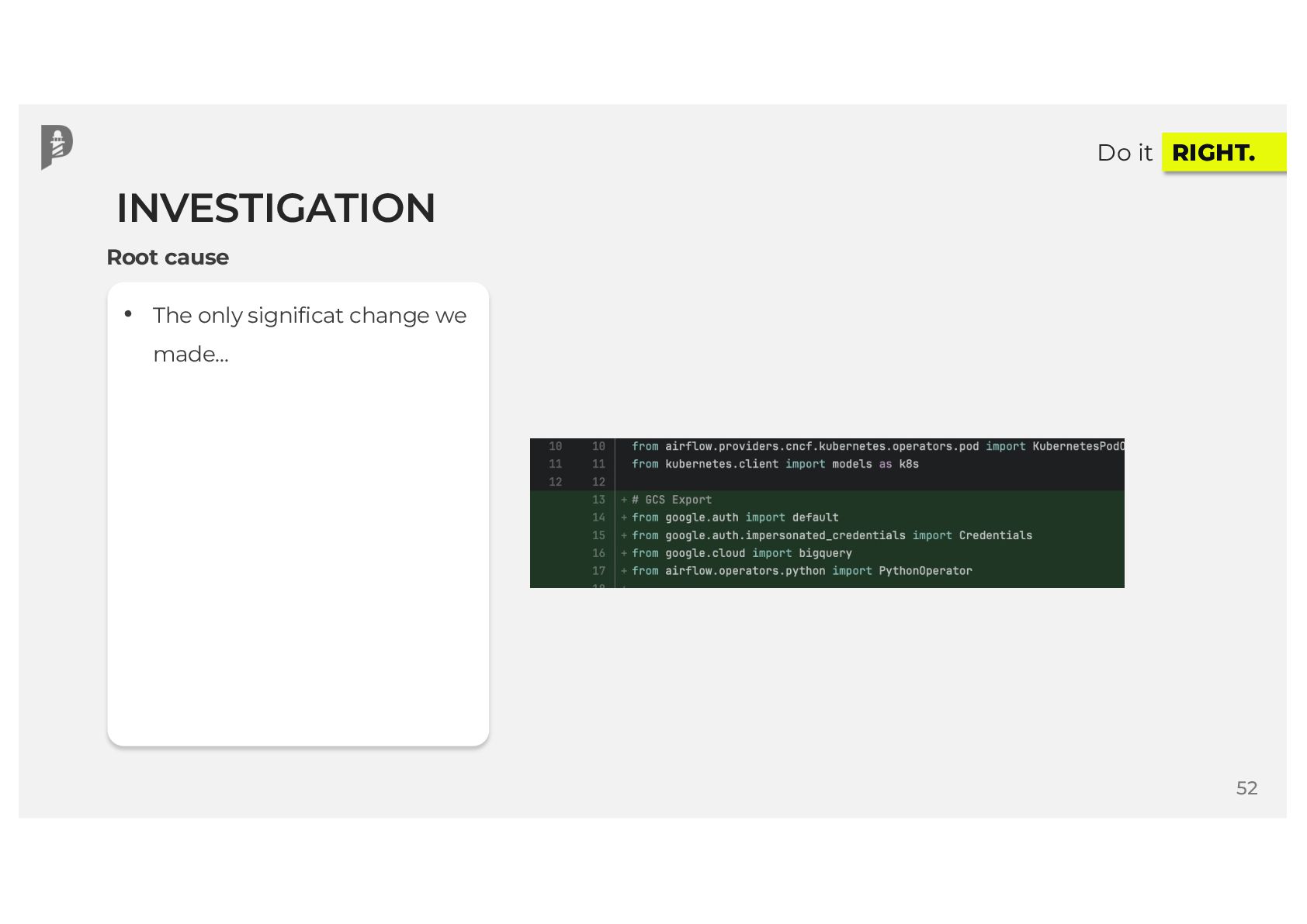

50. Do it RIGHT. INVESTIGATION 52 Root cause • The only significat change we made…

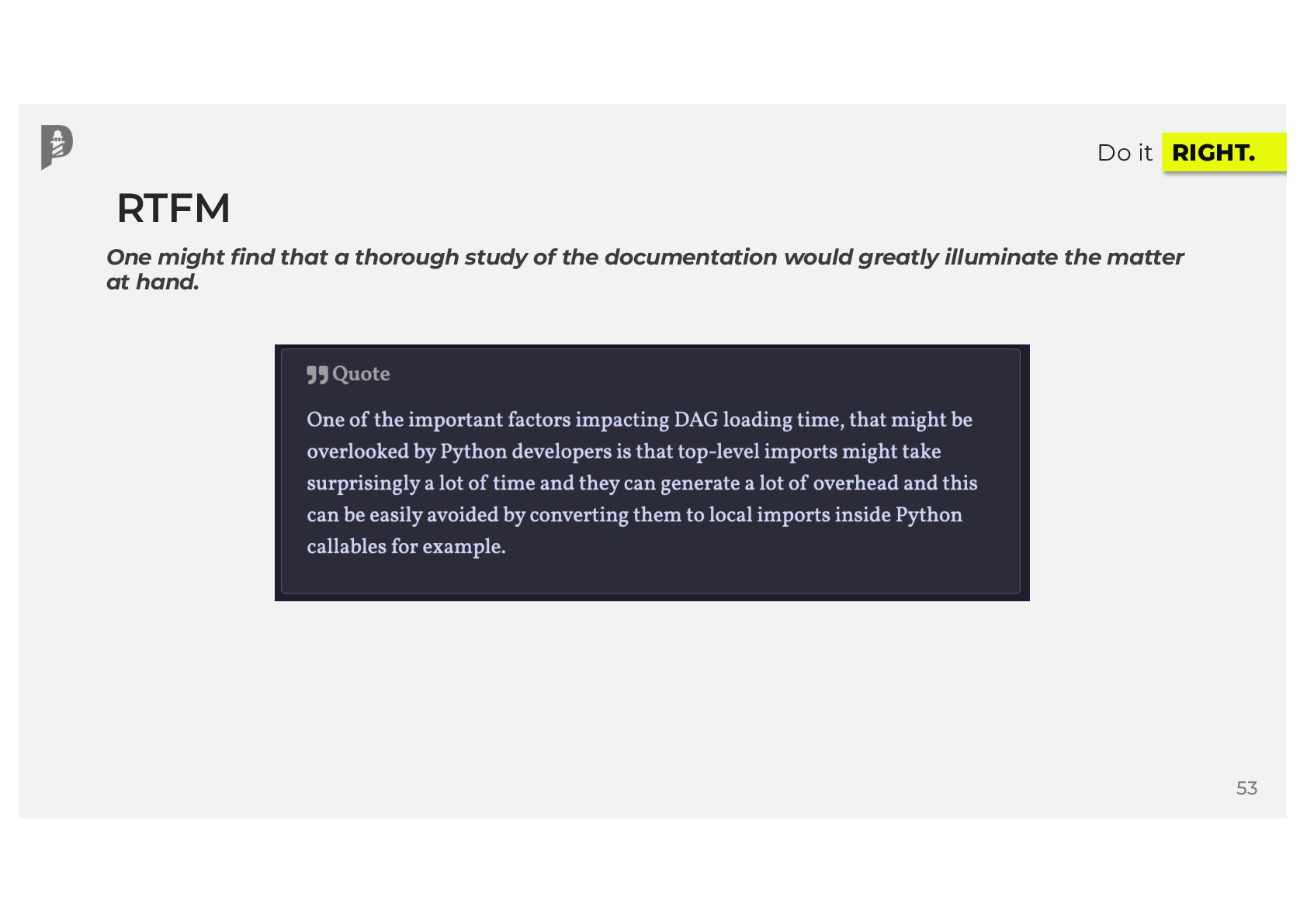

51. Do it RIGHT. RTFM 53 One might find that a thorough study of the documentation would greatly illuminate the matter at hand.

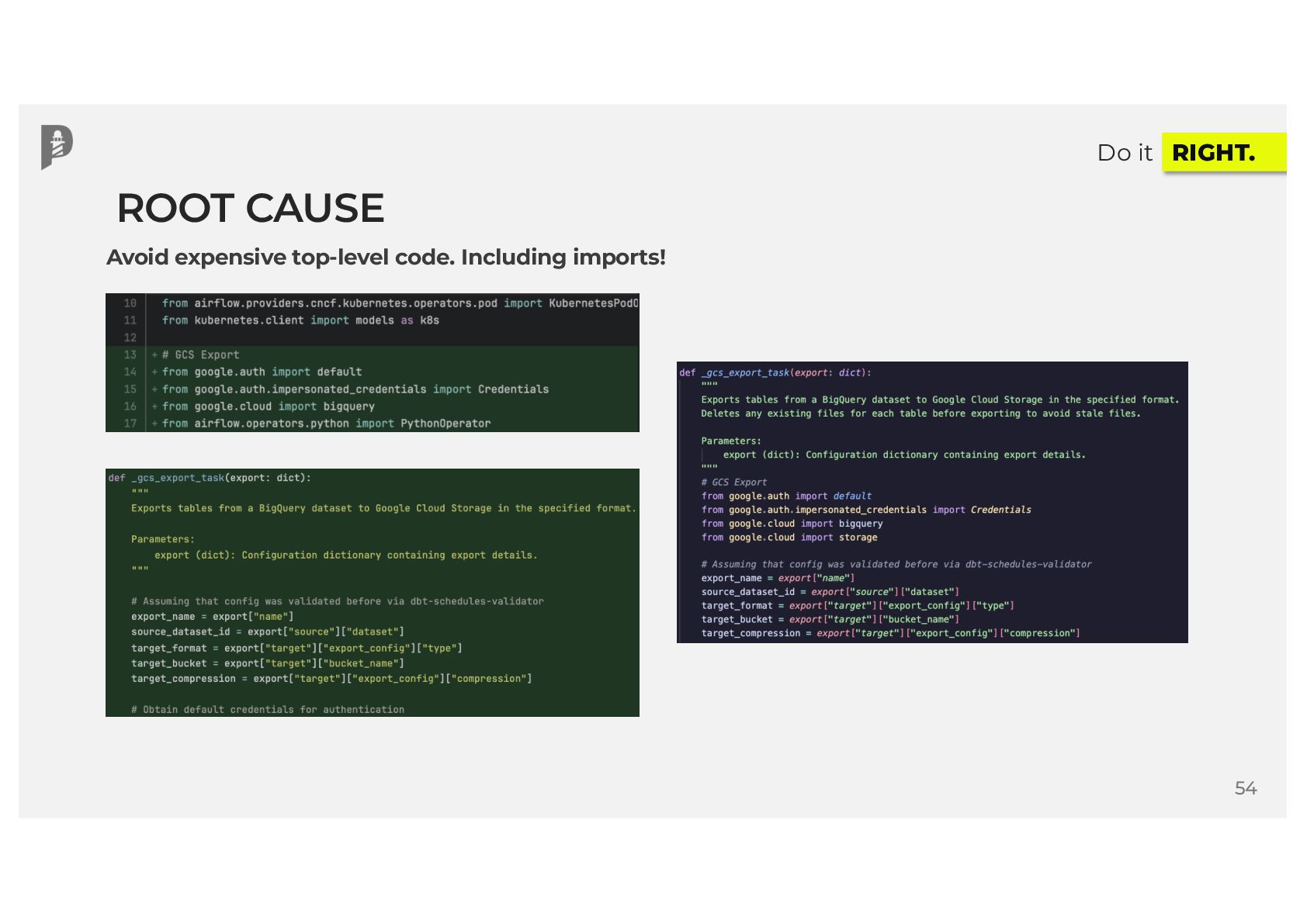

52. Do it RIGHT. ROOT CAUSE 54 Avoid expensive top-level code. Including imports!
53. Do it RIGHT. Summary 06
54. Do it RIGHT. IT WAS A TOUGH DAY… 56 • Tools come at a cost - and that is complexity. o Want to learn more about Celery Executor? o Read the source-code o S. PARK (Korean dude) blog post* o Learn more about worker-controller? o Learn more about worker health checks? * Hint: It’s in Korean…
55. Do it RIGHT. IT WAS A TOUGH DAY… 57 • In the right hands, they can shine o Composer + GKE Autopilot • Consider adding the official documentation to your bedside reading list.
