Software Execution Environmens - process, virtual machine, and container

This slide introduces the various software execution environments, like process, virtual, and container.

Transcript

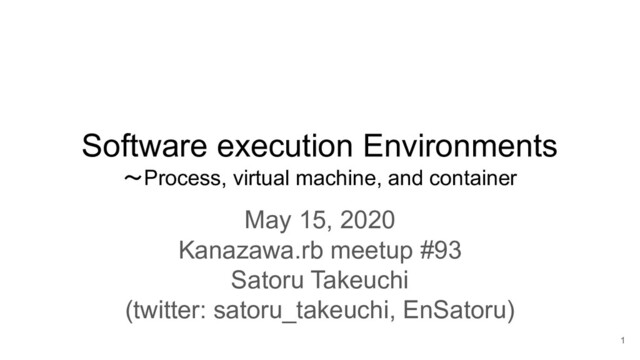

1. Software execution Environments
   ～Process, virtual machine, and container
   May 15, 2020
   Kanazawa.rb meetup #93
   Satoru Takeuchi
   (twitter: satoru_takeuchi, EnSatoru)
   1


   View Slide

2. Without process
   2
   program
   hardware
   access


   View Slide

3. Process with primitiv kernels like poor embedded system
   3
   Process
   hardware
   access
   Process
   access
   〇
   〇
   kernel
   access
   〇
   〇
   access


   View Slide

4. Process with modern kernels like Linux and NT kernel
   4
   kernel
   hardware
   process
   ①Requests with system calls
   ● File access
   ● Hardware access
   ● Inter process communication
   ②access
   access
   ×
   ×
   access
   〇
   〇
   process


   View Slide

5. Virtual machine (qemu + kvm)
   5
   kernel
   hardware
   Process for virtual machine
   Virtual hardware
   kernel
   プロセス
   プロセス
   process
   ①trap
   ③request
   ④request
   access
   ×
   ②


   View Slide

6. Container (with Linux’s namespace)
   6
   kernel
   hardware
   Container
   プロセス
   プロセス
   process
   Container
   プロセス
   process
   ×access


   View Slide

7. Two types of containers
   7
   System container
   (for full featured OS environment)
   Application container
   (for only one application like Docker container)
   container
   Environment for all apps
   container
   app
   app
   Environment for an app
   app


   View Slide

8. Security risks
   ● The required steps to attack other process
   8
   kernel kernel
   hardware hardware
   container
   プロセス
   プロセス
   process
   Virtual machine container
   Virtual machine
   Virtual hardware
   kernel
   process
   ①
   process
   ①
   process
   ②
   ②
   ③ ④


   View Slide

9. Various container runtimes
   ● System call steps
   9
   runC(basic way) Kata Containers gVisor
   Namespace
   app
   kernel
   VM
   app
   kernel
   kernel
   app
   Userland
   kernel
   kernel
   hardware
   ① ②
   ① ②
   ①
   ②
   ④
   ③
   ⑤


   View Slide

10. That’s all
    Question?
