PicoRuby as a Multi-VM Operating System

With the emergence of PicoRuby, mruby-centered technologies have increasingly been used as lightweight operating environments for microcontrollers.

In this talk, I present a more self-contained approach: an operating system for microcontrollers built around PicoRuby, where the mruby VM serves as the system core. I call this framework Family mruby OS.

The system enables developers to write and run Ruby applications directly on a microcontroller with a GUI, using a USB keyboard, mouse, and display—without relying on a PC.

By leveraging FreeRTOS, multiple PicoRuby VMs, as well as VMs of other languages, can run concurrently at the machine-code level, enabling true multi-VM execution while keeping Ruby responsible for application lifecycle management.

I will explain the design and implementation of this framework, discuss the key technical challenges involved, and demonstrate the system running on real hardware.

Transcript

2. SELF INTRODUCTION Name: Katsuhiko Kageyama X, Github ID: kishima Company: aptpod, Inc. Role: IoT edge device development, Engineering Manager Hobbies: electronics, mruby(PicoRuby)

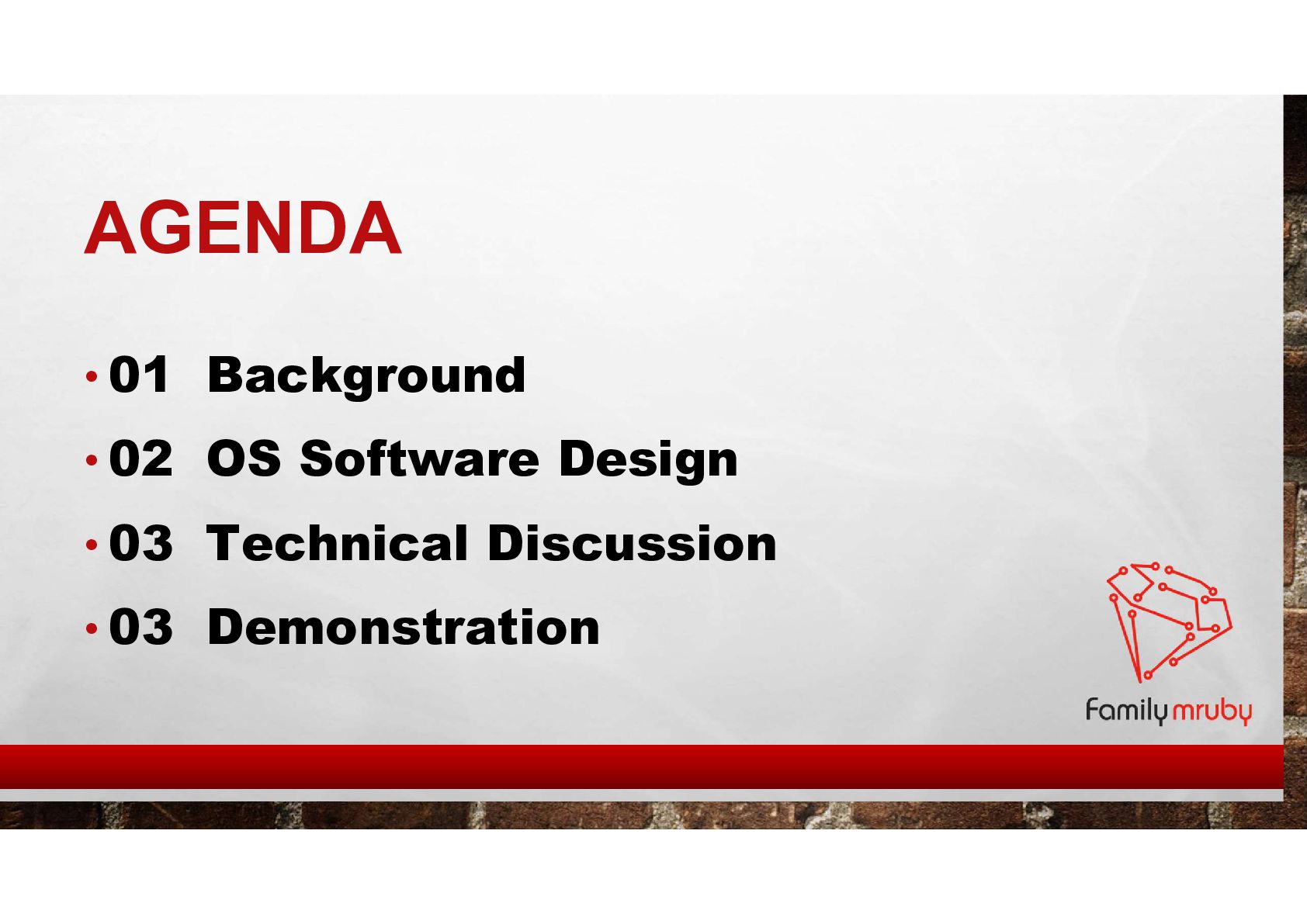

3. AGENDA • 01 Background • 02 OS Software Design • 03 Technical Discussion • 03 Demonstration
4. 01: Background

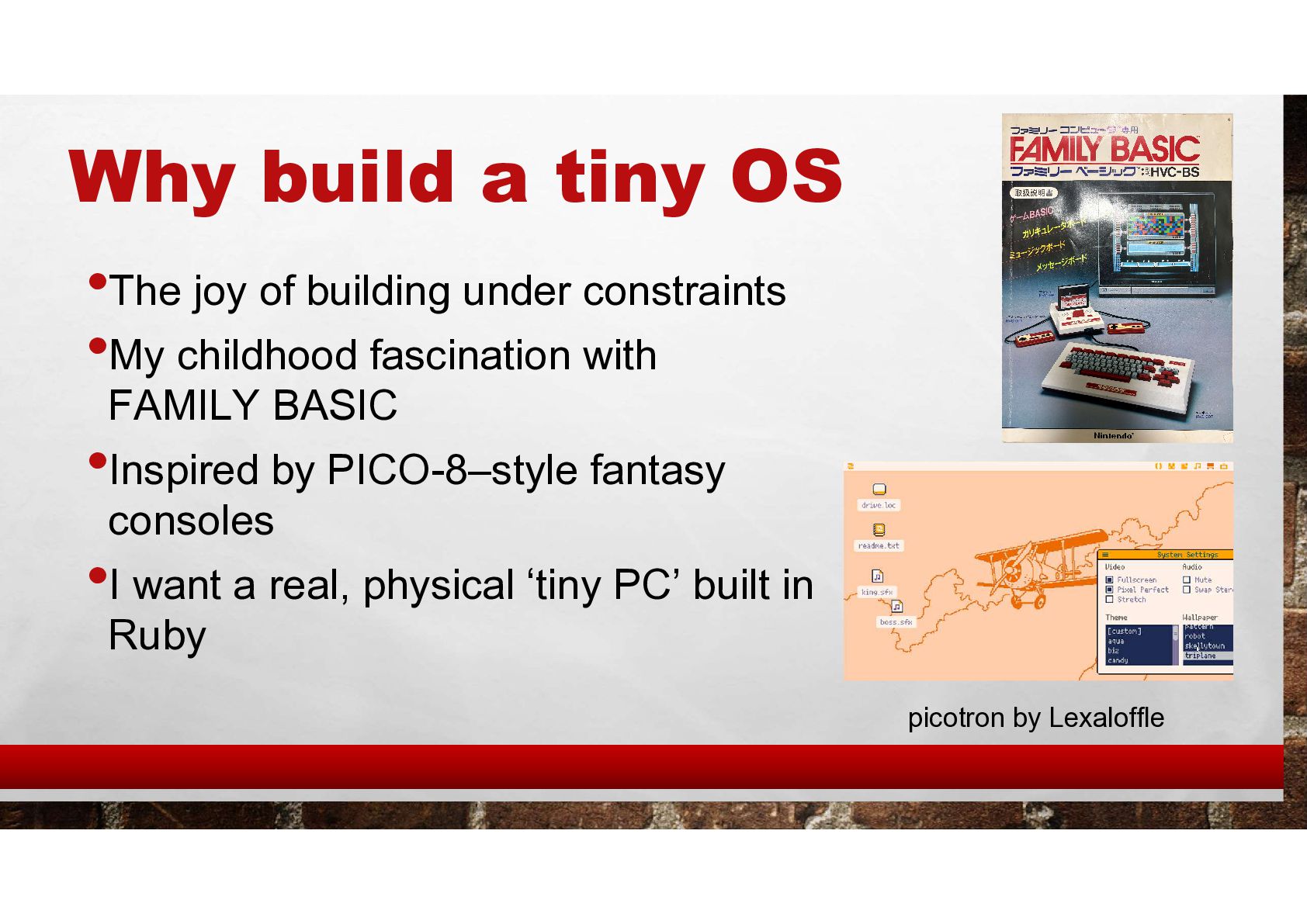

5. Why build a tiny OS •The joy of building under constraints •My childhood fascination with FAMILY BASIC •Inspired by PICO-8–style fantasy consoles •I want a real, physical ‘tiny PC’ built in Ruby picotron by Lexaloffle

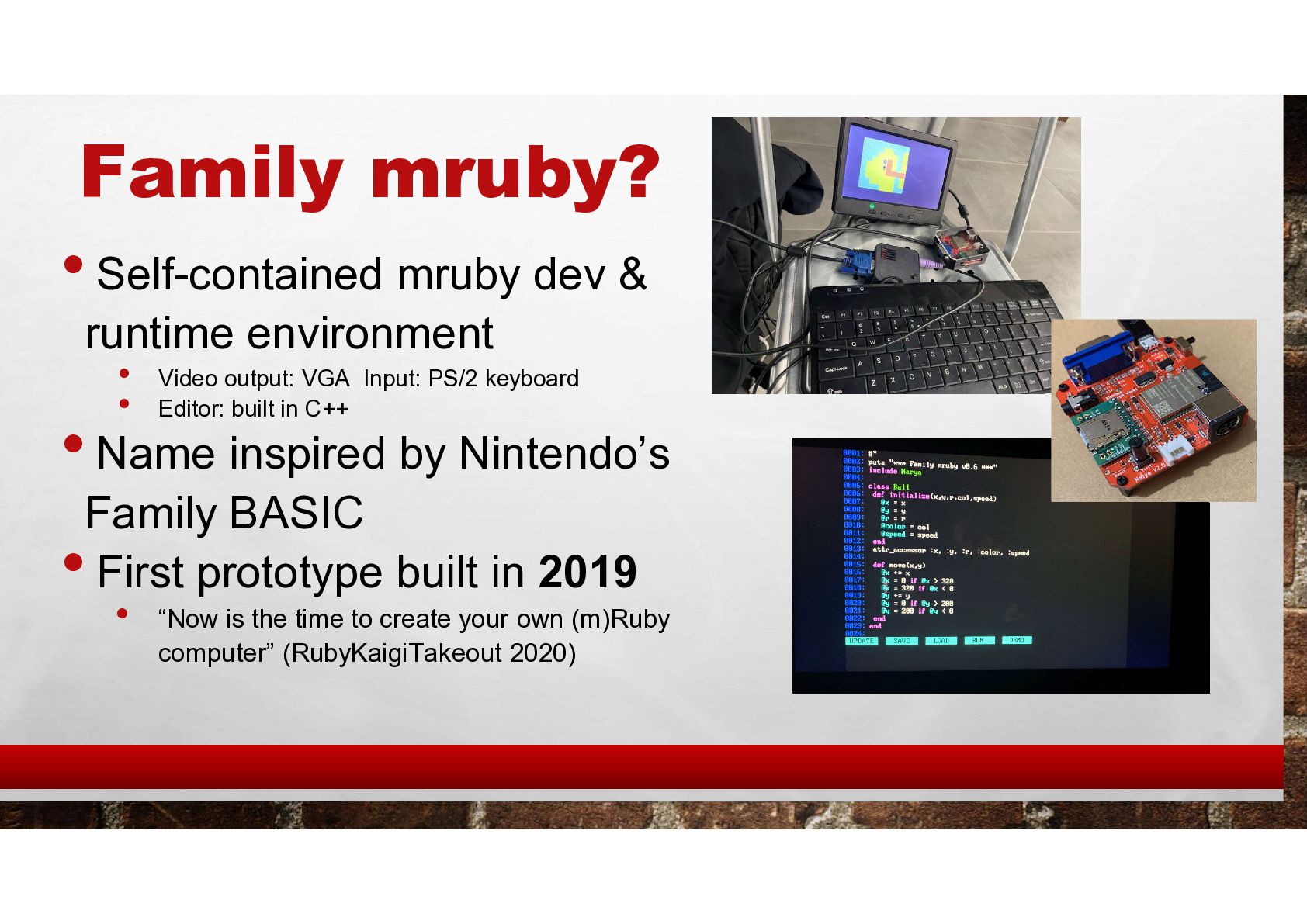

6. Family mruby? • Self-contained mruby dev & runtime environment • Video output: VGA Input: PS/2 keyboard • Editor: built in C++ • Name inspired by Nintendo’s Family BASIC • First prototype built in 2019 • “Now is the time to create your own (m)Ruby computer” (RubyKaigiTakeout 2020)
7. 02: OS Software Design

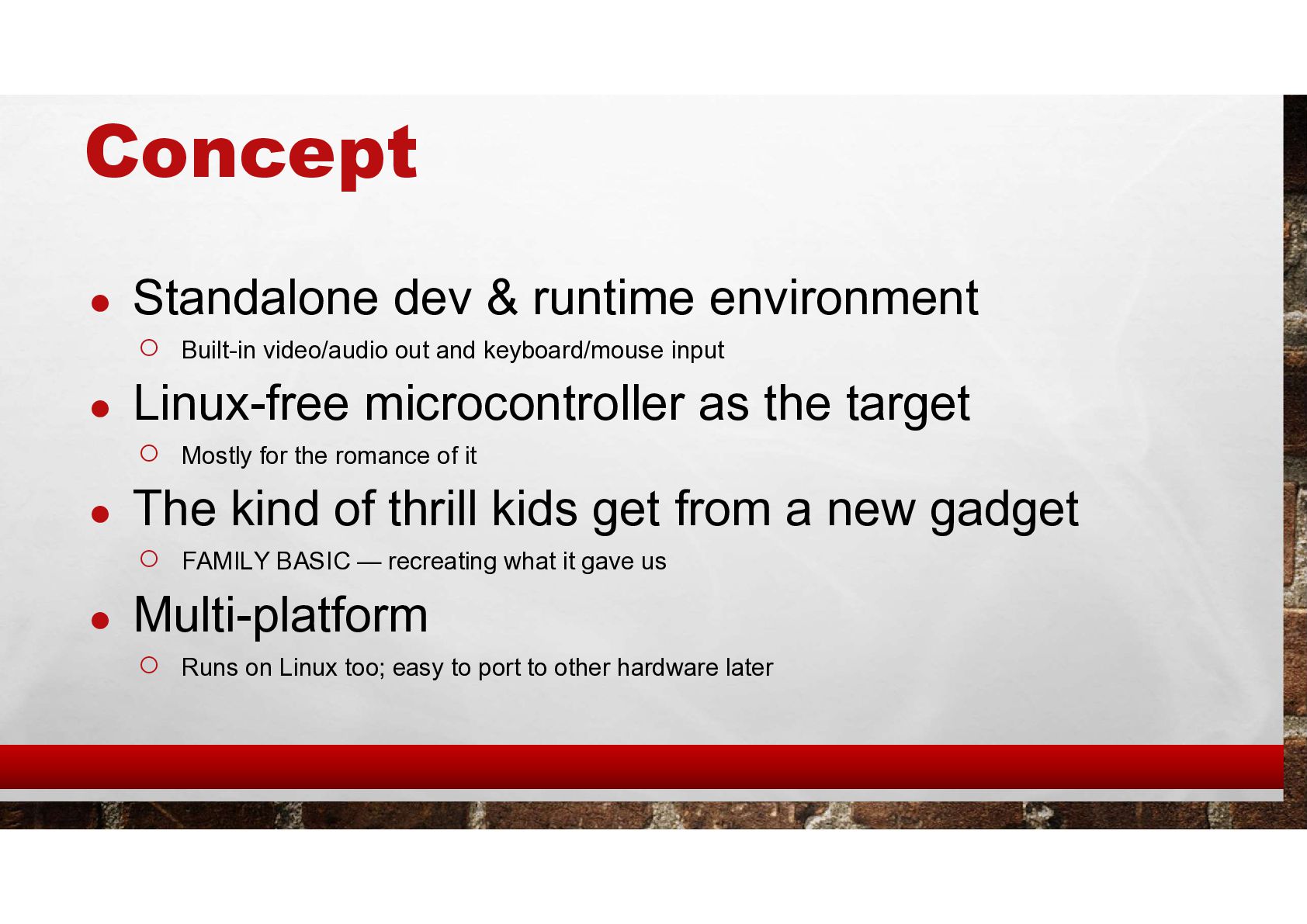

8. Concept • Standalone dev & runtime environment ◦ Built-in video/audio out and keyboard/mouse input • Linux-free microcontroller as the target ◦ Mostly for the romance of it • The kind of thrill kids get from a new gadget ◦ FAMILY BASIC — recreating what it gave us • Multi-platform ◦ Runs on Linux too; easy to port to other hardware later

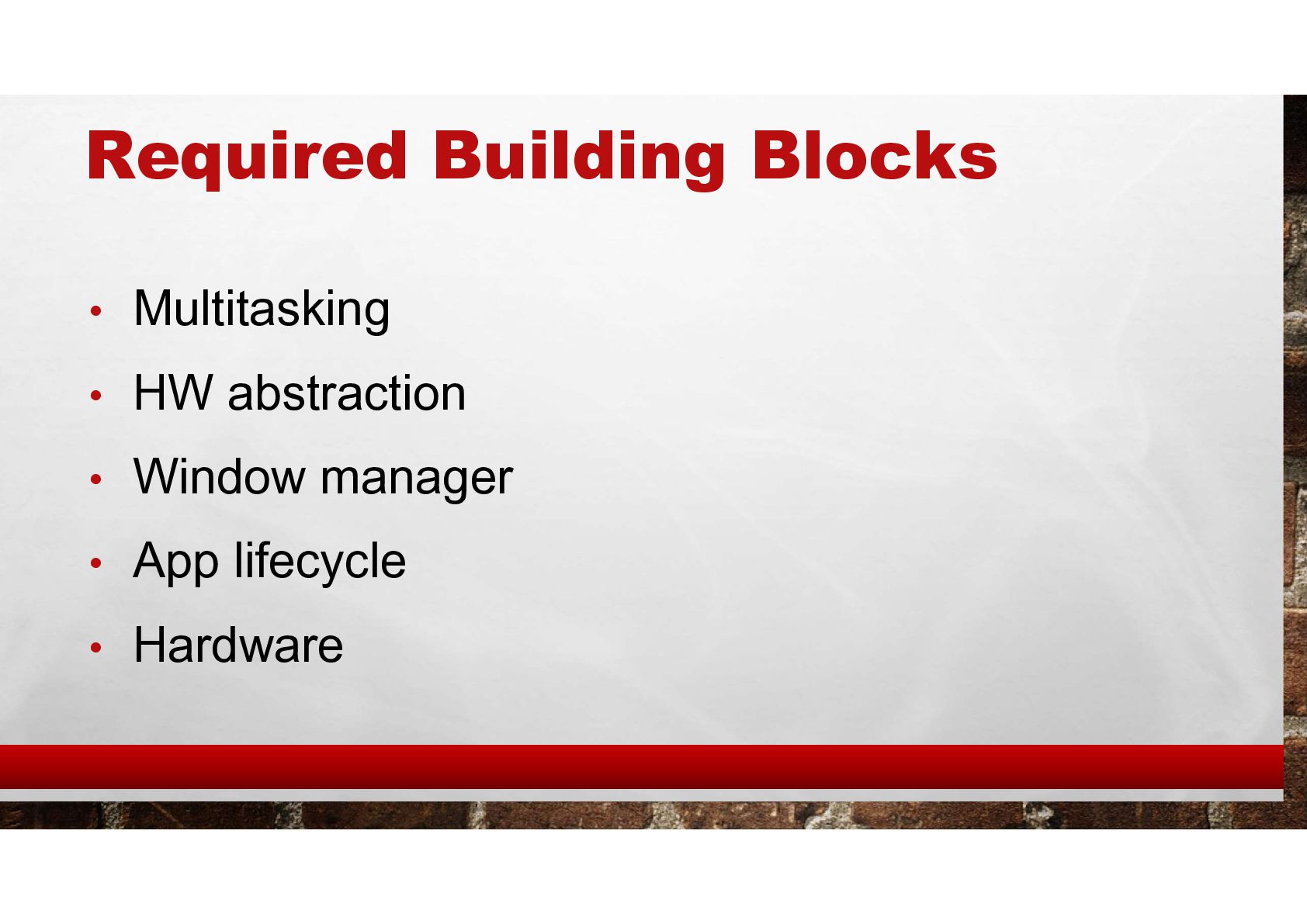

9. Required Building Blocks • Multitasking • HW abstraction • Window manager • App lifecycle • Hardware

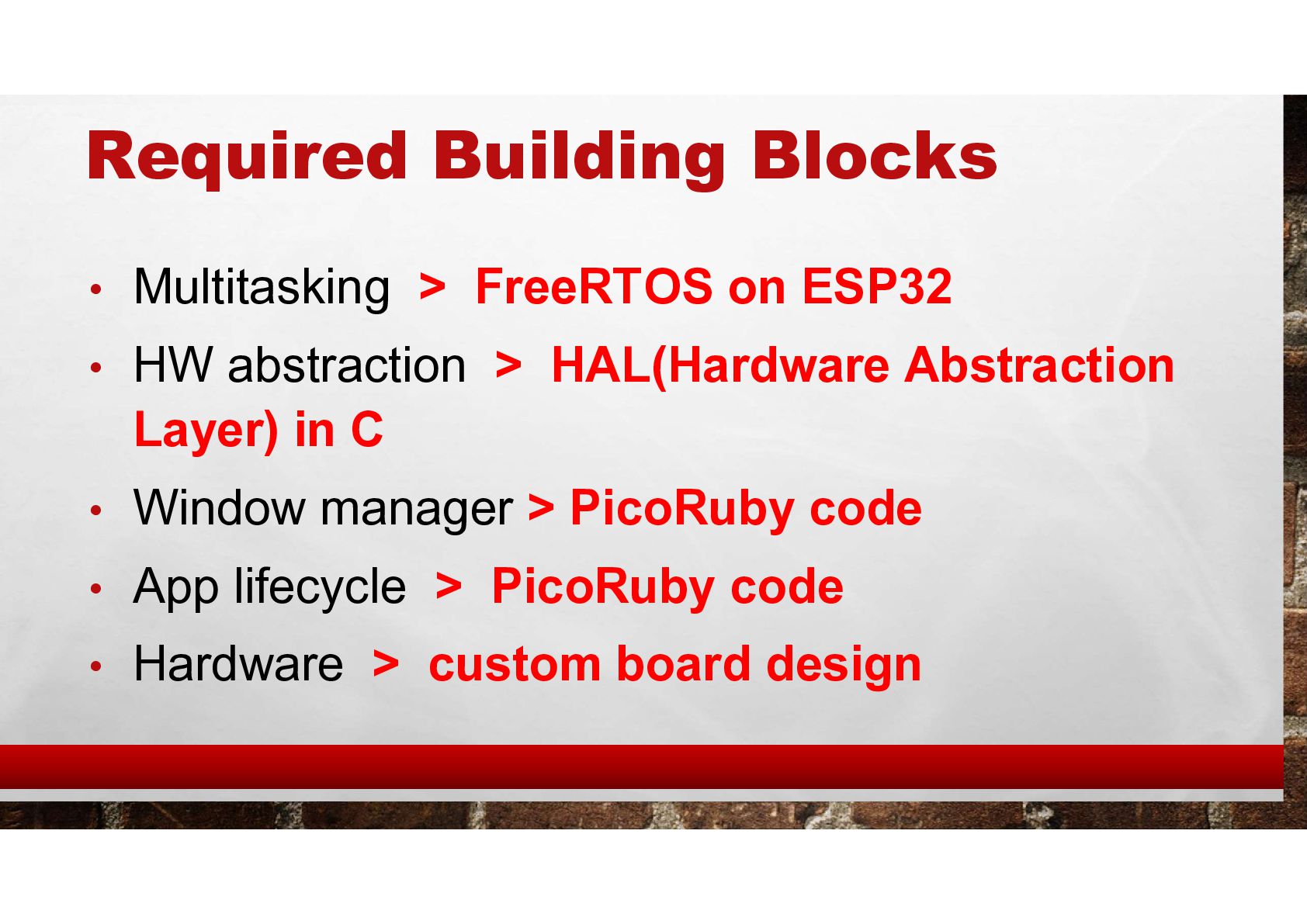

10. Required Building Blocks • Multitasking > FreeRTOS on ESP32 • HW abstraction > HAL(Hardware Abstraction Layer) in C • Window manager > PicoRuby code • App lifecycle > PicoRuby code • Hardware > custom board design

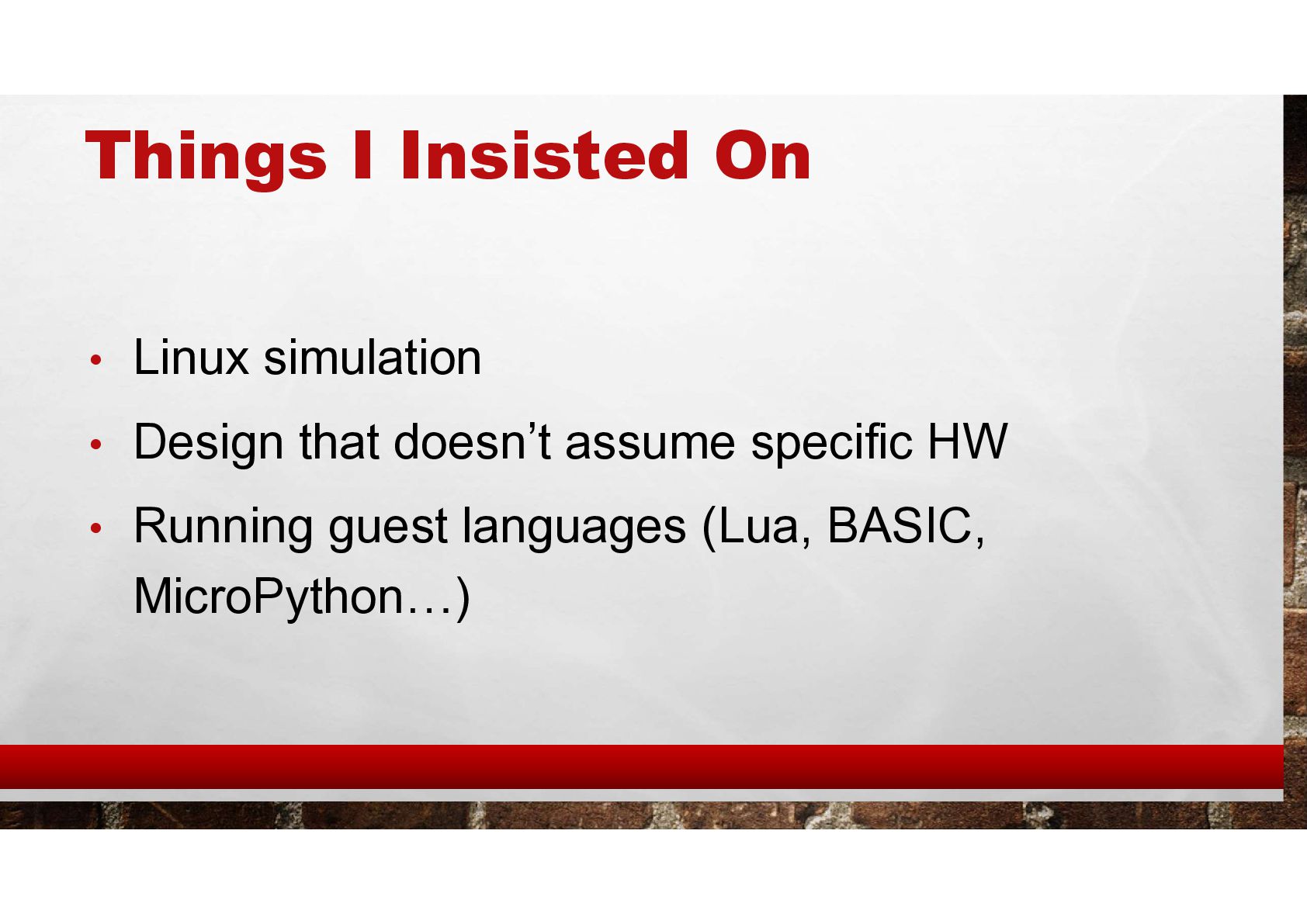

11. Things I Insisted On • Linux simulation • Design that doesn’t assume specific HW • Running guest languages (Lua, BASIC, MicroPython…)

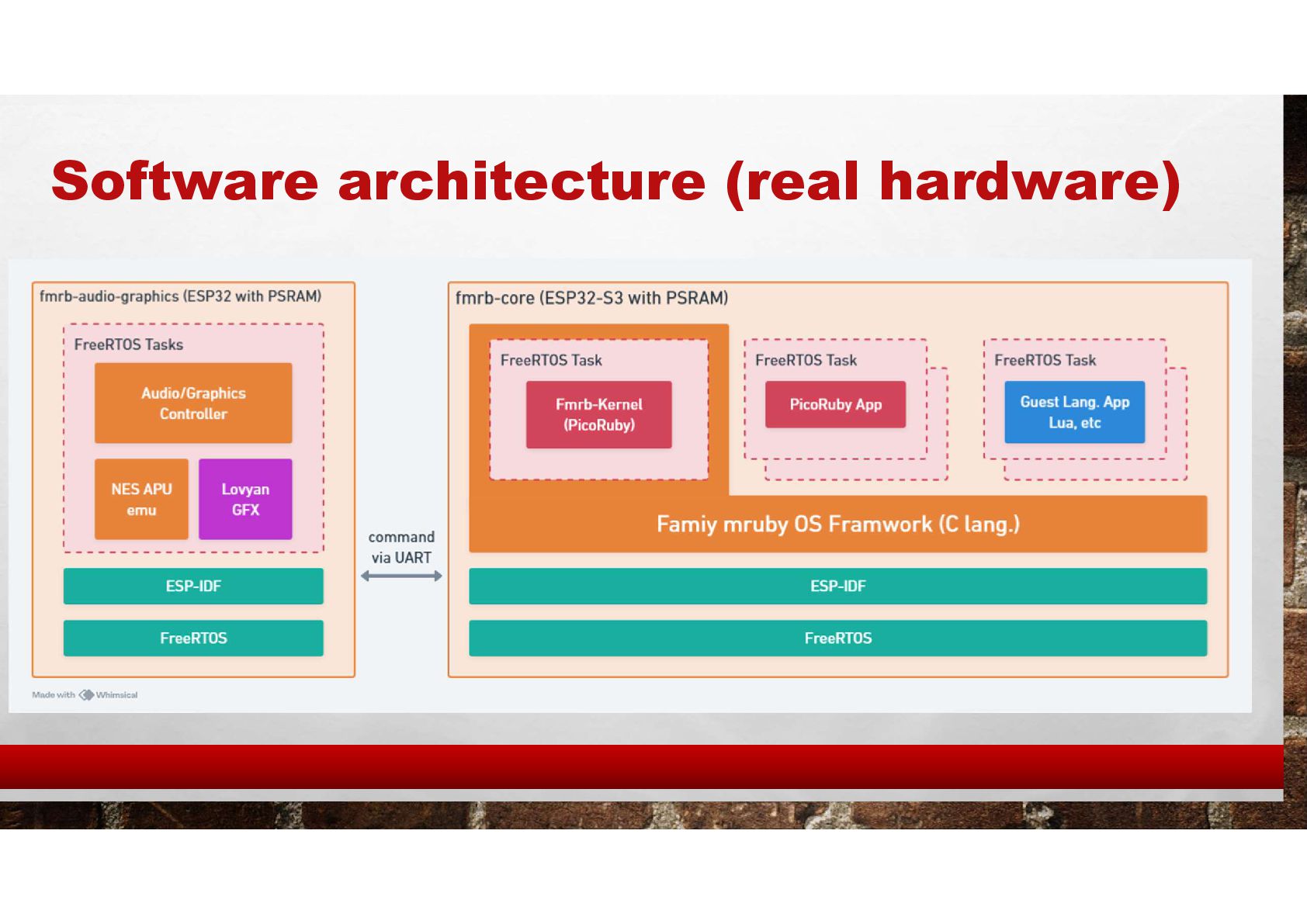

12. Software architecture (real hardware)

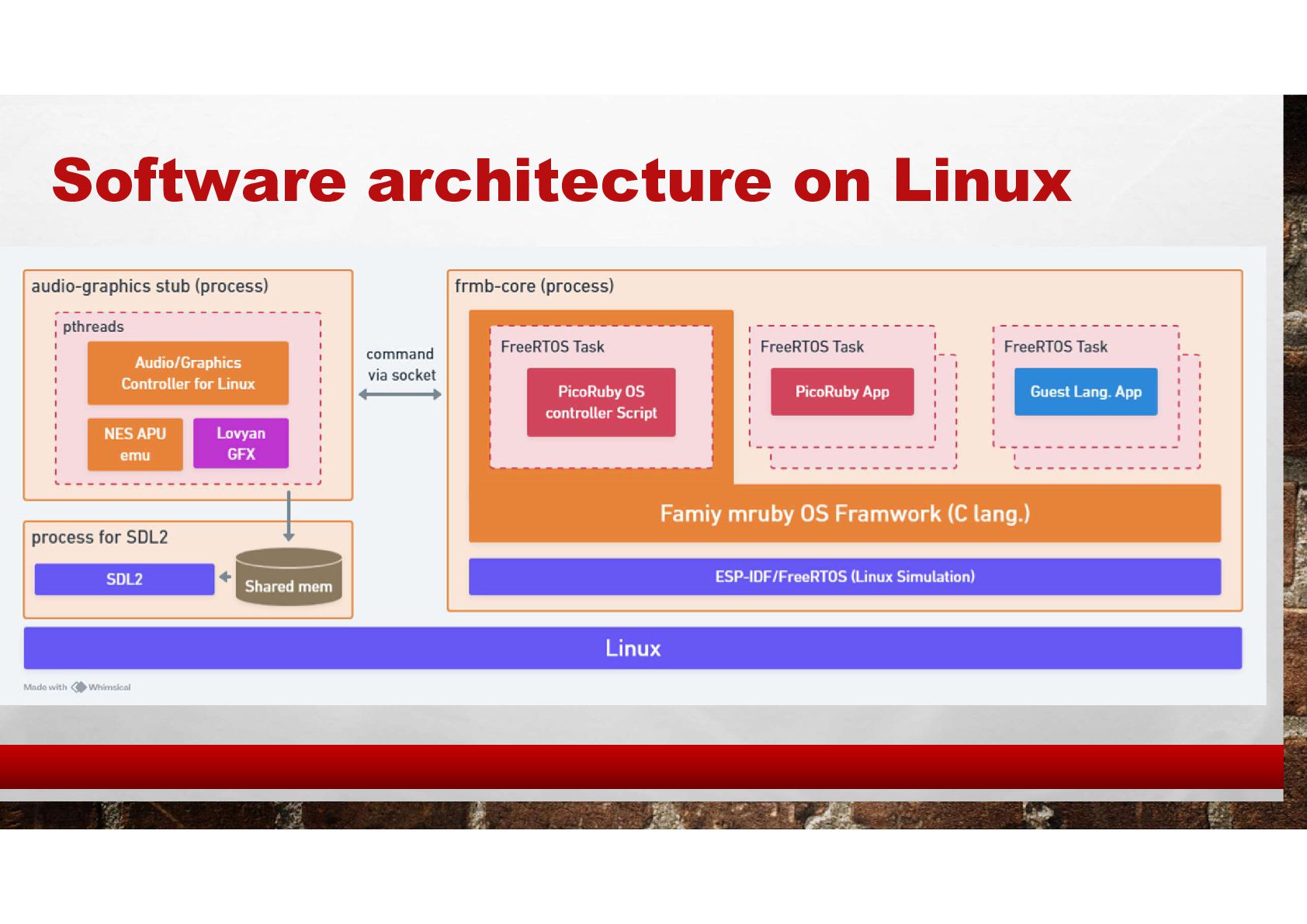

13. Software architecture on Linux

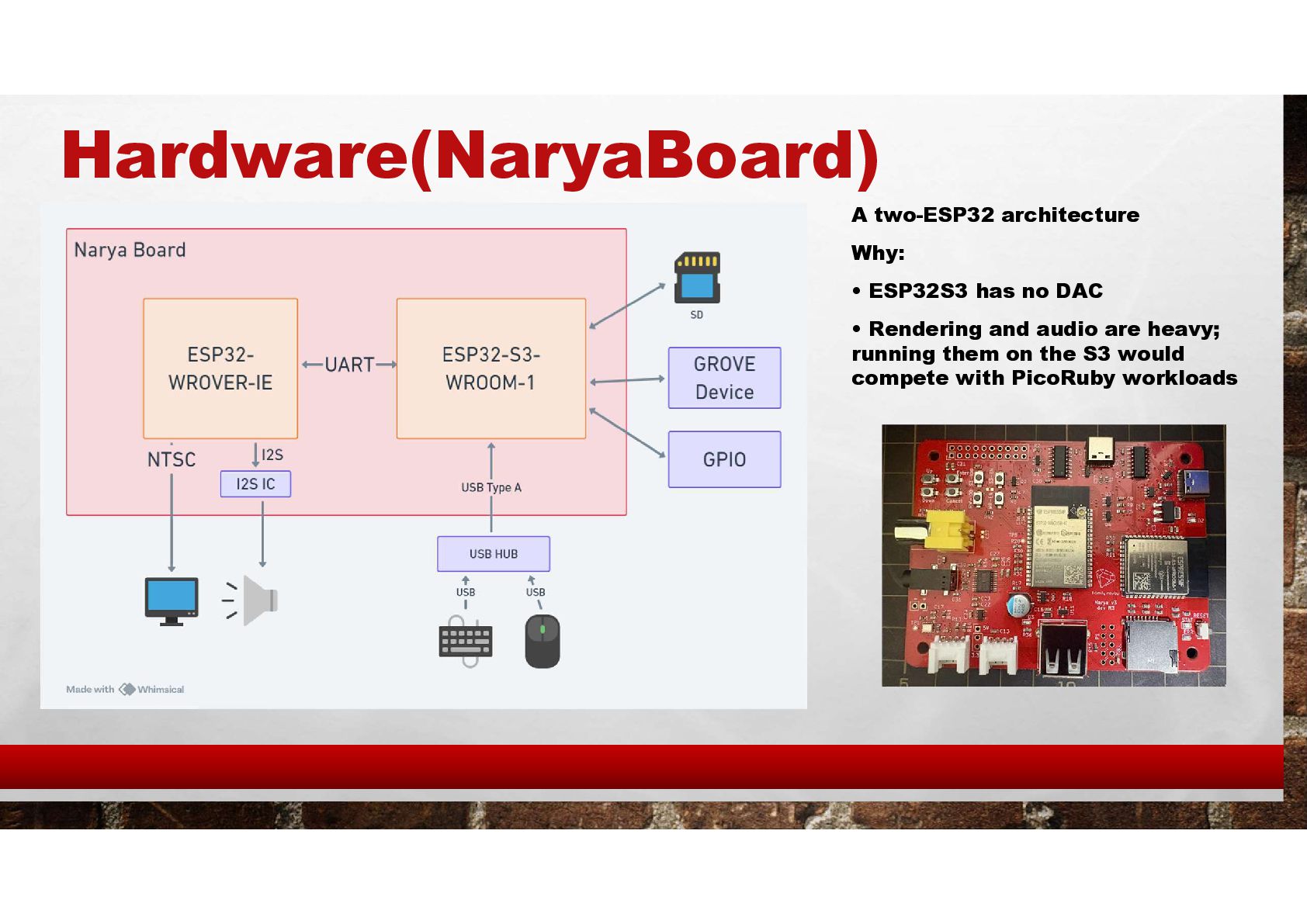

14. Hardware(NaryaBoard) A two-ESP32 architecture Why: • ESP32S3 has no DAC • Rendering and audio are heavy; running them on the S3 would compete with PicoRuby workloads
15. Some of what I actually built • PicoRuby-based OS features (process management, Window management, I/O management, etc.) • PicoRuby-based GUI app framework • UART-based 2-ESP32 inter-chip link • Multi-platform execution (My board. M5Stack device, Linux) • Various I/O: NTSC video out, line-level audio out, USB mouse, keyboard, gamepad input • Multi-language support (PicoRuby / Lua / BASIC) • Custom mini bytecode & VM • for faster rendering. Various utilities (launcher, Shell, editor, task monitor, etc.) • Custom board development • And more …
16. 03: Technical Discussion

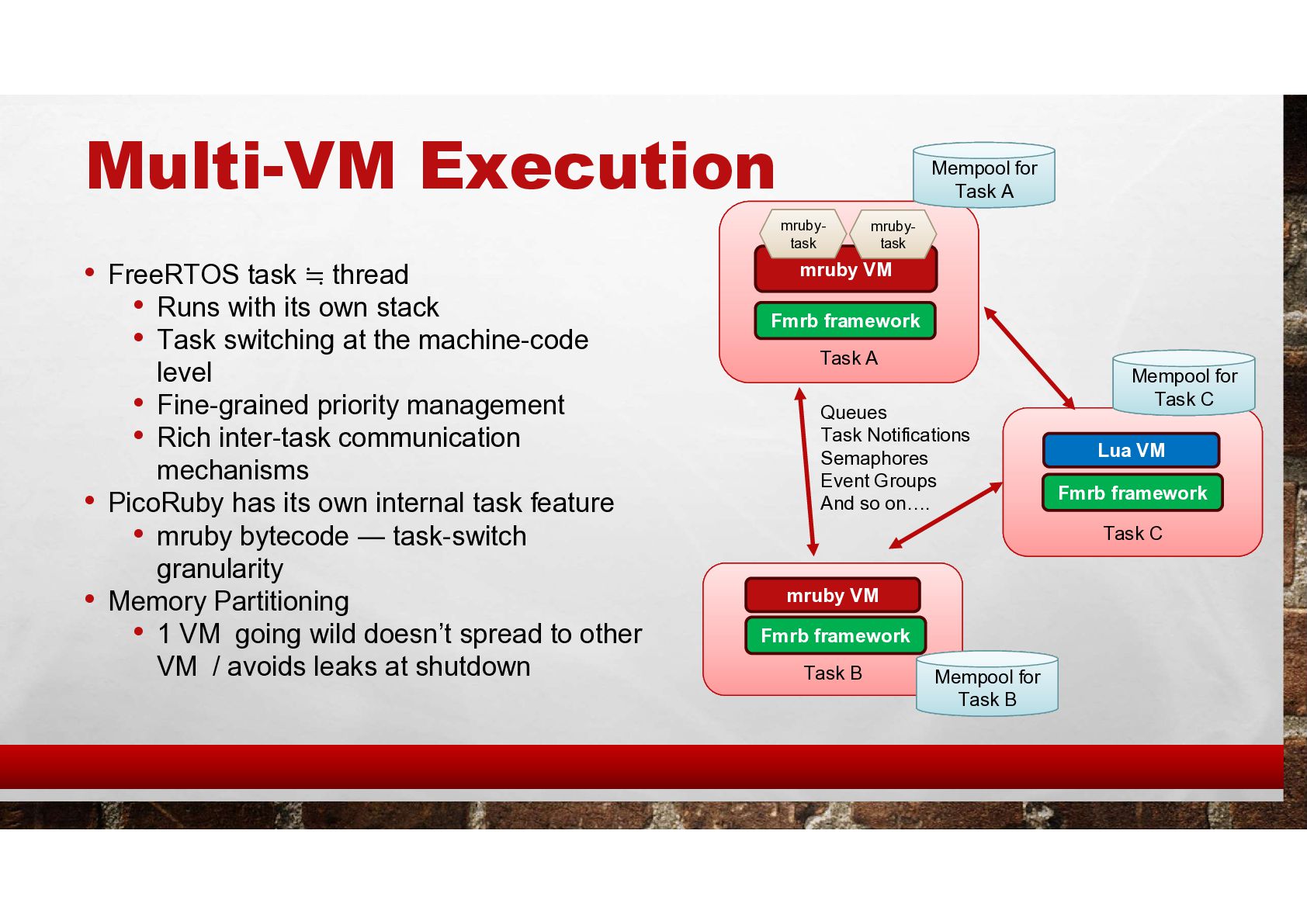

17. Multi-VM Execution • FreeRTOS task ≒ thread • Runs with its own stack • Task switching at the machine-code level • Fine-grained priority management • Rich inter-task communication mechanisms • PicoRuby has its own internal task feature • mruby bytecode — task-switch granularity • Memory Partitioning • 1 VM going wild doesn’t spread to other VM / avoids leaks at shutdown Task A Task C Task B mruby VM mruby VM Lua VM Queues Task Notifications Semaphores Event Groups And so on…. Fmrb framework Fmrb framework Fmrb framework Mempool for Task A Mempool for Task B Mempool for Task C mruby- task mruby- task

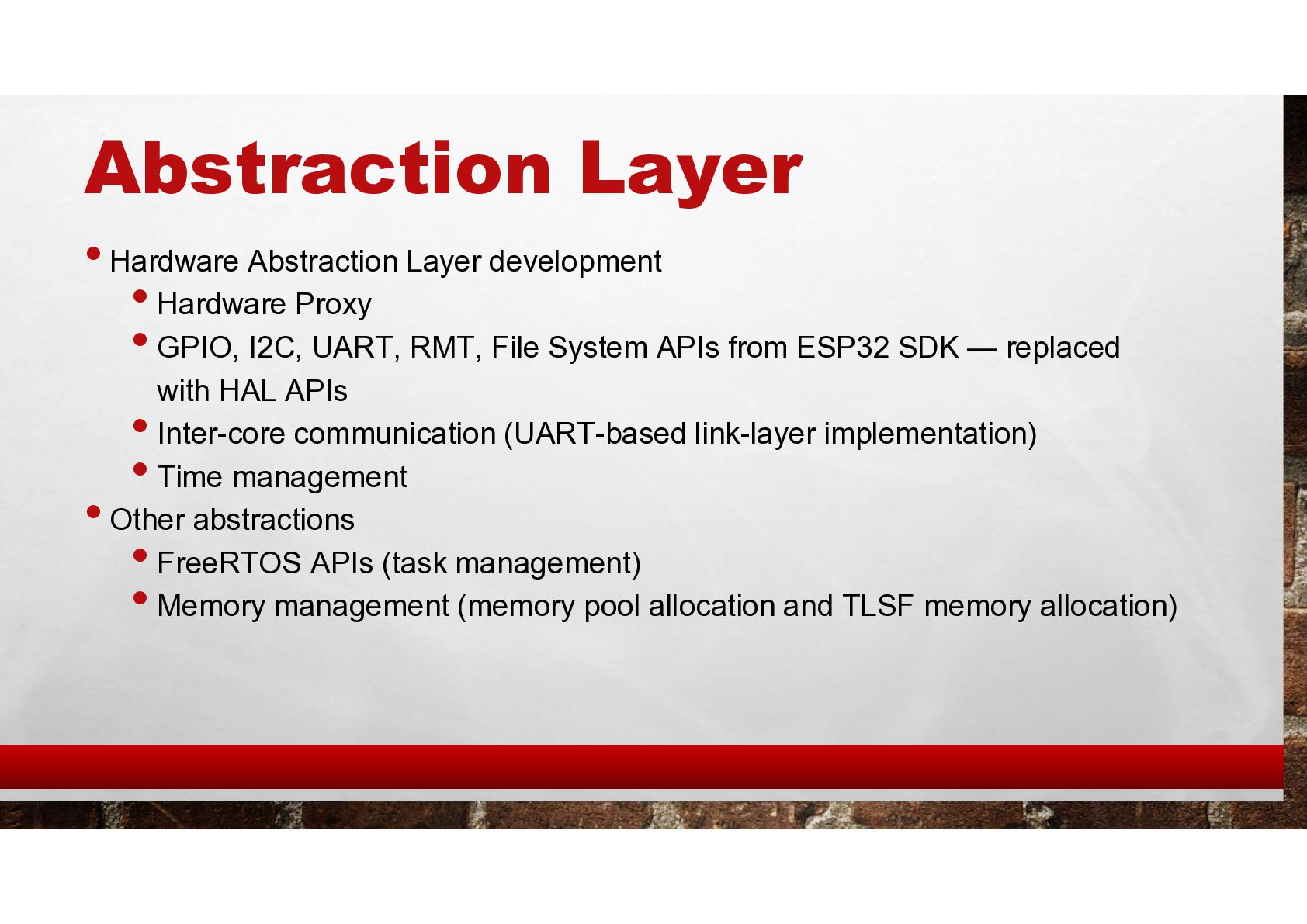

18. Abstraction Layer • Hardware Abstraction Layer development • Hardware Proxy • GPIO, I2C, UART, RMT, File System APIs from ESP32 SDK — replaced with HAL APIs • Inter-core communication (UART-based link-layer implementation) • Time management • Other abstractions • FreeRTOS APIs (task management) • Memory management (memory pool allocation and TLSF memory allocation)

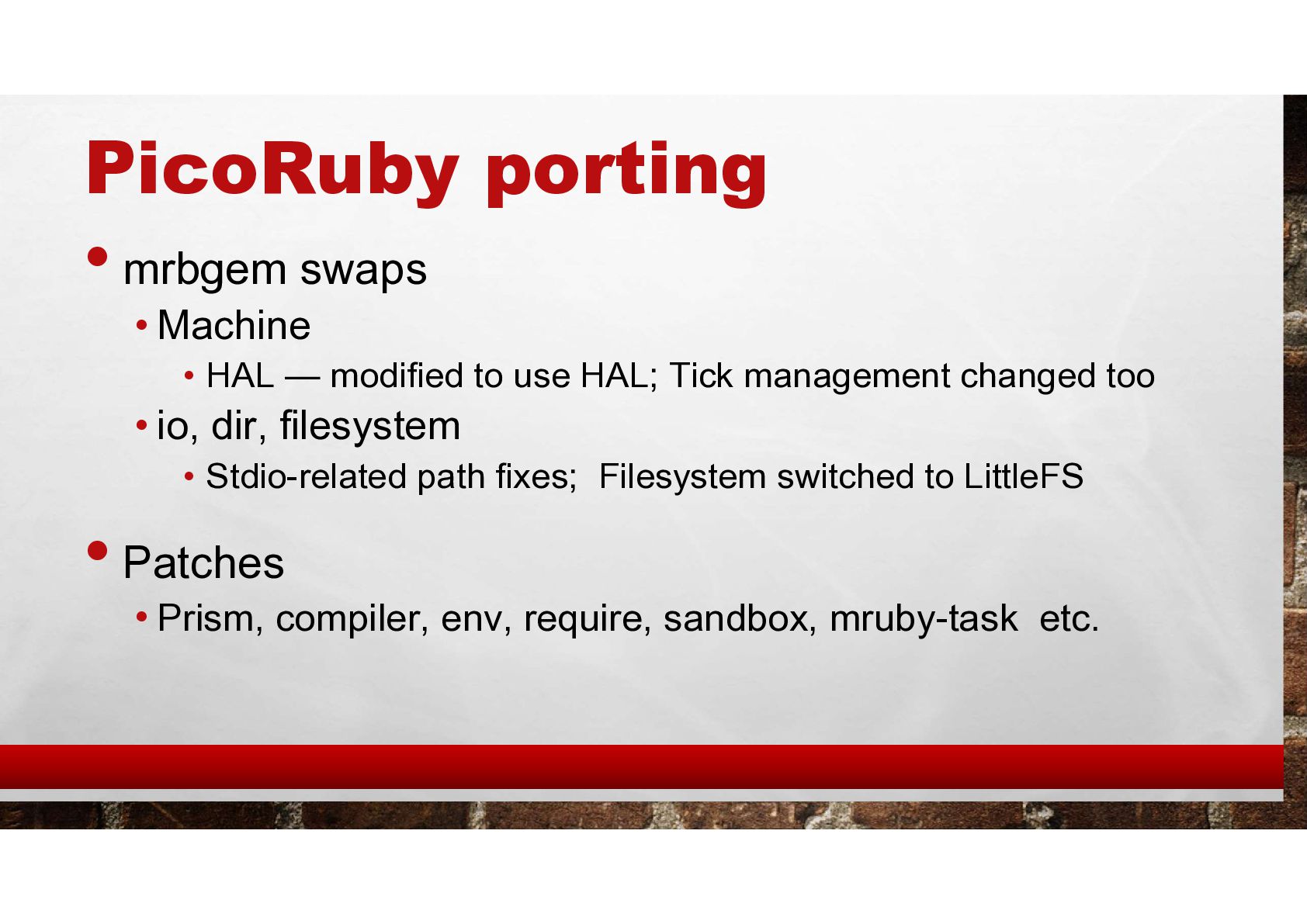

19. PicoRuby porting •mrbgem swaps • Machine • HAL — modified to use HAL; Tick management changed too • io, dir, filesystem • Stdio-related path fixes; Filesystem switched to LittleFS •Patches • Prism, compiler, env, require, sandbox, mruby-task etc.

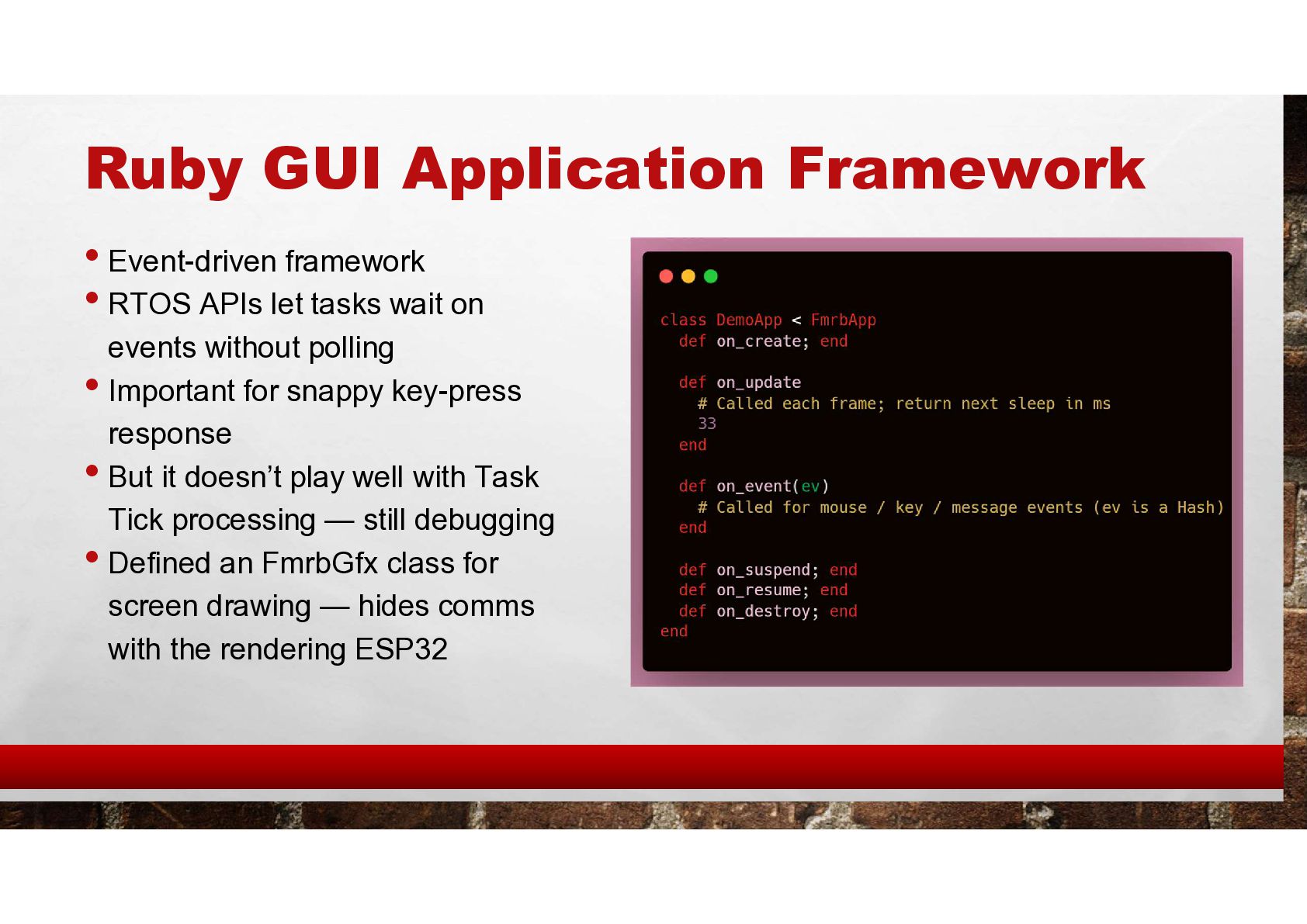

20. Ruby GUI Application Framework • Event-driven framework • RTOS APIs let tasks wait on events without polling • Important for snappy key-press response • But it doesn’t play well with Task Tick processing — still debugging • Defined an FmrbGfx class for screen drawing — hides comms with the rendering ESP32

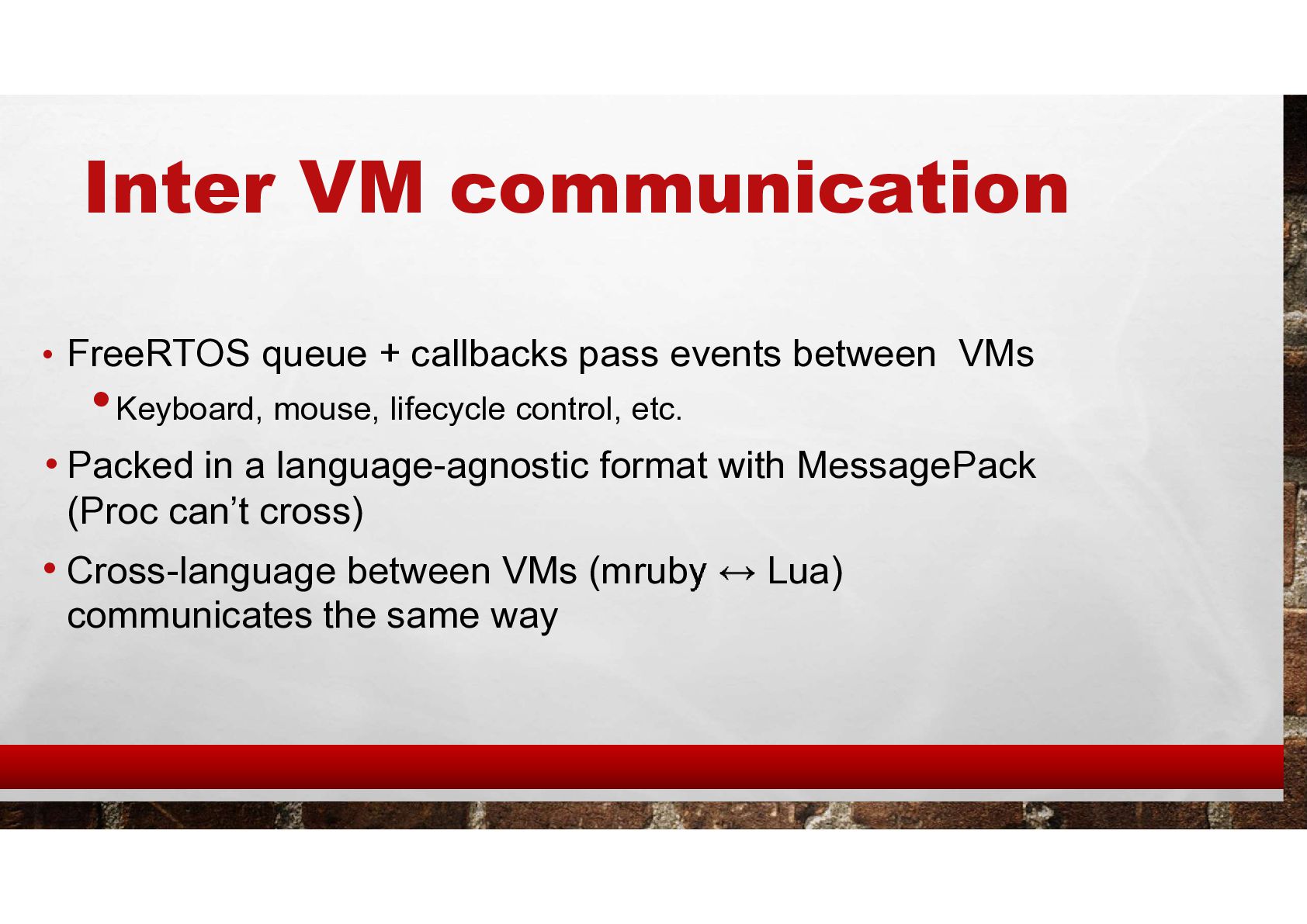

21. Inter VM communication • FreeRTOS queue + callbacks pass events between VMs •Keyboard, mouse, lifecycle control, etc. • Packed in a language-agnostic format with MessagePack (Proc can’t cross) • Cross-language between VMs (mruby Lua) communicates the same way

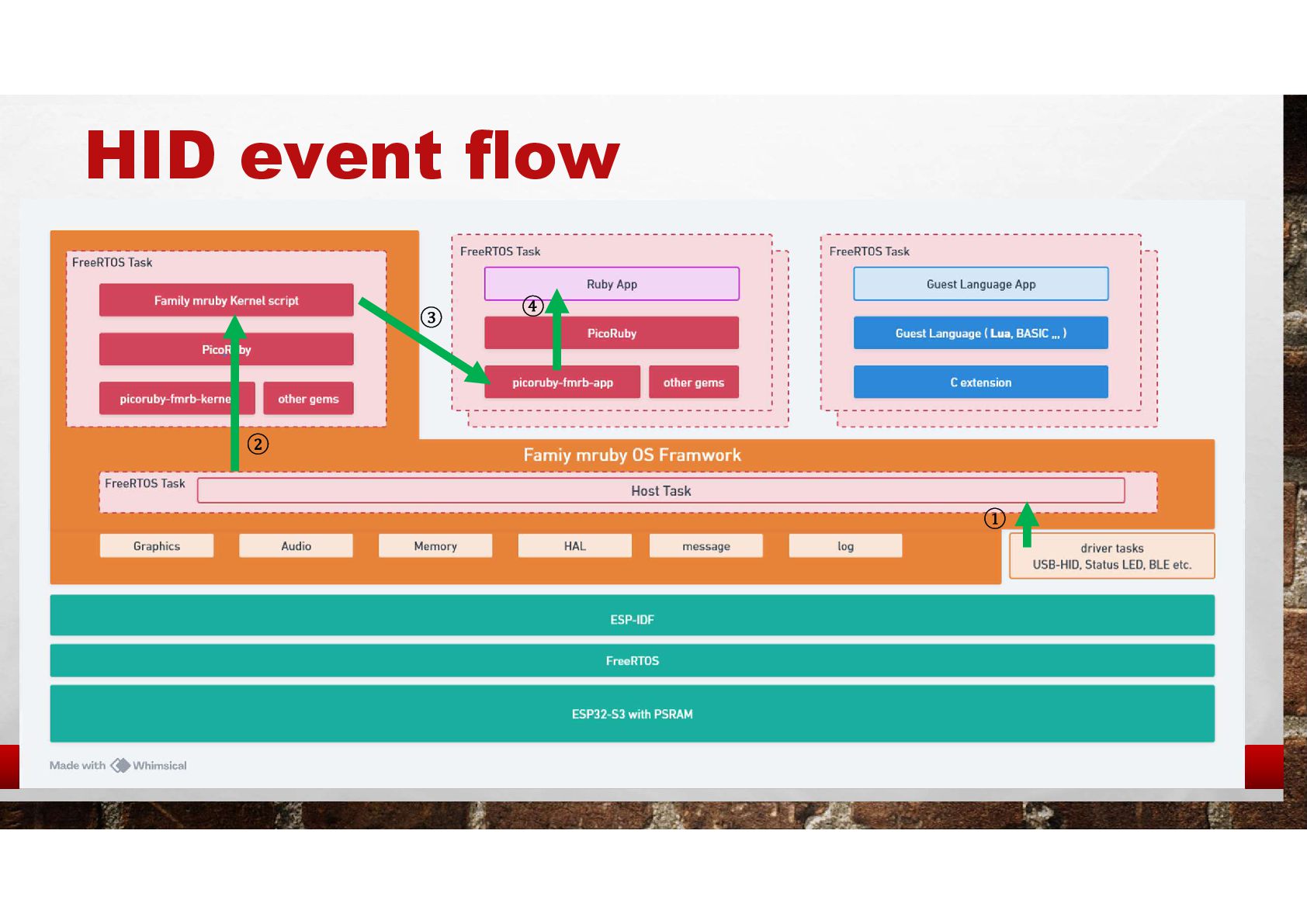

22. HID event flow ① ② ③ ④

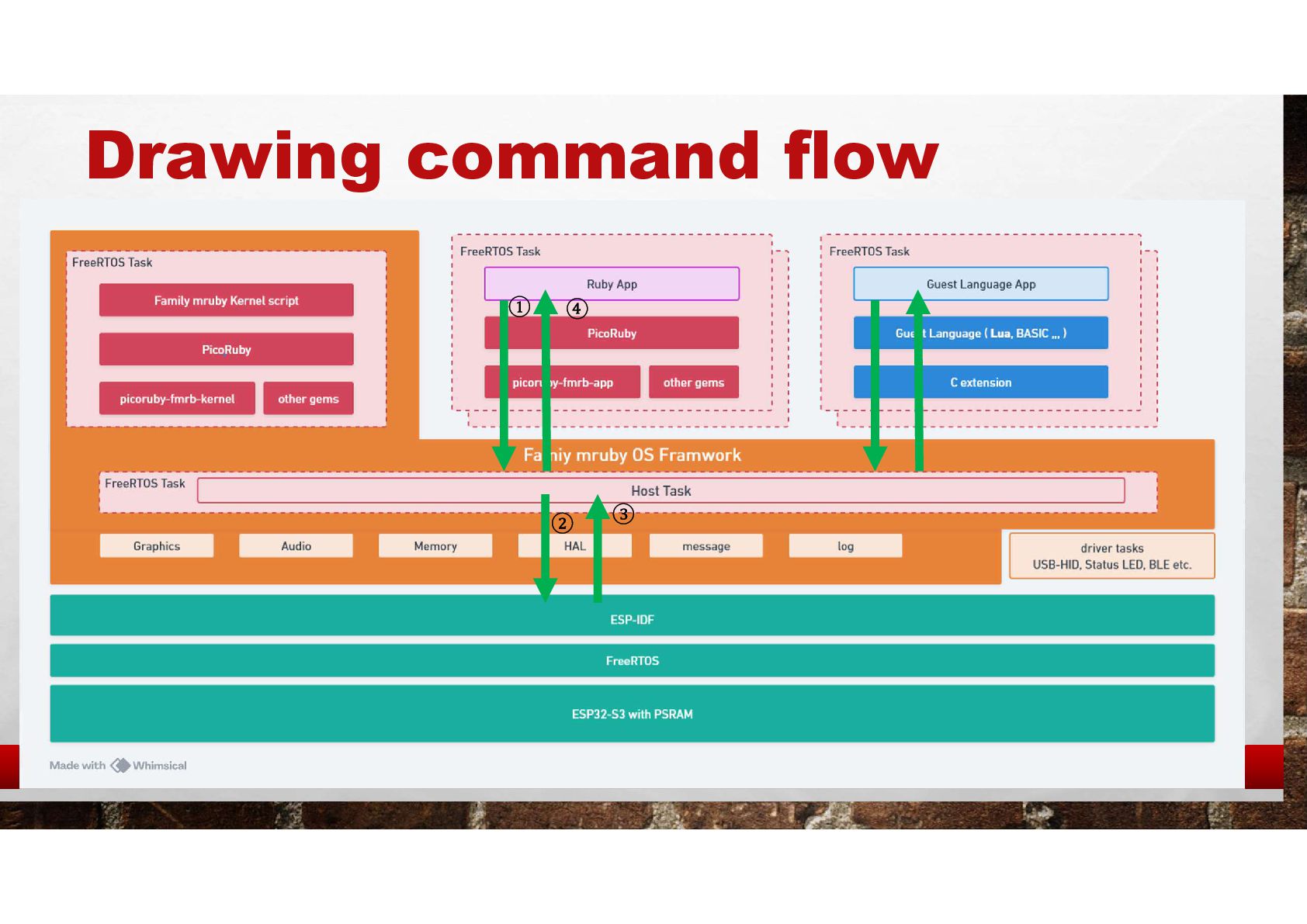

23. Drawing command flow ① ② ④ ③

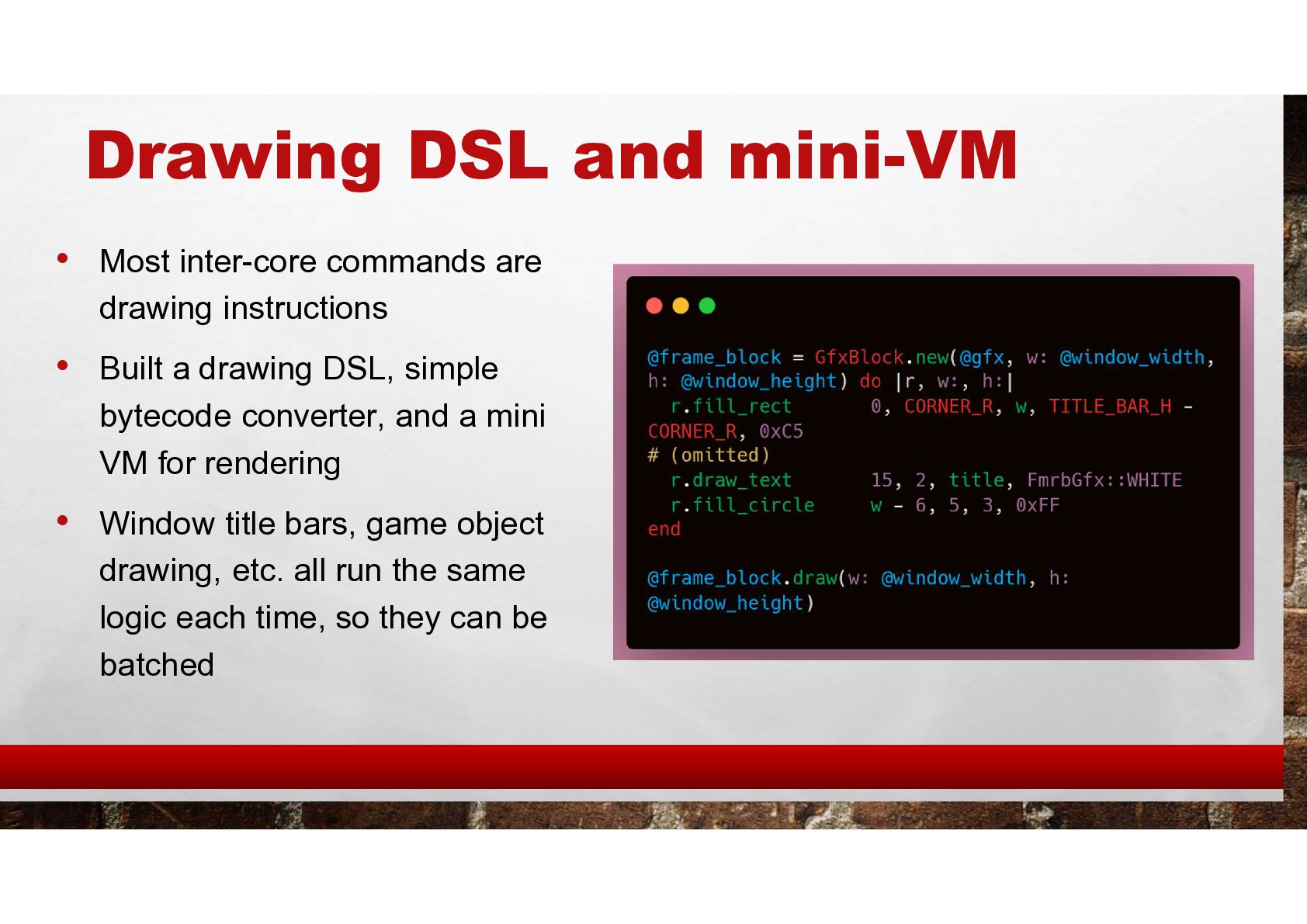

24. Drawing DSL and mini-VM • Most inter-core commands are drawing instructions • Built a drawing DSL, simple bytecode converter, and a mini VM for rendering • Window title bars, game object drawing, etc. all run the same logic each time, so they can be batched

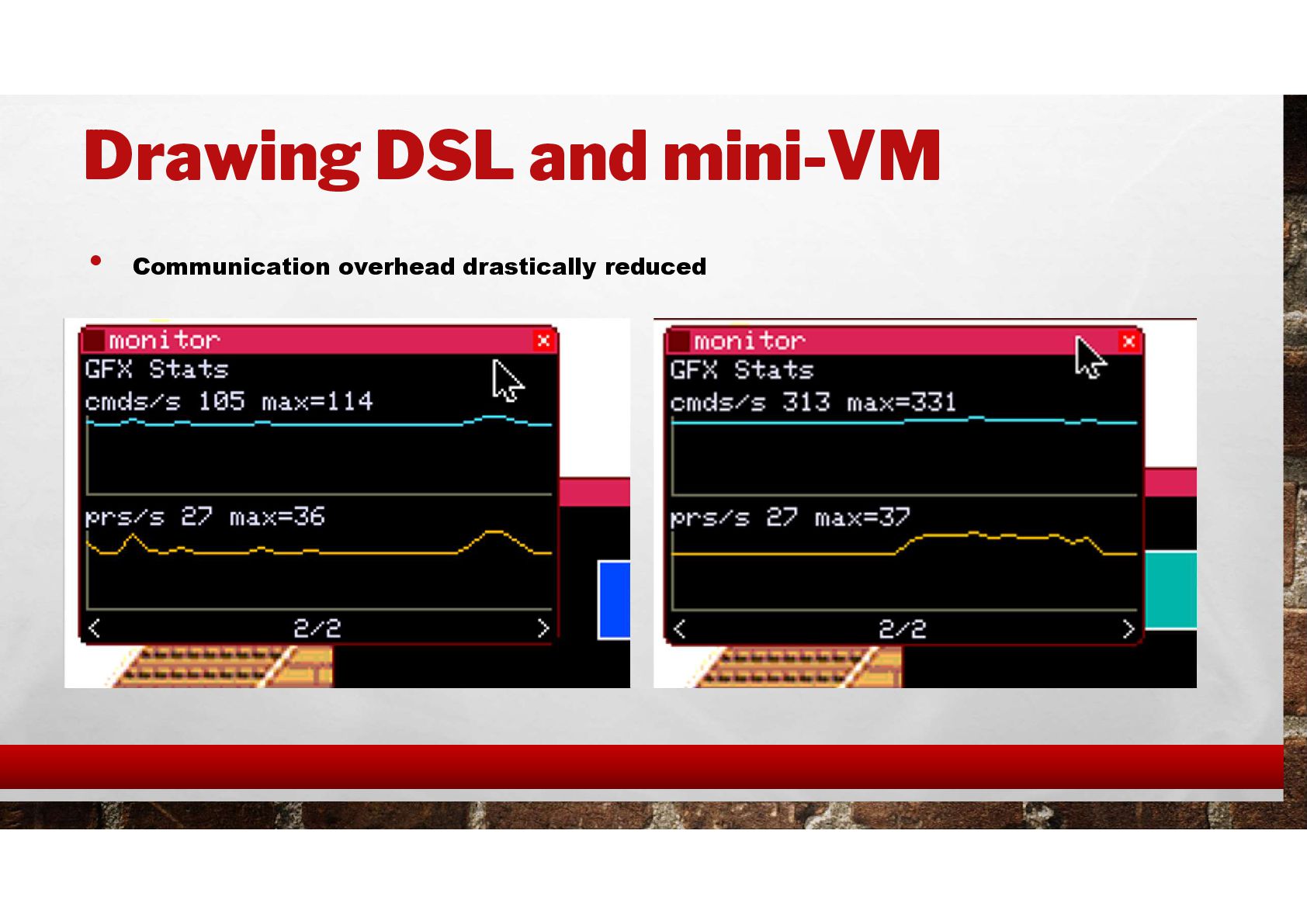

25. Drawing DSL and mini-VM • Communication overhead drastically reduced

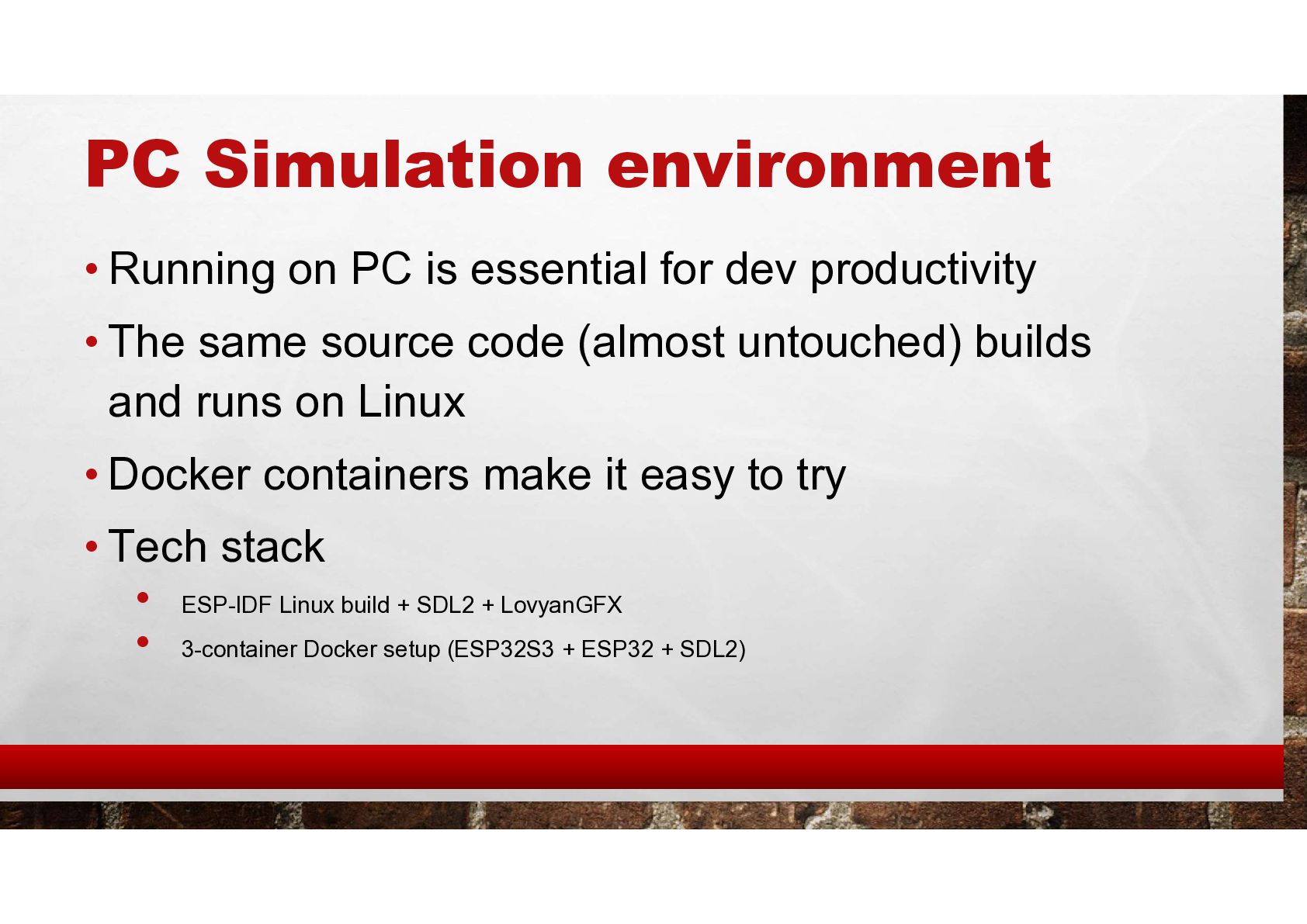

26. PC Simulation environment • Running on PC is essential for dev productivity • The same source code (almost untouched) builds and runs on Linux • Docker containers make it easy to try • Tech stack • ESP-IDF Linux build + SDL2 + LovyanGFX • 3-container Docker setup (ESP32S3 + ESP32 + SDL2)
27. 04: Demonstration

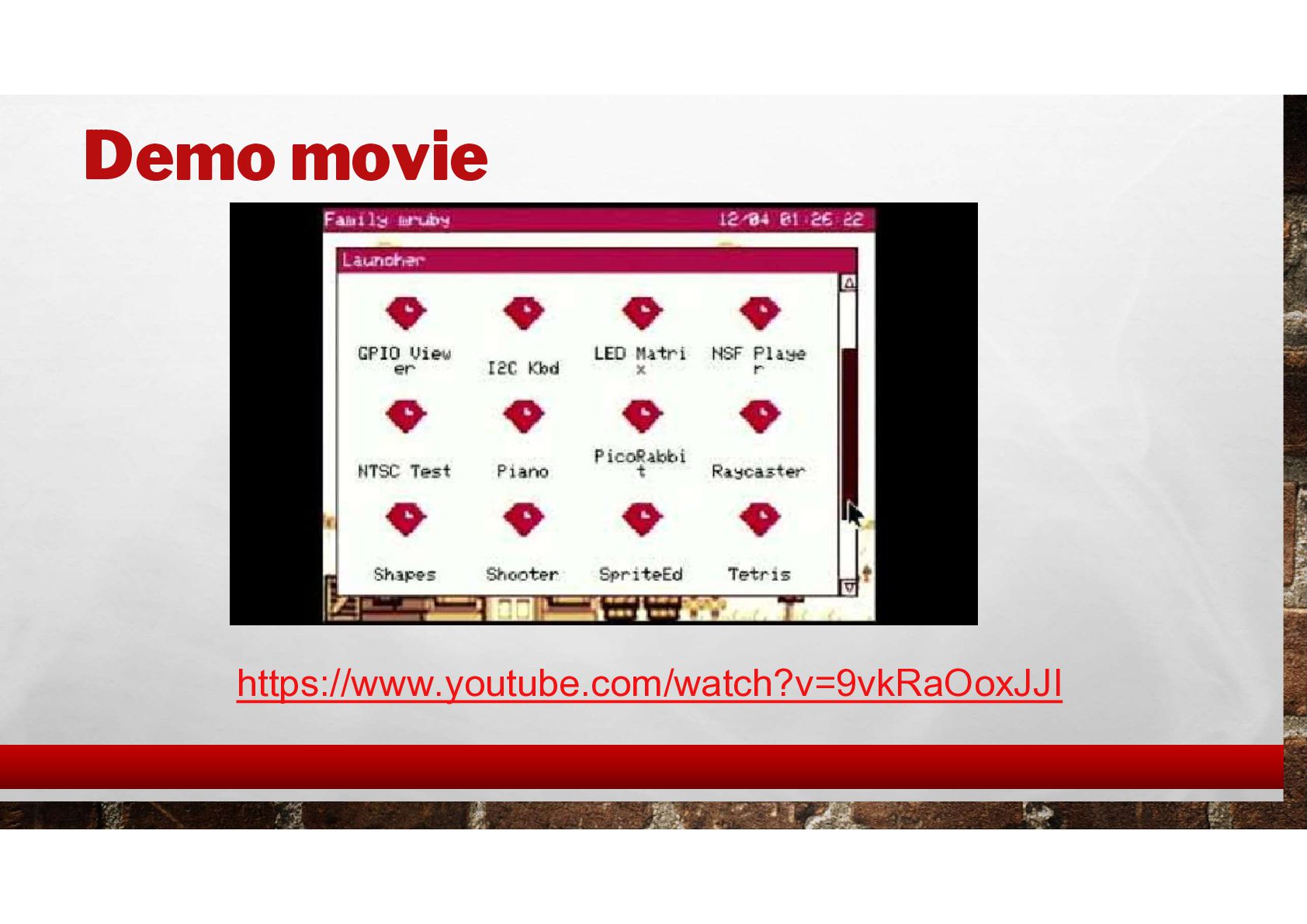

28. Demo movie https://www.youtube.com/watch?v=9vkRaOoxJJI

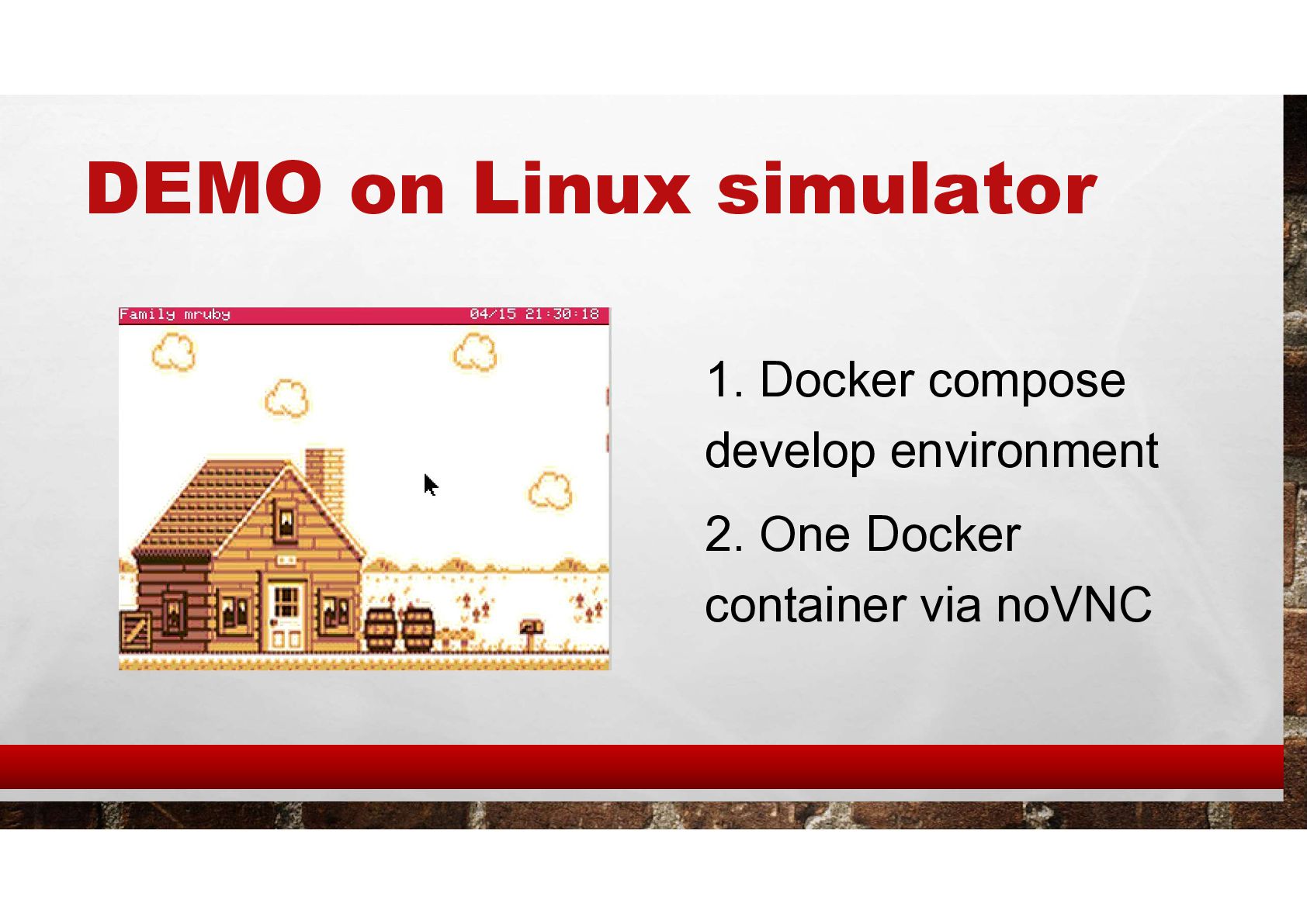

29. DEMO on Linux simulator 1. Docker compose develop environment 2. One Docker container via noVNC

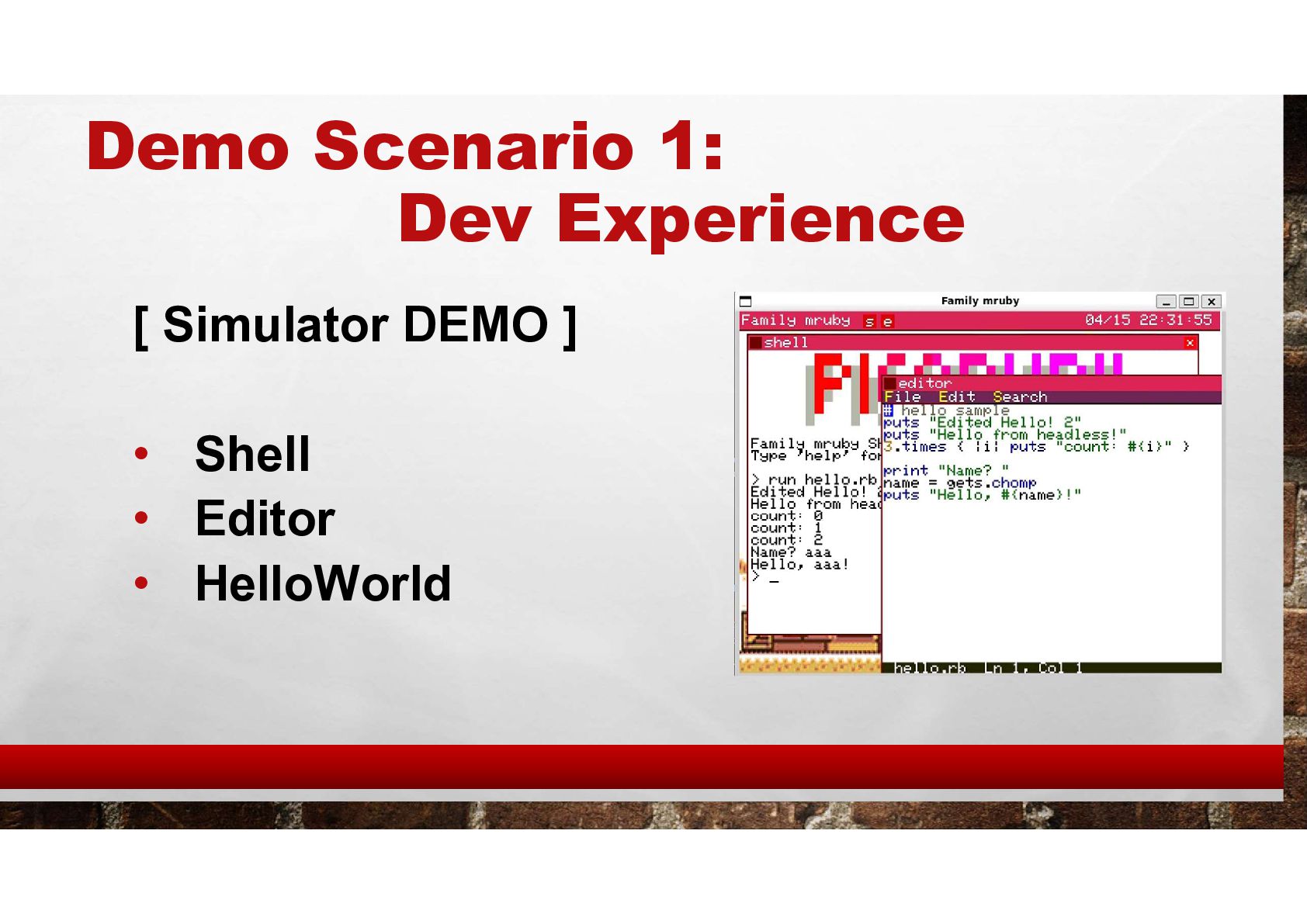

30. Demo Scenario 1: Dev Experience [ Simulator DEMO ] • Shell • Editor • HelloWorld

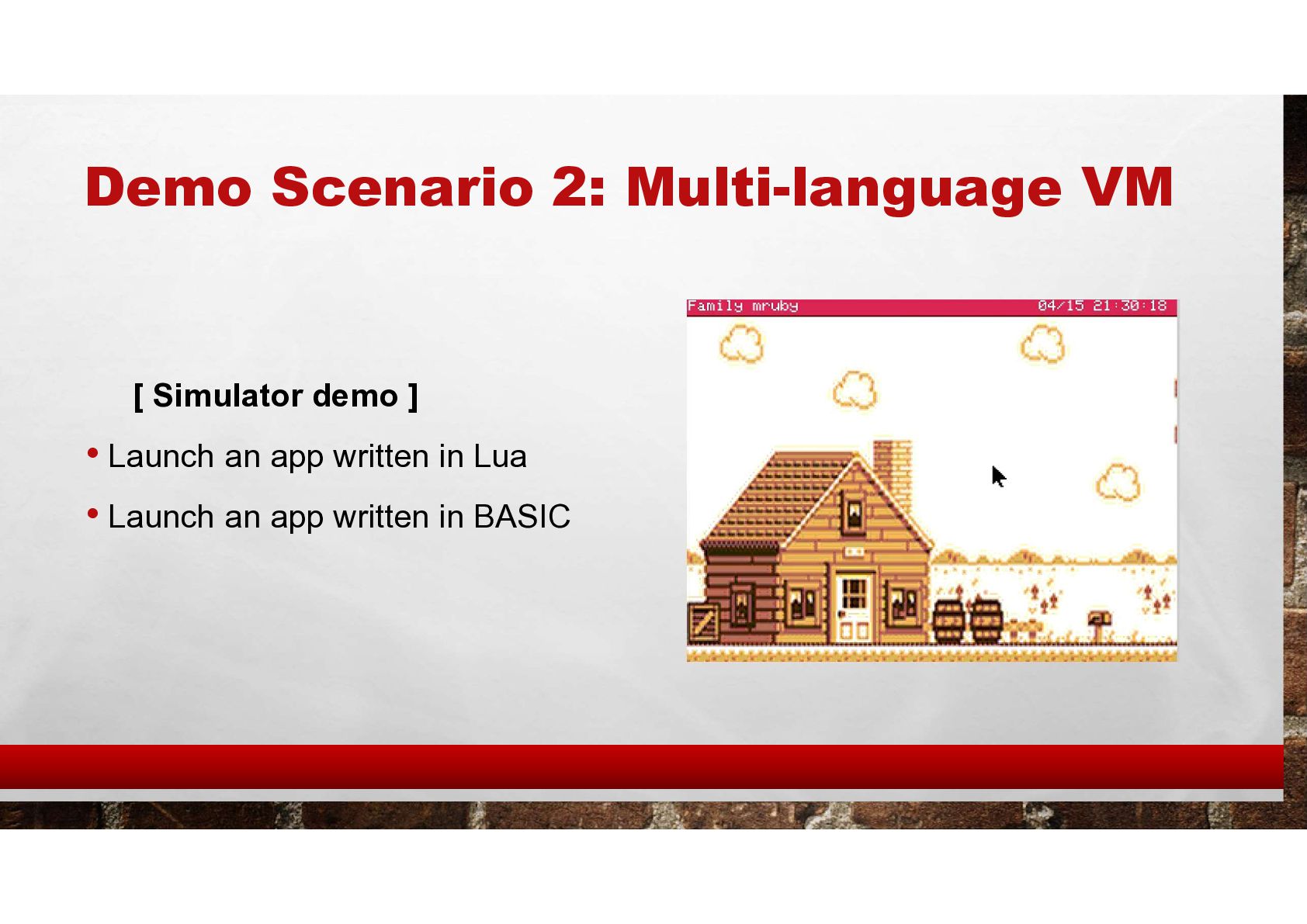

31. Demo Scenario 2: Multi-language VM [ Simulator demo ] • Launch an app written in Lua • Launch an app written in BASIC

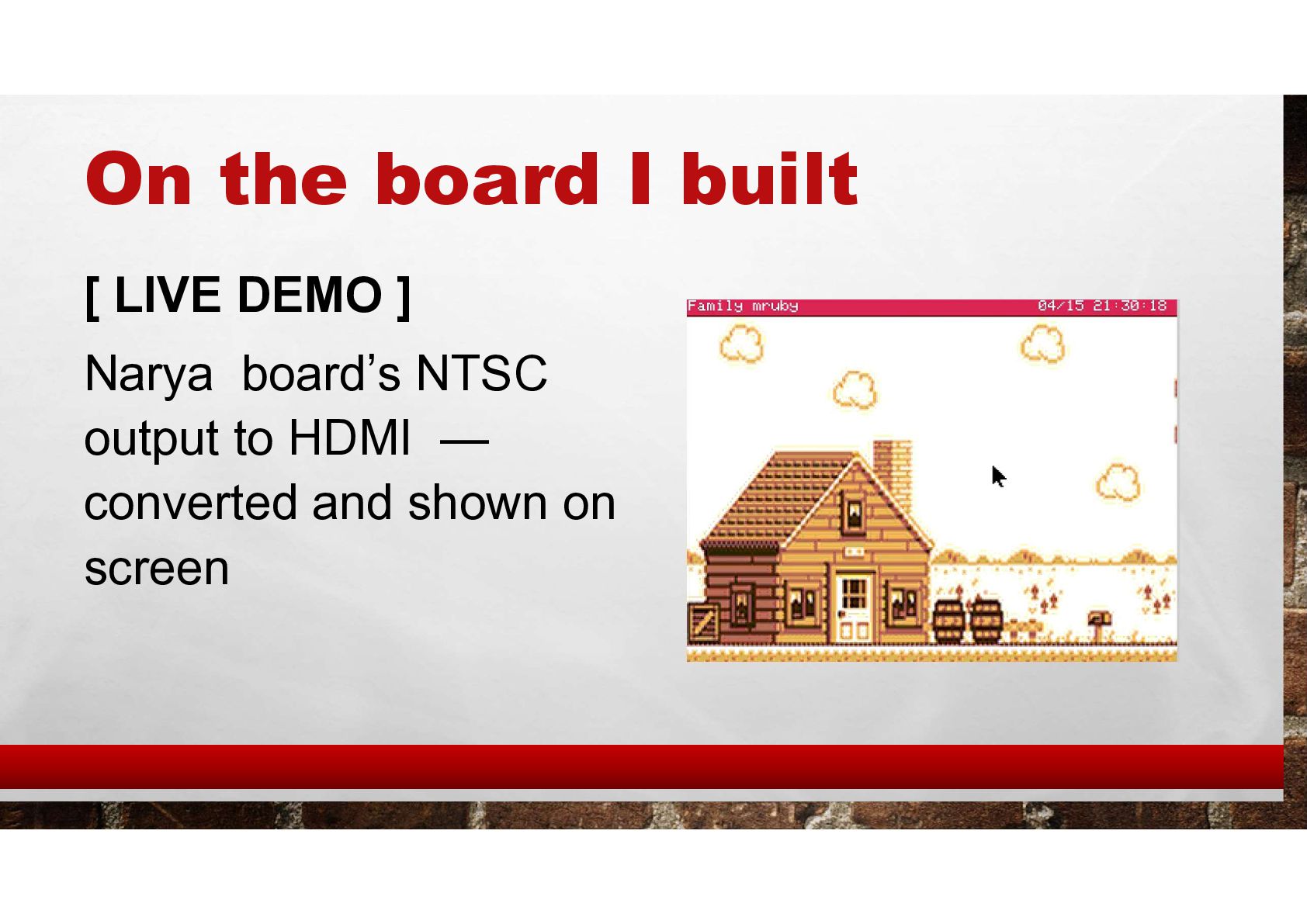

32. On the board I built [ LIVE DEMO ] Narya board’s NTSC output to HDMI — converted and shown on screen

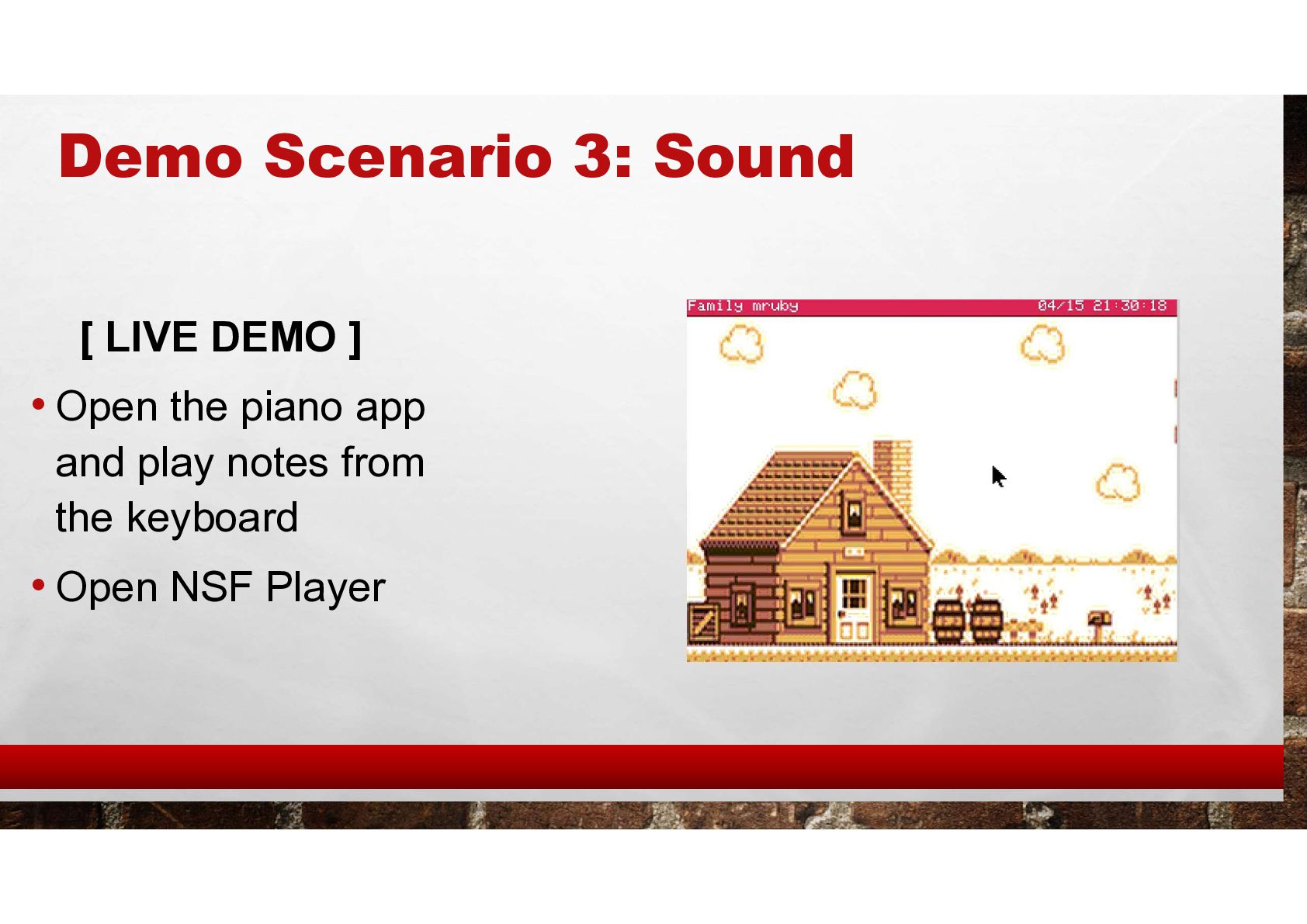

33. Demo Scenario 3: Sound [ LIVE DEMO ] • Open the piano app and play notes from the keyboard • Open NSF Player

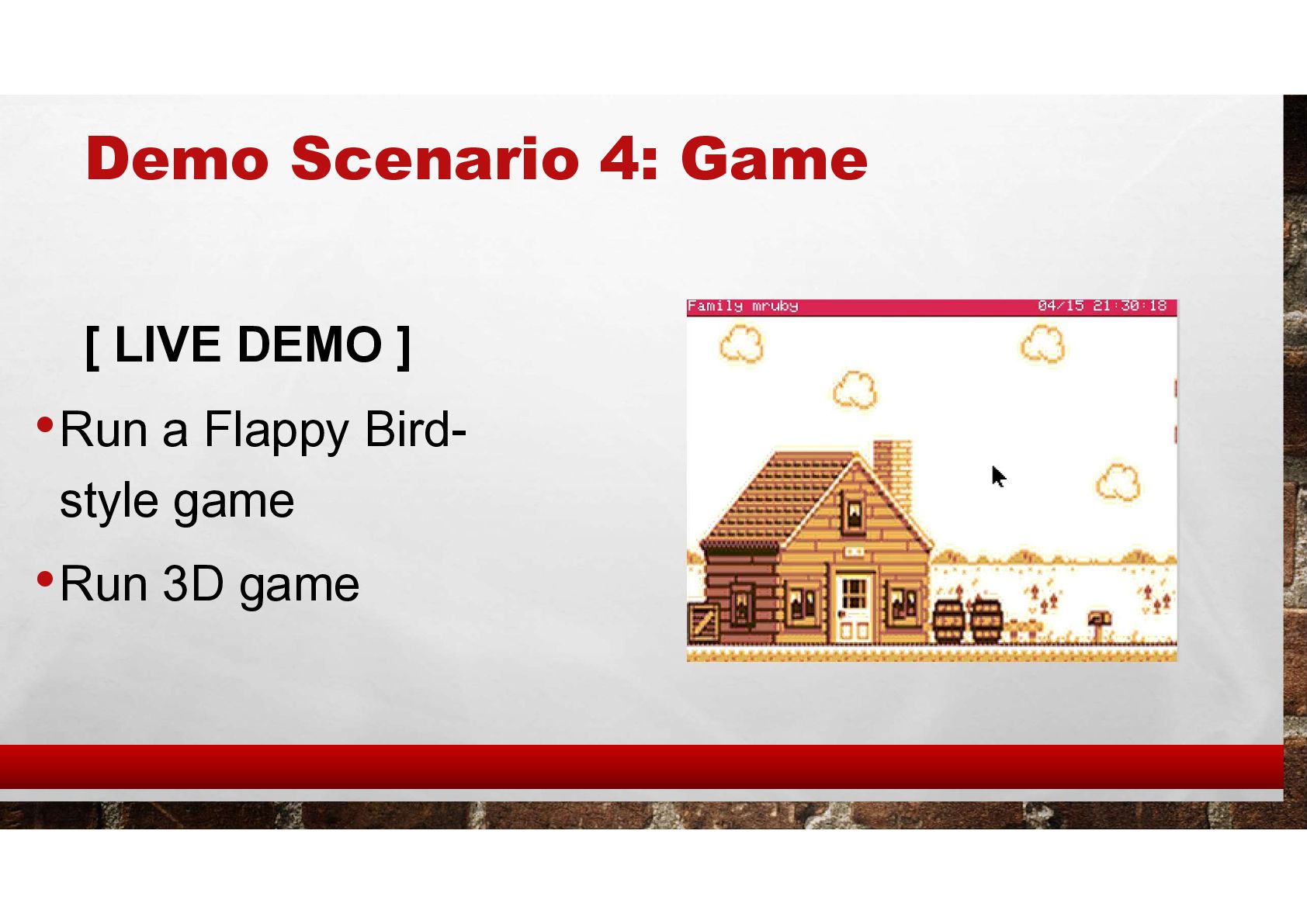

34. Demo Scenario 4: Game [ LIVE DEMO ] •Run a Flappy Bird- style game •Run 3D game

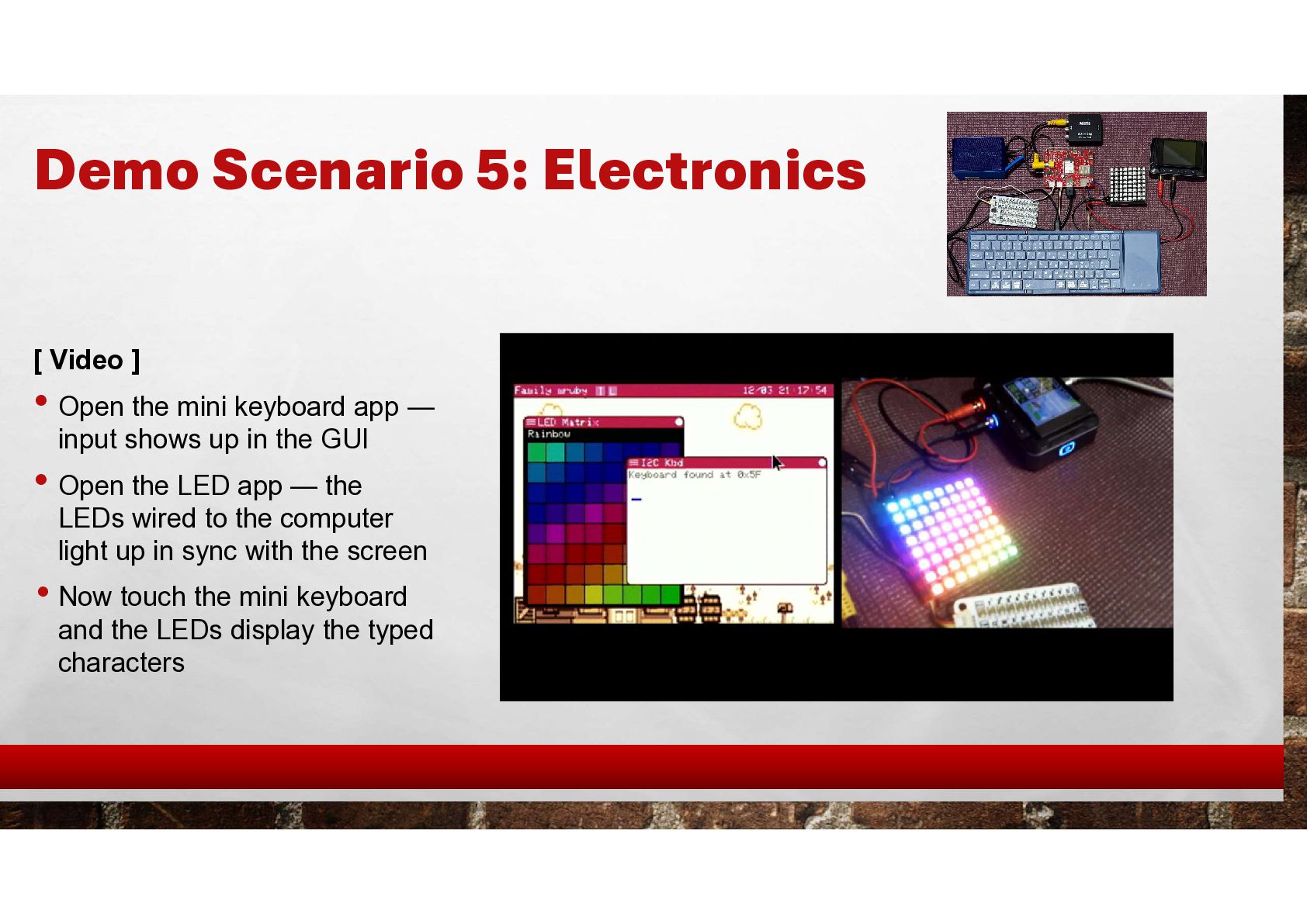

35. Demo Scenario 5: Electronics [ Video ] • Open the mini keyboard app — input shows up in the GUI • Open the LED app — the LEDs wired to the computer light up in sync with the screen • Now touch the mini keyboard and the LEDs display the typed characters

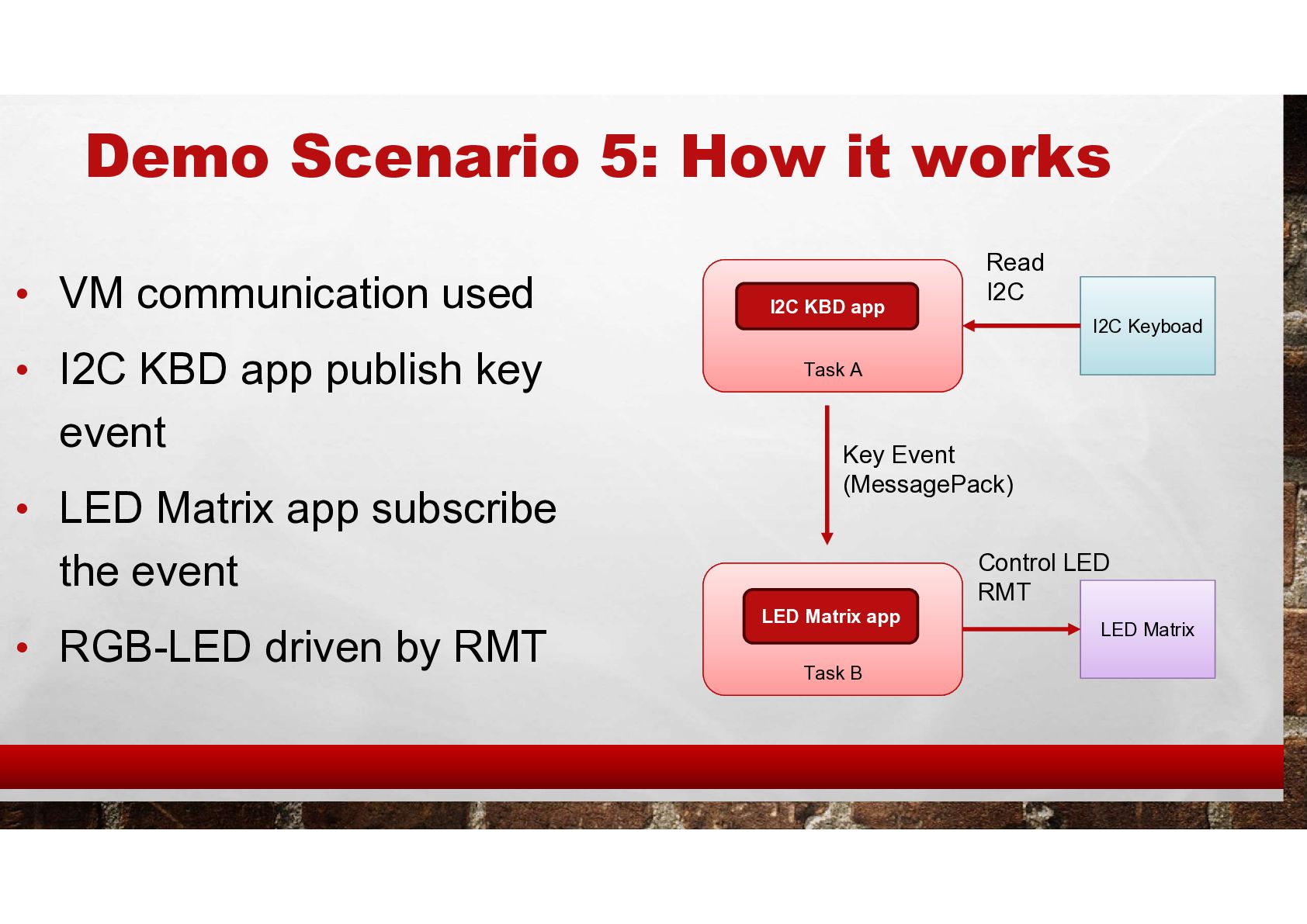

36. Demo Scenario 5: How it works • VM communication used • I2C KBD app publish key event • LED Matrix app subscribe the event • RGB-LED driven by RMT Task A Task B I2C KBD app LED Matrix app Key Event (MessagePack) I2C Keyboad LED Matrix Read I2C Control LED RMT

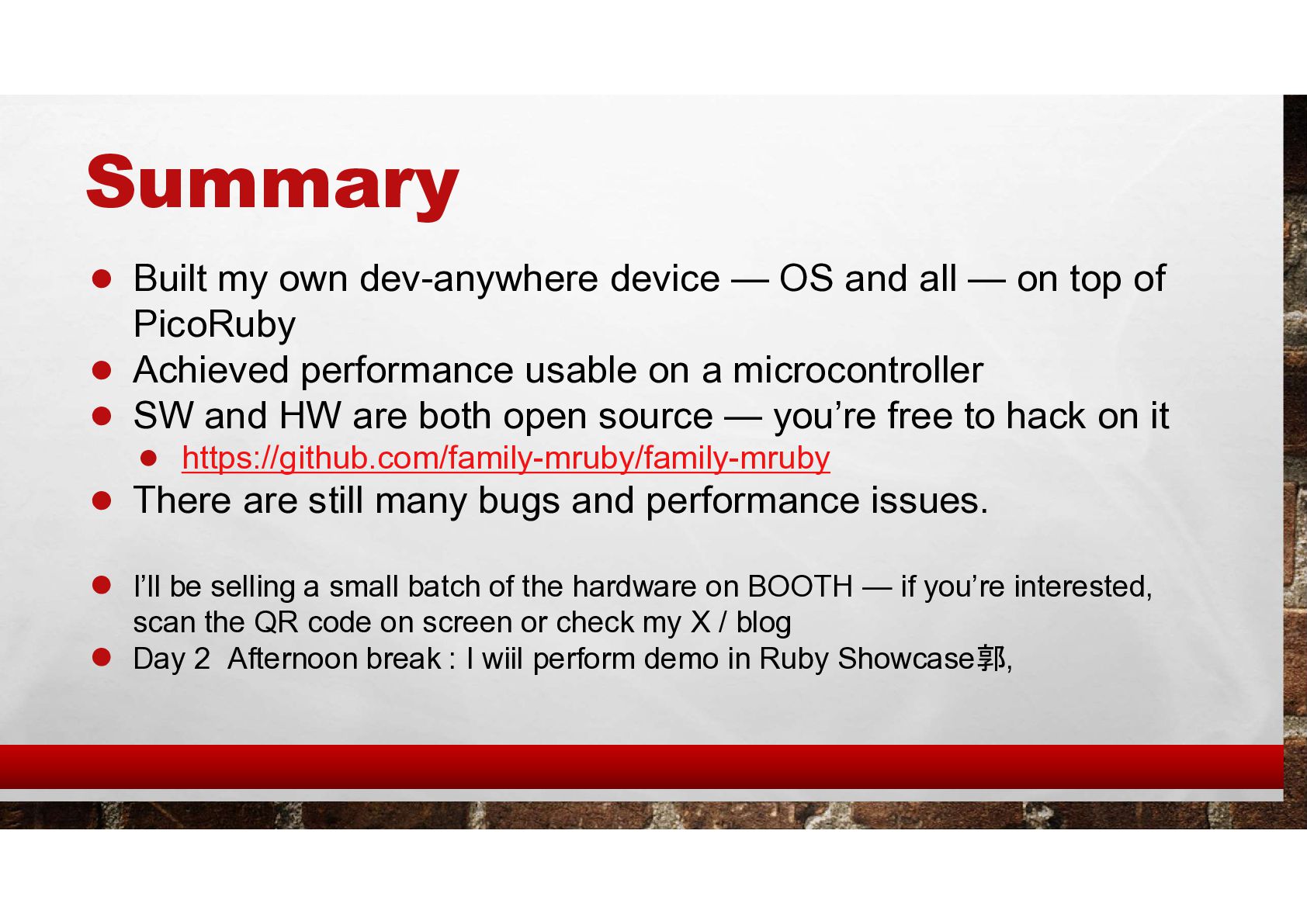

37. Summary • Built my own dev-anywhere device — OS and all — on top of PicoRuby • Achieved performance usable on a microcontroller • SW and HW are both open source — you’re free to hack on it • https://github.com/family-mruby/family-mruby • There are still many bugs and performance issues. • I’ll be selling a small batch of the hardware on BOOTH — if you’re interested, scan the QR code on screen or check my X / blog • Day 2 Afternoon break : I wiil perform demo in Ruby Showcase郭,
38. THANK YOU! https://silentworlds.booth.pm/
