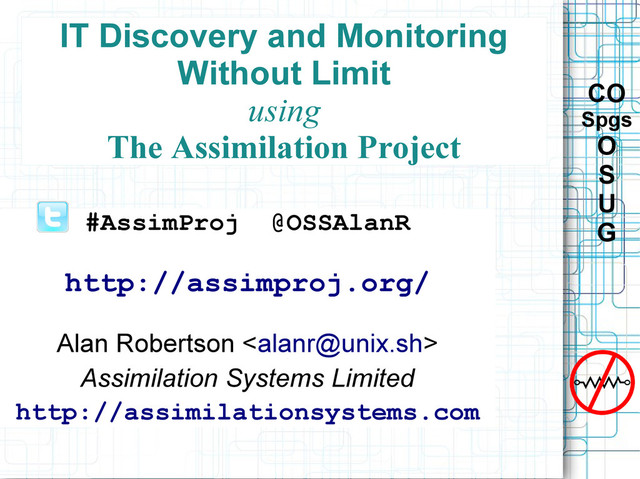

   IT Discovery and Monitoring
   Without Limit
   using
   The Assimilation Project
   #AssimProj @OSSAlanR
   http://assimproj.org/
   Alan Robertson
   Assimilation Systems Limited
   http://assimilationsystems.com


   View Slide

2. CoSpgsOSUG
   21 November
   2013
   © 2013 Assimilation Systems Limited 2/36
   CO
   Spgs
   O
   S
   U
   G
   Project Scope
   Zero-network-footprint continuous Discovery
   integrated with extreme-scale Monitoring
   ●
   Continuous extensible discovery
   – systems, switches, services, dependencies
   – zero network footprint
   ●
   Extensible exception monitoring
   – more than 100K systems
   ●
   All data goes into central graph database


   View Slide

3. CoSpgsOSUG
   21 November
   2013
   © 2013 Assimilation Systems Limited 3/36
   CO
   Spgs
   O
   S
   U
   G
   Questions
   ●
   How many of you have monitoring?
   – Open or closed source?
   – How many of you are happy with it?
   ●
   How many of you have discovery?
   – Open or closed source?
   – Is it continuous?
   – How many of you are happy with it?


   View Slide

4. CoSpgsOSUG
   21 November
   2013
   © 2013 Assimilation Systems Limited 4/36
   CO
   Spgs
   O
   S
   U
   G
   Assimilation Project History
   ●
   Inspired by 2 million core computer (cyclops64)
   ●
   Concerns for extreme scale
   ●
   Topology aware monitoring
   ●
   Topology discovery w/out security issues
   =►Discovery of everything!


   View Slide

5. CoSpgsOSUG
   21 November
   2013
   © 2013 Assimilation Systems Limited 5/36
   CO
   Spgs
   O
   S
   U
   G


   View Slide

6. CoSpgsOSUG
   21 November
   2013
   © 2013 Assimilation Systems Limited 6/36
   CO
   Spgs
   O
   S
   U
   G
   An 8-dimensional overview
   ●
   Problems Addressed
   ●
   Unique Capabilities
   ●
   Distribution of Work
   ●
   Architectural Components
   ●
   Discovery Graph Schema
   ●
   Extensible Discovery API
   ●
   Current Status
   ●
   Project Needs


   View Slide

7. CoSpgsOSUG
   21 November
   2013
   © 2013 Assimilation Systems Limited 7/36
   CO
   Spgs
   O
   S
   U
   G
   First Dimension:
   Problems Addressed
   Risk Management at extreme scale
   1. Maintaining detailed
   discovery database
   2. Discovering systems
   you've forgotten about
   3. Discovering what (licensed)
   software you're running – and where
   4. Monitoring services, systems and
   switches
   5. Finding services you aren't monitoring


   View Slide

8. CoSpgsOSUG
   21 November
   2013
   © 2013 Assimilation Systems Limited 8/36
   CO
   Spgs
   O
   S
   U
   G
   Risk Management/Mitigation
   ●
   Intrusions
   ●
   Licensed Software
   ●
   Audit Risk
   ●
   Outages
   ●
   System management


   View Slide

9. CoSpgsOSUG
   21 November
   2013
   © 2013 Assimilation Systems Limited 9/36
   CO
   Spgs
   O
   S
   U
   G
   Why Discovery? (DevOps)
   ●
   Documentation: incomplete, incorrect
   ●
   Dependencies: unknown
   ●
   Planning: Needs accurate data
   ●
   Best Practices: Verification needs
   data
   ●
   ITIL CMDB (Configuration Mgmt
   DataBase)
   Our Discovery: continuous, low-profile


   View Slide

10. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 10/36
    CO
    Spgs
    O
    S
    U
    G
    Second Dimension:
    Unique Powerful Features
    1. Continuous Discovery
    2. Zero network discovery footprint
    3. Centralized graph database
    4. We know everything that
    changes
    5. Discover and update dependency
    information


    View Slide

11. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 11/36
    CO
    Spgs
    O
    S
    U
    G
    (even more) Features...
    6. Discovery and monitoring tightly
    integrated
    7. Discovery and monitoring easily
    extensible
    8. Naturally scalable to > 100K systems
    9. Server failures distinguishable
    from switch failures
    10.Minimal network load
    11.Multi-tenant support


    View Slide

12. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 12/36
    CO
    Spgs
    O
    S
    U
    G
    This all sounds unreasonable...
    ●
    Huge scalability without complexity?
    ●
    Discovery without sending packets?
    Really?


    View Slide

13. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 13/36
    CO
    Spgs
    O
    S
    U
    G
    Third Dimension:
    Uniformly, fully distributed work
    Two philosophical underpinnings
    1. Monitoring and Discovery
    are fully distributed
    2. Reliable “no news is good news”
    Only responses to changes are centralized


    View Slide

14. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 14/36
    CO
    Spgs
    O
    S
    U
    G
    Simple Scalability
    ●
    I can explain how we distribute
    work so your grandmother
    would understand


    View Slide

15. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 15/36
    CO
    Spgs
    O
    S
    U
    G
    Massive Scalability – or
    “I see dead servers in O(1) time”
    ●
    Adding systems does not increase the monitoring work on any
    system
    ●
    Each server monitors 2 (or 4) neighbors
    ●
    Each server monitors its own services
    ●
    Ring repair and alerting is O(n) – but a very small amount of work
    ●
    Ring repair for a million nodes is less than 10K packets per day
    (approximately 1 packet per 9 seconds)
    Current Implementation


    View Slide

16. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 16/36
    CO
    Spgs
    O
    S
    U
    G
    Minimizing Network Footprint
    (planned)
    ●
    Support diagnosing switch issues
    ●
    Minimize network traffic
    ●
    Ideal for multi-site arrangements


    View Slide

17. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 17/36
    CO
    Spgs
    O
    S
    U
    G
    Fourth Dimension:
    Architectural Components
    Three Architectural Components
    Collective Management
    Authority
    ●
    One CMA per installation
    Nanoprobes
    ●
    One nanoprobe per system
    Data Storage
    ●
    Central Neo4j graph database


    View Slide

18. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 18/36
    CO
    Spgs
    O
    S
    U
    G
    Basic CMA Functions (python)
    Nanoprobe management
    ●
    Configure & direct
    ●
    Hear alerts & discovery
    ●
    Update rings: join/leave
    Update database
    Issue alerts


    View Slide

19. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 19/36
    CO
    Spgs
    O
    S
    U
    G
    Nanoprobe Functions ('C')
    Announce self to CMA
    ●
    Reserved multicast address (can be
    unicast address or name if no multicast)
    Do what CMA says
    ●
    receive configuration information
    – CMA addresses, ports, defaults
    ●
    send/expect heartbeats
    ●
    perform discovery actions
    ●
    perform monitoring actions
    No persistent state across reboots


    View Slide

20. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 20/36
    CO
    Spgs
    O
    S
    U
    G
    Service Monitoring based on
    Linux-HA/Pacemaker LRM
    ●
    LRM == Local Resource Manager
    ●
    Well-proven architecture:
    – “no news is good news” AKA
    management by exception
    ●
    Implements Open Cluster Framework
    standard (and others)
    ●
    Each system monitors own services
    ●
    Can also start, stop, migrate services


    View Slide

21. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 21/36
    CO
    Spgs
    O
    S
    U
    G
    Monitoring Pros and Cons
    Pros
    Simple & Scalable
    Uniform work
    distribution
    No single point of
    failure
    Distinguishes switch
    vs host failure
    Easy on LAN, WAN
    Multi-tenant approach
    Cons
    Active agents
    Potential slowness at
    power-on


    View Slide

22. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 22/36
    CO
    Spgs
    O
    S
    U
    G
    Why a graph database? (Neo4j)
    ●
    Humans describe systems as graphs
    ●
    Dependency & Discovery information: graph
    ●
    Speed of graph traversals depends on size
    of subgraph, not total graph size
    ●
    Root cause queries  graph traversals –
    notoriously slow in relational databases
    ●
    Visualization is Natural
    ●
    Schema-less design: good for constantly
    changing heterogeneous environment
    ●
    Graph Model === Object Model


    View Slide

23. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 23/36
    CO
    Spgs
    O
    S
    U
    G
    Fifth Dimension:
    Discovery API
    Scripts perform discovery
    – output JSON
    Three Discovery Snippets
    ●
    OS information
    ●
    Service discovery
    ●
    Client discovery


    View Slide

24. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 24/36
    CO
    Spgs
    O
    S
    U
    G
    How does discovery work?
    Nanoprobe scripts perform discovery
    ●
    Each discovers one kind of information
    ●
    Can take arguments from environment
    ●
    Output JSON
    CMA stores Discovery Information
    ●
    JSON stored in Neo4j database
    ●
    CMA discovery plugins => graph nodes and
    relationships


    View Slide

25. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 25/36
    CO
    Spgs
    O
    S
    U
    G
    OS discovery JSON Snippet
    { "nodename": "alanr-1225B",
    "operating-system": "GNU/Linux",
    "machine": "x86_64",
    "processor": "x86_64",
    "hardware-platform": "x86_64",
    "kernel-name": "Linux",
    "kernel-release": "3.8.0-31-generic",
    "kernel-version": "#46-Ubuntu SMP ...",
    "Distributor ID": "Ubuntu",
    "Description": "Ubuntu 13.04",
    "Release": "13.04",
    "Codename": "raring"
    }


    View Slide

26. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 26/36
    CO
    Spgs
    O
    S
    U
    G
    sshd Service JSON Snippet
    (from netstat and /proc)
    "sshd": {
    "exe": "/usr/sbin/sshd",
    "cmdline": [ "/usr/sbin/sshd", "-D" ],
    "uid": "root",
    "gid": "root",
    "cwd": "/",
    "listenaddrs": {
    "0.0.0.0:22": {
    "proto": "tcp",
    "addr": "0.0.0.0",
    "port": 22
    }, and so on...


    View Slide

27. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 27/36
    CO
    Spgs
    O
    S
    U
    G
    ssh Client JSON Snippet
    (from netstat and /proc)
    "ssh": {
    "exe": "/usr/sbin/ssh",
    "cmdline": [ "ssh", "servidor" ],
    "uid": "alanr",
    "gid": "alanr",
    "cwd": "/home/alanr/monitor/src",
    "clientaddrs": {
    "10.10.10.5:22": {
    "proto": "tcp",
    "addr": "10.10.10.5",
    "port": 22
    }, and so on...


    View Slide

28. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 28/36
    CO
    Spgs
    O
    S
    U
    G
    Sixth Dimension:
    Graph Schema
    Two Schema subgraphs
    ●
    Client / server
    dependency
    ●
    Switch interconnect


    View Slide

29. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 29/36
    CO
    Spgs
    O
    S
    U
    G
    ssh -> sshd dependency graph


    View Slide

30. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 30/36
    CO
    Spgs
    O
    S
    U
    G
    Switch Discovery Data
    from LLDP (or CDP)
    CRM transforms LLDP (CDP) Data to JSON


    View Slide

31. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 31/36
    CO
    Spgs
    O
    S
    U
    G
    Seventh Dimension:
    Current Status
    ●
    First release April 2013
    ●
    Great unit tests
    ●
    Nanoprobe code works well
    ●
    Several discovery methods written
    ●
    CMA restructuring finishing up
    ●
    UI development underway
    ●
    Licensed under GPL: commercial
    options available


    View Slide

32. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 32/36
    CO
    Spgs
    O
    S
    U
    G
    Eighth Dimension:
    Get Involved!
    We need every talent!
    ●
    Early adopters
    ●
    Testers, Continuous Integration
    ●
    Designers
    ●
    Developers (C,Python, Shell, PowerShell, JavaScript)
    ●
    Porters (esp Windows)
    ●
    Promoters, publicists
    ●
    Packagers
    ●
    And so on...


    View Slide

33. CoSpgsOSUG
    21 November
    2013
    © 2013 Assimilation Systems Limited 33/36
    CO
    Spgs
    O
    S
    U
    G
    Resistance Is Futile!
    Mailing List bit.ly/AssimML
    #AssimProj @OSSAlanR
    Project Web Site
    assimproj.org
    Blog
    techthoughts.typepad.com
    assimilationsystems.com


    View Slide
