1. Building Microservice Applications with .NET Core by Aliaksei Harshkalep 20.04.2019
2. 2 • 5+ years in Software Engineering • .NET, .NET Core and ASP.NET Core • Microservice-Oriented Architecture ALIAKSEI HARSHKALEP Delivery Manager, EPAM Gomel

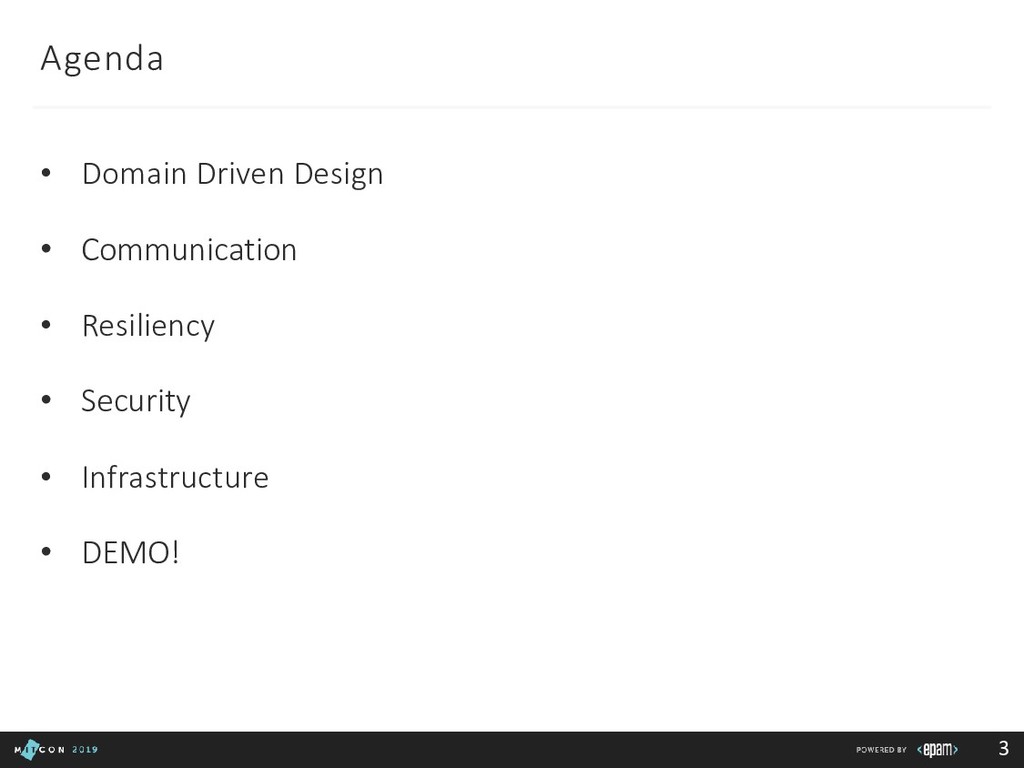

3. 3 Agenda • Domain Driven Design • Communication • Resiliency • Security • Infrastructure • DEMO!

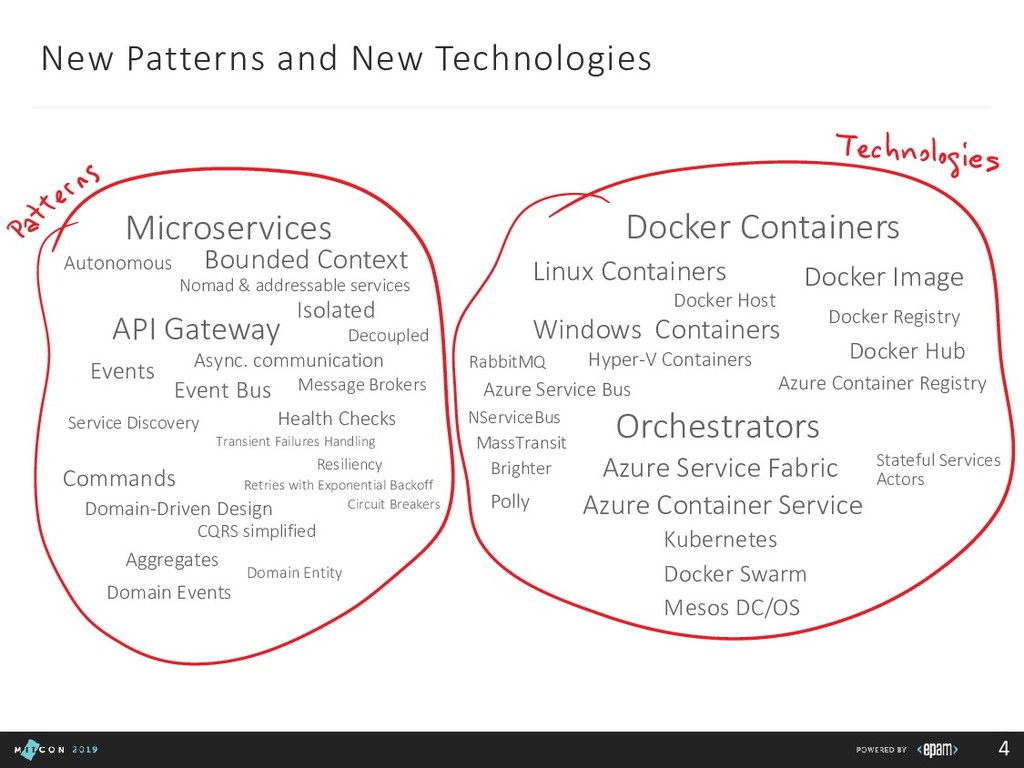

4. 4 Microservices Docker Containers Docker Image Docker Registry Docker Hub Azure Container Registry Bounded Context API Gateway Event Bus Commands Events Docker Host Azure Container Service Azure Service Fabric Kubernetes Docker Swarm Mesos DC/OS Linux Containers Windows Containers Domain Events Aggregates Domain Entity CQRS simplified Domain-Driven Design Message Brokers RabbitMQ Azure Service Bus NServiceBus MassTransit Hyper-V Containers Async. communication Brighter Stateful Services Actors Orchestrators Autonomous Decoupled Isolated Service Discovery Transient Failures Handling Resiliency Health Checks Retries with Exponential Backoff Circuit Breakers Polly Nomad & addressable services New Patterns and New Technologies

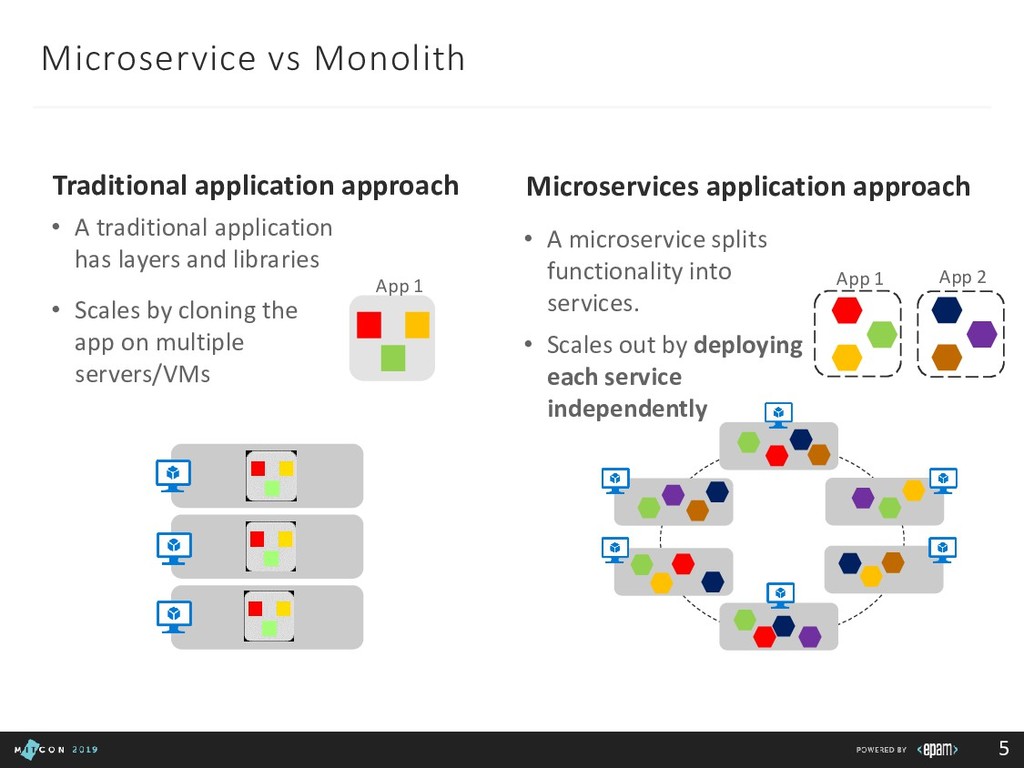

5. 5 Traditional application approach Microservices application approach • A traditional application has layers and libraries • Scales by cloning the app on multiple servers/VMs App 1 • A microservice splits functionality into services. • Scales out by deploying each service independently App 1 App 2 Microservice vs Monolith

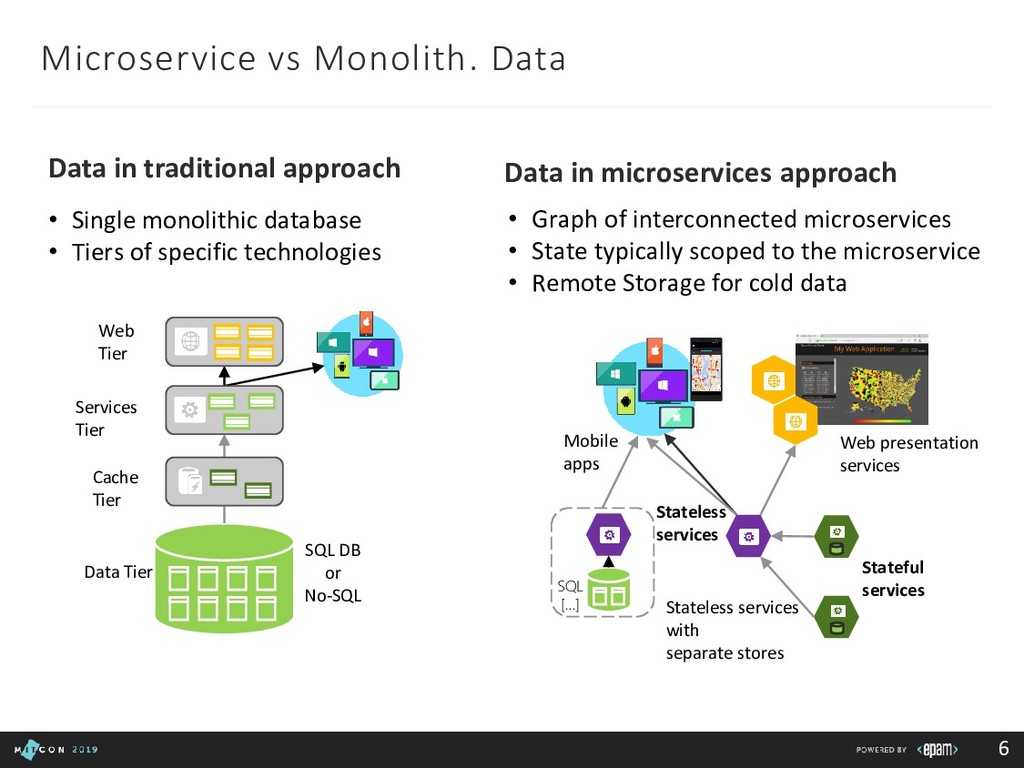

6. 6 Data in traditional approach Data in microservices approach • Single monolithic database • Tiers of specific technologies • Graph of interconnected microservices • State typically scoped to the microservice • Remote Storage for cold data SQL DB or No-SQL Web Tier Services Tier Data Tier Cache Tier Stateful services Web presentation services Stateless services Mobile apps Stateless services with separate stores SQL […] Microservice vs Monolith. Data

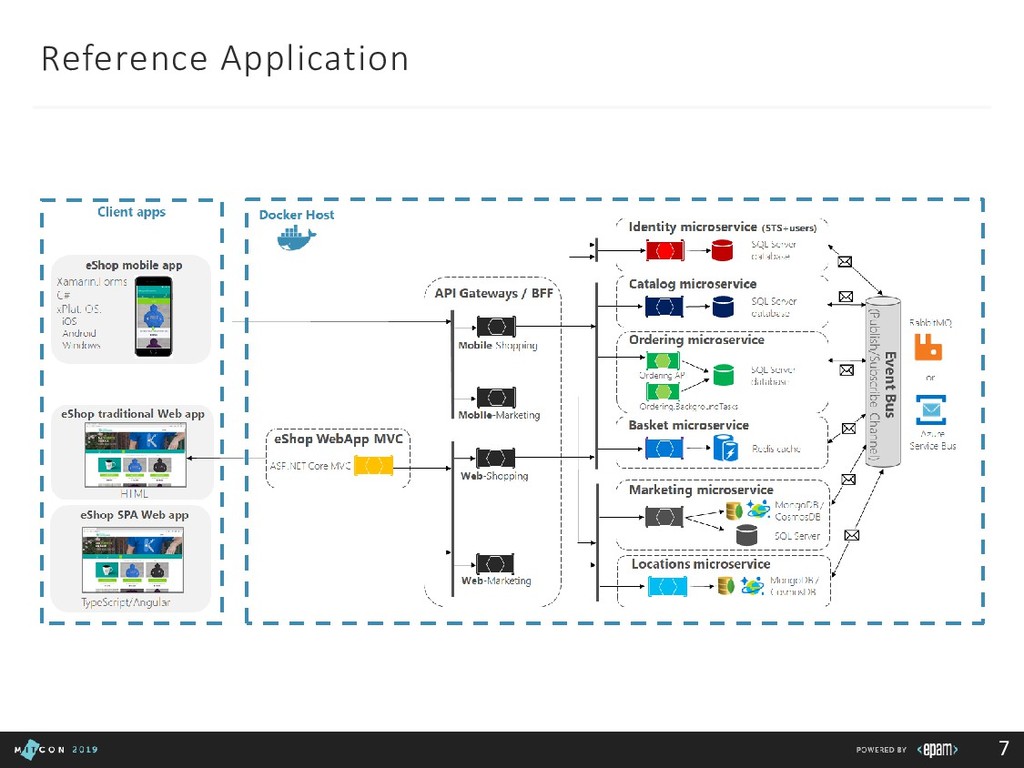

7. 7 Reference Application
8. DOMAIN DRIVEN DESIGN

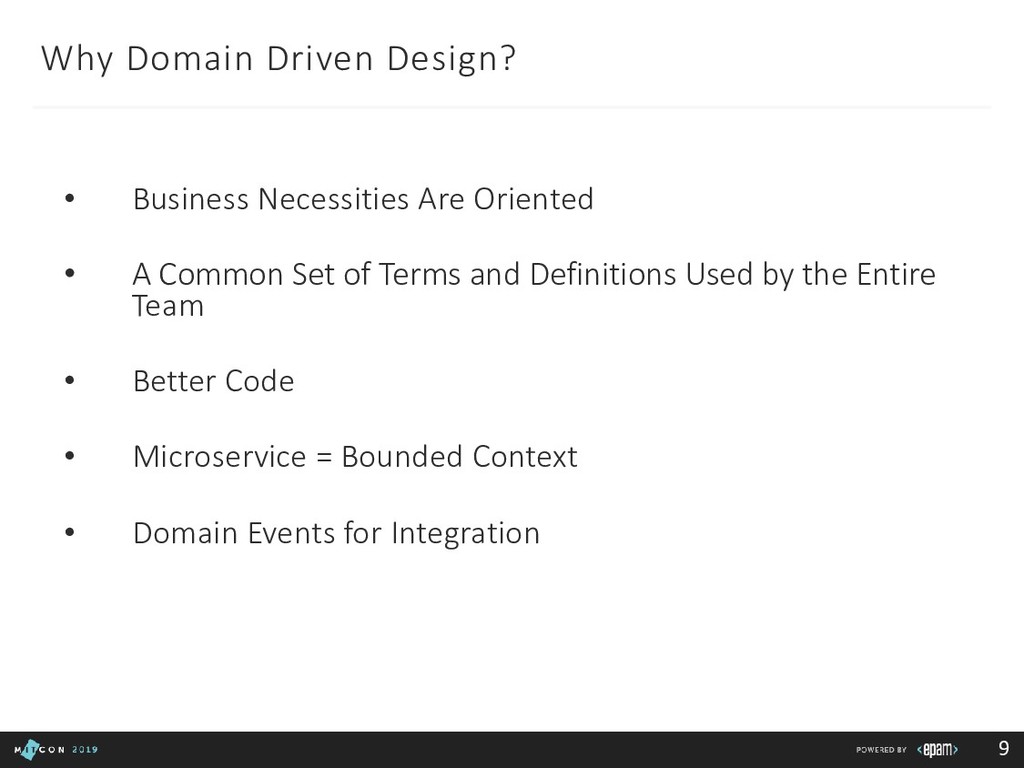

9. 9 Why Domain Driven Design? • Business Necessities Are Oriented • A Common Set of Terms and Definitions Used by the Entire Team • Better Code • Microservice = Bounded Context • Domain Events for Integration

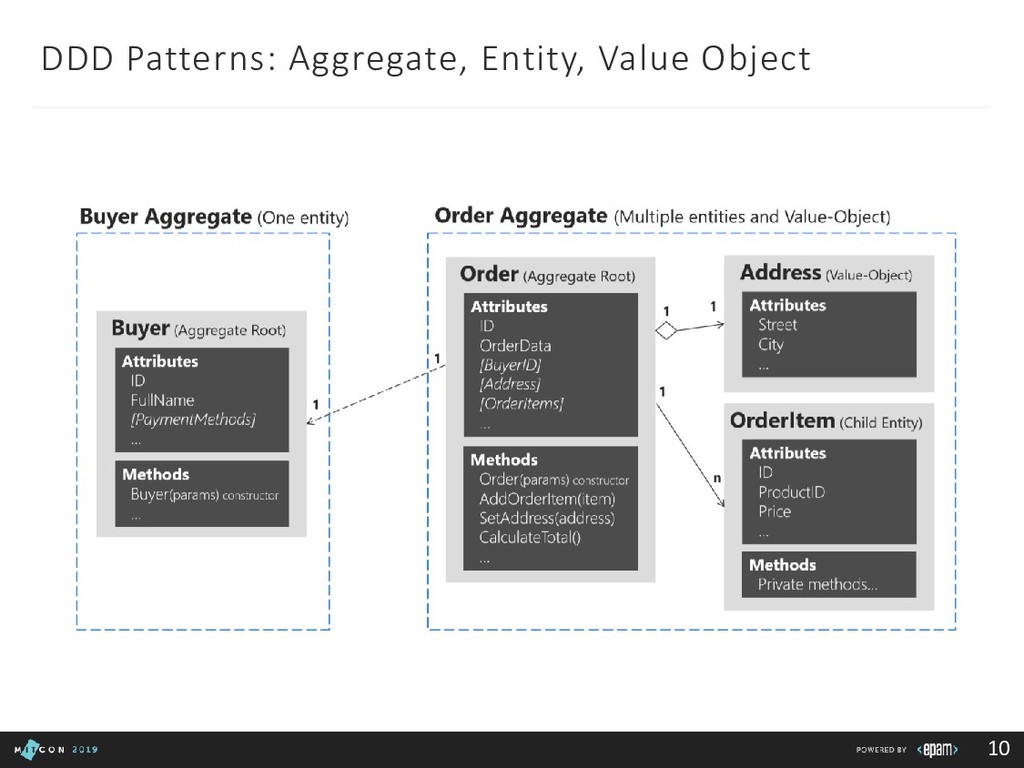

10. 10 DDD Patterns: Aggregate, Entity, Value Object

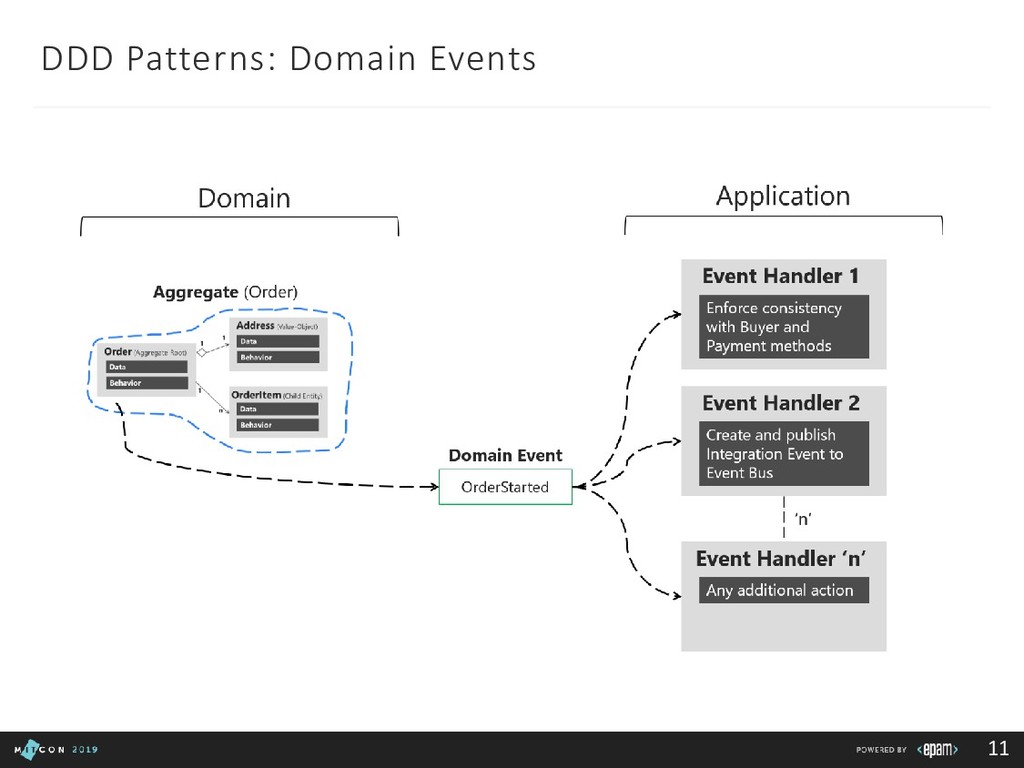

11. 11 DDD Patterns: Domain Events

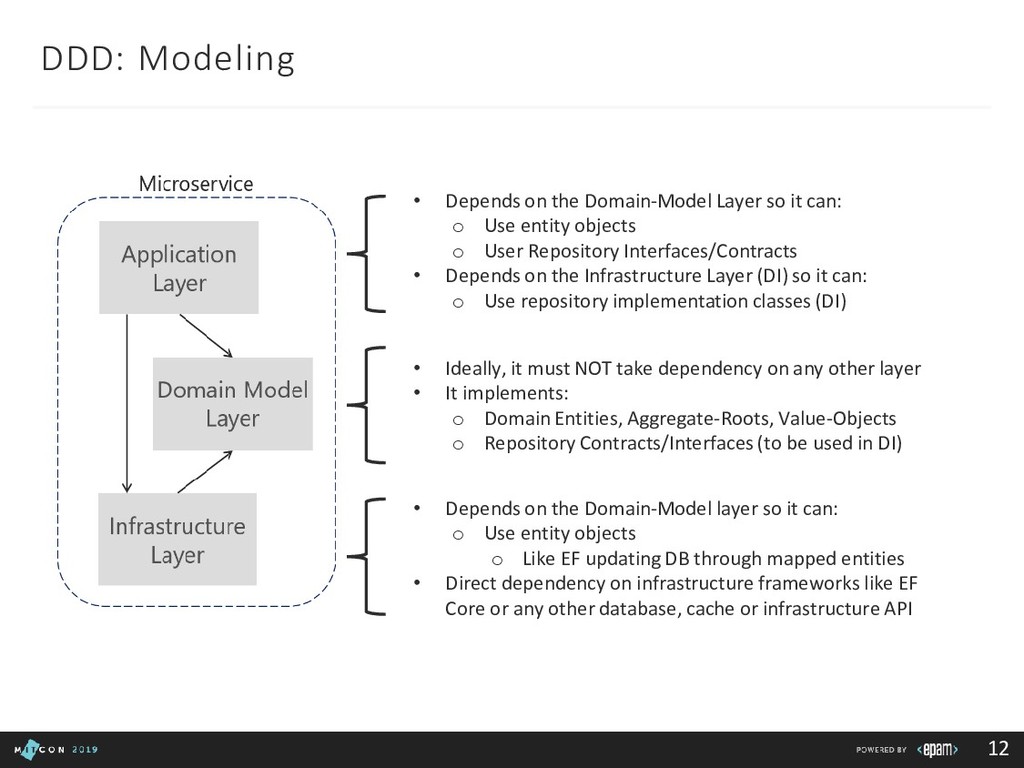

12. 12 DDD: Modeling • Depends on the Domain-Model Layer so it can: o Use entity objects o User Repository Interfaces/Contracts • Depends on the Infrastructure Layer (DI) so it can: o Use repository implementation classes (DI) • Ideally, it must NOT take dependency on any other layer • It implements: o Domain Entities, Aggregate-Roots, Value-Objects o Repository Contracts/Interfaces (to be used in DI) • Depends on the Domain-Model layer so it can: o Use entity objects o Like EF updating DB through mapped entities • Direct dependency on infrastructure frameworks like EF Core or any other database, cache or infrastructure API

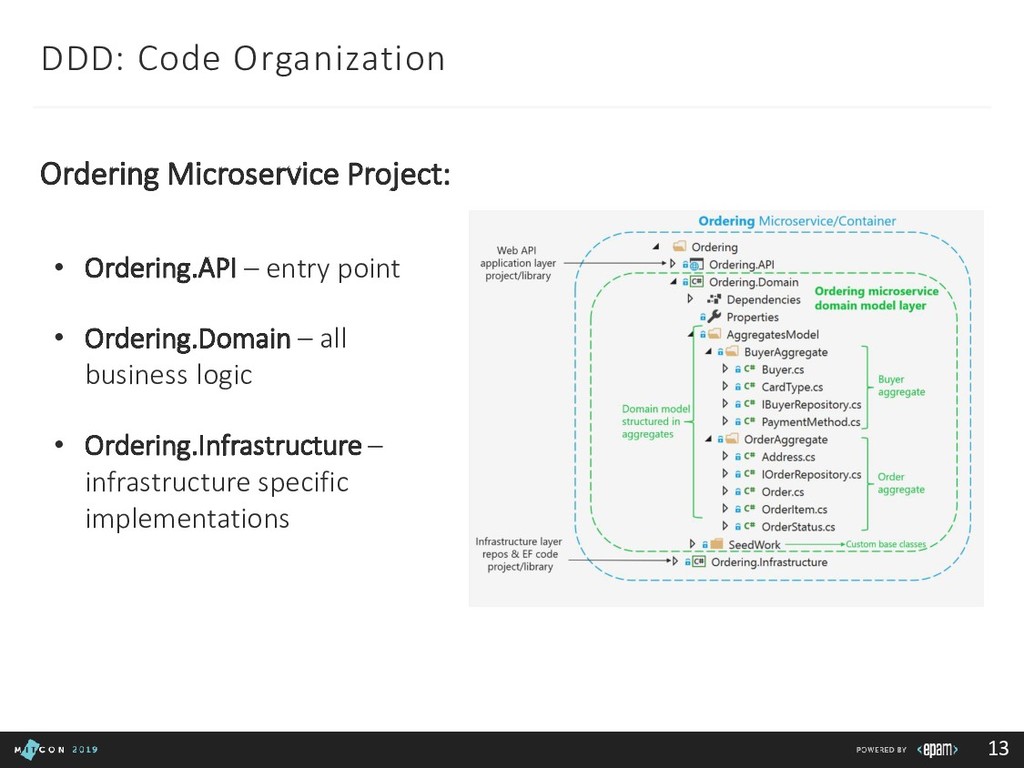

13. 13 DDD: Code Organization Ordering Microservice Project: • Ordering.API – entry point • Ordering.Domain – all business logic • Ordering.Infrastructure – infrastructure specific implementations

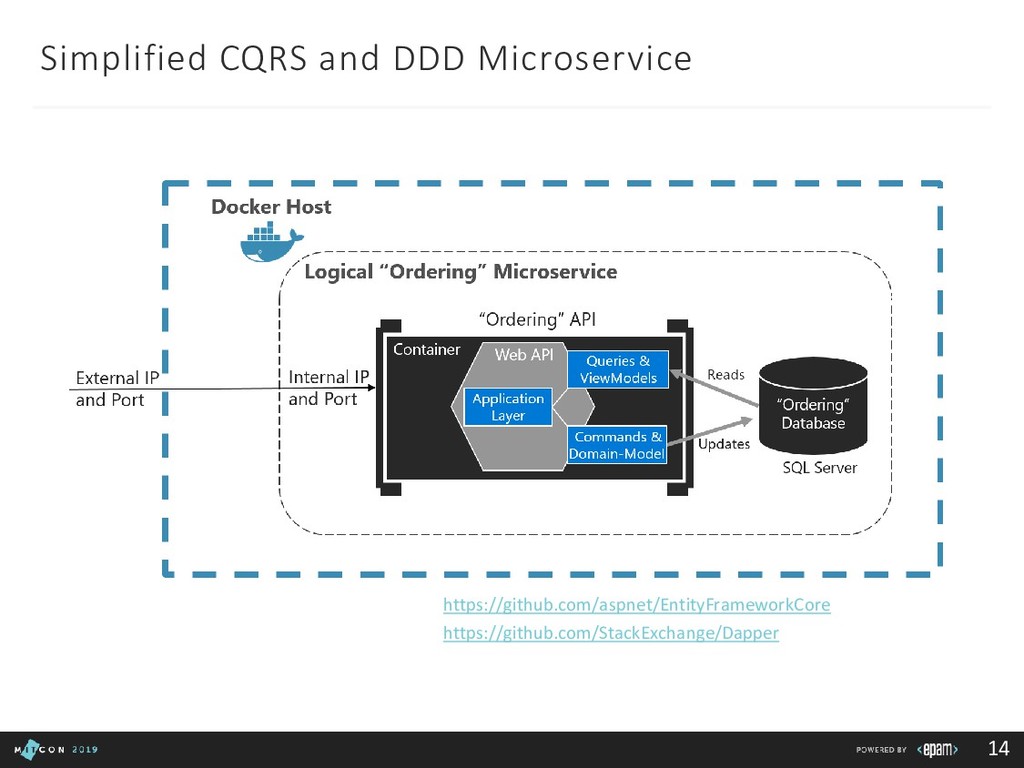

14. 14 Simplified CQRS and DDD Microservice https://github.com/aspnet/EntityFrameworkCore https://github.com/StackExchange/Dapper
15. COMMUNICATION AND RESILIENCY

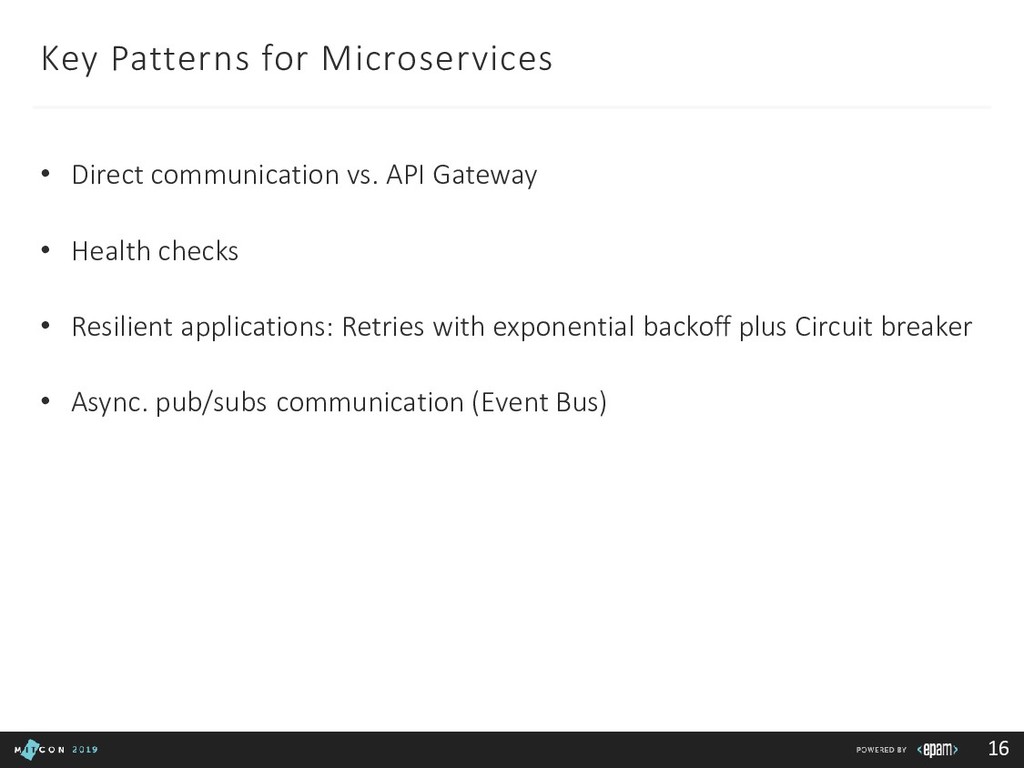

16. 16 Key Patterns for Microservices • Direct communication vs. API Gateway • Health checks • Resilient applications: Retries with exponential backoff plus Circuit breaker • Async. pub/subs communication (Event Bus)

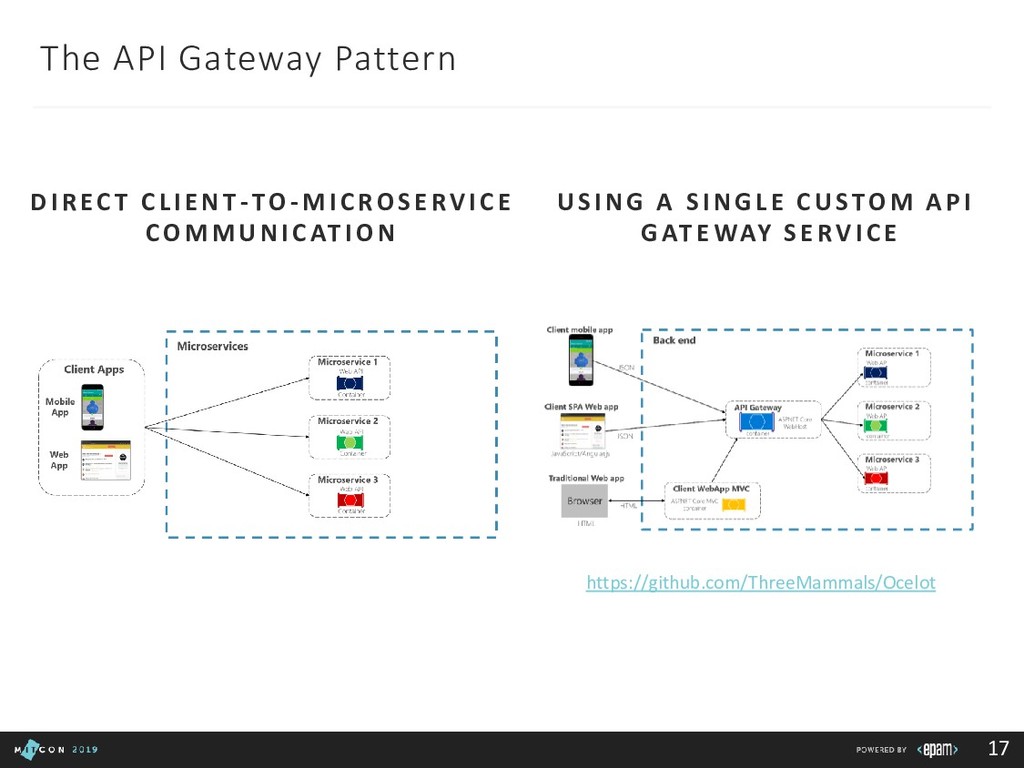

17. 17 The API Gateway Pattern DIREC T CLIENT -TO-MICROSERVICE COMMUNICATION USING A SINGLE CUSTOM API GATEWAY SERVICE https://github.com/ThreeMammals/Ocelot

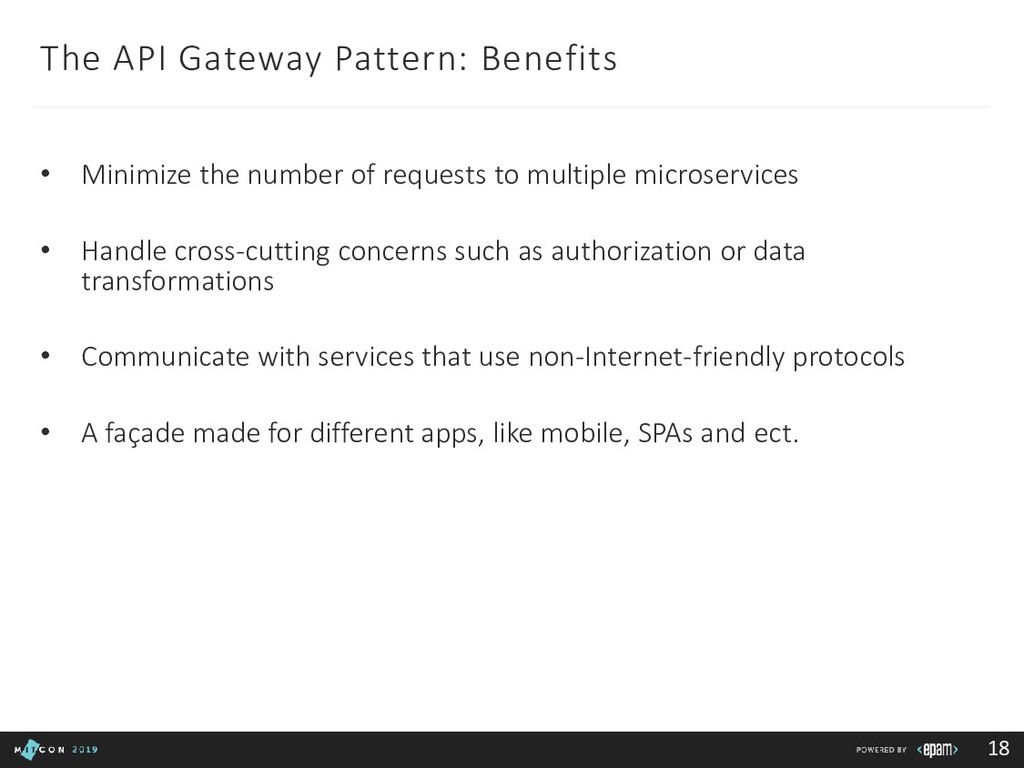

18. 18 The API Gateway Pattern: Benefits • Minimize the number of requests to multiple microservices • Handle cross-cutting concerns such as authorization or data transformations • Communicate with services that use non-Internet-friendly protocols • A façade made for different apps, like mobile, SPAs and ect.

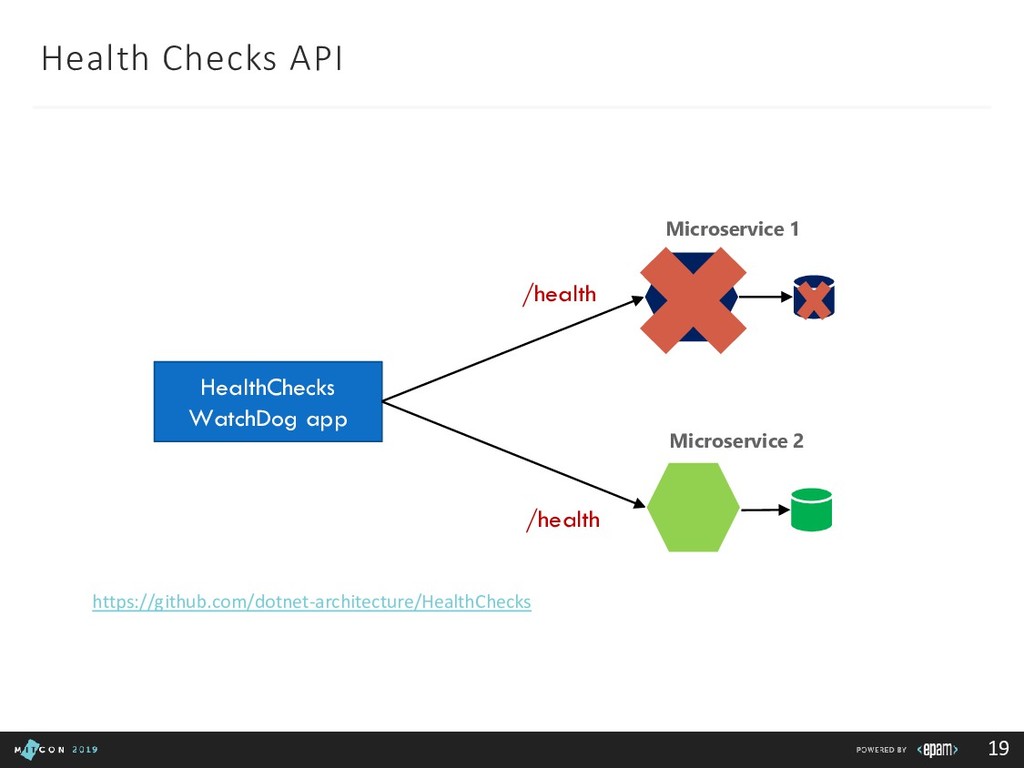

19. 19 Health Checks API HealthChecks WatchDog app /health Microservice 2 Microservice 1 /health https://github.com/dotnet-architecture/HealthChecks

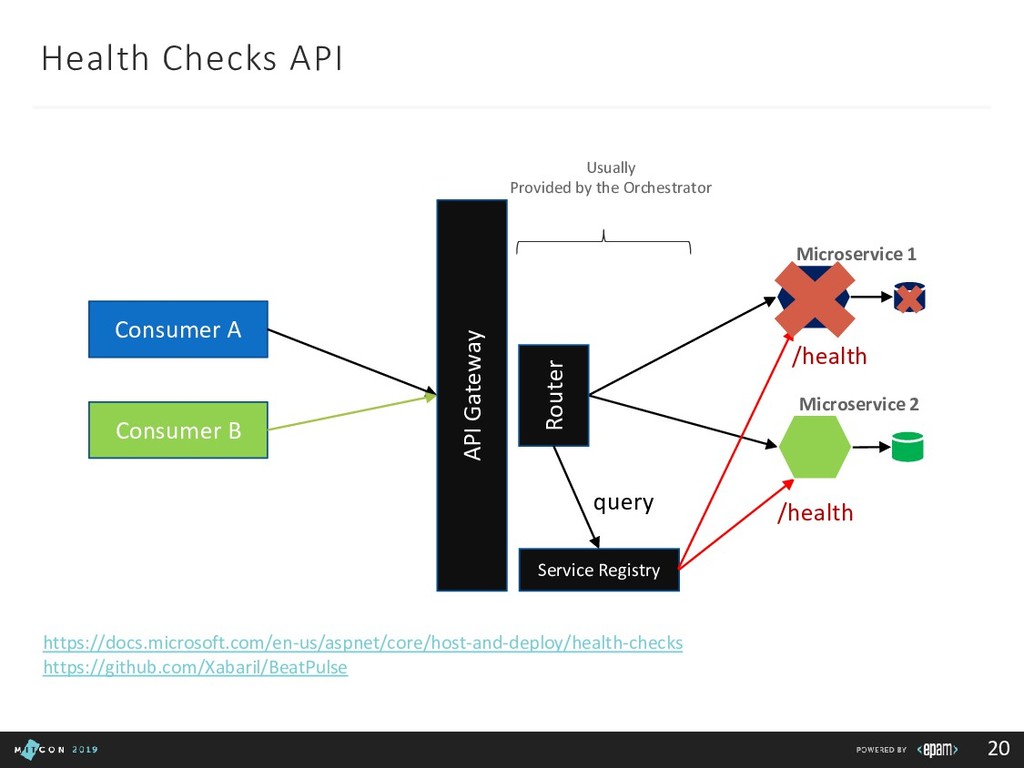

20. 20 Health Checks API Consumer A Consumer B Router API Gateway Service Registry query /health /health Microservice 2 Microservice 1 Usually Provided by the Orchestrator https://docs.microsoft.com/en-us/aspnet/core/host-and-deploy/health-checks https://github.com/Xabaril/BeatPulse

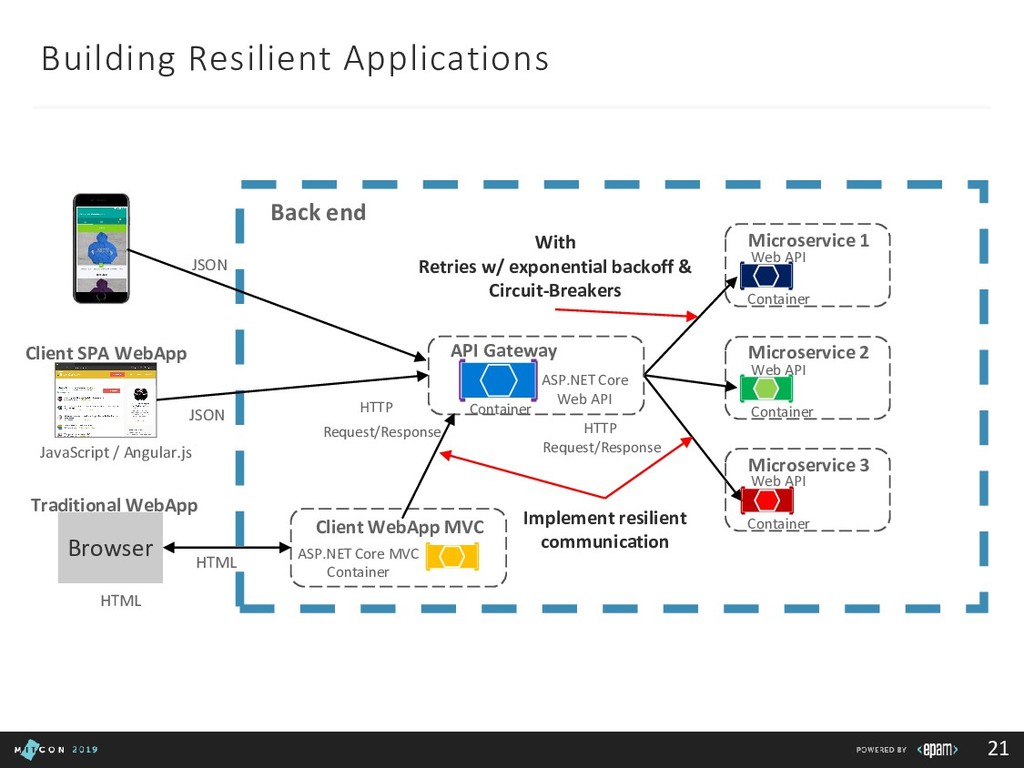

21. 21 Building Resilient Applications Microservice 2 Microservice 1 Client WebApp MVC Container Container Web API Web API ASP.NET Core MVC Container Microservice 3 Container Web API Client SPA WebApp JavaScript / Angular.js API Gateway ASP.NET Core Web API Container Back end Traditional WebApp Browser HTML HTML JSON JSON HTTP Request/Response HTTP Request/Response Implement resilient communication With Retries w/ exponential backoff & Circuit-Breakers

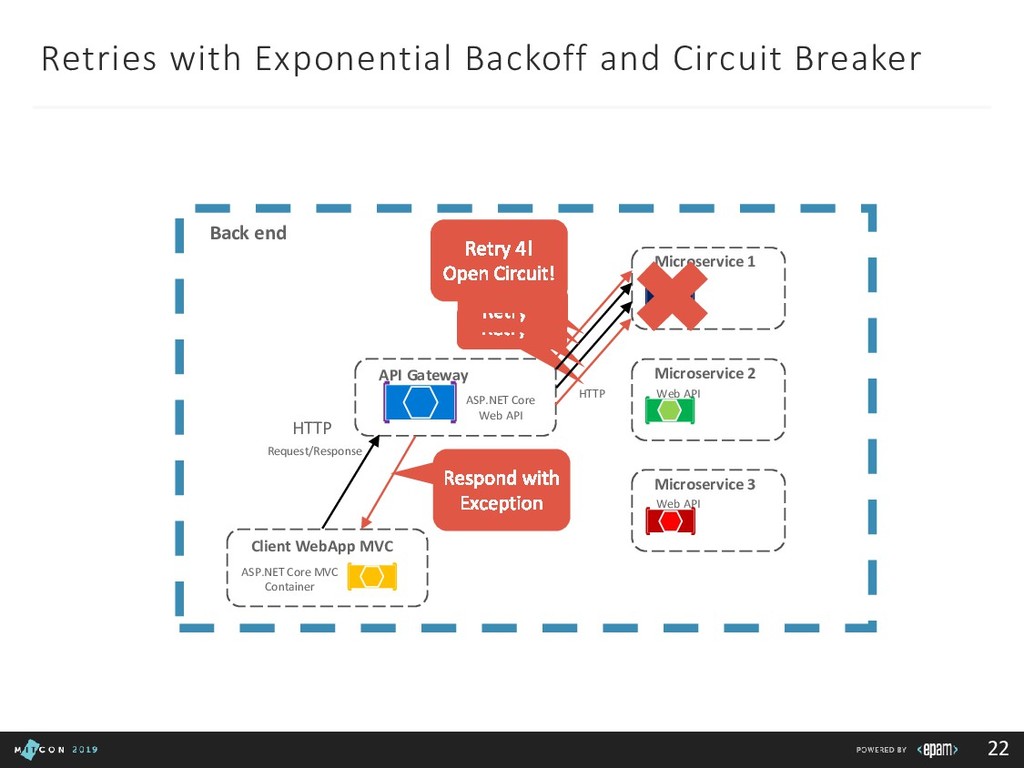

22. 22 Microservice 2 Microservice 1 Client WebApp MVC Web API Web API ASP.NET Core MVC Container Microservice 3 Web API API Gateway ASP.NET Core Web API Back end HTTP Request/Response HTTP Retries with Exponential Backoff and Circuit Breaker
23. 23 Components for Retries, Circuit-Breaker, etc. Netflix Hystrix https://github.com/App-vNext/Polly

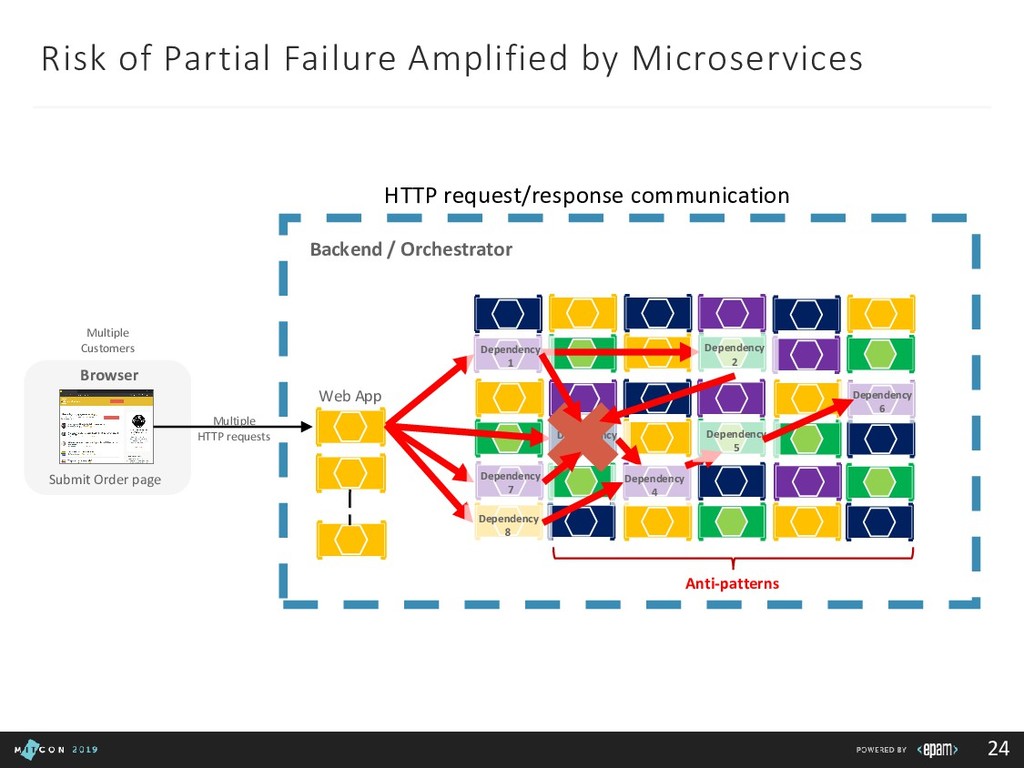

24. 24 Multiple HTTP requests Browser Submit Order page Backend / Orchestrator Web App Multiple Customers Dependency 1 Dependency 2 Dependency 3 Dependency 7 Dependency 8 Dependency 4 Dependency 5 HTTP request/response communication Dependency 6 Anti-patterns Risk of Partial Failure Amplified by Microservices

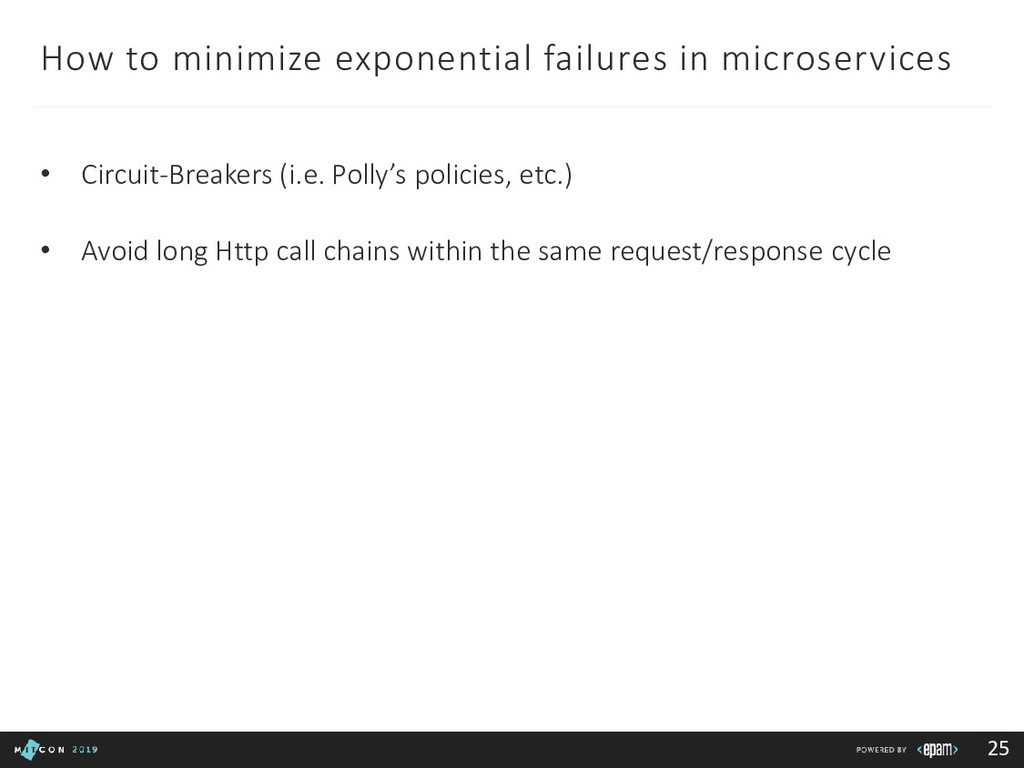

25. 25 How to minimize exponential failures in microservices • Circuit-Breakers (i.e. Polly’s policies, etc.) • Avoid long Http call chains within the same request/response cycle

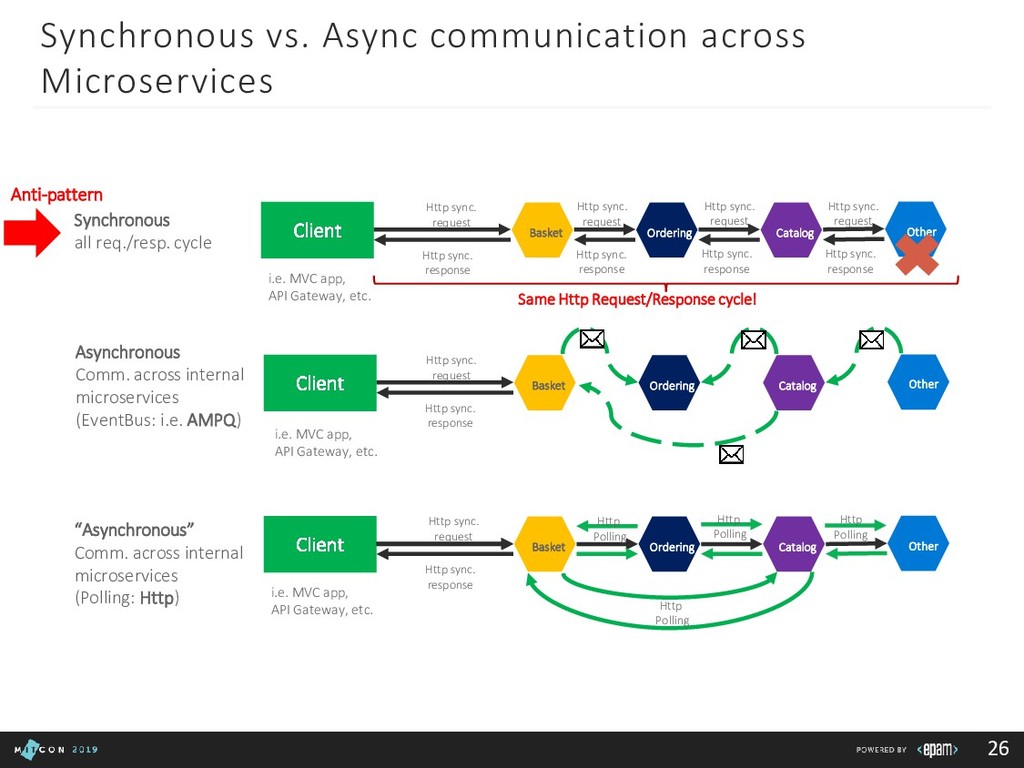

26. 26 i.e. MVC app, API Gateway, etc. Http sync. request Http sync. request Http sync. request Http sync. request Http sync. response Http sync. response Http sync. response Http sync. response Same Http Request/Response cycle! Basket Ordering Catalog Other i.e. MVC app, API Gateway, etc. Http sync. request Http sync. response Basket Ordering Catalog Other Synchronous all req./resp. cycle Asynchronous Comm. across internal microservices (EventBus: i.e. AMPQ) “Asynchronous” Comm. across internal microservices (Polling: Http) i.e. MVC app, API Gateway, etc. Http sync. response Basket Ordering Catalog Other Http Polling Http Polling Http Polling Http sync. request Http Polling Anti-pattern Synchronous vs. Async communication across Microservices

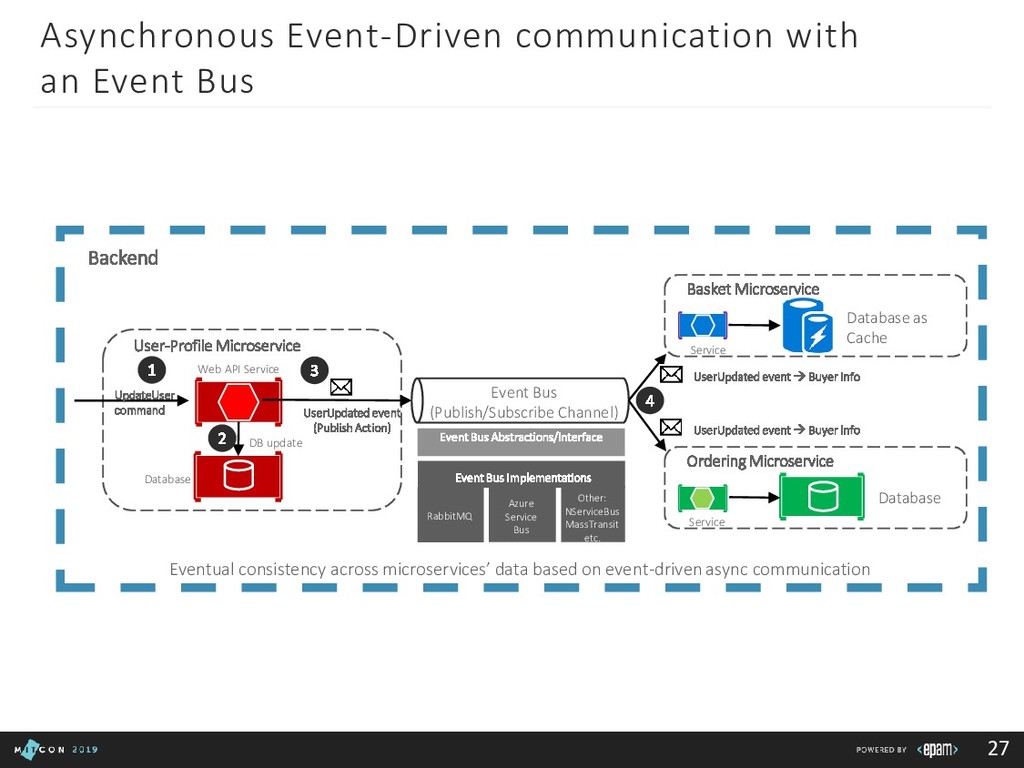

27. 27 Database Ordering Microservice Basket Microservice Database as Cache Service Service User-Profile Microservice Web API Service Database Backend UserUpdated event (Publish Action) Event Bus (Publish/Subscribe Channel) UpdateUser command UserUpdated event → Buyer info UserUpdated event → Buyer info Eventual consistency across microservices’ data based on event-driven async communication DB update Event Bus Abstractions/Interface Event Bus Implementations RabbitMQ Azure Service Bus Other: NServiceBus MassTransit etc. Asynchronous Event-Driven communication with an Event Bus
28. SECURITY

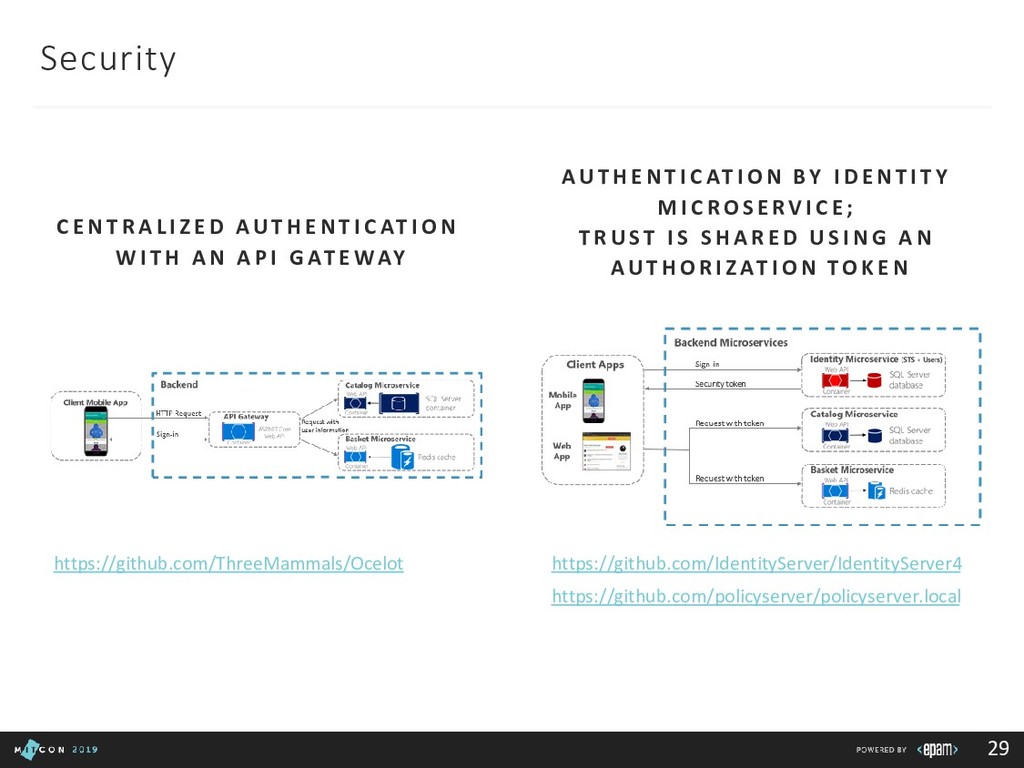

29. 29 Security C E N T R A L I Z E D A U T H E N T I C AT I O N W I T H A N A P I G AT E WAY A U T H E N T I C AT I O N BY I D E N T I T Y M I C R O S E R V I C E ; T R U S T I S S H A R E D U S I N G A N A U T H O R I Z AT I O N TO K E N https://github.com/ThreeMammals/Ocelot https://github.com/IdentityServer/IdentityServer4 https://github.com/policyserver/policyserver.local
30. INFRASTRUCTURE

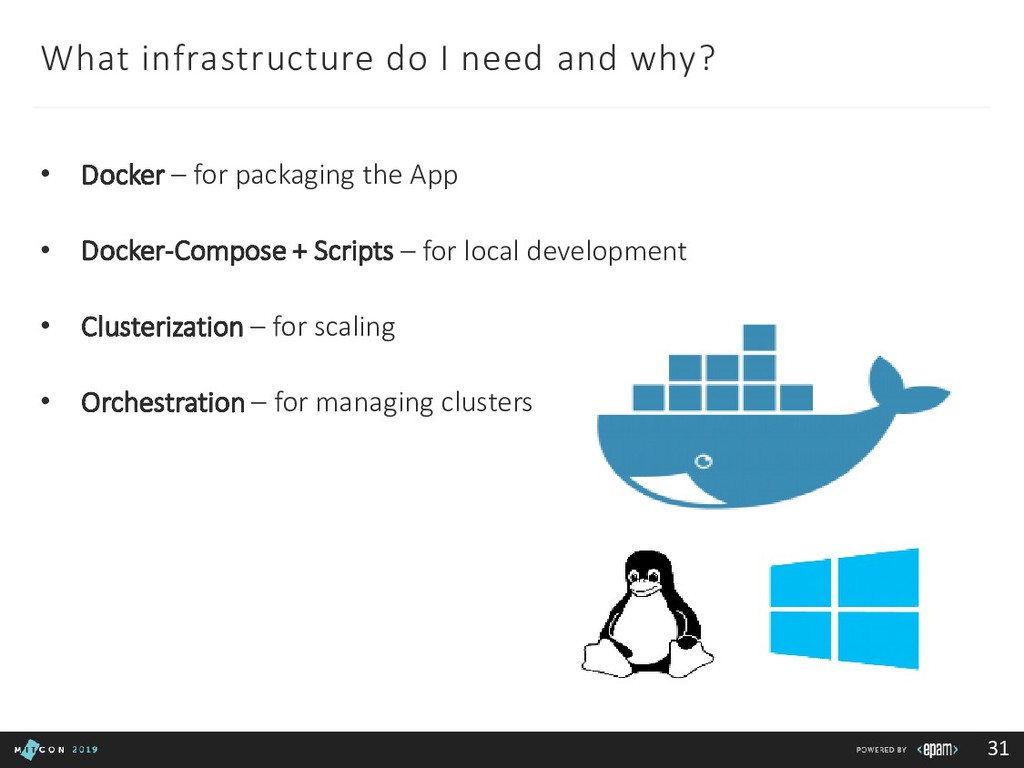

31. 31 What infrastructure do I need and why? • Docker – for packaging the App • Docker-Compose + Scripts – for local development • Clusterization – for scaling • Orchestration – for managing clusters

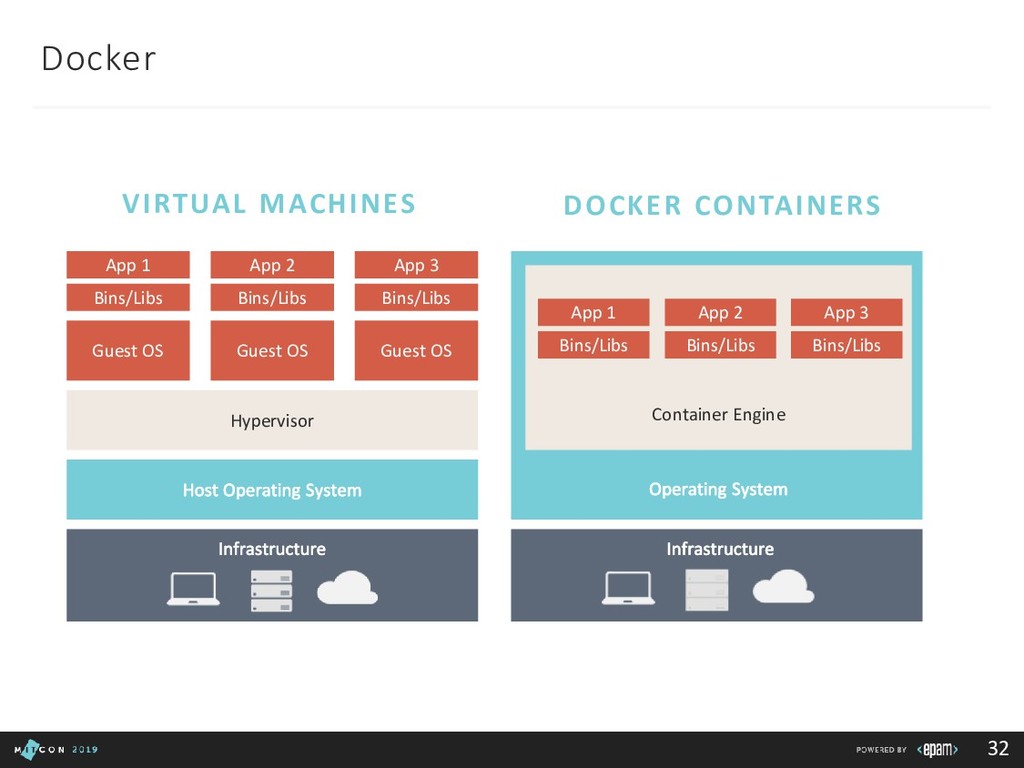

32. 32 Docker App 1 Bins/Libs Guest OS Hypervisor App 2 Bins/Libs Guest OS App 3 Bins/Libs Guest OS App 1 Bins/Libs App 2 Bins/Libs App 3 Bins/Libs Container Engine DOCKER CONTAINERS VIRTUAL MACHINES

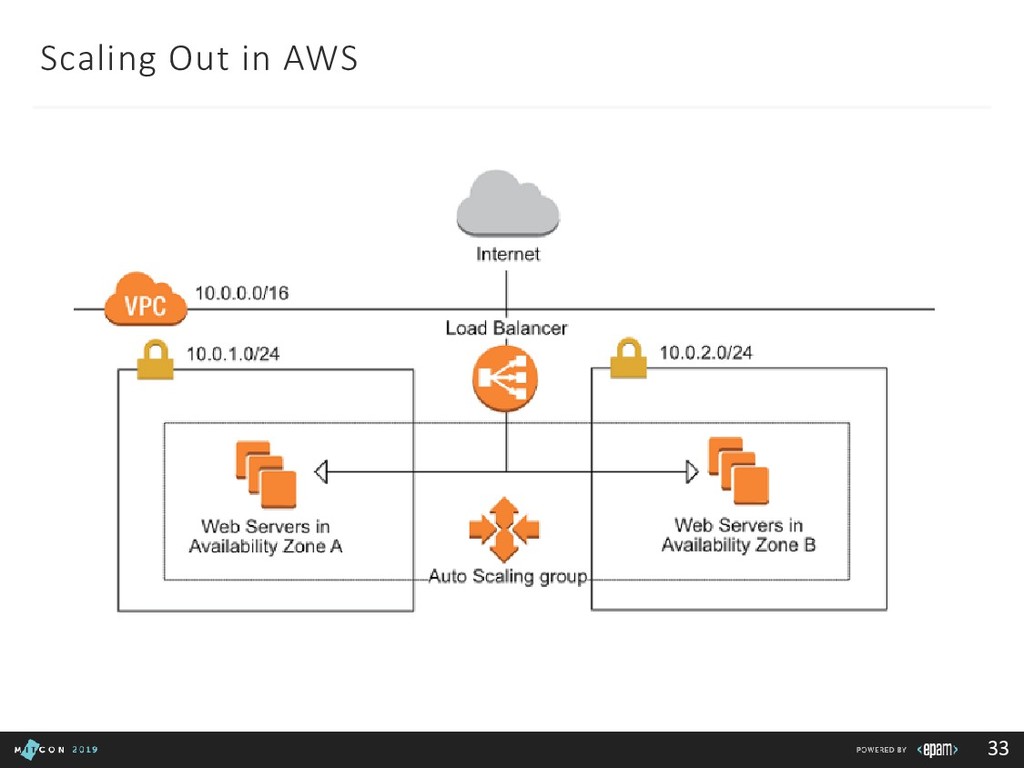

33. 33 Scaling Out in AWS

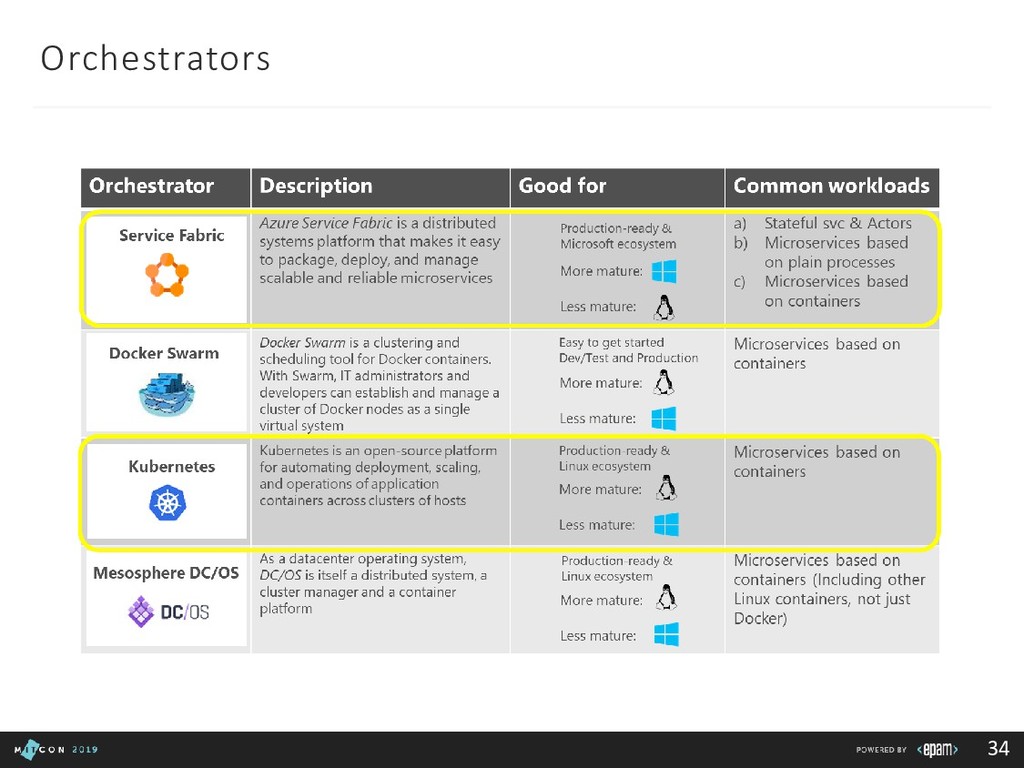

34. 34 Orchestrators
35. DEMO
36. THANK YOU!
