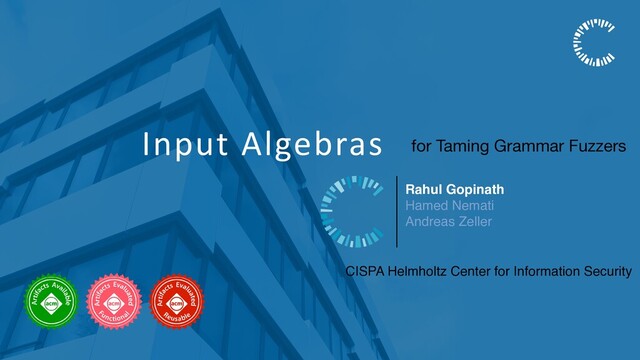

Input Algebras

ICSE 2021

Transcript

1. Input Algebras
   Rahul Gopinath
   Hamed Nemati
   Andreas Zeller
   CISPA Helmholtz Center for Information Security
   for Taming Grammar Fuzzers


   View Slide

2. 3
   {"a": ["key"]} ✓
   Program


   View Slide

3. 4
   {"a": ["key"]}
   Program
   {"": [1,2,"k"]} ✘


   View Slide

4. 5
   {"a": ["key"]}
   Program
   {"": [1,2,"k"]}
   ✓
   ["A", "B", "C"]


   View Slide

5. 6
   {"a": ["key"]}
   Program
   {"": [1,2,"k"]}
   ["A", "B", "C"]
   [{"": [1,2,3,4]}]
   ✘


   View Slide

6. 7
   {"a": ["key"]}
   {"": [1,2,"k"]}
   ["A", "B", "C"]
   [{"": [1,2,3,4]}]
   if json.has_key(""):
   raise Exception()
   Program


   View Slide

7. 8
   {"type":"PathNode","matrix":
   {"m11":-0.6630394213564543,"m12":0,"m21":0,"m22":0.5236476835782672,"dx":565.5201
   948628471,"dy":371.5686591257294},"children":
   [],"strokeStyle":"#000000","fillStyle":"#e1e1e1","lineWidth":4,"smoothness":0.3,"sloppiness":
   0.5,"startX":50,"startY":0,"closed":true,"segments":
   [{"type":3,"x":100,"y":50,"x1":100,"y1":0,"r":
   [-0.3779207859188318,0.07996635790914297,-0.47163885831832886,-0.0710031278431
   4156]},{"type":3,"x":50,"y":100,"x1":100,"y1":100,"r":
   [0.24857700895518064,0.030472169630229473,0.49844827968627214,0.1326016811653
   9717]},{"type":3,"x":0,"y":50,"x1":0,"y1":100,"r":
   [0.1751830680295825,-0.18606301862746477,-0.4092112798243761,-0.47907172795385
   12]},{"type":3,"x":50,"y":0,"x1":0,"y1":0,"r":
   [0.37117584701627493,0.3612578883767128,0.0462839687243104,-0.156406396068632
   6]}],"shadow":false},{"type":"PathNode","matrix":
   {"m11":-1.475090930376591,"m12":0,"m21":0,"m22":1.2306765694828008,"dx":700.13810
   32855618,"dy":133.20628077515605},"children":
   [],"strokeStyle":"#000000","fillStyle":"#ffffff","lineWidth":2,"smoothness":0.3,"sloppiness":0.5,"
   startX":126.25,"startY":127.50445838342671,"closed":true,"segments":
   [{"type":3,"x":146.01190476190476,"y":147.5936260519611,"x1":146.01190476190476,"y1":
   127.50445838342671,"r":
   [-0.1750196823850274,-0.05804965365678072,-0.3536788672208786,0.05322327278554
   4395]},
   {"type":3,"x":126.25,"y":167.6827937204955,"x1":146.01190476190476,"y1":167.68279372
   04955,"r":
   [-0.32906053867191076,-0.11536165233701468,0.35579121299088,0.3873158805072307
   6]},{"type":3,"x":108,"y":147,"x1":106.48809523809524,"y1":167.6827937204955,"r":
   [0.08825046103447676,0.011088204570114613,0.43411328736692667,-0.133069220930
   3379]},
   {"type":3,"x":126.25,"y":127.50445838342671,"x1":106.48809523809524,"y1":127.5044583
   8342671,"r":
   [0.42778260353952646,0.24726040940731764,0.3631806019693613,0.053255504928529
   26]}],"shadow":false},{"type":"TextNode","matrix":
   {"m11":1,"m12":0,"m21":0,"m22":1,"dx":543,"dy":225},"children":
   [],"fillStyle":"#000000","text":"Y","fontName":"FG Virgil","fontSize":20},
   {"type":"TextNode","matrix":{"m11":1,"m12":0,"m21":0,"m22":1,"dx":559,"dy":144},"children":
   [],"fillStyle":"#000000","text":"x","fontName":"FG Virgil","fontSize":20},
   {"type":"ArrowNode","matrix":{"m11":1,"m12":0,"m21":0,"m22":1,"dx":0,"dy":0},"children":
   [],"arrowSize":10,"path":{"type":"PathNode","matrix":
   Program ✘


   View Slide

8. {"type":"PathNode","matrix":
   {"m11":-0.6630394213564543,"m12":0,"m21":0,"m22":0.5236476835782672,"dx":565.5201
   948628471,"dy":371.5686591257294},"children":
   [],"strokeStyle":"#000000","fillStyle":"#e1e1e1","lineWidth":4,"smoothness":0.3,"sloppiness":
   0.5,"startX":50,"startY":0,"closed":true,"segments":
   [{"type":3,"x":100,"y":50,"x1":100,"y1":0,"r":
   [-0.3779207859188318,0.07996635790914297,-0.47163885831832886,-0.0710031278431
   4156]},{"type":3,"x":50,"y":100,"x1":100,"y1":100,"r":
   [0.24857700895518064,0.030472169630229473,0.49844827968627214,0.1326016811653
   9717]},{"type":3,"x":0,"y":50,"x1":0,"y1":100,"r":
   [0.1751830680295825,-0.18606301862746477,-0.4092112798243761,-0.47907172795385
   12]},{"type":3,"x":50,"y":0,"x1":0,"y1":0,"r":
   [0.37117584701627493,0.3612578883767128,0.0462839687243104,-0.156406396068632
   6]}],"shadow":false},{"type":"PathNode","matrix":
   {"m11":-1.475090930376591,"m12":0,"m21":0,"m22":1.2306765694828008,"dx":700.13810
   32855618,"dy":133.20628077515605},"children":
   [],"strokeStyle":"#000000","fillStyle":"#ffffff","lineWidth":2,"smoothness":0.3,"sloppiness":0.5,"
   startX":126.25,"startY":127.50445838342671,"closed":true,"segments":
   [{"type":3,"x":146.01190476190476,"y":147.5936260519611,"x1":146.01190476190476,"y1":
   127.50445838342671,"r":
   [-0.1750196823850274,-0.05804965365678072,-0.3536788672208786,0.05322327278554
   4395]},
   {"type":3,"x":126.25,"y":167.6827937204955,"x1":146.01190476190476,"y1":167.68279372
   04955,"r":
   [-0.32906053867191076,-0.11536165233701468,0.35579121299088,0.3873158805072307
   6]},{"type":3,"x":108,"y":147,"x1":106.48809523809524,"y1":167.6827937204955,"r":
   [0.08825046103447676,0.011088204570114613,0.43411328736692667,-0.133069220930
   3379]},
   {"type":3,"x":126.25,"y":127.50445838342671,"x1":106.48809523809524,"y1":127.5044583
   8342671,"r":
   [0.42778260353952646,0.24726040940731764,0.3631806019693613,0.053255504928529
   26]}],"shadow":false},{"type":"TextNode","matrix":
   {"m11":1,"m12":0,"m21":0,"m22":1,"dx":543,"dy":225},"children":
   [],"fillStyle":"#000000","text":"Y","fontName":"FG Virgil","fontSize":20},
   {"type":"TextNode","matrix":{"m11":1,"m12":0,"m21":0,"m22":1,"dx":559,"dy":144},"children":
   [],"fillStyle":"#000000","text":"x","fontName":"FG Virgil","fontSize":20},
   {"type":"ArrowNode","matrix":{"m11":1,"m12":0,"m21":0,"m22":1,"dx":0,"dy":0},"children":
   [],"arrowSize":10,"path":{"type":"PathNode","matrix":
   What is the smallest failure inducing input?
   Hierarchical Delta Debugging


   View Slide

9. {"type":"PathNode","matrix":
   {"m11":-0.6630394213564543,"m12":0,"m21":0,"m22":0.5236476835782672,"dx":565.5201
   948628471,"dy":371.5686591257294},"children":
   [],"strokeStyle":"#000000","fillStyle":"#e1e1e1","lineWidth":4,"smoothness":0.3,"sloppiness":
   0.5,"startX":50,"startY":0,"closed":true,"segments":
   [{"type":3,"x":100,"y":50,"x1":100,"y1":0,"r":
   [-0.3779207859188318,0.07996635790914297,-0.47163885831832886,-0.0710031278431
   4156]},{"type":3,"x":50,"y":100,"x1":100,"y1":100,"r":
   [0.24857700895518064,0.030472169630229473,0.49844827968627214,0.1326016811653
   9717]},{"type":3,"x":0,"y":50,"x1":0,"y1":100,"r":
   [0.1751830680295825,-0.18606301862746477,-0.4092112798243761,-0.47907172795385
   12]},{"type":3,"x":50,"y":0,"x1":0,"y1":0,"r":
   [0.37117584701627493,0.3612578883767128,0.0462839687243104,-0.156406396068632
   6]}],"shadow":false},{"type":"PathNode","matrix":
   {"m11":-1.475090930376591,"m12":0,"m21":0,"m22":1.2306765694828008,"dx":700.13810
   32855618,"dy":133.20628077515605},"children":
   [],"strokeStyle":"#000000","fillStyle":"#ffffff","lineWidth":2,"smoothness":0.3,"sloppiness":0.5,"
   startX":126.25,"startY":127.50445838342671,"closed":true,"segments":
   [{"type":3,"x":146.01190476190476,"y":147.5936260519611,"x1":146.01190476190476,"y1":
   127.50445838342671,"r":
   [-0.1750196823850274,-0.05804965365678072,-0.3536788672208786,0.05322327278554
   4395]},
   {"type":3,"x":126.25,"y":167.6827937204955,"x1":146.01190476190476,"y1":167.68279372
   04955,"r":
   [-0.32906053867191076,-0.11536165233701468,0.35579121299088,0.3873158805072307
   6]},{"type":3,"x":108,"y":147,"x1":106.48809523809524,"y1":167.6827937204955,"r":
   [0.08825046103447676,0.011088204570114613,0.43411328736692667,-0.133069220930
   3379]},
   {"type":3,"x":126.25,"y":127.50445838342671,"x1":106.48809523809524,"y1":127.5044583
   8342671,"r":
   [0.42778260353952646,0.24726040940731764,0.3631806019693613,0.053255504928529
   26]}],"shadow":false},{"type":"TextNode","matrix":
   {"m11":1,"m12":0,"m21":0,"m22":1,"dx":543,"dy":225},"children":
   [],"fillStyle":"#000000","text":"Y","fontName":"FG Virgil","fontSize":20},
   {"type":"TextNode","matrix":{"m11":1,"m12":0,"m21":0,"m22":1,"dx":559,"dy":144},"children":
   [],"fillStyle":"#000000","text":"x","fontName":"FG Virgil","fontSize":20},
   {"type":"ArrowNode","matrix":{"m11":1,"m12":0,"m21":0,"m22":1,"dx":0,"dy":0},"children":
   [],"arrowSize":10,"path":{"type":"PathNode","matrix":
   ::=

   ::=

   |
   |

   |

   | `true` | `false` | `null`

   ::= `{``}` | `{}`

   ::= |`,`

   ::= `:`

   ::= `[``]` | `[]`

   ::= | `,`

   ::= `"` `"` | `""`

   ::=

   ::= [A-Za-z0-9]

   ::=

   ::= |

   ::= [0-9]
   JSON Grammar


   View Slide

10. {"type":"PathNode","matrix":
    {"m11":-0.6630394213564543,"m12":0,"m21":0,"m22":0.5236476835782672,"dx":565.5201948628471,"dy":371.568659125
    7294},"children":
    [],"strokeStyle":"#000000","fillStyle":"#e1e1e1","lineWidth":4,"smoothness":0.3,"sloppiness":0.5,"startX":50,"startY":0,"closed
    ":true,"segments":[{"type":3,"x":100,"y":50,"x1":100,"y1":0,"r":
    [-0.3779207859188318,0.07996635790914297,-0.47163885831832886,-0.07100312784314156]},
    {"type":3,"x":50,"y":100,"x1":100,"y1":100,"r":
    [0.24857700895518064,0.030472169630229473,0.49844827968627214,0.13260168116539717]},
    {"type":3,"x":0,"y":50,"x1":0,"y1":100,"r":
    [0.1751830680295825,-0.18606301862746477,-0.4092112798243761,-0.4790717279538512]},
    {"type":3,"x":50,"y":0,"x1":0,"y1":0,"r":
    [0.37117584701627493,0.3612578883767128,0.0462839687243104,-0.1564063960686326]}],"shadow":false},
    {"type":"PathNode","matrix":
    {"":-1.475090930376591,"m12":0,"m21":0,"m22":1.2306765694828008,"dx":700.1381032855618,"dy":133.2062807751560
    5},"children":
    [],"strokeStyle":"#000000","fillStyle":"#ffffff","lineWidth":2,"smoothness":0.3,"sloppiness":0.5,"startX":126.25,"startY":127.504
    45838342671,"closed":true,"segments":
    [{"type":3,"x":146.01190476190476,"y":147.5936260519611,"x1":146.01190476190476,"y1":127.50445838342671,"r":
    [-0.1750196823850274,-0.05804965365678072,-0.3536788672208786,0.053223272785544395]},
    {"type":3,"x":126.25,"y":167.6827937204955,"x1":146.01190476190476,"y1":167.6827937204955,"r":
    [-0.32906053867191076,-0.11536165233701468,0.35579121299088,0.38731588050723076]},
    {"type":3,"x":108,"y":147,"x1":106.48809523809524,"y1":167.6827937204955,"r":
    [0.08825046103447676,0.011088204570114613,0.43411328736692667,-0.1330692209303379]},
    {"type":3,"x":126.25,"y":127.50445838342671,"x1":106.48809523809524,"y1":127.50445838342671,"r":
    [0.42778260353952646,0.24726040940731764,0.3631806019693613,0.05325550492852926]}],"shadow":false},
    {"type":"TextNode","matrix":{"m11":1,"m12":0,"m21":0,"m22":1,"dx":543,"dy":225},"children":
    [],"fillStyle":"#000000","text":"Y","fontName":"FG Virgil","fontSize":20},{"type":"TextNode","matrix":
    {"m11":1,"m12":0,"m21":0,"m22":1,"dx":559,"dy":144},"children":[],"fillStyle":"#000000","text":"x","fontName":"FG
    Virgil","fontSize":20},{"type":"ArrowNode","matrix":{"m11":1,"m12":0,"m21":0,"m22":1,"dx":0,"dy":0},"children":
    [],"arrowSize":10,"path":{"type":"PathNode","matrix":{"m11":1,"m12":0,"m21":0,"m22":1,"dx":464,"dy":-3},"children":
    [],"strokeStyle":"#000000","fillStyle":"#ffffff","lineWidth":2,"smoothness":0.3,"
    {"": []}
    Hierarchical Delta Debugging
    ✘


    View Slide

11. Why did my program fail?
    DDSET
    Gopinath, Kampmann, Havrikov, Soremekun, and Zeller. Abstracting Failure Inducing Inputs. ISSTA 2020.


    View Slide

12. 13
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": []}
    DDSET:


    View Slide

13. 14
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": []}
    DDSET:
    122489
    {"A":{}, {"23": {"P":[]}}]
    [[], [[[]],[]],{"A":{}, {"23": {"P":[]}}]


    View Slide

14. 15
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": []}
    DDSET:
    "XYZR389"
    {"A":{}, {"23": {"P":[]}}}
    [[], [[[]],[]],{"A":{}, {"23": {"P":[]}}]


    View Slide

15. 16
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": []}
    DDSET:
    [true, null]
    {"A":{}, {"23": {"P":[]}}}
    [[], [[[]],[]],{"A":{}, {"23": {"P":[]}}]


    View Slide

16. 17
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": []}
    DDSET:
    {"__": [[]]}
    {"?P":[{}], {"|": {"":[]}}}
    {"X":[[],[]],{"A":{}, {"2": {"R":[]}}}


    View Slide

17. 18
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": []}
    DDSET:
    {"": [[]]}
    {"?P":[{}], {"|": {"P":[]}}}
    {"X":[[],[]],{"A":{}, {"2": {"R":[]}}}


    View Slide

18. 19
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": []}
    DDSET:
    {"7897A": []}
    {"klnm,.qer;dfs?P":[]}
    {"123KOUIJ!qR30578950":[]}


    View Slide

19. 20
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": []}
    DDSET:
    {"": true}
    {"":[1,2,445,"x"]}
    {"":{"PQ":[true, false, 223,"a"]}}


    View Slide

20. 21
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": []}
    DDSET:
    Abstraction
    {"": }
    Abstract Input


    View Slide

21. • Effectively abstracts a minimized input

    • The abstraction identifies where the problem lies

    • Decompose complex program behaviors
    DDSET
    Gopinath, Kampmann, Havrikov, Soremekun, and Zeller. Abstracting Failure Inducing Inputs. ISSTA 2020.
    ISSTA 2020 Distinguished Award
    {"": }
    Abstract Input
    {"": []}
    Minimized Input


    View Slide

22. {"": }
    Abstract Input
    {"": []}
    Minimized Input
    How do we generate more failure inducing inputs?


    View Slide

23. {"": }
    Abstract Input
    {"": [343,{},44998]}
    {"": {"xxy":44998, {"b":[1,2,3]}}}
    {"": {"ket":[], {"x":[],"y",[[],[1,2,3,455,6]]}}}
    {"":[{3243435656:"xy,zzzpqiu"},[{"c":[112]},{"d":[[]]},{}]]}
    ✘
    ✘
    ✘
    ✘
    Failure Inducing Inputs


    View Slide

24. {"": }
    Abstract Input
    Need Contextualization!
    Failure Inducing Inputs
    [{"": [1,2,3,4]}]
    {"pqr": {"": [1,2,3,4]}, "abc":[]}
    [{"xr": {"": [4]}, "abc":[[],[],[1243], true, false]}
    ✘
    ✘
    ✘


    View Slide

25. {"": }
    Abstract Input
    Language of Evocative Inputs


    View Slide

26. Language of Evocative Inputs
    {"": }
    Abstract Input
    Evocative Subtree


    View Slide

27. Language of Evocative Inputs
    {"": }
    Abstract Input
    Evocative Fragment


    View Slide

28. Language of Evocative Inputs
    {"": }
    Abstract Input
    Evocative Subtree is "":
    Root node of the tree fragment
    String representation of the tree fragment
    Evocative Fragment


    View Slide

29. Language of Evocative Inputs
    Evocative Subtree
    ::= `:`
    ::= `""`
    Evocative Pattern Grammar
    generate() = "":


    View Slide

30. Identify Reachable Nodes
    Evocative Subtree
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    ::= `:`
    ::= `""`


    View Slide

31. Identify Reachable Nodes
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    Basic idea:

    (1) Collect all rules that can reach the root node of abstract tree (here )
    Evocative Subtree
    ::= `:`
    ::= `""`


    View Slide

32. Identify Insertion Positions
    ::=

    ::=

    |
    |

    |

    ::= `{``}`

    ::=
    | `,`


    ::= `:`

    ::= `[``]`

    ::=
    | `,`
    Basic idea:

    (1) Insert one Nonterminal at a time.
    Evocative Subtree
    ::= `:`
    ::= `""`


    View Slide

33. Identify Insertion Positions
    ::=

    ::=

    |
    |

    |

    ::= `{``}`

    ::=
    | `,`
    | `,`
    | `,`

    ::= `:`

    ::= `[``]`

    ::=
    | `,`
    Basic idea:

    (1) Insert one Nonterminal at a time.
    Evocative Subtree
    ::= `:`
    ::= `""`


    View Slide

34. Identify Insertion Positions
    ::=

    ::=

    |
    |

    |

    ::= `{``}`

    ::=
    | `,`
    | `,`
    | `,`

    ::= `:`

    ::= `[``]`

    ::=
    | `,`
    Basic idea:

    (1) Insert one Nonterminal at a time.
    Evocative Subtree
    ::= `:`
    ::= `""`


    View Slide

35. Identify Insertion Positions
    ::=

    ::=

    |
    |

    |

    ::= `{``}`

    ::=
    | `,`
    | `,`
    | `,`

    ::= `:`

    ::= `[``]`

    ::=
    | `,`
    | `,`
    | `,`
    Basic idea:

    (1) Insert one Nonterminal at a time.
    Evocative Subtree
    ::= `:`
    ::= `""`


    View Slide

36. Reachable Grammar
    ::=

    ::=

    |
    |

    |

    ::= `{``}`

    ::=
    | `,`
    | `,`

    ::= `:`

    ::= `[``]`

    ::=
    | `,`
    | `,`
    Basic idea:

    (1) Insert one Nonterminal at a time.
    Evocative Subtree
    ::= `:`
    ::= `""`


    View Slide

37. Connect Reachable Grammar and Pattern Grammar
    ::=

    ::=

    |
    |

    |

    ::= `{``}`

    ::=
    | `,`
    | `,`

    ::= `:`
    | `:`

    ::= `[``]`

    ::=
    | `,`
    | `,`
    ::= `""`
    ::=

    ::=

    |
    |

    |

    ::= `{``}`

    ::=
    | `,`
    | `,`

    ::= `:`

    ::= `[``]`

    ::=
    | `,`
    | `,`
    ::= `:`
    ::= `""`
    is "":


    View Slide

38. Evocative Grammar
    ::=

    ::=

    |
    |

    |

    ::= `{``}`

    ::=
    | `,`
    | `,`

    ::= `:`
    | `:`

    ::= `[``]`

    ::=
    | `,`
    | `,`
    ::= `""`
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    {"": 100}
    {"": [343,{},44998]}
    [{"": {"xxy":44998, {"b":[1,2,3]}}},[],[]]
    {"_": {"ket":[], {"":[],"y",[[],[1,2,3,455,6]]}}}
    {".":[{3243435656:"xy,zzzpqiu"},[{"":[112]},{"d":[[]]},{}]]}
    [{"": [1,2,3,4]}]
    {"pqr": {"": [1,2,3,4]}, "abc":[]}
    [[1132],{"xx":[{6:"dafjli;y,zzzdfaiu"},[{"__":[1{}{}]},{"":[[444456]]},{}]]}
    generate()
    ✘
    ✘
    ✘
    ✘
    ✘
    ✘
    ✘
    ✘


    View Slide

39. Evocative Grammar
    ::=

    ::=

    |
    |

    |

    ::= `{``}`

    ::=
    | `,`
    | `,`

    ::= `:`
    | `:`

    ::= `[``]`

    ::=
    | `,`
    | `,`
    ::= `""`
    ::=

    ::=

    |
    |

    |

    | `true` | `false` | `null`

    ::= `{``}` | `{}`

    ::= | `,`

    ::= `:`

    ::= `[``]` | `[]`

    ::= | `,`

    ::= `"` `"` | `""`

    ::=

    ::= [A-Za-z0-9]

    ::=

    ::= |

    ::= [0-9]
    generate()
    Properties:

    - Generator: All generated inputs guaranteed to have

    at least one fragment inducing the given behavior

    - Validator: Will recognize all inputs with at least

    one fragment that can induce the given behavior

    - Produced grammar is context-free: Consumable

    by any grammar fuzzer.


    View Slide

40. What if there are more failure inducing patterns?

    where is "":
    if json.has_key_value(null):
    raise Exception()
    if json.has_key(""):
    raise Exception()

    where is : null


    View Slide

41. What if there are more failure inducing patterns?
    if json.has_key("") and json.has_key_value(null):
    raise Exception()

    where is "":
    is : null


    View Slide

42. What if there are more failure inducing patterns?
    if json.has_key("") and not json.has_key_value(null):
    raise Exception()

    where is "":
    is : null


    View Slide

43. What if there are more failure inducing patterns?
    if json.has_key(""):
    raise Exception()
    if json.has_key_value(null):
    raise Exception()

    where is "":
    is : null


    View Slide

44. { }
    Input Algebras: Patterns to Grammar

    where is "":
    is : null
    :=
    := ...
    :=
    := ...
    & =
    := and

    ...
    :=
    ...
    { }
    :=
    | &
    :=
    | =
    := and |||
    |||
    :=
    |


    View Slide

45. :=
    :=
    |
    := '[' ']'
    := '{' '}'
    :=
    | ','
    | ','
    :=
    | ','
    | ','
    := ':'
    | ':'
    :=
    := 'false' | 'true'
    | |
    |
    := '[]' | '[' ']'
    := '{}' | '{' '}'
    :=
    | ','
    :=
    | ','
    := ':'
    := 'false' | 'true'
    | |
    | |

    where is "":
    is : null
    {"": 100}
    {"": [343,{},44998]}
    [{"": {"xxy":44998, {"b":[1,2,3]}}},[],[]]
    {"_": {"ket":[], {"":[],"y",[[],[1,2,3,455,6]]}}}
    {".":[{3243435656:"xy,zzzpqiu"},[{"":[112]},{"d":[[]]},{}]]}
    [{"": [1,2,3,4]}]
    {"pqr": {"": [1,2,3,4]}, "abc":[]}
    [[1132],{"xx":[{6:"dafjli;y,zzzdfaiu"},[{"__":[1{}{}]},{"":[[444456]]},{}]]}
    generate()
    ✘
    ✘
    ✘
    ✘
    ✘
    ✘
    ✘
    ✘


    View Slide

46.
    where
    is "":
    is :null

    where
    is (())
    is / 0

    where
    is "0"
    is "0x"

    where
    is ";;"
    is "()"
    is "()"


    View Slide

47. Issue 386 from Rhino
    var A = class extends (class {}){};
    Issue 2937 from Closure
    const [y,y] = [];
    var {baz:{} = baz => {}} = baz => {};
    Issue 385 from Rhino
    {while ((l_0)){ if ((l_0)) {break;;var l_0; continue }0}}
    Issue 2842 from Closure
    = class extends (class {}){}
    var {<$Id1>:{} = <$Id1> => {}} ;
    const [<$Id1>,<$Id1>] = []
    {while ((<$Id1>)){ if ((<$Id1>)) {break;;var <$Id1>; continue }0}}


    View Slide

48. where
    is = class extends (class {}){}
    is {while ((<$Id1>)){ if ((<$Id1>)) {break;;var <$Id1>; continue }0}}
    is var {<$Id2>:{} = <$Id2> => {}} ;
    is const [<$Id3>,<$Id3>] = []
    Input Algebras






    View Slide

49. Input Algebras: Beyond fuzzing
    • Validating inputs

    • Supercharged recognizers (alternative to regex)

    • Semantic code search

    • Generating data structures

    • Easily specified access control lists


    View Slide

50. https://rahul.gopinath.org
    DOI:10.5281/zenodo.4456296


    View Slide
