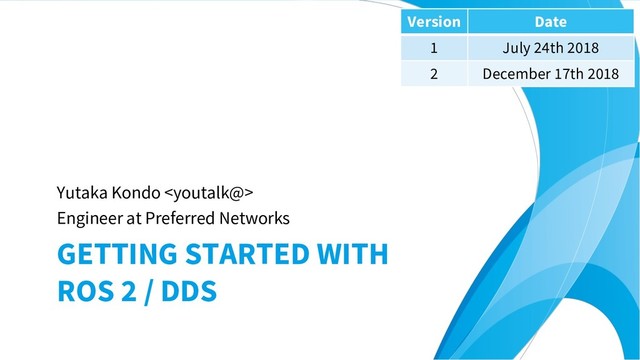

  1. Yutaka Kondo
    Engineer at Preferred Networks
    GETTING STARTED WITH
    ROS 2 / DDS
    Version Date
    1 July 24th 2018
    2 December 17th 2018

    View full-size slide

  2. Agenda
    1. Background
    2. ROS
    3. ROS features
    4. ROS 2 and DDS
    5. ROS 2 additional features
    6. Conclusion
    2

    View full-size slide

  3. Robot software platforms
    • To prevent re-inventing the wheels
    – Reuse software as a module
    – Easily manage inter-process and inter-machine software
    3
    OpenRTM
    CORBA-based architecture
    http://openrtm.org
    OROCOS
    Mainly for kinematics and dynamics
    http://www.orocos.org
    YARP
    Transport-neutral communication
    http://www.yarp.it
    ROS
    Almost everything you need
    http://www.ros.org

    View full-size slide

  4. ROS (Robot Operating System)
    ROS provides libraries and tools to help software developers
    create robot applications.
    It provides hardware abstraction, device drivers, libraries,
    visualizers, message-passing, package management, and
    more. ROS is licensed under an open source, BSD license.
    4
    http://wiki.ros.org
    (accessed 2018-07-24)

    View full-size slide

  5. 5
    OSRF. “ROS 8 Year Montage.” Vimeo, Inc.
    https://vimeo.com/146183080, (accessed 2018-07-24).

    View full-size slide

  6. Message-passing
    • Publisher/Subscriber transport
    – For one way sequential data
    • RPC (Remote Procedure Call)
    – For round-trip single data
    • IDL (Interface definition language)
    6
    Node A Node B
    Topic X
    Request
    Response
    Service Y
    Publish
    Subscribe

    View full-size slide

  7. Visualizers
    7
    rqt
    Qt-based framework for GUI
    rviz
    3D visualization tool
    WillowGarageVideo. “rviz.” YouTube, LLC.
    https://youtu.be/i--Sd4xH9ZE, (accessed 2018-07-24).

    View full-size slide

  8. Hardware abstraction
    • Mobile robots
    – SLAM
    – Global / local planners
    – Tele-op commands
    • Manipulators
    – Collision avoidance
    – FK / IK
    – Position / velocity / effort control
    – Real-time control support
    8
    WillowGarageVideo. “ROS Navigation.” YouTube, LLC.
    https://youtu.be/qziUJcUDfBc, (accessed 2018-07-24).
    moveitrobot. “MoveIt! Montage 2017.” YouTube, LLC.
    https://youtu.be/0og1SaZYtRc, (accessed 2018-07-24).

    View full-size slide

  9. Package management
    • catkin
    – Meta build system for ROS packages
    – catkin_tools: CLI to create, build, test, and install package
    • bloom
    – Release automation tool
    – Build artifacts are generated from catkinized package source
    9

    View full-size slide

  10. And more
    • Gazebo
    – Dynamics simulation
    – Advanced 3D graphics
    – Sensors and noise
    – TCP/IP transport
    – Cloud simulation
    10
    chapulinaaa. “Gazebo Compilation 2016.” YouTube, LLC.
    https://youtu.be/R3xUKYcG_bc, (accessed 2018-07-24).

    View full-size slide

  11. Use cases
    # of
    robots
    Computation
    resource
    Real-time
    control
    Network
    quality
    Applications
    Current
    ROS
    Single
    robot
    Workstation-
    class
    Special-
    purpose
    manner
    Excellent
    connectivity
    Research
    11
    Future
    ROS
    Multiple
    robots
    Small
    embedded
    platforms
    Inter-
    process and
    inter-
    machine
    Loss and/or
    delay
    Production
    environments

    View full-size slide

  12. ROS 1 and 2 architectures
    12
    ROSTCP
    transport
    ROS master
    C++
    client
    library
    Python
    2 client
    library
    Lisp
    client
    library
    User node
    Robot

    DDS abstraction
    C common library
    C++ client
    library
    Python 3
    client library
    Java client
    library
    User node
    DDS vendor
    A impl.

    DDS vendor B
    impl.
    DDS vendor
    C impl.

    Robot
    ROS 1 ROS 2

    View full-size slide

  13. DDS (Data Distribution Service)
    • ROS-like pub/sub transport and RPC
    • Technical credibility
    • Several vendors and licensing
    • QoS (Quality of Service) support
    13
    Reliability History policy Durability
    Best effort
    Keep last
    N samples
    Transient local
    Reliable Keep all Volatile

    View full-size slide

  14. ROS 2 Ardent
    Multi platform support
    • ROS 2 is officially supported on
    – Ubuntu 18.04
    – Windows 10 with Visual Studio 2017
    – macOS 10.12 (Sierra)
    • It also (unofficially) works on
    macOS 10.14 (Mojave)
    14
    RViz2 on macOS

    View full-size slide

  15. ROS 2 Ardent
    Intra-process communication
    • ROS 1
    – Special manner (Nodelet)
    • ROS 2
    – std::unique_ptr for zero-copy and ownership transfer
    – Executor pattern
    15

    View full-size slide

  16. ROS 2 Ardent
    Lifecycle state machine
    • ROS 1
    – Only dead or alive
    – Busy loop to wait until node activation
    • ROS 2
    – 4 states with error handling
    16
    https://roscon.ros.org/2017/
    presentations/ROSCon%20201
    7%20ROS2%20Vision.pdf
    − State change is notified by topic

    View full-size slide

  17. ROS 2 Ardent
    Quality of service
    • QoS profiles
    – Defined profiles
    – Or you define one
    17
    Profile Reliability History policy Durability
    Services Reliable
    Keep last 10
    samples
    Volatile
    Sensor
    data
    Best effort
    Keep last 5
    samples
    Volatile
    Paramet
    ers
    Reliable
    Keep last 1000
    samples
    Volatile

    View full-size slide

  18. ROS 2 Ardent
    Co-existence with ROS 1
    • Bridge communication
    – Only message and service are
    available at compile time of
    the bridge
    18
    ROS 1 master
    ROS 1 bridge
    ROS 1 node
    ROS 2 node

    View full-size slide

  19. ROS 2 Bouncy
    Colcon: new build tool
    • Ament (build tool of ROS 2 Ardent) was deprecated...
    • Colcon can build
    – ROS 2 packages
    $ colcon build $ ament build --isolated
    – and also ROS 1 packages
    $ colcon build $ catkin_make_isolated --install
    19

    View full-size slide

  20. ROS 2 Bouncy
    New launch system
    • Launch system is
    configured by Python
    instead of XML
    $ ros2 launch
    demo_nodes_cpp
    add_two_ints.launch.py
    • XML configuration will
    be coming back
    20

    View full-size slide

  21. ROS 2 Bouncy
    Validation and certification
    • ROS 1
    – Unsecure raw data transmission
    • ROS 2
    – Authentication and pub/sub permission
    – Data encryption by DDS-Security
    21

    View full-size slide

  22. ROS 2 Crystal
    First class support “Action”
    • In ROS 1, action is implemented
    – using a set of topics
    • In ROS 2, action is implemented
    – using a combination of asynchronous services and topics
    – under separated namespace
    22
    Action
    client
    Action
    server
    Send/cancel goal
    Get result
    Feedback
    Status
    Topic
    Service

    View full-size slide

  23. ROS 2 Crystal
    rosbag2
    • Storage format plugin architecture
    – By default rosbag2 uses SQLite3 database
    • Serialization format plugin architecture
    – By default rosbag2 uses CDR format
    – CDR: https://www.omg.org/cgi-bin/doc?formal/02-06-51
    • ros2 command line interface
    $ ros2 bag record/play/info
    23

    View full-size slide

  24. ROS 2 Crystal
    Gazebo integration
    • Gazebo can be used independently of ROS 1 and ROS 2
    – Not all functionality from ROS 1 has been ported to ROS 2 yet
    – https://github.com/ros-simulation/gazebo_ros_pkgs/issues/512
    • gazebo_ros_pkgs
    – gazebo_dev: cmake configuration
    – gazebo_msgs: Gazebo/ROS 2 data structures
    – gazebo_ros: convenient C++ classes and functions
    – gazebo_plugins: plugins exposing sensors and other features
    24

    View full-size slide

  25. Conclusion
    • ROS is de facto standard for robot software platform
    • ROS 2 aims both for research and commercial use
    • Core architecture of ROS 2 is almost completed
    • It’s time to consider migration from ROS 1
    – navigation2: https://github.com/ros-planning/navigation2
    – image_pipeline: https://github.com/ros-perception/image_pipeline/tree/ros2
    – …
    • For more information in Japanese, see also
    https://ros.youtalk.jp
    25

    View full-size slide
