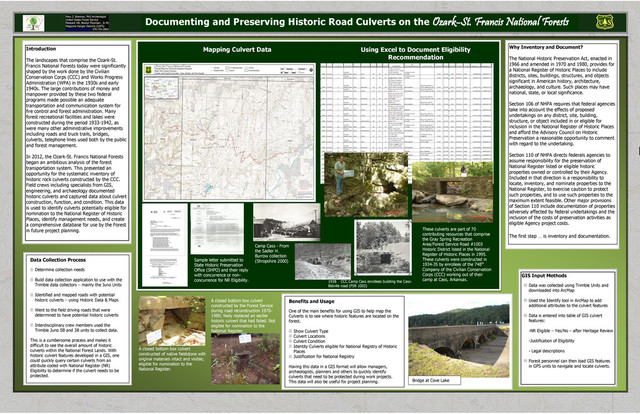

Documenting and Preserving Historic Road Culverts by Tina Rotenbury

Documenting and Preserving Historic Road Culverts by Tina Rotenbury

The landscapes that comprise the Ozark-St. Francis National Forests today were significantly shaped by the work done by the Civilian Conservation Corps (CCC) and Works Progress Administration (WPA) in the 1930's and early 1940's. The large contributions of money and manpower provided by these two federal programs made possible an adequate transportation and communication system for fire control and forest administration. Many forest recreational facilities and lakes were constructed during the period 1933-1942, as
were many other administrative improvements including roads and truck trails, bridges, culverts, telephone lines used both by the public and forest management.

More Decks by Arkansas GIS Users Forum Conference

Other Decks in Research

Transcript

  1. Why Inventory and Document? The National Historic Preservation Act, enacted
