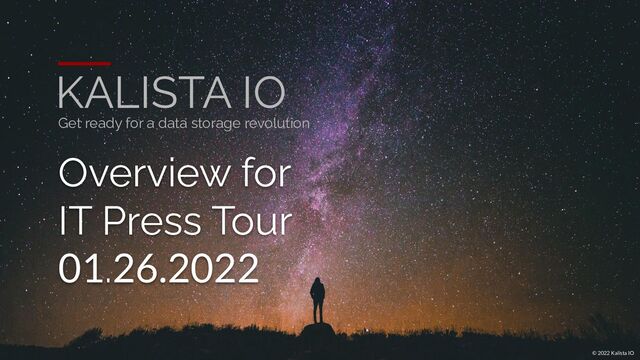

1. KALISTA IO Overview for IT Press Tour 01.26.2022 Get ready for a data storage revolution © 2022 Kalista IO
2. Founder of KALISTA IO. Previously, MSFT, WDC and various startups. Created one of the first HM-SMR storage system solutions. hselin@kalista.io https:/ /linkedin.com/in/alberthchen Albert Chen © 2022 Kalista IO Introduction
3. Problems/opportunities © 2022 Kalista IO
4. Storage devices have a compatibility and performance problem © 2022 Kalista IO
5. New storage devices are not compatible with current applications and OS. • Shingled magnetic recording • Energy assisted magnetic recording • Multi-actuator • Variable capacity • Large sector © 2022 Kalista IO
6. © 2022 Kalista IO
7. Hard disk capacity is increasing, but not performance, and maintaining consistent performance is hard. • Declining IO density (IOPS/GB) • Contention • Long tail latency • Total cost of ownership © 2022 Kalista IO
8. © 2022 Kalista IO
9. “Hard disk is the worst form of storage device, except for all the others.”1 Winston Leonard Spencer-Churchill © 2022 Kalista IO
10. Our vision © 2022 Kalista IO
11. Phalanx Storage System Enable applications to use next gen storage devices without modification Form device friendly commands that enable consistent, predictable performance at every scale © 2022 Kalista IO
12. © 2022 Kalista IO
13. How it works © 2022 Kalista IO
14. Log structured data layout © 2022 Kalista IO
15. • Support SMR natively • Minimize seeks and contention (increase IO density) • Evenly distribute wear across available capacity (prevent hotspots and reduce tail latency) © 2022 Kalista IO
16. Distribute workload across devices © 2022 Kalista IO
17. • Evenly distribute workloads across available devices (system wide wear leveling) • Support variable capacity devices © 2022 Kalista IO
18. Reduce read contention © 2022 Kalista IO
19. Scale performance with capacity © 2022 Kalista IO
20. Phalanx keeps devices level headed © 2022 Kalista IO
21. Long tail latency with legacy stack2 Curtailed with Phalanx3 © 2022 Kalista IO
22. 4.8x lower latency at 99.99 percentile 4KB write modifications 600,000 samples © 2022 Kalista IO
23. Support existing interfaces © 2022 Kalista IO
24. Current SMR compatibility solutions have dependencies and limitations Phalanx is kernel agnostic and requires no application changes © 2022 Kalista IO
25. No application changes No kernel modifications Just works © 2022 Kalista IO
26. One line to SMR. ] docker run --privileged -v /mnt:/mnt:rshared -v /md:/md:shared phalanx -d /dev/sdc -bm ▊ © 2022 Kalista IO
27. Easy to deploy Simple to operate Runs everywhere Deploy and operate Phalanx using existing orchestration and provisioning frameworks such as Kubernetes® and vSphere®. Phalanx is designed to fit within your current workflow and environment. © 2021 Kalista IO | Proprietary © 2022 Kalista IO
28. No storage silos. Unify and simplify — Phalanx supports both conventional as well as zoned devices. So you don’t have to worry about mixing and matching devices. © 2022 Kalista IO
29. © 2022 Kalista IO
30. Use cases © 2022 Kalista IO
31. Phalanx enables HM-SMR devices to work with applications and environments beyond cold archival storage. © 2022 Kalista IO
32. © 2022 Kalista IO
33. Phalanx + SMR = Going beyond blob storage © 2022 Kalista IO
34. Insert.IntVector (64 threads, no multi-db) -3% op/s Insert.UniqueIndex (64 threads, no multi-db) -1% op/s Update.UniqueIndex (64 threads, no multi-db) -1% op/s Update.MatchedElementWithinArray (64 threads, no multi-db) +10% op/s Queries.SortByArrayOfNestedDocuments (64 threads, no multi-db) +6% op/s Queries.SortByArrayOfScalars (64 threads, no multi-db) -0.1% op/s MongoDB (mongo-perf)4 © 2022 Kalista IO
35. Minio (S3-bench)5 Threads 64 Object size 1 MB Runtime 1800 s Write average IOPS +60% Read average IOPS +35% © 2022 Kalista IO
36. Phalanx + SMR + compute = Enabling innovation © 2022 Kalista IO
37. Linux (version 5.12.5)6 (C, GCC version 7.5.0, make -j 16) +45 s NGINX (version 1.17.8)6 (C, GCC version 7.5.0, make -j 16) +3.7 s Hadoop (version 3.3.0)7 (Java, openjdk version 1.8.0_222) +4 m Software compilation © 2022 Kalista IO
38. 16x more IOPS with fio random write8 19% faster throughput with Hadoop TestDFSIO read9 58% higher IOPS with Ceph Rados write bench10 10x better performance consistency with Ceph Rados write bench10 © 2022 Kalista IO
39. Phalanx + SMR + crypto = HODLing your XCH/FIL © 2022 Kalista IO
40. All SMR, all the time. © 2022 Kalista IO
41. Single storage system for both plotting and farming © 2022 Kalista IO
42. 10%-30% more plots/sectors compared to conventional system © 2022 Kalista IO
43. Doing more with less. Using fewer drives means fewer component failures and lower maintenance costs © 2022 Kalista IO
44. Reduces the amount of space and energy consumed during farming/mining. © 2022 Kalista IO
45. What’s next? © 2022 Kalista IO
46. Intelligent storage • Self-optimizing data placement & IO prioritization • Proactive management of device health & performance • Data services that automatically index and tag stored data © 2022 Kalista IO
47. http:/ /www.kalista.io @kalista.io hselin@kalista.io Contact "There is nothing impossible to him who will try." — Alexander © 2022 Kalista IO
48. Notes and references 1. It is a little known fact that PM Churchill said this to Alan Turing after learning the Turing machine uses such antiquated technology as “infinite tape” for storage. 2. Testing conducted by Kalista IO in July 2020 using XFS file system with Linux kernel 5.4.0-42-generic, and Intel® Core™ i7-4771 CPU 3.50GHz with 16GiB DDR3 Synchronous 2400 MHz RAM, and Western Digital Ultrastar DC HC530 CMR drive connected through SATA 3.2, 6.0 Gb/s interface. Write bench created a single 1GB file and executed 600,000 write commands each overwriting the first 64KB region of the file to capture latency values. 3. Testing conducted by Kalista IO in July 2020 using preproduction Olympus (Phalanx) software with Linux kernel 5.4.0-42-generic, and Intel® Core™ i7-4771 CPU 3.50GHz with 16GiB DDR3 Synchronous 2400 MHz RAM, and Western Digital Ultrastar DC HC620 host managed SMR drives connected through SATA 3.2, 6.0 Gb/s interface. Write bench created a single 1GB file and executed 600,000 write commands each overwriting the first 64KB region of the file capture latency values. © 2022 Kalista IO
49. Notes and references 4. Testing conducted by Kalista IO in May 2021 using production Phalanx software with Linux kernel 5.4.0-42-generic, and Intel Core i7-4771 CPU 3.50GHz with 16GiB DDR3 Synchronous 2400 MHz RAM, and HM-SMR/CMR drives connected through SATA 3.2, 6.0 Gb/s interface. Tested with MongoDB version 4.4.6, Python version 2.7.17, and mong-perf commit 19221af7d8d9600d3e088d14ebb91e500a6c61dc on master branch. 5. Testing conducted by Kalista IO in May 2021 using production Phalanx software with Linux kernel 5.4.0-73-generic, and Intel Core i7-4771 CPU 3.50GHz with 16GiB DDR3 Synchronous 2400 MHz RAM, and HM-SMR/CMR drives connected through SATA 3.2, 6.0 Gb/s interface. Tested with Minio RELEASE.2021-04-18T19-26-29Z, and S3-benchmark version 3.0. 6. Testing conducted by Kalista IO in May 2021 using production Phalanx software with Linux kernel 5.4.0-96-generic, and Intel Core i7-4771 CPU 3.50GHz with 16GiB DDR3 Synchronous 2400 MHz RAM, and HM-SMR/CMR drives connected through SATA 3.2, 6.0 Gb/s interface. © 2022 Kalista IO
50. Notes and references 7. Testing conducted by Kalista IO in May 2021 using production Phalanx software with Linux kernel 5.0.0-25-generic, and Intel Core i7-4771 CPU 3.50GHz with 16GiB DDR3 Synchronous 2400 MHz RAM, and HM-SMR/CMR drives connected through SATA 3.2, 6.0 Gb/s interface. 8. Testing conducted by Kalista IO in August 2019 using preproduction Phalanx software with Linux kernel 4.18.0-25-generic, and Intel Core i7-4771 CPU 3.50GHz with 16GiB DDR3 Synchronous 2400 MHz RAM, and Western Digital Ultrastar DC HC620 host managed SMR and Ultrastar DC HC530 CMR drives connected through SATA 3.2, 6.0 Gb/s interface. Tested with Flexible I/O tester (fio) version 3.14-11-g308a. Random write bench ran for 1800 seconds with 4KB block and 200GB file size, 64 concurrent threads each with queue depth of 1. Executed 3 times to capture average and standard deviation IOPS values. © 2022 Kalista IO
51. Notes and references 9. Testing conducted by Kalista IO in August 2019 using preproduction Phalanx software with Linux kernel 5.0.0-25-generic, and Intel® Core™ i7-4771 CPU 3.50GHz with 16GiB DDR3 Synchronous 2400 MHz RAM, and Western Digital Ultrastar DC HC620 host managed SMR and Ultrastar DC HC530 CMR drives connected through SATA 3.2, 6.0 Gb/s interface. Tested with Apache Hadoop version 3.2.0 in single node pseudodistributed mode with single block replica, and TestDFSIO version 1.8 on OpenJDK version 1.8.0_222. TestDFSIO read benchmark ran with 32 files, 16GB each for a 512GB dataset. Executed 3 times to capture average and standard deviation throughput values. © 2022 Kalista IO
52. Notes and references 10. Testing conducted by Kalista IO in August 2019 using preproduction Phalanx software with Linux kernel 5.0.0-25-generic, and Intel Core i7-4771 CPU 3.50GHz with 16GiB DDR3 Synchronous 2400 MHz RAM, and Western Digital Ultrastar DC HC620 host managed SMR and Ultrastar DC HC530 CMR drives connected through SATA 3.2, 6.0 Gb/s interface. Tested with Ceph version 13.2.6 Mimic in single node mode with single object replica. Rados write bench ran with 4MB object and block (op) size with 16 concurrent operations for 1800 seconds to capture average and standard deviation IOPS values. © 2022 Kalista IO
53. Additional information 1. KALISTA IO and Western Digital joint solution brief: Distributed Storage System with Host-Managed SMR HDDs https:/ /www.kalista.io/resources/joint-solution-briefs/KalistaIO-WDC-Joint-Solution-Brief.pdf 2. Addressing Shingled Magnetic Recording drives with Linear Tape File System https:/ /www.snia.org/sites/default/files/files2/files2/SDC2013/presentations/Hardware/Al bertChenMalina_Addressing_Shingled_Magnetic_Recording.pdf 3. Host Managed SMR https:/ /www.snia.org/sites/default/files/SDC15_presentations/smr/AlbertChen_JimMalina_ Host_Managed_SMR_revision5.pdf 4. libzbc https:/ /github.com/hgst/libzbc © 2022 Kalista IO
54. Additional information 5. Linux SCSI Generic (sg) driver http://sg.danny.cz/sg/index.html 6. dm-zoned https://www.kernel.org/doc/html/latest/admin-guide/device-mapper/dm-zoned.html 7. Flash-Friendly File System (F2FS) https://www.kernel.org/doc/Documentation/filesystems/f2fs.txt 8. Zoned storage https://zonedstorage.io 9. Linux kernel changes https://kernelnewbies.org/LinuxVersions © 2022 Kalista IO
55. Additional information 10. Another Layer of Indirection https:/ /www.linkedin.com/pulse/another-layer-indirection-albert-chen/ 11. Phalanx Flexible I/O tester (fio) benchmarks https:/ /www.kalista.io/resources/performance/phalanx-fio-benchmarks.pdf 12. Phalanx Hadoop TestDFSIO benchmarks https:/ /www.kalista.io/resources/performance/phalanx-hadoop-benchmarks.pdf 13. Phalanx Ceph OSD and Rados benchmarks https:/ /www.kalista.io/resources/performance/phalanx-ceph-benchmarks.pdf © 2022 Kalista IO
