Communication Patterns Between Microservices

Communication between microservices is one of the key architectural decisions in a distributed system.

This presentation explores the main patterns used for communication between microservices and the trade-offs associated with each approach. It begins with the fundamental choice between synchronous Remote Procedure Invocation (RPI), using technologies such as REST and gRPC, and asynchronous messaging through queues and publish/subscribe systems.

The slides examine how synchronous dependency chains affect latency and availability, how message brokers reduce temporal coupling, and how commands, events, and asynchronous replies support distributed workflows.

Additional patterns covered include API Gateway, Backend for Frontend (BFF), client-side and server-side service discovery, and essential reliability mechanisms such as timeouts, retries, circuit breakers, bulkheads, idempotency, and Dead-Letter Queues.

The presentation concludes with a practical hybrid architecture that combines an API Gateway at the edge, synchronous calls where immediate responses are required, and asynchronous events for independent processing, side effects, and fan-out.

Topics covered:
• Remote Procedure Invocation (RPI)
• REST and gRPC
• Asynchronous Messaging
• Queues and Publish/Subscribe
• Commands and Events
• API Gateway
• Backend for Frontend (BFF)
• Service Discovery
• Reliability Patterns
• Hybrid Microservices Architecture

You can find the video at https://youtu.be/t7RCQ_t6A7k

You can find the post that summarizes this meetup at https://lifemichael.com/en/communication-patterns-between-microservices/

You can find the catalog of the professional seminars delivered by life michael at https://www.lifemichael.com/seminars/lifemichael_seminars_catalog.pdf

Transcript

1. Communication Patterns Between Microservices Haim Michael life michael blog.lifemichael.com
2. My name is Haim Michael. I live in Tel Aviv, and I am the CEO & founder of Zindell Technologies, Ltd. I have been into programming since my childhood. I have extensive experience with Java (30+ yrs), JavaScript (30+ yrs), C++ (30+ yrs), C# (15+ yrs), TypeScript (12+ yrs), Python (15+ yrs), PHP (20+ yrs), Scala (16+ yrs), and Kotlin (12+ yrs). blog.lifemichael.com Haim Michael
3. Zindell Technologies zindell.com nana.events xtremej.dev xtremejs.dev lifemichael.com prompo.pro xtremepython.dev xtremeai.dev jacado.games ngager.pro zindrex.com blog.lifemichael.com Zindell Technologies
4. My passion lies in teaching and lifelong learning. I continuously learn and evolve. Learning takes place in various forms. Learning is not limited to the formal educational systems. You thrive when you explore topics that genuinely interest you. blog.lifemichael.com Passion for Learning
5. B.Sc. in Economics & Accounting MBA (Information Systems Management) Teaching advanced topics in software development at leading academic institutions. Tel-Aviv University Teaching Today Holon Institute of Technology Bar Ilan University Ben Gurion University Reichman University Tel-Aviv University Technion Institute of Technology blog.lifemichael.com My Academic Background

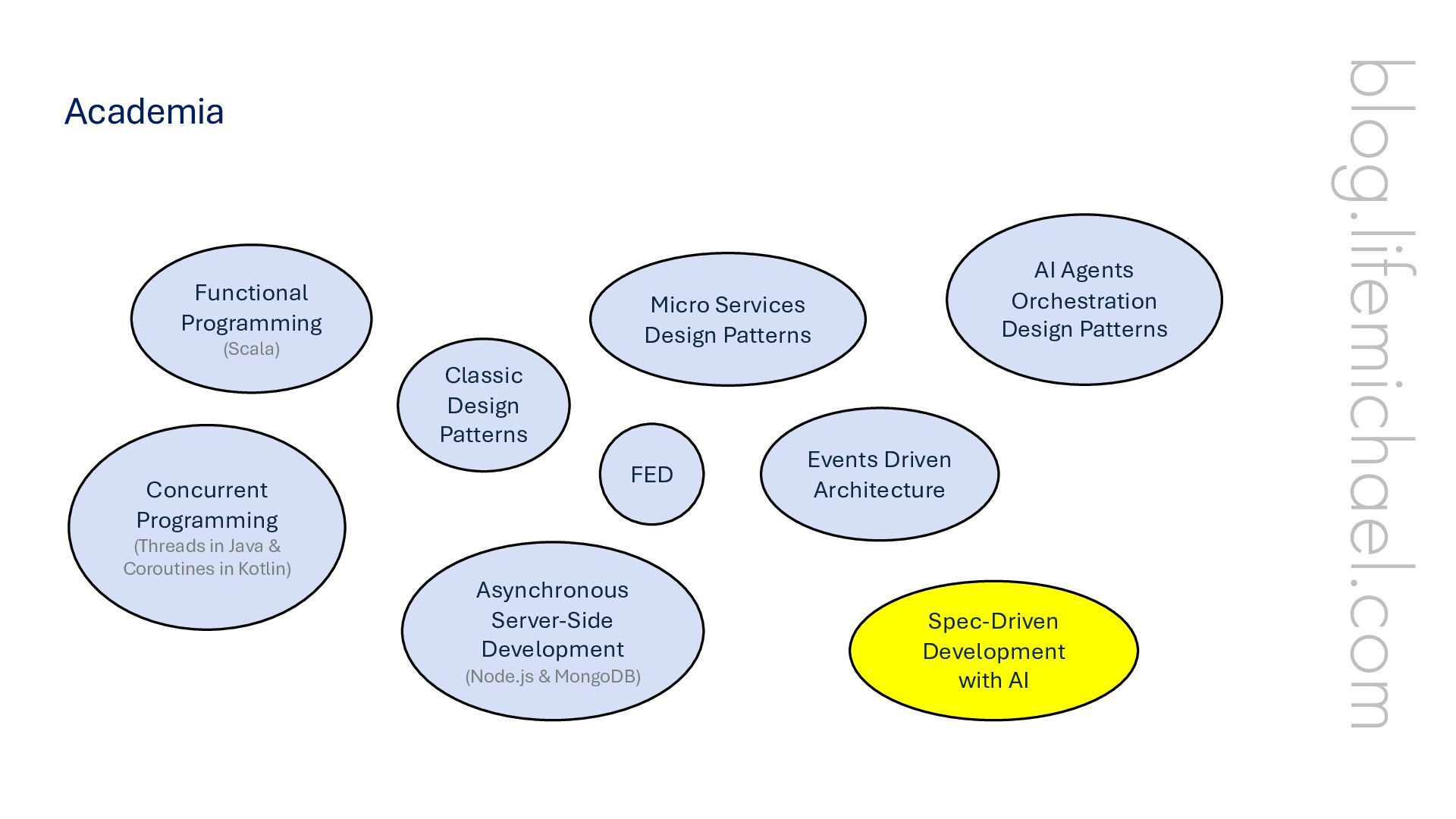

6. Functional Programming Micro Services Design Patterns (Scala) Classic Design Patterns FED Concurrent Programming (Threads in Java & Coroutines in Kotlin) AI Agents Orchestration Design Patterns Asynchronous Server-Side Development (Node.js & MongoDB) Events Driven Architecture Spec-Driven Development with AI blog.lifemichael.com Academia
7. Teaching Micro Economic courses in the Open University blog.lifemichael.com My Books
8. blog.lifemichael.com My Books
9. blog.lifemichael.com My Books
10. Courses (in Hebrew) @ https://academy.lifemichael.com/he blog.lifemichael.com My Courses
11. More Than 25 Online Courses on Udemy blog.lifemichael.com My Courses
12. Jacado - More Than 200 Games for Mobile Telephones – Years 2001- 2008 Zindell - Building AI Aligned Companies – Years 2026 - … nana.events prompo.ai zindrex.com ngager.pro jacado.games blog.lifemichael.com Passion to Build

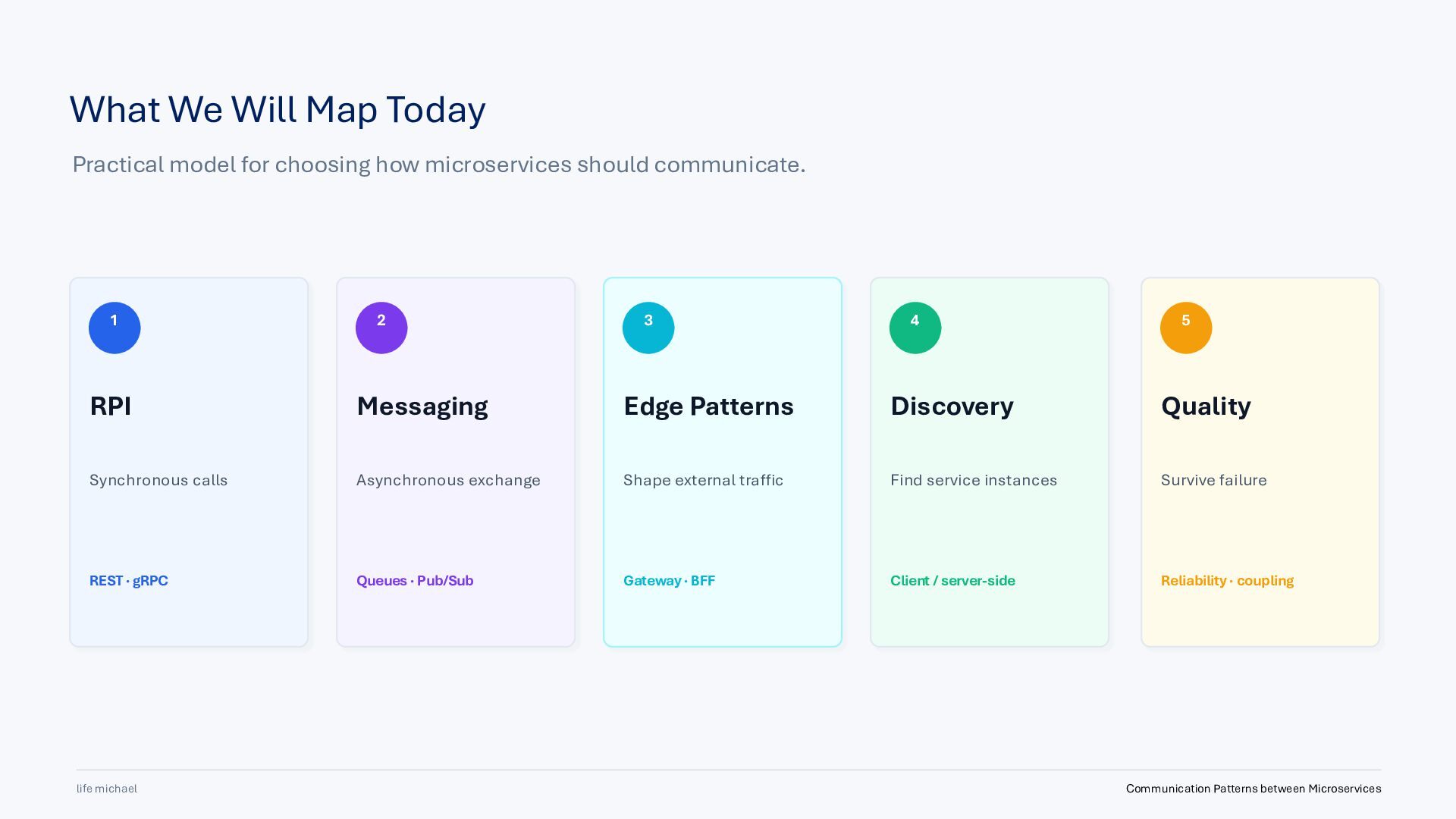

13. What We Will Map Today Practical model for choosing how microservices should communicate. 1 2 3 4 5 RPI Messaging Edge Patterns Discovery Quality Synchronous calls Asynchronous exchange Shape external traffic Find service instances Survive failure REST · gRPC Queues · Pub/Sub Gateway · BFF Client / server-side Reliability · coupling life michael Communication Patterns between Microservices

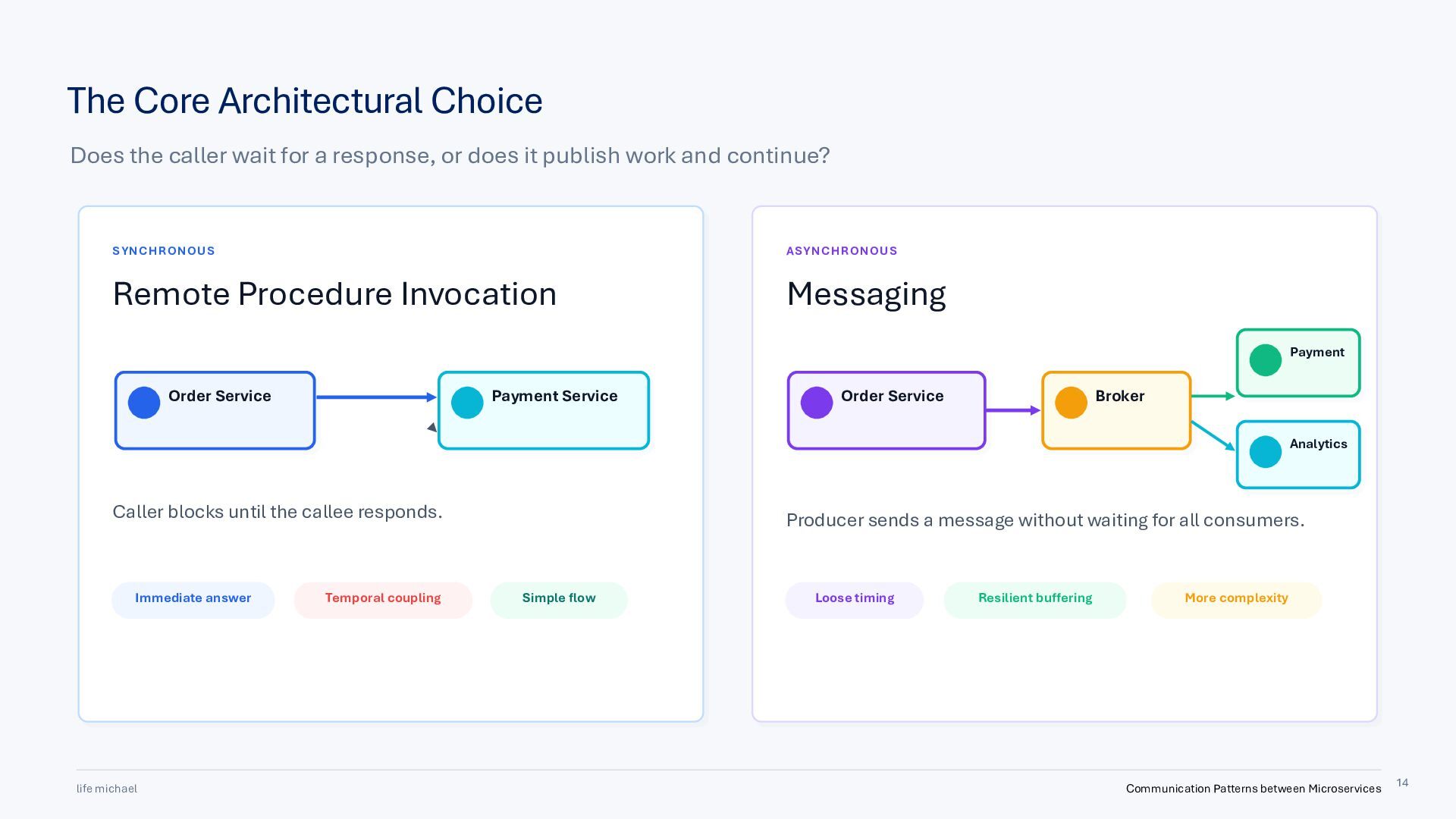

14. The Core Architectural Choice Does the caller wait for a response, or does it publish work and continue? S YNCHRONOUS AS YNCHRONOUS Remote Procedure Invocation Messaging Payment Order Service Payment Service Order Service Broker Analytics Caller blocks until the callee responds. Immediate answer life michael Temporal coupling Producer sends a message without waiting for all consumers. Simple flow Loose timing Resilient buffering More complexity Communication Patterns between Microservices 14

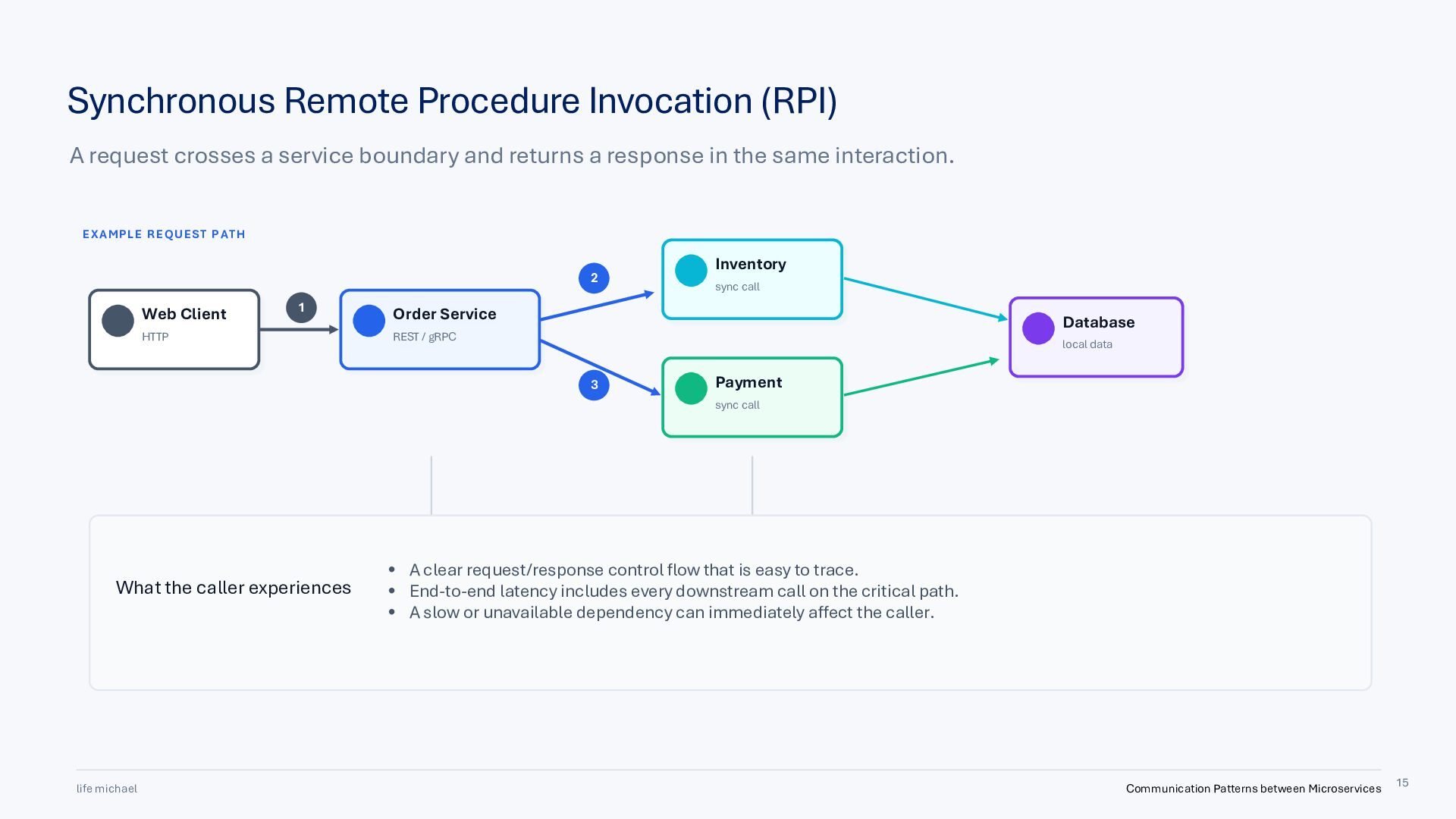

15. Synchronous Remote Procedure Invocation (RPI) A request crosses a service boundary and returns a response in the same interaction. EX AMPL E REQUES T PAT H 2 Web Client 1 HTTP Inventory sync call Order Service Database REST / gRPC local data 3 Payment sync call What the caller experiences life michael • A clear request/response control flow that is easy to trace. • End-to-end latency includes every downstream call on the critical path. • A slow or unavailable dependency can immediately affect the caller. Communication Patterns between Microservices 15

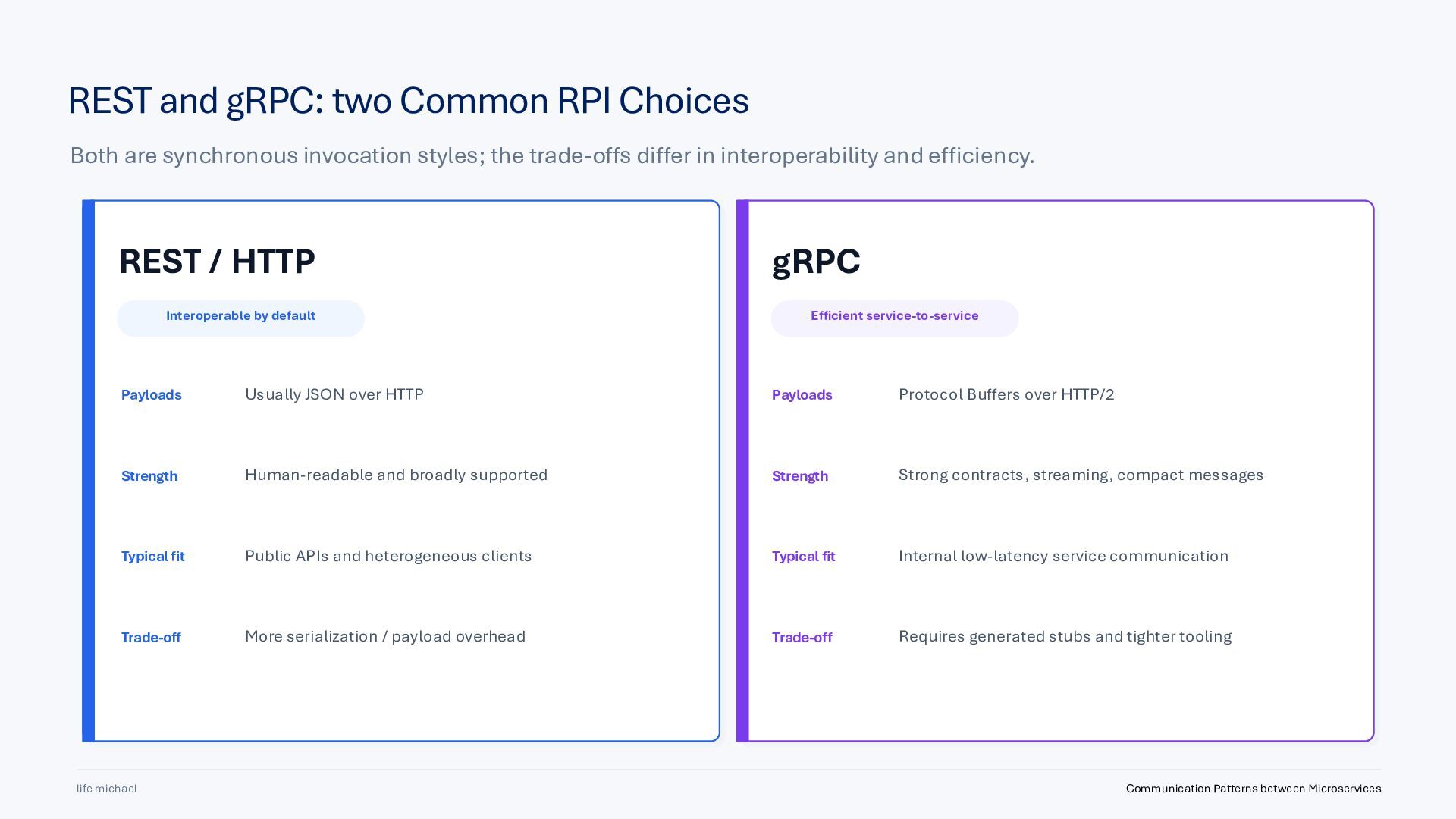

16. REST and gRPC: two Common RPI Choices Both are synchronous invocation styles; the trade-offs differ in interoperability and efficiency. REST / HTTP Interoperable by default gRPC Efficient service-to-service Payloads Usually JSON over HTTP Payloads Protocol Buffers over HTTP/2 Strength Human-readable and broadly supported Strength Strong contracts, streaming, compact messages Typical fit Public APIs and heterogeneous clients Typical fit Internal low-latency service communication Trade-off More serialization / payload overhead Trade-off Requires generated stubs and tighter tooling life michael Communication Patterns between Microservices

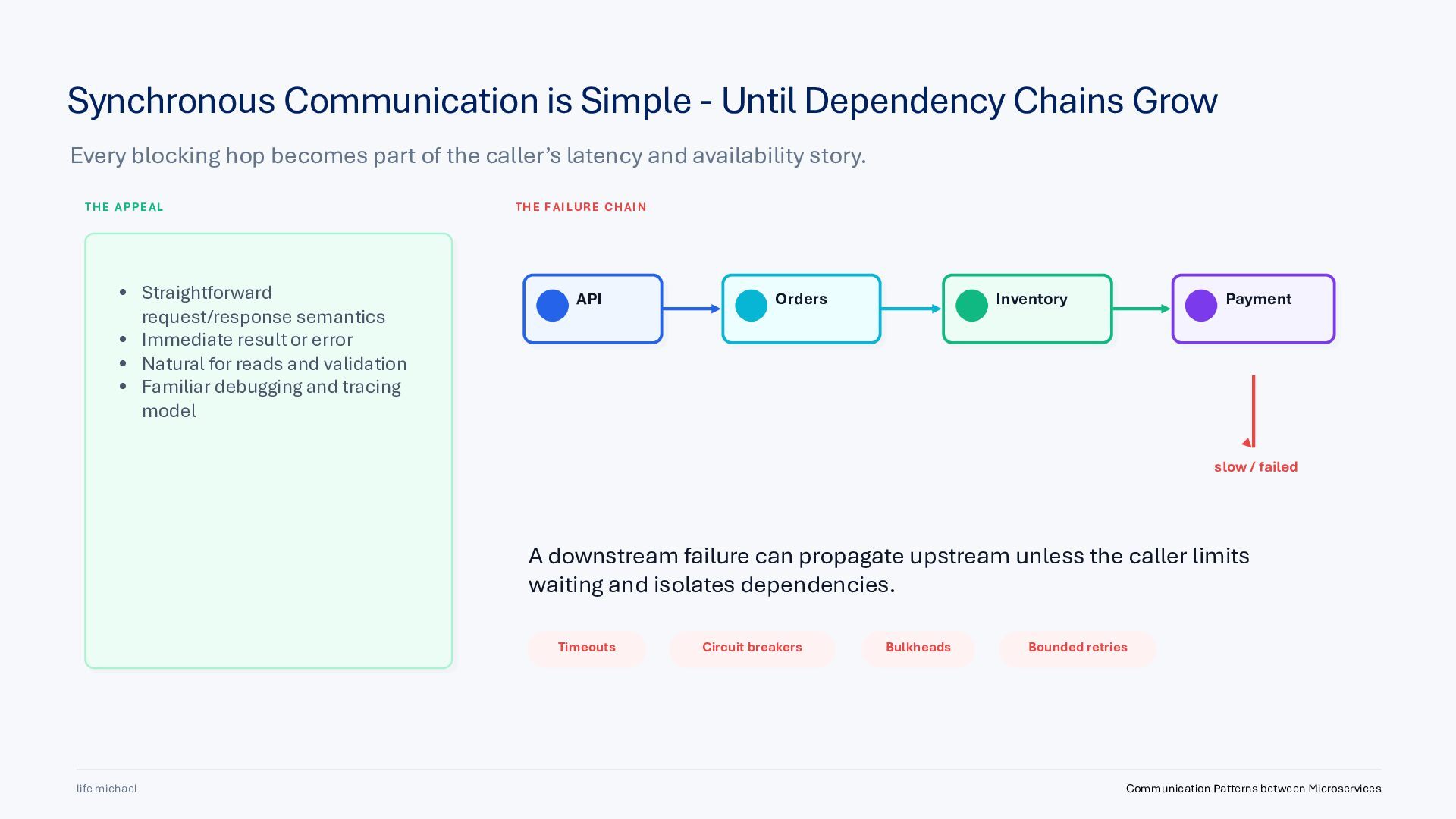

17. Synchronous Communication is Simple - Until Dependency Chains Grow Every blocking hop becomes part of the caller’s latency and availability story. T HE APPEAL • Straightforward request/response semantics • Immediate result or error • Natural for reads and validation • Familiar debugging and tracing model T HE F AI L URE CHAI N API Orders Inventory Payment slow / failed A downstream failure can propagate upstream unless the caller limits waiting and isolates dependencies. Timeouts life michael Circuit breakers Bulkheads Bounded retries Communication Patterns between Microservices

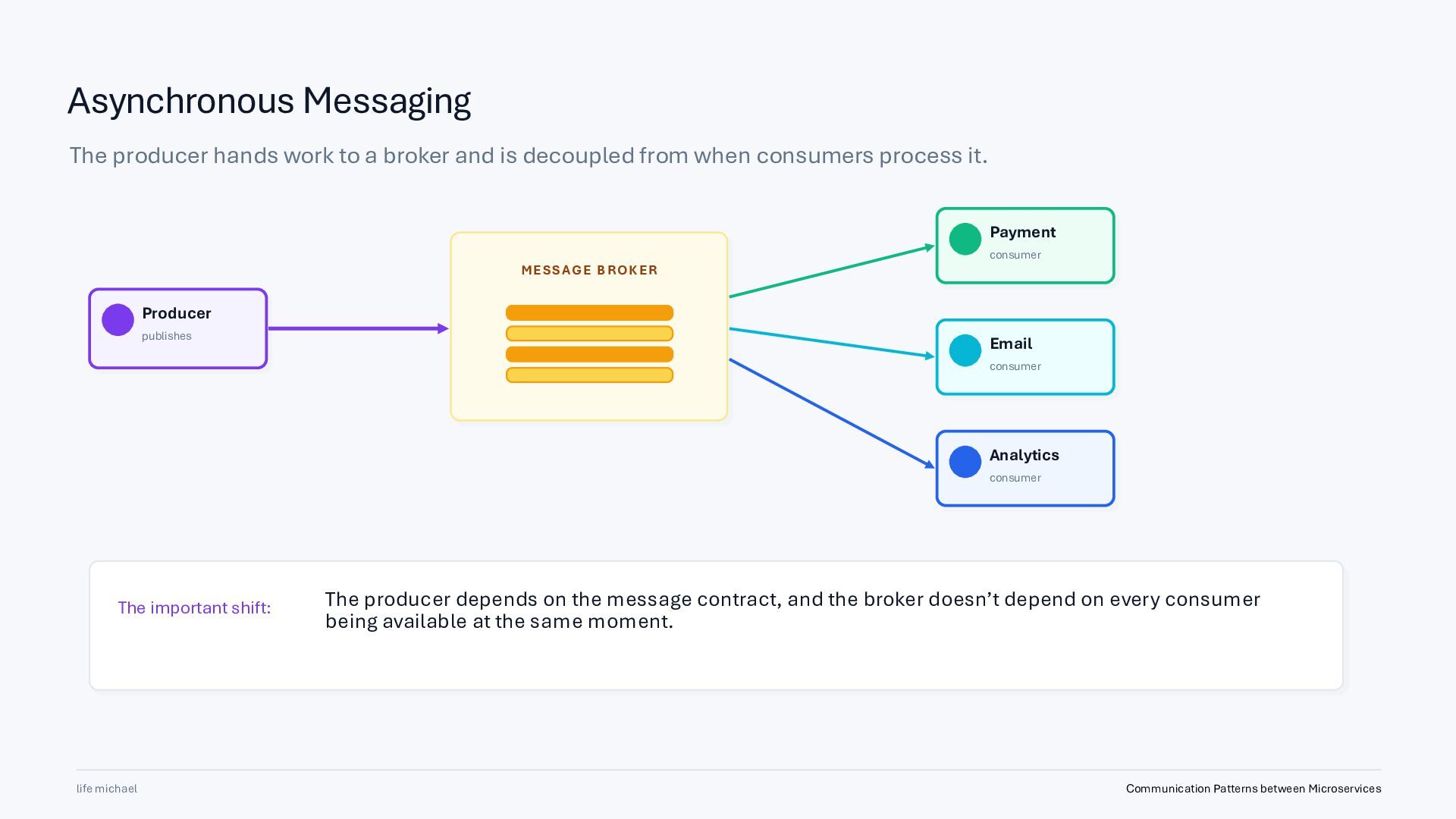

18. Asynchronous Messaging The producer hands work to a broker and is decoupled from when consumers process it. Payment MESSAGE BROKER consumer Producer publishes Email consumer Analytics consumer The important shift: life michael The producer depends on the message contract, and the broker doesn’t depend on every consumer being available at the same moment. Communication Patterns between Microservices

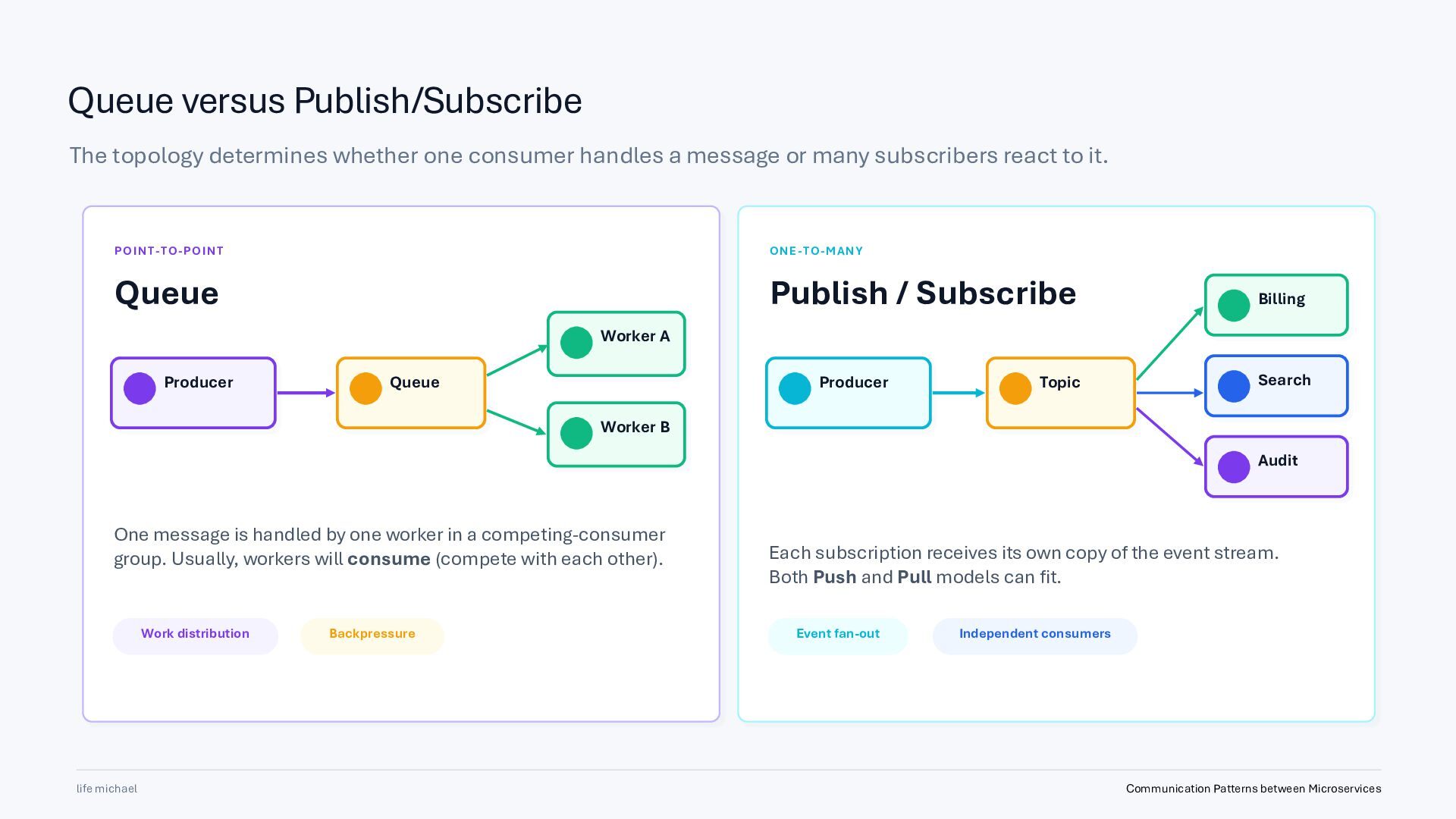

19. Queue versus Publish/Subscribe The topology determines whether one consumer handles a message or many subscribers react to it. POI NT - T O- POI NT ONE- T O- MANY Queue Publish / Subscribe Billing Worker A Producer Queue Producer Topic Search Worker B Audit One message is handled by one worker in a competing-consumer group. Usually, workers will consume (compete with each other). Work distribution life michael Backpressure Each subscription receives its own copy of the event stream. Both Push and Pull models can fit. Event fan-out Independent consumers Communication Patterns between Microservices

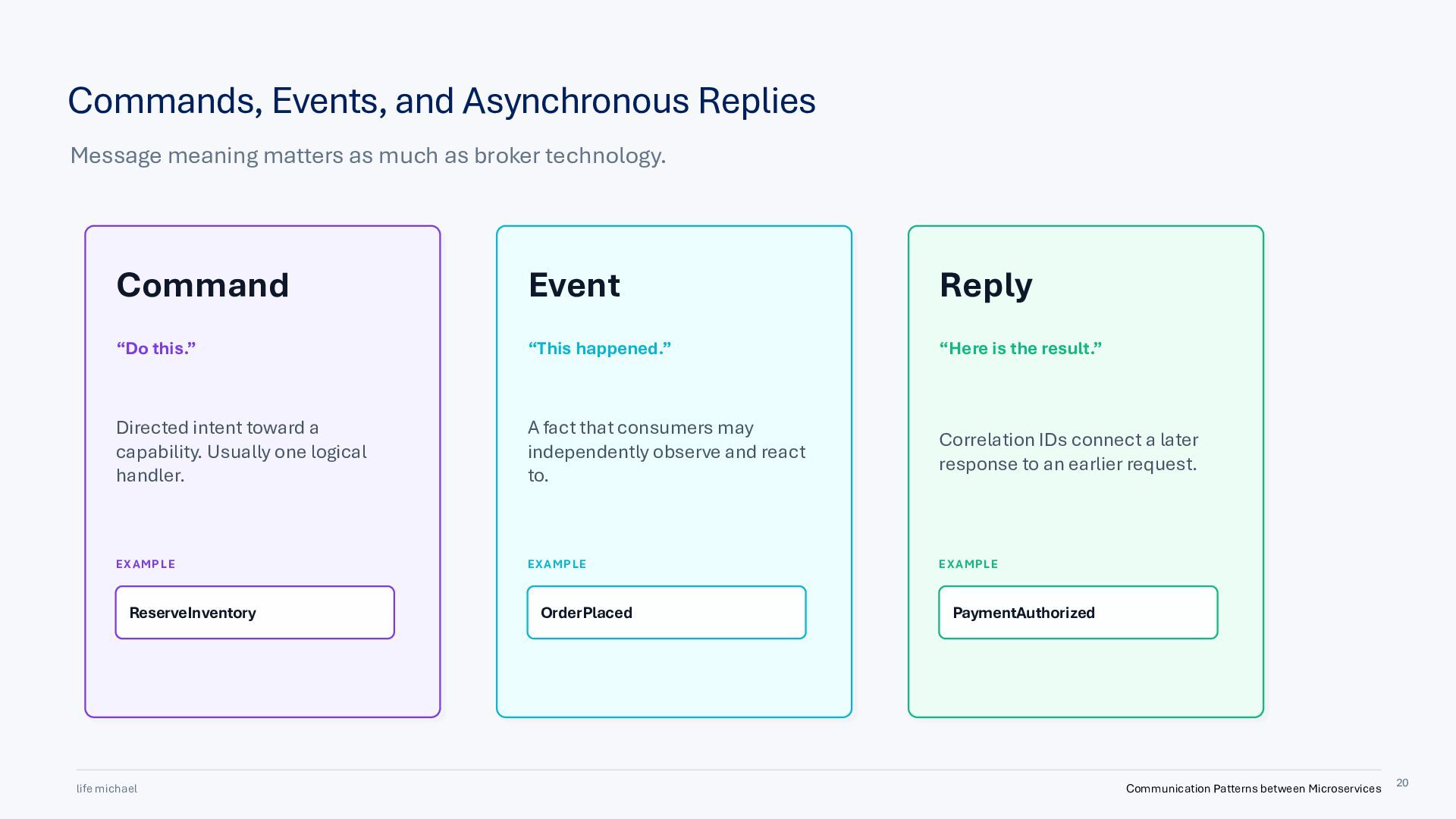

20. Commands, Events, and Asynchronous Replies Message meaning matters as much as broker technology. Command Event Reply “Do this.” “This happened.” “Here is the result.” Directed intent toward a capability. Usually one logical handler. A fact that consumers may independently observe and react to. Correlation IDs connect a later response to an earlier request. EX AMPL E EX AMPL E EX AMPL E ReserveInventory life michael OrderPlaced PaymentAuthorized Communication Patterns between Microservices 20

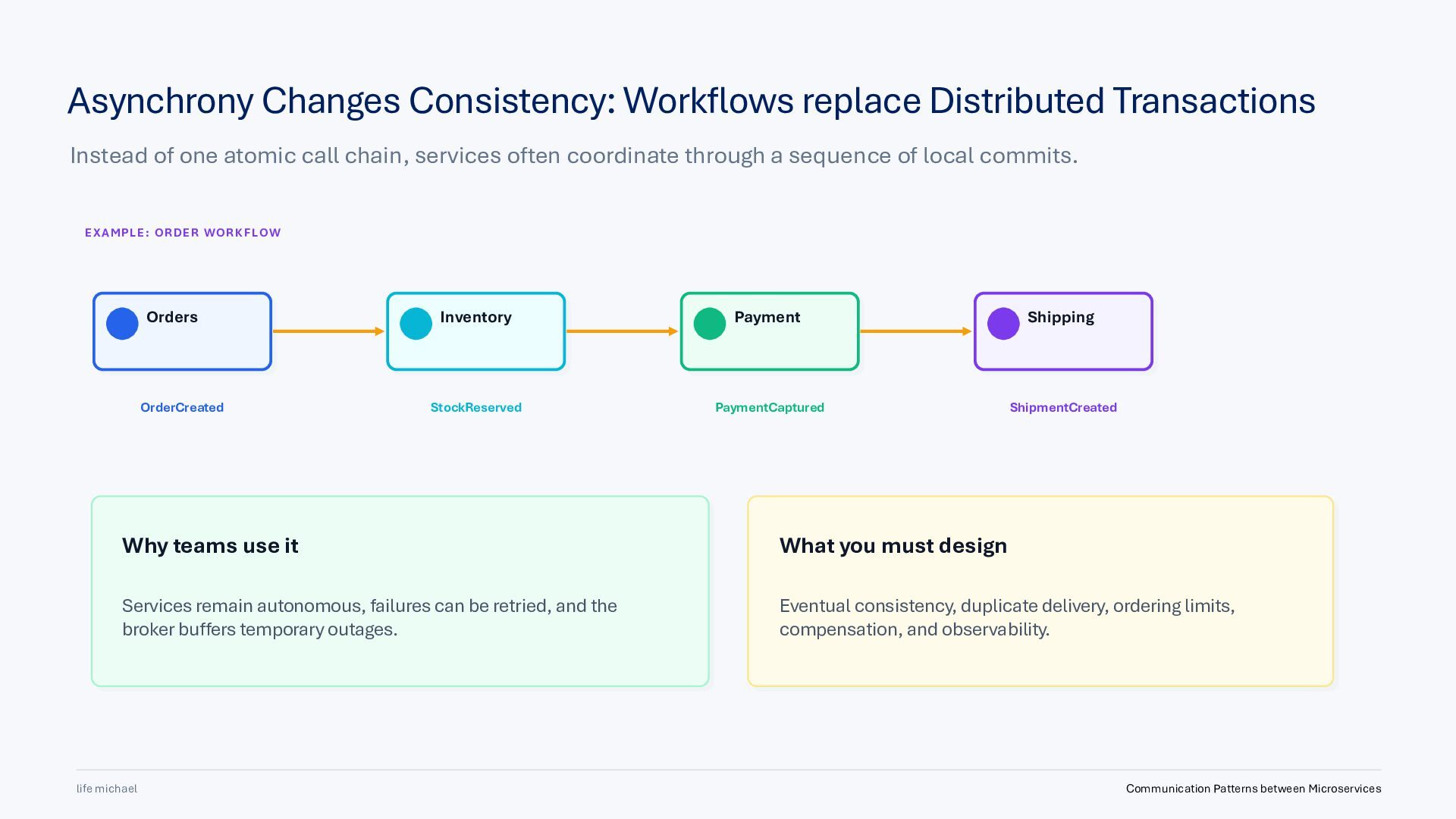

21. Asynchrony Changes Consistency: Workflows replace Distributed Transactions Instead of one atomic call chain, services often coordinate through a sequence of local commits. EX AMPL E: ORDER WORKF L OW Orders Inventory Payment Shipping OrderCreated StockReserved PaymentCaptured ShipmentCreated Why teams use it What you must design Services remain autonomous, failures can be retried, and the broker buffers temporary outages. Eventual consistency, duplicate delivery, ordering limits, compensation, and observability. life michael Communication Patterns between Microservices

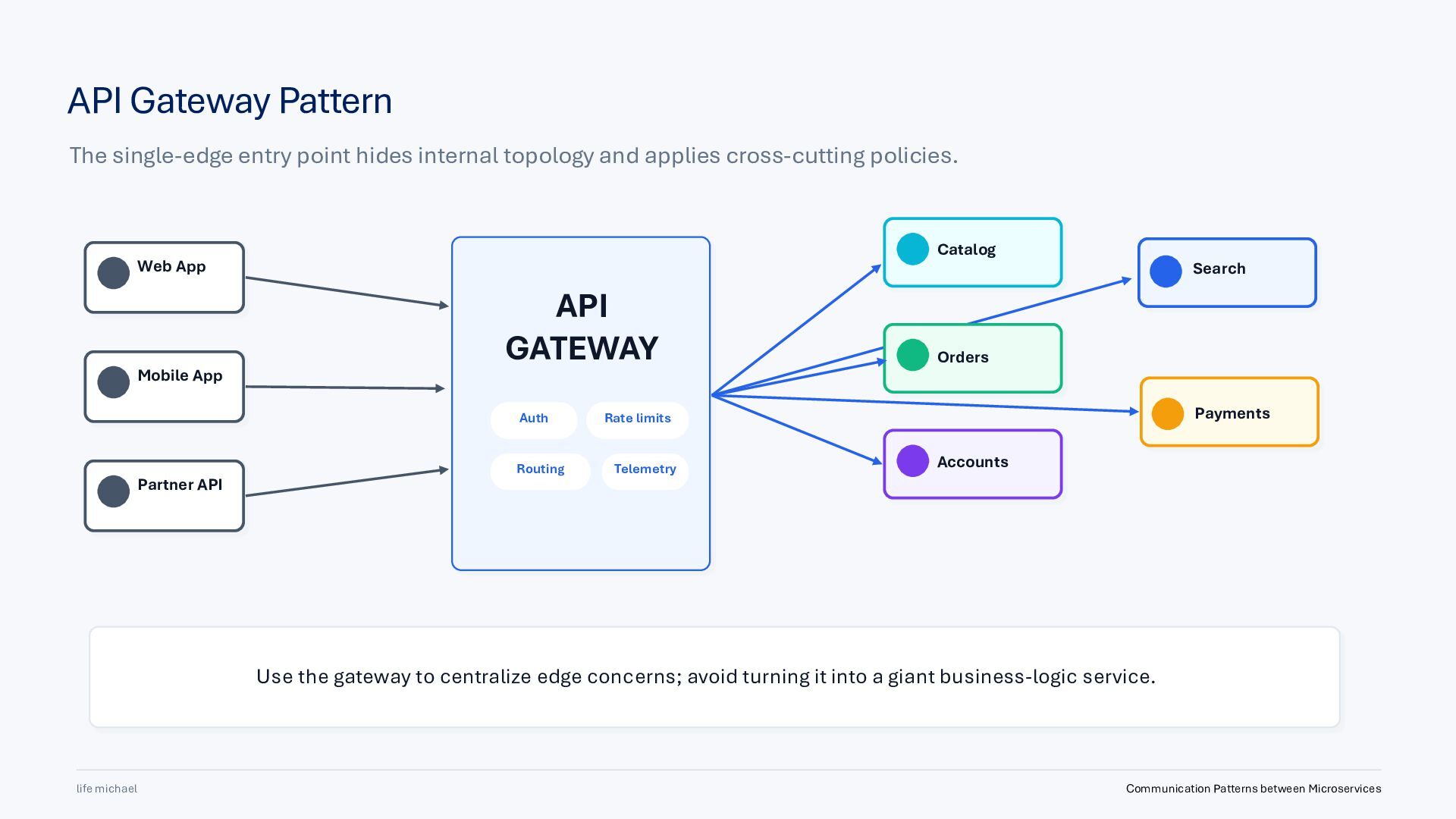

22. API Gateway Pattern The single-edge entry point hides internal topology and applies cross-cutting policies. Catalog Web App Mobile App Partner API API GATEWAY Auth Rate limits Routing Telemetry Search Orders Payments Accounts Use the gateway to centralize edge concerns; avoid turning it into a giant business-logic service. life michael Communication Patterns between Microservices

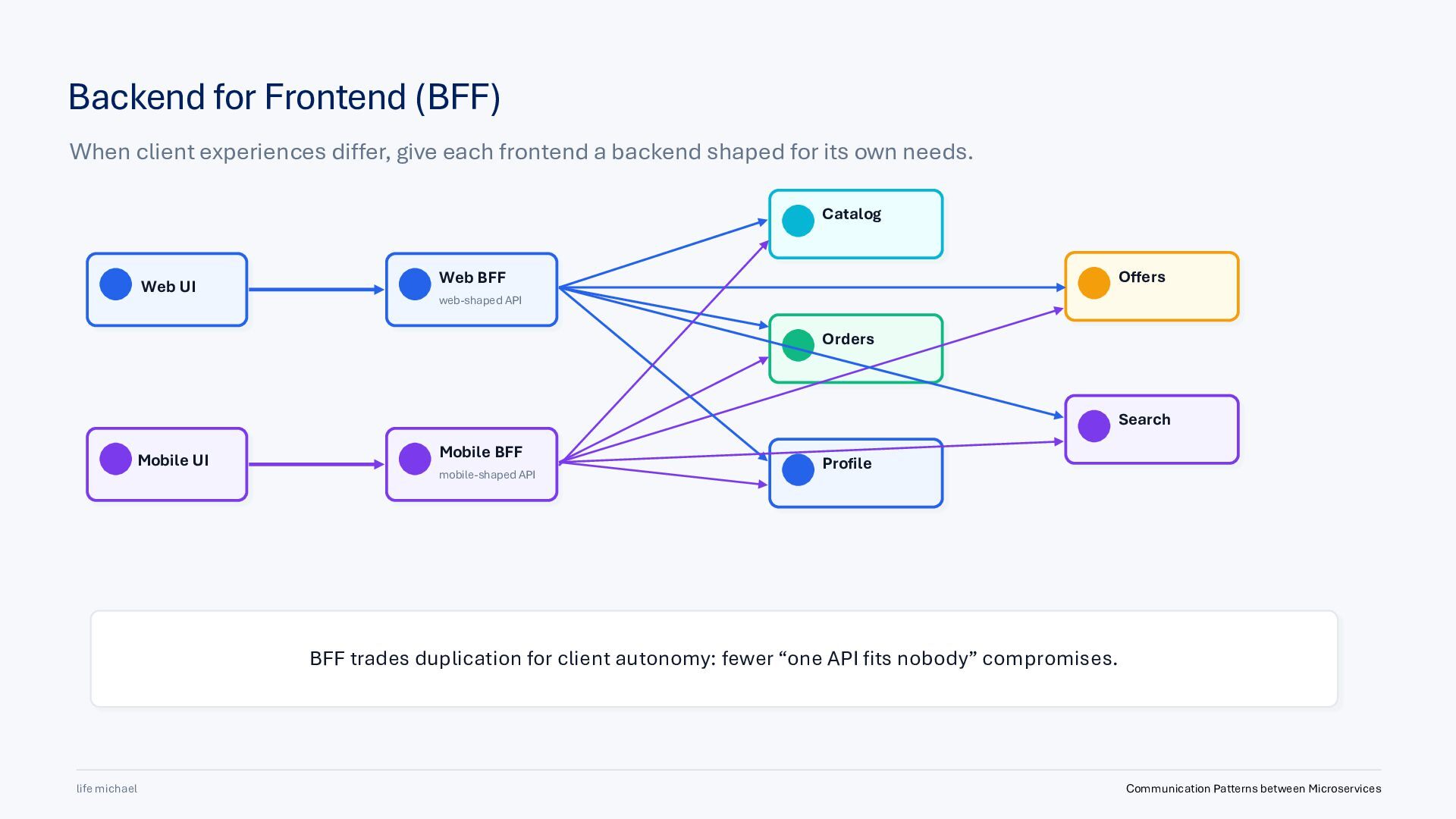

23. Backend for Frontend (BFF) When client experiences differ, give each frontend a backend shaped for its own needs. Catalog Web UI Offers Web BFF web-shaped API Orders Search Mobile UI Mobile BFF mobile-shaped API Profile BFF trades duplication for client autonomy: fewer “one API fits nobody” compromises. life michael Communication Patterns between Microservices

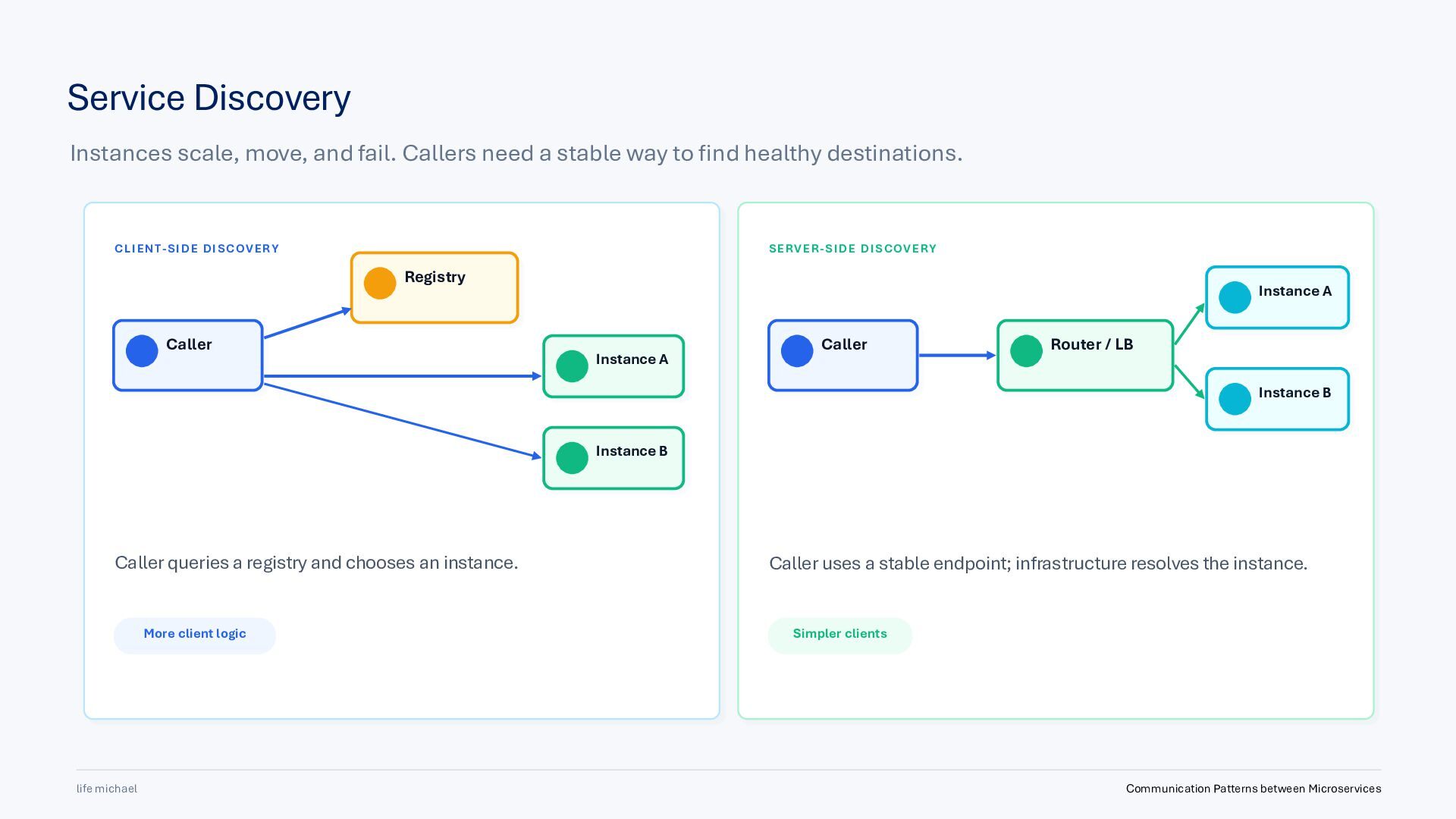

24. Service Discovery Instances scale, move, and fail. Callers need a stable way to find healthy destinations. CL I ENT - S I DE DI S COVERY S ERVER- S I DE DI S COVERY Registry Caller Instance A Instance A Caller Router / LB Instance B Instance B Caller queries a registry and chooses an instance. More client logic life michael Caller uses a stable endpoint; infrastructure resolves the instance. Simpler clients Communication Patterns between Microservices

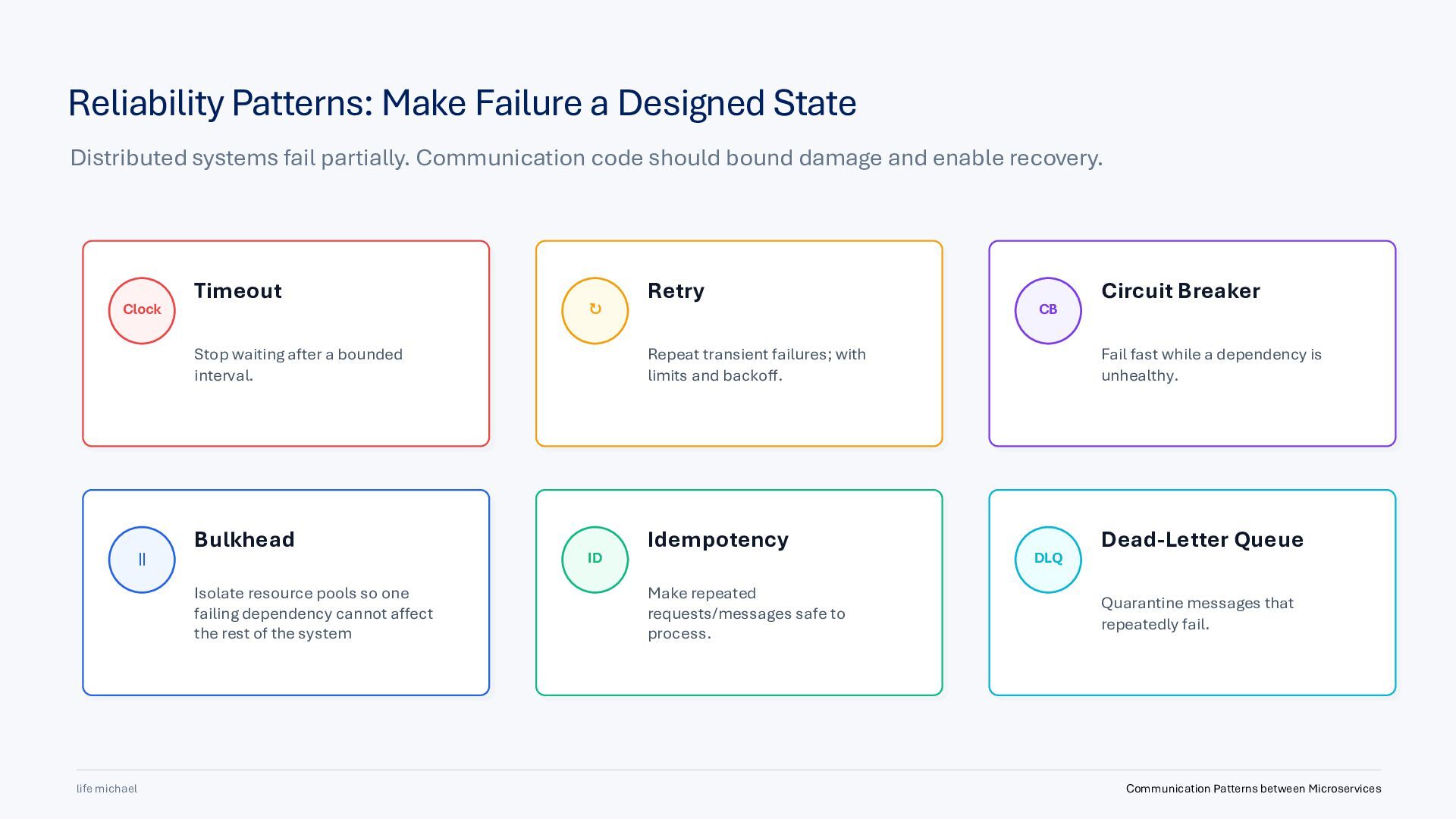

25. Reliability Patterns: Make Failure a Designed State Distributed systems fail partially. Communication code should bound damage and enable recovery. Clock Timeout ↻ Stop waiting after a bounded interval. || Bulkhead Isolate resource pools so one failing dependency cannot affect the rest of the system life michael Retry CB Repeat transient failures; with limits and backoff. ID Idempotency Make repeated requests/messages safe to process. Circuit Breaker Fail fast while a dependency is unhealthy. DLQ Dead-Letter Queue Quarantine messages that repeatedly fail. Communication Patterns between Microservices

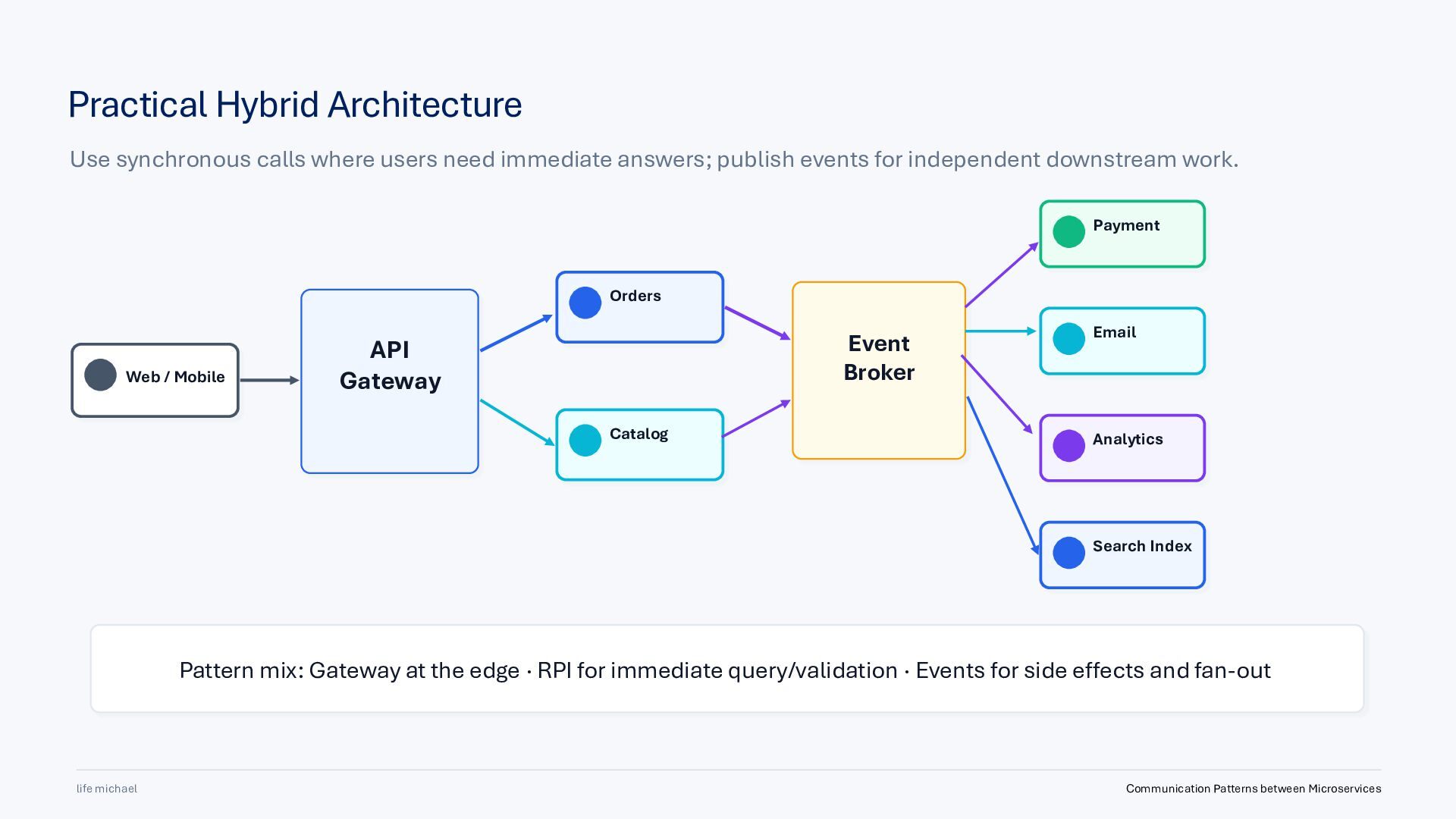

26. Practical Hybrid Architecture Use synchronous calls where users need immediate answers; publish events for independent downstream work. Payment Orders Web / Mobile Event Broker API Gateway Catalog Email Analytics Search Index Pattern mix: Gateway at the edge · RPI for immediate query/validation · Events for side effects and fan-out life michael Communication Patterns between Microservices
