Living Walls Knowledge Transfer Day - 15 April 2014 (05/13 Dr Sarah Milliken)

Living Walls Knowledge Transfer Day - 15 April 2014 (05/13 Dr Sarah Milliken)

Please see more details and information on: http://lanyrd.com/2014/livingwalls/

Dr Sarah Milliken, Sustainable Landscapes Research Group, University of Greenwich

Dr Sarah Milliken is a landscape architect and Research Assistant in the Sustainable Landscapes Research Group and the Green Roofs and Living Walls Centre at the University of Greenwich. She originally trained as an archaeologist, and has taught at various universities in the UK, Ireland and Italy. A keen interest in environmental issues, and a desire to be able actively to address them, recently led her to undertake postgraduate qualifications in landscape architecture and urban sustainability. Her research interests include the design of decision support tools for ecological restoration, the role of temporary urbanism in contemporary placemaking, and how the economic and non-monetary evaluation of ecosystem services can be integrated into the discourse and praxis of urban planning and design.

More Decks by Green Roof and Living Wall Centre - University of Greenwich

Other Decks in Education

Transcript

  1. Living walls: An overview of recent research Department of Architecture

    and Landscape Green Roofs and Living Walls Centre Dr Sarah Milliken
  2. 0 2 4 6 8 10 12 14 16 1988

    1990 1992 1994 1996 1998 2000 2002 2004 2006 2008 2010 2012 2014 0 10 20 30 40 50 60 70 80 1969 1971 1973 1975 1977 1979 1981 1983 1985 1987 1989 1991 1993 1995 1997 1999 2001 2003 2005 2007 2009 2011 Living walls/facades Green roofs Data from Blank et al. 2013
  3. 0 2 4 6 8 10 12 1988 1989 1990

    1991 1992 1993 1994 1995 1996 1997 1998 1999 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Thermal performance/Urban Heat Island Noise pollution Air pollution Biodiversity
  4. Ecosystem services Regulating services • Reduction of summer air temperature

    • Reduction of emissions • Carbon storage and sequestration • Stormwater attenuation • Removal of air pollutants CO, VOCs, O 3 , PM 10 , SO2 , NO2 • Reduction of noise pollution Habitat services • Biodiversity Cultural services • Quality of place • Health and well-being Provisioning services • Urban agriculture

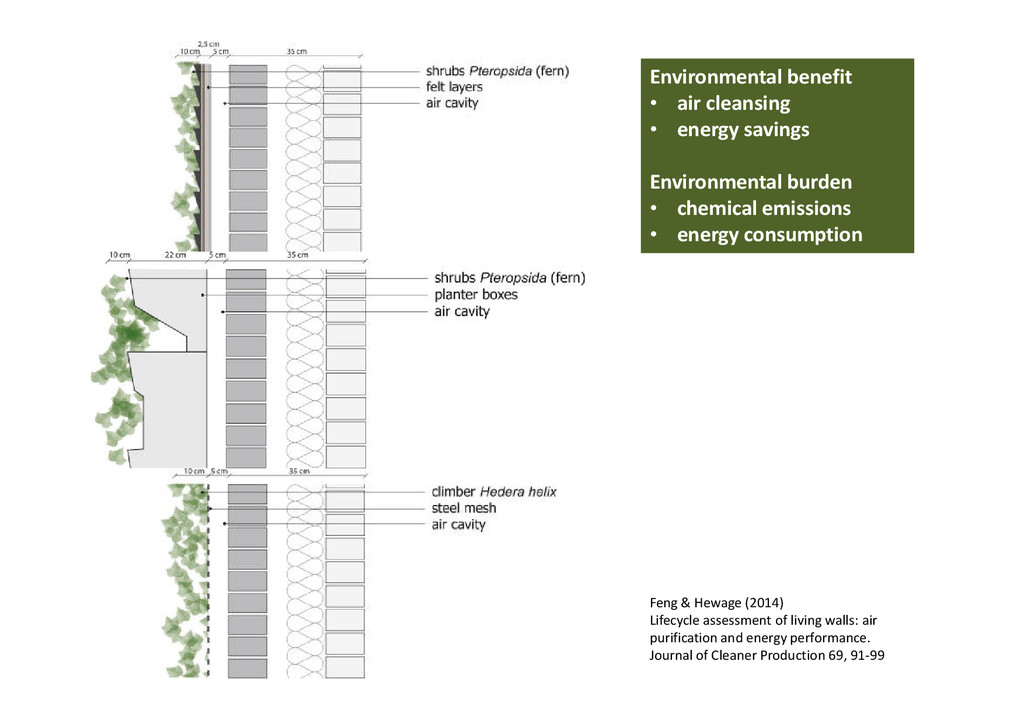

  5. Feng & Hewage (2014) Lifecycle assessment of living walls: air

    purification and energy performance. Journal of Cleaner Production 69, 91-99 Environmental benefit • air cleansing • energy savings Environmental burden • chemical emissions • energy consumption
  6. Feng & Hewage (2014) Lifecycle assessment of living walls: air

    purification and energy performance. Journal of Cleaner Production 69, 91-99
  7. Cost Benefit Analysis • initial costs • maintenance costs •

    disposal costs • increase of property value • increased building envelope longevity • energy demand reduction for heating and air conditioning • socioeconomic benefits from air quality improvement and carbon reduction (habitat creation, aesthetic impact, UHI mitigation)
  8. Perini & Rosasco (2013) Cost benefit analysis for green façades

    and living wall systems. Building and Environment 70, 110-121 Mesh 2A: HDPE mesh 2B: steel mesh Mesh and planter boxes 3A: HDPE mesh/planter boxes 3B: steel mesh/planter boxes Geotextile Direct green façade

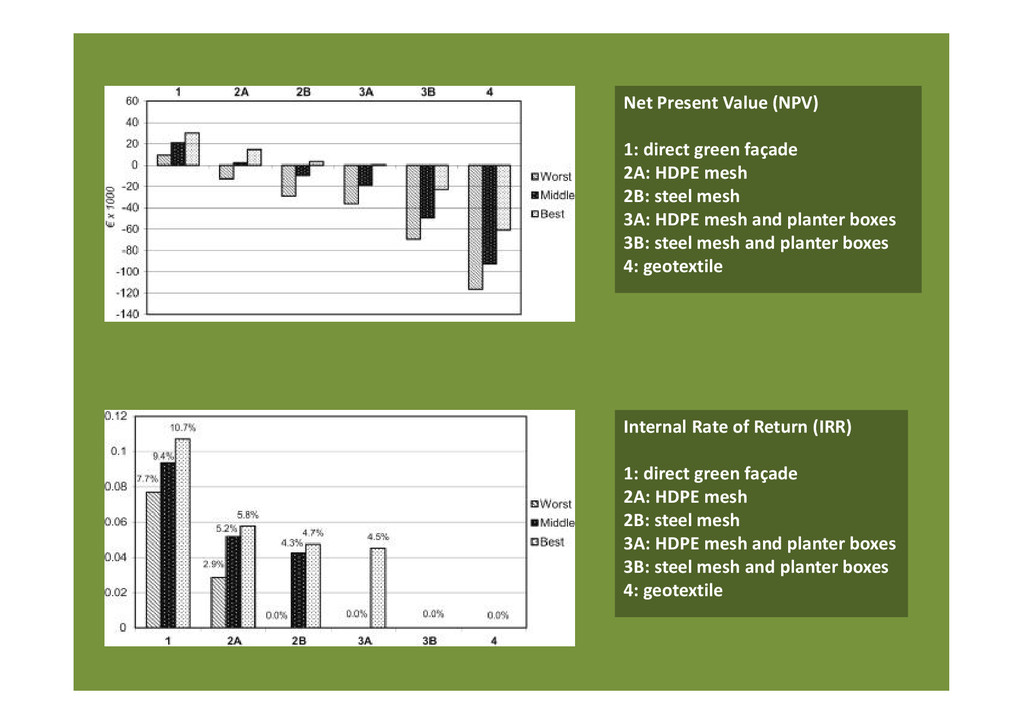

  9. Net Present Value (NPV) 1: direct green façade 2A: HDPE

    mesh 2B: steel mesh 3A: HDPE mesh and planter boxes 3B: steel mesh and planter boxes 4: geotextile Internal Rate of Return (IRR) 1: direct green façade 2A: HDPE mesh 2B: steel mesh 3A: HDPE mesh and planter boxes 3B: steel mesh and planter boxes 4: geotextile
  10. Ecosystem services Regulating services • Reduction of summer air temperature

    • Reduction of emissions • Carbon storage and sequestration • Stormwater attenuation • Removal of air pollutants CO, VOCs, O 3 , PM 10 , SO2 , NO2 • Reduction of noise pollution Habitat services • Biodiversity Cultural services • Quality of place • Health and well-being Provisioning services • Urban agriculture
